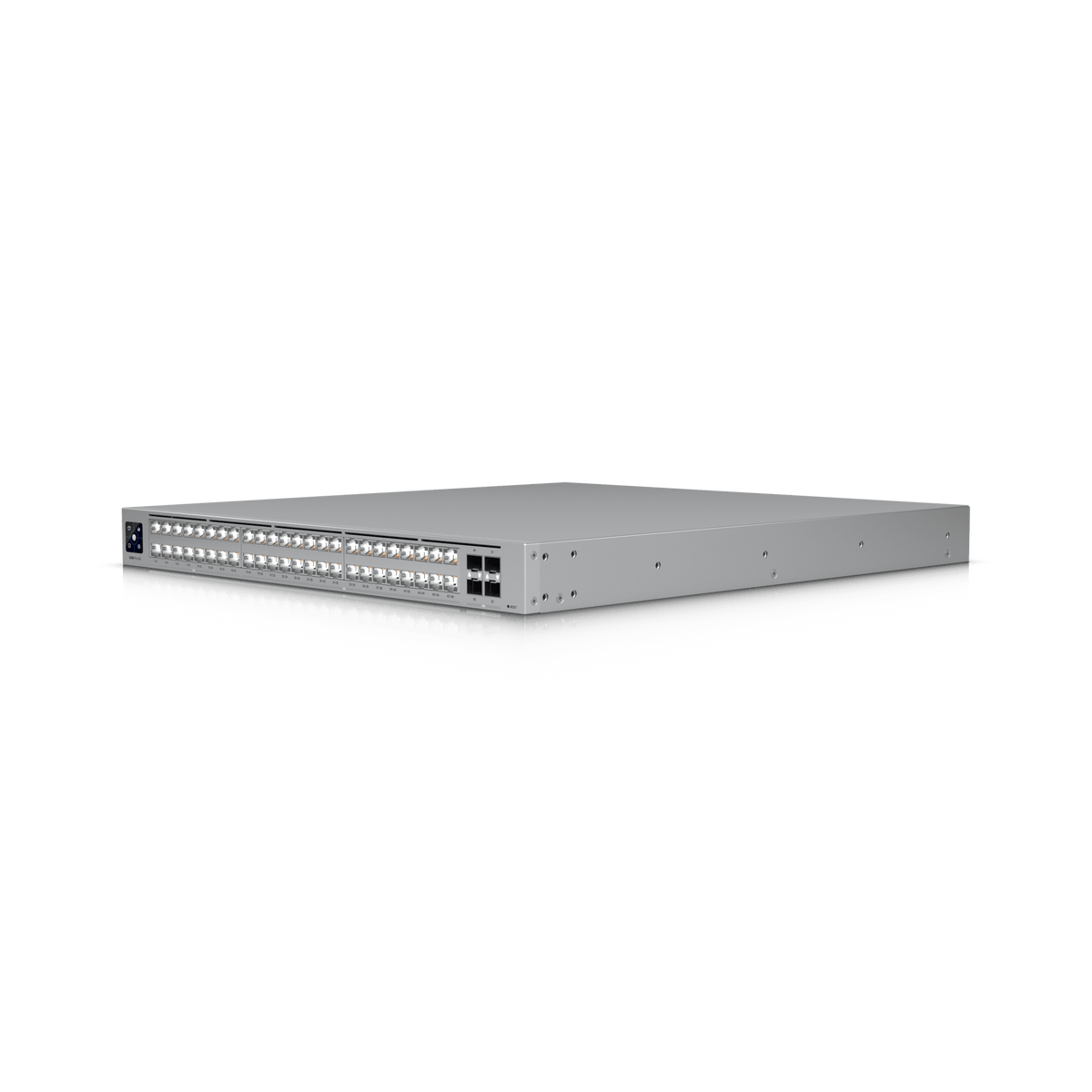

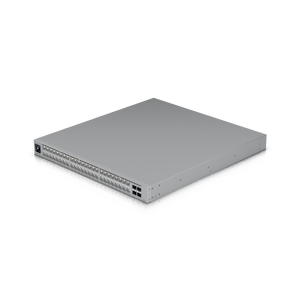

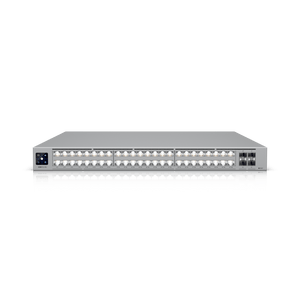

Ubiquiti USW-Pro-XG-48 Pro XG 48-Port L3 10GbE Etherlighting Switch

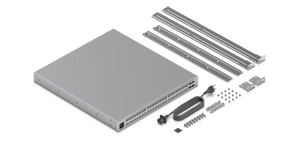

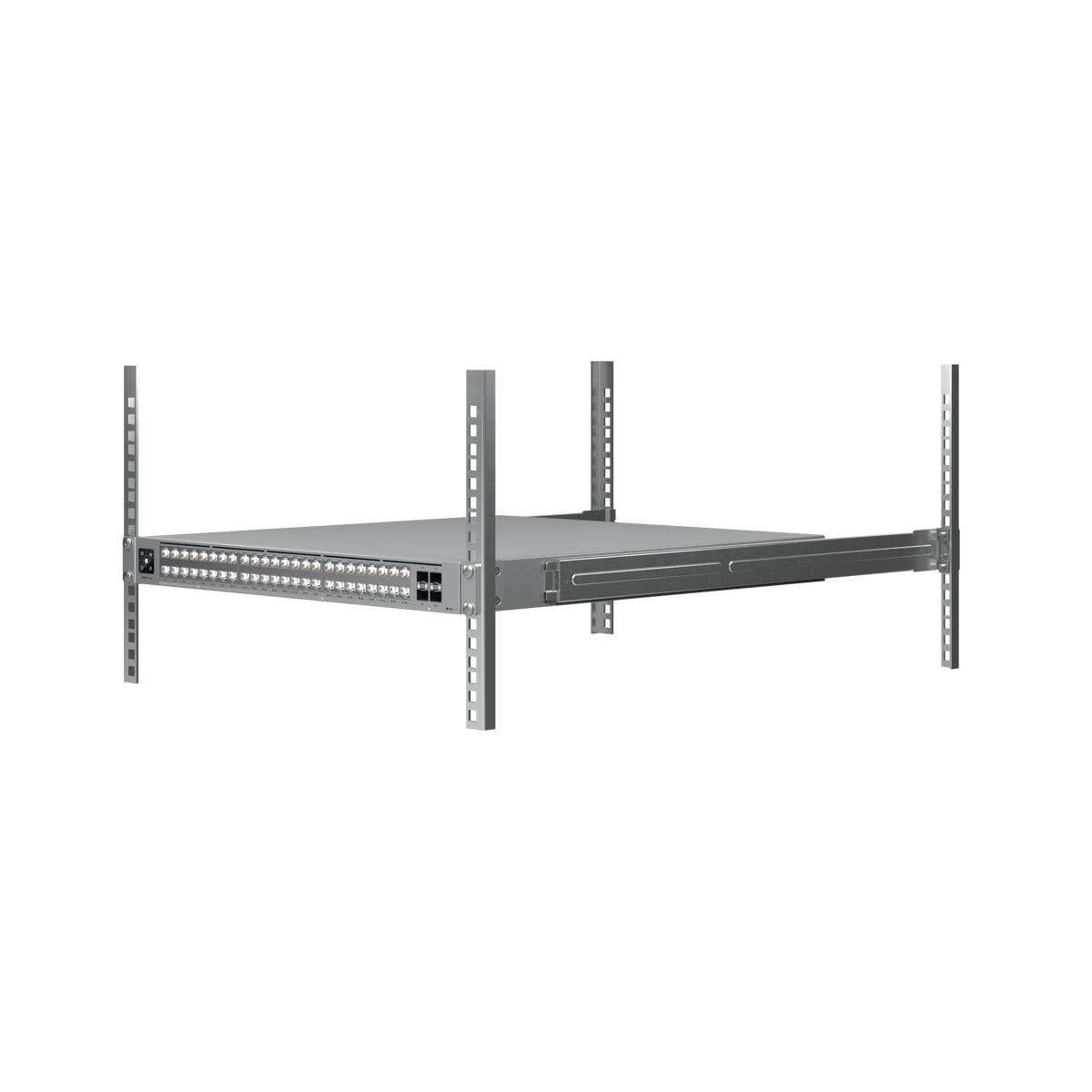

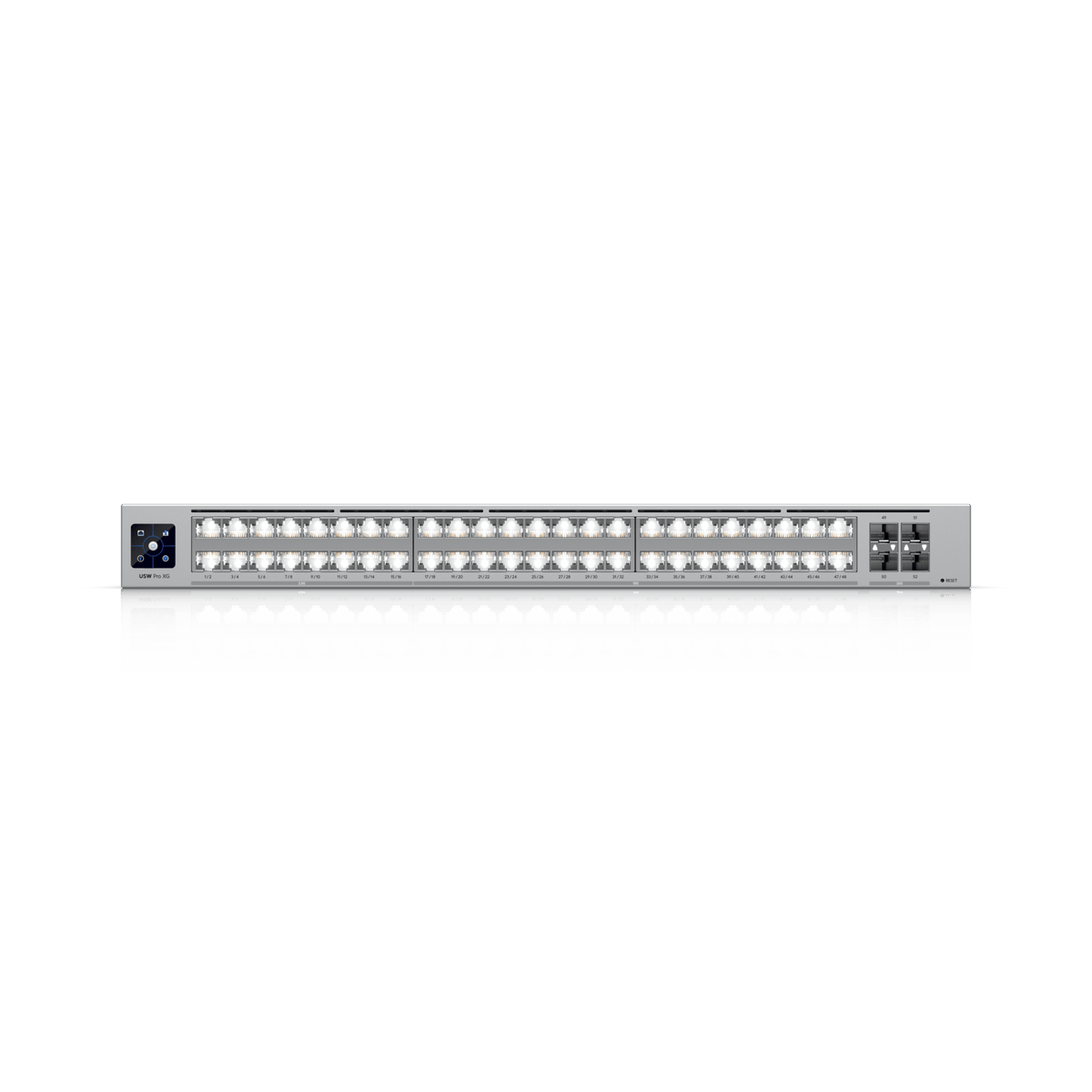

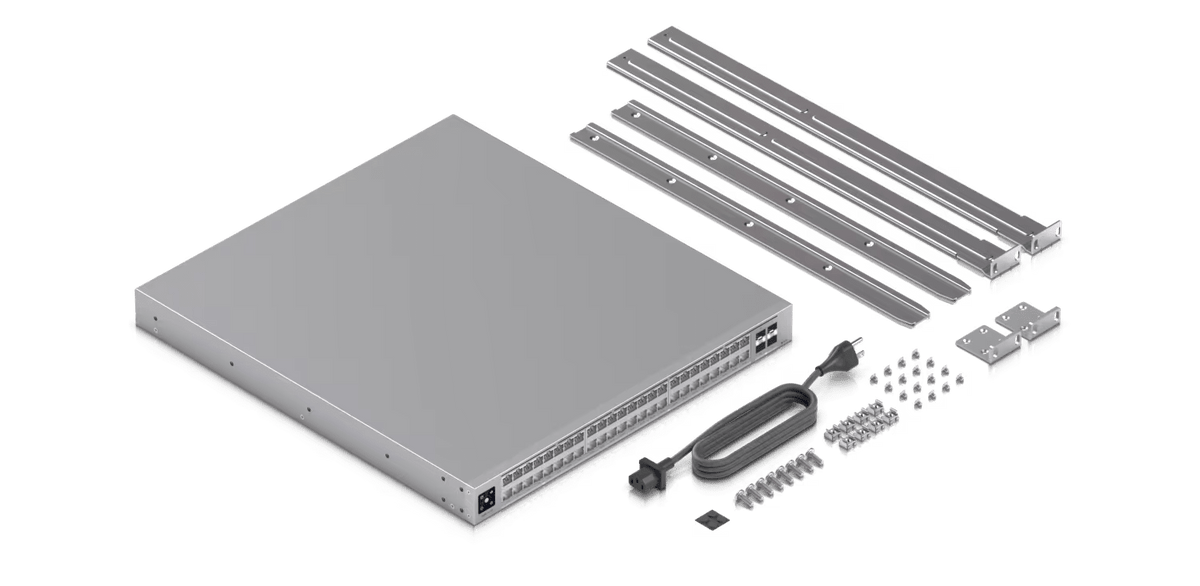

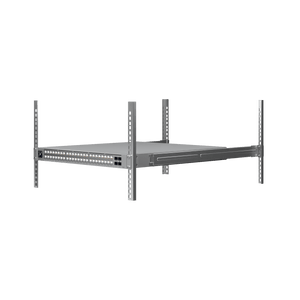

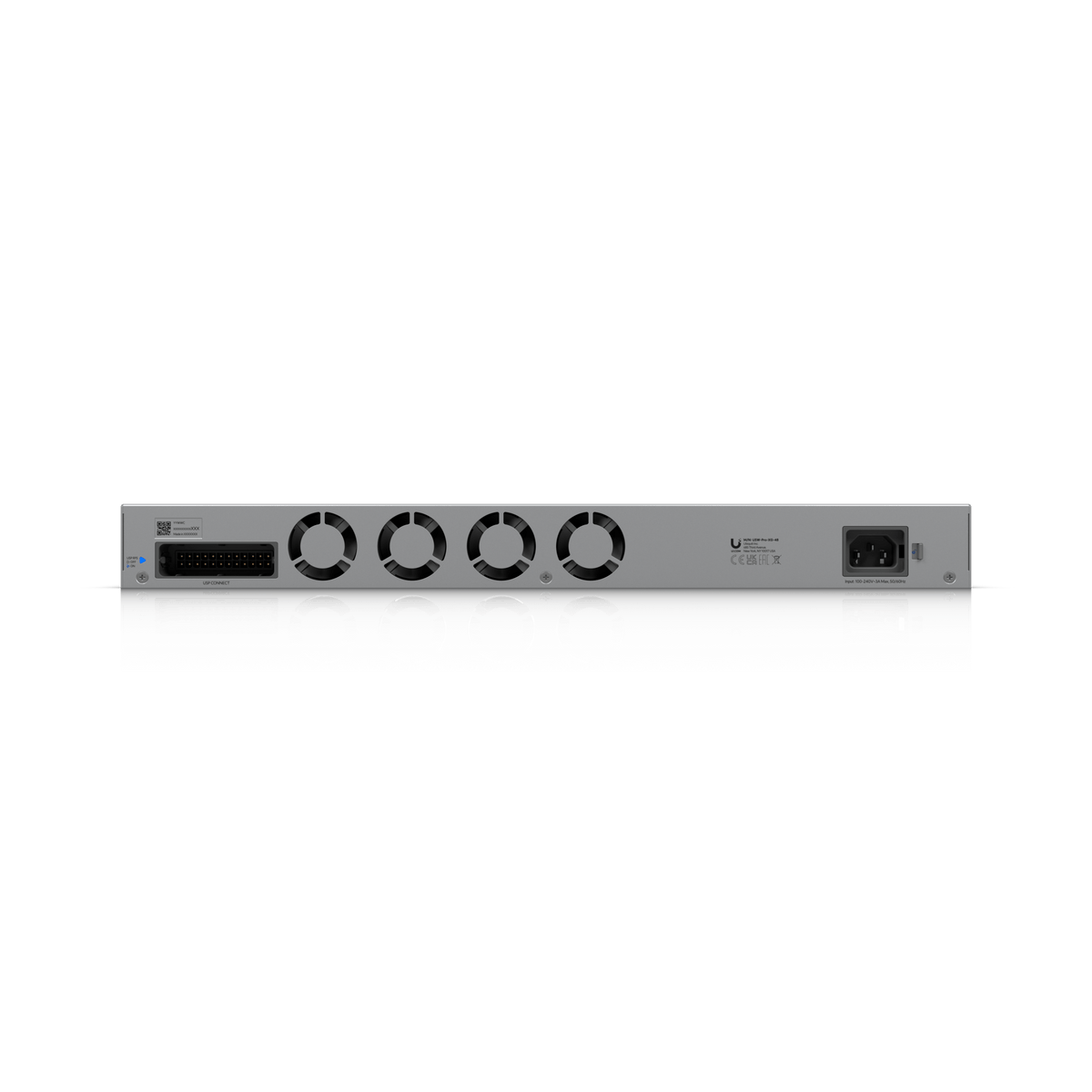

High-Capacity 10GbE Switch for Advanced Enterprise Networks The Ubiquiti USW-Pro-XG-48 is a robust Layer 3 10GbE rackmount switch designed for high-performance enterprise environments. Combining high throughput, advanced Layer 2 and Layer 3 features, and Etherlighting™ technology, it offers reliable, scalable, and secure connectivity for demanding network infrastructures. Highlights 48 Ports Total: 32× 10 GbE RJ45, 16× 2.5 GbE RJ45, 4× 25G SFP28 for versatile high-speed connectivity 920 Gbps Switching Capacity: Non-blocking throughput up to 460 Gbps with forwarding rate of 684 Mpps Advanced Layer 3 Routing: Supports DHCP Server/Relay, Inter-VLAN, static routing for complex network management Comprehensive Layer 2 Features: LACP, STP/RSTP, IGMP snooping, 802.1X, ACLs, port isolation, jumbo frames, and more Etherlighting™ Support: Integrated lighting control protocol for unified network and lighting management 1U Rackmount Form Factor: Compact design with durable SGCC steel enclosure and mounting hardware included Power Redundancy: Internal 300W AC/DC power supply with DC power backup and USP RPS input support 1.3" Touchscreen LCD: Onboard display for easy monitoring and configuration NDAA Compliant and certified for CE, FCC, and IC standards Key Features Port and Performance Specifications Port Layout: • 32× 10 GbE RJ45 supporting 10G/5G/2.5G/1G/100M/10M speeds • 16× 2.5 GbE RJ45 supporting 2.5G/1G/100M/10M speeds • 4× 25G SFP28 ports supporting 25G/10G/1G speeds High Throughput: • 920 Gbps switching capacity with 460 Gbps total non-blocking throughput • 684 million packets per second forwarding rate Advanced Layer 3 Features Routing and DHCP: Local DHCP server, DHCP relay, inter-VLAN routing, static routing Large Tables: 128,000 ARP entries, 256,000 IPv4 routes, 128,000 MAC address table size Comprehensive Layer 2 Features Port Aggregation: LACP support for link redundancy and increased bandwidth Network Security: 802.1X, MAC-based ACLs, DHCP snooping and guarding, IP-based ACLs Traffic Management: Egress rate limiting, storm control, multicast/broadcast rate limiting, flow control Other: Port isolation, port mirroring, jumbo frames support, loop protection, voice VLAN Hardware and Build Power: 250W max consumption, 300W internal AC/DC power supply, supports DC power backup and USP RPS input Dimensions: 442 × 480 × 44 mm (17.4 × 18.9 × 1.7 inches) Weight: 7.5 kg (without mounting brackets), 7.6 kg (with brackets) Enclosure: Durable SGCC steel chassis with compatible mounting hardware for 19" four-post racks (supports depths 600-1066 mm) Environmental: Operating temperature -5 to 40°C, humidity 10–90% non-condensing ESD Protection: Air ±30kV, contact ±14kV Summary / Conclusion The Ubiquiti USW-Pro-XG-48 is an enterprise-grade Layer 3 switch delivering ultra-high bandwidth, extensive routing capabilities, and powerful Layer 2 features in a compact 1U form factor. With multi-speed ports including 25G SFP28, advanced network security, and Etherlighting™ support, it is tailored for modern data centers and high-demand networks requiring performance, reliability, and scalability. 続きを読む
