Ubiquiti USP-PDU-HD Power Distribution Hi-Density 24-Port Managed Rackmount PDU
商品説明
High-Density Power Management for Large UniFi Deployments
Global Edition: IEC socket and EU/UK adapter for international use.
Deliver efficient and intelligent power distribution across your entire rack system with the Ubiquiti USP-PDU-HD. Designed for large-scale UniFi hardware installations, this high-density power distribution unit (PDU) offers 24 managed power outlets, USB-C charging ports, and full UniFi Network integration for smart monitoring, automation, and redundancy. Built with enterprise-grade reliability, it ensures safe, controlled power delivery for mission-critical network operations.
Highlights
-
24 Managed Power Outlets: Supports large-scale UniFi racks with per-bank load balancing.
-
High Power Capacity: 3,000W rated output (3,750W max) for dense rack deployments.
-

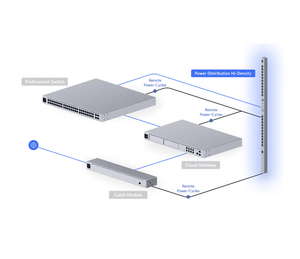

Smart Power Control: Fully integrated with UniFi Network for remote outlet management and monitoring.
-
4 USB-C Power Ports: 5VDC, 2A per port (20W total) for powering accessories and IoT devices.
-
Network Redundancy: Multiple Gigabit Ethernet ports ensure consistent communication uptime.
-
Durable Rack Integration: Compatible with UACC-Rack-42U for seamless mounting.
-
Built-In Display: 1.3" touchscreen for live monitoring of load, temperature, and status.
Key Features
Intelligent Power Control and Monitoring
-
24 Individually Managed Outlets: Organized into two power banks for optimized current distribution.
-
Smart UniFi Management: Enables outlet scheduling, automation, and current load monitoring.
-

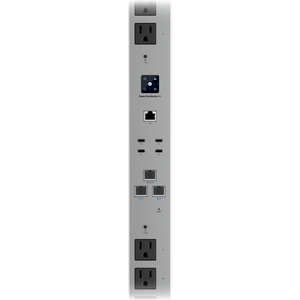

Network Redundancy: (1) 10/100 MbE + (3) GbE RJ45 ports ensure continuous management access.
-
Touchscreen Interface: 1.3" display for system diagnostics, outlet control, and load visualization.
-
Future Integration Ready: Designed for evolving UniFi Network power ecosystem.
Enterprise-Grade Electrical Performance
-
High Power Capacity: Rated at 24A (3,000W) and supports up to 30A (3,750W) max output.
-
Dual Power Banks: Distributes power evenly across two 12-outlet banks for efficiency and stability.
-
ESD/EMP Protection: Provides up to ±8kV air and ±4kV contact discharge protection.
-
Circuit Breaker Protection: Built-in breaker ensures safe operation and overload prevention.
-
USB-C Power Outputs: 5VDC at 2A per port for charging UniFi accessories or powering low-voltage devices.
Durable and Scalable Design
-
SGCC Steel Construction: Provides exceptional strength and electrical safety.
-

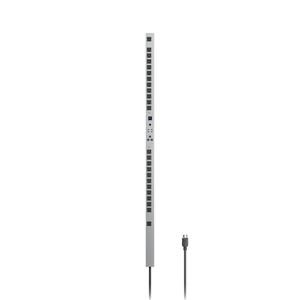

High-Density Form Factor: 1,485 mm vertical length supports full-rack installations.
-
Lightweight for Its Class: Weighs just 6.3 kg for easy mounting and maintenance.
-
Optimized for UACC-Rack-42U: Mounts cleanly alongside UniFi servers, switches, and UPS units.
-
Temperature and Humidity Resilience: Operates from 0°C to 40°C, up to 90% noncondensing humidity.
Summary / Conclusion
The Ubiquiti USP-PDU-HD delivers professional-grade power management for large UniFi rack systems. With 24 managed outlets, redundant Ethernet connectivity, and UniFi OS integration, it enables smart, centralized control of power distribution in high-density environments. Combining robust build quality, safety features, and intuitive monitoring, this PDU is the backbone of any enterprise-grade UniFi deployment.
仕様
Ubiquiti USP-PDU-HD Power Distribution Hi-Density
Global Edition: IEC socket and EU/UK adapter for international use.
The Ubiquiti UniFi USP-PDU-HD is a high-density rackmount power distribution unit engineered to support large-scale UniFi hardware deployments. With 24 managed power outlets, redundant Ethernet connectivity, and integrated touchscreen controls, it offers advanced rack power management for enterprise and data center environments. Designed to pair perfectly with the UACC-Rack-42U, it delivers both scalability and reliability across demanding network infrastructures.
Product Specifications
| Specification | Details |
|---|---|
| Description | High-density managed PDU designed for powering large rack-mounted UniFi hardware installations |
| Compatibility | UACC-Rack-42U |
| Dimensions (H×W×D) | 1485 × 55 × 56 mm (58.5 × 2.17 × 2.2 in) |
| Weight | 6.3 kg (13.9 lb) |
| Enclosure Material | SGCC steel |
| Management | Ethernet |
| Networking Interface | (1) 10/100 MbE RJ45 port, (3) GbE RJ45 ports for network redundancy |
| Power Method | 100–125V AC, 30A Max (Derated to 24A), 50/60 Hz, NEMA L5-30P plug |
| Power Output | (24) Managed 125V AC outlets divided into 2 banks: • Bank 1 (Ports 1–12): 12A rated / 15A max at 125V AC (1500W / 1875W) • Bank 2 (Ports 17–28): 12A rated / 15A max at 125V AC (1500W / 1875W) Total Output: 24A rated / 30A max at 125V AC (3000W / 3750W) |
| USB Ports | (4) USB Type-C ports, 5V DC, 2A per port (20W total) |
| ESD/EMP Protection | Air: ±8kV, Contact: ±4kV |
| Display | 1.3" touchscreen |
| Buttons | Factory Reset, Circuit Breaker |
| Ambient Operating Temperature | 0 to 40° C (32 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Compliance | NDAA compliant |
| Certifications | FCC, IC |
