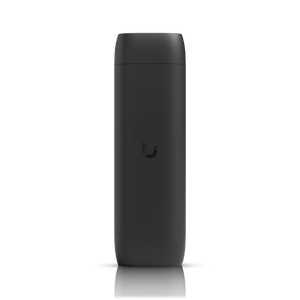

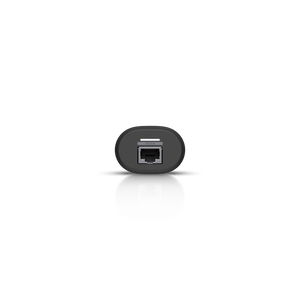

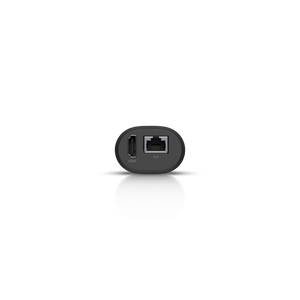

Ubiquiti UP-VIEWPORT Protect Viewport

Seamless 4K Camera Feed Viewing The Ubiquiti UFP-VIEWPORT Protect Viewport allows you to easily view camera feeds from your UniFi Protect system on any HDMI display, with support for up to 16-stream matrix view and output up to 4K resolution at 30 FPS. This device is ideal for environments where continuous monitoring of camera streams is required. Key Features 4K HDMI Output: Supports video output up to 4K @ 30 FPS, ensuring crystal-clear surveillance footage on a connected display. Matrix View: Allows for a 16-stream matrix view, providing comprehensive monitoring of multiple camera feeds simultaneously. PoE Power: Powered via Power over Ethernet (PoE), simplifying the setup with just one cable for both power and connectivity. Flexible Mounting: Can be mounted easily in various environments, adding flexibility to your surveillance setup. Bluetooth 5.0: Integrated Bluetooth for wireless setup and management. Technical Specifications Specification Details Processor Octa-core ARM® Memory 4 GB low power DDR4X Networking Interface (1) GbE RJ45 port Power Method PoE Max. Power Consumption 9.5W HDMI Output Up to 4K @ 30 FPS ESD/EMP Protection Air: ±8kV, contact: ±4kV Bluetooth Bluetooth 5.0 Antenna Gain 2 dB Summary The Ubiquiti UFP-VIEWPORT Protect Viewport is a reliable solution for displaying multiple camera streams on a 4K HDMI display. With PoE power, flexible mounting, and support for 16-stream matrix view, it’s a valuable addition for any UniFi Protect surveillance system. 続きを読む
