Ubiquiti UACC-SSD-Tray M.2 NVMe SSD Storage Insert Tray for Cloud Gateway

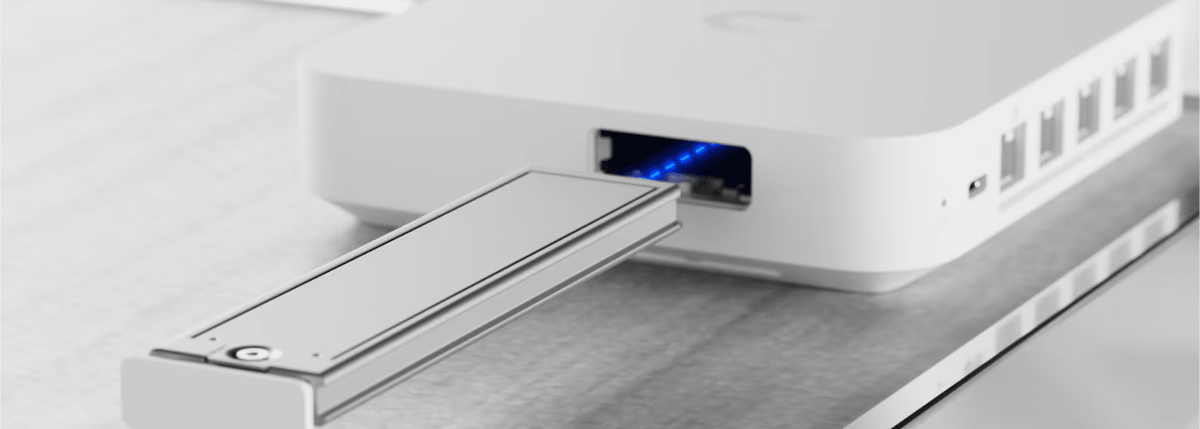

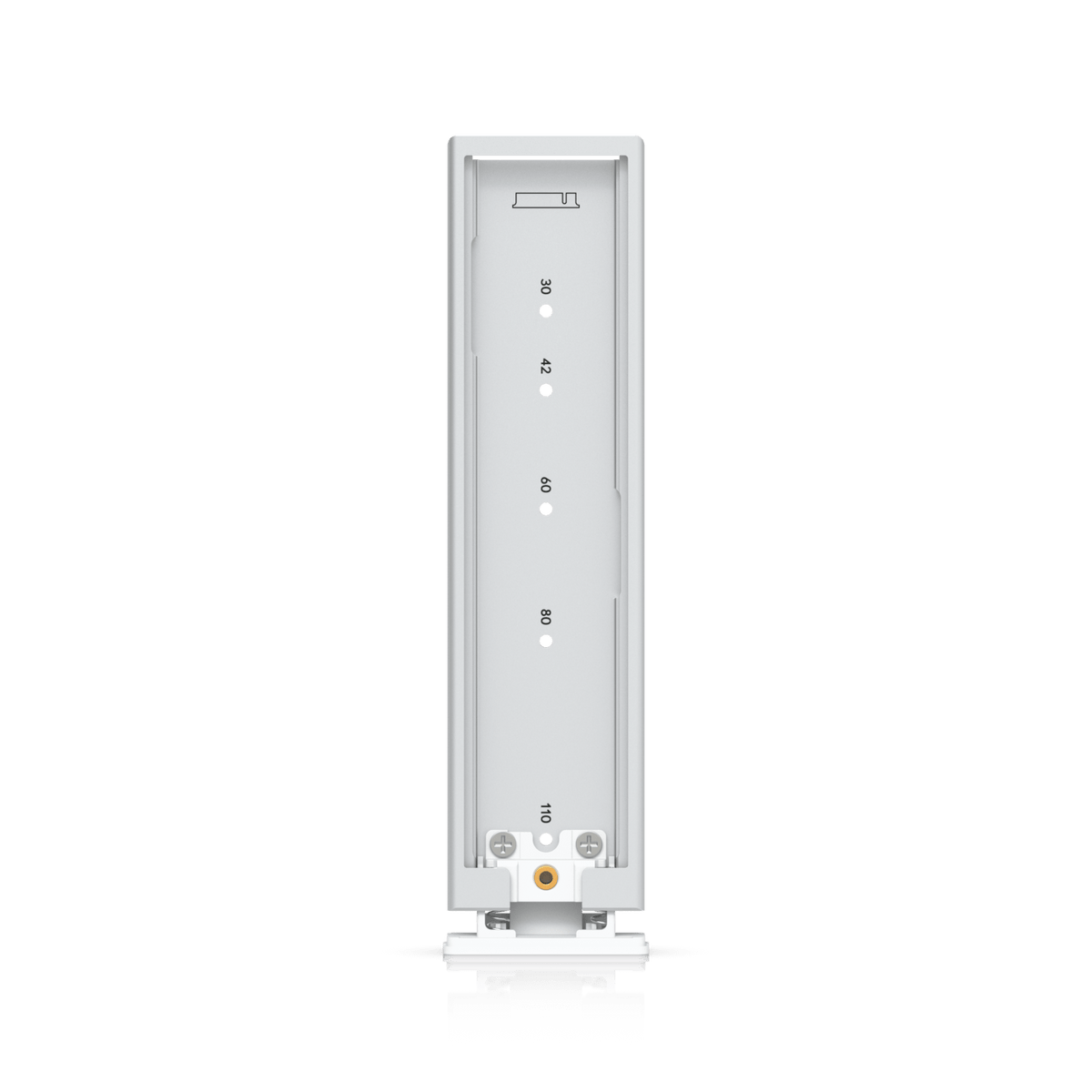

A Dedicated NVMe Storage Insert for Compatible UniFi Hardware The Ubiquiti UACC-SSD-Tray is a removable M.2 NVMe SSD holder for supported Cloud Gateways and UNAS models. It accommodates one drive in the 2230, 2242, 2260, 2280 or 22110 form factor and provides the insert needed to fit that drive into the host's storage bay. This listing is for the White UACC-SSD-Tray. The SSD and host device are supplied separately. It is useful when adding a drive to a no-storage configuration or replacing an existing insert; check whether the host configuration already includes a tray before ordering. Highlights Fits one M.2 NVMe SSD in five supported physical lengths. Compatible with UCG-Max, UCG-Fiber, UNAS-Pro-4, UNAS-Pro-8 and UNAS-4. Aluminium alloy, polycarbonate and stainless-steel construction. Compact 123.4 × 31.1 × 11.2mm body weighing 53g. Key Features Choose an NVMe Drive for the HostThe tray accepts M.2 NVMe storage rather than an M.2 SATA drive. Physical fit alone does not establish a drive's supported capacity or suitability for the workload. Check the exact SSD and host requirements before installation. Understand the Host Interface LimitUCG-Max, UCG-Fiber, UNAS-Pro-4 and UNAS-Pro-8 operate at PCIe Gen3x2 per NVMe drive. UNAS-4 operates at PCIe Gen2x1 per NVMe drive. A faster-generation SSD remains limited by the host interface; changing the tray does not increase that bandwidth. Install According to the Device ProcedureFit and secure the SSD using the storage installation procedure for the supported host, and observe its shutdown and handling requirements. Keep existing recordings or files protected before replacing a drive. The tray itself is a mechanical storage accessory and includes no SSD capacity. Summary The UACC-SSD-Tray provides the correct insert format for adding or replacing one M.2 NVMe SSD in compatible UniFi hardware. Confirm the host, drive dimensions and storage requirements before selecting the SSD. 続きを読む
