Ubiquiti UACC-Cable-DoorLockRelay Door Lock Relay Cable

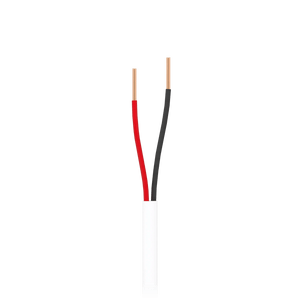

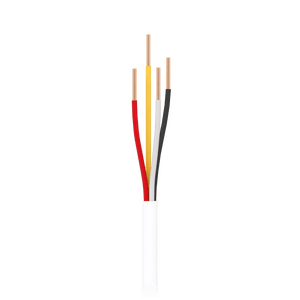

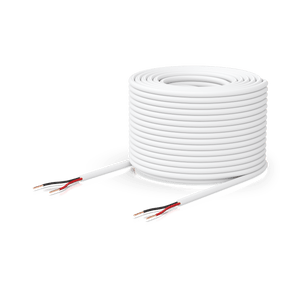

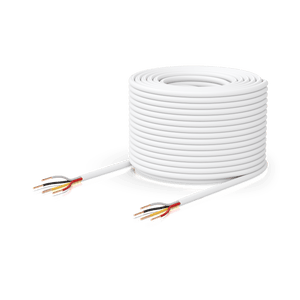

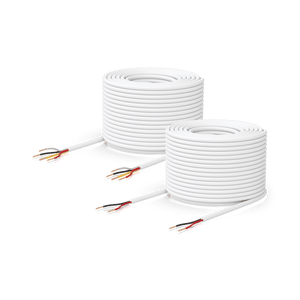

Reliable and Versatile Low-Voltage Cable The Ubiquiti UACC-Cable-DoorLockRelay Door Lock Relay Cable is a 500-foot (152.4 m) spool of one or two-pair, low-voltage cable designed to connect electric/magnetic locks and door position sensors to an Access Hub. This plenum-rated cable ensures reliable performance and safety for your access control system. Highlights Versatile Connectivity: Available in 1-pair and 2-pair configurations for different applications Plenum-Rated: Suitable for use in plenum spaces Robust Construction: Made from high-quality materials for durability and performance Key Features 1-Pair Relay Cable 18 AWG Conductors: Two conductors for connecting an electric/magnetic lock Solid Bare Copper: Ensures reliable electrical conductivity Color-Coded Insulation: Black/red insulation for easy identification 2-Pair Relay Cable 18 AWG and 22 AWG Conductors: Two conductors for an electric/magnetic lock and two for a door position sensor Solid Bare Copper: Ensures reliable electrical conductivity Color-Coded Insulation: Black/red for 18 AWG and amber/white for 22 AWG conductors Mechanical Specifications Cable Length: 152.4 m (500 ft) Jacket Material: Thermoplastic elastomer (TPE) for durability Insulation Material: Semi-rigid polyvinyl chloride (SR-PVC) for protection Max Pull Tension: 24.2 kgf for 2-pair and 16.4 kgf for 1-pair cable Min Bend Radius: 56 mm (2.2") for 2-pair and 33 mm (1.3") for 1-pair cable Flame Rating: VW-1 for safety Specifications UACC-Cable-DoorLockRelay Specification Details Weight 4.58 kg (10.1 lb) Cable Length 152.4 m (500 ft) Jacket OD 4.2 mm (0.17") Jacket Material Thermoplastic elastomer (TPE) Jacket Color White Conductor Wire Gauge 18 AWG Insulation Material Semi-rigid polyvinyl chloride (SR-PVC) Insulation Color Black/red Number of Conductors 2 Conductor Material Solid bare copper Max Pull Tension 16.4 kgf Min Bend Radius 33 mm (1.3") Conductor DCR 23.2 ohm/km (18 AWG) Voltage 36V DC Flame Rating VW-1 Current Rating 18 AWG: 2A for 500 ft length Storage Temperature -45 to 65° C (-40 to 149° F) Ambient Operating Temperature -45 to 65° C (-40 to 149° F) UACC-Cable-DoorLockRelay-2P Specification Details Weight 5.6 kg (12.3 lb) Cable Length 152.4 m (500 ft) Jacket OD 4.5 mm (0.18") Jacket Material Thermoplastic elastomer (TPE) Jacket Color White Conductor Wire Gauge 18 AWG / 22 AWG Insulation Material Semi-rigid polyvinyl chloride (SR-PVC) Insulation Color Black/red (18 AWG), amber/white (22 AWG) Number of Conductors 4 Conductor Material Solid bare copper Max Pull Tension 24.2 kgf Min Bend Radius 56 mm (2.2") Conductor DCR 23.2 ohm/km (18 AWG), 59.4 ohm/km (22 AWG) Voltage 36V DC Flame Rating VW-1 Current Rating 18 AWG: 2A for 500 ft length, 22 AWG: 1A for 500 ft length Storage Temperature -45 to 65° C (-40 to 149° F) Ambient Operating Temperature -45 to 65° C (-40 to 149° F) Compatibility UA-Lock-Magnetic UA-G2-SK-Pro UA-Lock-Electric UA-G2-SK EAH-8 UA-Hub Summary The Ubiquiti UACC-Cable-DoorLockRelay Door Lock Relay Cable is a versatile and durable solution for connecting electric and magnetic locks, as well as door position sensors, to your access control system. With options for both 1-pair and 2-pair configurations, this cable ensures reliable performance and is suitable for a variety of installation environments. Its robust construction and plenum-rated design make it an ideal choice for secure and efficient access control connectivity. 続きを読む
