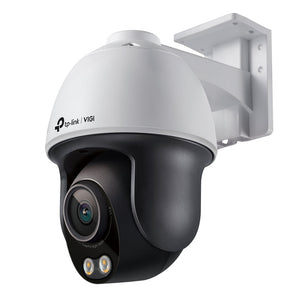

TP-Link VIGI C540S 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera

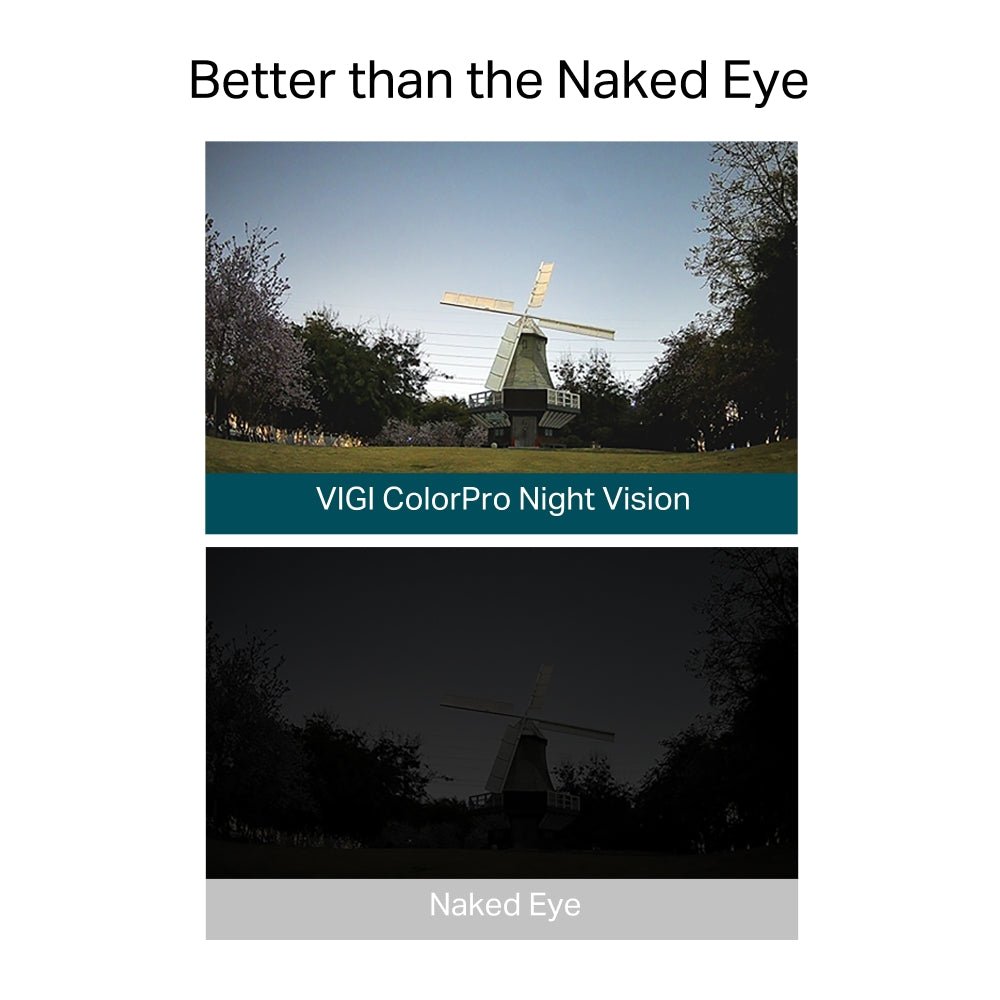

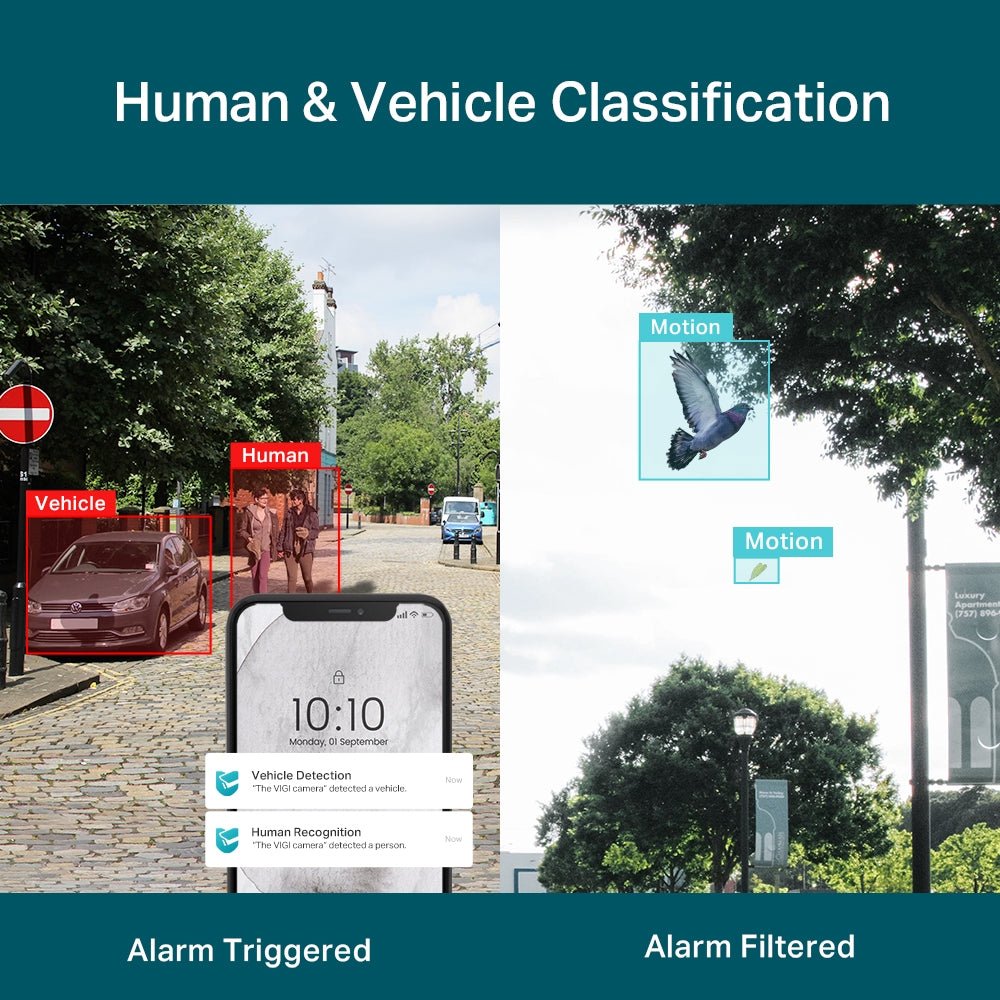

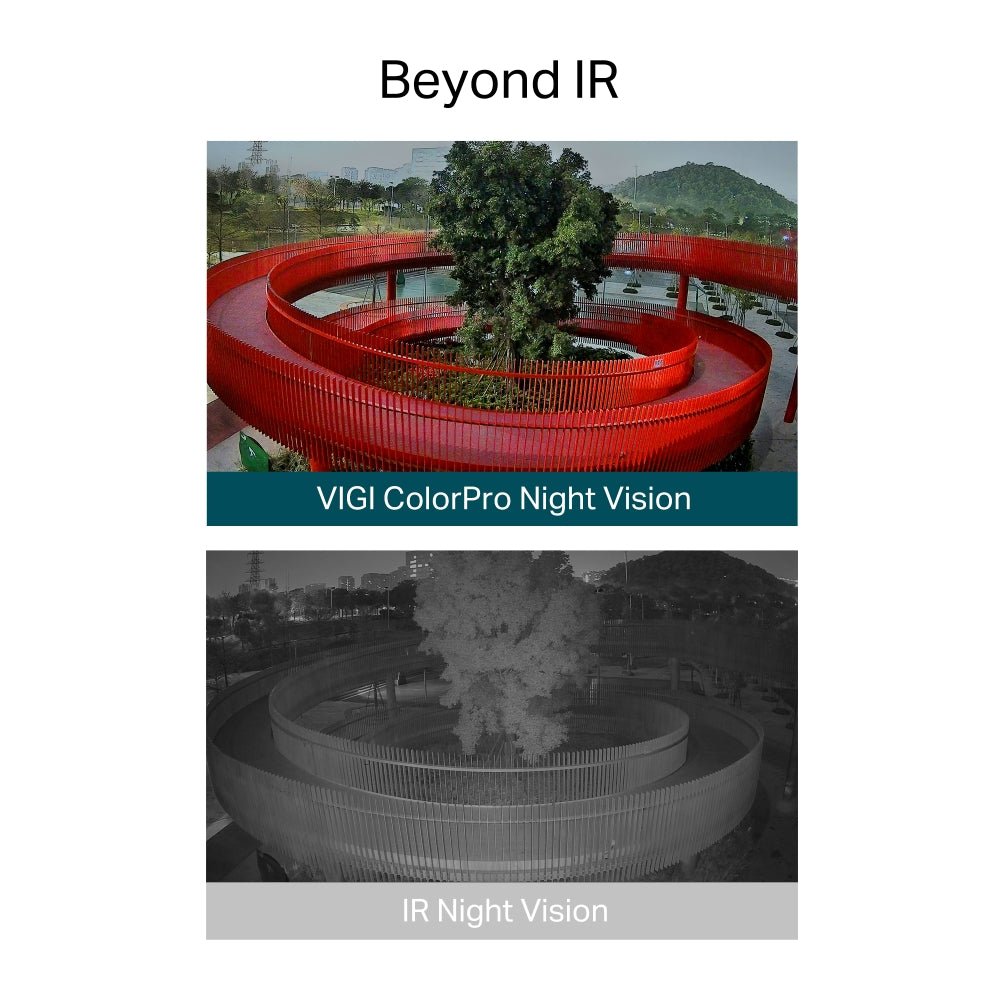

Advanced 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera State-of-the-Art Surveillance for Comprehensive Coverage The TP-Link VIGI C540S is a top-tier outdoor network camera that combines 4MP resolution with innovative ColorPro Night Vision technology. This pan-tilt camera is designed to provide extensive, high-quality surveillance coverage, even in ultra-low light conditions. Key Features Ultra-Low Light Color Night Vision: Captures 4MP high-quality, colorful videos around the clock, even in minimal lighting, without needing supplemental lights. 360° Monitoring: Offers complete area coverage, eliminating blind spots for comprehensive surveillance. Face Recognition: Enhances access control and privacy protection with advanced facial recognition technology. People & Vehicle Analytics: Quickly identifies people and vehicles using a range of attributes, improving search efficiency. Human & Vehicle Classification: Distinguishes between humans and vehicles and other objects, ensuring more precise event notifications. Smart Detection: Detects and alerts for abnormal events such as area intrusion and line-crossing instantly. True WDR Technology: Delivers crystal-clear images in high contrast scenes, balancing different exposures. Active Defense: Provides immediate deterrence with sound and light upon detecting abnormal activities. Two-Way Audio: Enables remote communication, facilitating two-way conversations while monitoring the feed. H.265+ Compression: Reduces video size without sacrificing quality, easing network load and saving disk space. IP66 Waterproof: Ensures reliable performance in various outdoor conditions. Powerful Pan Tilt Functionality: Covers every angle with customizable patrol routes, offering intelligent monitoring options. Enhanced Security and Functionality Advanced Night Vision Capabilities: Utilizes ColorPro Night Vision technology for vivid, full-color images in extremely low light conditions. Comprehensive Area Coverage: The pan-tilt functionality allows for flexible and extensive monitoring, reducing manual adjustment needs. Intelligent Video Processing: Incorporates True WDR, Smart IR, and noise reduction technologies for optimal image quality. AI-Powered Classification and Analytics: Enhances surveillance efficiency by focusing on relevant subjects and events. Proactive Security Measures: Active defense mechanisms provide an additional layer of security. Flexible Connectivity and Storage Options: Supports PoE for easy installation and offers local and onboard storage options (up to 256GB SD card). A Complete Surveillance Solution The VIGI C540S is more than a network camera; it's a comprehensive surveillance system. With its advanced imaging technology, smart detection capabilities, and robust design, this camera is ideal for businesses needing high-quality, detailed, and extensive security coverage. Whether day or night, the VIGI C540S ensures your premises are well-monitored, giving you peace of mind and enhanced security.
Pickup available at 3005, Ubi Avenue 3, #01-88
通常2〜4日で準備が完了します
TP-Link VIGI C540S 4MP Outdoor ColorPro Night Vision Pan Tilt Network Camera
商品説明
仕様
| Specification | Details |
|---|---|
| CAMERA | |
| Image Sensor | 1/1.79” Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.0005 Lux; 0 Lux with White Light |
| Day/Night Switch | Unified/Scheduled/Auto |
| LENS | |
| Type | Fixed Focal Lens |
| Focal Length | 4 mm |
| Aperture | F1.0±5% |
| FOV | Horizontal FOV: 104°, Vertical FOV: 55°, Diagonal FOV: 127° |
| Lens Mount | M16*P 0.5 |
| DORI Distance | Detect: 63 m, Observe: 26 m, Recognize: 13m, Identify: 6 m |
| PTZ | |

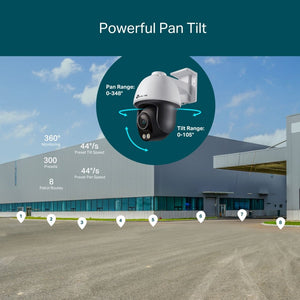

| Pan/Tilt Range | Pan: 0° to 348°, Tilt: 0° to 105° |
| Pan/Tilt Speed | Configurable from 8° to 44°/s; Preset Speed: 44°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| ILLUMINATOR | |
| White LED | Quantity: 2, Range: 30m |
| Illuminator Control | Auto/Scheduled/Always on/Always off |
| VIDEO | |
| Max. Resolution | 2688 x 1520 |
| Main Stream | Frame Rate: 50Hz: 1fps to 25fps, 60Hz: 1fps to 30fps, etc. |
| Sub-Stream | Frame Rate: 50Hz: 1fps to 25fps, 60Hz: 1fps to 30fps, etc. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264, Sub-Stream: H.265/H.264 |
| IMAGE | |
| Image Settings | Mirror, Brightness, Contrast, etc. |
| Image Enhancement | BLC/3D DNR/HLC |
| Wide Dynamic Range | 120 dB |
| SNR | ≥ 52 dB |
| Privacy Mask | Up to 4 Masks |
| ROI | 1 Region |
| OSD Setting | Yes |
| AUDIO | |
| Audio Communication | Two-Way Audio |
| Audio Input/Output | Yes |
| Audio Compression | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
| NETWORK | |
| Protocol | TCP/IP, UDP, ICMP, etc. |
| ONVIF | Yes |
| API | ONVIF |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Web Browser | Chrome, Firefox, Safari, Edge |
| Cloud | Yes |
| Security | Password Protection, HTTPS Encryption, etc. |
| ALARM AND EVENT MANAGEMENT | |
| Smart Event | Human & Vehicle Classification, Intrusion Detection, etc. |
| Basic Event | Motion Detection, Video Tampering Detection, etc. |
| Alarm Linkage | Memory Card Video Recording, Message Push, etc. |
| INTERFACES | |
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Reset Button | Yes |
| On-board Storage | Built-In Memory Card Slot, Up to 256 GB |
| Built-in Microphone/Speaker | Yes; 15-ft Radius |
| GENERAL | |
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating/Storage Humidity | 95% or Less (Non-Condensing) |

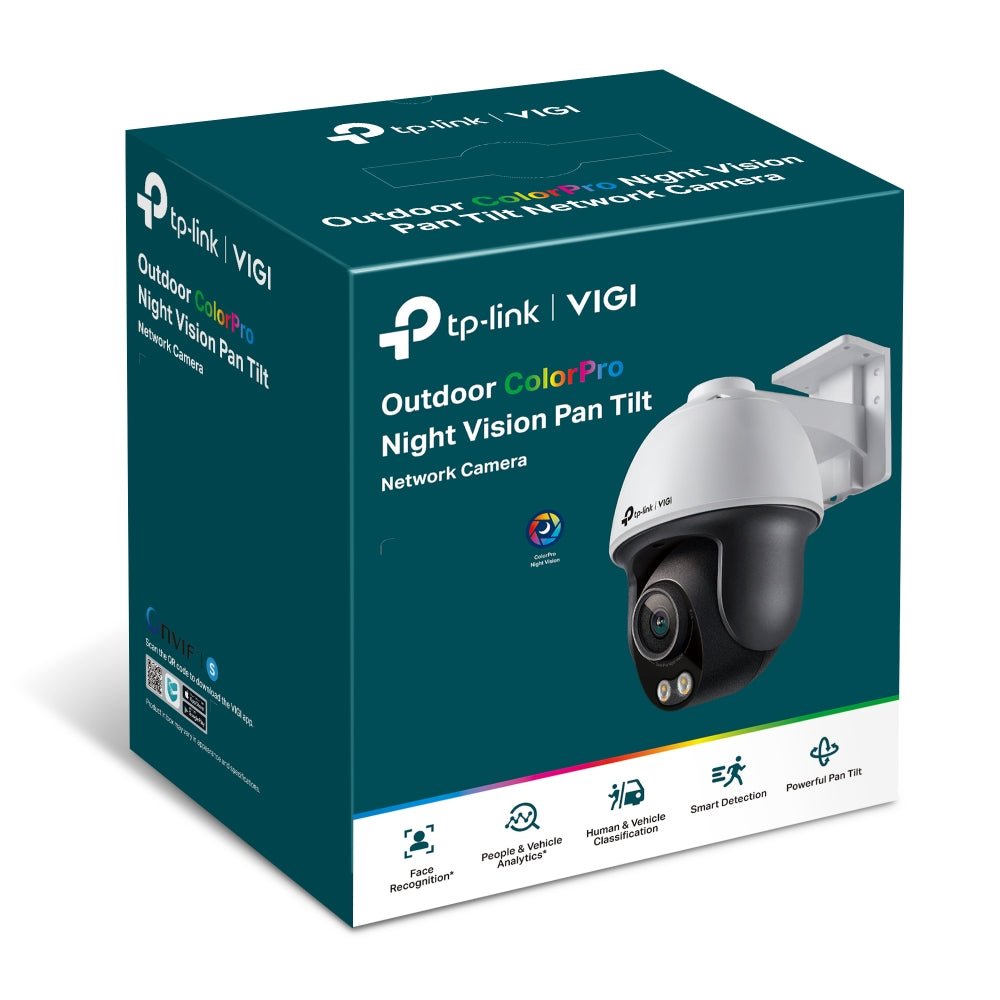

| Package Contents | VIGI Network Camera, Quick Start Guide, etc. |
| Material | Plastic |
| Power Supply | 12V DC ± 5%, Max. 13.13 W, PoE: 802.3at, Max. 16.47 W |
| Protection | IP66 |
| Product Dimensions | 120 × 172 × 203 mm |
| Certifications | CE, EAC, UKCA, RCM, etc. |
