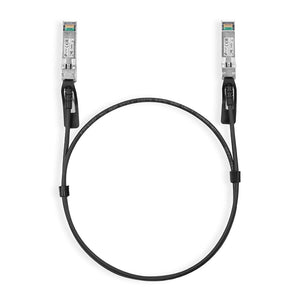

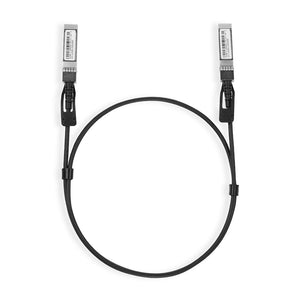

TP-Link TL-SM5220-1M 1 Meter 10G SFP+ Direct Attach Cable
商品説明
High-Speed 10G SFP+ Direct Attach Cable for Data Centers
The TP-Link TL-SM5220-1M is a 1-meter SFP+ Direct Attach Cable (DAC) designed for high-speed, short-distance networking within and across adjacent server racks. With low latency and minimal power consumption, this cost-effective connectivity solution is ideal for data centers, enterprise networks, and cloud computing environments requiring high-performance 10G Ethernet connections.
Highlights
- 10G SFP+ Connectors on both sides for ultra-fast data transmission
- 1-Meter Passive Twin-Ax Cable for short-range, high-bandwidth connections
- Low Latency and Power Consumption compared to fiber-based solutions
- Silver-Plated Copper Conductors ensure excellent signal integrity
- Plug-and-Play Compatibility with standard SFP+ network equipment
- Cost-Effective Solution for in-rack and adjacent-rack connections
Key Features
Reliable High-Speed Performance
- 10 Gbps Data Rate for high-bandwidth applications
- Optimized for Short-Distance Interconnects within racks
- Minimal Power Consumption for energy-efficient networking
Durable and Flexible Design
- Silver-Plated Copper Conductors for reduced signal loss
- Compact 30 AWG Wire Gauge ensures flexibility and durability
- Minimum Bend Radius of 22.5mm for optimized cable management
Wide Compatibility and Easy Deployment
- Compatible with TP-Link and Industry-Standard SFP+ Ports
- Passive Twin-Ax Cable Design eliminates the need for additional power sources
- Plug-and-Play Installation for hassle-free deployment
Specifications
| Feature | Details |
|---|---|
| Connector Type | SFP+ on both ends |
| Supported Data Rate | 10 Gbps |
| Cable Type | Passive Twin-Ax |
| Conductor | Silver-Plated Copper |
| Wire Gauge | 30 AWG |
| Cable Length | 1 meter |
| Minimum Bend Radius | 22.5 mm |
| Operating Temperature | 0–70°C (32–158°F) |
| Storage Temperature | -40–80°C (-40–176°F) |
| Operating Humidity | 10–90% RH non-condensing |
| Storage Humidity | 5–90% RH non-condensing |
Summary
The TP-Link TL-SM5220-1M SFP+ Direct Attach Cable is a high-performance, low-latency networking solution for data centers, enterprise IT environments, and cloud applications. With 10G Ethernet support, durable twin-ax construction, and plug-and-play compatibility, this cost-effective DAC ensures seamless, high-speed connectivity with minimal power consumption.
仕様
TP-Link TL-SM5220-1M 1 Meter 10G SFP+ Direct Attach Cable
| Specification | Details |
|---|---|
| Overview | Passive twin-ax cable assembly with SFP+ connectors on both sides, suitable for short-distance connections within or across adjacent racks. |
| General | |
| Product Dimensions | Plug: 57.5 × 13.55 × 8.55 mm (2.26 × 0.53 × 0.34 in) Overall length: 1,000 mm (39.37 in) |
| Cable Type | SFP+ Direct Attach Cable |
| Performance | |
| Data Rate | 10 Gbps |
| Conductor | Silver-Plated Copper |
| Cable Length | 1 m |
| Environmental Conditions | |
| Operating Temperature | 0–70 ℃ (32–158 ℉) |
| Storage Temperature | -40–80 ℃ (-40–176 ℉) |
| Operating Humidity | 10–90% RH (non-condensing) |
| Storage Humidity | 5–90% RH (non-condensing) |
