TP-Link TL-SF1008LP 8-Port 10/100Mbps with 4-Port 250m Long Range PoE Unmanaged Switch
商品説明
8-Port 10/100Mbps Desktop Switch with 4-Port PoE
Enhance Your Network with Efficient PoE Capabilities
The TP-Link TL-SF1008LP is a compact and efficient Fast Ethernet Switch, featuring 4 PoE ports. It's designed to meet the needs of small businesses and home networks, offering a convenient solution for powering PoE devices like IP cameras, access points, and IP phones, especially in environments where power outlets are limited.
Key Features
PoE+ Enabled Ports

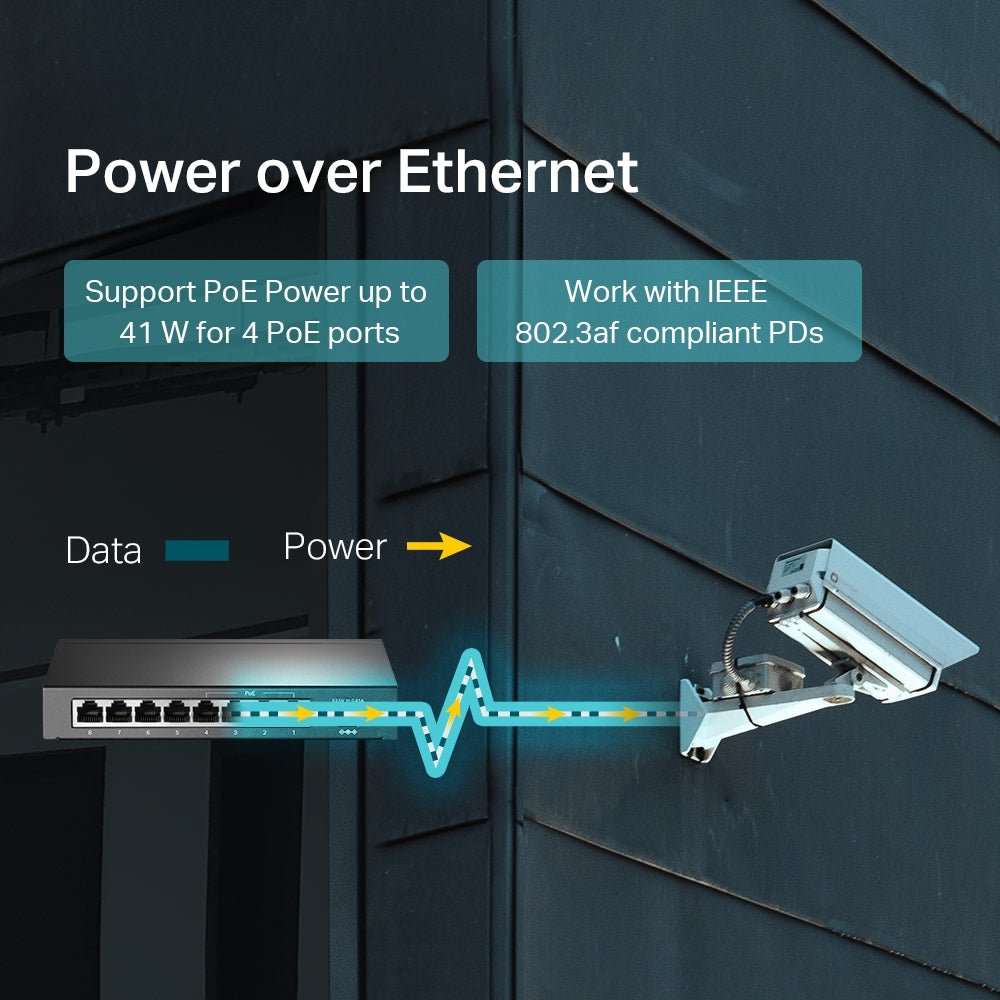

- 4 PoE Ports: Deliver data and power over one cable, compliant with IEEE 802.3af standards.
- 41 W PoE Budget: Supports up to 15.4 W per PoE port, with a total budget of 41 W for all PoE ports.
Extended Transmission Range
- Up to 250m Range: Extend Mode boosts PoE transmission distance, ideal for large-scale surveillance setups.
Priority Mode
- Enhanced Performance for Critical Applications: Prioritizes ports 1–2 to ensure quality for applications like video monitoring.
Plug and Play

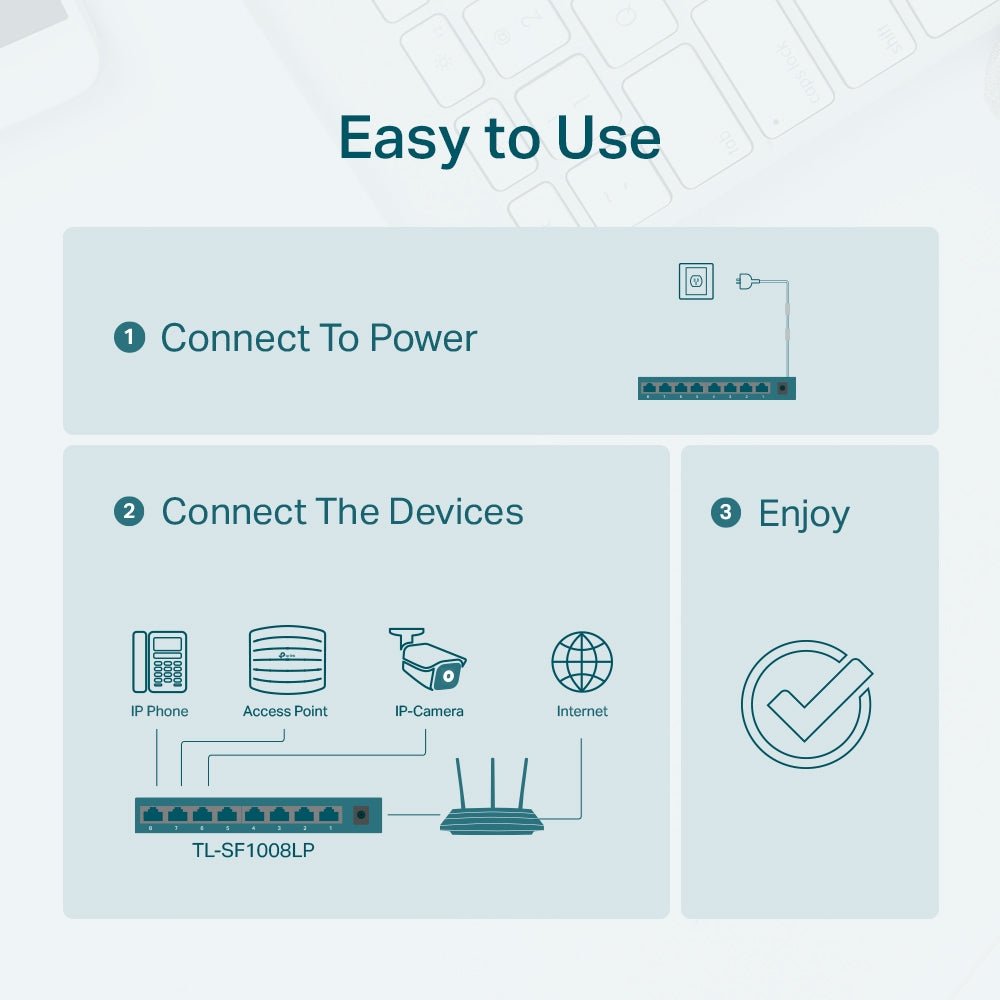

- Effortless Setup: No configuration needed, suitable for any user.

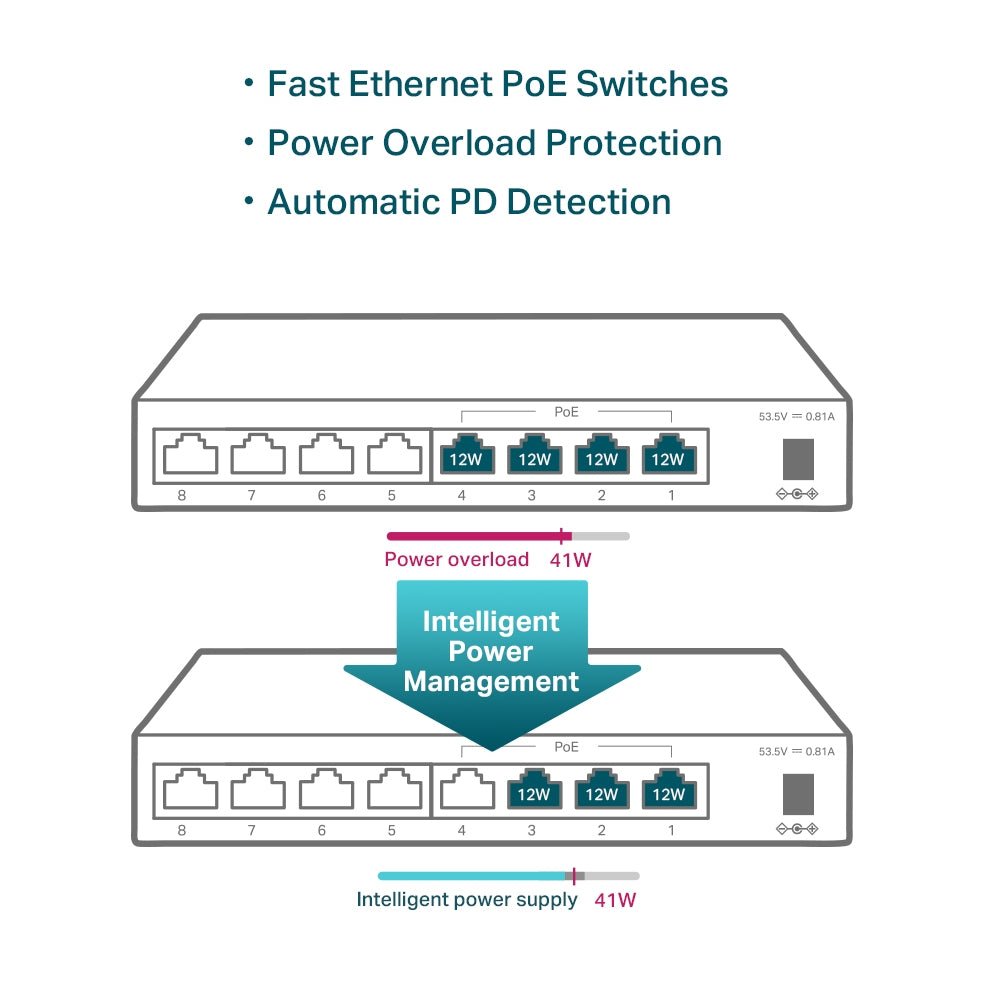

Intelligent Power Management
- Overload Protection: Manages power effectively to prevent overload, ensuring stability and reliability.
Robust Build
- Metal Casing: Ensures durability and a long product life.
Applications
Ideal for expanding networks with PoE-enabled devices. The TL-SF1008LP is particularly useful for surveillance systems in offices, dormitories, and small businesses, providing both power and data over a single cable for up to four devices.
Summary
The TP-Link TL-SF1008LP offers a practical solution for PoE device deployment, featuring extended range, priority mode, and intelligent power management. Its plug-and-play design, combined with a durable metal casing, makes it a versatile choice for various networking needs.
仕様
| Specification Category | Details |
|---|---|
| HARDWARE FEATURES | |
| Interface | 8× 10/100 Mbps RJ45 Ports (Ports 1–4 support 802.3af PoE), AUTO Negotiation, AUTO MDI/MDIX |
| Network Media | 10BASE-T: UTP cat 3/4/5 (max 100m), 100BASE-TX: UTP cat 5/5e (max 100m), EIA/TIA-568 100Ω STP (max 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| Packet Forwarding Rate | 1.1904 Mpps |
| PoE Ports (RJ45) | Standard: 802.3 af compliant, Ports 1–4, Power Supply: 41 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.6 Gbps |
| Dimensions (W x D x H) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption | 2.2 W (no PD connected), 47.1 W (with 41 W PD connected) (220 V/50 Hz) |
| Max Heat Dissipation | 7.5 BTU/h (no PD connected), 160.61 BTU/h (with 41 W PD connected) |
| SOFTWARE FEATURES | |
| Transmission Method | Store-And-Forward |
| Advanced Functions | Compatible With IEEE 802.3af PDs, Extend Mode Button (Ports 1–4), Priority Mode Button (Ports 1–2), Mac Address Auto-Learning and Auto-Aging, IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| OTHERS | |
| Certification | FCC, CE, RoHS |
| Package Contents | TL-SF1008LP, Power Adapter, Installation Guide |
| Environment | Operating Temperature: 0–40 ℃, Storage Temperature: -40–70 ℃, Operating Humidity: 10–90% RH non-condensing, Storage Humidity: 5–90% RH non-condensing |
