Tough Emergency Break Glass Exit Door Release
商品説明
A Clearly Marked Manual Release Point for Controlled Access

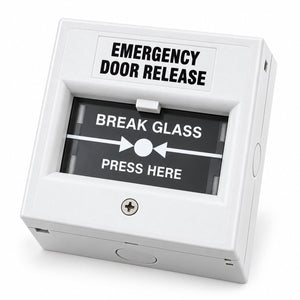

The Tough Emergency Break Glass Exit Door Release provides a dedicated manual activation point for a compatible wired installation. Choose White, Green, Yellow or Red to suit the required appearance and front-panel marking. Each colour is sold separately in an enclosed surface-mount format.
Highlights
Four Colour Options

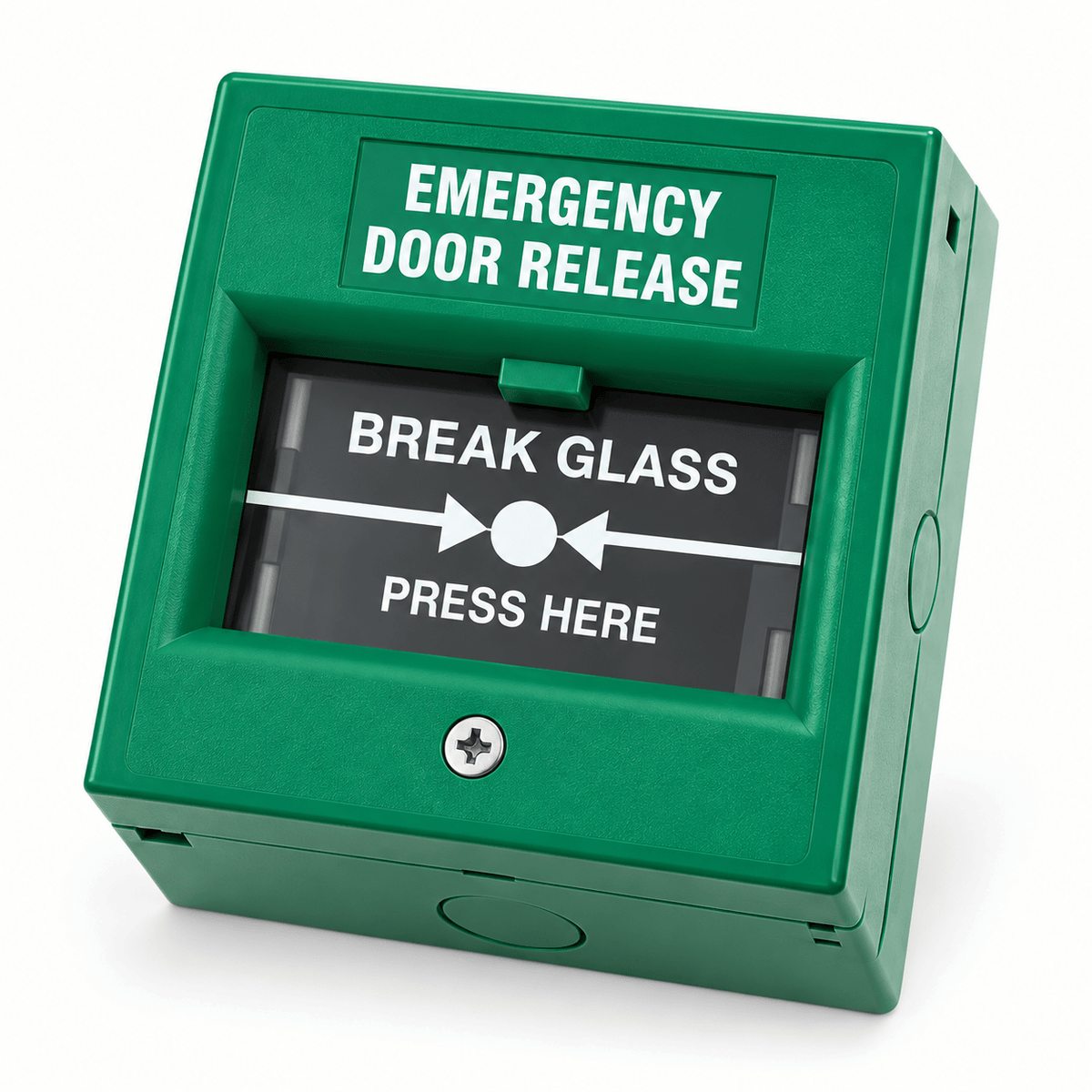

- White and Green carry an emergency door-release marking.

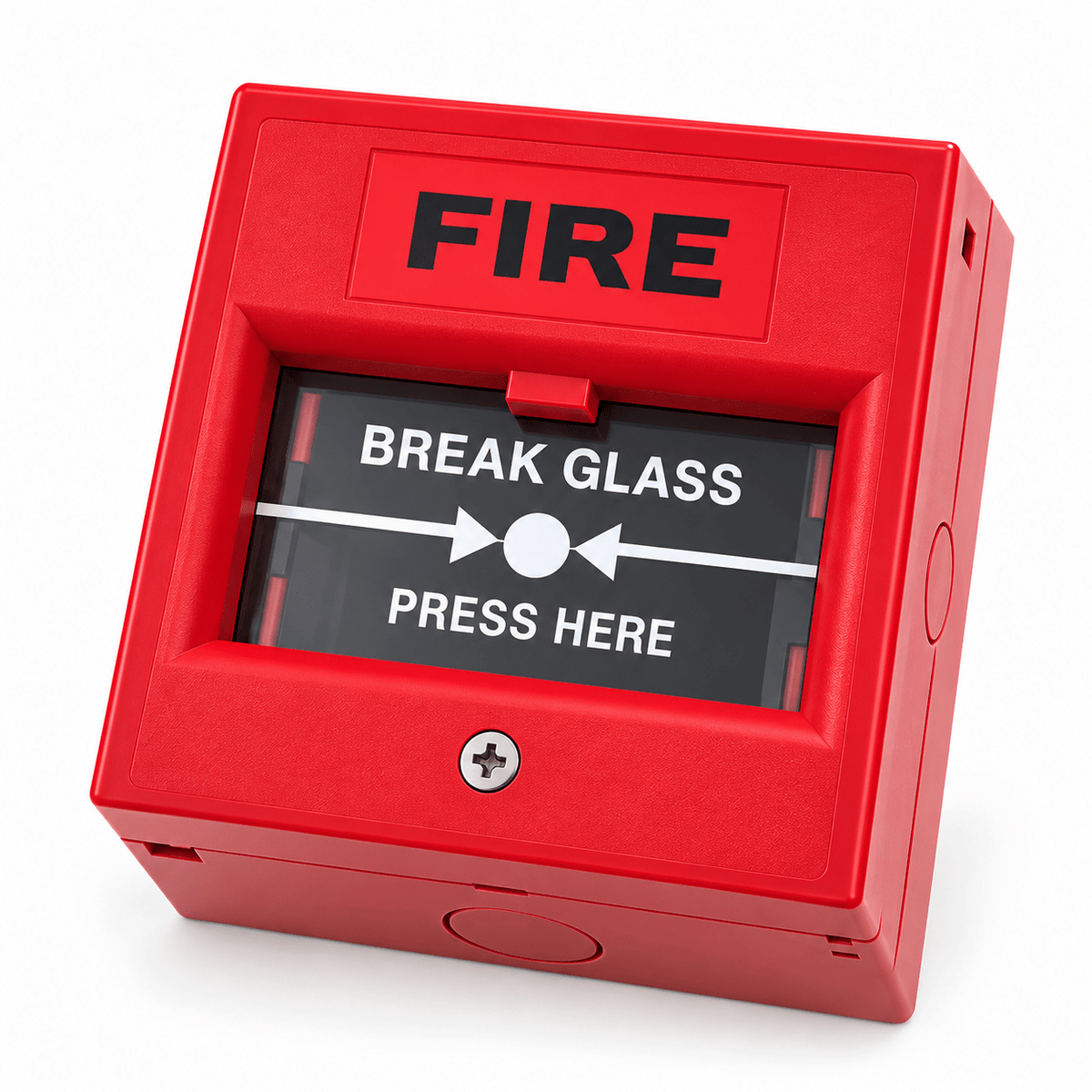

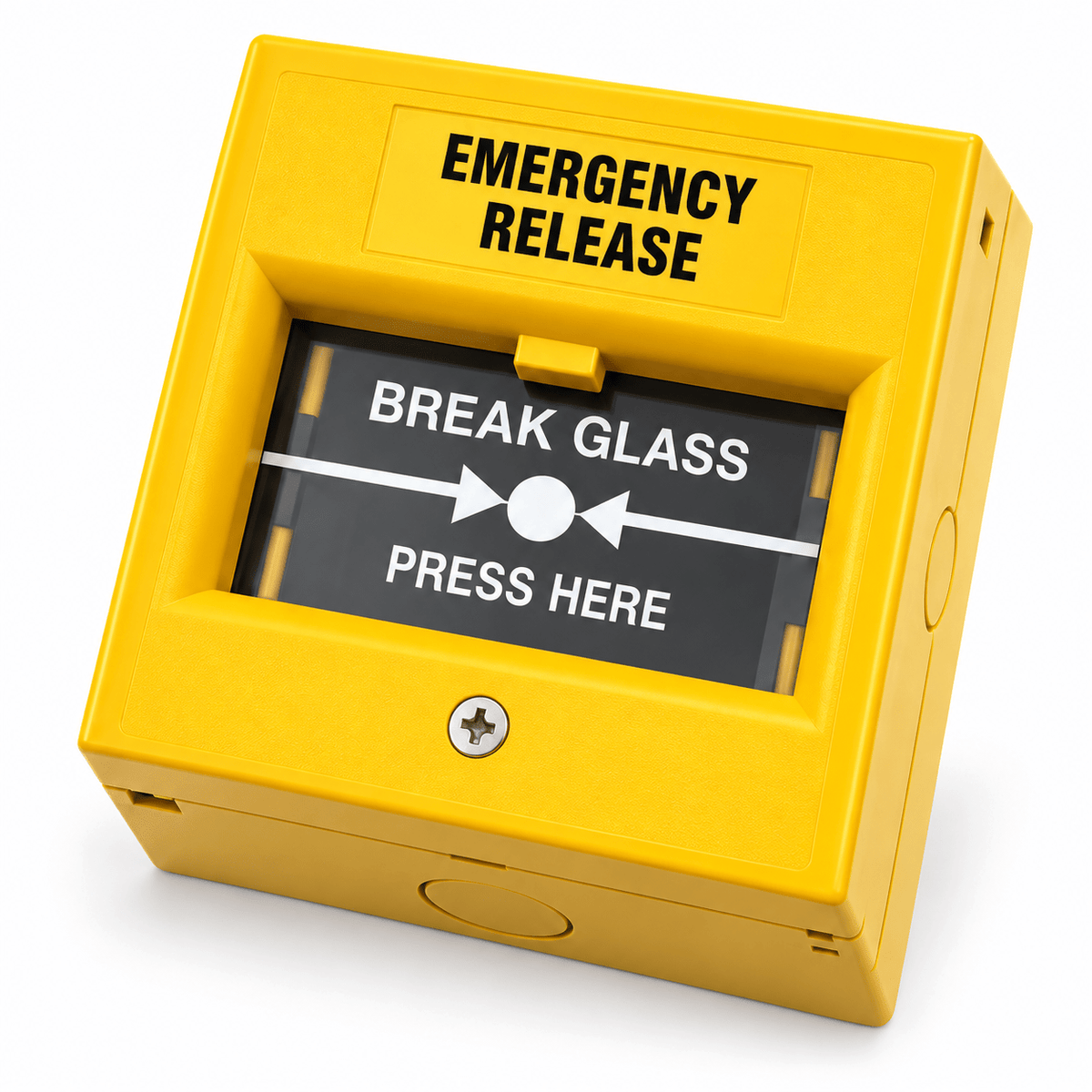

- Yellow carries an emergency-release marking; Red carries a FIRE marking.
Clearly Identified Activation Area
- Central break-glass panel with a marked press area.
- Contrasting front-panel lettering identifies the activation point.
Practical Wired Installation
- Surface-mount housing with a matching back box and cable-entry knockouts.
- NO and NC contact arrangements shown in the supplier's rear-terminal reference diagram.
Key Features
Choose the Colour and Marking Together
Select White or Green for the emergency door-release wording, Yellow for the emergency-release wording, or Red for the FIRE wording. The red faceplate marking alone does not establish compatibility with a fire-alarm system; the installer must confirm suitability for the intended circuit.
Dedicated Manual Activation
The marked front panel provides a visible activation point. Door-release or signalling behaviour depends on the connected circuit, so the complete installation should be checked during commissioning.
Enclosed Surface-Mount Design
The matching back box provides an enclosed mounting format beside the doorway or designated activation point. Side and bottom knockouts shown in the supplier reference photos allow the installer to plan the cable route.
Contact Selection for the Installation

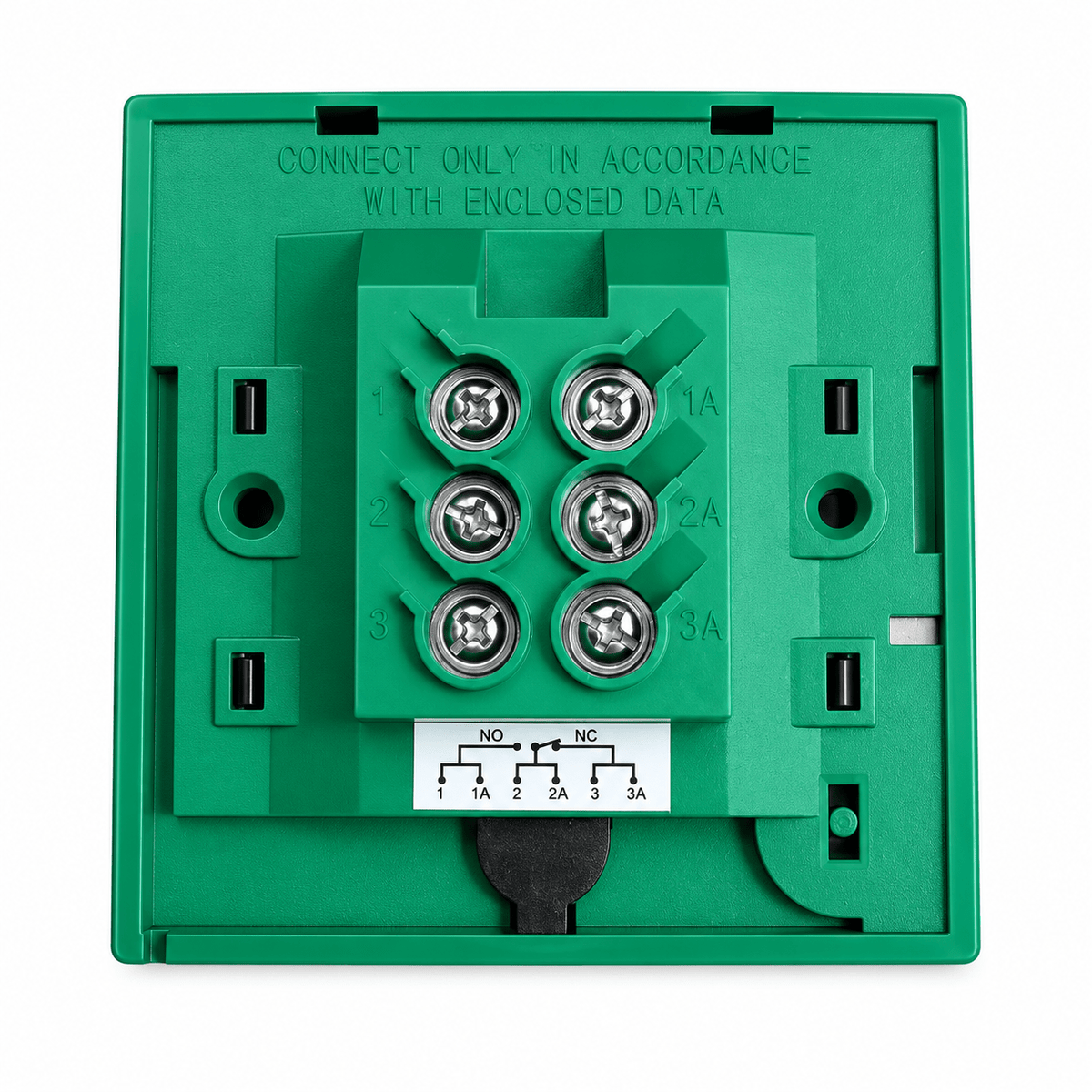

The supplier's rear-view reference shows screw terminals and normally open (NO) and normally closed (NC) switching arrangements. Confirm the actual unit's electrical rating, terminal connections and restoration procedure before installation.
Summary

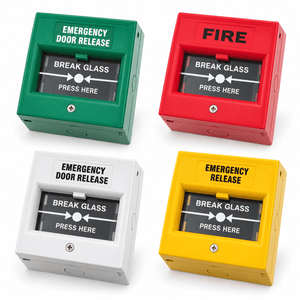

The Tough Emergency Break Glass Exit Door Release offers four colour and marking options for compatible wired installations. Choose the required Colour option before ordering; the four-colour gallery image shows the range, with each unit sold separately. Product images use English-only presentation lettering, while the supplier reference photos show bilingual faceplate printing.
仕様
Tough Emergency Break Glass Exit Door Release
The Tough Emergency Break Glass Exit Door Release is a manual activation unit available in White, Green, Yellow and Red. Each version has a surface-mount enclosure, a marked break-glass panel and cable-entry knockouts. Front-panel wording differs by colour, including a FIRE marking on Red. The supplier reference diagram shows NO and NC contact arrangements. Confirm the actual unit's electrical rating, wiring and restoration procedure before installation. Each colour is sold separately.
| Specification | Details |
|---|---|
| Product | |
| Brand | Tough |
| SKU | Tough-EBG (White); Tough-EBG-Green; Tough-EBG-Yellow; Tough-EBG-Red |
| Product | Emergency break-glass manual activation unit |
| Colour options | White, Green, Yellow, Red |
| Supply format | One unit in the selected colour; colours sold separately |
| Front housing marking | White / Green: EMERGENCY DOOR RELEASE; Yellow: EMERGENCY RELEASE; Red: FIRE |
| Construction & Installation | |
| Mounting format | Surface-mount enclosure with matching back box |
| Front activation area | Break-glass panel with marked press area |
| Cable entry | Side and bottom knockouts shown in supplier reference photos |
| Faceplate appearance | English-only presentation images; supplier reference photos show bilingual printing |
| Electrical Integration | |
| Contact arrangement | NO and NC switching arrangements shown in the supplier's rear-terminal reference diagram |
| Connection method | Screw terminals, as shown in supplier reference photos |
| System compatibility | Requires confirmation of the supplied unit's electrical rating and suitability for the intended circuit |
| Red version | FIRE faceplate marking; alarm-system compatibility must be confirmed for the intended installation |
