Tough 12V No-Touch Door Release Exit Button – Infrared
商品説明
12V Infrared No-Touch Exit Button
The Tough infrared exit button provides touch-free door-release control for compatible access-control systems. Its stainless-steel faceplate, illuminated status indicator and five-wire relay connection make it suitable for many indoor and sheltered access points.
Highlights
- Infrared sensing for contactless activation
- 12V DC operating voltage
- NO, COM and NC relay outputs
- LED indication for visible operating feedback
- Stainless-steel faceplate with ABS rear housing
- IP55-rated construction for resistance to dust and water exposure
- Contactless operation reduces the need to touch shared surfaces
Applications
- Office, retail and commercial access-control systems
- Public-area and restroom exit points
- Sheltered locations requiring a compact touch-free release control
Specifications
- Operating voltage: 12V DC
- Relay contacts: NO (Normally Open), COM (Common) and NC (Normally Closed)

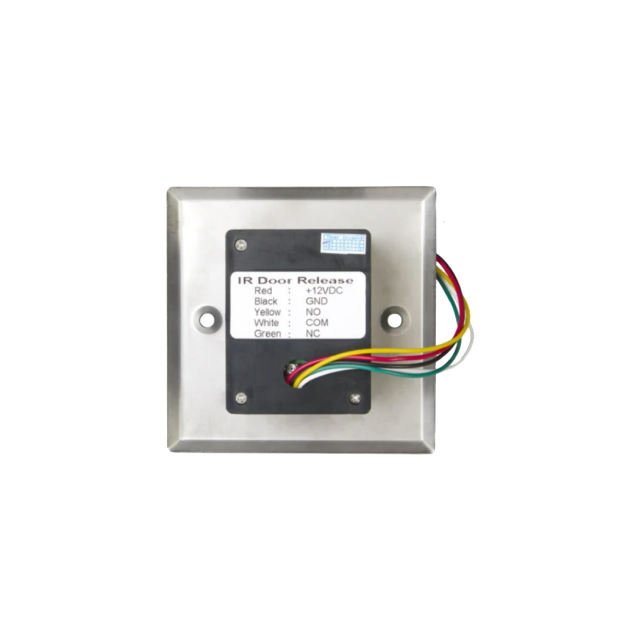

- Wire identification shown on the product: red 12V DC, black GND, yellow NO, white COM and green NC
- Dimensions: approximately 86 × 86 × 39 mm
- Faceplate: stainless steel
- Rear housing: ABS
- Protection rating: IP55
Installation Note
IP55 does not mean fully waterproof. Use appropriate sealing and a sheltered installation where direct or prolonged water exposure is possible. Confirm the required relay behaviour before wiring.
仕様
12V No Touch Door Release Exit Button – InfraRed Version
The Tough Infrared No Touch Exit Button is a rugged, contactless solution for safe and hygienic access control. Built with a durable stainless steel plate and IP55 industrial protection, this sensor switch offers quick response, weather resistance, and LED indication for easy operation in any environment.
Specifications
| Specification | Details |
|---|---|
| Material | Stainless Steel Plate, ABS Anti-blocking Fuel |
| Dimensions | • 86 × 86 mm (Plate) • Overall Size: 125 × 86 × 39 mm |
| Weight | 100 g (0.22 lb) unit weight Package weight: 120 g (0.27 lb) |
| Voltage Input | DC 12V |
| Trigger Mechanism | Infrared Induction (No Touch) |
| Protection Level | IP55 (Waterproof and Sunproof) |
| Output Contact | Closed Double Contacts (NO/NC/COM) |
| Wiring Method | Screw Terminals |
| Lighting | LED Light Indication |
| Features | |
| Contactless Operation | Yes (to prevent contamination and disease spread) |
| Surface Finish | Surface Drawing Process (Wear-resistant, Scratch-resistant) |
| Induction Type | Rapid Infrared Induction |
| Suitable Applications | Exit Doors, Gates, and Other Automation Control Systems |
| Operating Environment | |
| Operating Temperature | Not explicitly stated but weather-resistant per IP55 |
| Humidity | Suitable for general outdoor and indoor use |
