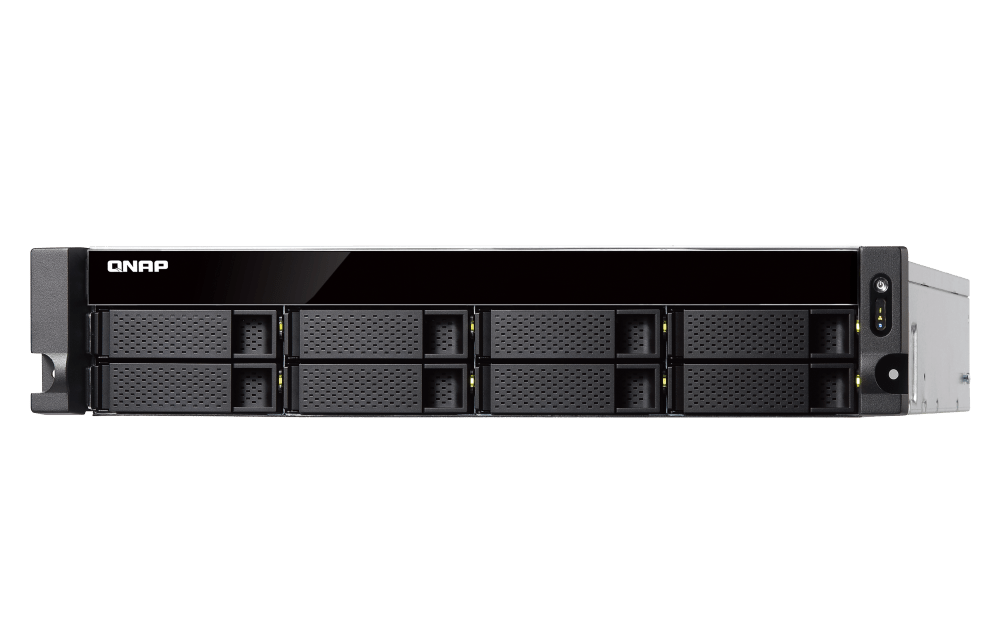

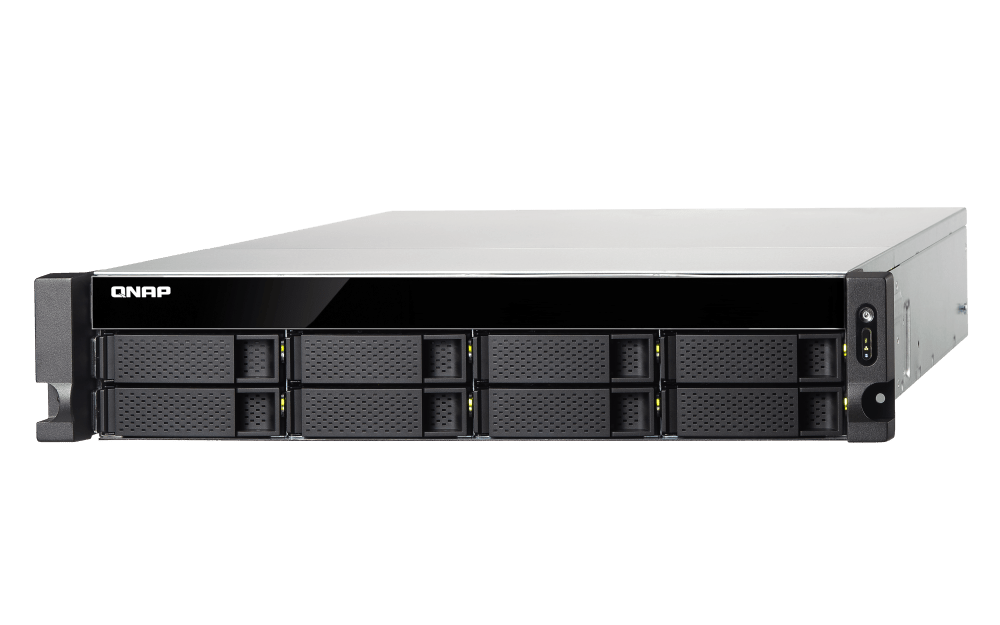

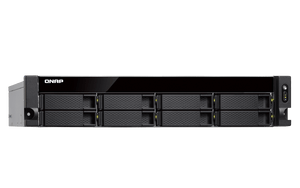

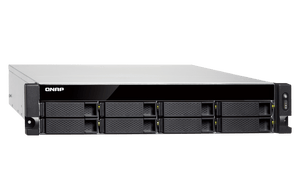

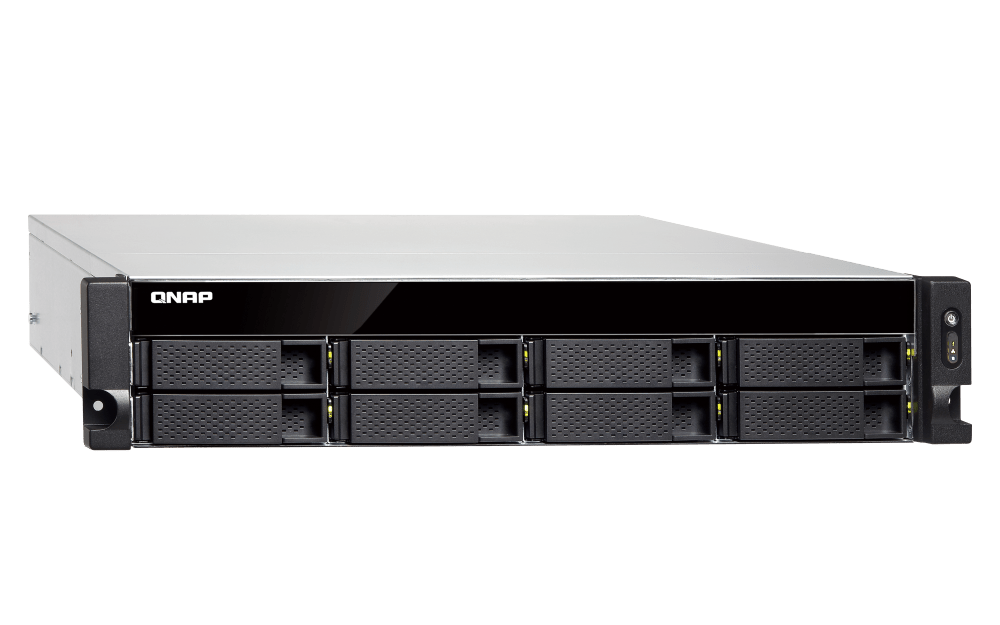

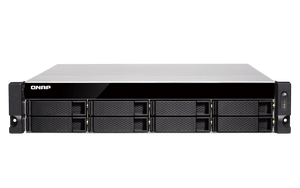

QNAP TVS-872XU-RP 8-Bay 10GbE HDMI Rackmount NAS
商品説明
High-Performance 8-Bay Rackmount NAS
The QNAP TVS-872XU-RP is a versatile, high-speed 8-bay NAS designed for enterprise IT environments. Powered by Intel® Core™ 6-core processors and dual 10GbE connectivity, it supports virtualization, multimedia editing, centralized storage, and advanced backup solutions. Its PCIe expandability and 4K HDMI output make it a scalable, powerful tool for modern businesses, while its redundant power supply ensures maximum uptime.
Highlights
- Dual 10GbE SFP+ SmartNIC: Accelerates large file transfers and intensive data sharing.
- PCIe Expansion: Add 40GbE/25GbE adapters, graphics cards, or SSD caching for improved performance.
- 4K HDMI 2.0 Output: Stream or display 4K surveillance footage directly on a monitor or TV.
- SSD Optimization: Software-defined over-provisioning and SSD tiering boost efficiency and extend SSD lifespan.
- Enterprise-Grade Backup: Comprehensive snapshot and disaster recovery solutions ensure data security.
- Redundant Power Supply: Ensures uninterrupted operation for critical business applications.
Key Features
High-Speed Networking and Virtualization
- Intel® Core™ 6-Core Processors: i5/i7 CPUs deliver up to 4.4 GHz for demanding workloads.
- Dual 10GbE SmartNIC Ports: Supports iSER for accelerated virtualization and up to 60% improved read/write performance.
- PCIe Slots: Use expansion cards for enhanced 40GbE/25GbE networking or GPU acceleration.
Optimized Storage Efficiency
- Qtier™ Technology: Auto-tiering optimizes data storage by balancing SSDs and HDDs based on usage.
- SSD Caching: Boosts IOPS performance for applications such as OLTP databases and virtual machines.
- Expandable Storage: Supports up to 128 additional SAS/SATA drives with expansion enclosures.
Comprehensive Security and Backup
- Snapshots: Protects data with up to 1,024 snapshots per NAS.
- Hybrid Backup Sync: Consolidates local, remote, and cloud backups into one solution.
- VM Backup: Agentless VMware and Hyper-V backup support with Hyper Data Protector.
Flexible Multimedia and AI Applications
- 4K Media Playback: HDMI 2.0 output for 4K @ 60Hz video playback.
- GPU Acceleration: Supports AI workloads and imaging processes with AMD Radeon™ or NVIDIA® graphics cards.
- QVR Pro: Manages up to 128 surveillance channels with real-time 4K transcoding.
Intelligent Management Tools
- Network & Virtual Switch: Simplifies network deployment with centralized management.
- Security Counselor: Analyzes vulnerabilities and provides security recommendations.
- Notification Center: Consolidates system notifications, alerts, and logs for easy monitoring.
Specifications
- Processor: Intel® Core™ i5/i7 Six-Core (up to 4.4 GHz).
- Memory: 8GB DDR4 (expandable up to 64GB).

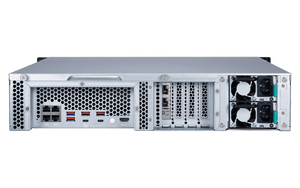

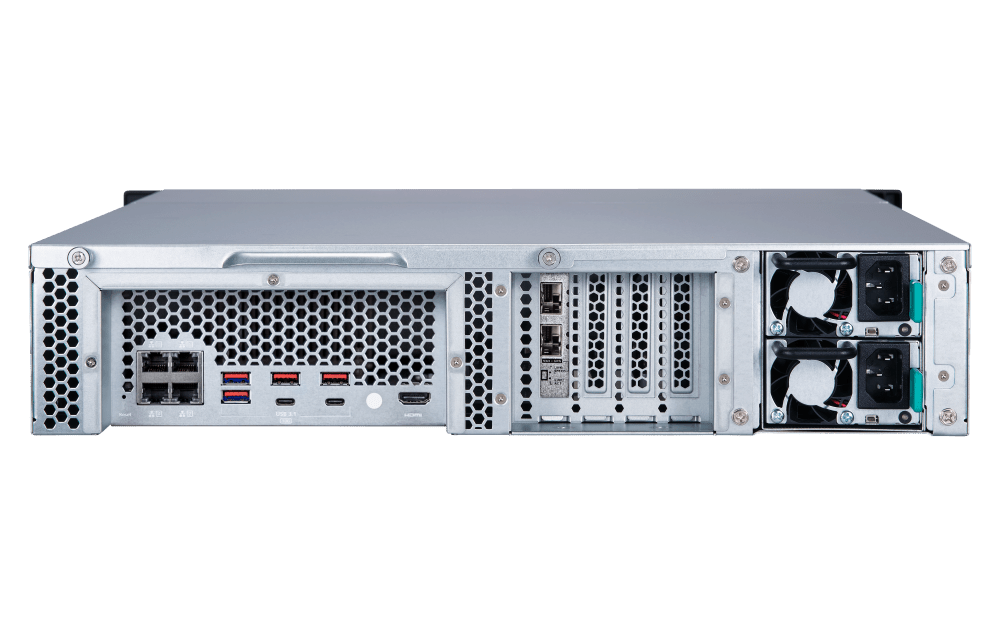

- Ports: 2 x 10GbE SFP+, 4 x 1GbE RJ45, 4 PCIe slots.

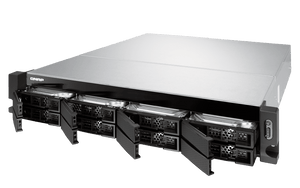

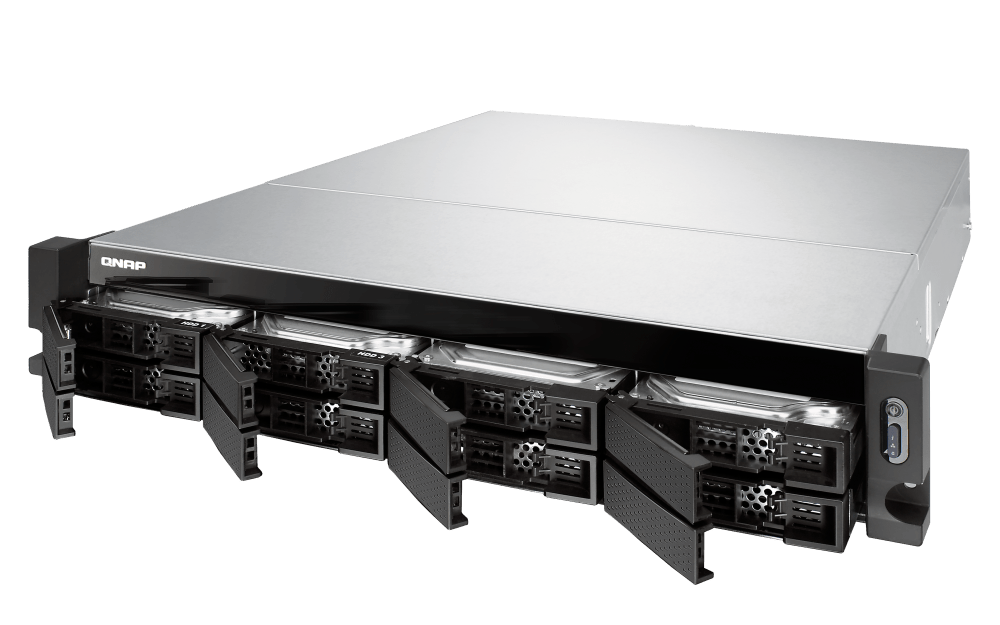

- Storage: 8 x 3.5"/2.5" SATA 6Gbps HDD/SSD bays.
- Power: Dual redundant 300W PSUs.
- Operating Temperature: 0°C to 40°C.
Applications
- Virtualization: Optimized for VMware, Hyper-V, and other virtual environments.
- Data Centers: High-speed data sharing with 10GbE and advanced backup tools.
- Video Editing: Ideal for 4K/8K workflows with SSD caching and GPU acceleration.
- Surveillance Systems: Manage up to 128 IP cameras with QVR Pro.
Summary
The QNAP TVS-872XU-RP combines enterprise-level performance, robust scalability, and advanced features to meet the needs of modern businesses. With its high-speed networking, virtualization capabilities, and intelligent storage management, this NAS ensures reliable operations, whether for data centers, video editing, or critical backup solutions.
仕様
QNAP TVS-872XU-RP 8-Bay 10GbE HDMI Rackmount NAS
| Specification | Details |
|---|---|
| CPU | Intel® Core™ i5 6-core / 6-threads 4.1 GHz Processor Intel® Core™ i7 6-core / 12-threads 4.4 GHz Processor |
| CPU Architecture | 64-bit x86 |
| Graphic Processor | Intel® UHD Graphics 630 |
| Encryption Engine | AES-NI |
| System Memory | 4 GB UDIMM DDR4 (1 x 4GB) |
| Maximum Memory | 64 GB (4 x 16GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bays | 8 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | • 3.5-inch SATA HDDs • 2.5-inch SATA HDDs • 2.5-inch SATA SSDs |
| Hot-Swappable | Yes |
| Gigabit Ethernet Ports | 4 |
| 10 Gigabit Ethernet Ports | 2 x 10GbE SFP+ SmartNIC port |
| Wake on LAN (WOL) | Supported |
| PCIe Slots | • Slot 1: PCIe Gen 2 x4 (PCH) • Slot 2: PCIe Gen 3 x8 (CPU) • Slot 3: PCIe Gen 3 x4 (CPU) • Slot 4: PCIe Gen 3 x4 (CPU, pre-installed with 10GbE network adapter) |
| USB 3.2 Gen 2 Ports | • 2 x Type-C USB 3.2 Gen 2 (10Gbps) • 4 x Type-A USB 3.2 Gen 2 (10Gbps) |
| HDMI Output | 1 x HDMI™ 2.0 (up to 3840 x 2160 @ 60Hz) |
| Form Factor | 2U Rackmount |
| LED Indicators | HDD 1-8, Status, LAN, Storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 88.3 × 482 × 562 mm |
| Weight | • Net: 11.89 kg • Gross: 15.49 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70 °C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing |
| Power Supply | Dual 300W, 100-240V |
| Power Consumption | 90.02 W (Typical, fully populated with WD10EFRX drives) |
| Fan | 2 x 60mm system fans (12VDC) |
| System Warning | Buzzer |
| Standard Warranty | 3 Years |
| Max Concurrent Connections | 2500 |
| Supported Client OS | macOS, Linux, UNIX, Windows 7/8/10/11, Windows Server 2008 R2 - 2022 |
| Supported Browsers | Safari, Chrome, Edge, Firefox |
| Languages | Chinese, English, French, German, Japanese, Korean, Russian, and more |
| Storage Pool | Maximum size: 308 TB, Max Pools: 128 |
| Volume Type | Thick, Thin, Static |
| Max Volume Size | 250 TB (4GB RAM minimum) |
| Max Shared Folder Size | 250 TB |
| RAID Levels | JBOD, Single, RAID 0/1/5/6/10/50/60 |
| File System | Internal: EXT4 External: EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (license required) |
