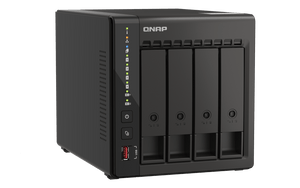

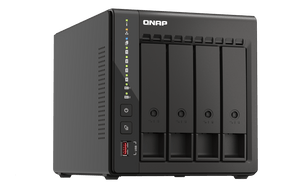

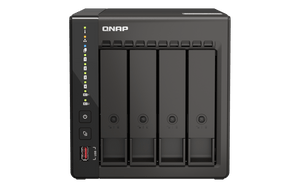

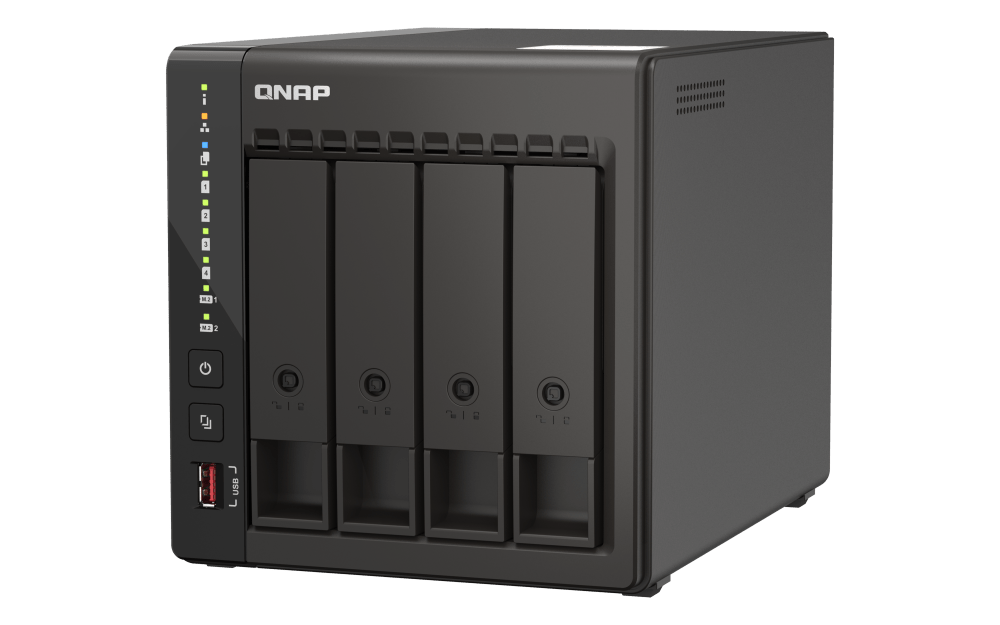

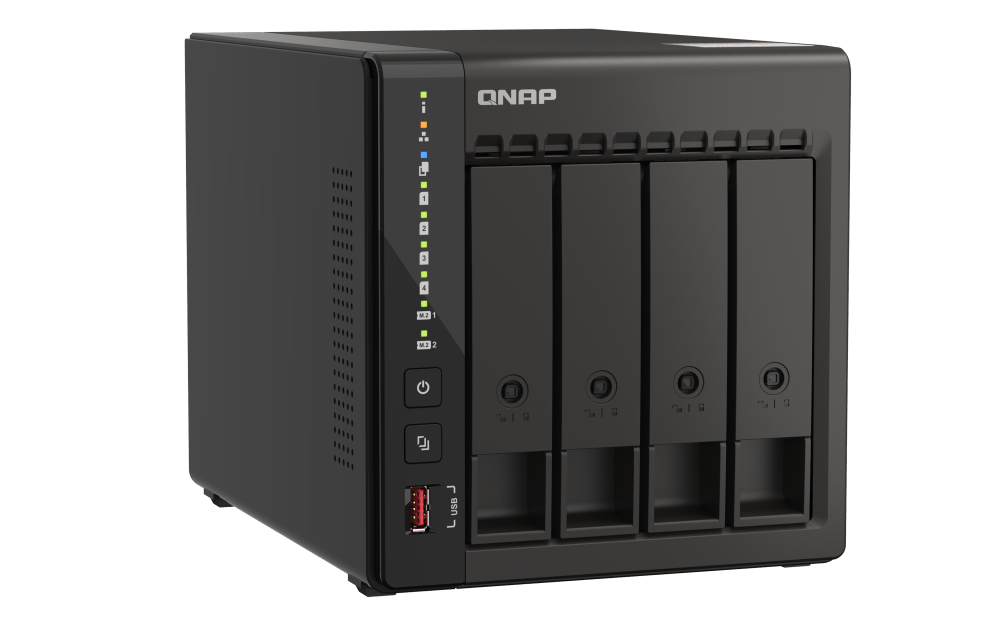

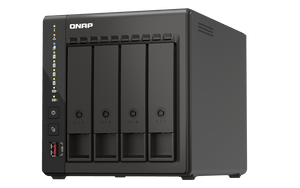

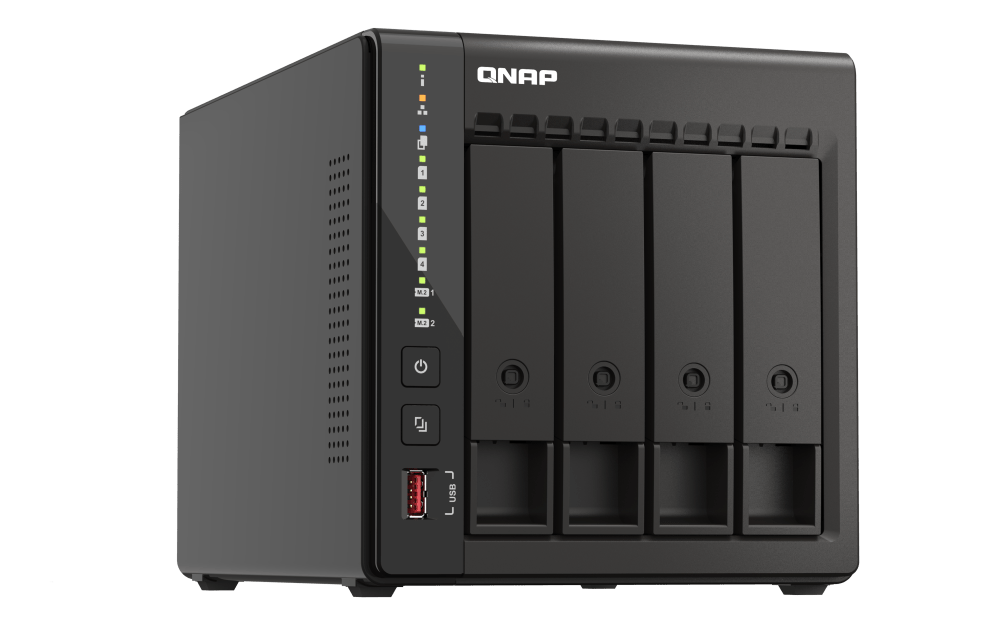

QNAP QVP-41C 4-Bay Surveillance Tower NVR
A Comprehensive Surveillance Solution Power and Performance for SMBs and SOHO The QVP-41C QVR Pro appliance is a high-performance, tower-based network surveillance server designed for small businesses and home office setups. Powered by an Intel® Celeron® quad-core processor, it offers a seamless, efficient, and centralized video surveillance storage solution. Key Features Support for ONVIF Cameras: Compatible with a vast range of cameras from over 190 brands adhering to ONVIF standards. Long-Term Model Availability: Supported by QNAP until 2029, ensuring long-term reliability. Dual HDMI™ Outputs: Enables multi-channel real-time 4K video playback on two monitors with extended display capability. High-Performance Hardware: Includes dual-port 2.5GbE, USB 3.2 Gen2 10Gbps port, and 8GB RAM, enhancing data transmission efficiency. RAID Protection: Offers data protection against drive failure, unlike traditional DVR and NVR systems. AI Surveillance Applications: Incorporates QNAP smart surveillance applications with Intel® OpenVINO™ AI engine support for enhanced facial recognition in QVR Face. QVP-41C vs. Traditional NAS-Based Surveillance Systems The QVP-41C is optimized for surveillance, dedicating its full system resources and storage space to ensure top-notch performance. This specialization distinguishes it from conventional NAS systems where surveillance is only one of many applications, potentially affecting performance due to shared resources. High-Capacity Video Surveillance Storage Solution Broad Compatibility: Supports over 6,000 IP cameras from more than 190 brands and numerous ONVIF network cameras. Economical Deployment: Offers an affordable solution for comprehensive surveillance needs including live monitoring, remote management, and smart AI integration. All-in-One Surveillance The QVP-41C negates the need for a complex PC NVR setup, integrating QVR Pro software and robust hardware for a streamlined surveillance experience. Enhanced Surveillance Features Surveillance Failover: Utilize QVR Guard on another NAS for automatic takeover in case of system failure. Large-Scale Central Management: Manage up to 256 Surveillance NAS (with additional licenses) across various locations via QVR Center. AI Surveillance Event Search: Efficiently sift through extensive video recordings to pinpoint specific events with QVR Smart Search. MP4 Format: Records videos in the universally accessible MP4 format. Remote Monitoring and Advanced Control QVR Pro Client Software: Available for Windows® and Mac®, this software allows for live view and playback with easy switching between modes. Mobile App: The QVR Pro Client mobile app offers remote monitoring capabilities, including a low-bandwidth mode for slow or capped network connections. Expanding Surveillance Applications QVR Center: Central management of multiple QVR Pro servers. QVR Guard: High-availability failover management for uninterrupted recording. QVR Face: Smart facial recognition and analytics for various applications. Enhanced Connectivity and Extended Warranty 2.5GbE Connectivity: Smooth surveillance streaming experience when connected to a QNAP 2.5GbE switch. Extended Warranty Options: Standard 3-year warranty with an option to extend up to 5 years. The QVP-41C stands out as a specialized, highly capable surveillance solution for small to medium-sized businesses and home office environments. Its focus on surveillance-specific functionalities, combined with robust hardware and extensive camera support, makes it an excellent choice for users seeking a dedicated, reliable, and scalable surveillance system.
Add-ons (1)
Pickup available at 3005, Ubi Avenue 3, #01-88
通常2〜4日で準備が完了します
QNAP QVP-41C 4-Bay Surveillance Tower NVR
商品説明
仕様
| Specification | Details |
|---|---|
| General | |
| OS | QVR Pro OS (QVP) |
| CPU | Intel® Celeron® J6412, 4-core/4-thread, burst up to 2.6 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Memory | |
| System Memory | 8GB |
| Maximum Memory | 16 GB (2 x 8 GB) |
| Memory Slot | 2 x SO-DIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Performance | |
| Max Live Cameras (Local Display) | 24ch @ 720p, 12ch @ 1080p, H.264, 30FPS |
| Max Playback Cameras (Local Display) | 12 |
| Max Concurrent Connection (Client) | 8 (4 live cameras / per remote client) |
| Embedded Channel | 8 |
| Max Channel | 24 (H264 / 1920x1080 / 30FPS) |
| Max Throughput | 300 Mbps |
| Storage | |
| Drive Bay | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA HDDs, 2.5-inch SATA SSDs |
| M.2 SSD Slot | 2 x M.2 2280 PCIe Gen 3 x2 |
| Connectivity | |
| Ethernet Port | 2 x 2.5 Gigabit Ethernet |
| USB Ports | 2 x USB 2.0, 2 x USB 3.2 Gen 2 (10Gbps) |
| HDMI™ Output | 2, HDMI™ 1.4b (up to 4096 x 2160 @ 30Hz) |
| Physical | |
| Form Factor | Tower |
| Dimensions (HxWxD) | 168.5 × 160.2 × 220.5 mm |
| Weight (Net) | 2.21 kg |
| Weight (Gross) | 3.61 kg |
| Environment | |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power and Cooling | |
| Power Supply Unit | 90W adapter, 100-240V |
| Power Consumption | HDD Sleep Mode: 28.974 W, Operating Mode: 35.79 W |
| Fan | 1 x 120mm, 12VDC |
| Sound Level | 16.9 db(A) |
| System Warning | Buzzer |
| Tray Locker | Yes |
| RAID and File System | |
| File System | Internal Hard Drive: EXT4 |
| RAID Types | RAID 0, 1, 5, 6, 10, JBOD, Single Disk, etc. |
| RAID Recovery | Yes |
| Recording and Surveillance Features | |
| Supported Media Sources | IP cameras, Generic RTSP url, Onvif ProfileS camera, etc. |
| Recording Mode | Continuous, scheduled, event recording, etc. |
| Megapixel Recording | Supports up to 6K Resolution |
| Recording Performance | Varies by NAS model and network configuration |
| Monitoring and Management | |
| Platform Support | Windows, Mac OS, Ubuntu, HybridDesk Station |
| Camera Integration | Over 170 brands, more than 5000 camera models |
| IVA Support | Yes (Compatible List available) |
| Additional Features | |
| Language Support | Multiple including English, Chinese, French, German, Japanese |
| RAID Group | Enhanced RAID group options for security and performance |
