D-Link DIS-100G-5PSW 4-Port Gigabit Unmanaged Industrial POE Switch with SFP
商品説明
Efficient Gigabit PoE Switch for Industrial Networking
The DIS-100G-5PSW is a 5-Port Gigabit Unmanaged Industrial PoE Switch, expertly designed for industrial and outdoor cabinet surveillance applications. This plug-and-play switch is tailored for challenging environments, offering a combination of PoE capabilities, durability, and high-speed connectivity.
Key Features:

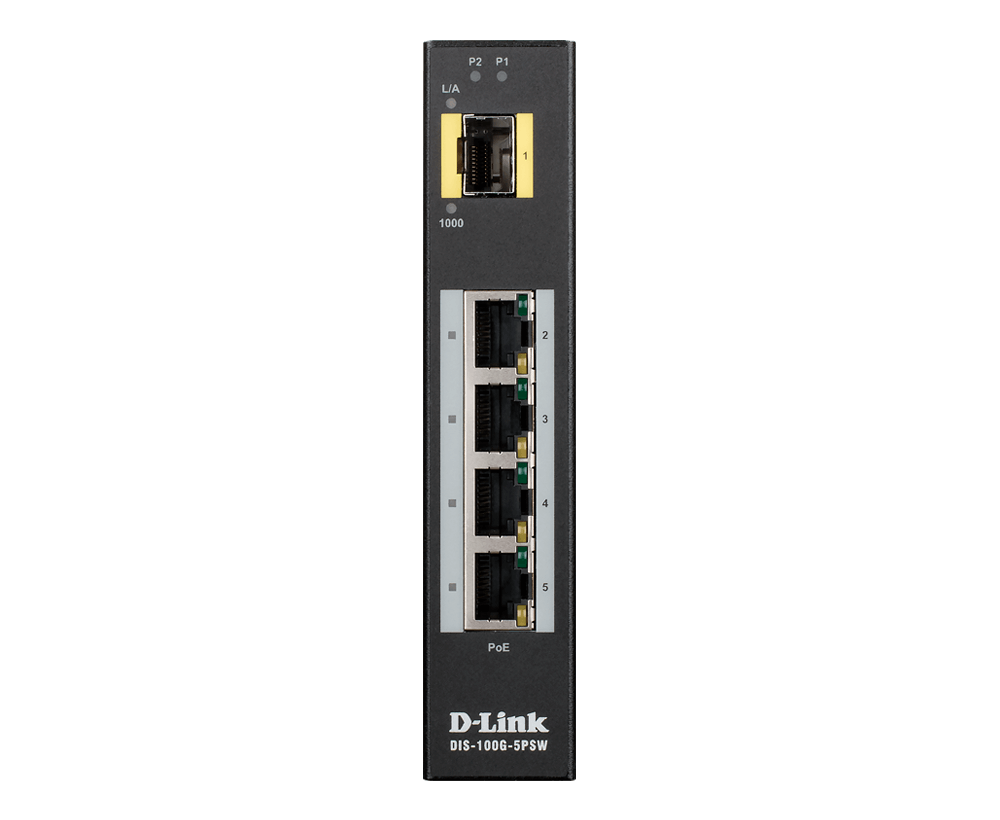

PoE-Enabled Network Ports:
- Four 10/100/1000BASE-T PoE Ports: Deliver power and data over a single cable.
- One Gigabit SFP Port: Provides fiber connectivity for extended network reach.
Designed for Extreme Conditions:
- Wide Operating Temperature Range: Functions reliably from -40 °C to +75 °C.
- IP30-Rated Metal Housing: Offers robust protection in harsh industrial environments.
High EMC Endurance:
- Ensures stable operation in areas with significant electromagnetic interference.

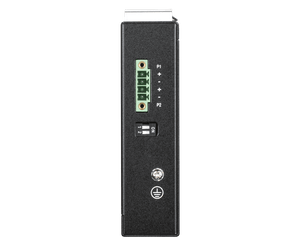

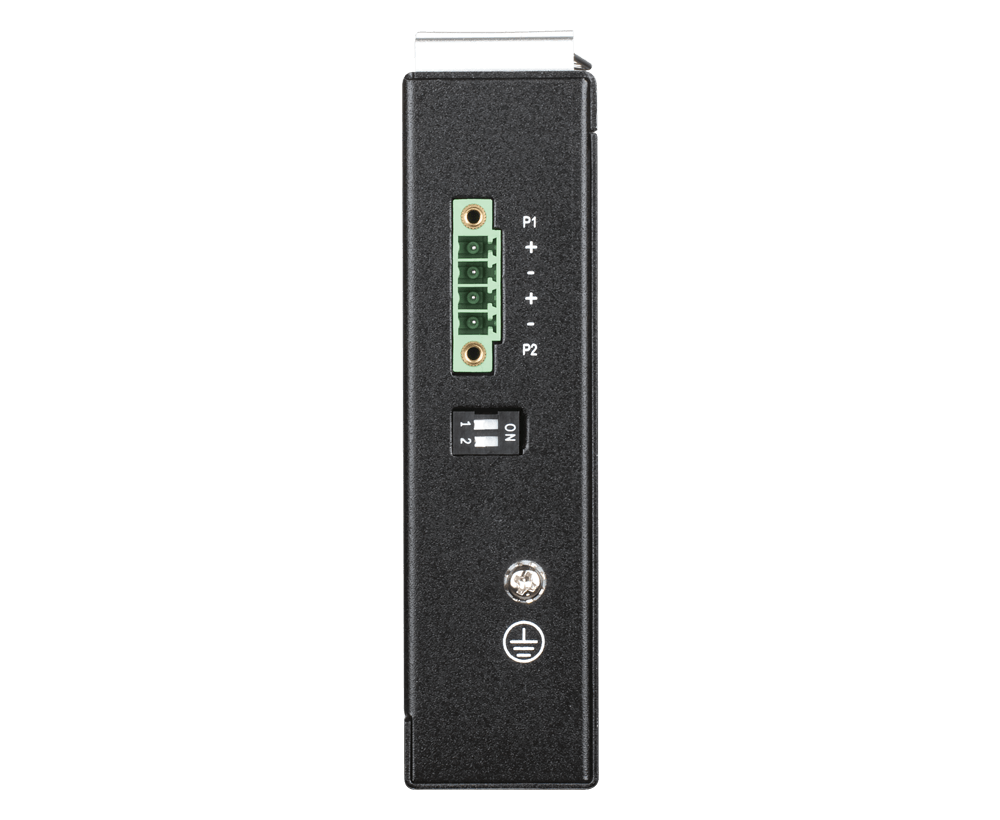

Redundant Power Supply:
- Dual Power Input: Enhances reliability with backup power options.

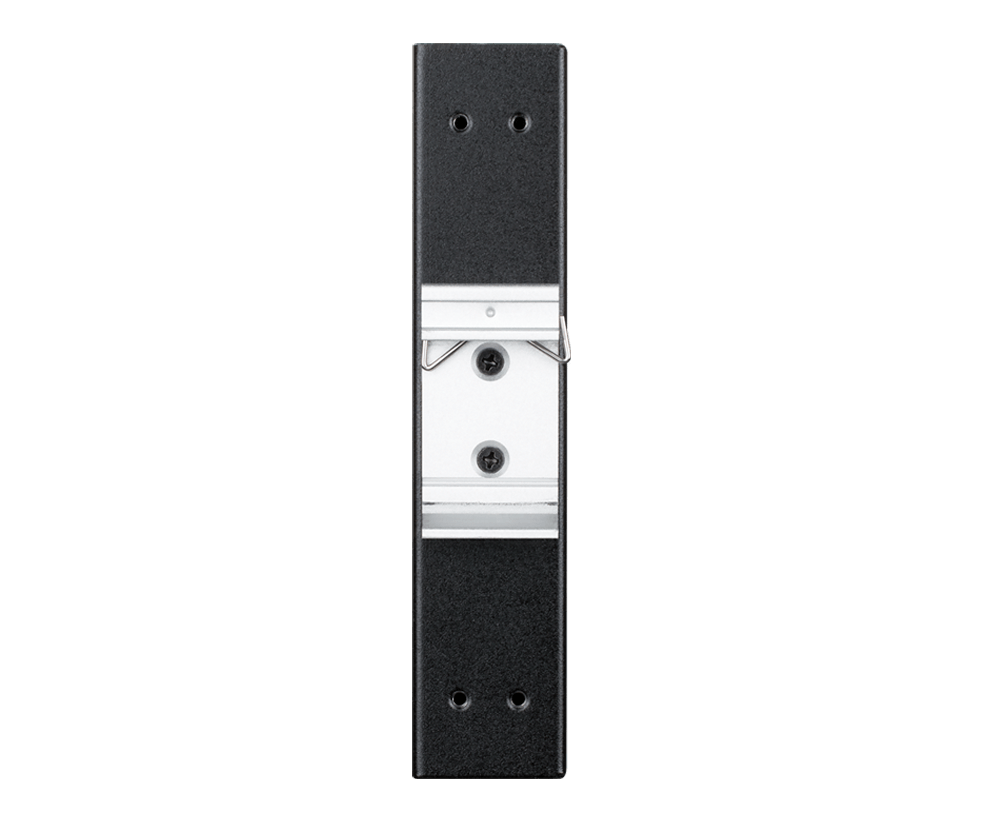

Flexible Installation:
- DIN-Rail and Wall Mounting Options: Adaptable for various industrial setups.
Robust PoE Power Budget:
- 120 W Total PoE Budget: Capable of supplying up to 30 W per port.
Product Insights:
Durable and Efficient Design:
- The DIS-100G-5PSW is built to withstand tough industrial conditions, ensuring consistent performance and longevity.
Compliance with Industry Standards:
- EN-50121-4 Wayside Control: Meets railway industry standards.
- NEMA-TS2 Traffic Control: Suitable for Intelligent Transportation System (ITS) applications.
Conclusion:
The DIS-100G-5PSW Industrial PoE Switch is an excellent choice for industries requiring a compact, easy-to-install, and reliable network solution with PoE capabilities. Its rugged design, wide temperature range, and compliance with critical industrial standards make it a versatile and dependable choice for various industrial networking requirements, especially in PoE-dependent environments.
仕様
| Specification | Details |
|---|---|
| 1000Base-T PoE Interface | 4 |
| 1000M SFP Interface | 1 |
| 10/100/1000 BASE-T PoE ports | 4 |
| SFP Port | 1 |
| Auto MDI/MDIX | Yes |
| Switching Capacity | 10Gbps |
| Max. Packet Forwarding Rate | 7.44Mpps |
| Store & Forwarding | Yes |
| Power Input | 48-58Vdc |
| Fan | Fanless |
| Compliance | RoHS 6 |
| Energy Efficiency Ethernet (EEE) | Yes |
| Power Saving Features | By Link Status, Cable Length |
| Maximum PoE Budget | 120W |
| MAC Address Table Size | 2K |
| 802.3x Flow Control | Yes |
| HOL Blocking Prevention | Yes |
| Jumbo Frame | 9K Bytes |
| Number of Queues | 4 |
| Storm Control | Broadcast/Multicast/Unicast |
| Maximum Heat Dissipation | 15.22 BTU/hr (PoE off), 448.94 BTU/hr (PoE on) |
| Dimensions | 139 x 29 x 107 mm |
| Maximum Power Consumption | 4.46 W (PoE off), 131.57 W (PoE on) |
| Operating Altitude | 2000m |
| Operating Humidity | 5 to 95% RH |
| Operating Temperature | -40 to 75°C |
| Storage Humidity | 5 to 95% RH |
| Storage Temperature | -40 to 85°C |
| Weight | 0.50 kg |
| MTBF | > 25 years |
