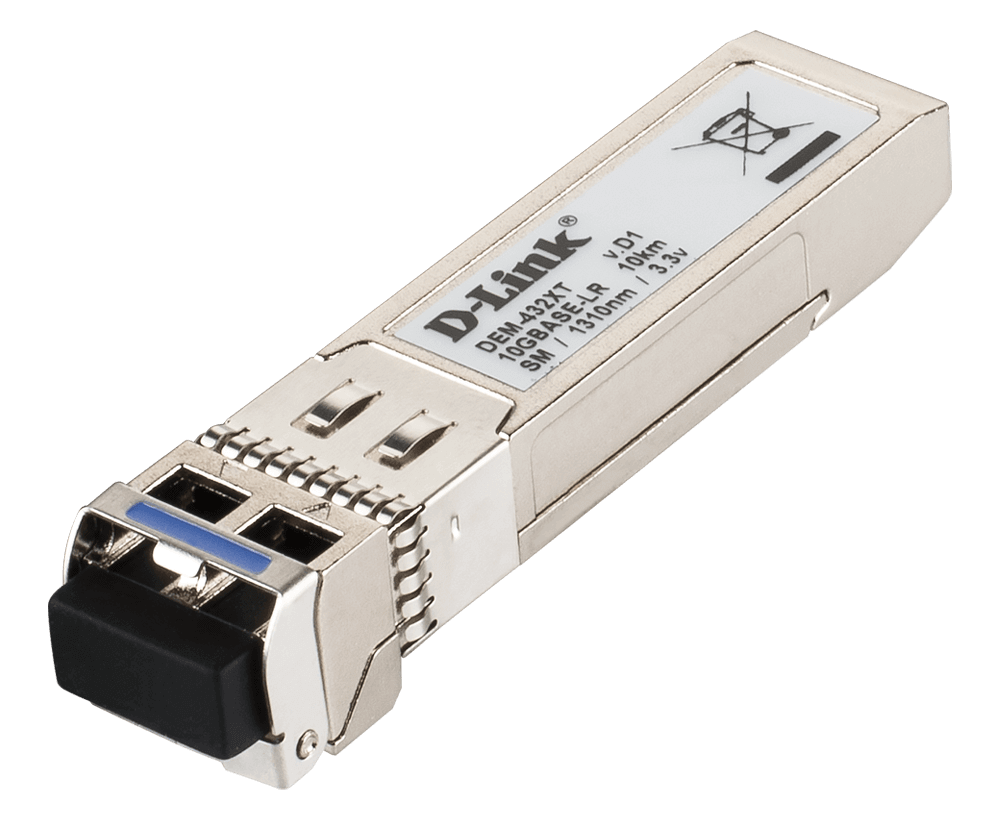

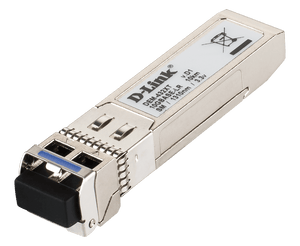

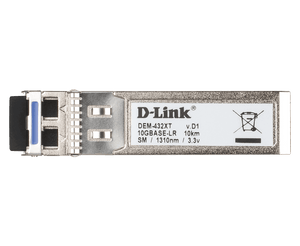

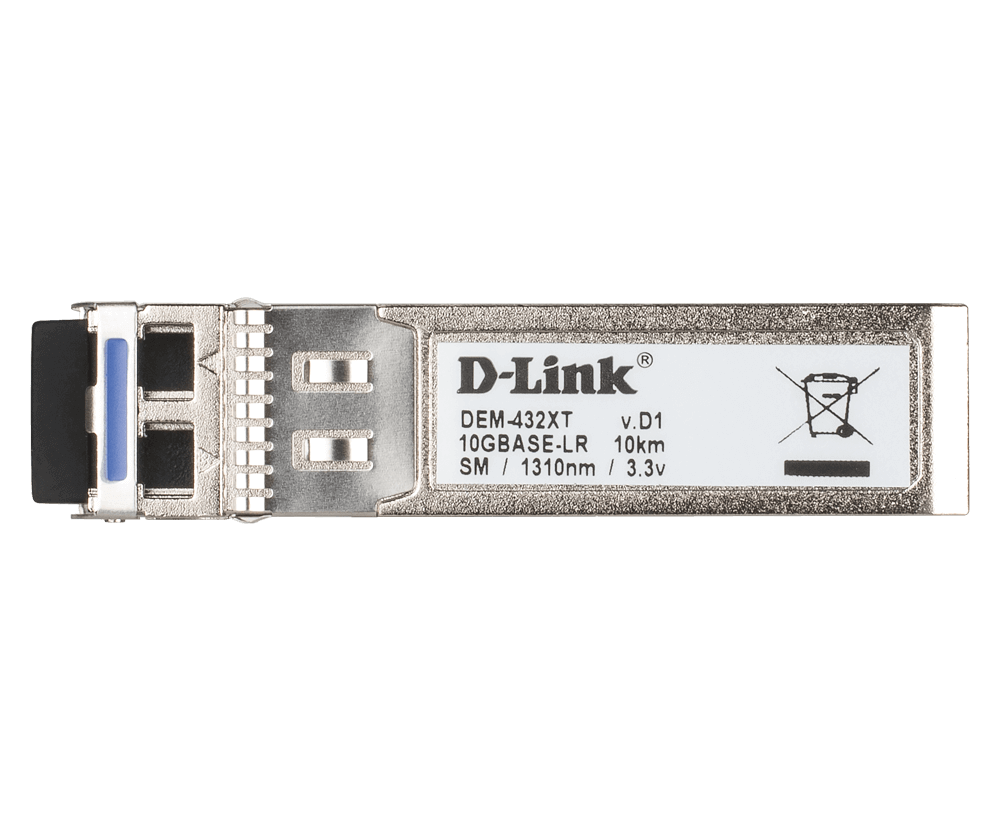

D-Link DEM-432XT 10GBASE-LR SFP+ Transceiver (10 Km)
10GBASE-LR SFP+ Transceiver (10 Km) Elevate Your Network with High-Speed, Long-Range Connectivity The D-Link DEM-432XT is a 10GBASE-LR SFP+ Transceiver designed to provide high-speed, long-range connectivity for enterprise networks. This hot-swappable SFP+ module is an ideal solution for data centers, enterprise wiring closets, and service provider transport applications requiring extended reach. Key Features Enhanced SFP+ Form Factor: Compact design suitable for high-density port configurations, offering lower costs and reduced power consumption. 10G Ethernet Support: Delivers fast data transmissions up to 10 Gbit/s, enhancing network performance significantly. Long-Range Connectivity: Ideal for applications requiring extended network reach up to 10 kilometers. Compliance Standards: Adheres to RoHS, MSA (Multiple Source Agreement), IEEE802.3ae, and 802.3aq standards. Product Details Versatile Network Integration: Suitable for a variety of 10G Ethernet connectivity options, enhancing network flexibility and scalability. Hot-Pluggable Convenience: Easy installation and removal without network disruption, allowing for seamless network upgrades and maintenance. Efficient Operation: Designed for energy efficiency, contributing to lower operational costs and eco-friendly network solutions. Summary The D-Link DEM-432XT 10GBASE-LR SFP+ Transceiver is a robust solution for businesses looking to extend their network reach with high-speed, reliable connectivity. Its long-range capability, combined with the benefits of 10G Ethernet speeds, makes it an excellent choice for expanding enterprise and data center networks.
Pickup available at 3005, Ubi Avenue 3, #01-88
通常2〜4日で準備が完了します
D-Link DEM-432XT 10GBASE-LR SFP+ Transceiver (10 Km)
商品説明
10GBASE-LR SFP+ Transceiver (10 Km)
Elevate Your Network with High-Speed, Long-Range Connectivity
The D-Link DEM-432XT is a 10GBASE-LR SFP+ Transceiver designed to provide high-speed, long-range connectivity for enterprise networks. This hot-swappable SFP+ module is an ideal solution for data centers, enterprise wiring closets, and service provider transport applications requiring extended reach.
Key Features
Enhanced SFP+ Form Factor:
- Compact design suitable for high-density port configurations, offering lower costs and reduced power consumption.
10G Ethernet Support:
- Delivers fast data transmissions up to 10 Gbit/s, enhancing network performance significantly.
Long-Range Connectivity:
- Ideal for applications requiring extended network reach up to 10 kilometers.
Compliance Standards:
- Adheres to RoHS, MSA (Multiple Source Agreement), IEEE802.3ae, and 802.3aq standards.
Product Details
Versatile Network Integration:
- Suitable for a variety of 10G Ethernet connectivity options, enhancing network flexibility and scalability.
Hot-Pluggable Convenience:
- Easy installation and removal without network disruption, allowing for seamless network upgrades and maintenance.
Efficient Operation:
- Designed for energy efficiency, contributing to lower operational costs and eco-friendly network solutions.
Summary
The D-Link DEM-432XT 10GBASE-LR SFP+ Transceiver is a robust solution for businesses looking to extend their network reach with high-speed, reliable connectivity. Its long-range capability, combined with the benefits of 10G Ethernet speeds, makes it an excellent choice for expanding enterprise and data center networks.
仕様
| Specification | Details |
|---|---|
| Power | 3.3V |
| Max Input Current | 3.3V: 300mA |
| Power Budget (MIN) | 4.1dB |
| MAX Power Budget | 13.1dB |
| Heat Generated | 3.6KJ/H |
| MTBF (hours) | 4,650,000 |
| Operating Temperature | 0°～70°C |
| Storage Temperature | -40°～85°C |
| Humidity (Operating) | 5% ~ 85% |
| Humidity (Storage) | 5% ~ 95% |
| Dimension (W x D x H) | Comply with SFF8432 14.8 x 56.5 x 11.85 mm |
| Weight | 19.5g |
| EMI Compliance | CE, FCC, VCCI |
| Safety Compliance | UL, TUV, CDRH |
| Hardware Version | A1 |
| Hot Pluggable | Yes |
| MSA Compliant | Yes |
| RoHS Compliant | Yes |
| Compliant Standard | IEEE-802.3ae 10GBASE-LR |
| Transceiver Type | SFP+ |
| Fiber Channel FC-PI Standard | 1200-SM-LL-L |
| Fiber Media Support | Single-Mode |
| Distance | 10KM |
| Speed | 10Gbps |
| Input Optical Power (RX) | MAX: +0.5dBm, MIN: -12.6 dBm |
| Sensitivity | -12.6 dBm |
| Cable Type | Single-mode 9/125um fiber |
| Connector | Duplex LC Connector |
| Direction | Single-direction |
| Wavelength | 1310nm |
| Output Optical Power (TX) | MAX: +0.5 dBm |
