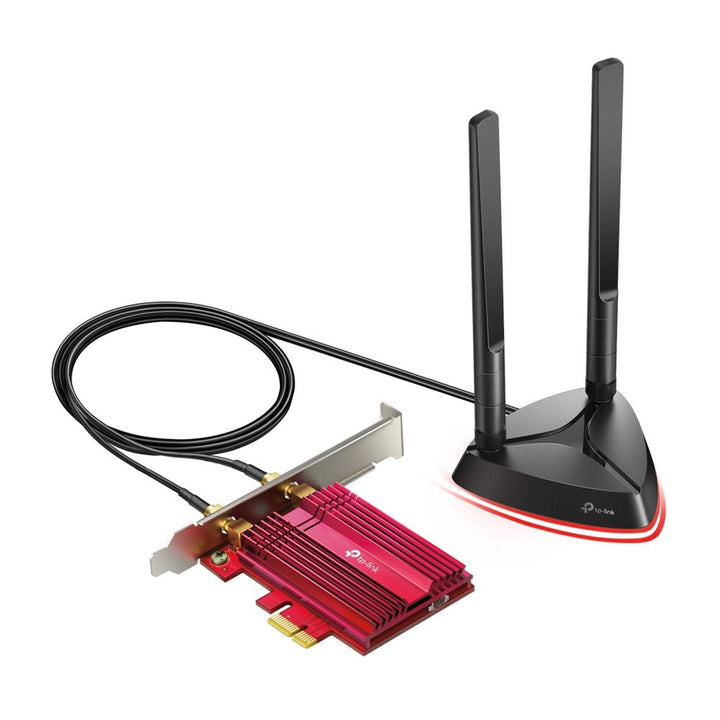

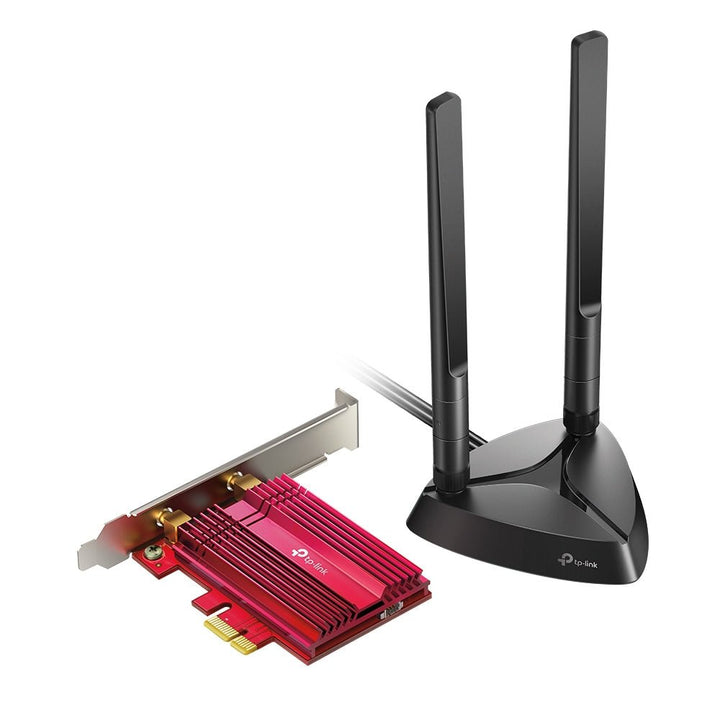

TP-Link Archer TX3000E AX3000 Wi-Fi 6 Bluetooth 5.0 PCIe Adapter
Unleash the Power of Wi-Fi 6 and Bluetooth 5.0 Elevate Your Connectivity The TP-Link Archer TX3000E AX3000 is a state-of-the-art Wi-Fi 6 and Bluetooth 5.0...
Unleash the Power of Wi-Fi 6 and Bluetooth 5.0
Elevate Your Connectivity
The TP-Link Archer TX3000E AX3000 is a state-of-the-art Wi-Fi 6 and Bluetooth 5.0 PCIe Adapter, engineered to transform your desktop's wireless capabilities. It's a perfect tool for gamers, streamers, and any user requiring the best in wireless connectivity.
Key Features
-

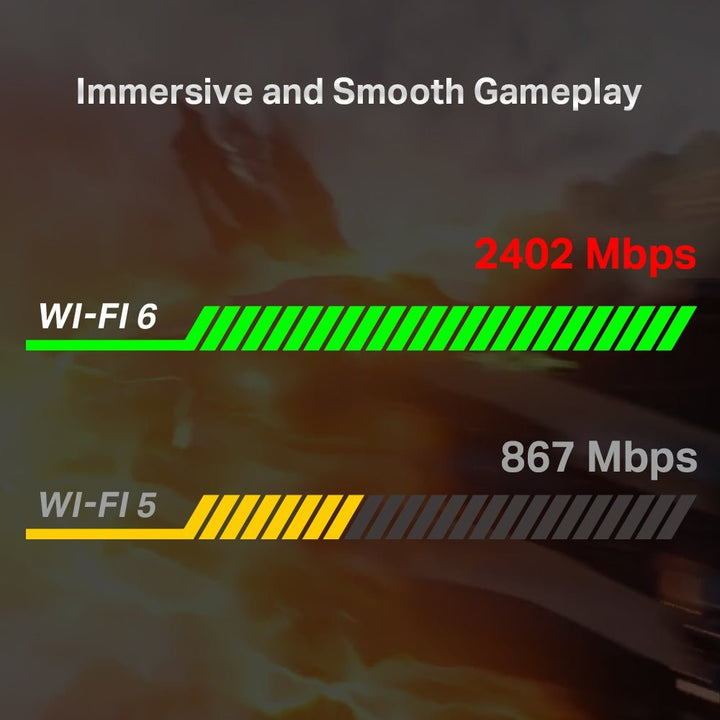

Unrivaled Wi-Fi 6 Speed: Breakthrough speeds up to 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).
- Shatters the gigabit barrier for advanced online activities
- Smoother Gaming Experience: 75% lower latency for real-time responsiveness in gaming.
- Reliable Intel® Wi-Fi 6 Chipset: Enhances Wi-Fi quality and unlocks your Wi-Fi 6 router's potential.

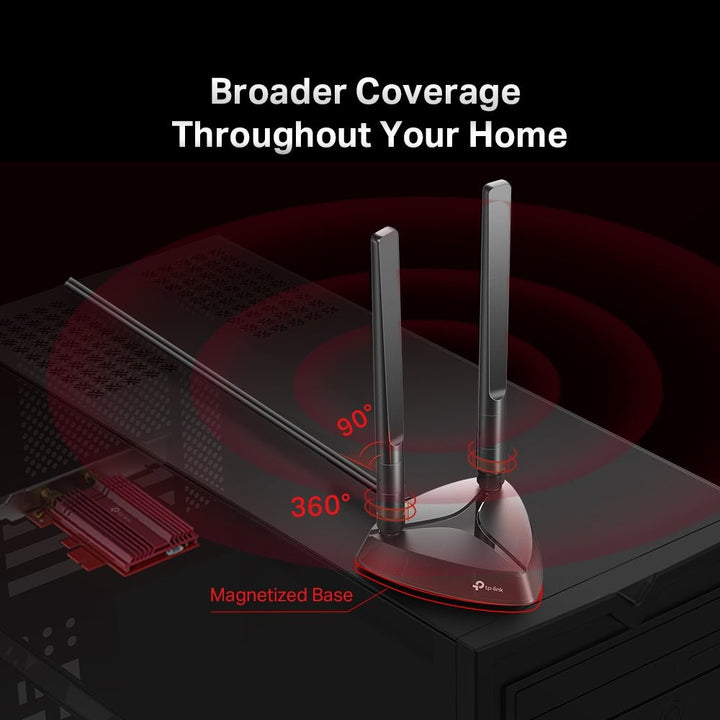

- Wider Signal Coverage: Two multi-directional antennas with a magnetized base for optimal signal reception.
- Bluetooth 5.0 Technology: Achieves 2× faster speed and 4× broader coverage than Bluetooth 4.2.
- Improved Security: Latest WPA3 encryption for enhanced personal password safety.

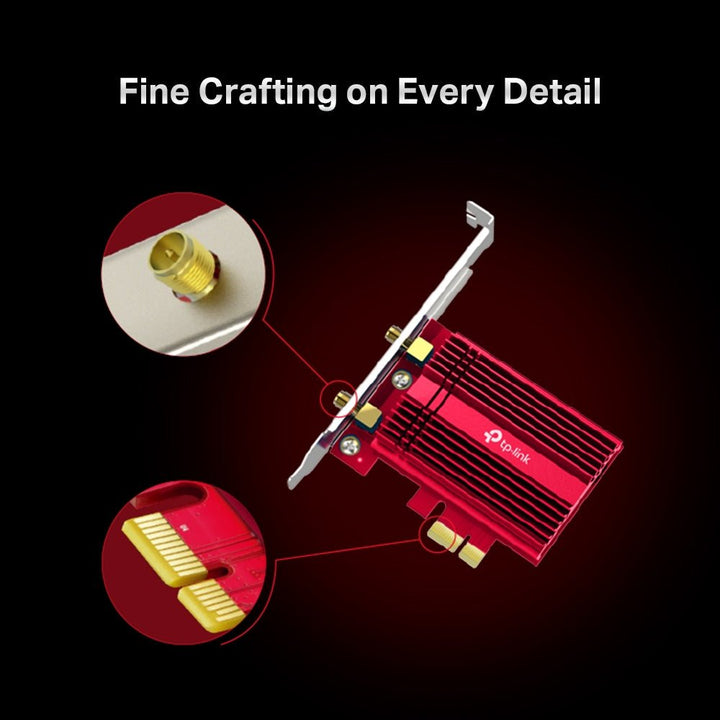

- Fine Crafting: Specialized heatsink and gold plating ensure stability in various environments.
- Backward Compatibility: Supports previous 802.11ac/a/b/g/n Wi-Fi standards.
Advanced Technologies
-
1024-QAM and 160 MHz Bandwidth: Offers 3× faster speeds than standard AC Wi-Fi.
- Ideal for high-performance gaming and streaming
- Revolutionary OFDMA: Reduces lag significantly, perfect for real-time gaming and VR experiences.
- OFDMA and MU-MIMO Technologies: Ensures efficient and lag-free Wi-Fi connectivity for multiple devices.
Summary
The TP-Link Archer TX3000E AX3000 is a powerful addition to any desktop, providing unmatched Wi-Fi 6 and Bluetooth 5.0 capabilities. Designed for demanding online tasks, it delivers exceptional speed, low latency, and extensive coverage. Whether it's for gaming, streaming, or general use, this adapter is an excellent choice for upgrading your desktop's wireless performance.
Specification Title | Detail |
---|---|
Hardware Features | |
Dimensions | 3.7 x 4.8 x 0.8 in (95.2 x 120.8 x 21.5 mm) |
Antenna Type | Two High-Gain Dual Band Antennas, Magnetized Antenna Base |
Chipset | Intel Wi-Fi 6 Chipset |
Wireless Features | |
Wireless Standards | IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/g/b 2.4 GHz, Bluetooth 5.0/4.2/4.0 |
WLAN Signal Rate | 5 GHz: 11ax: Up to 2402 Mbps (dynamic), 11ac: Up to 1733 Mbps (dynamic), 11n: Up to 300 Mbps (dynamic), 11a: Up to 54 Mbps (dynamic), 2.4 GHz: 11ax: Up to 574 Mbps (dynamic), 11n: Up to 300 Mbps (dynamic), 11g: Up to 54 Mbps (dynamic), 11b: Up to 11 Mbps (dynamic) |
WLAN Reception Sensitivity | 5 GHz: 11ax HT160: -56.25dBm, 11ax HT80: -59dBm, 11ax HT40: -62.25dBm, 11ax HT20: -65dBm, 11ac HT160: -62dBm, 11ac HT80: -65.5dBm, 11ac HT40: -69.75dBm, 11ac HT20: -73.75dBm, 11n HT40: -74.5dBm, 11n HT20: -77.5dBm, 11a 54Mbps: -77.75dBm, 11a 6Mbps: -94.5dBm, 2.4GHz: 11ax HT40: -60.75dBm, 11ax HT20: -63.75dBm, 11n HT40: -73dBm, 11n HT20: -76.25dBm, 11g 54Mbps: -76.5dBm, 11b 11Mbps: -89dBm |
WLAN Transmit Power | 5 GHz: 27dBm(FCC) / 23dBm(CE) (EIRP), 2.4 GHz: 26dBm(FCC) / 20dBm(CE) (EIRP) |
WLAN Modes | Infrastructure mode |
Wireless Security | Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x |
Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM |
Bluetooth Profiles | Archer TX3000E supports native BT profiles in Windows 10. For the latest info, refer to the Windows 10 support page |
Others | |
Certification | CE, FCC, RoHS |

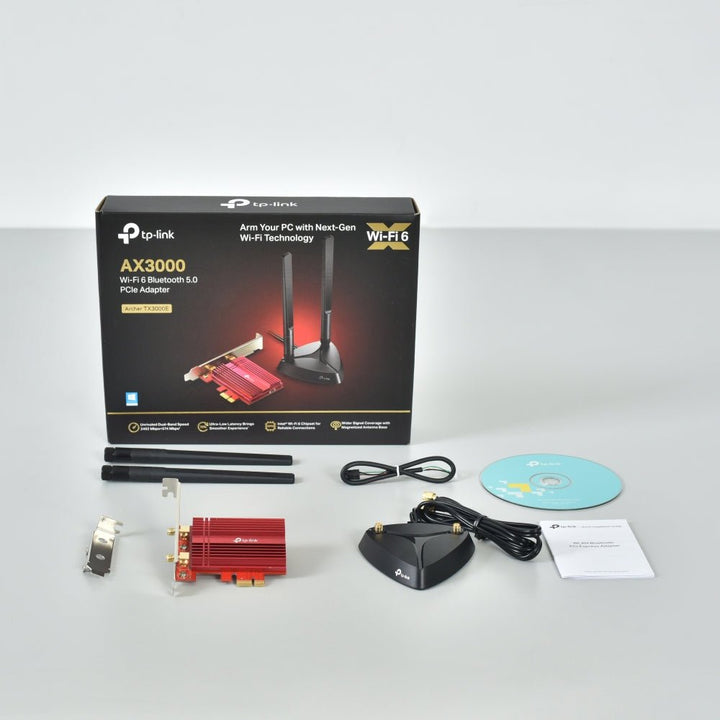

Package Contents | Archer TX3000E, Magnetized Antenna Base with 1m RF Cable, Two High Gain Antennas, Low-Profile Bracket, Bluetooth Header Cable, Quick Installation Guide, Resource CD |
System Requirements | Windows 10(64-bit) only |
Environment | Operating Temperature: 0℃ |
