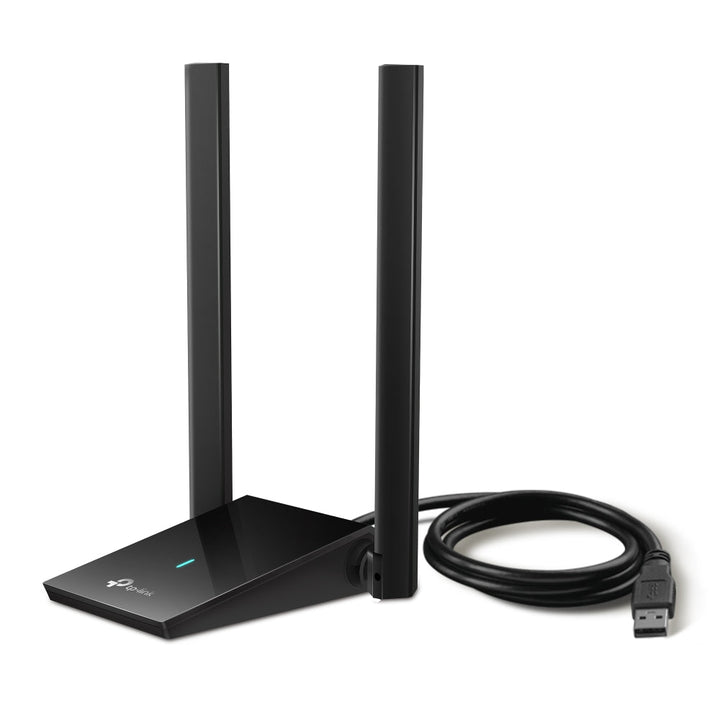

TP-Link Archer TX20U Plus AX1800 Dual Antennas High Gain Wi-Fi 6 USB Adapter
High Gain Wi-Fi 6 USB Adapter Experience Cutting-Edge Wireless Technology The TP-Link Archer TX20U Plus AX1800 is a high-performance Wi-Fi 6 USB adapter, designed to...
High Gain Wi-Fi 6 USB Adapter
Experience Cutting-Edge Wireless Technology
The TP-Link Archer TX20U Plus AX1800 is a high-performance Wi-Fi 6 USB adapter, designed to bring lightning-fast, reliable wireless connectivity to your PC. It's an excellent upgrade for users demanding higher speeds and better coverage.
Key Features
- Lightning-Fast Wi-Fi 6 Speeds: Up to 1800Mbps wireless speeds (1201Mbps on 5GHz + 574Mbps on 2.4GHz).
- Flexible Dual Band: Optimal connection with 5GHz and 2.4GHz bands.
- Dual High-Gain Antennas: Enhanced signal quality and transmission for extended range.
- MU-MIMO Support: Maintains high speeds even with multiple devices connected.
- OFDMA Technology: Reduces latency for improved conferencing and gameplay.
- SuperSpeed USB 3.0: Up to 10× faster than USB 2.0.
- Refined Security: Features the latest WPA3 encryption for data protection.
Enhanced Wireless Experience

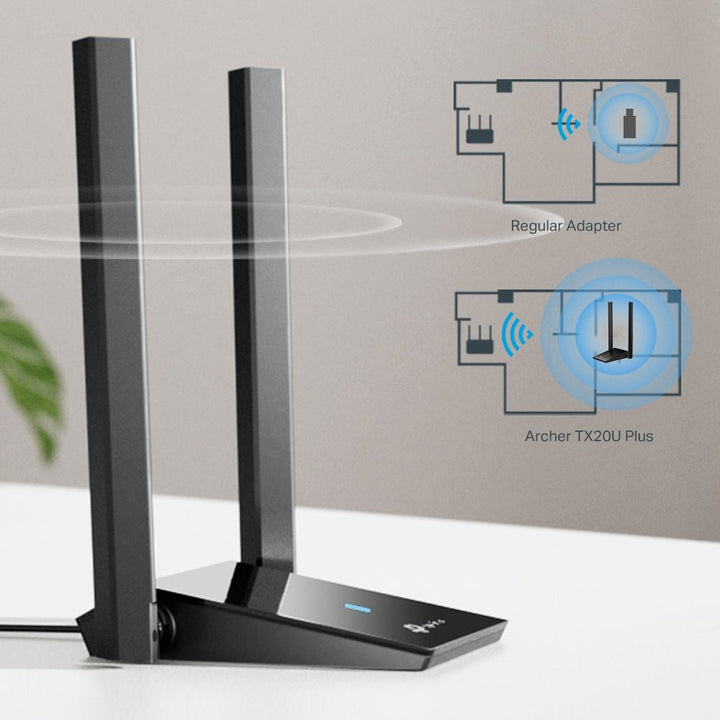

- Beamforming for Extended Coverage: Focuses Wi-Fi signals towards your router for better reception and reliable connections.
- Ultra-Low Latency: Ideal for gaming and video conferencing on crowded networks.

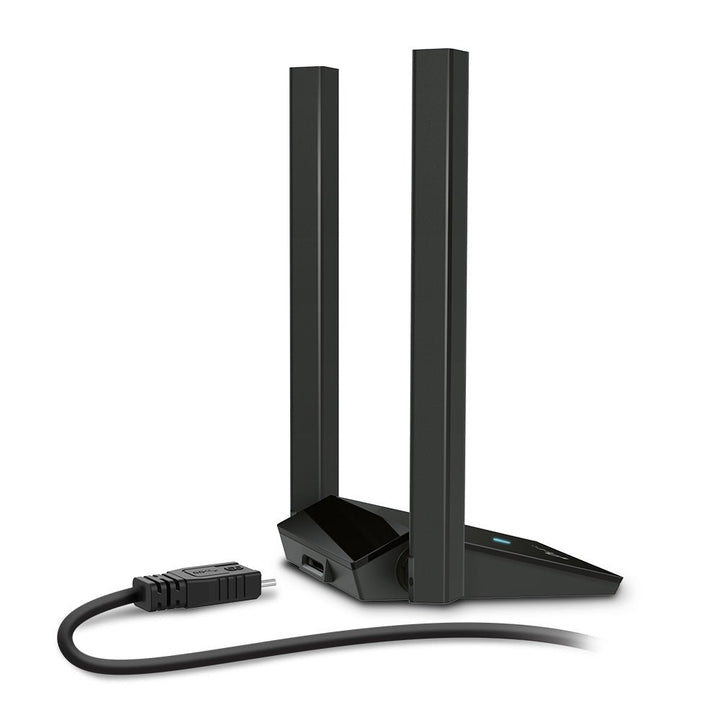

- Adjustable, Multi-Directional Antennas: Optimize reception by rotating the antennas up to 180°.
- Auto Driver Installation: Easy plug-and-play setup.
User-Friendly Design

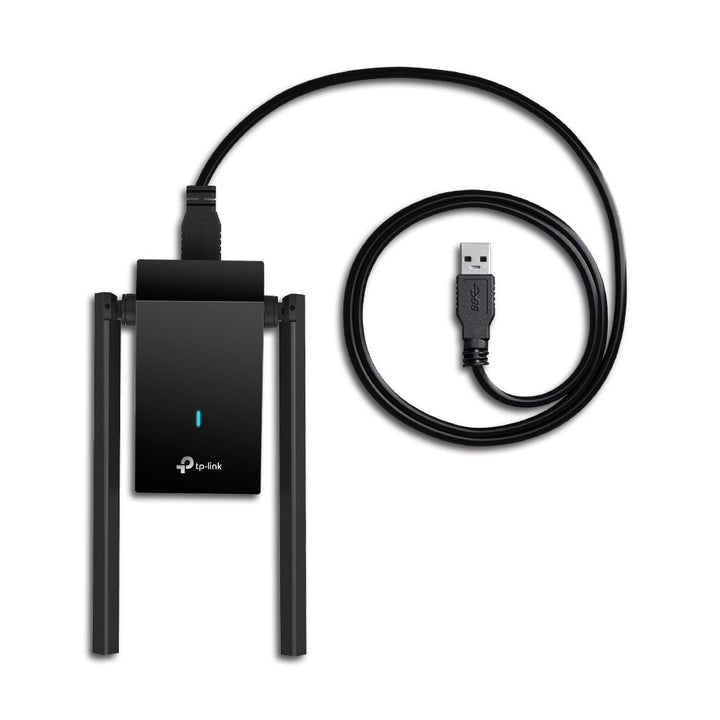

- Desktop-Friendly Design: Includes a 1-meter USB cable for optimal placement and network reception.
- Next-Gen Security: WPA3 encryption safeguards against brute-force attacks.
- Operating System Compatibility: Fully compatible with Windows 11/10.
Summary
The TP-Link Archer TX20U Plus AX1800 is a state-of-the-art Wi-Fi 6 USB adapter, perfect for upgrading your PC to handle the demands of high-speed internet activities. With its dual-band support, high-gain antennas, and advanced technologies like MU-MIMO and OFDMA, it offers unparalleled wireless performance and coverage, making it a top choice for advanced users.
| Specification Title | Detail |
|---|---|
| Hardware Features | |
| LED | Status |
| Dimensions | 84 × 156.3 × 19.2 mm (3.3 × 6.2 × 0.76 in) |
| Antenna | 2× High-Gain Dual-Band Antennas |
| Wireless Features | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate | 5 GHz: 11ax: Up to 1201 Mbps (dynamic), 11ac: Up to 867 Mbps (dynamic), 11n: Up to 300 Mbps (dynamic), 11a: Up to 54 Mbps (dynamic), 2.4 GHz: 11ax: Up to 574 Mbps (dynamic), 11n: Up to 400 Mbps (dynamic), 11g: Up to 54 Mbps (dynamic), 11b: Up to 11 Mbps (dynamic) |
| Reception Sensitivity | 5 GHz: 11ax HE80 MCS0: -90 dBm, 11ax HE80 MCS11: -59 dBm, 11a 54Mbps: -77 dBm, 11ac VHT80 MCS0: -92dBm, 11ac VHT80 MCS9: -64dBm, 2.4 GHz: 11ax HE40 MCS0: -94 dBm, 11ax HE40 MCS11: -66 dBm, 11g 54Mbps: -79 dBm, 11n HT40 MCS9: -74dBm |
| Transmit Power | 5 GHz: 19dBm(FCC) /16dBm(CE) (EIRP), 2.4 GHz: 19dBm(FCC) / 14.5dBm(CE) (EIRP) |
| Wireless Modes | Infrastructure mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| Others | |
| Certification | FCC, CE, RoHS |
| Package Contents | AX1800 Dual Antennas High Gain Wireless USB Adapter Archer TX20U Plus, Quick Installation Guide, 1-meter USB 3.0 Cable |
| System Requirements | Supported operating systems include Windows 10, 11 |
| Environment | Operating Temperature: 0℃~40℃ (32℉ ~104℉), Operating Humidity: 10%~90% non-condensing, Storage Humidity: 5%~90% non-condensing |
