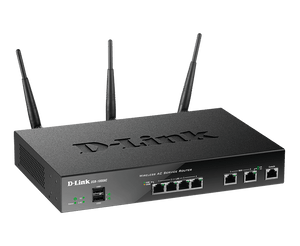

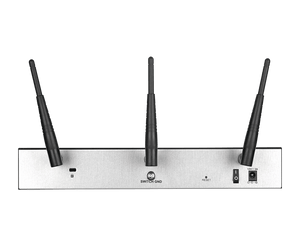

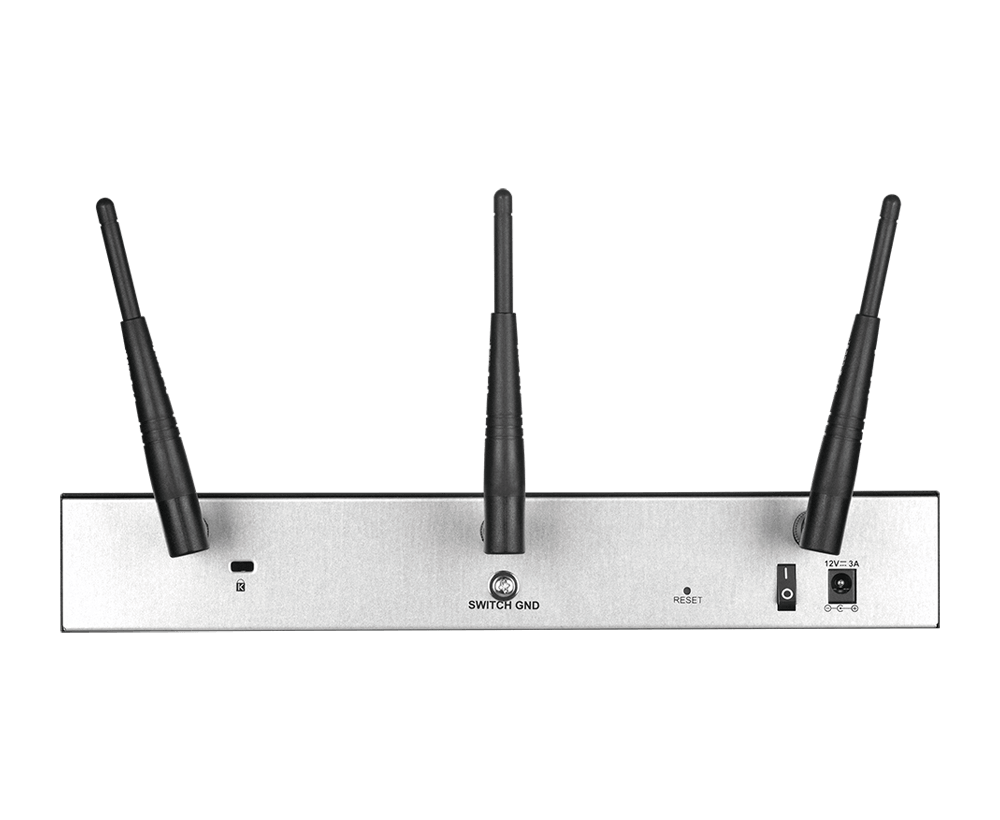

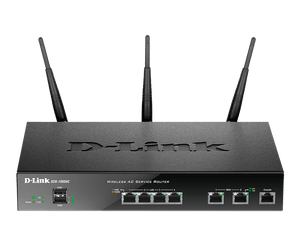

D-Link DSR-1000AC Wireless AC Unified Services VPN Router
Wireless AC Unified Services VPN Router High-Performance Networking for SMBs with Advanced Wireless Capabilities The D-Link DSR-1000AC Wireless AC Unified Services VPN Router is designed...
Frequently Bought Together
Wireless AC Unified Services VPN Router
High-Performance Networking for SMBs with Advanced Wireless Capabilities
The D-Link DSR-1000AC Wireless AC Unified Services VPN Router is designed to meet the evolving networking needs of small and medium businesses. It combines secure, high-performance networking with the latest in wireless technology, offering speeds of up to 1300 Mbps and enhanced connectivity options.
Key Features
Next-Generation Wireless Performance:
- Supports 802.11ac on the 5 GHz band, providing higher data rates and improved bandwidth.
Dual WAN for Enhanced Reliability:
- Features dual WAN Gigabit Ethernet ports for high availability and load balancing.
Comprehensive VPN Support:
- Offers SSL VPN, GRE tunnels, IPSec, PPTP, L2TP, and OpenVPN for secure remote access.
Mobile Broadband Connectivity:
- Supports optional USB modems for 3G/4G mobile broadband connections.
Captive Portal for User Authentication:
- Customizable landing page for authenticating employees and guests via various methods.
Product Overview
The DSR-1000AC is tailored for businesses requiring reliable, high-speed internet connectivity. It offers advanced wireless technology, making it comparable to wired networks in performance but with greater flexibility.
Advanced Networking and Security
Load Balancing and High Availability:
- Balances traffic across WAN links to enhance performance and ensure continuous operation.
Robust VPN Features:
- Empowers mobile and remote workers with secure access to the corporate network.
Web Authentication Capabilities:
- Captive Portal supports authentication through local database, RADIUS, LDAP, and more.
Flexible Deployment and Management
Versatile Internet Options:
- Stay connected with wired Internet or use a 3G/4G dongle as a primary or backup connection.
Comprehensive Management:
- Offers tools for monitoring and controlling network access, enhancing security and productivity.
Summary
The D-Link DSR-1000AC is a versatile, high-performance router that provides small and medium businesses with the necessary tools for secure and efficient network management. Its combination of advanced wireless technology, comprehensive VPN features, and user authentication capabilities makes it a valuable asset for any growing business.
Specification | Details |
---|---|
Product Range | Mid-range VPN Router |
Ethernet Type | Gigabit Ethernet |
Network Security | IDP/DoS Protection, Category-based Web Content Filtering, Application Control/Management |
Port Configurable | 1 port configurable (WAN/DMZ) |
WAN Redundancy | Dual WAN Failover |
H/W Redundancy | N/A |
WAN Load Balancing | Outbound Load Balancing |
Wired/Wireless | 802.11AC |
Firewall Throughput | 950Mbps |
VPN Throughput | 250Mbps |
IPS Throughput | NA |
AV Throughput | NA |
New Sessions / Second | 1000 |
Firewall Policies | 600 |
Concurrent Sessions | 100,000 |
LAN Port | 4*GE |
DMZ Port | Yes |
WAN Port | 2*GE |
USB Storage/Printer server | Yes |
3G Support | Yes |
Console Port | RJ-45 |
Transparent Mode | Yes |
NAT, PAT | Yes |
Dynamic Routing | OSPF/RIP v1, v2 |
Static Route | Yes |
Policy-based Routing | Yes |
H.323 NAT Traversal | Yes |
Application Layer Gateway (ALG) | Yes |
Time-Scheduled Policies | Yes |
DHCP Server/Client | Yes |
DHCP Relay | Yes |
IEEE 802.1q VLAN | Yes |
IGMP | Yes |
IPv6 | Yes |
One-to-One NAT | Yes |
UPnP | Yes |
PPTP/ L2TP/ IPsec Pass Through | Yes |
SSL VPN | Yes |
VLAN (port-based) | Yes |
SSID-to-VLAN Mapping | Yes |
Wireless Isolation | Yes |
WDS (Wireless Distribution System) | Yes |
Multiple SSID | 4 |
IPsec VPN Tunnel | 155 |
X.509 v3 | Yes |
XAUTH for IPSec Authentication | Yes |
PPTP/L2TP Server | Yes |
Hub and Spoke VPN | Yes |
SSL VPN Tunnel | 20 |
SSL Encryption Method | RC4-128, RC4-56, 3DES |
IPSec NAT Traversal | Yes |
Encryption Method | DES/3DES/AES/Twofish/Blowfish/CAST-128 |
Built-in User Database | Yes |
RADIUS Support | Yes |
LDAP Support | Yes |
Microsoft AD Support | Yes |
Web UI Interface | HTTP, HTTPS |
Command Line/SSH | Yes |
Upgrade and Config Backup/Restore | Yes |
Trusted Host for Remote Management | Yes |
Internal Log | Yes |
External Log | Yes |
Email Notification | Yes |
Event log and alarm | Yes |
SNMP | Yes |
WAN Failover | Dual WAN+3G |
Outbound Load Balancing | Round-robin Spill-over |
Maximum Bandwidth | Yes |
Guaranteed Bandwidth | Yes |
Priority Bandwidth | Yes |
Dynamic Web Content Filtering | Yes |
DoS/DDoS Protection | Yes |
Static URL Filter | Yes |
WEP | Yes |
WPA-PSK (Personal) | Yes |
WPA-EAP (Enterprise) | Yes |
WPA2-PSK (Personal) | Yes |
WPA2-EAP (Enterprise) | Yes |
VPNC AES | Yes |
VPNC Basic | Yes |
Operating Temperature | 0 to 40 °C |
Storage Temperature | -20 to 70 °C |
Operating humidity | 5% to 95% non-condensing |
EMI | FCC Class B, CE Class B, C-Tick, IC |
Safety | cUL, LVD (EN60950-1) |
MTBF | 360,000 hours |
