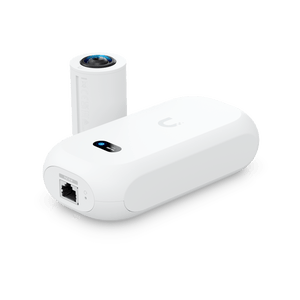

Ubiquiti UVC-AI-Theta-Pro AI Theta Pro 8MP 360° Fisheye IP Camera
8MP 360° AI IP Camera for Comprehensive Surveillance Experience unmatched panoramic surveillance with the Ubiquiti UVC-AI-Theta-Pro 8MP 360° IP Camera. Designed for discreet installation and high-performance monitoring, it provides a complete ceiling-mounted solution for expansive, busy spaces, powered by advanced AI capabilities for intelligent detection. Highlights 360° Panoramic Coverage: Ultra-wide 8MP 4K resolution for complete surveillance of large areas. Advanced AI Features: Detect people, read license plates*, and more with superior AI technology. Superior Image Quality: Exceptional low-light performance and enhanced dynamic range. Modular Design: Minimal footprint with a separated lens and PoE-powered hub. Flexible Mounting Options: Pro Flush Mount allows installation without rear access. Key Features Camera Specifications Resolution: 8MP (4K) 2160 x 2160 (1:1 aspect ratio) for detailed, high-definition imaging. Frame Rate: Max 24 FPS for smooth video recording. Image Settings: Adjustable color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, motion-based NR, masking, and text overlay. Power and Connectivity Power Supply: PoE-powered hub, ensuring simplified installation and reduced cabling. Modular Components: Includes AI Theta Hub and Pro 360 Lens, connectable via included cable. Audio Support Optional AI Theta Audio Module: Enable two-way audio with a microphone and speaker (sold separately). Mounting and Installation Mounting Options: Includes Standard Flush Mount and Pro Flush Mount for versatile ceiling or wall installations. Compact Design: Separate lens and camera body for a minimal installation footprint. Advanced AI Capabilities AI Detection: Recognizes people and detects license plates with supported lenses*. Enhanced Flexibility: Adaptable with optional AI Theta Audio Module for added functionality. Summary The Ubiquiti UVC-AI-Theta-Pro is the ultimate 360° IP camera solution for professional-grade surveillance. With its modular design, exceptional image quality, and advanced AI capabilities, it is perfect for monitoring expansive, high-traffic areas like offices, retail spaces, or public venues. Its discreet installation and versatile mounting options ensure a seamless fit into any environment.
Add-ons (3)
Pickup available at 3005, Ubi Avenue 3, #01-88
일반적으로 2~4일 후 준비 완료
Ubiquiti UVC-AI-Theta-Pro AI Theta Pro 8MP 360° Fisheye IP Camera
제품 설명
8MP 360° AI IP Camera for Comprehensive Surveillance
Experience unmatched panoramic surveillance with the Ubiquiti UVC-AI-Theta-Pro 8MP 360° IP Camera. Designed for discreet installation and high-performance monitoring, it provides a complete ceiling-mounted solution for expansive, busy spaces, powered by advanced AI capabilities for intelligent detection.
Highlights
- 360° Panoramic Coverage: Ultra-wide 8MP 4K resolution for complete surveillance of large areas.
- Advanced AI Features: Detect people, read license plates*, and more with superior AI technology.
- Superior Image Quality: Exceptional low-light performance and enhanced dynamic range.
- Modular Design: Minimal footprint with a separated lens and PoE-powered hub.
- Flexible Mounting Options: Pro Flush Mount allows installation without rear access.
Key Features
Camera Specifications
- Resolution: 8MP (4K) 2160 x 2160 (1:1 aspect ratio) for detailed, high-definition imaging.
- Frame Rate: Max 24 FPS for smooth video recording.
- Image Settings: Adjustable color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, motion-based NR, masking, and text overlay.
Power and Connectivity

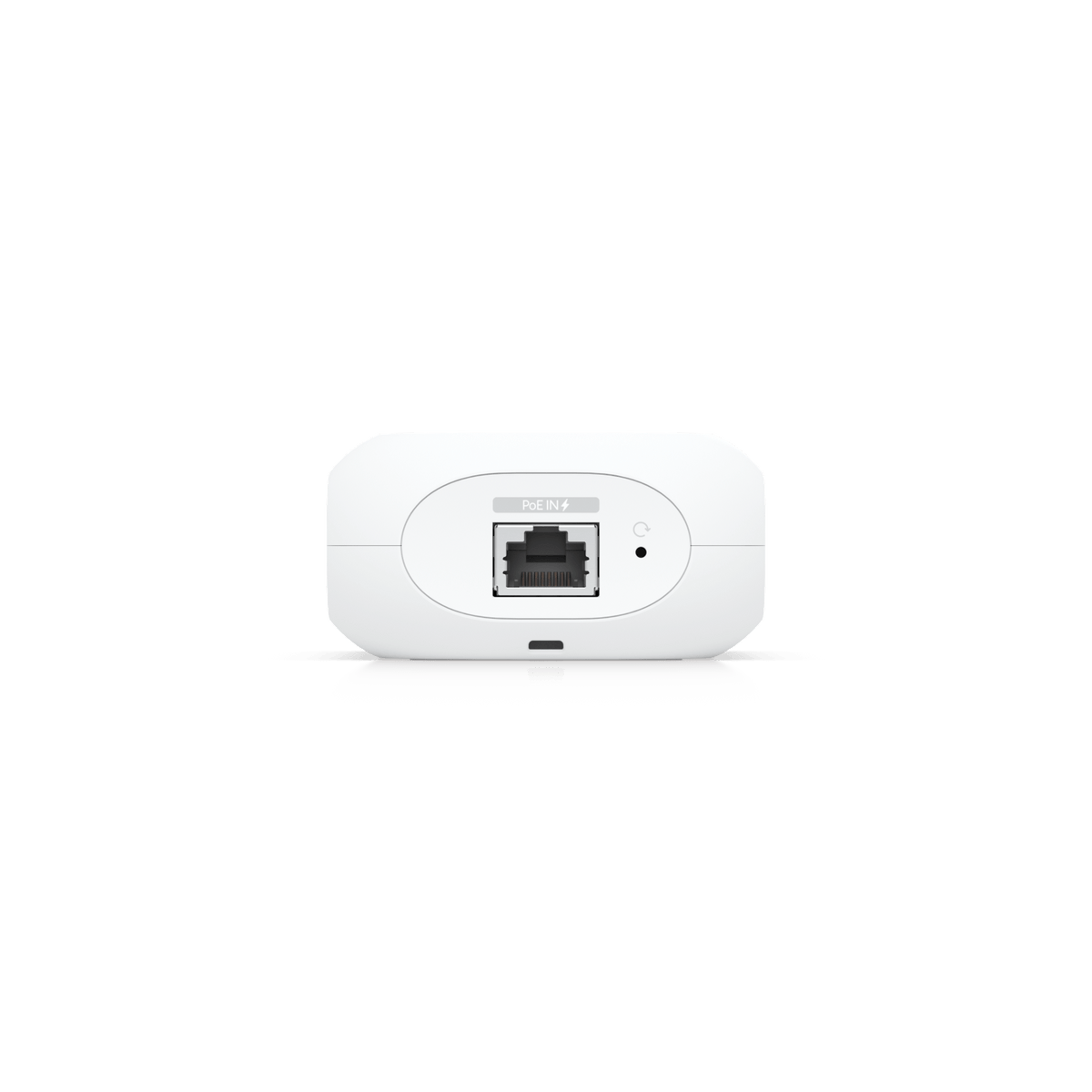

- Power Supply: PoE-powered hub, ensuring simplified installation and reduced cabling.

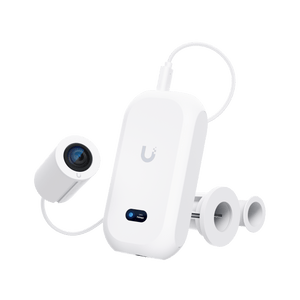

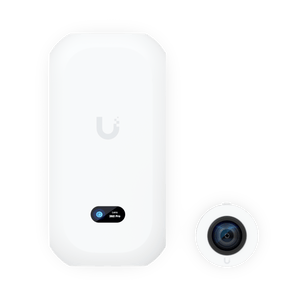

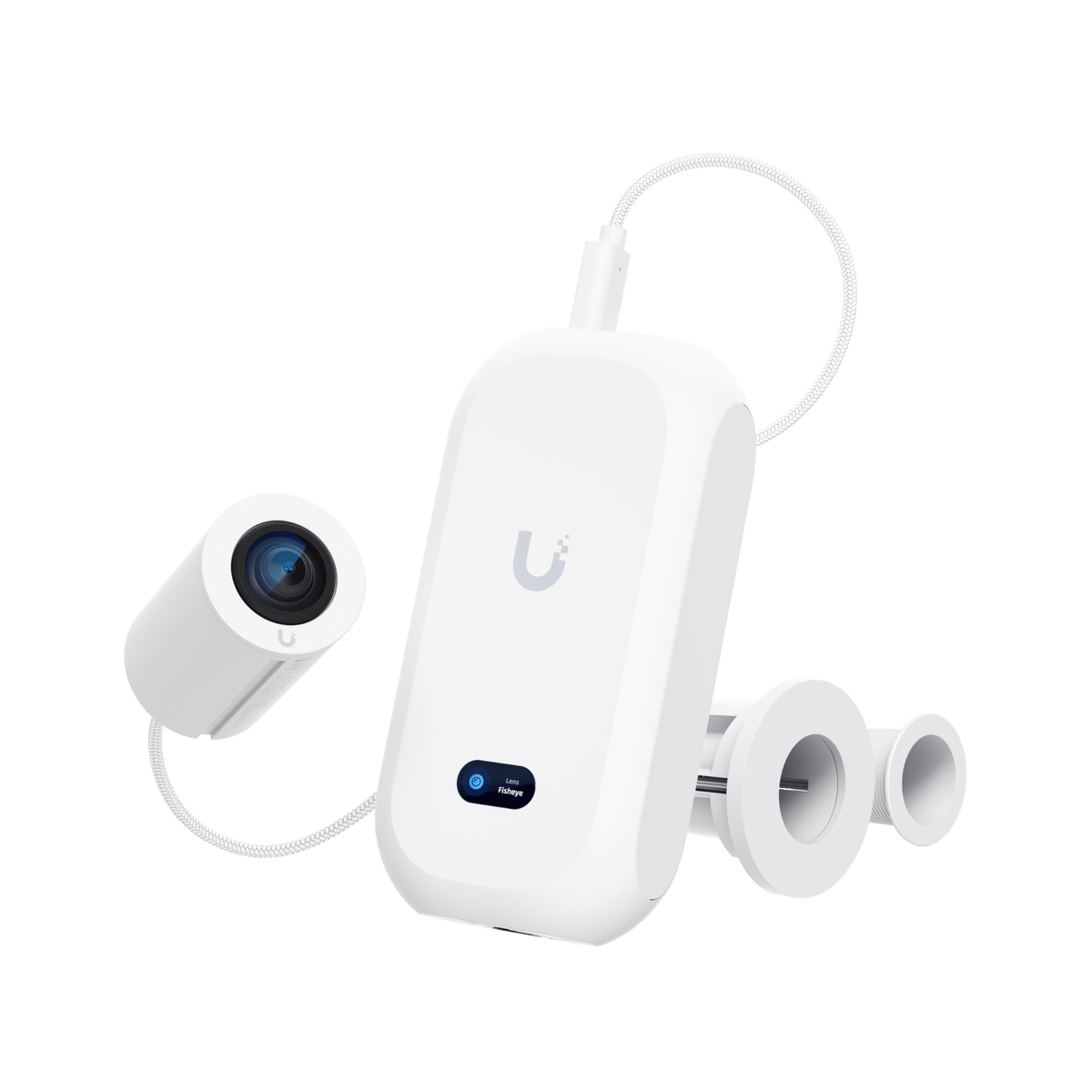

- Modular Components: Includes AI Theta Hub and Pro 360 Lens, connectable via included cable.
Audio Support
- Optional AI Theta Audio Module: Enable two-way audio with a microphone and speaker (sold separately).
Mounting and Installation
- Mounting Options: Includes Standard Flush Mount and Pro Flush Mount for versatile ceiling or wall installations.
- Compact Design: Separate lens and camera body for a minimal installation footprint.
Advanced AI Capabilities
- AI Detection: Recognizes people and detects license plates with supported lenses*.
- Enhanced Flexibility: Adaptable with optional AI Theta Audio Module for added functionality.
Summary
The Ubiquiti UVC-AI-Theta-Pro is the ultimate 360° IP camera solution for professional-grade surveillance. With its modular design, exceptional image quality, and advanced AI capabilities, it is perfect for monitoring expansive, high-traffic areas like offices, retail spaces, or public venues. Its discreet installation and versatile mounting options ensure a seamless fit into any environment.
사양
Ubiquiti UVC-AI-Theta-Pro AI Theta Pro 8MP 360° IP Camera
| Specification | Details |
|---|---|
| Mechanical | |

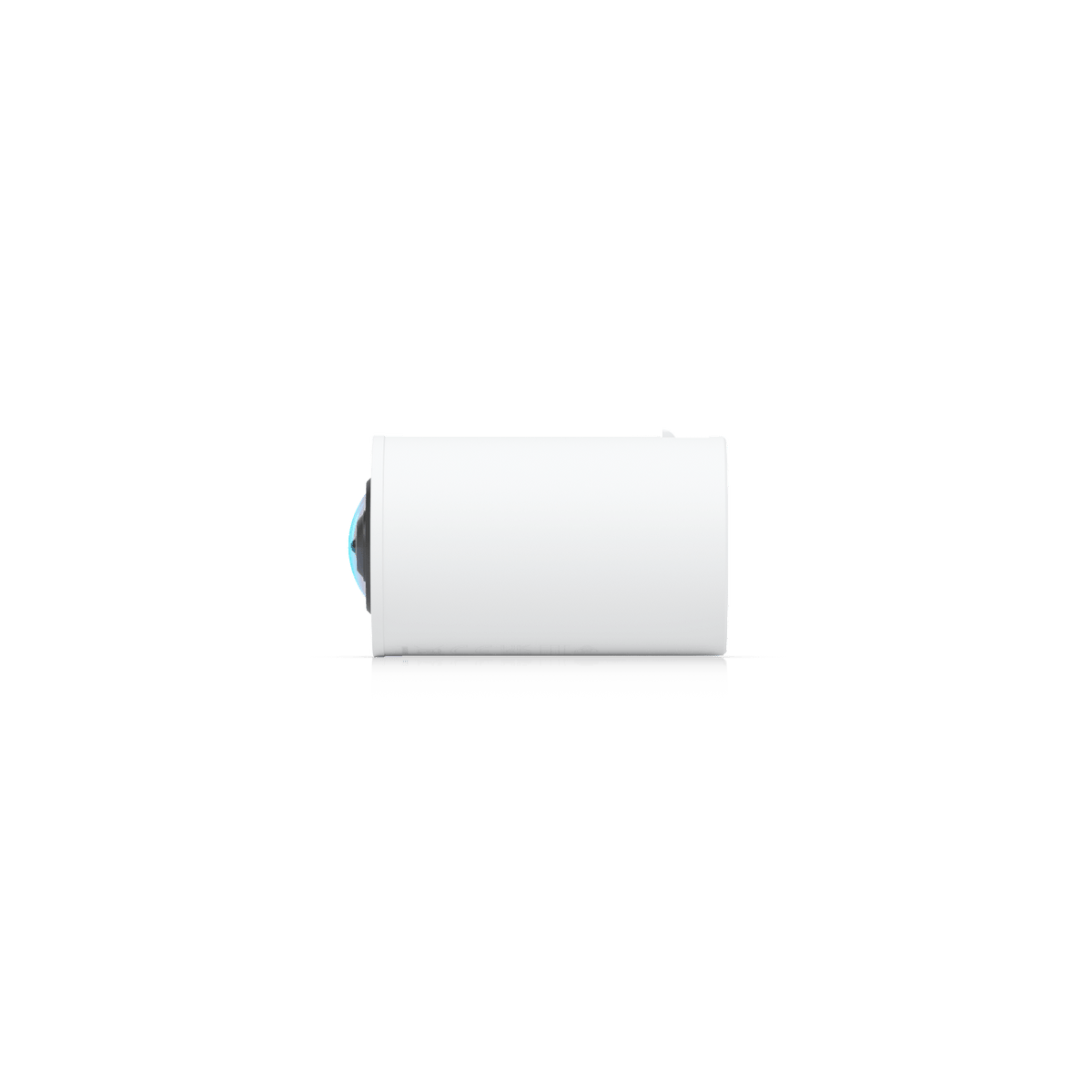

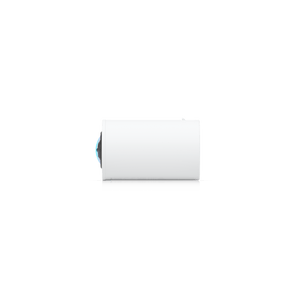

| Dimensions | • Hub: 140 x 70 x 38 mm (5.5 x 2.8 x 1.5”) • Lens: Ø36.6 x 58.9 mm (Ø1.4 x 2.3”) • Flush Mount: Ø54.6 x 60.4 mm (Ø2.2 x 2.4”) |
| Weight | • Hub: 330 g (11.6 oz) • Hub Mount: 35 g (1.2 oz) • Lens: 58 g (2 oz) • Flush Mount: 24 g (0.8 oz) |
| Enclosure Material | • Hub: Aluminum alloy • Lens: Aluminum alloy, polycarbonate |

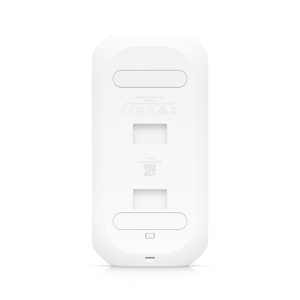

| Mount Material | • Hub: Aluminum alloy • Flush Mount: Polycarbonate |
| Cable Jacket Enclosure Dimensions | 28 x 13 x 7.5 mm (1.1 x 0.5 x 0.3") |
| Cable Jacket Enclosure Material | PVC |
| Cable Length | 1 m (3.3 ft) |
| Cable Diameter | 3.7 mm (0.15") |
| Cable Jacket Material | Woven fabric |
| Cable Weight | 18 g (0.63 oz) |

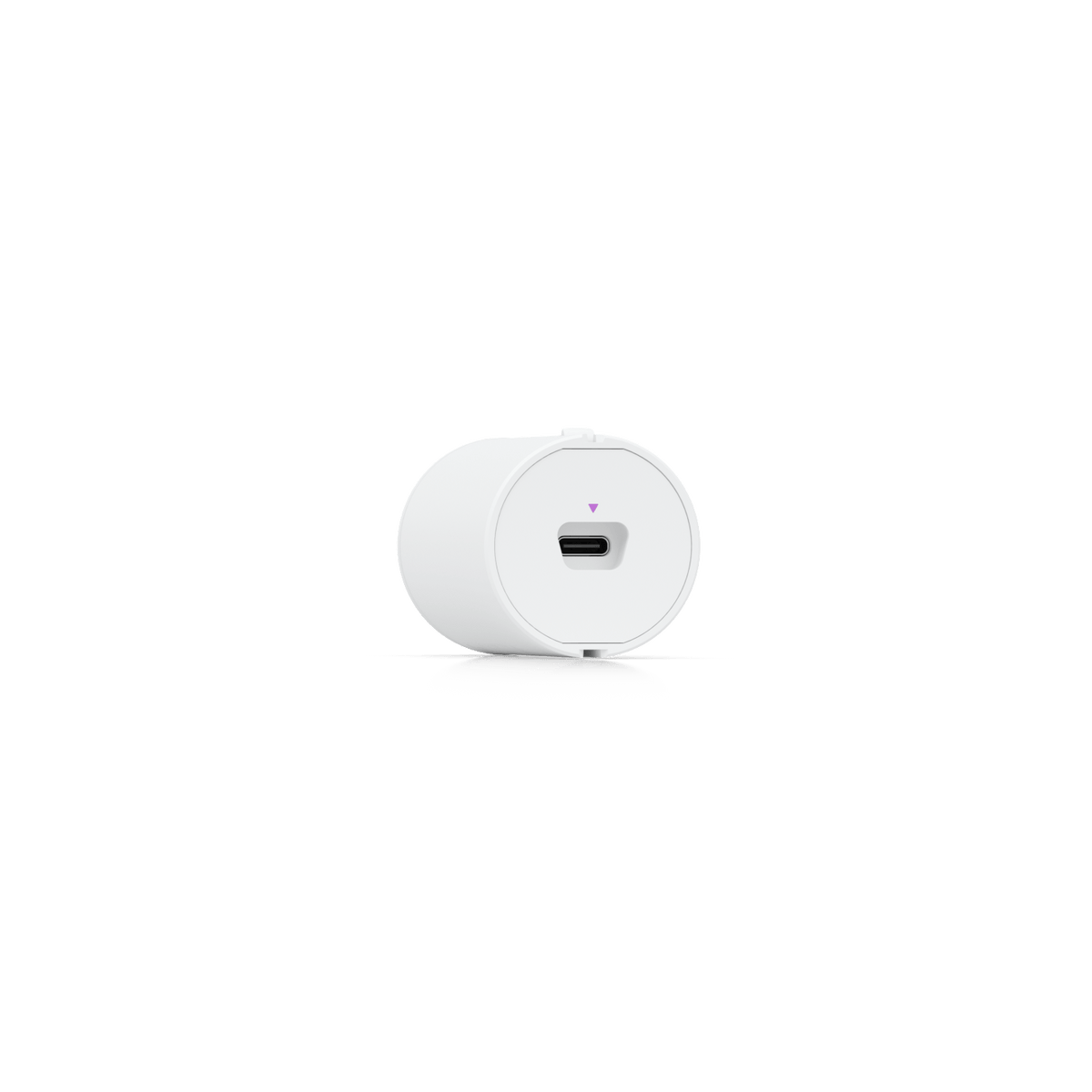

| Cable Connector Type | Theta proprietary |
| Optics | |

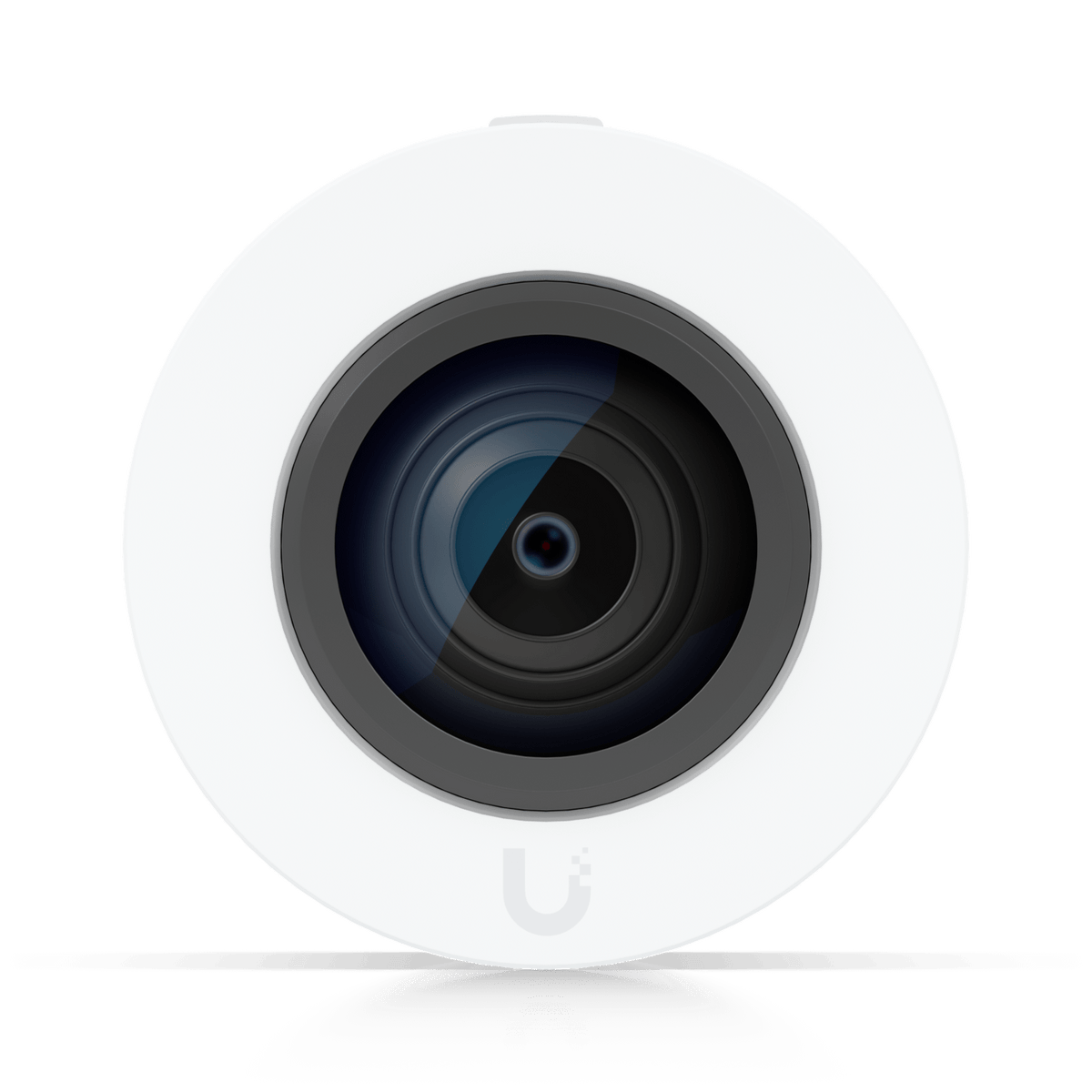

| Sensor | 8MP 1/1.8" CMOS |
| Lens | Fixed focal length |
| View Angle | H: 180°, V: 180°, D: 180° |
| Video | |
| Resolution | 4MP 2160 x 2160 (1:1) |
| Max. Frame Rate | 24 FPS |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Power Supply | 5V DC, 0.5A |
| System | |
| Processor | Quad-core Arm® Cortex®-A53 based chip |

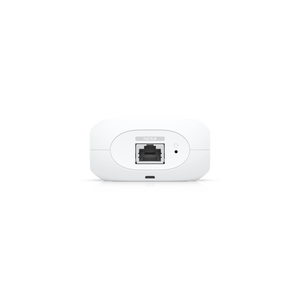

| Networking Interface | GbE RJ45 port |
| Max. Power Consumption | 12.5W |
| Power Method | PoE |
| Supported Voltage Range | 37—57V DC |
| Output Power | 5V DC, 1A per port |

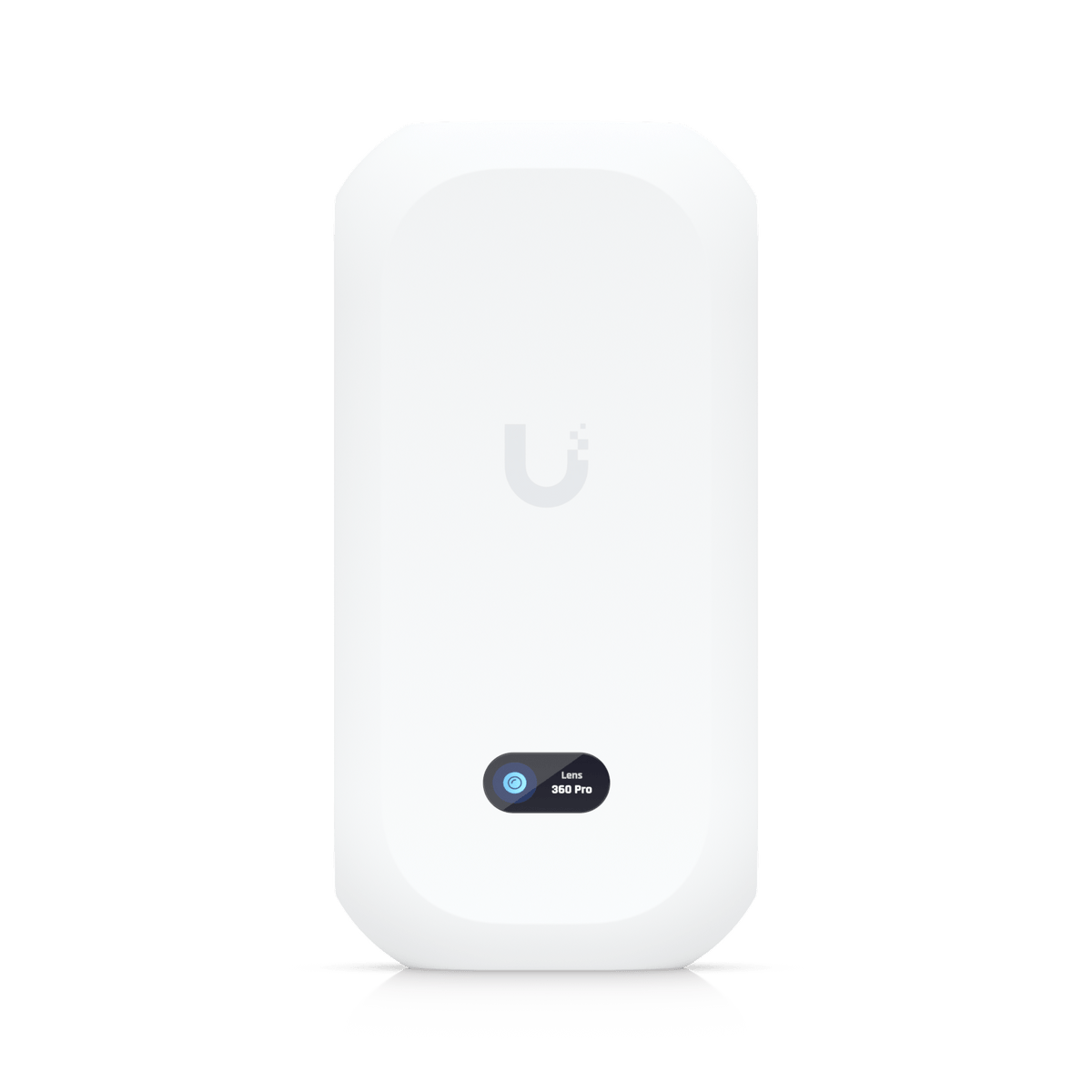

| Display | 0.96" color display |
| Button | Factory reset |
| Mounting | Wall, ceiling mount |
| Ambient Operating Temperature | -20 to 40° C (-4 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Supports optional AI Theta Audio module for two-way audio (sold separately) |
| Speaker | Supports optional AI Theta Audio module for two-way audio (sold separately) |
| Software | |
| UniFi OS Application | UniFi Protect |
| Mobile App | UniFi Protect iOS™ and Android™ |
