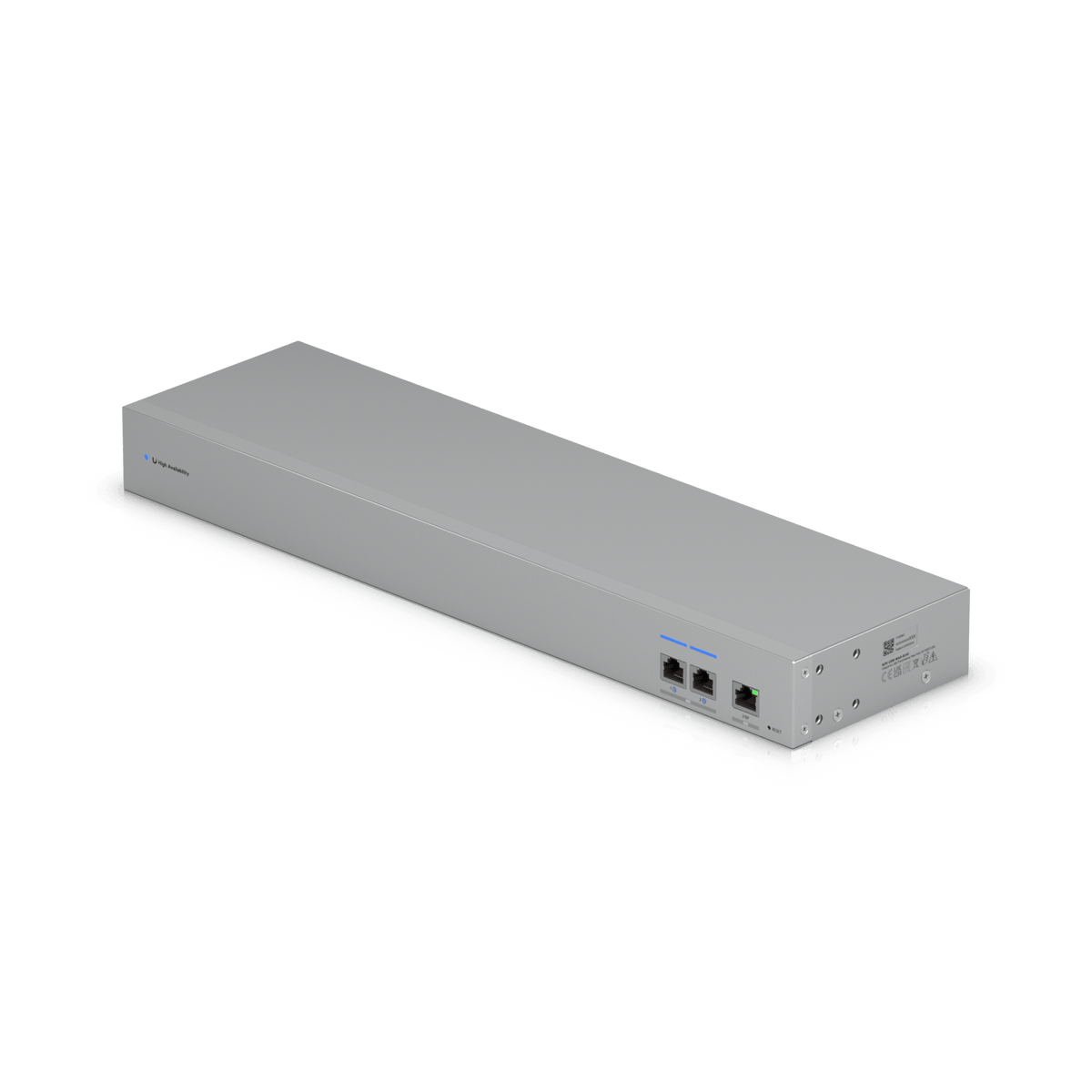

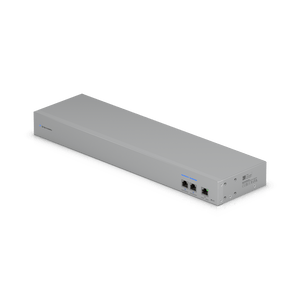

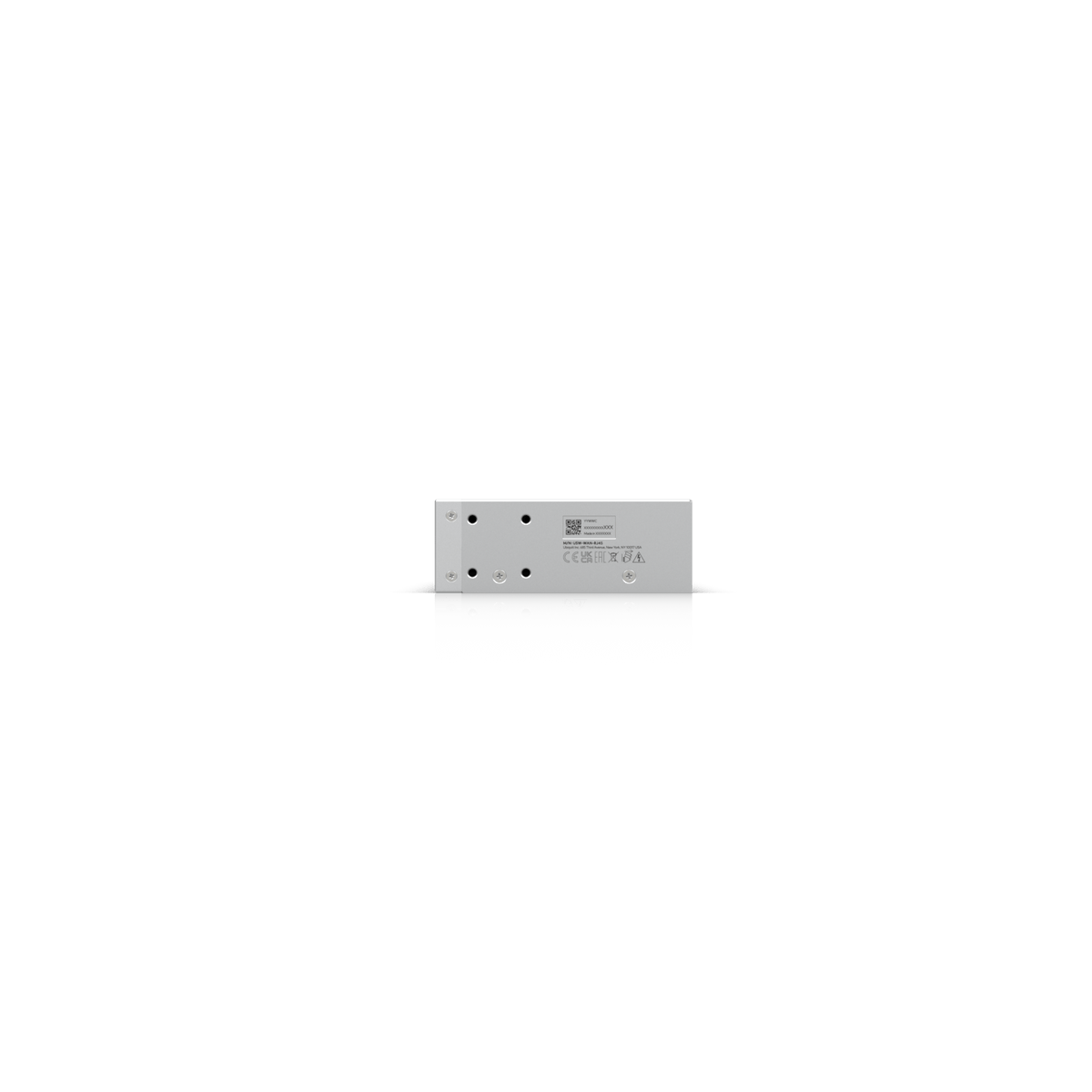

Ubiquiti USW-WAN-RJ45 10GbE RJ45 WAN Switch Shadow Mode High Availability UniFi Gateways
제품 설명
Reliable 10GbE WAN Redundancy for UniFi Gateway Deployments
A purpose-built 10GbE RJ45 WAN switch for linking two High Availability (HA) UniFi Gateways to a single ISP, ensuring seamless redundancy, high-speed failover, and always-on internet performance in critical network environments.
Highlights
-
(3) 10GbE RJ45 ports and (1) 1G RJ45 management port
-
Dual AC power inputs for redundant power failover
-
10GbE switching designed for high-capacity HA gateway deployments
-
Rack-mountable 1U form factor for flexible installations
-
Supports multiple ISP deployments with additional switches
Optimized for UniFi Shadow Mode HA Gateways

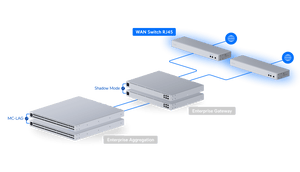

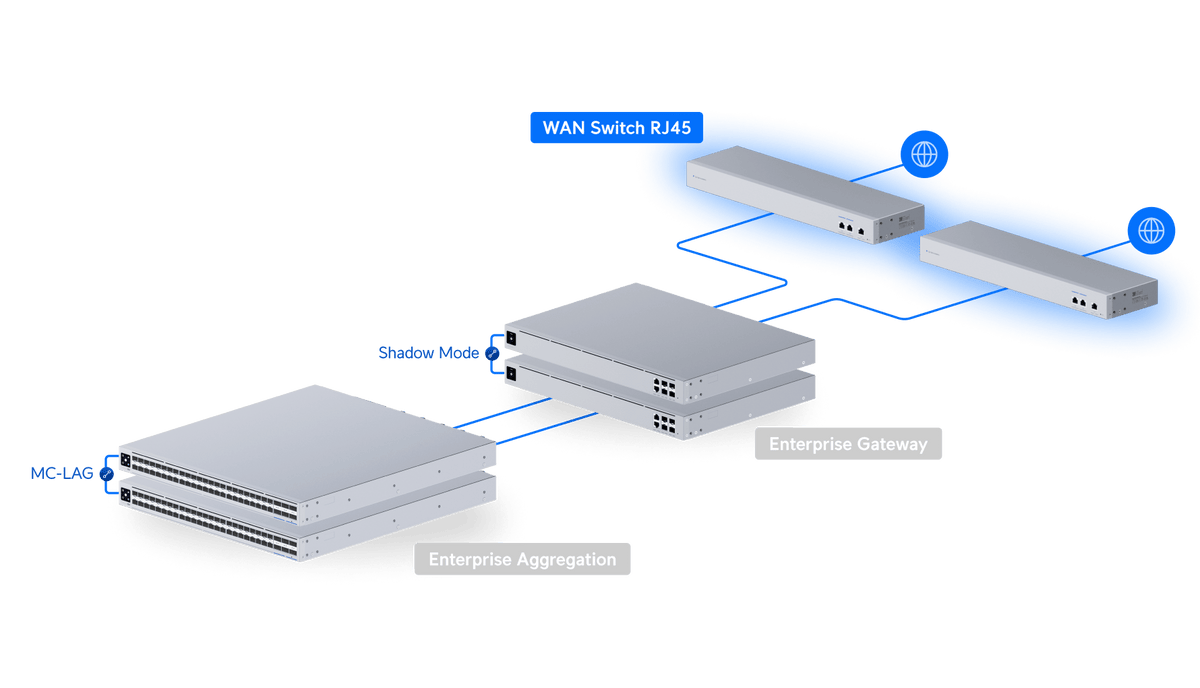

The USW-WAN-RJ45 is engineered specifically for Shadow Mode High Availability (HA) gateway setups, linking dual UniFi gateways to a shared WAN connection while preserving maximum speed and redundancy. By combining multiple switches, larger multi-ISP and multi-path deployments can be built to further enhance system resilience.
Designed to fit smoothly into any enterprise WAN environment, the switch features dual internal AC power supplies to maintain operation even if one power source fails.
Key Features

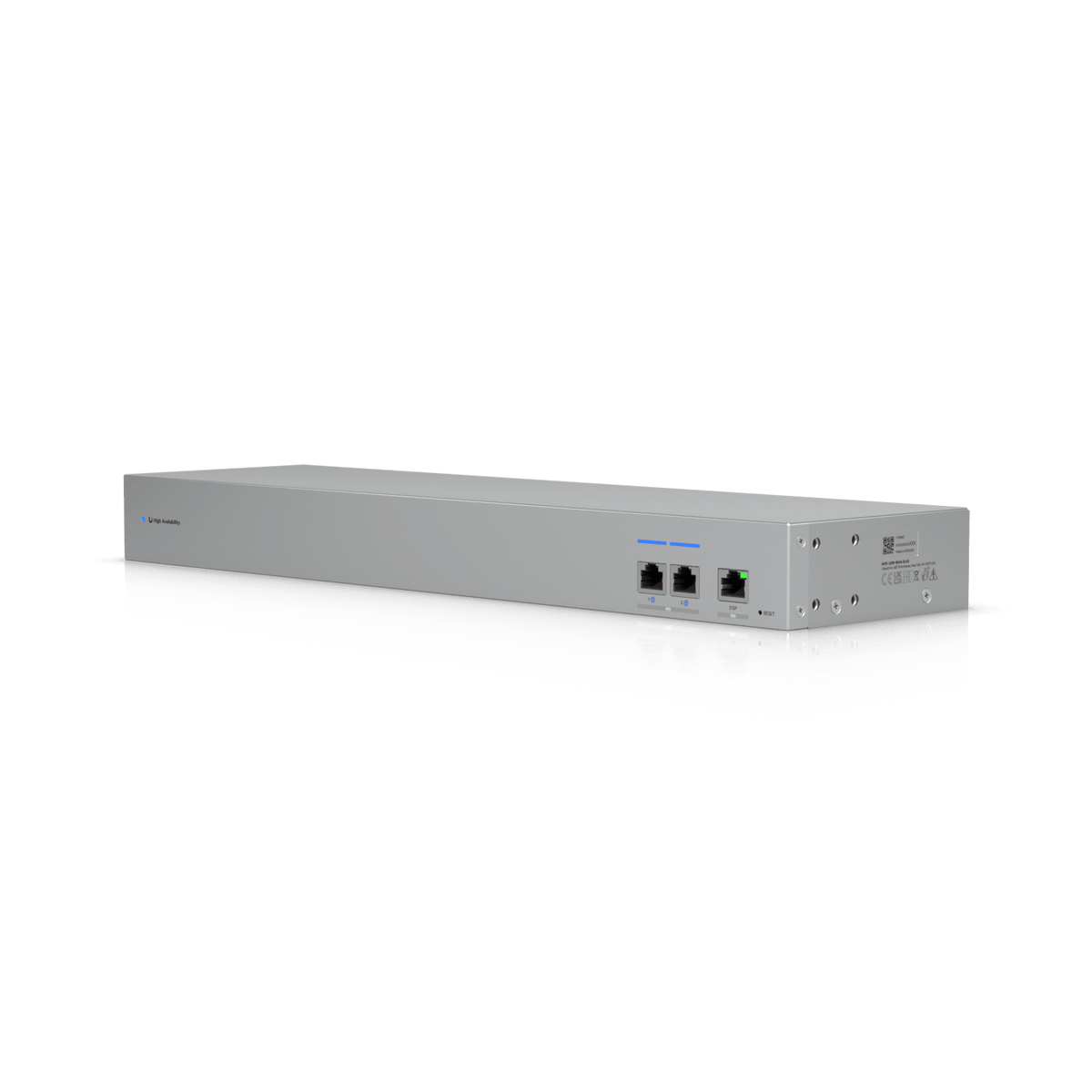

Ports & Connectivity
-
1GbE RJ45 Port: (1) 1G/100M/10M management or backup port
-
10GbE RJ45 Ports: (3) 10G/5G/2.5G/1G/100M
Performance
-
Switching Capacity: 20 Gbps
-
Total Non-Blocking Throughput: 10 Gbps
-
Forwarding Rate: 15 Mpps
Redundancy & Power
-

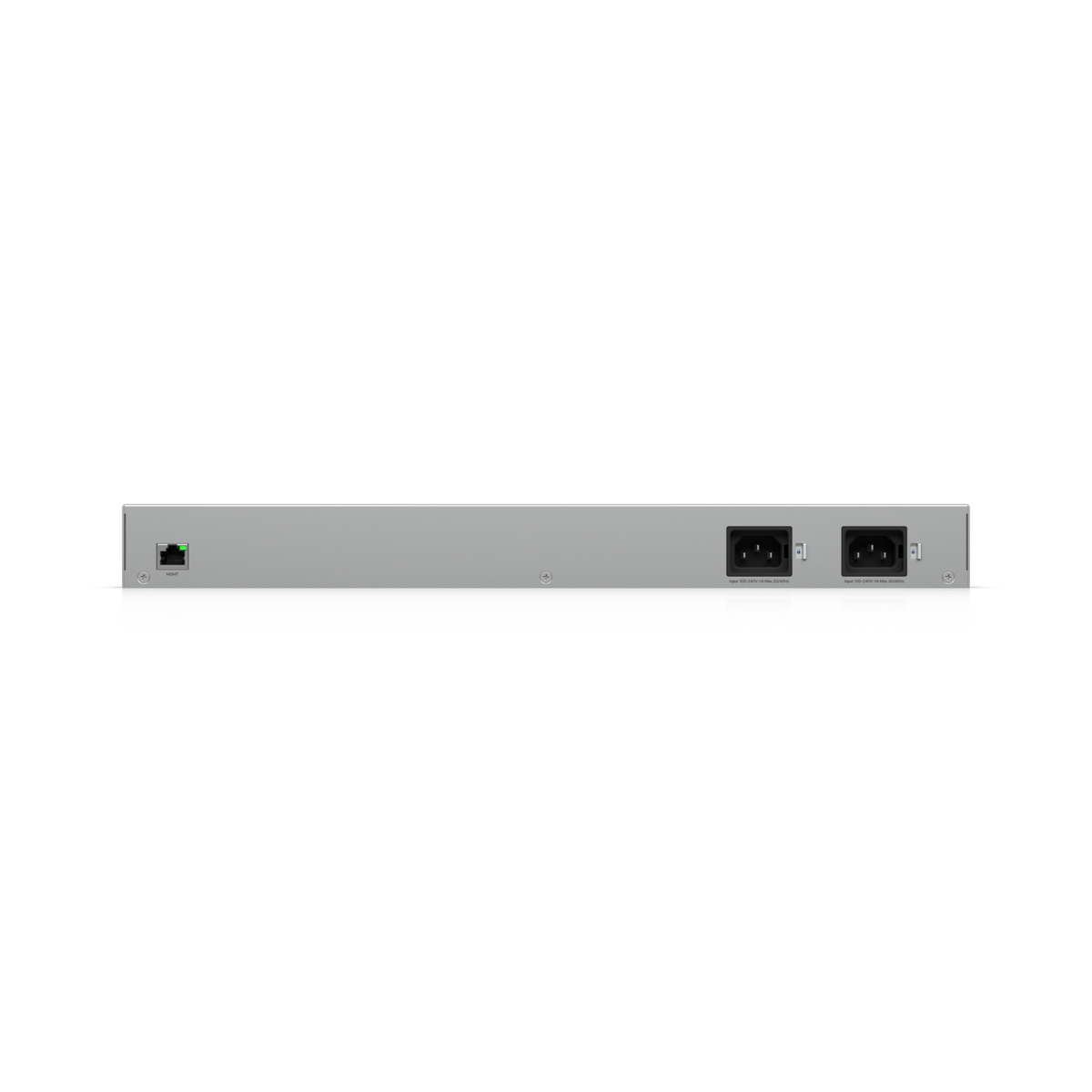

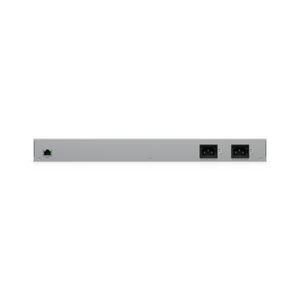

Power Redundancy: Dual independent AC inputs
-
Max Power Consumption: 18W
-
Power Method: Dual universal input 100–240V AC, 50/60 Hz
-
Internal Power Supplies: (2) 36W AC/DC modules
Mechanical & Build
-
Dimensions: 442.4 x 120 x 43.7 mm, 17.4 x 4.72 x 1.7 inches
-
Weight: 2.3 kg without brackets, 2.4 kg with brackets
-
Enclosure Material: SGCC steel
-

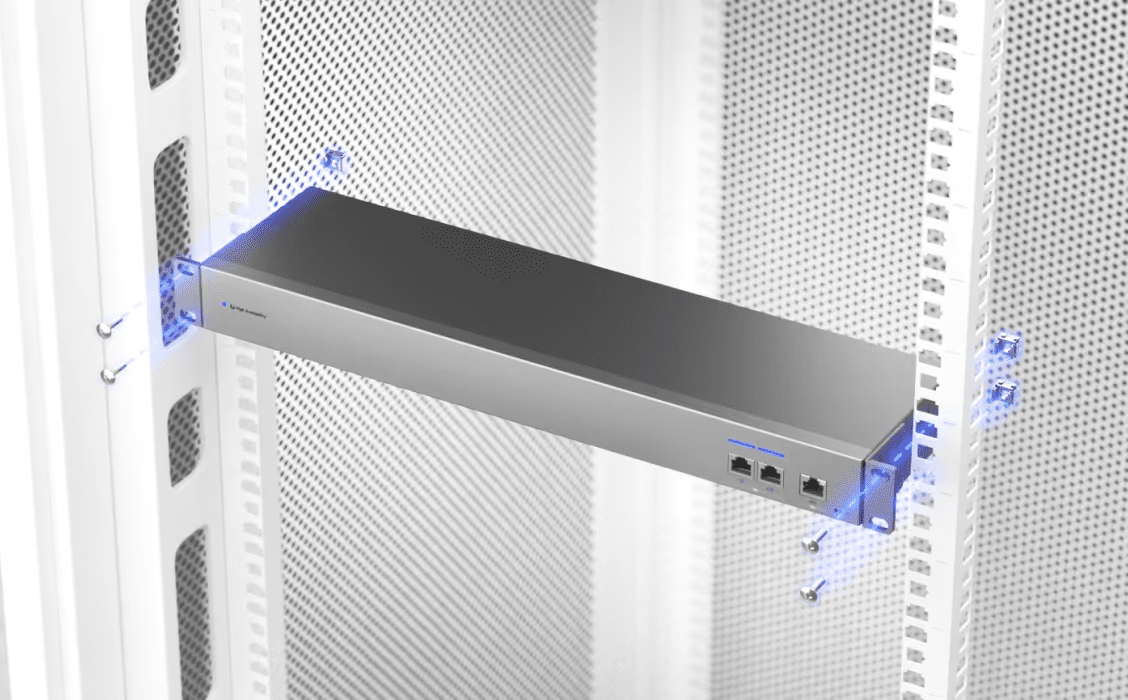

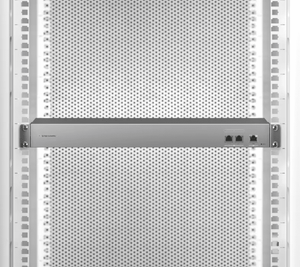

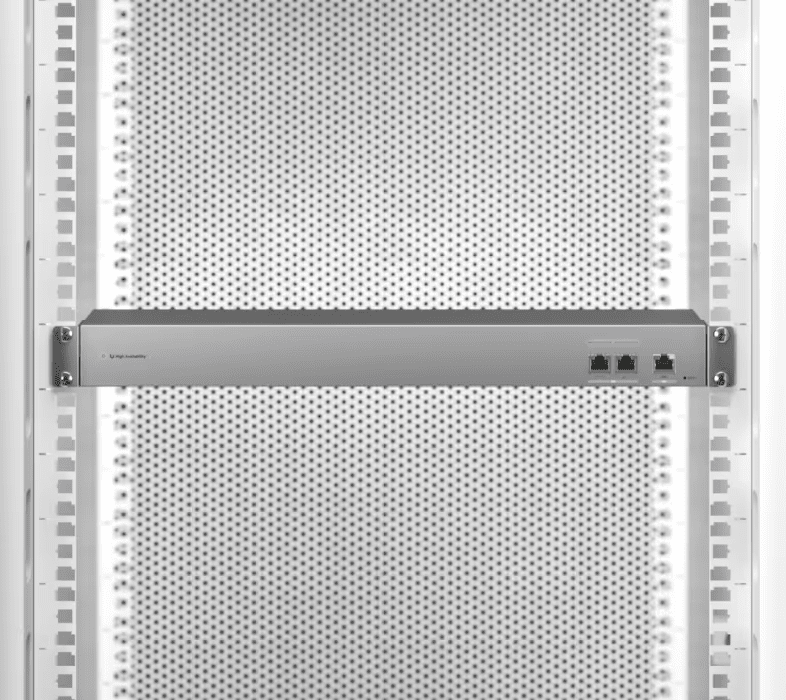

Mounting: 1U standard rack mount
System & Management
-
Ethernet LEDs: Yes
-
System Status LED: Yes
-
Management: Configurable via UniFi Controller
Summary
The USW-WAN-RJ45 delivers essential WAN switching for UniFi Shadow Mode HA deployments with high-speed 10GbE RJ45 connectivity, redundant power protection, and seamless scalability for multi-ISP scenarios. Compact and rack-ready, it provides critical reliability and redundancy for enterprise-grade network infrastructures.
사양
Ubiquiti USW-WAN-RJ45 – 10GbE RJ45 WAN Switch for Shadow Mode High Availability UniFi Gateways
The Ubiquiti USW-WAN-RJ45 is a robust 10GbE RJ45 WAN switch designed to link two Shadow Mode High Availability UniFi Gateways to a single ISP connection. With redundant AC power inputs, high switching capacity, and full 10G copper port support, it guarantees maximum uptime and flexibility for critical network infrastructures.
Specifications
| Specification | Details |
|---|---|

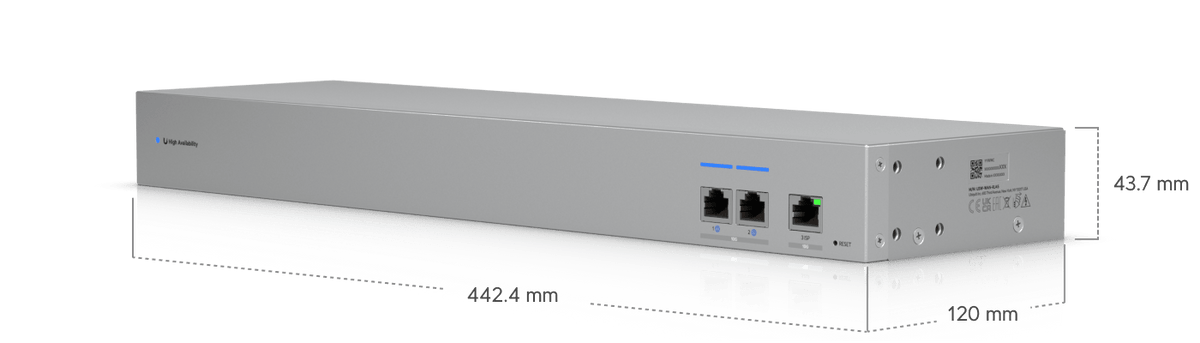

| Dimensions | 442.4 × 120 × 43.7 mm (17.4 × 4.72 × 1.7 in) |
| Weight | • Without mounting brackets: 2.3 kg (5.1 lb) • With mounting brackets: 2.4 kg (5.3 lb) |
| Form Factor | Rack Mount (1U) |
| Enclosure Material | SGCC Steel |
| Mount Material | SGCC Steel |

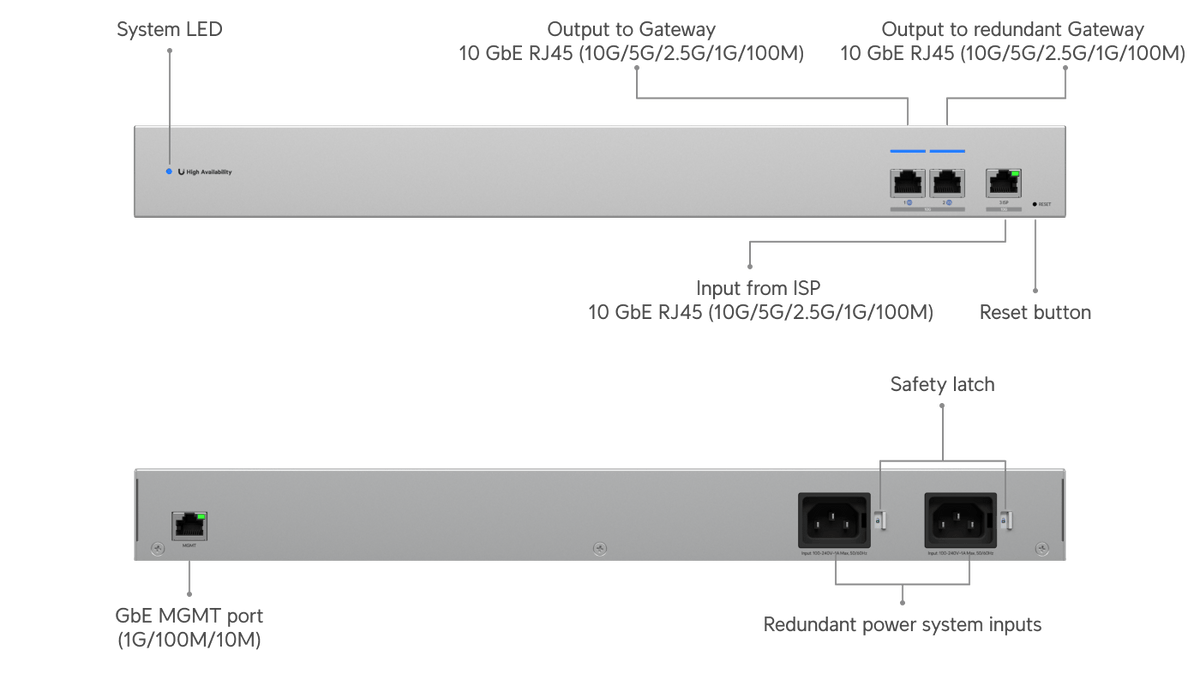

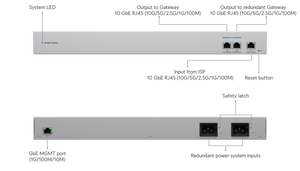

| Port Layout | • 1 × 1GbE RJ45 Port (1G/100M/10M) • 3 × 10GbE RJ45 Ports (10G/5G/2.5G/1G/100M) |
| Redundancy | Dual AC Inputs for high availability |
| Performance | |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Power | |
| Max Power Consumption | 18W |
| Power Method | 2 × AC Inputs (100–240V AC, 50/60 Hz) |
| Power Supply | 2 × Internal AC/DC, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet-managed |
| LED Indicators | • Ethernet Activity • System Status |
| Environmental | |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Protection | |
| ESD/EMP Protection | • Air: ±16kV • Contact: ±10kV |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
