Ubiquiti USW-WAN 10G SFP+ WAN Switch Shadow Mode High Availability UniFi Gateways
제품 설명
High Availability 10G WAN Switching for Shadow Mode Gateways
Purpose-built 10G WAN switch for linking two High Availability (HA) UniFi Gateways to a single ISP, the USW-WAN ensures seamless redundancy, consistent uptime, and carrier-grade WAN aggregation for critical network deployments.
Highlights
-
Connect two HA UniFi Gateways to a single ISP
-
(3) 10G SFP+ ports and (1) 1G RJ45 Ethernet port
-
Dual independent AC power inputs for redundancy
-

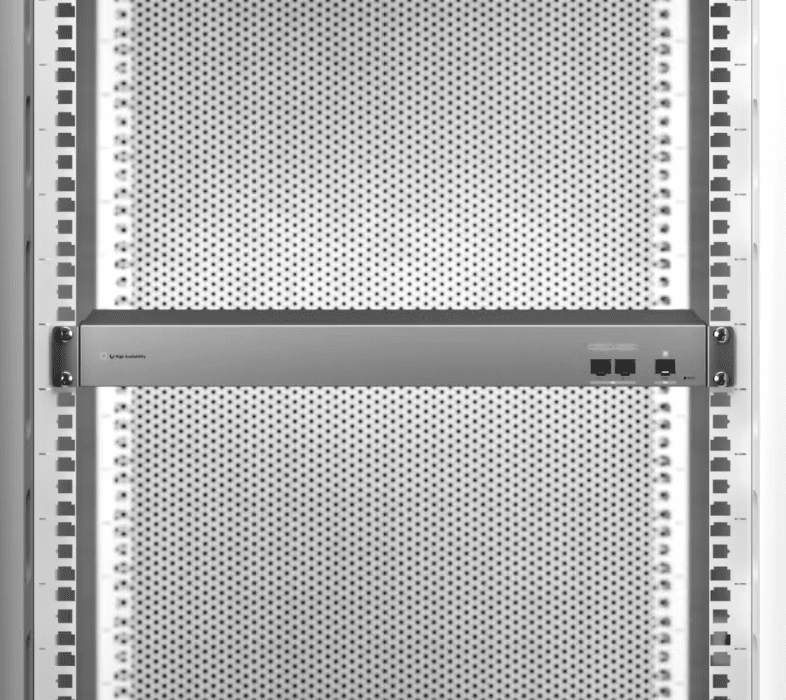

Compact 1U rackmount design for space efficiency
-
Supports deployments with multiple ISPs using additional switches
Optimized for High Availability Gateway Deployments

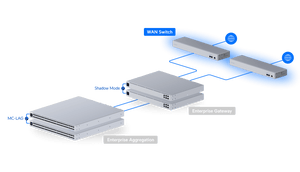

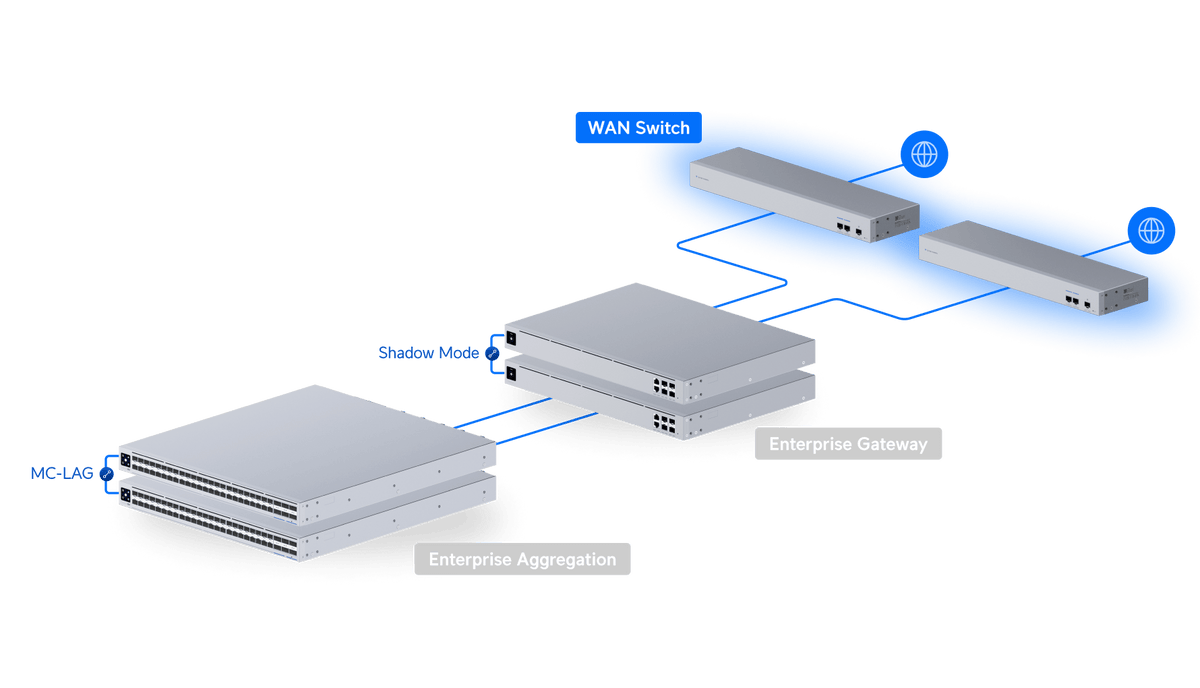

The USW-WAN is specifically engineered for Shadow Mode HA Gateway setups, enabling two active gateways to share a common upstream ISP link without single points of failure. With 10G SFP+ uplinks, dual redundant power supplies, and carrier-grade throughput, it is a foundational element for high-reliability UniFi WAN infrastructures.
For multi-ISP deployments, additional USW-WAN switches can be integrated to provide full path redundancy and enhanced service provider resiliency.
Key Features
Ports & Connectivity
-
1GbE RJ45 Port: (1) 1G/100M/10M
-
10G SFP+ Ports: (3) 10G/1G
Performance
-
Switching Capacity: 20 Gbps
-
Total Non-Blocking Throughput: 10 Gbps
-
Forwarding Rate: 15 Mpps
Redundancy & Power
-

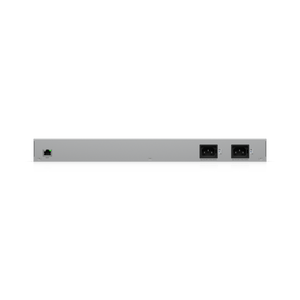

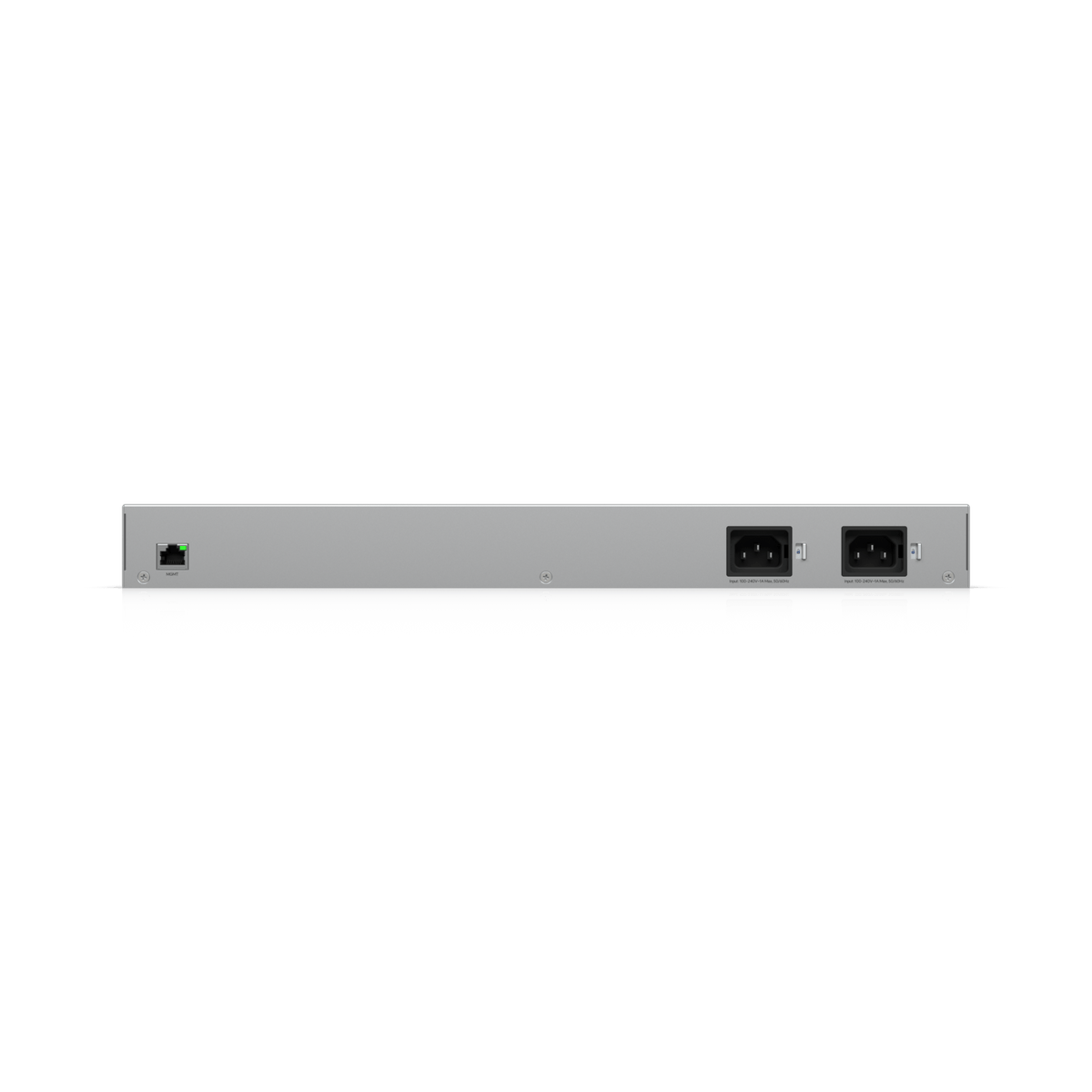

Power Redundancy: (2) Independent AC inputs
-
Max Power Consumption: 13W
-
Power Method: Dual universal input 100–240V AC, 50/60 Hz
-
Internal Power Supplies: (2) 36W AC/DC modules
Mechanical & Build
-

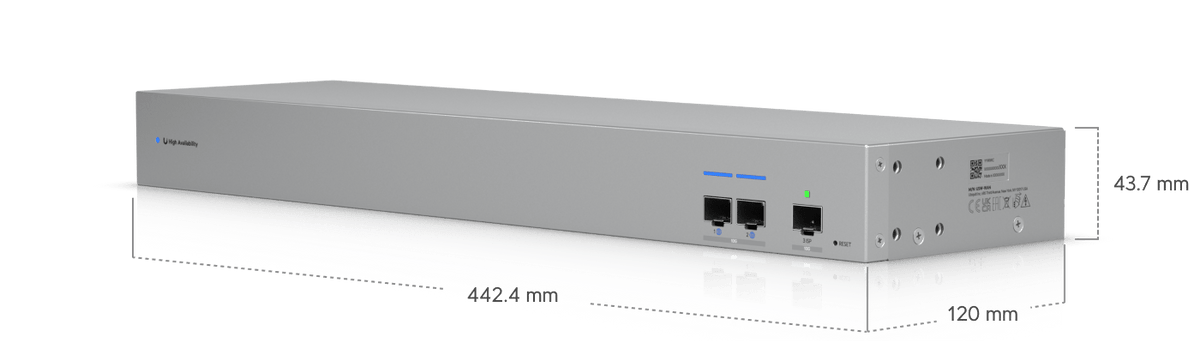

Dimensions: 442.4 x 120 x 43.7 mm, 17.4 x 4.72 x 1.7 inches
-
Weight: 2.2 kg (without brackets), 2.3 kg (with brackets)
-
Enclosure Material: SGCC steel
-

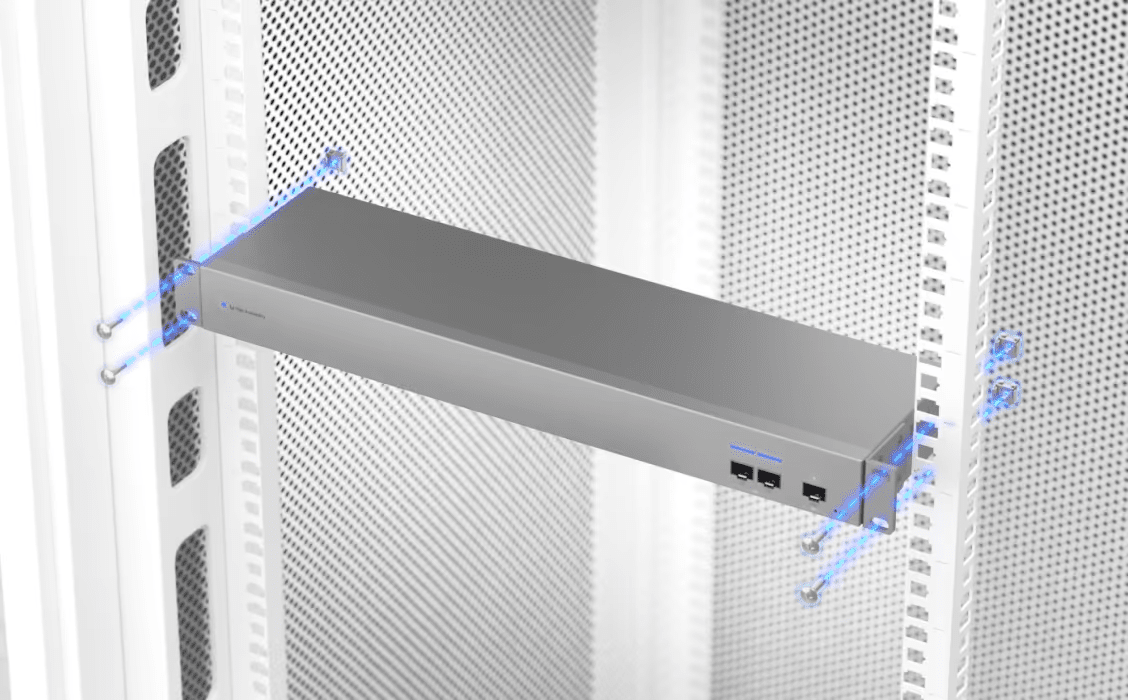

Rack Mounting: Standard 1U
System & Management
-
Ethernet LEDs: Yes
-
SFP+ LEDs: Yes
-
System Status LED: Yes
-
Managed via: UniFi Controller
Summary
The USW-WAN is the ideal switching platform for building resilient WAN architectures with dual UniFi HA Gateways. Combining 10G performance, redundant power feeds, and seamless integration with the UniFi platform, it is tailored for business-critical applications that demand nonstop internet access and operational continuity.
사양
Ubiquiti USW-WAN – 10G SFP+ WAN Switch for Shadow Mode High Availability UniFi Gateways
The Ubiquiti USW-WAN is a compact, rack-mountable 10G SFP+ WAN switch, purpose-built to link two Shadow Mode High Availability UniFi Gateways to a single ISP connection. Featuring redundant power inputs, high switching capacity, and full 10G support, it ensures ultra-reliable WAN failover and ISP redundancy.
Specifications
| Specification | Details |
|---|---|
| Dimensions | 442.4 × 120 × 43.7 mm (17.4 × 4.72 × 1.7 in) |
| Weight | • Without brackets: 2.2 kg (4.85 lb) • With brackets: 2.3 kg (5.1 lb) |
| Form Factor | Rack Mount (1U) |
| Enclosure Material | SGCC Steel |
| Mount Material | SGCC Steel |

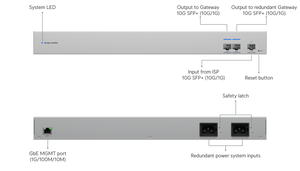

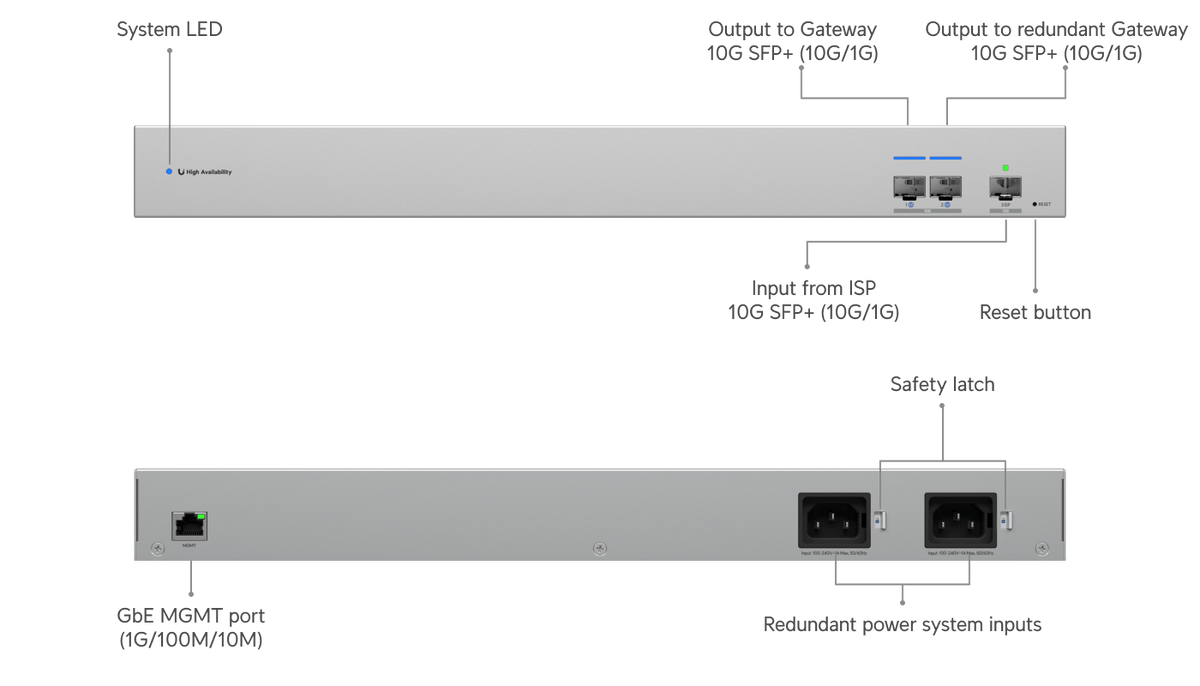

| Port Layout | • 1 × 1 GbE RJ45 Port (1G/100M/10M) • 3 × 10G SFP+ Ports (10G/1G) |
| Redundancy | Dual AC Inputs for power backup |
| Performance | |
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
| Power | |
| Max Power Consumption | 13W |
| Power Method | 2 × AC Input (100–240V AC, 50/60 Hz) |
| Power Supply | 2 × Internal AC/DC, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet-managed |
| LED Indicators | • Ethernet Activity • SFP+ Status • System Status |
| Environmental | |
| Operating Temperature | -5°C to 40°C (23°F to 104°F) |
| Operating Humidity | 10% to 90% RH (non-condensing) |
| Protection | |
| ESD/EMP Protection | • Air: ±16kV • Contact: ±22kV |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
