Ubiquiti USW-Pro-XG-24-PoE 720W Pro XG 24-Port L3 10GbE POE+++ Switch
제품 설명
Enterprise-Grade 24-Port 10GbE PoE+++ Layer 3 Switch
The Ubiquiti USW-Pro-XG-24-PoE 720W is a high-performance Layer 3 managed switch, delivering multi-gigabit speeds, PoE+++ support, and advanced networking capabilities. Designed for enterprise networks, AV systems, and data centers, it offers (16) 10GbE PoE+++ ports, (8) 2.5GbE PoE+++ ports, and (2) 25G SFP28 uplinks to ensure seamless connectivity with unmatched reliability.
Highlights
- 24 Multi-Gigabit PoE+++ Ports (16x 10GbE, 8x 2.5GbE) for high-speed device connectivity
- (2) 25G SFP28 uplinks for ultra-fast network aggregation
- 720W total PoE power budget to support high-power devices
- 460 Gbps switching capacity & 230 Gbps non-blocking throughput
- Advanced Layer 3 routing features for network efficiency
- Etherlighting™ technology for real-time port status monitoring
- 1U rack-mountable design with DC power backup support
Key Features
High-Performance Multi-Gigabit PoE+++ Switching
- PoE+++ (90W) support on all 24 ports for WiFi 7 APs, PTZ cameras, and AV systems
- Total PoE power budget: 720W ensures support for multiple high-power devices
- DC power backup support for uninterrupted network operation
Blazing-Fast Network Speed & Capacity
- Switching Capacity: 460 Gbps
- Non-Blocking Throughput: 230 Gbps
- Forwarding Rate: 342.24 Mpps
- Packet Buffer Size: 8MB
Advanced Layer 3 Routing & Network Control
- Static Routing & Inter-VLAN Routing for local networks
- DHCP Server & Relay for optimized IP address management
- MAC-Based ACLs, IP-Based ACLs & Network Isolation for enhanced security
Professional AV & Multicast Optimization
- Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)
- Advanced IGMP Configuration (Querier, Fast Leave, Router Port)
- 802.1X, MAC-Based Port Restriction & DHCP Snooping
Enterprise-Grade Security & Traffic Management
- MAC Address Blocking & Device Isolation
- Port Mirroring & Loop Protection
- Storm Control & Broadcast Rate Limiting
User-Friendly Management & Monitoring
- 1.3" LCM Touchscreen Display for real-time status updates
- Cloud-based management via UniFi Controller

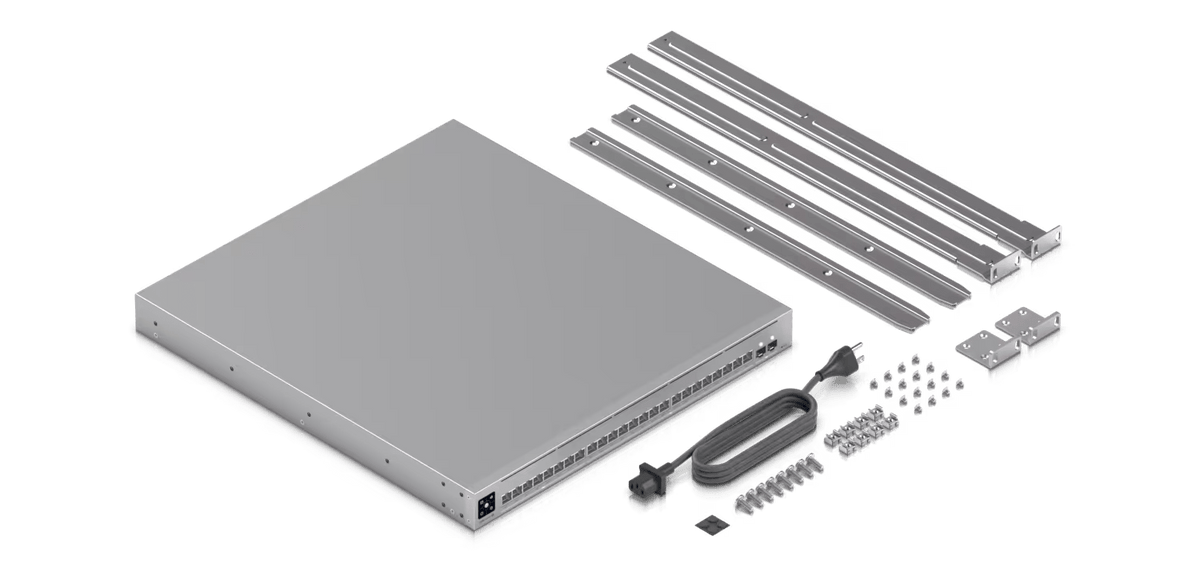

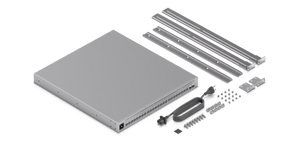

- Rack-mountable 1U steel enclosure for easy deployment
Technical Specifications
| Specification | Details |
|---|---|

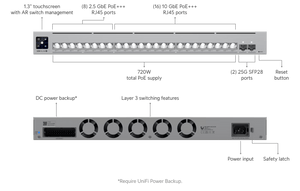

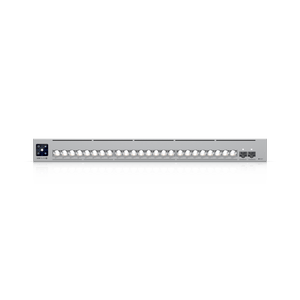

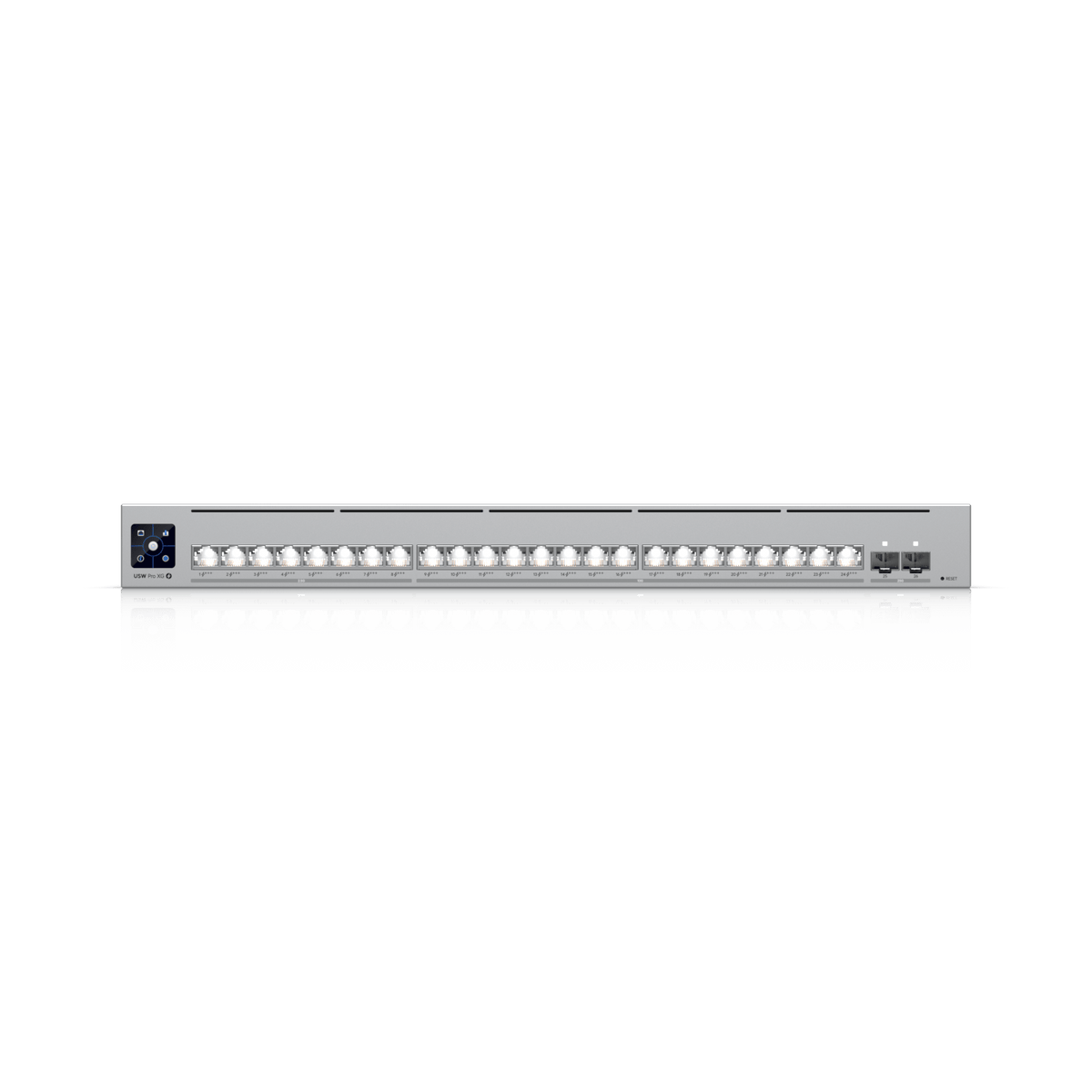

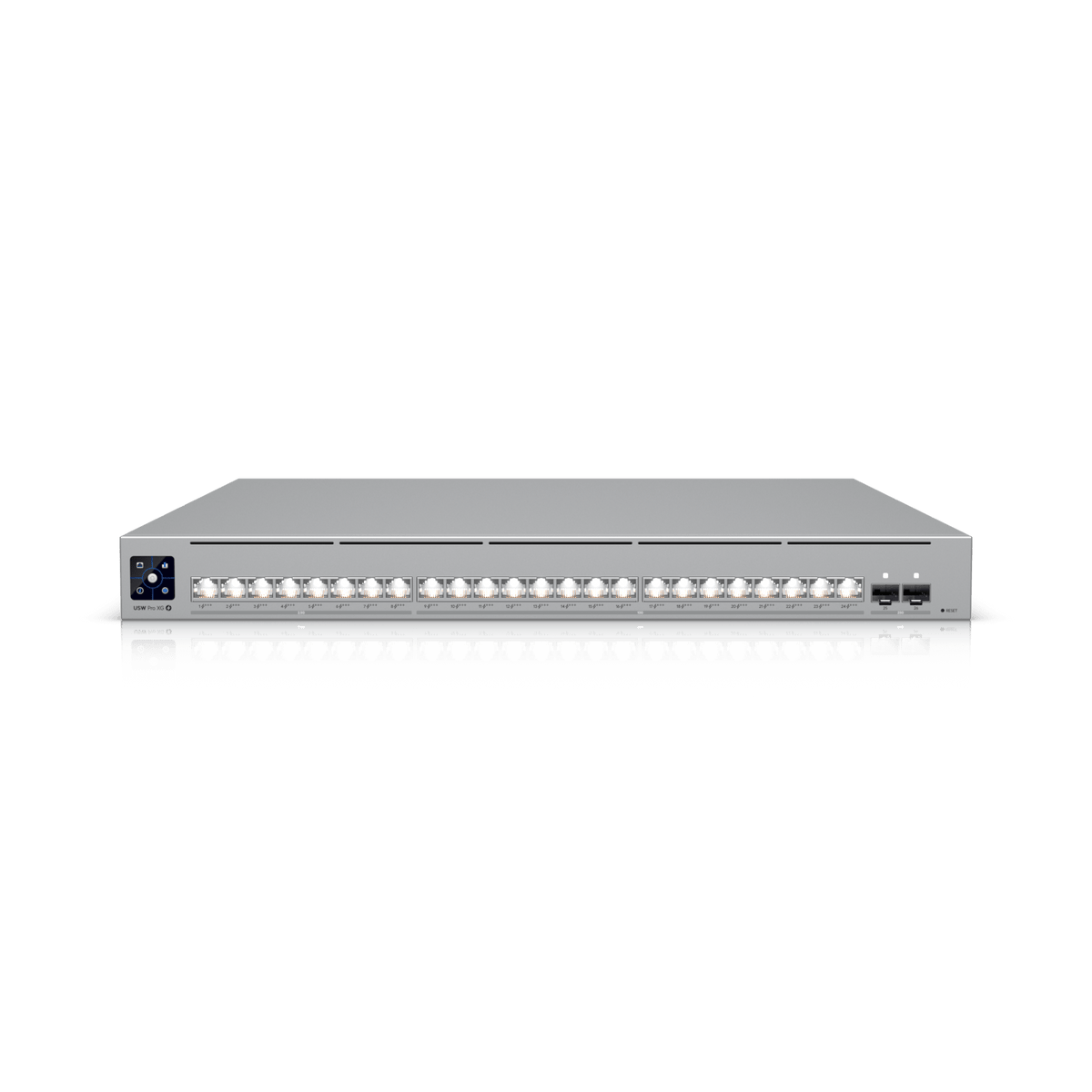

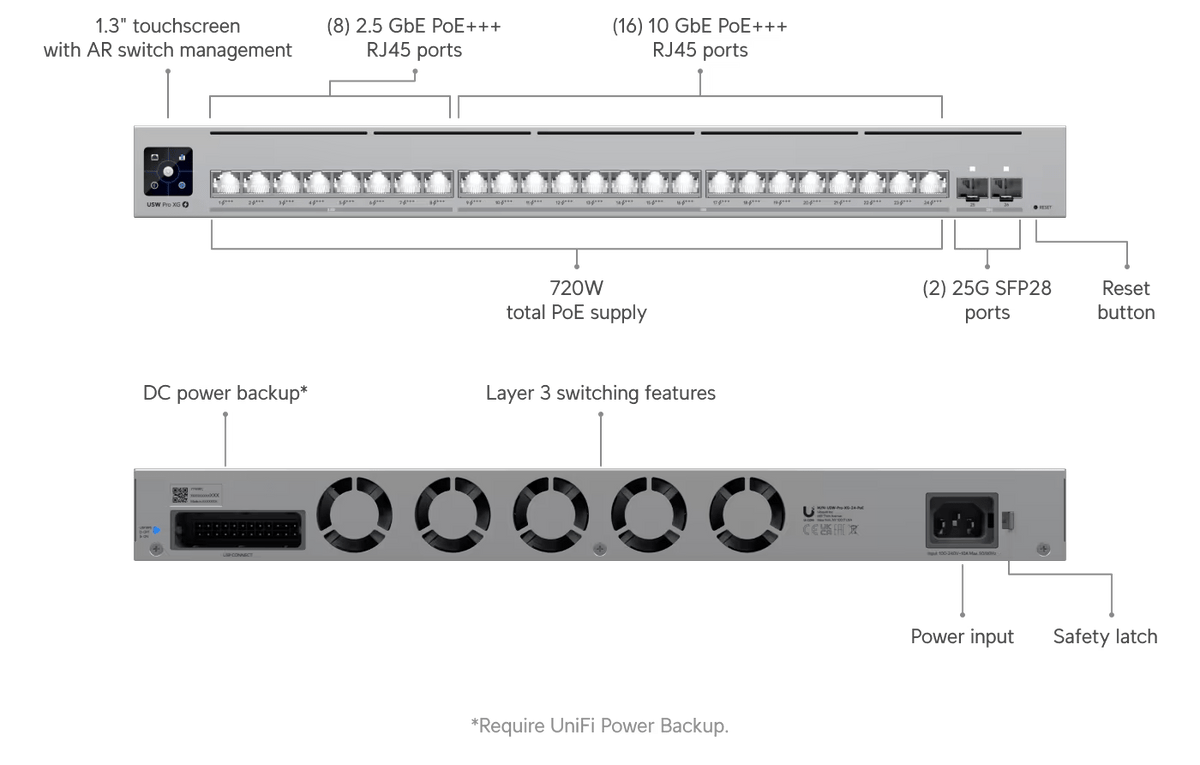

| Port Layout | (16) 10GbE PoE+++, (8) 2.5GbE PoE+++, (2) 25G SFP28 |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342.24 Mpps |
| PoE Budget | 720W |
| PoE Power Per Port | PoE+ (30W), PoE++ (60W), PoE+++ (90W) |
| L3 Routing Features | Static Routing, DHCP Server, Inter-VLAN Routing |
| L2 Network Features | LACP, RSTP, VLANs, 802.1X, IGMP Snooping |
| Power Input | 100-240V AC, 50/60 Hz |
| Redundancy | DC Power Backup (USP RPS) |
| Mounting | Rack-Mount (1U) |
| Display | 1.3" touchscreen |
| Weight | 7.9 kg (without brackets), 8 kg (with brackets) |
| Operating Temperature | -5 to 40°C (23 to 104°F) |
| Certifications | CE, FCC, IC |
Summary
The Ubiquiti USW-Pro-XG-24-PoE is a powerful 24-port Layer 3 managed switch, offering multi-gigabit PoE+++ support, advanced security, and enterprise-grade routing features. With high-speed connectivity, 25G uplinks, and a 720W PoE budget, it is the ideal solution for businesses, data centers, and high-performance networking.
사양
Ubiquiti USW-Pro-XG-24-PoE 720W Pro XG 24-Port L3 10GbE PoE+++ Switch Specifications
| Specification | Details |
|---|---|
| Overview | |

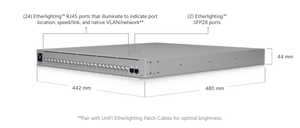

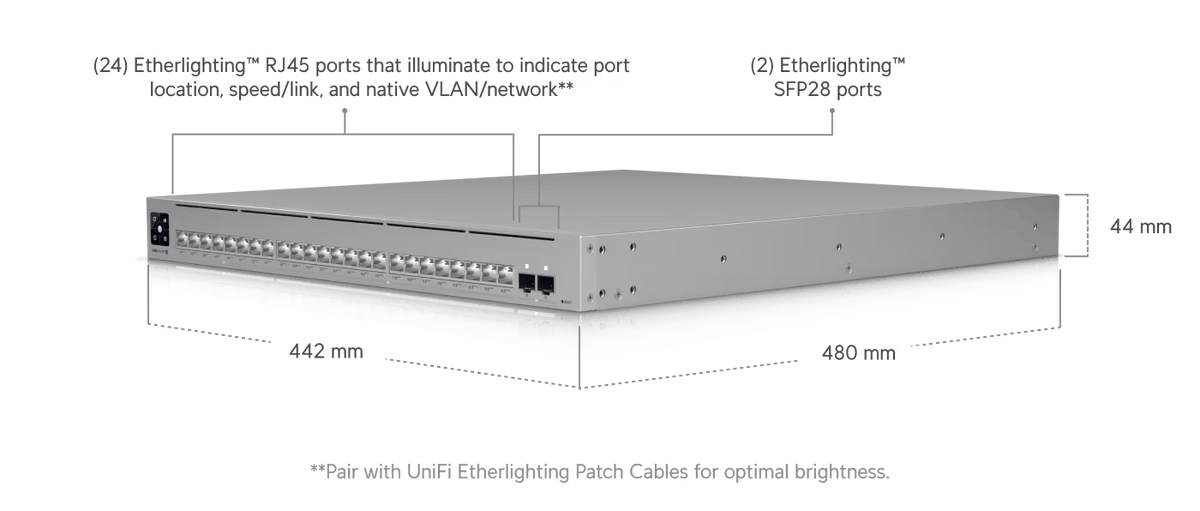

| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7 in) |
| Port Layout | |
| 2.5 GbE RJ45 Ports | 8 (All PoE+++) |
| 10 GbE RJ45 Ports | 16 (All PoE+++) |
| 25G SFP28 Ports | 2 |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 720W |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
| Performance | |
| Switching Capacity | 460 Gbps |
| Total Non-Blocking Throughput | 230 Gbps |
| Forwarding Rate | 342.24 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| L3 Table Size | |
| - ARP Entries | 128,000 |
| - IPv4 Routes | 256,000 |
| Packet Buffer Size | 8 MB |
| Layer 3 Features | |
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
| Layer 2 Features | |
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration | Querier, Fast Leave, Router Port |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Hardware | |
| PoE Ports | 24 (All PoE+++) |
| Max. PoE Wattage per Port | |
| - PoE+ | 30W |
| - PoE++ | 60W |
| - PoE+++ | 90W |
| Max. Power Consumption | |
| - Excluding PoE Output | 150W |
| - Including PoE Output | 870W |

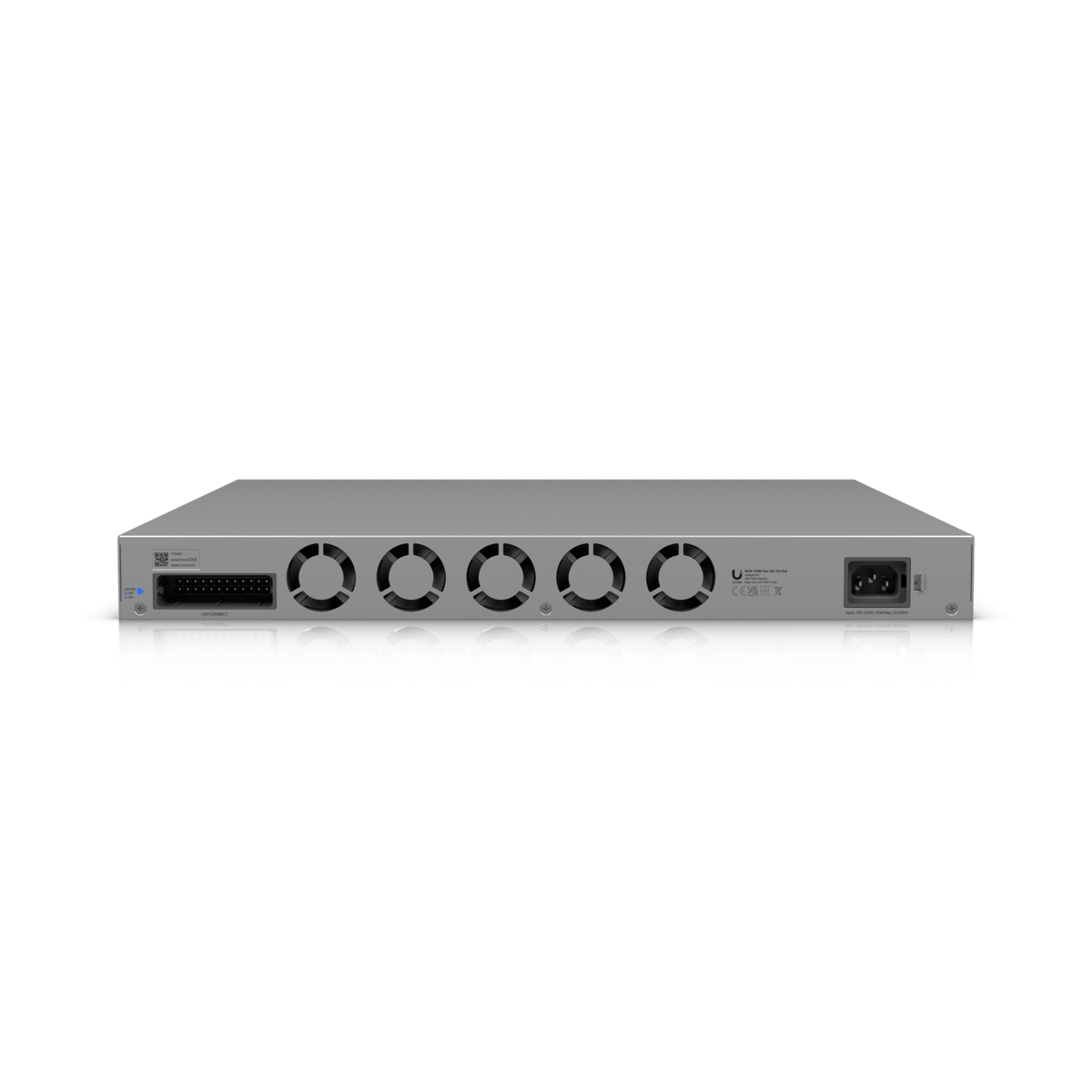

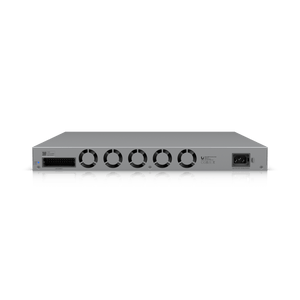

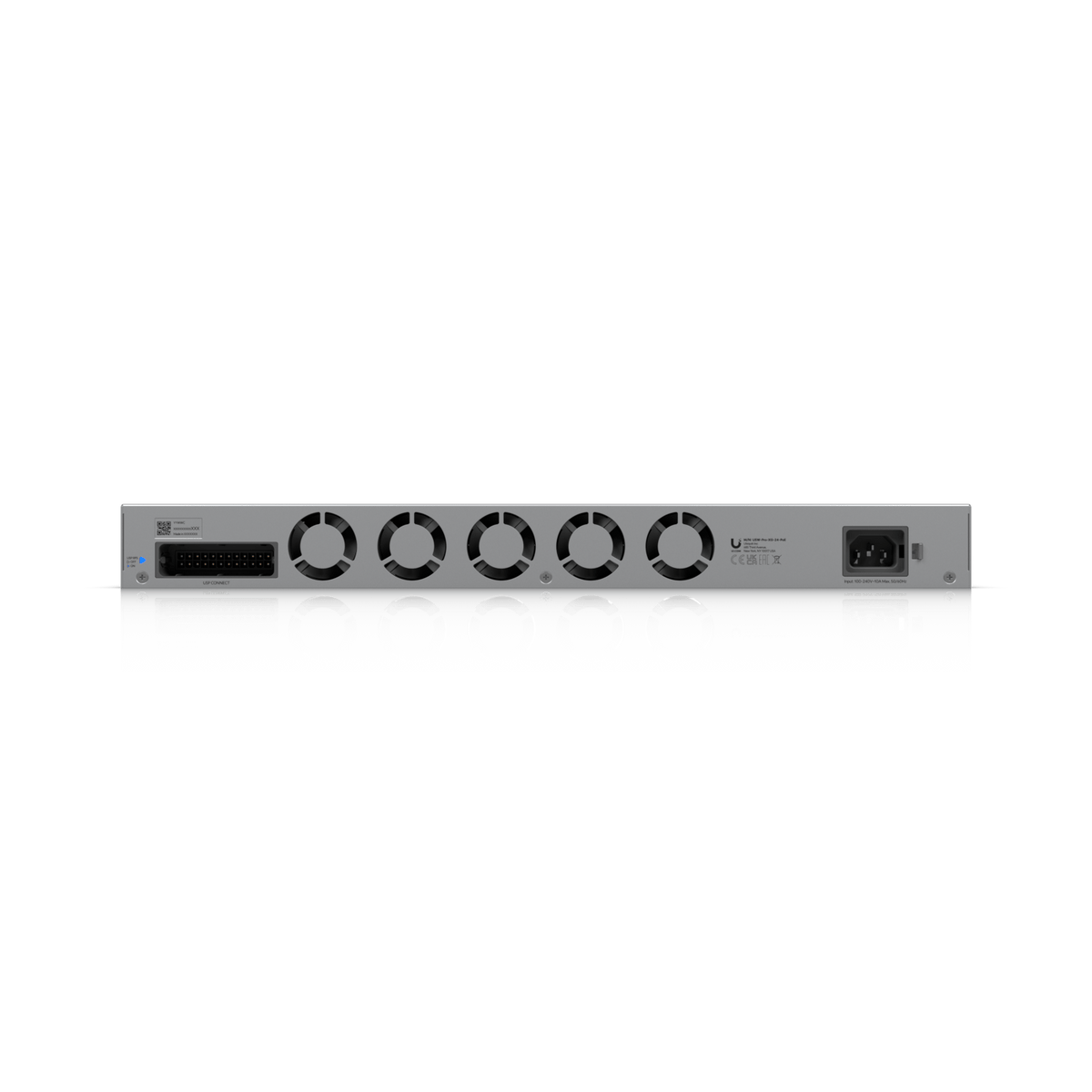

| Power Method | (1) Universal input, 100-240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 870W |
| Supported Voltage Range | 100-240V AC |
| Management | |
| Ethernet | Yes |
| Physical Design | |
| Weight (Without Mounting Brackets) | 7.9 kg (17.4 lb) |
| Weight (With Mounting Brackets) | 8 kg (17.6 lb) |
| Enclosure Material | SGCC Steel |
| Mount Material | SGCC Steel |

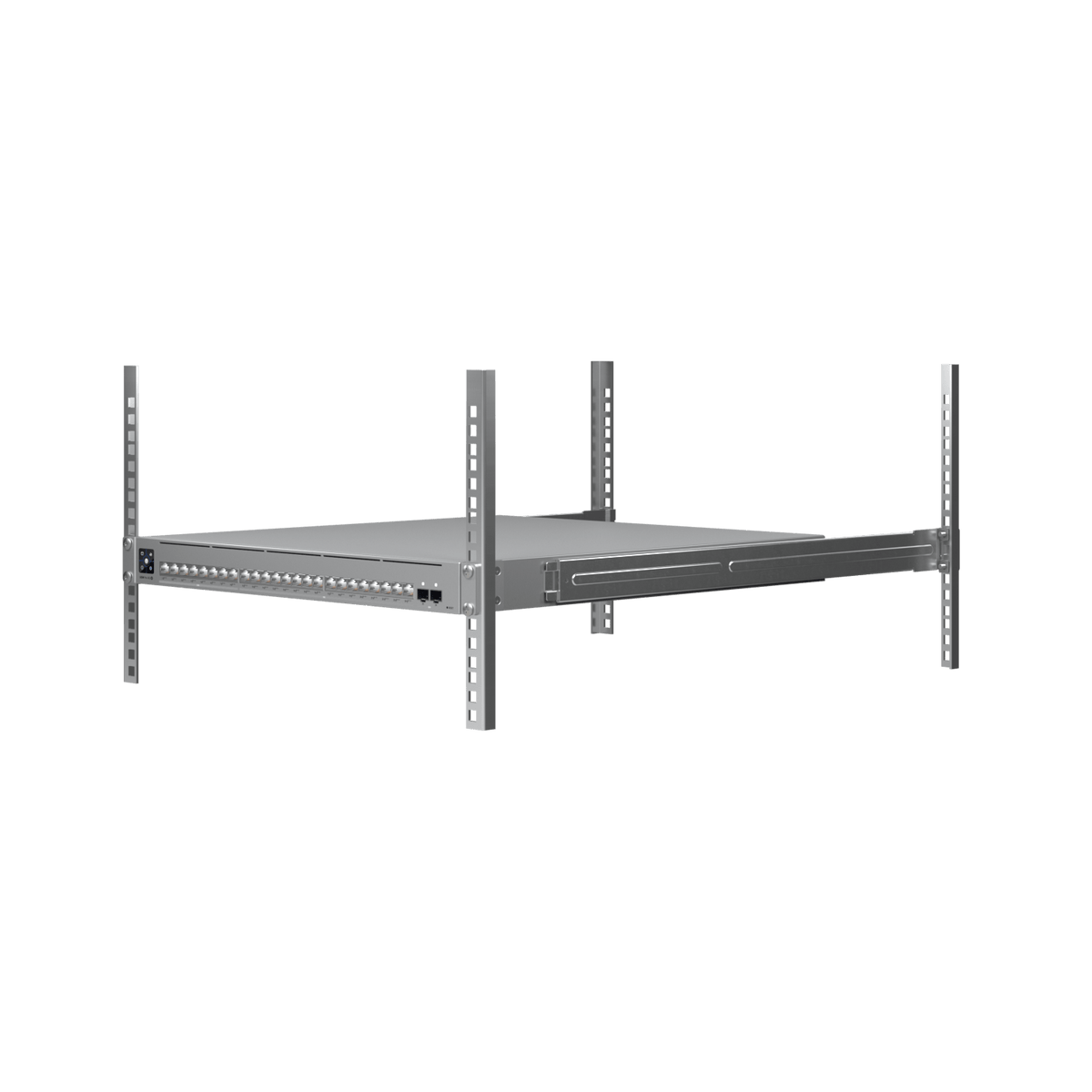

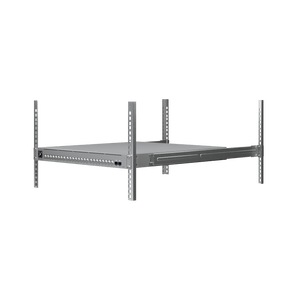

| Supported Rack Depth | 482.6 mm (19 in) four-post racks |
| Compatible Post Depths | 600 - 1,066 mm (23.6 - 42 in) |
| LCM Display | 1.3 in touchscreen |
| Environmental Conditions | |
| Ambient Operating Temperature | -5 to 40°C (23 to 104°F) |
| ESD/EMP Protection | Air: ±30 kV, Contact: ±20 kV |
| Ambient Operating Humidity | 10% to 90% non-condensing |
| Certifications | CE, FCC, IC |
| Etherlighting™ | |
| Ethernet | Yes |
| SFP28 | Yes |
