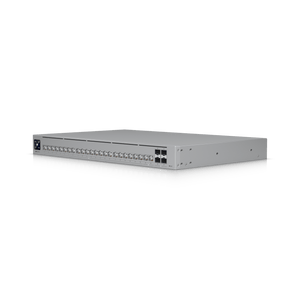

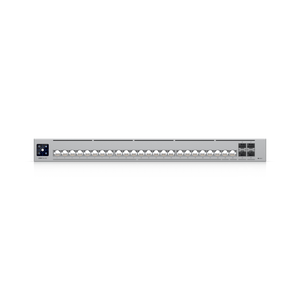

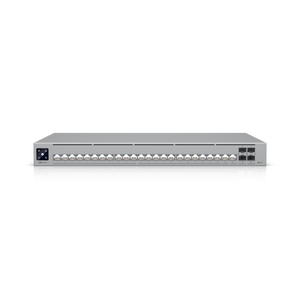

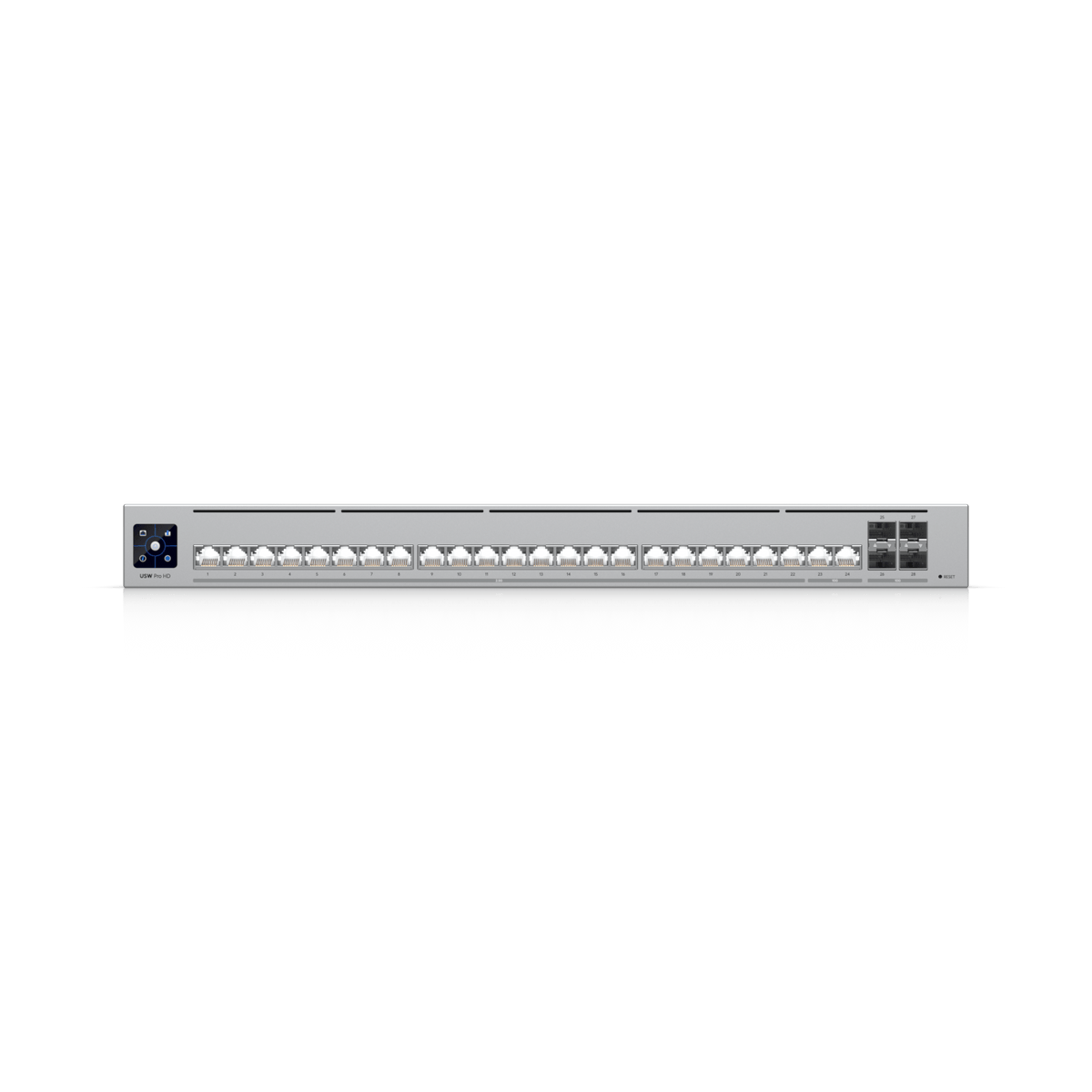

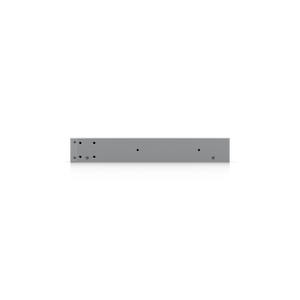

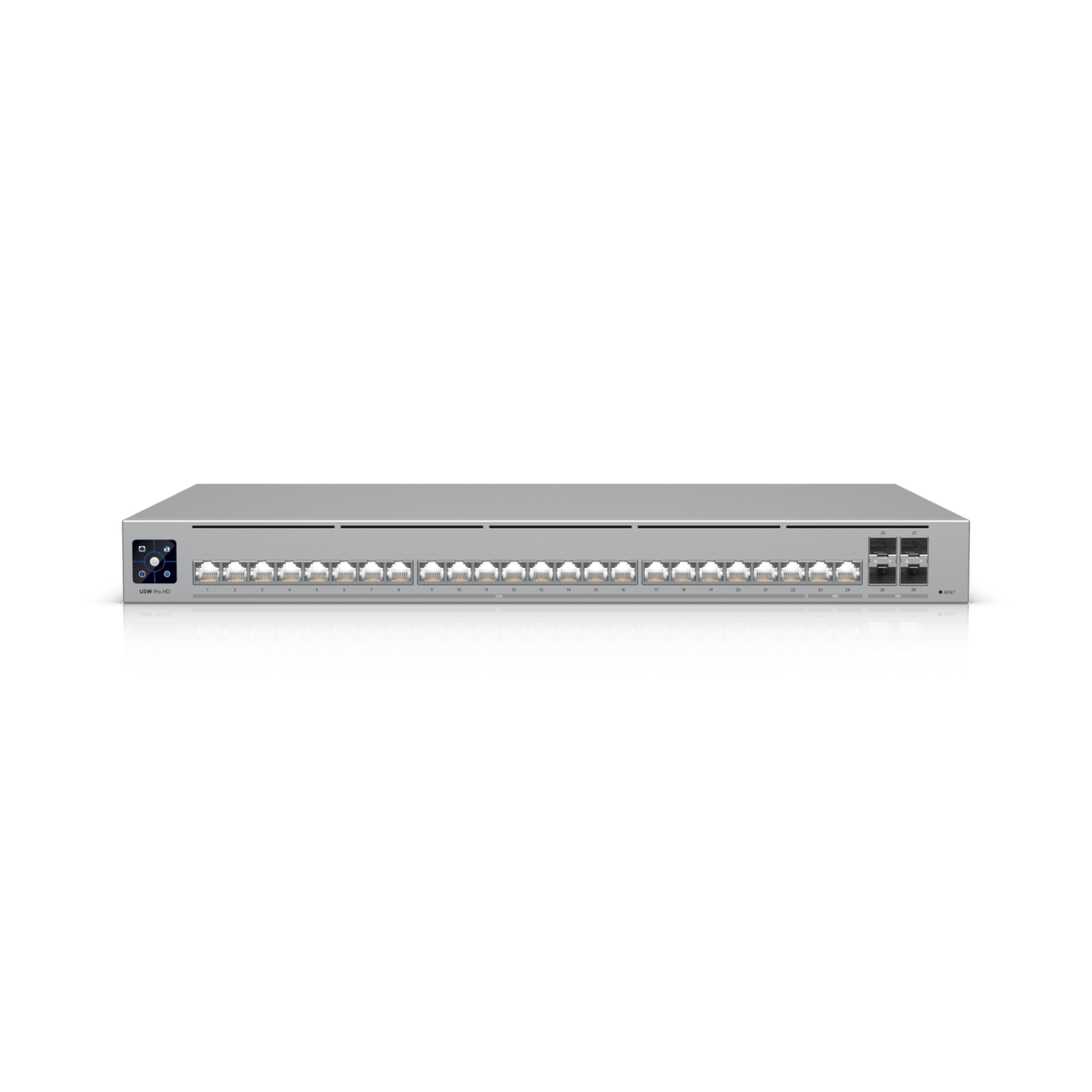

Ubiquiti USW-Pro-HD-24 Pro HD 24 24-Port L3 Etherlighting 10GbE Switch
제품 설명
Professional-Grade Layer 3 Switch
The Ubiquiti USW-Pro-HD-24 is a high-performance, professional-grade Layer 3 switch featuring innovative Etherlighting™ technology and robust networking capabilities. Designed for enterprise, Pro AV, and demanding environments, it supports high-speed connectivity with advanced Layer 2 and Layer 3 management features.
Highlights
- Etherlighting™ Technology: Illuminates port location, speed/link, and VLAN/network assignments for enhanced visibility.
- 24 High-Speed Ports: Includes (22) 2.5 GbE and (2) 10 GbE RJ45 ports.
- Uplink Flexibility: (4) 10G SFP+ ports for fiber uplinks and high-speed interconnectivity.
- Layer 3 Features: Supports static routing, DHCP relay, and inter-VLAN routing for seamless network management.
- Robust Performance: Offers 115 Gbps non-blocking throughput and 230 Gbps switching capacity.
Key Features
Advanced Connectivity
- Etherlighting™ Ports: Provide visual feedback for port location and status. Pair with UniFi Etherlighting Patch Cables for optimal brightness.
- High-Speed Networking: Includes (22) 2.5 GbE, (2) 10 GbE, and (4) 10G SFP+ ports to handle bandwidth-intensive applications.
Layer 3 Management
- Static Routing: Facilitates inter-VLAN communication for efficient traffic flow.
- DHCP Features: DHCP relay and locally-managed networks for better IP address management.
- Network Security: ACLs enable enhanced traffic segmentation and isolation.
Layer 2 Enhancements
- Multicast and VLAN Support: Includes IGMP snooping, Voice VLAN, and multicast rate limiting.
- Storm Control: Prevents disruptions caused by excessive broadcast or multicast traffic.
- Port Aggregation: LACP for increased bandwidth and link redundancy.
Energy Efficiency and Power Options
- Power Supply: Internal AC/DC power supply with 60W capacity.
- DC Power Backup: Compatible with UniFi RPS for redundancy (sold separately).
- Low Power Consumption: Max power usage of 50W for cost-effective operations.
Intelligent Design
- 1.3" Touchscreen: Localized control and status display for enhanced user interaction.
- Compact Form Factor: Ideal for rack-mounted or standalone deployment.
Applications
- Enterprise Networks: Robust performance for corporate environments.
- Pro AV: High-speed connectivity and VLAN features for seamless multimedia streaming.
- Surveillance Systems: Supports multicast and IGMP snooping for video optimization.
Specifications
- Switching Capacity: 230 Gbps.
- Forwarding Rate: 171.12 Mpps.
- Ports: (22) 2.5 GbE, (2) 10 GbE, (4) 10G SFP+.
- Dimensions: Compact and rack-ready design.
- Max Power Consumption: 50W.
Summary
The Ubiquiti USW-Pro-HD-24 combines cutting-edge Etherlighting™ technology, high-speed connectivity, and advanced Layer 3 features in a professional-grade switch. Designed for demanding environments, it ensures reliable, efficient, and scalable network operations for enterprise and multimedia applications.
사양
Ubiquiti USW-Pro-HD-24 Pro HD 24-Port L3 Etherlighting 10GbE Switch
| Specification | Details |
|---|---|
| Mechanical | |
| Dimensions | 442.4 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| Weight | • Without mounting brackets: 4.2 kg (9.2 lb) • With mounting brackets: 4.3 kg (9.4 lb) |
| Enclosure Material | SGCC Steel |
| Hardware | |
| Management Interface | Ethernet In-Band |
| Networking Interface | • (2) 10/5/2.5/1 GbE, 100 MbE RJ45 ports • (22) 2.5/1 GbE, 100/10 MbE RJ45 ports • (4) 10/1G SFP+ ports |
| Total Non-Blocking Throughput | 115 Gbps |
| Switching Capacity | 230 Gbps |
| Forwarding Rate | 171.12 Mpps |
| Power Method | • (1) Universal input, 100—240V AC, 50/60 Hz • (1) USP-RPS DC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100—240V AC |
| Max Power Consumption | 50W |
| LCM Display | (1) 1.3" Touchscreen |
| Button | Factory Reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features | |
| Layer 2 Features | • IGMP snooping • STP / RSTP with priorities and port-level disable • Port isolation • Storm control • Voice VLAN • Port mirroring • LACP port aggregation • Multicast/broadcast rate limiting • MAC address blocking • Flow control • 802.1X control • Jumbo frames • Proprietary loop protection • DHCP snooping/guarding • Egress rate limit • LLDP-MED • Port restricted by MAC • Device isolation with ACLs • QoS • Pro AV |
| Layer 3 Features | • DHCP for locally-managed networks • DHCP relay • Inter-VLAN routing between networks on the same switch • Static routing between local networks • Network isolation with ACLs |
| Etherlighting™ Features | • Ethernet Locating • Speed/Link • Native VLAN/Network SFP+: Locating, Speed/Link, Native VLAN/Network |
| LEDs | • System: Status • RPS: Status |
