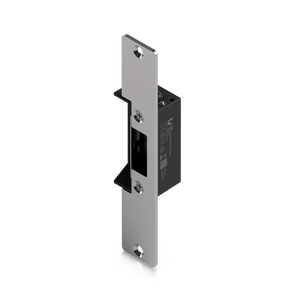

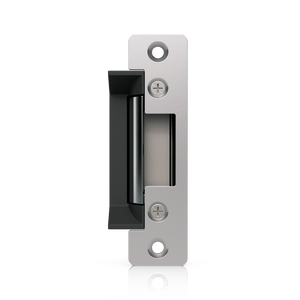

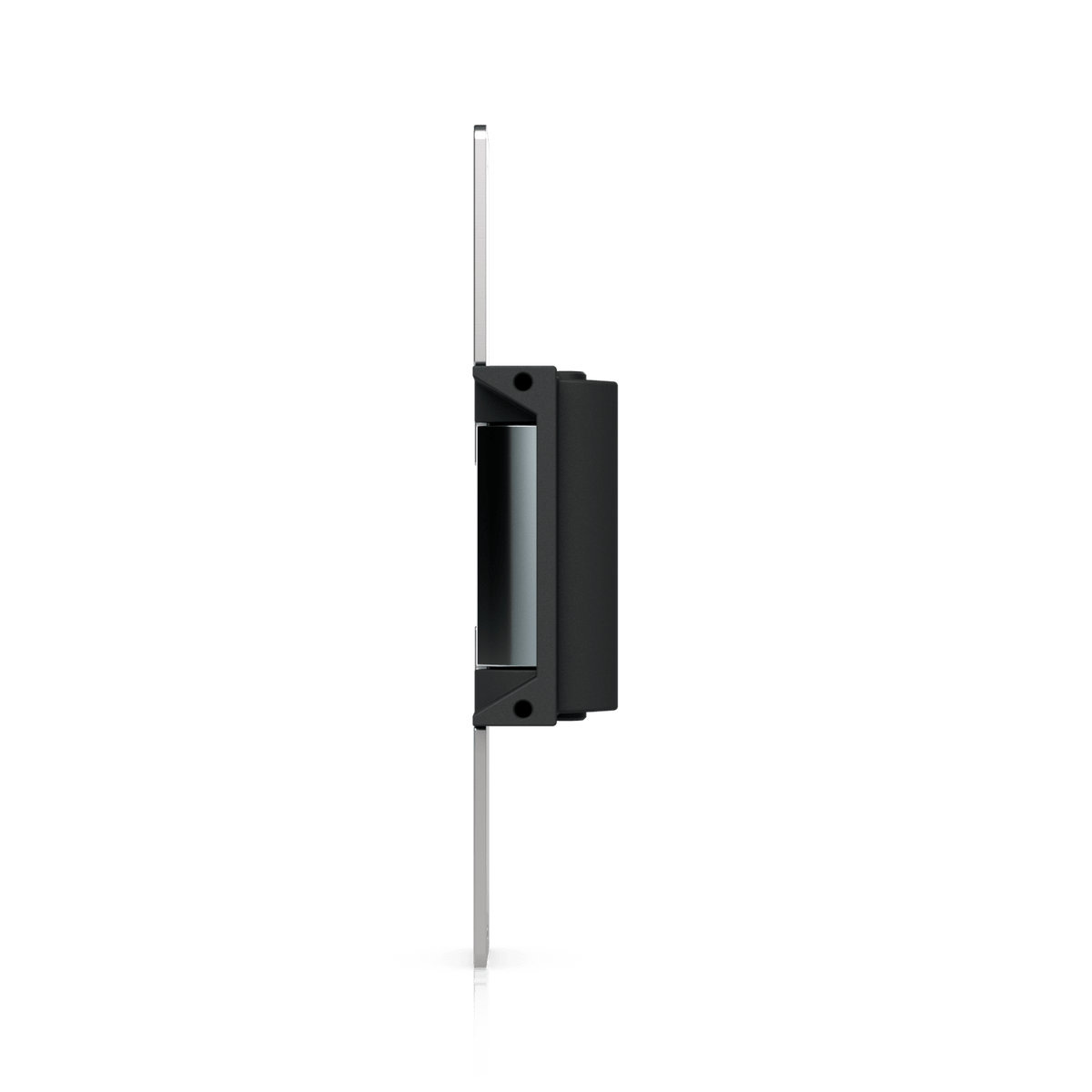

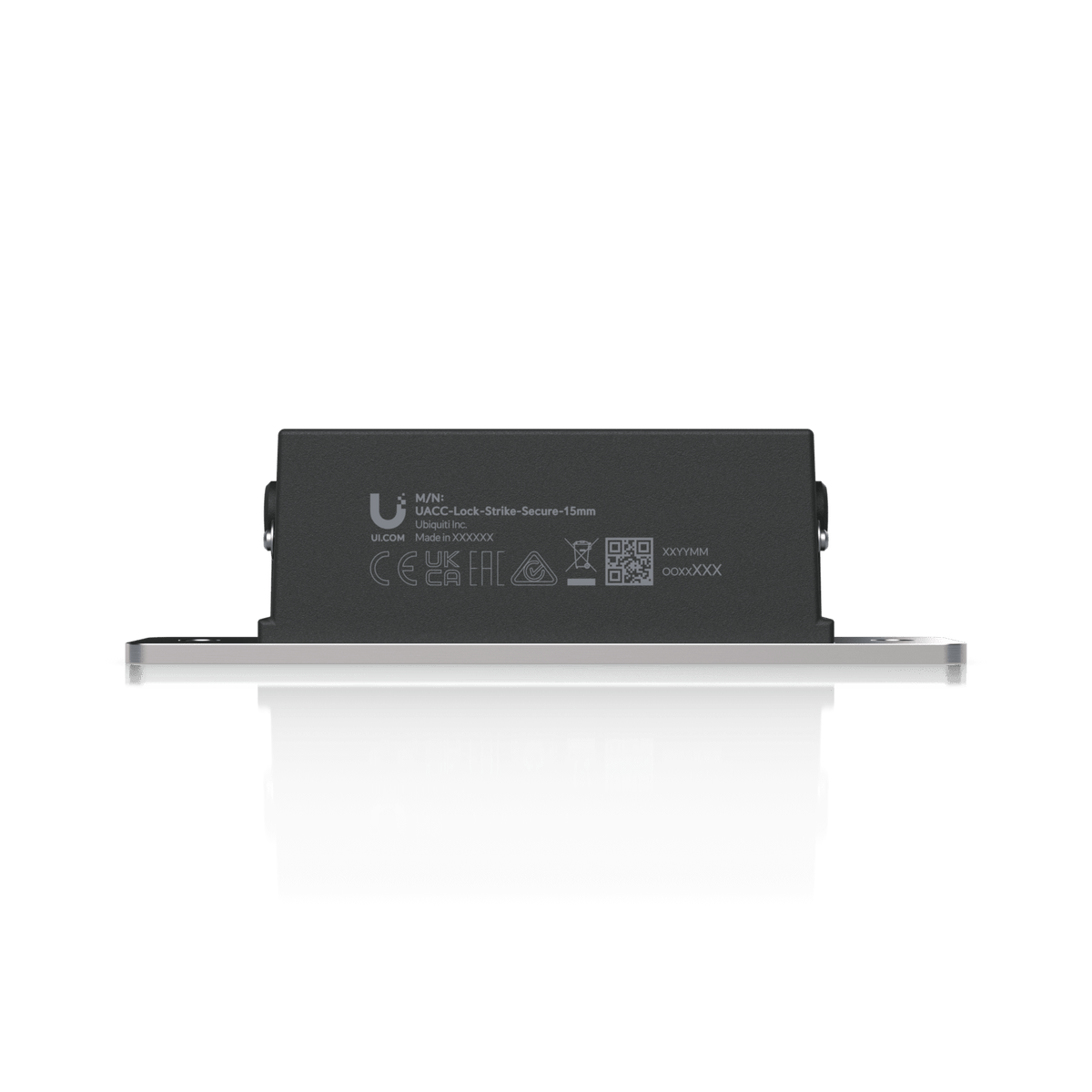

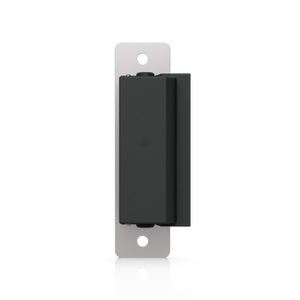

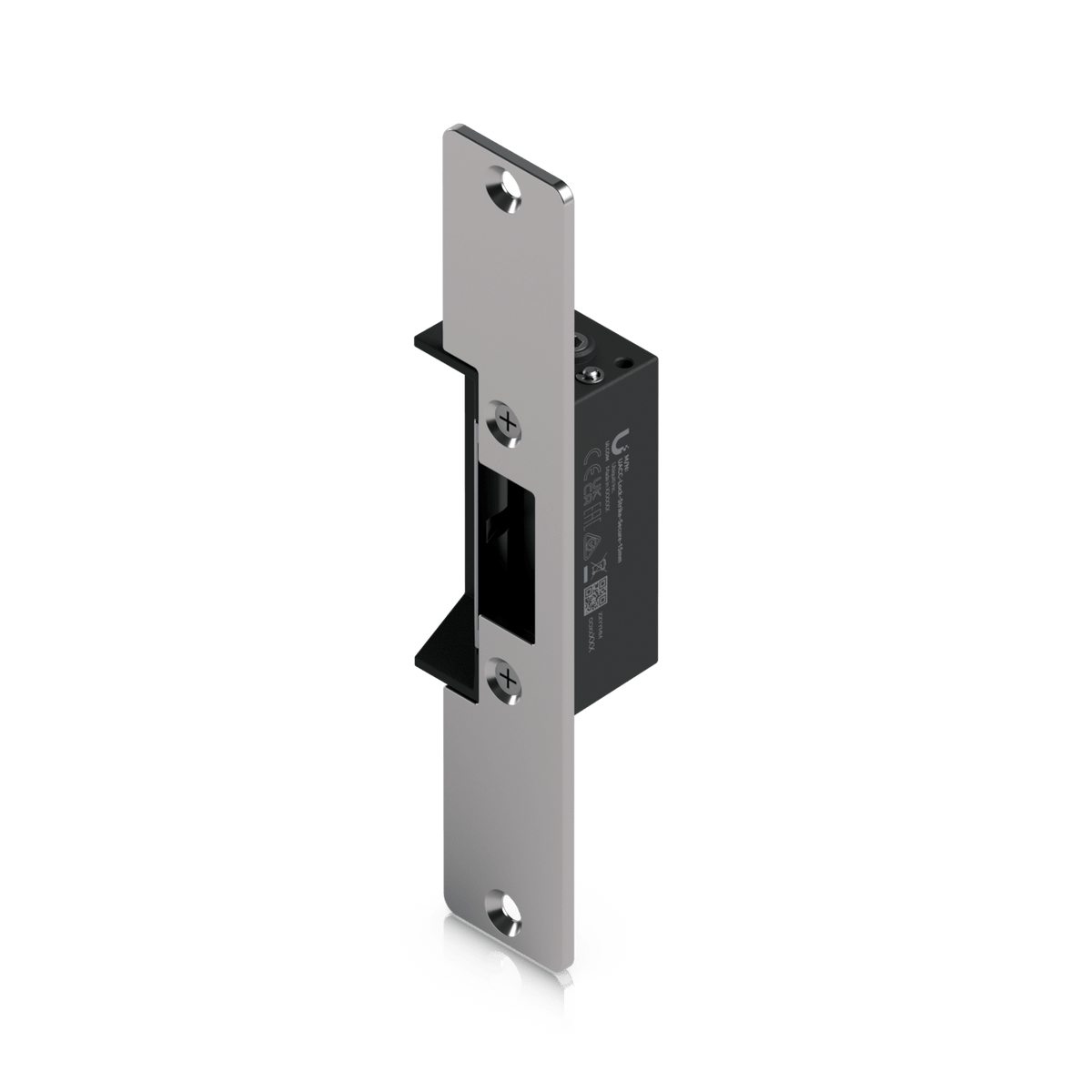

Ubiquiti UACC-Lock-Strike-Secure-15mm Fail-Secure Electric Strike Lock
제품 설명
Fail-Secure Access Control for Standard Door Frames

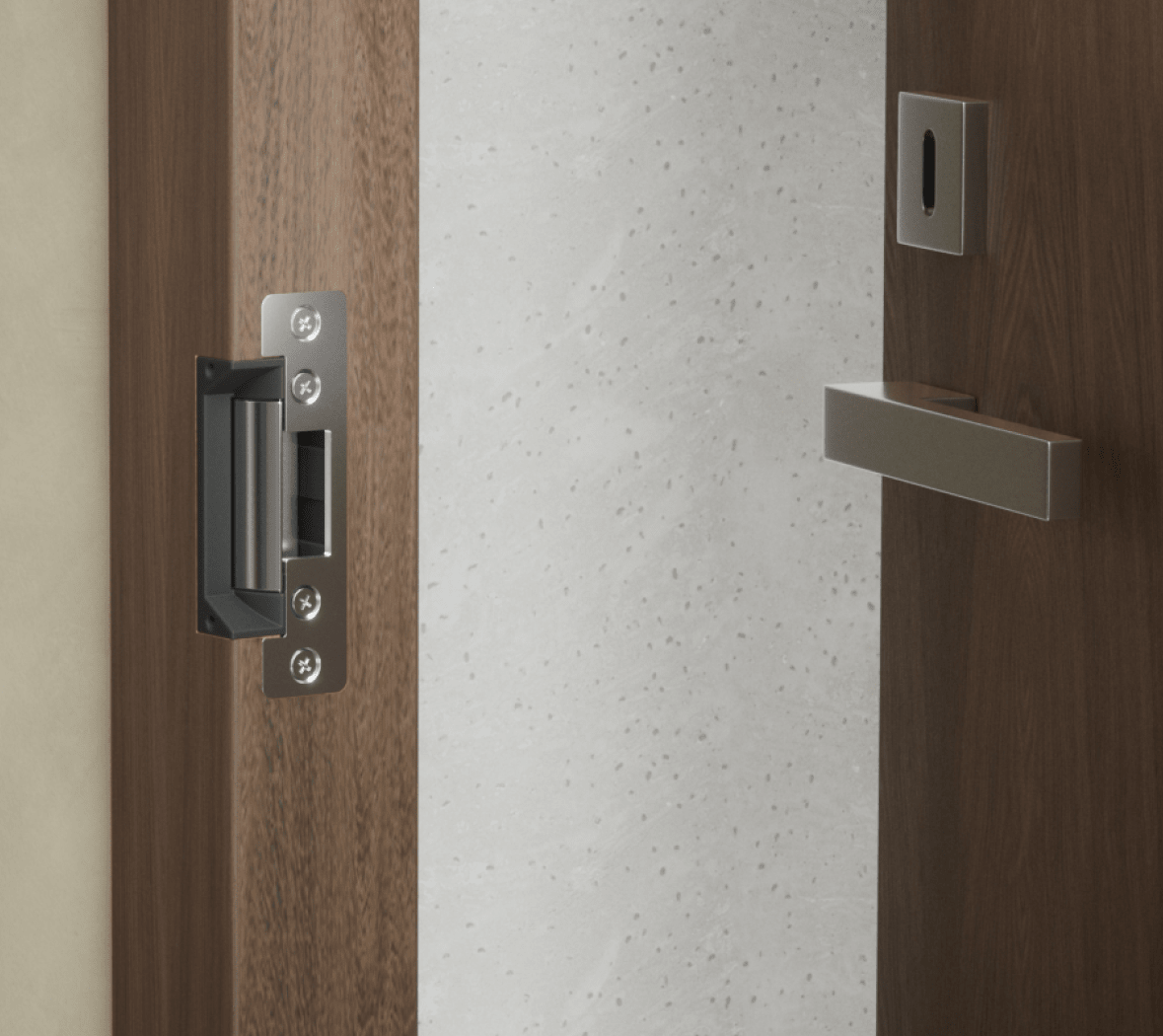

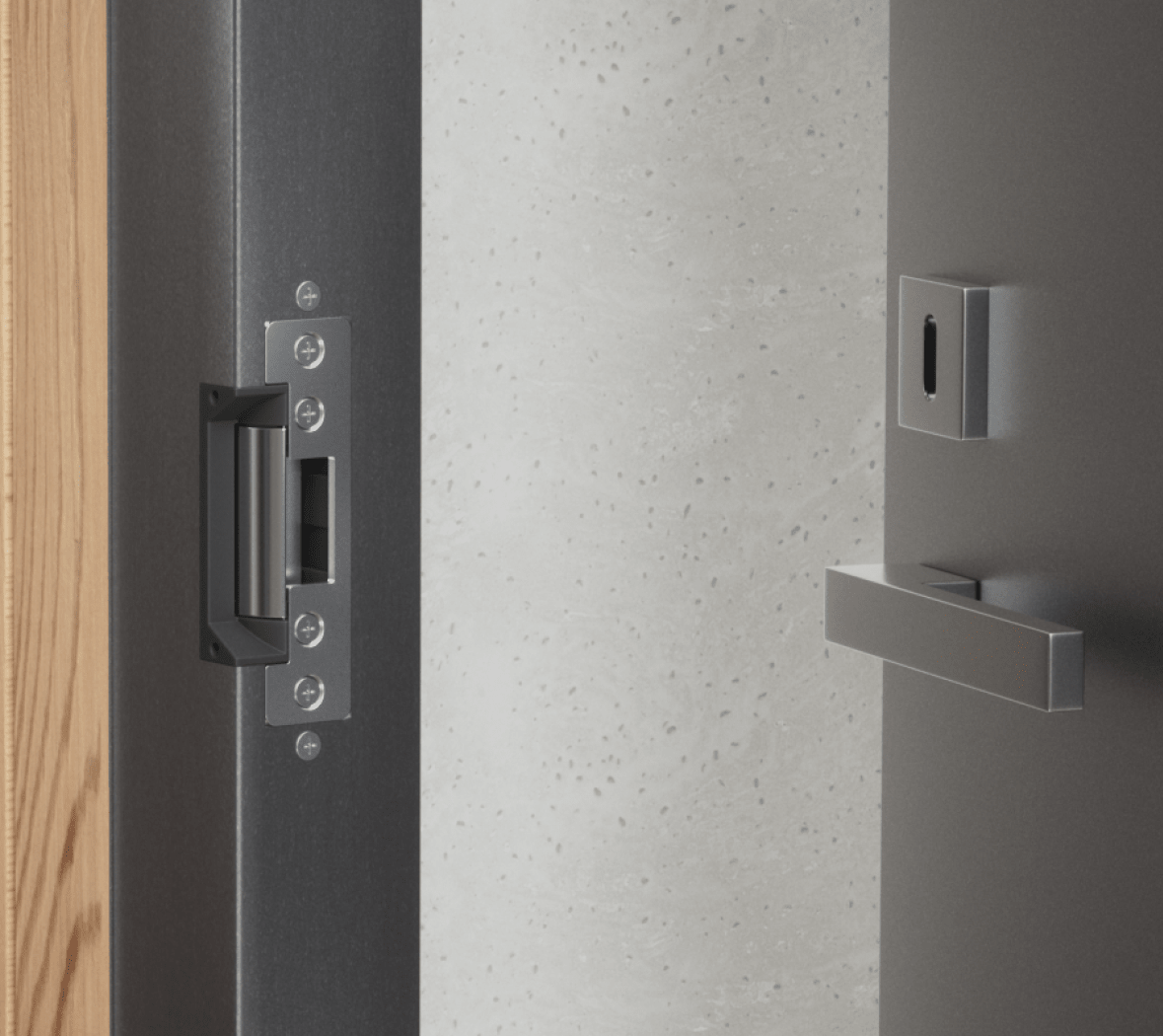

The Ubiquiti UACC-Lock-Strike-Secure-15mm is a fail-secure electric strike lock with a 15mm lock slot for UniFi Access installations. It remains locked when power is lost, making the power-loss response clear when choosing door hardware. Designed for a single wooden or metal door, it recesses into the door frame and connects to a compatible UniFi Access Hub for controlled entry and door status monitoring.
Highlights
Access Control and Power-Loss Behaviour
- Fail-Secure design: Remains locked when power is lost.
- Wired integration with a compatible UniFi Access Hub.
- For single wooden or metal doors.
Fit and Construction
- 15mm standard lock slot for the matching door-frame recess.
- Manufacturer-rated holding force of 1200kg.
- Zinc alloy body with stainless steel front plates and latches.
Electrical and Status Connections
- 12V DC ±10% operating voltage.
- Current requirement: 400mA ±10%.
- Dry-contact door status output for open/closed monitoring.
Key Features
Predictable Behaviour During Power Loss
This fail-secure model remains locked when power is lost. Select it when the access-control design calls for the lock to stay secured without power. Confirm the complete door hardware and exit arrangement with your installer.

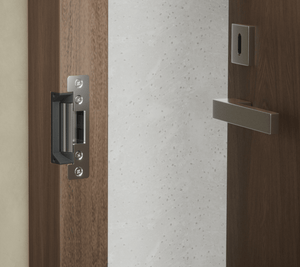

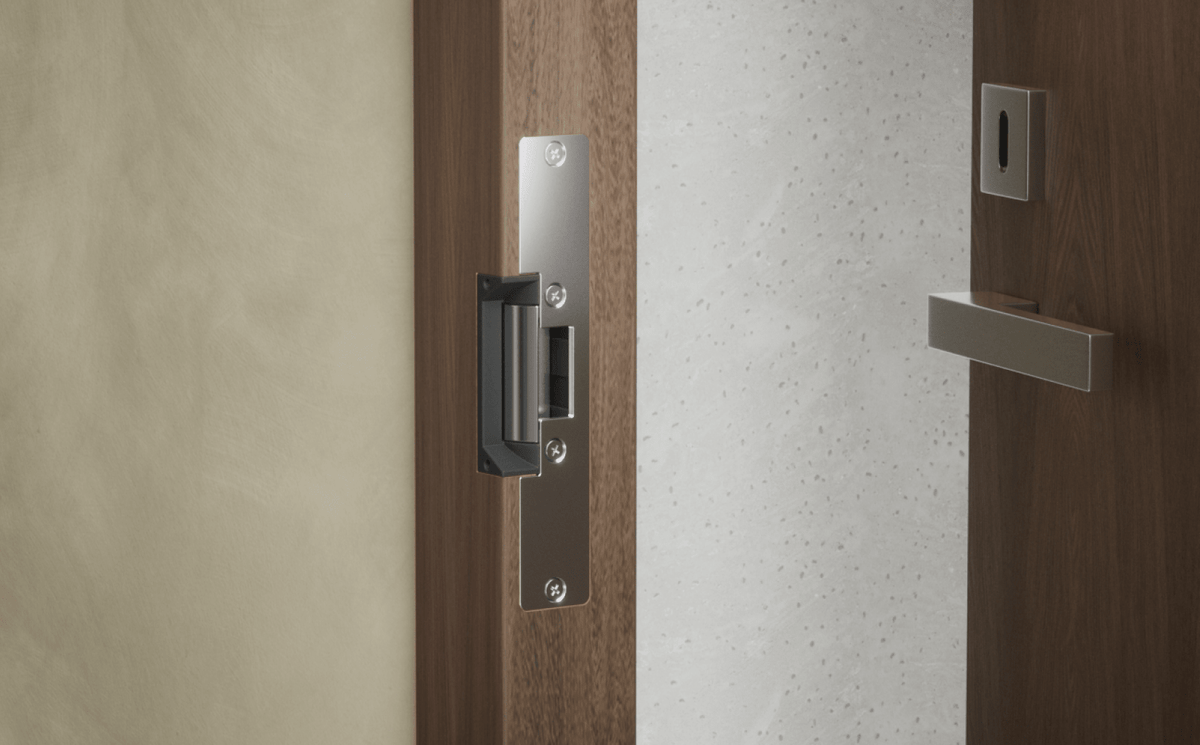

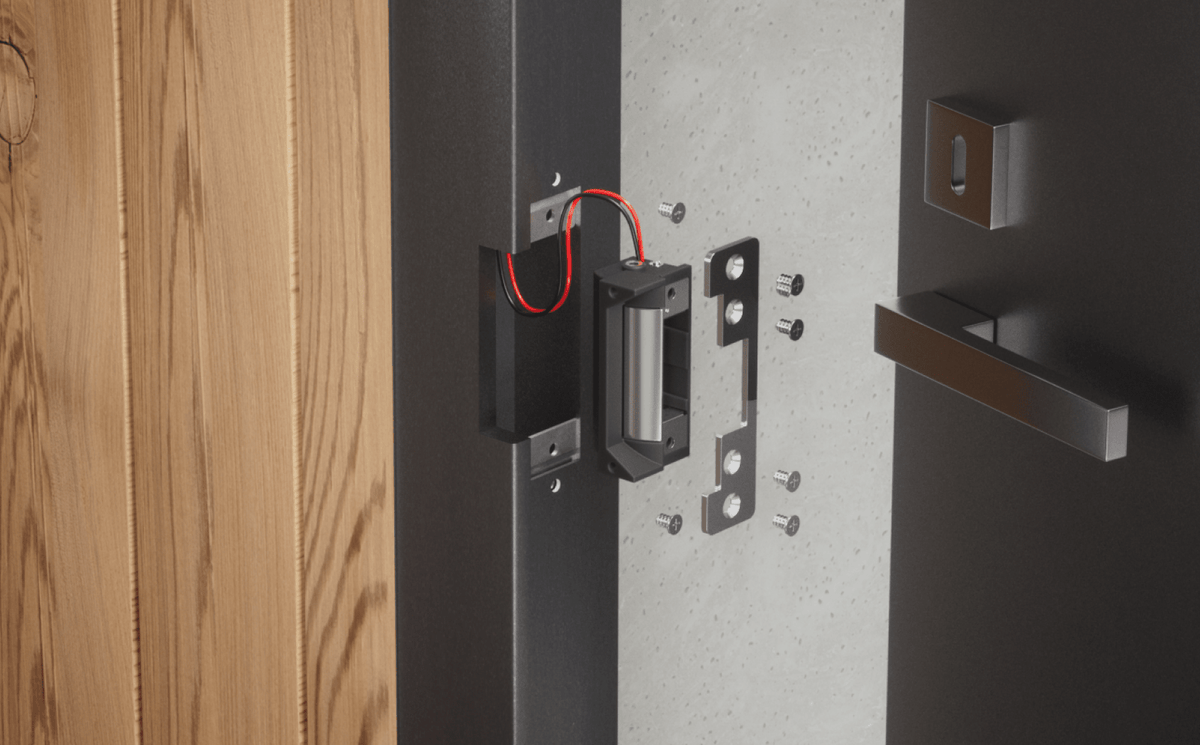

Made for Standard Strike Installations

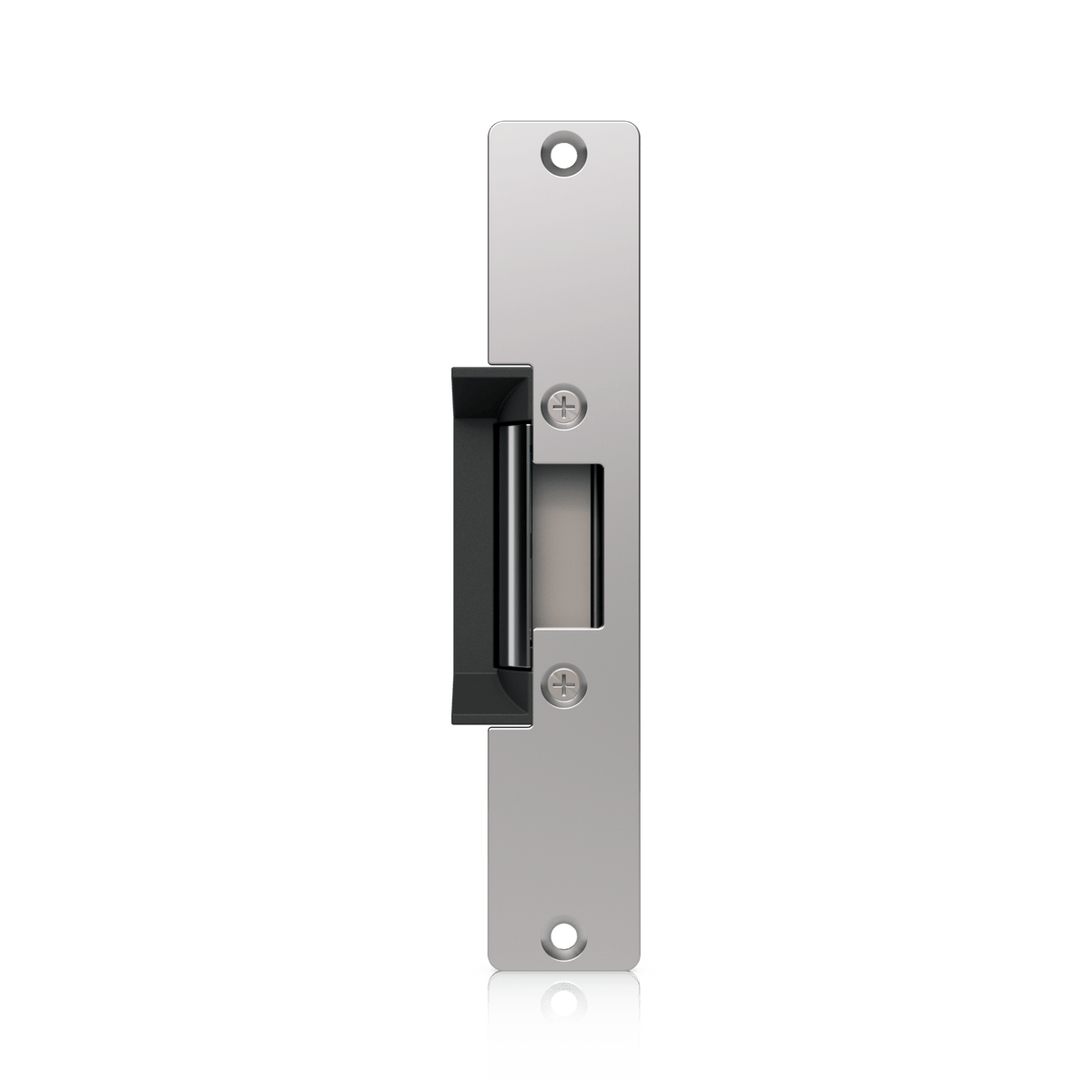

The 15mm designation refers to the lock slot depth. The 80 × 40 × 35mm body suits a standard frame recess, subject to checking the complete installation dimensions. Short and long front plates support different mounting layouts.

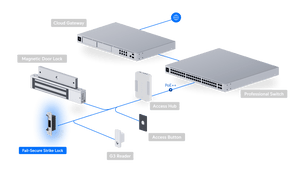

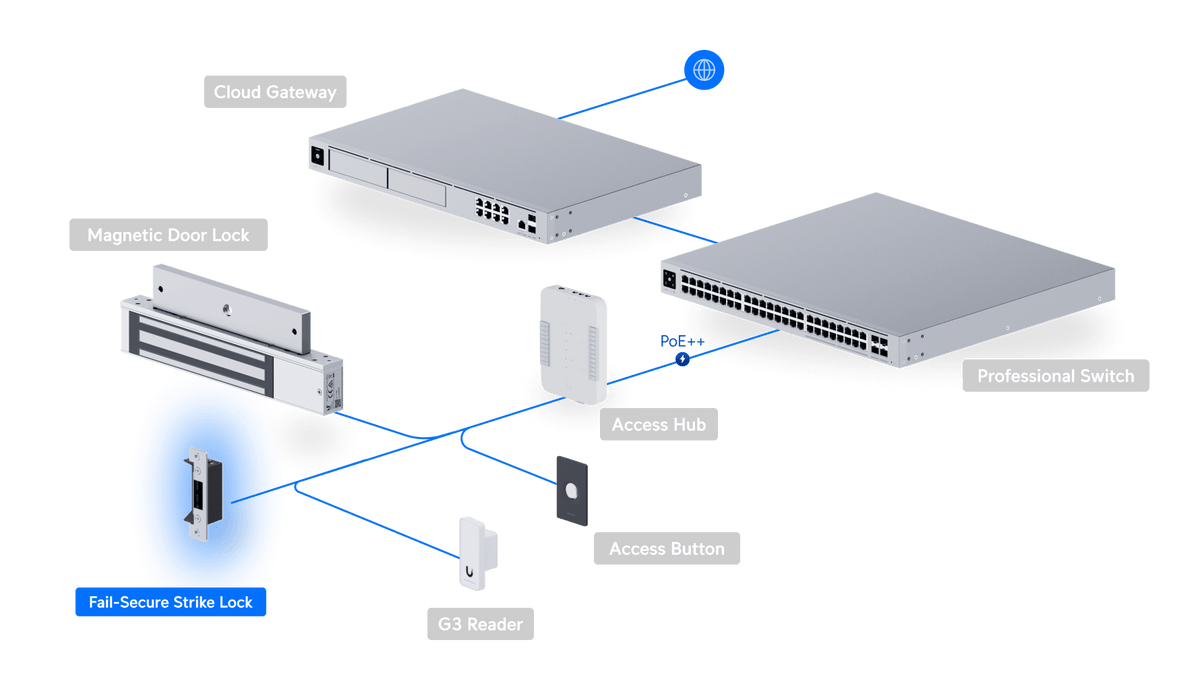

UniFi Access Hub Integration
The lock uses NO and COM connections for its fail-secure operation. Match the compatible hub output and power supply to the specified 12V DC voltage and current requirement.
Door Status Monitoring
The dry-contact door status output lets a compatible hub monitor the door state. The status contact is open when the door is open and closed when the door is closed.

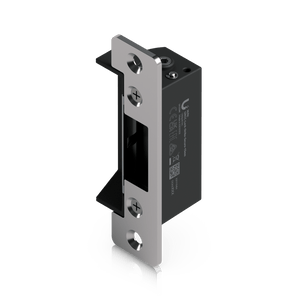

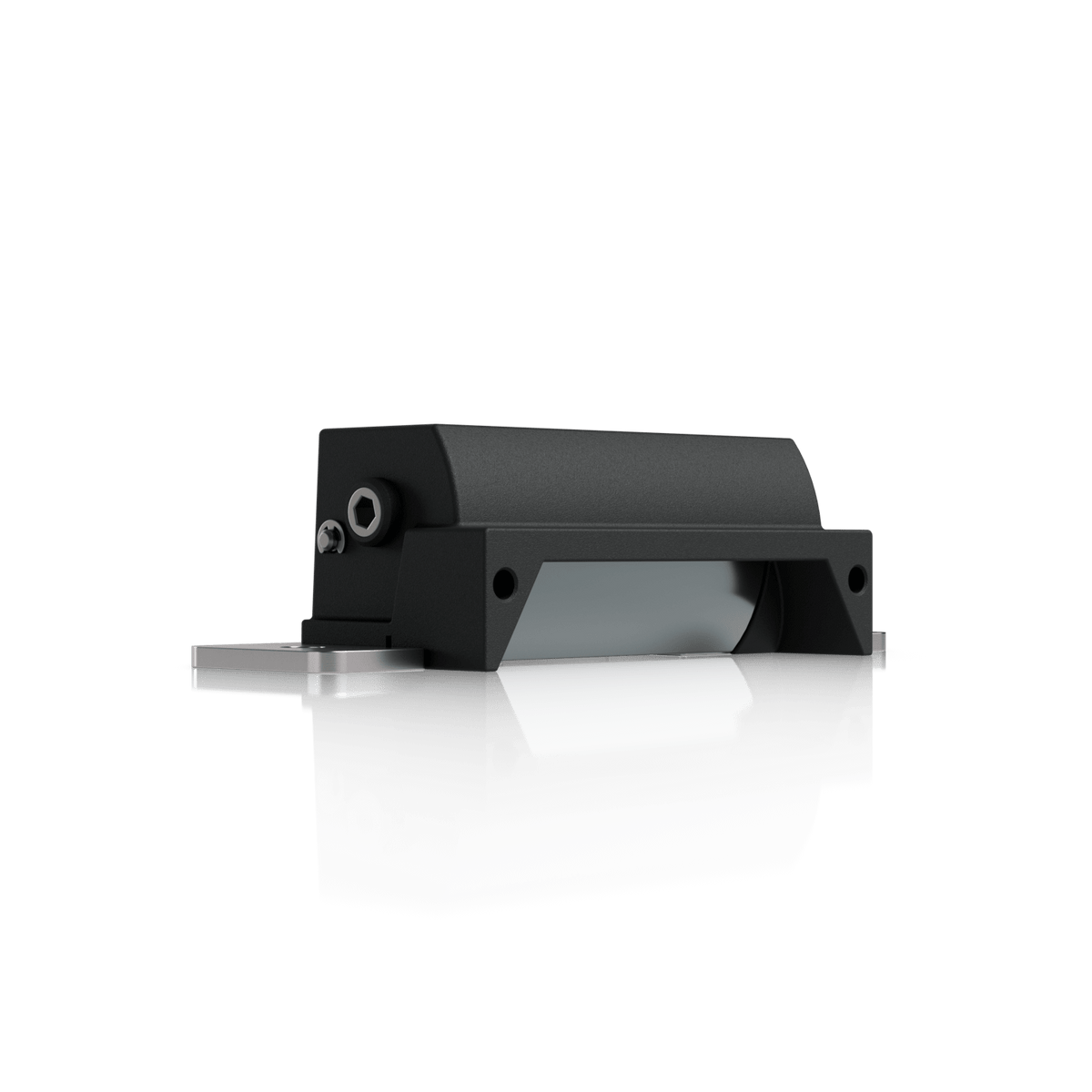

Durable Lock Construction
A zinc alloy lock body and stainless steel front plates and latches provide a robust mechanical assembly. Ubiquiti specifies a 1200kg holding force for this 15mm model.

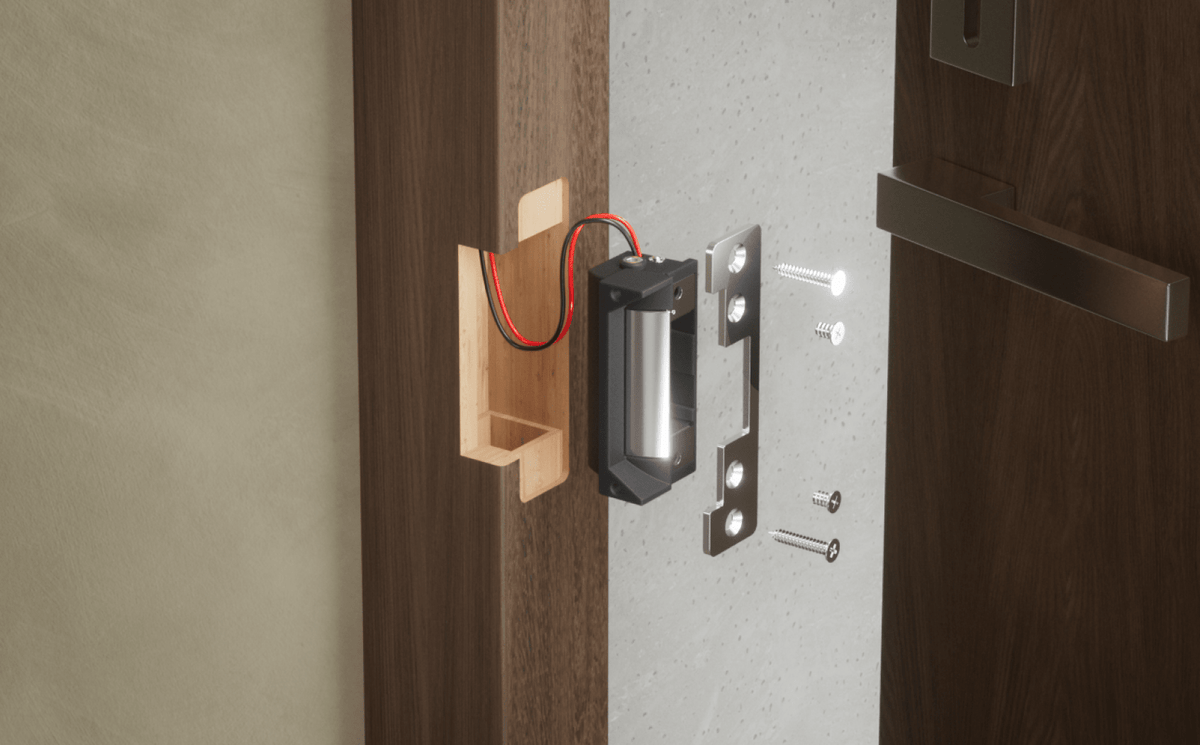

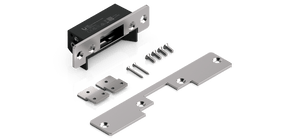

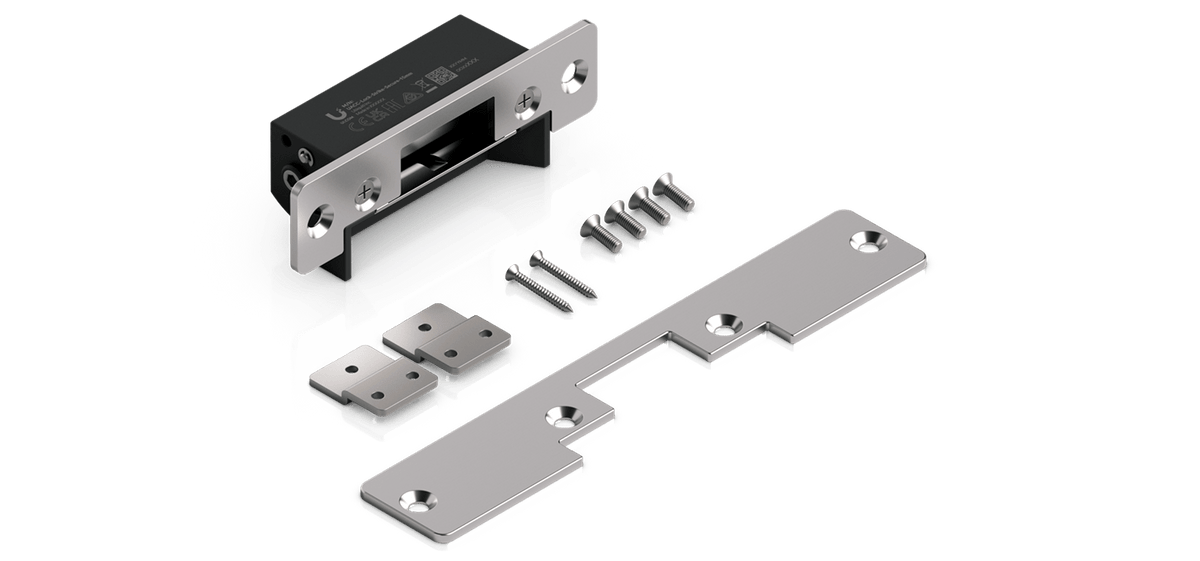

Mounting Hardware Included

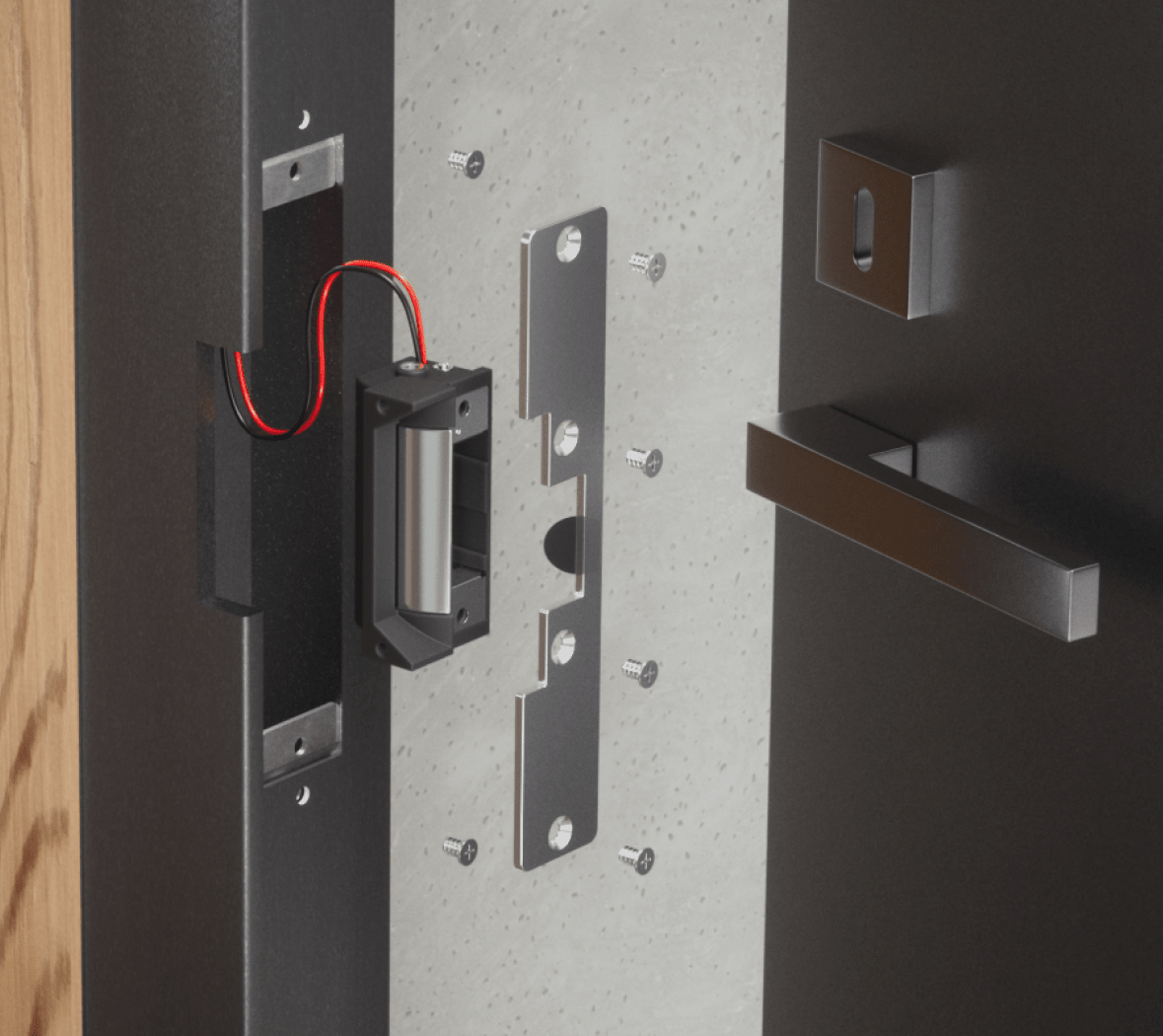

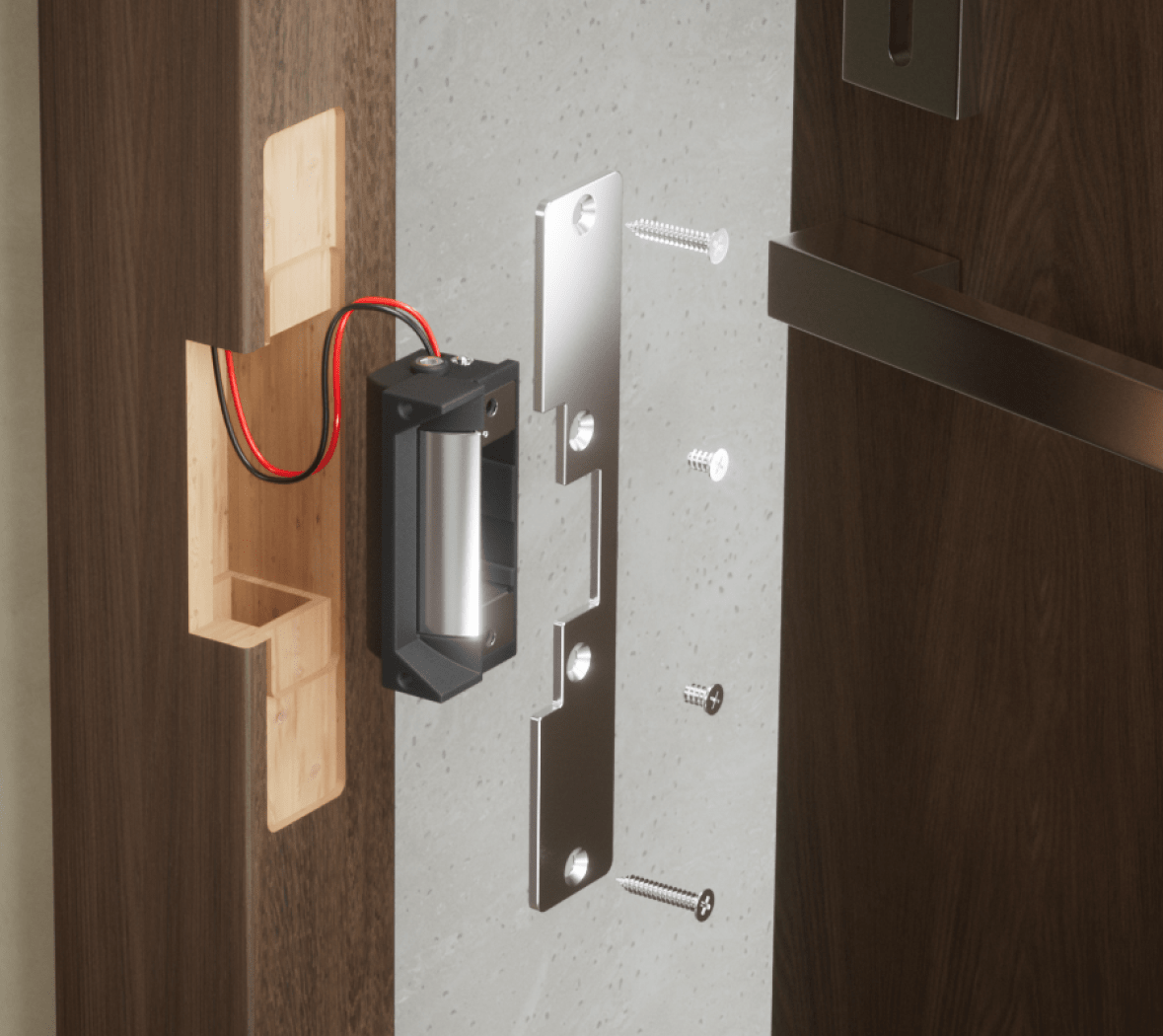

The package includes the lock body, short and long front plates and mounting hardware. Check the manufacturer’s dimensions and installation guide against the door before ordering. The access-control hub is sold separately.
Summary
Choose the Ubiquiti UACC-Lock-Strike-Secure-15mm for a standard 15mm electric strike installation that remains locked when power is lost. Its wired UniFi Access integration and door status connection support a clearly specified access-control installation for a single wooden or metal door.
사양
Ubiquiti UACC-Lock-Strike-Secure-15mm Fail-Secure Electric Strike Lock
The Ubiquiti UACC-Lock-Strike-Secure-15mm is a fail-secure electric 15mm strike lock for a single wooden or metal door. It remains locked when power is lost and installs in a door-frame recess. The lock operates at 12V DC ±10% and provides a dry-contact door status output for a compatible access-control hub. Its zinc alloy body and stainless steel plates and latches are rated for 1200kg holding force. Check the mounting dimensions and required relay connections before installation.
| Specification | Details |
|---|---|
| Lock and Door Compatibility | |
| Lock mechanism | Electric strike |
| Power-loss behaviour | Fail-Secure — remains locked when power is lost |
| Supported door | Single wooden or metal door |
| Mounting | Door frame recess mount |
| Lock slot depth | 15mm (standard) |
| Holding force | 1200kg (2645lb) |
| Mechanical | |

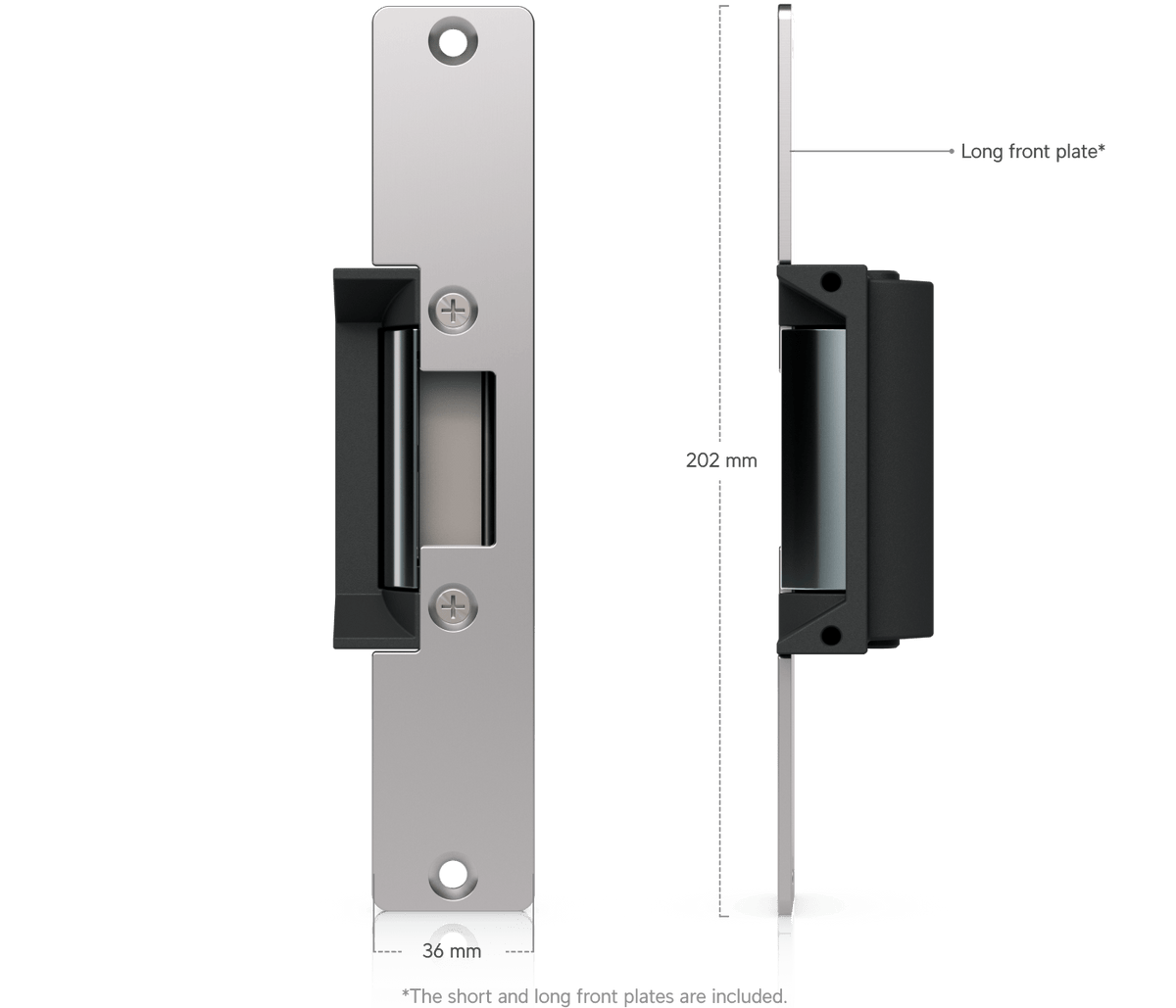

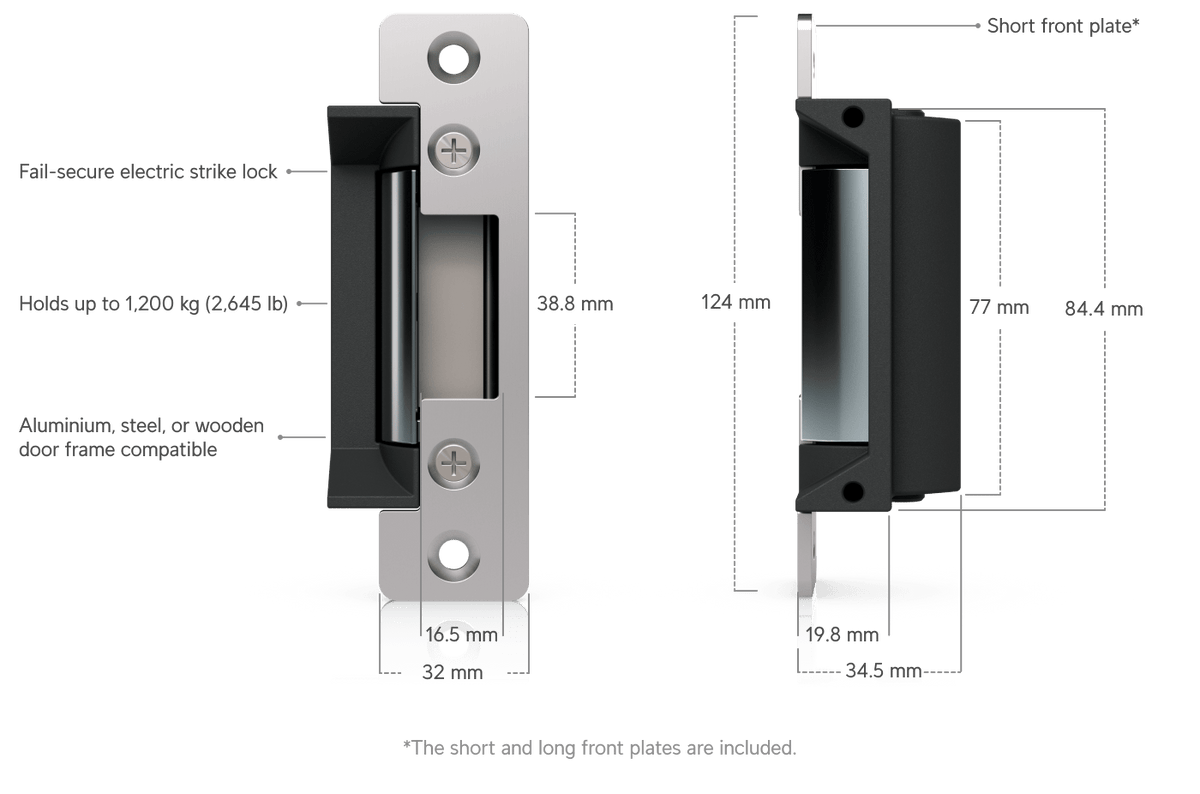

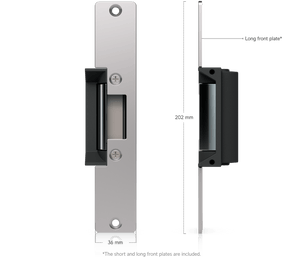

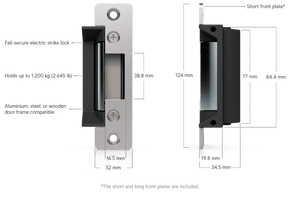

| Dimensions | Lock body: 80 × 40 × 35mm (3.2 × 1.6 × 1.4") Short front plate: 124 × 32 × 3mm (4.9 × 1.3 × 0.1") Long front plate: 202 × 36 × 3mm (7.9 × 1.4 × 0.1") |
| Weight | Lock body: 185g (6.5 oz) Short front plate: 50g (1.8 oz) Long front plate: 130g (4.6 oz) |
| Enclosure Material | Lock body: zinc alloy Front plate/latches: stainless steel |
| Electrical and Wiring | |
| Operating voltage | 12V DC ±10% |
| Current requirement | 400mA ±10% |
| Lock and sensor wiring | (1) Lock 12V/NO (red) (1) Lock 12V/COM (black) |
| Door Status Contact | |
| Contact type | Dry contact |
| Contact logic | Door open: DPS+ and DPS− open Door closed: DPS+ and DPS− short |
| Maximum contact rating | 30V DC / 0.1A |
| Environment and Compliance | |
| Operating temperature | −10 to 60°C |
| Storage temperature | −20 to 70°C |
| Operating humidity | 5–90% noncondensing |
| Certifications | FCC / IC / CE |
| NDAA compliant | Yes |
| Package Contents | |
| Included items | Lock body, short front plate, long front plate and mounting hardware |
| Access-control hub | Sold separately |
