Ubiquiti UA-Hub-Door-Mini Door Access Hub Mini
제품 설명
Compact Door Access Hub
The Ubiquiti UA-Hub-Door-Mini is a compact and efficient access control hub designed for managing a single door. With support for PoE++ connectivity, it provides seamless integration with UniFi Access Readers and Protect Cameras, making it an ideal solution for modern, secure access management in small spaces.
Highlights
- Compact Design: Streamlined and space-efficient hub for single-door access control.
- Versatile Lock Support: Includes a switchable 12V and dry lock terminal for flexible installation.
- PoE++ Powered: Simplifies deployment by delivering power and data over a single cable.
- Device Integration: Supports up to two UniFi Access Readers or Protect Cameras.
Key Features
Output Relays
- Lock Terminal: (1) switchable 12V and dry lock terminal for secure door locking.
Input Terminals
- Request to Exit: Input for exit button or sensor integration.
- Door Position Sensor: Monitors the door’s open or closed status for enhanced security.
PoE++ Connectivity
- PoE Ports: (2) PoE ports for connecting UniFi Access Readers or Protect Cameras.
- Power Method: Powered via PoE++ for reliable and efficient operation.
Applications
- Small Offices: Ideal for secure access to individual doors in compact office spaces.
- Retail Stores: Manage access to storage rooms or restricted areas.
- Residential Properties: Modernize access control with UniFi integration.
Specifications

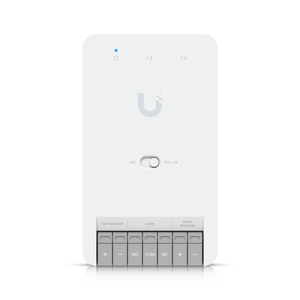

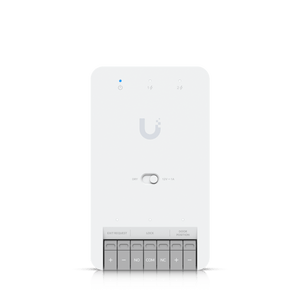

- Output Relays: (1) Lock terminal (12V and dry switchable).
-
Input Terminals:
- (1) Request to exit.
- (1) Door position sensor.
- PoE Ports: (2) PoE for access readers and cameras.
- Power Method: PoE++.
Summary
The Ubiquiti UA-Hub-Door-Mini offers a compact and cost-effective solution for single-door access control. With PoE++ connectivity, support for UniFi Access Readers and Protect Cameras, and flexible lock and sensor integration, it ensures secure and efficient access management in small spaces.
사양
Ubiquiti UA-Hub-Door-Mini Door Access Hub Mini
| Specification | Details |
|---|---|
| Mechanical | |
| Dimensions | 113 x 66 x 27.6 mm (4.4 x 2.6 x 1.1") |
| Weight | 190 g (6.7 oz) |
| Enclosure Material | Polycarbonate, metal |
| Hardware | |

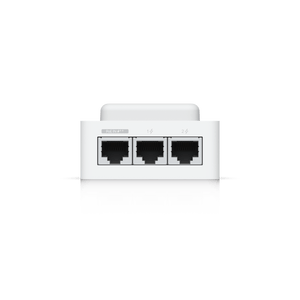

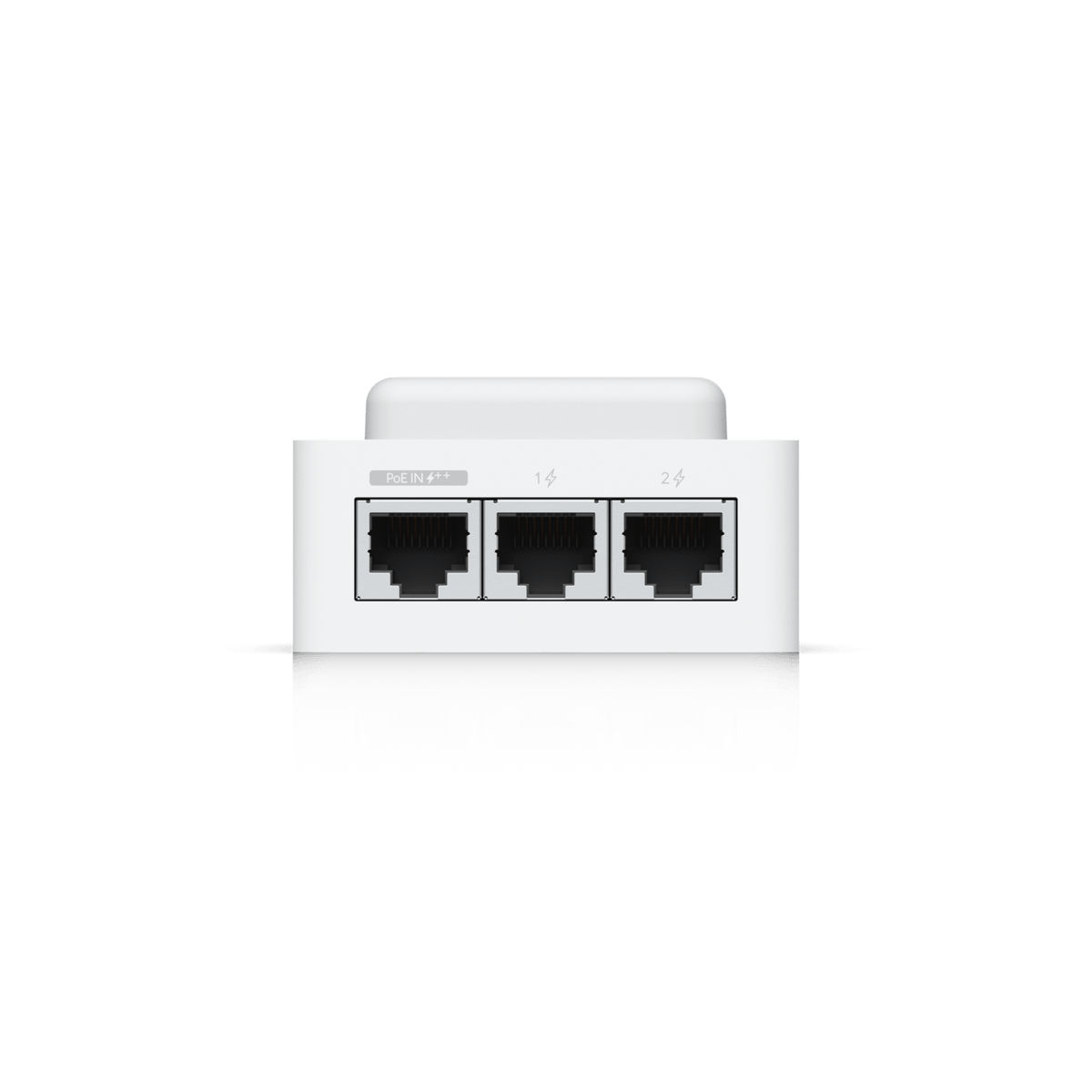

| Networking Interface | (3) GbE RJ45 ports |
| Power Method | PoE++ |
| Max Power Consumption | • Without PoE output: 19W • With PoE output: 50W |
| PoE Input | 50V DC, 1A |
| PoE Output | (2) PoE ports, total 31W |
| LEDs | White/blue |
| Buttons | • Factory-reset • Dry/Wet switch |
| Digital Input | Request to exit/door position sensor |
| Output Relay | • Dry: 30V DC, 1A • Wet: 12V DC, 1A |
| Recommended Cable Length | |
| 18 AWG | UA-Lock-Electric (400mA): 100m (328 ft) UA-Lock-Magnetic-540kg (500mA): 80m (262 ft) |
| 20 AWG | UA-Lock-Electric (400mA): 66m (217 ft) UA-Lock-Magnetic-540kg (500mA): 51m (167 ft) |
| 22 AWG | UA-Lock-Electric (400mA): 42m (138 ft) UA-Lock-Magnetic-540kg (500mA): 32m (105 ft) |
| 24 AWG | UA-Lock-Electric (400mA): 25m (82 ft) UA-Lock-Magnetic-540kg (500mA): 20m (66 ft) |
| Other Locks (1A) | 18 AWG: 36m (118 ft) 20 AWG: 24m (79 ft) 22 AWG: 15m (49 ft) 24 AWG: 9m (30 ft) |
| PoE Cabling Requirements | |
| Cable Type | Minimum: Cat 5e |
| Conductor Gauge | • Patch cords: 26 AWG (0.13 mm²) • Horizontal/riser cable: 24 AWG (0.21 mm²) |
| Operating Environment | Indoor use only |
| Ambient Operating Temperature | -10 to 40° C (14 to 104° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
| Software Information | Software version can be checked at UniFi |
| Certifications | CE, FCC, IC |
| Document Information | UA-Hub-Door-Mini, V01 |
