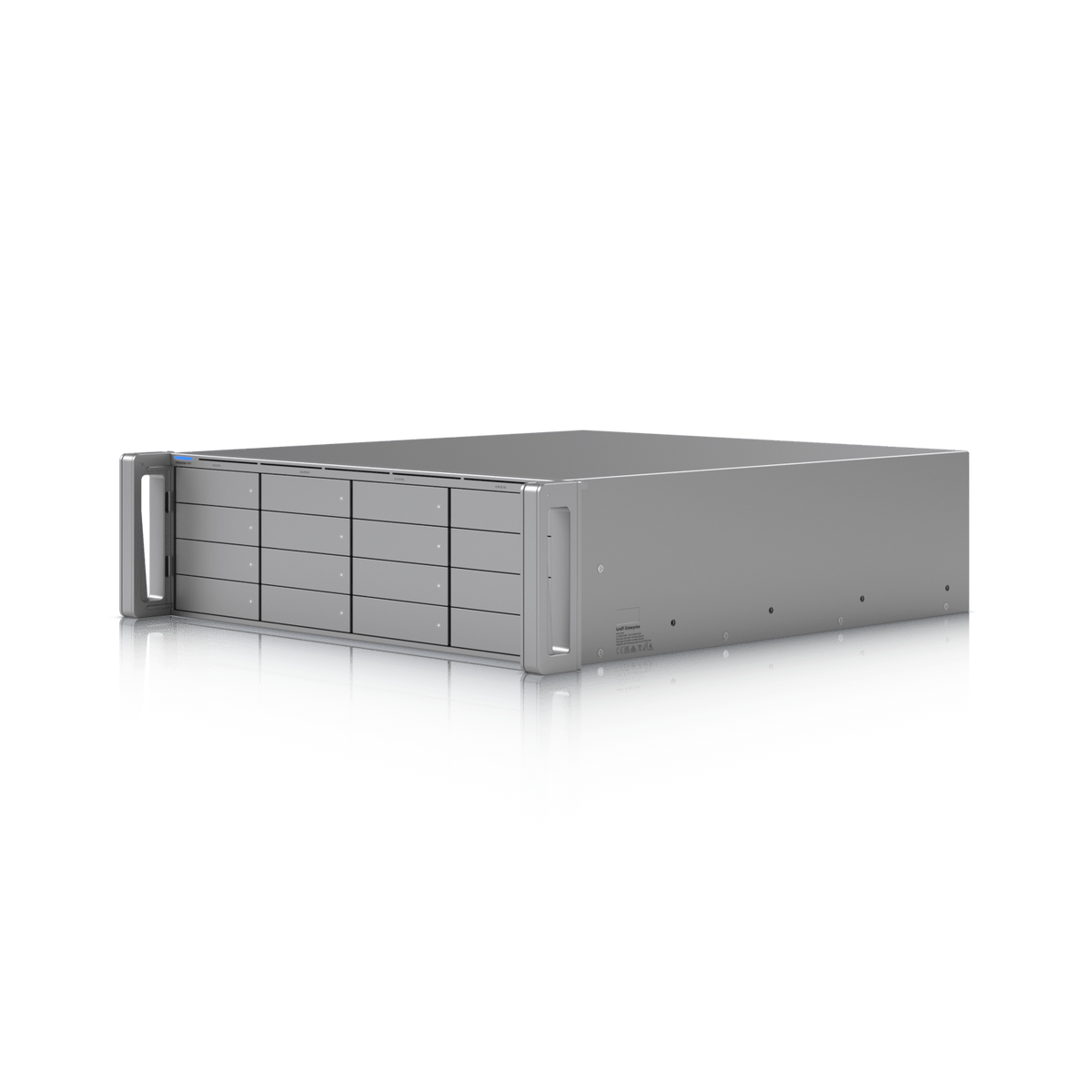

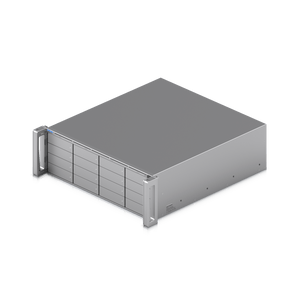

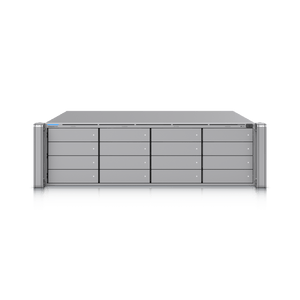

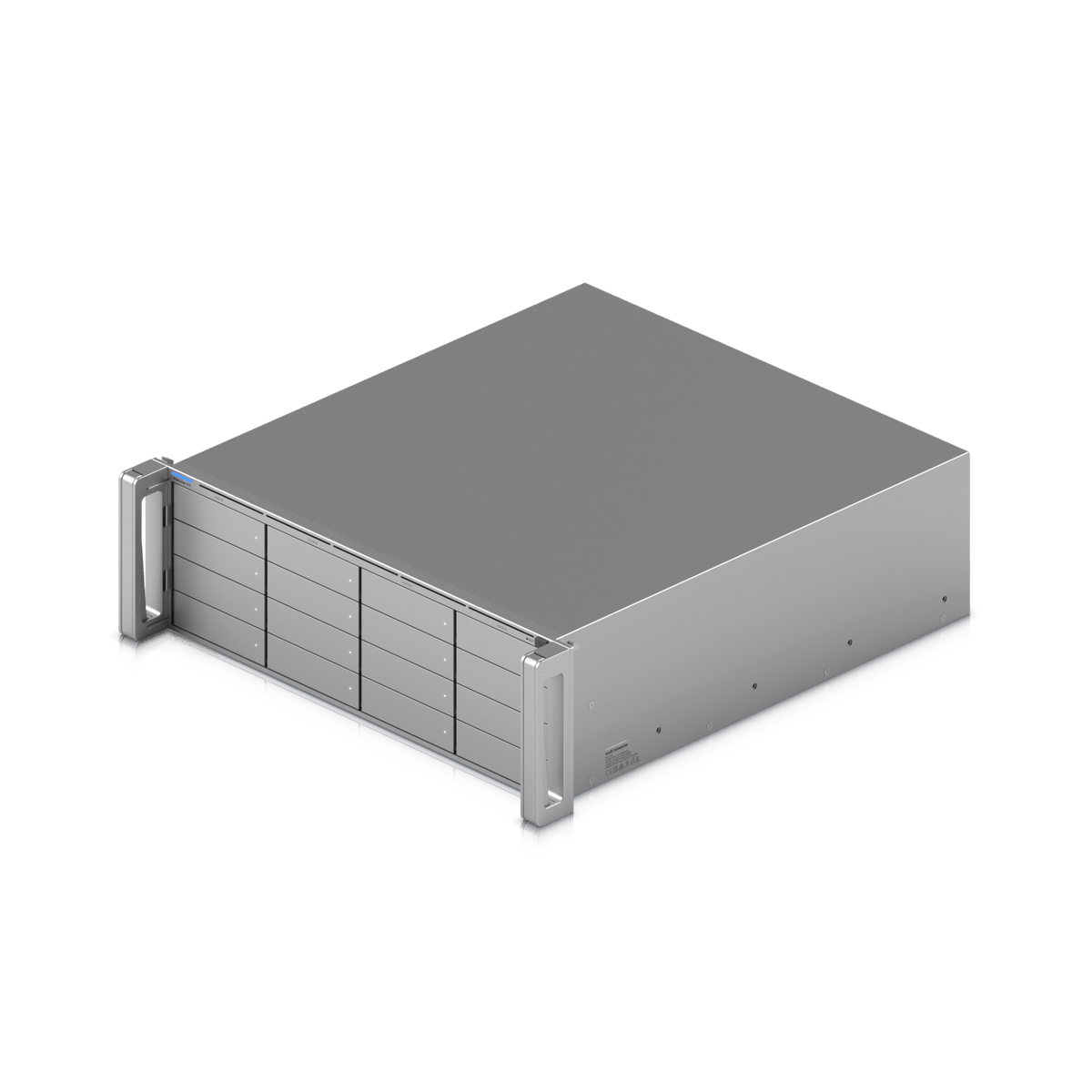

Ubiquiti ENVR Enterprise Network Video Recorder
제품 설명
High-Performance Video Storage and Management
The Ubiquiti ENVR Enterprise Network Video Recorder (NVR) is designed to offer robust and scalable video surveillance capabilities for large-scale operations. It supports up to 70 4K cameras or 210 Full HD cameras simultaneously, providing comprehensive video storage, management, and monitoring.
Key Highlights

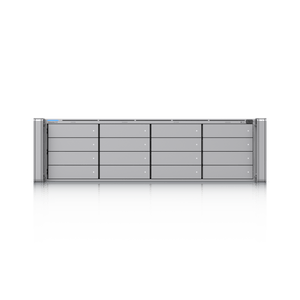

- 16 Drive Bays: Supports both 2.5” and 3.5” HDD/SSD drives, offering flexible storage options.
- Powerful Network Interfaces: Equipped with (2) 10G SFP+ uplinks and a 10 GbE RJ45 port for high-speed data transfer and network connectivity.
- RAID Support: Provides data protection through RAID storage technology, ensuring enhanced data integrity and redundancy.
- Hot-Swappable PSUs: Comes with (2) hot-swappable 550W power supplies for power redundancy, ensuring uninterrupted operations.
- High Camera Capacity: Supports up to 70 4K cameras, 140 2K cameras, or 210 Full HD cameras, making it ideal for enterprise-level deployments.
Key Features
-
Storage Capacity
- 16 drive bays (3.5” or 2.5” HDD/SSD support) for maximum flexibility and scalability.
-
Networking Capabilities

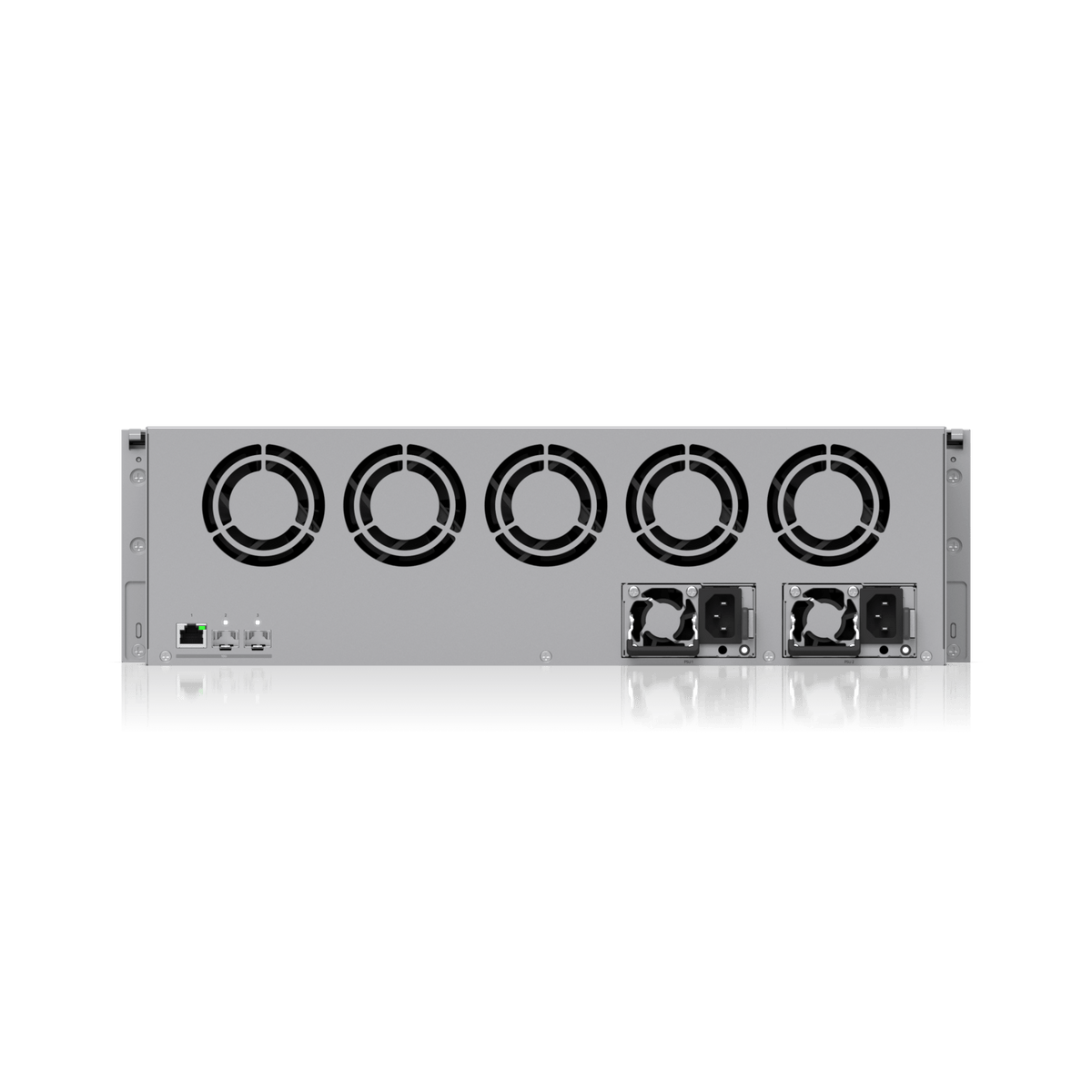

- (1) 1/2.5/5/10 GbE RJ45 port.
- (2) 1/10 GbE SFP+ ports for high-speed network connections.
-
Redundant Power Supply
- Hot-swappable 550W power supplies provide uninterrupted power and enhanced reliability.
-
Comprehensive Camera Support
- Can manage up to 210 Full HD cameras, 140 2K cameras, or 70 4K cameras with ease.
Technical Specifications
| Specification | Details |
|---|---|
| Drive Bays | 16 x 2.5”/3.5” HDD or SSD support |
| Max. Camera Support | 70 x 4K, 140 x 2K, 210 x Full HD |
| Networking Interface | (1) 1/2.5/5/10 GbE RJ45 port, (2) 10G SFP+ |
| Management Interface | Ethernet In-Band |
| Power Method | (2) AC input, 100-240V, 7A Max, 50/60Hz (hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| RAID Support | Yes (for data protection) |
| Dimensions | 3U rackmount size |
Summary
The Ubiquiti ENVR Enterprise Network Video Recorder is a powerful and reliable NVR solution designed for large-scale video surveillance deployments. With its 16 drive bays, 10G network interfaces, RAID support, and power redundancy, it provides exceptional performance and scalability for enterprise environments, making it a perfect choice for managing up to 70 4K cameras or 210 Full HD cameras.
사양
Ubiquiti ENVR Enterprise Network Video Recorder Specifications
| MECHANICAL | |
|---|---|
| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
| Weight | 16.6 kg (36.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |

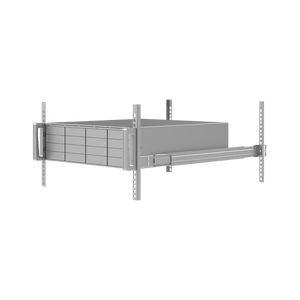

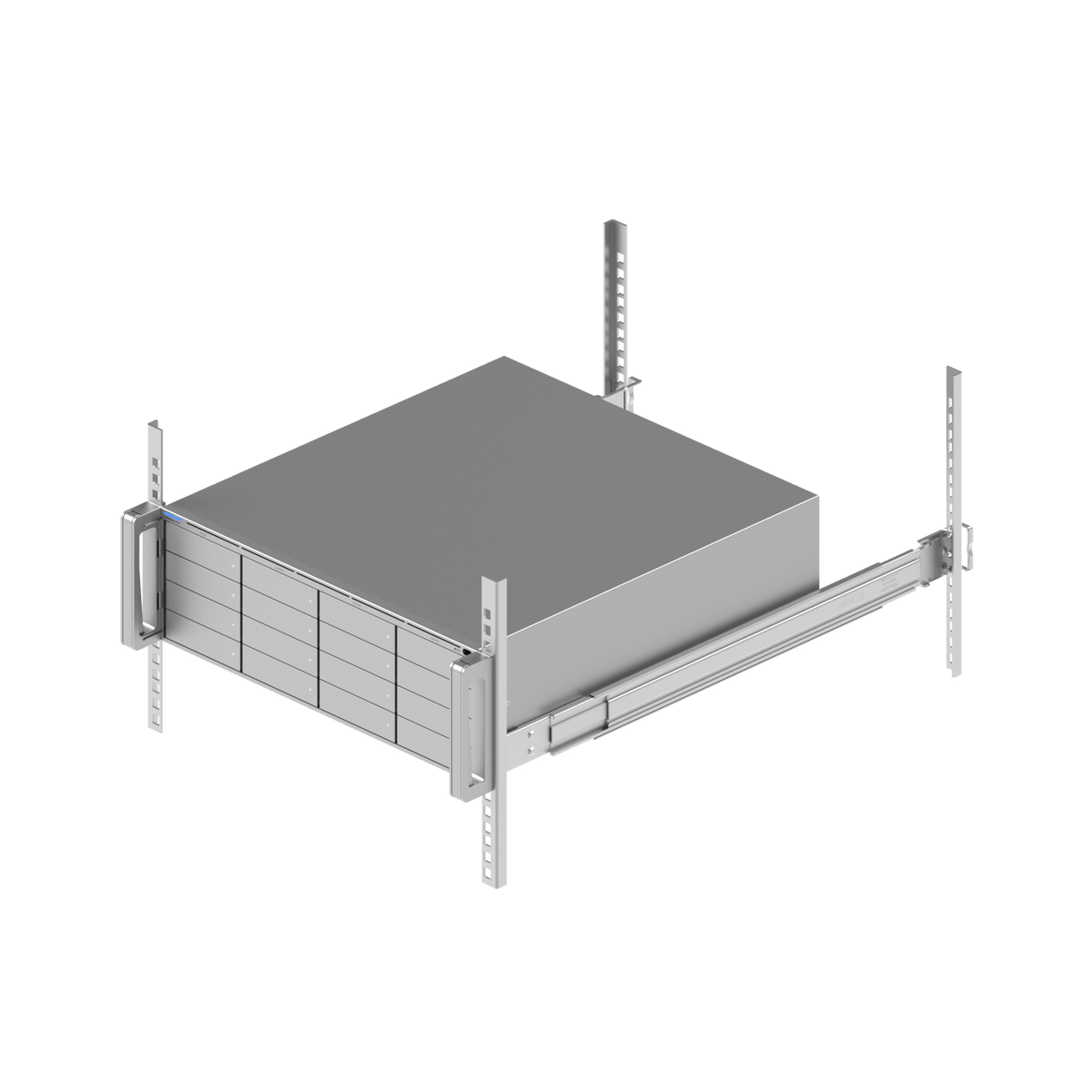

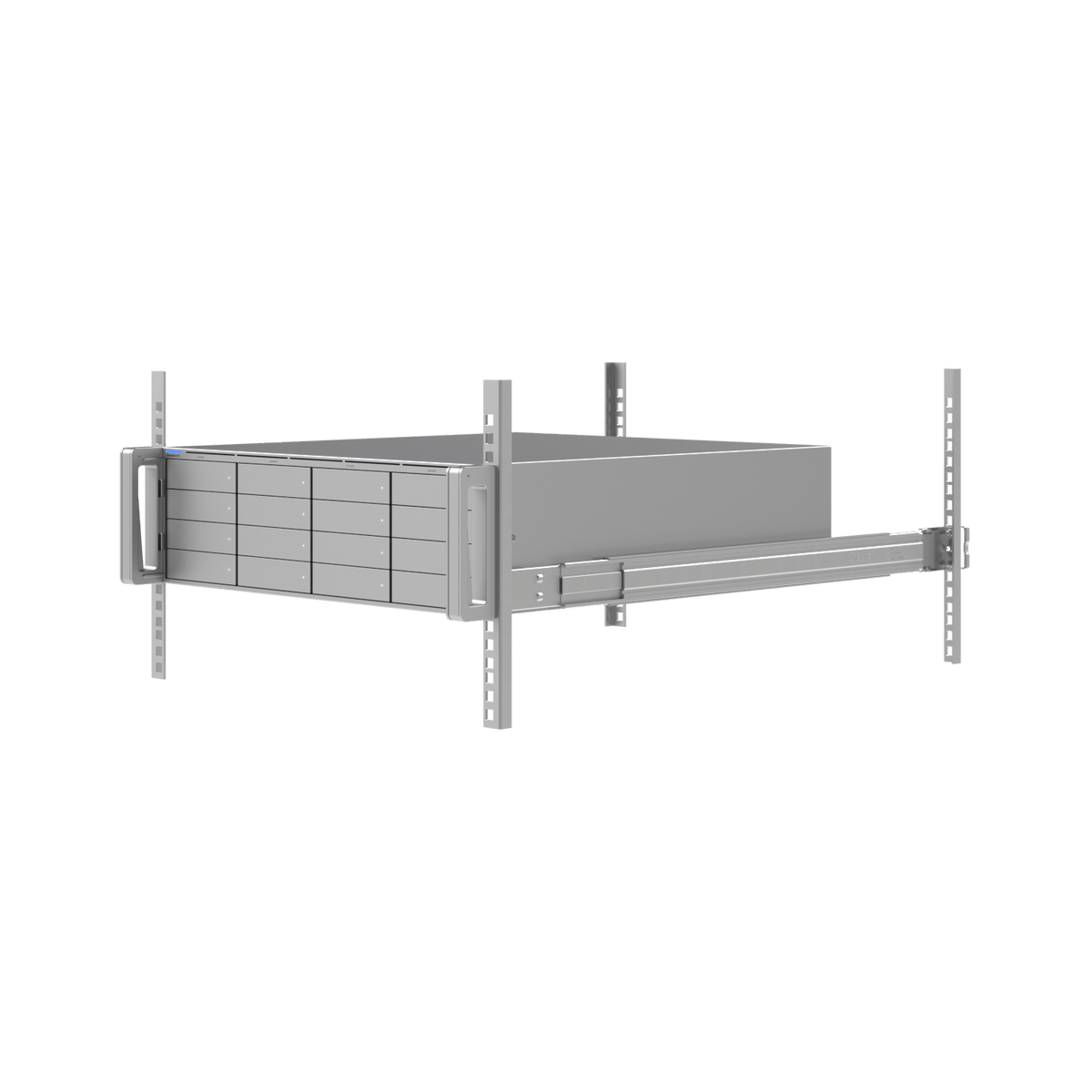

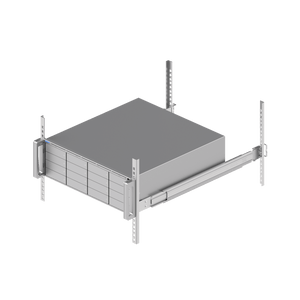

| Slide Rails Support | The rails support 482.6 mm (19") four-post racks with square holes (9.5 x 9.5 mm) and posts depths ranging from 650 to 1000 mm (25.6–39.4”) |
| HARDWARE | |
| Management Interface | Ethernet In-Band |
| Networking Interface | (1) 1/2.5/5/10 GbE RJ45 port, (2) 1/10 GbE SFP+ ports |
| Power Method | (2) AC input, 100-240V, 7A Max., 50/60Hz (redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Supported Voltage Range | 100—240V AC |
| Max. Power Consumption | 410W |
| Max. Power Budget for Drives | 310W |
| ESD/EMP Protection | Air: ± 12kV, contact: ± 8kV |
| Button | Factory reset |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| Certifications | FCC, CE, IC |
| CAPACITY | |
| HD Cameras | 210 |
| 2K Cameras | 140 |
| 4K Cameras | 70 |
| LEDs | |
| System | Power: blue/white, Flashing white: bootup in progress, Flashing blue: firmware upgrading, Steady white: factory defaults, awaiting adoption, Steady blue: device is adopted |
| Ethernet | Green: link/activity |
| SFP+ | Green: link/activity |
| HDD | White: disk detected, Amber: disk error |
