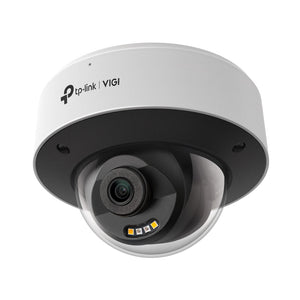

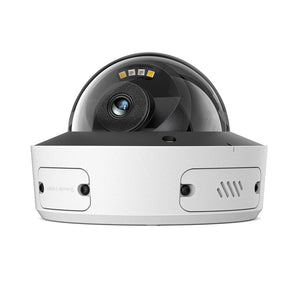

TP-Link InSight S285 VIGI 8MP Full-Color Dome Network Camera
Ultra HD Full-Color Surveillance with Advanced AI Analytics The TP-Link InSight S285 VIGI delivers crystal-clear 4K (8MP) video and all-day full-color visibility. With intelligent AI detection, people and vehicle analytics, active deterrence features, and a rugged outdoor-ready design, this dome camera is a powerful tool for high-security environments and critical surveillance applications. Highlights 8MP 4K Ultra HD with 24/7 full-color clarity Advanced people and vehicle analytics for fast investigations Human and vehicle classification for smart notifications Active defense with red-blue lights and two-way audio Enhanced video quality with WDR, Smart IR, and DNR Built-in microphone and speaker for real-time interaction IP67-rated waterproof and IK10-rated vandal resistance H.265+ compression for reduced storage and bandwidth Key Features 4K Full-Color Video Day and Night Provides ultra high-resolution images with vibrant color Enables detailed footage even in low-light environments Ideal for city centers, retail, warehouses, and campuses AI People and Vehicle Analytics Quickly filter recordings by specific human or vehicle traits Speeds up post-incident reviews with attribute-based search Reduces manual review time and improves response accuracy Smart AI Detection Real-time alerts based on intelligent motion detection Identifies and distinguishes people and vehicles Eliminates false alarms from environmental noise Smart Video Enhancement True WDR optimizes image clarity in complex lighting scenes Smart IR dynamically adjusts infrared exposure 3D DNR reduces visual noise for sharper video Automatic white balance keeps colors accurate and consistent Two-Way Audio and Active Defense Built-in speaker and mic enable direct communication Red-blue warning lights and customizable sound alarms Effectively deters intruders and unauthorized access Rugged and Reliable Design Weatherproof IP67-rated housing for harsh outdoor use IK10-rated dome resists vandalism in public areas Engineered for professional surveillance deployments Efficient H.265+ Video Compression Saves over 57% more storage than H.264 Reduces transmission bandwidth without sacrificing quality Ideal for multi-camera systems with limited storage Summary The TP-Link InSight S285 VIGI is a premium full-color 8MP dome camera engineered for ultra-high-definition surveillance. Combining smart AI analytics with robust protection features and H.265+ efficiency, it ensures round-the-clock security and rapid situational awareness.
Pickup available at 3005, Ubi Avenue 3, #01-88
일반적으로 2~4일 후 준비 완료
TP-Link InSight S285 VIGI 8MP Full-Color Dome Network Camera
제품 설명
Ultra HD Full-Color Surveillance with Advanced AI Analytics
The TP-Link InSight S285 VIGI delivers crystal-clear 4K (8MP) video and all-day full-color visibility. With intelligent AI detection, people and vehicle analytics, active deterrence features, and a rugged outdoor-ready design, this dome camera is a powerful tool for high-security environments and critical surveillance applications.
Highlights
- 8MP 4K Ultra HD with 24/7 full-color clarity
- Advanced people and vehicle analytics for fast investigations
- Human and vehicle classification for smart notifications
- Active defense with red-blue lights and two-way audio
- Enhanced video quality with WDR, Smart IR, and DNR
- Built-in microphone and speaker for real-time interaction
- IP67-rated waterproof and IK10-rated vandal resistance
- H.265+ compression for reduced storage and bandwidth
Key Features
4K Full-Color Video Day and Night
- Provides ultra high-resolution images with vibrant color
- Enables detailed footage even in low-light environments
- Ideal for city centers, retail, warehouses, and campuses
AI People and Vehicle Analytics
- Quickly filter recordings by specific human or vehicle traits
- Speeds up post-incident reviews with attribute-based search
- Reduces manual review time and improves response accuracy
Smart AI Detection
- Real-time alerts based on intelligent motion detection
- Identifies and distinguishes people and vehicles
- Eliminates false alarms from environmental noise
Smart Video Enhancement
- True WDR optimizes image clarity in complex lighting scenes
- Smart IR dynamically adjusts infrared exposure
- 3D DNR reduces visual noise for sharper video
- Automatic white balance keeps colors accurate and consistent
Two-Way Audio and Active Defense
- Built-in speaker and mic enable direct communication
- Red-blue warning lights and customizable sound alarms
- Effectively deters intruders and unauthorized access
Rugged and Reliable Design
- Weatherproof IP67-rated housing for harsh outdoor use
- IK10-rated dome resists vandalism in public areas
- Engineered for professional surveillance deployments
Efficient H.265+ Video Compression
- Saves over 57% more storage than H.264
- Reduces transmission bandwidth without sacrificing quality
- Ideal for multi-camera systems with limited storage
Summary
The TP-Link InSight S285 VIGI is a premium full-color 8MP dome camera engineered for ultra-high-definition surveillance. Combining smart AI analytics with robust protection features and H.265+ efficiency, it ensures round-the-clock security and rapid situational awareness.
사양
TP-Link InSight S285 VIGI 8MP Full-Color Dome Network Camera
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux, 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| Field of View (2.8 mm) | • Horizontal: 110° • Vertical: 58.1° • Diagonal: 133.5° |
| Field of View (4 mm) | • Horizontal: 88° • Vertical: 46° • Diagonal: 105.4° |
| Lens Mount | M12 *P 0.5 |
| DORI Distance (2.8 mm) | • Detect: 85 m (278 ft) • Observe: 35 m (116 ft) • Recognize: 17 m (56 ft) • Identify: 8 m (28 ft) |
| DORI Distance (4 mm) | • Detect: 107 m (350 ft) • Observe: 44 m (146 ft) • Recognize: 21 m (70 ft) • Identify: 11 m (35 ft) |
| Angle Adjustment (Manual) | Pan: 0°–346°, Tilt: 0°–75°, Rotate: 0°–355° |
| Illuminator | |
| IR LED | 2 LEDs, 850 nm wavelength, 30 m range |
| White LED | 2 LEDs, 30 m range |
| Illuminator Control | Auto, Scheduled, Always On, Always Off |
| Video | |
| Max Resolution | 3840 × 2160 |
| Main Stream Frame Rate | 1–25 fps (60Hz), 1–25 fps (50Hz), max 20 fps if HDR or rotation enabled |
| Main Stream Resolutions | 3840×2160, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
| Sub-Stream Frame Rate | Same as main stream |
| Sub-Stream Resolutions | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main: H.265+, H.265, H.264+, H.264 • Sub: H.265, H.264 |
| H.264/H.265 Profiles | High (H.264), Main (H.265) |
| Video Bit Rate | • Main: 256 Kbps – 8 Mbps • Sub: 64 Kbps – 512 Kbps |
| Image | |
| Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent IR Overexposure • HLC Adjustment |
| Enhancements | BLC, 3D DNR, HLC, Smart IR |
| Wide Dynamic Range | 120 dB (DWDR only when People & Vehicle Analytics is enabled) |
| SNR | ≥ 52 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 masks |
| ROI | 1 region |
| OSD | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, FTP/SFTP, RTP, IPv4/IPv6, ARP, SSL/TLS |
| ONVIF | Yes (Profiles S/T/G) |
| API | Open Network Video Interface |
| Live View | 3 Main Streams & 3 Sub-Streams |
| Clients | VIGI App, Web UI, VIGI VMS, Utility |
| Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filter, Digest Authentication |
| Alarm & Event Management | |
| Smart Events | • Intrusion, Line-Crossing, Region Entry/Exit • Object Abandonment/Removal • Loitering, People, Vehicle, Abnormal Sound, Scene Change |
| Basic Events | • Motion Detection (Human/Vehicle Enhanced) • Camera Tampering • Illegal Login |
| Alarm Linkage | • SD Recording • Message Push • Audible Warning • White Light Flashing |
| Deep Learning Function | People & Vehicle Analytics (search and filter by attributes) |
| Interfaces | |
| Network Interface | 1× RJ45 10/100M Ethernet Port (PoE) |
| Alarm | Not Available |
| Reset Button | Yes |
| Power Port | DC 12V |
| On-board Storage | MicroSD Card Slot (Up to 512 GB) |
| Built-in Microphone | Yes (15 ft / 4.6 m radius coverage) |
| Built-in Speaker | Yes |
| General | |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating/Storage Humidity | ≤ 95% RH (Non-condensing) |
| Material | Metal |
| Net Weight | 0.62 kg |
| Power Supply | • 12V DC ± 5%, Max. 11 W • PoE: 802.3af/at, Class 0, Max. 12.3 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |

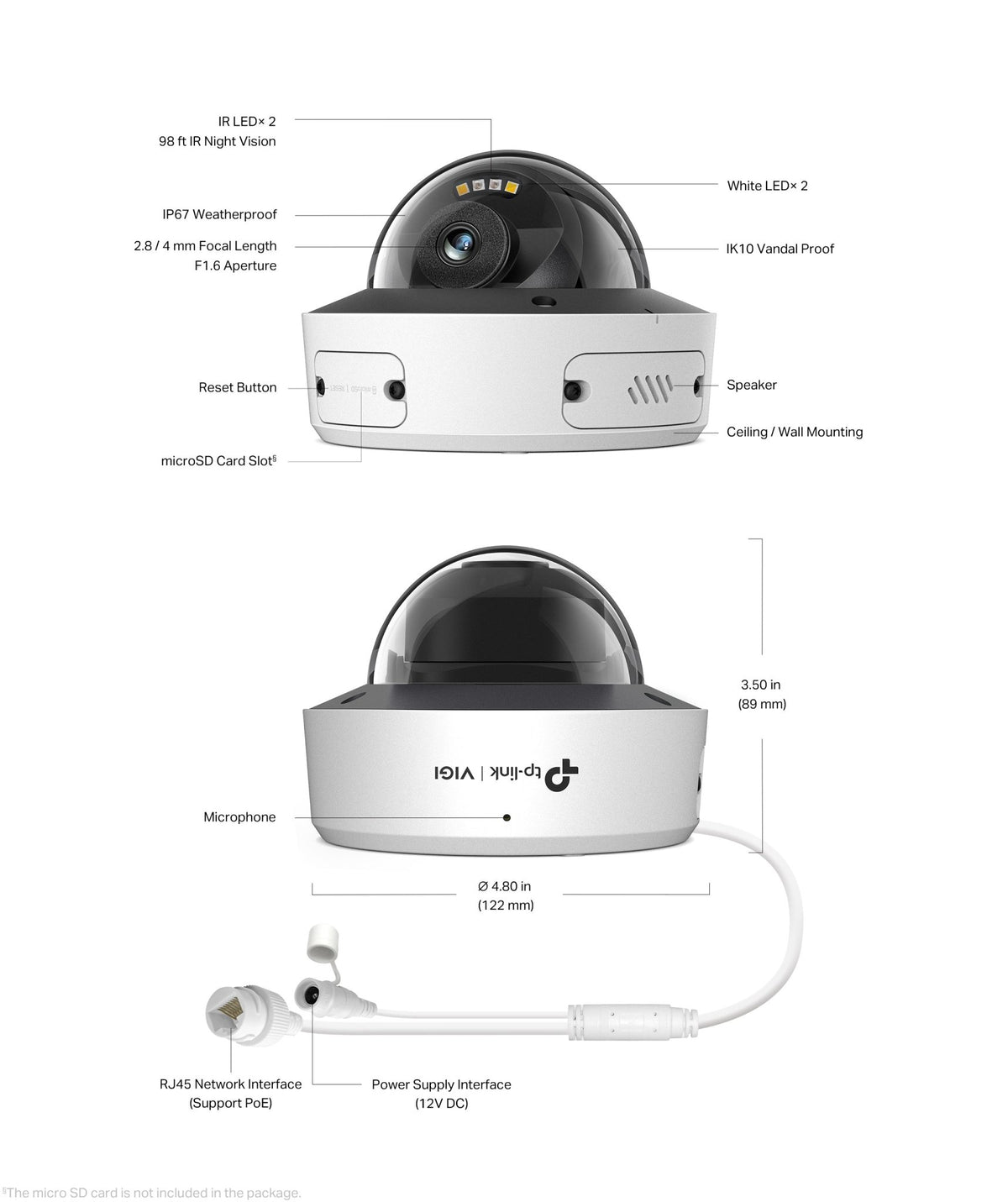

| Dimensions (L x W x H) | 122 × 122 × 89 mm (4.80 × 4.80 × 3.50 in) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
