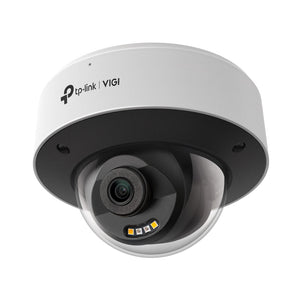

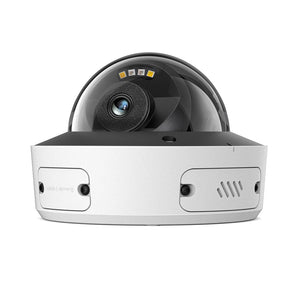

TP-Link InSight S245 VIGI 4MP Full-Color Dome Network Camera
All-Day Full-Color Surveillance with Smart AI Detection The TP-Link InSight S245 VIGI delivers 4MP super-high definition video and 24/7 full-color clarity. Built for enhanced security applications, it features intelligent people and vehicle analytics, smart detection, two-way audio, and active defense—all housed in an IP67 waterproof and IK10 vandal-proof dome. Highlights 4MP ultra-clear full-color footage anytime AI-powered people and vehicle analytics Human and vehicle classification to reduce false alerts Smart video enhancement with WDR, Smart IR, 3D DNR Built-in mic and speaker for two-way audio Active defense with visual and audible alerts Rugged weatherproof and vandal-resistant design H.265+ compression saves bandwidth and storage Key Features 24/7 Full-Color Clarity Captures detailed color images even in low-light scenarios Provides critical visual information for event review Ideal for areas needing constant visibility and deterrence AI People & Vehicle Analytics Intelligent filtering and search by human or vehicle attributes Enables fast forensic search with metadata tagging Increases post-event investigation efficiency Smart Detection and Classification Accurately identifies humans and vehicles Ignores irrelevant movements like pets or tree branches Customizable alerts via VIGI app or NVR Smart Video Enhancement True WDR balances extreme lighting contrast Smart IR avoids overexposure at night 3D DNR reduces digital noise and sharpens details Automatic white balance adjusts for natural colors Built-in Two-Way Audio & Active Defense Microphone and speaker allow real-time communication Built-in siren and light deter intruders when triggered Perfect for entrances, lobbies, and monitored zones Industrial-Grade Design IP67 weatherproof for outdoor deployment IK10 vandal resistance for public or exposed areas Choose between 2.8mm or 4mm lens models for different viewing angles Advanced Compression with H.265+ Reduces storage space by over 57% compared to H.264 Optimizes video transmission without quality loss Ideal for bandwidth-sensitive environments Summary The TP-Link InSight S245 combines professional-grade security with intelligent detection and vibrant full-color imaging. From offices to parking lots and public spaces, it ensures round-the-clock protection with reduced installation costs and smarter event handling.
Pickup available at 3005, Ubi Avenue 3, #01-88
일반적으로 2~4일 후 준비 완료
TP-Link InSight S245 VIGI 4MP Full-Color Dome Network Camera
제품 설명
All-Day Full-Color Surveillance with Smart AI Detection
The TP-Link InSight S245 VIGI delivers 4MP super-high definition video and 24/7 full-color clarity. Built for enhanced security applications, it features intelligent people and vehicle analytics, smart detection, two-way audio, and active defense—all housed in an IP67 waterproof and IK10 vandal-proof dome.
Highlights
- 4MP ultra-clear full-color footage anytime
- AI-powered people and vehicle analytics
- Human and vehicle classification to reduce false alerts
- Smart video enhancement with WDR, Smart IR, 3D DNR
- Built-in mic and speaker for two-way audio
- Active defense with visual and audible alerts
- Rugged weatherproof and vandal-resistant design
- H.265+ compression saves bandwidth and storage
Key Features
24/7 Full-Color Clarity
- Captures detailed color images even in low-light scenarios
- Provides critical visual information for event review
- Ideal for areas needing constant visibility and deterrence
AI People & Vehicle Analytics
- Intelligent filtering and search by human or vehicle attributes
- Enables fast forensic search with metadata tagging
- Increases post-event investigation efficiency
Smart Detection and Classification
- Accurately identifies humans and vehicles
- Ignores irrelevant movements like pets or tree branches
- Customizable alerts via VIGI app or NVR
Smart Video Enhancement
- True WDR balances extreme lighting contrast
- Smart IR avoids overexposure at night
- 3D DNR reduces digital noise and sharpens details
- Automatic white balance adjusts for natural colors
Built-in Two-Way Audio & Active Defense
- Microphone and speaker allow real-time communication
- Built-in siren and light deter intruders when triggered
- Perfect for entrances, lobbies, and monitored zones
Industrial-Grade Design
- IP67 weatherproof for outdoor deployment
- IK10 vandal resistance for public or exposed areas
- Choose between 2.8mm or 4mm lens models for different viewing angles
Advanced Compression with H.265+
- Reduces storage space by over 57% compared to H.264
- Optimizes video transmission without quality loss
- Ideal for bandwidth-sensitive environments
Summary
The TP-Link InSight S245 combines professional-grade security with intelligent detection and vibrant full-color imaging. From offices to parking lots and public spaces, it ensures round-the-clock protection with reduced installation costs and smarter event handling.
사양
TP-Link InSight S245 VIGI 4MP Full-Color Dome Network Camera
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/2.7" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.005 Lux, 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F1.6 |
| Field of View (2.8 mm) | • Horizontal: 110° • Vertical: 58.1° • Diagonal: 133.5° |
| Field of View (4 mm) | • Horizontal: 88° • Vertical: 46° • Diagonal: 105.4° |
| Lens Mount | M12 *P 0.5 |
| DORI Distance (2.8 mm) | • Detect: 64 m (210 ft) • Observe: 27 m (89 ft) • Recognize: 13 m (43 ft) • Identify: 6 m (20 ft) |
| DORI Distance (4 mm) | • Detect: 80 m (262 ft) • Observe: 33 m (108 ft) • Recognize: 16 m (52 ft) • Identify: 8 m (26 ft) |
| Angle Adjustment (Manual) | Pan: 0°–346°, Tilt: 0°–75°, Rotate: 0°–355° |
| Illuminator | |
| IR LED | 2 LEDs, 850 nm wavelength, 30 m range |
| White LED | 2 LEDs, 30 m range |
| Illuminator Control | Auto, Scheduled, Always On, Always Off |
| Video | |
| Max Resolution | 2688 × 1520 |
| Main Stream Frame Rate | 1–30 fps (60Hz), 1–25 fps (50Hz), max 20 fps if rotated 90°/270° |
| Main Stream Resolutions | 2688×1520, 2560×1440, 2304×1296, 2048×1280, 1920×1080, 1280×720 |
| Sub-Stream Frame Rate | Same as main stream |
| Sub-Stream Resolutions | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main: H.265+, H.265, H.264+, H.264 • Sub: H.265, H.264 |
| H.264/H.265 Profiles | High (H.264), Main (H.265) |
| Video Bit Rate | • Main: 256 Kbps – 6 Mbps • Sub: 64 Kbps – 512 Kbps |
| Image | |
| Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent IR Overexposure • HLC Adjustment |
| Enhancements | BLC, 3D DNR, HLC, Smart IR |
| Wide Dynamic Range | 120 dB (DWDR only when People & Vehicle Analytics is enabled) |
| SNR | ≥ 52 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 masks |
| ROI | 1 region |
| OSD | Yes |
| Audio | |
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, FTP/SFTP, RTP, IPv4/IPv6, ARP, SSL/TLS |
| ONVIF | Yes (Profiles S/T/G) |
| API | Open Network Video Interface |
| Live View | 3 Main Streams & 3 Sub-Streams |
| Clients | VIGI App, Web UI, VIGI VMS, Utility |
| Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filter, Digest Authentication |
| Alarm & Event Management | |
| Smart Events | • Intrusion, Line-Crossing, Region Entry/Exit • Object Abandonment/Removal • Loitering, People, Vehicle, Abnormal Sound, Scene Change |
| Basic Events | • Motion Detection (Human/Vehicle Enhanced) • Camera Tampering • Illegal Login |
| Alarm Linkage | • SD Recording • Push Notification • Audible Warning • White Light Flashing |
| Deep Learning Function | People & Vehicle Analytics (search and filter by attributes) |

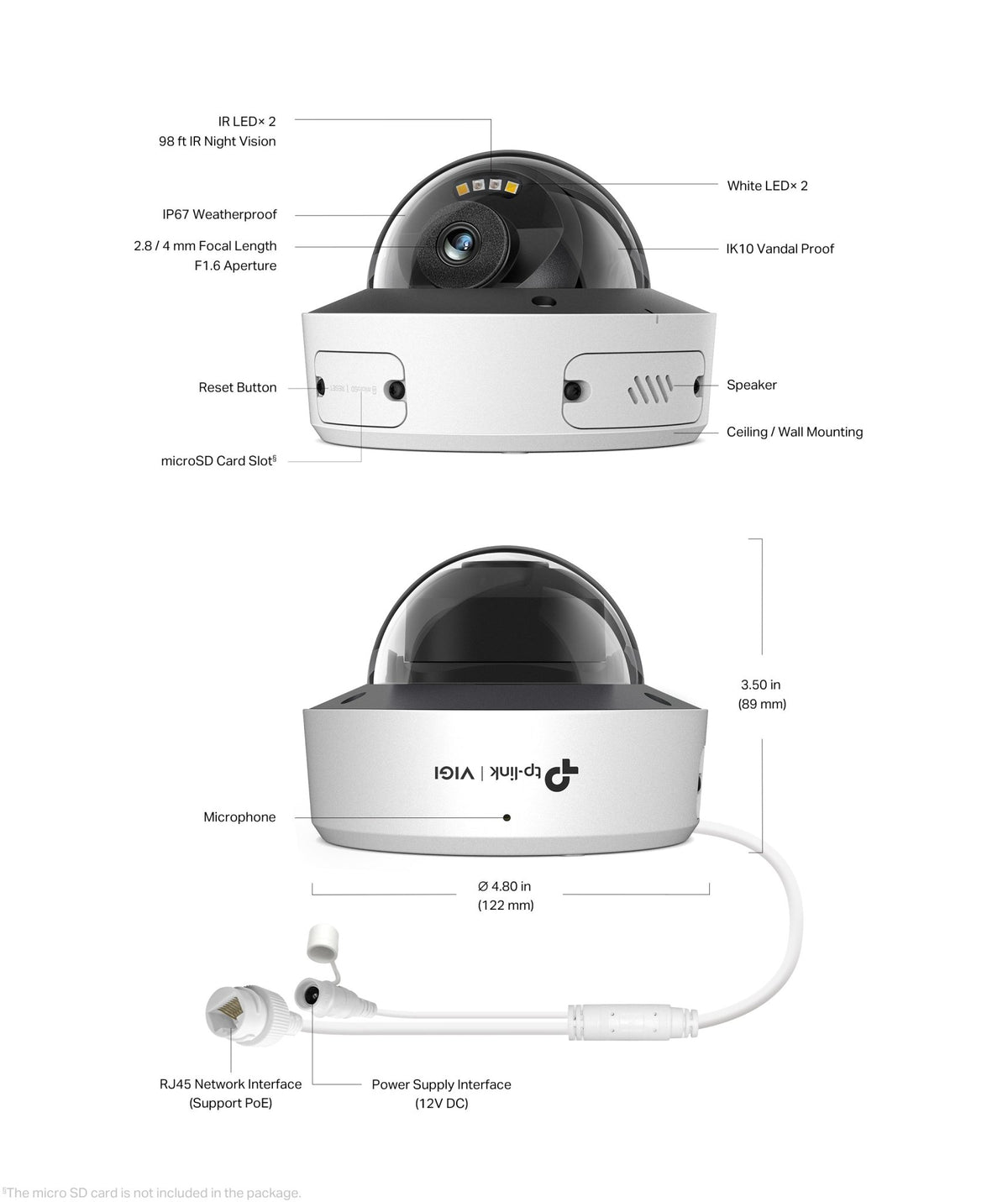

| Interfaces | |
| Network Interface | 1× RJ45 10/100M Ethernet Port (PoE) |
| Alarm | Not Available |
| Reset Button | Yes |
| Power Port | DC 12V |
| On-board Storage | MicroSD Card Slot (Up to 512 GB) |
| Built-in Microphone | Yes (15 ft / 4.6 m radius coverage) |
| Built-in Speaker | Yes |
| General | |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating/Storage Humidity | ≤ 95% RH (Non-condensing) |
| Material | Metal |
| Net Weight | 0.62 kg |
| Power Supply | • 12V DC ± 5%, Max. 10.54 W • PoE: 802.3af/at, Class 0, Max. 12.52 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |
| Dimensions (L x W x H) | 122 × 122 × 89 mm (4.80 × 4.80 × 3.50 in) |
| Certifications | CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC |
| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
