TP-Link InSight S225 VIGI 2MP Full-Color Dome Network Camera
제품 설명
All-Day Color Clarity in Any Light
The TP-Link InSight S225 VIGI 2MP Full-Color Dome Camera brings advanced visibility to your surveillance with round-the-clock full-color footage. Featuring VIGI's LightPro Night Vision, built-in smart detection, and an IP67/IK10 rugged build, it’s ideal for both indoor and outdoor security deployments that demand clarity, reliability, and performance.
Highlights
- 2MP high-definition full-color surveillance
- VIGI LightPro Night Vision for automatic IR and color switching
- AI-powered human and vehicle classification
- Built-in microphone for audio capture
- Smart detection with reduced false alarms
- Smart video enhancement features including Smart IR, 3D DNR, and auto white balance
- Durable IP67 waterproof and IK10 vandal-proof housing
- H.265+ compression for efficient storage
Key Features
Full-Color 24/7
- Captures vivid color footage even in low-light scenarios
- Automatically switches to white light when people or vehicles are detected
- Reduces light pollution with intelligent IR fallback
Smart Detection and AI Analytics
- Detects and classifies humans and vehicles with precision
- Reduces irrelevant motion alerts from animals or objects
- Sends instant alerts to your mobile app for real-time awareness
LightPro Night Vision
- IR night vision when no subject is present
- Activates full-color white light when activity is detected
- Returns to IR to conserve energy when scene is clear
Smart Video Enhancement
- Smart IR avoids glare and ensures clear night visuals
- 3D DNR eliminates digital noise while preserving clarity
- Auto white balance delivers consistent, natural tones
Weatherproof and Vandal-Proof
- IP67 rating for outdoor use in any weather
- IK10 certification for high impact resistance and vandal protection
Efficient H.265+ Compression
- Significantly reduces bandwidth and storage usage
- Maintains high-quality video with 57.5% more savings than H.264
Summary
The TP-Link InSight S225 VIGI camera combines affordability, AI intelligence, and durability in a full-color 2MP dome. Its smart detection, LightPro night vision, and efficient compression make it a powerful choice for businesses, retail, and residential deployments where visibility and clarity are critical—day or night.
사양
TP-Link InSight S225 VIGI 2MP Full-Color Dome Network Camera
| Specification | Details |
|---|---|
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Minimum Illumination | 0.2 Lux, 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified, Scheduled, Auto |
| Lens | |
| Type | Fixed Focal Lens |
| Focal Length | 2.8 mm / 4 mm |
| Aperture | F2.0 |
| Field of View (2.8 mm) | • Horizontal: 98.8° • Vertical: 53.5° • Diagonal: 117° |
| Field of View (4 mm) | • Horizontal: 75.2° • Vertical: 40.8° • Diagonal: 88.3° |
| Lens Mount | M12 |
| DORI Distance (2.8 mm) | • Detect: 47 m (153 ft) • Observe: 19 m (64 ft) • Recognize: 9 m (31 ft) • Identify: 5 m (15 ft) |
| DORI Distance (4 mm) | • Detect: 59 m (194 ft) • Observe: 25 m (81 ft) • Recognize: 12 m (39 ft) • Identify: 6 m (19 ft) |
| Angle Adjustment (Manual) | Pan: 0°–353.5°, Tilt: 0°–75°, Rotate: 0°–355° |
| Illuminator | |
| Infrared-White LED | 2 integrated LEDs |
| IR Range / White LED Range | 30 m (98 ft) |
| IR Wavelength | 850 nm |
| Illuminator Control | Auto, Scheduled, Always On, Always Off |
| Video | |
| Max Resolution | 1920 × 1080 |
| Main Stream Frame Rate | 1–30 fps (60Hz), 1–25 fps (50Hz), max 20 fps when rotated 90° |
| Main Stream Resolutions | 1920×1080, 1280×960, 1280×720 |
| Sub-Stream Frame Rate | Same as main stream |
| Sub-Stream Resolutions | 848×480, 704×576, 640×480, 640×360, 352×288, 320×240 |
| Bit Rate Control | CBR, VBR |
| Video Compression | • Main: H.265+, H.265, H.264+, H.264 • Sub: H.265, H.264 |
| H.264/H.265 Profiles | High (H.264), Main (H.265) |
| Video Bit Rate | • Main: 256 Kbps – 4 Mbps • Sub: 64 Kbps – 512 Kbps |
| Image | |
| Settings | • Mirror • Brightness • Contrast • Saturation • Sharpness • Exposure • WDR • White Balance • Prevent IR Overexposure • HLC Adjustment |
| Enhancements | BLC, 3D DNR, HLC, Smart IR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameter Switch | Yes |
| Privacy Mask | Up to 4 masks |
| ROI | 1 region |
| OSD | Yes |
| Audio | |
| Audio Communication | Not Available |
| Audio Input | Yes |
| Audio Output | Not Available |
| Audio Compression | Yes |
| Sampling Rate | 8 KHz |
| Audio Bit Rate | 64 Kbps (G.711 alaw) |
| Noise Filtering | Yes |
| Network | |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP, SSL/TLS |
| ONVIF | Yes (Profiles S/T) |
| API | Open Network Video Interface |
| Live View | 3 Main Streams & 3 Sub-Streams |
| Clients | VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool |
| Browser Support | Chrome 57+, Firefox 52+, Safari 11+, Edge 91+ |
| Cloud Support | Yes |
| Security | Password Protection, HTTPS Encryption, IP Filter, Digest Authentication |
| Alarm & Event Management | |
| Smart Events | • Intrusion, Line-Crossing, Region Entry/Exit • People, Vehicle Detection |
| Basic Events | • Motion Detection (Human/Vehicle Enhanced) • Camera Tampering • Illegal Login |
| Alarm Linkage | • FTP Upload • Push Notifications • Alarm Server • Email Alarm |
| Interfaces | |
| Network Interface | 1× RJ45 10/100M Ethernet Port (PoE) |
| Alarm | Not Available |
| Reset Button | Not Available |
| Power Port | DC 12V |
| On-board Storage | Not Available |
| Built-in Microphone | Yes (within 4.6 m / 15 ft radius) |
| General | |
| Operating Temperature | -30°C to 60°C |
| Storage Temperature | -40°C to 60°C |
| Operating/Storage Humidity | ≤ 95% RH (Non-condensing) |
| Material | Metal |
| Net Weight | 0.5 kg |
| Power Supply | • 12V DC ± 5%, Max. 6.3 W • PoE: 802.3af/at, Class 0, Max. 6.7 W |
| Protection | IP67 Waterproof, IK10 Vandal Proof |

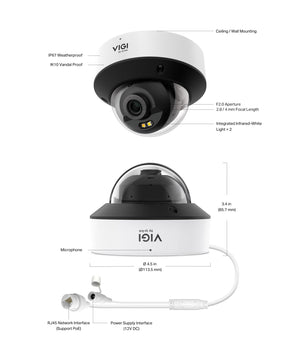

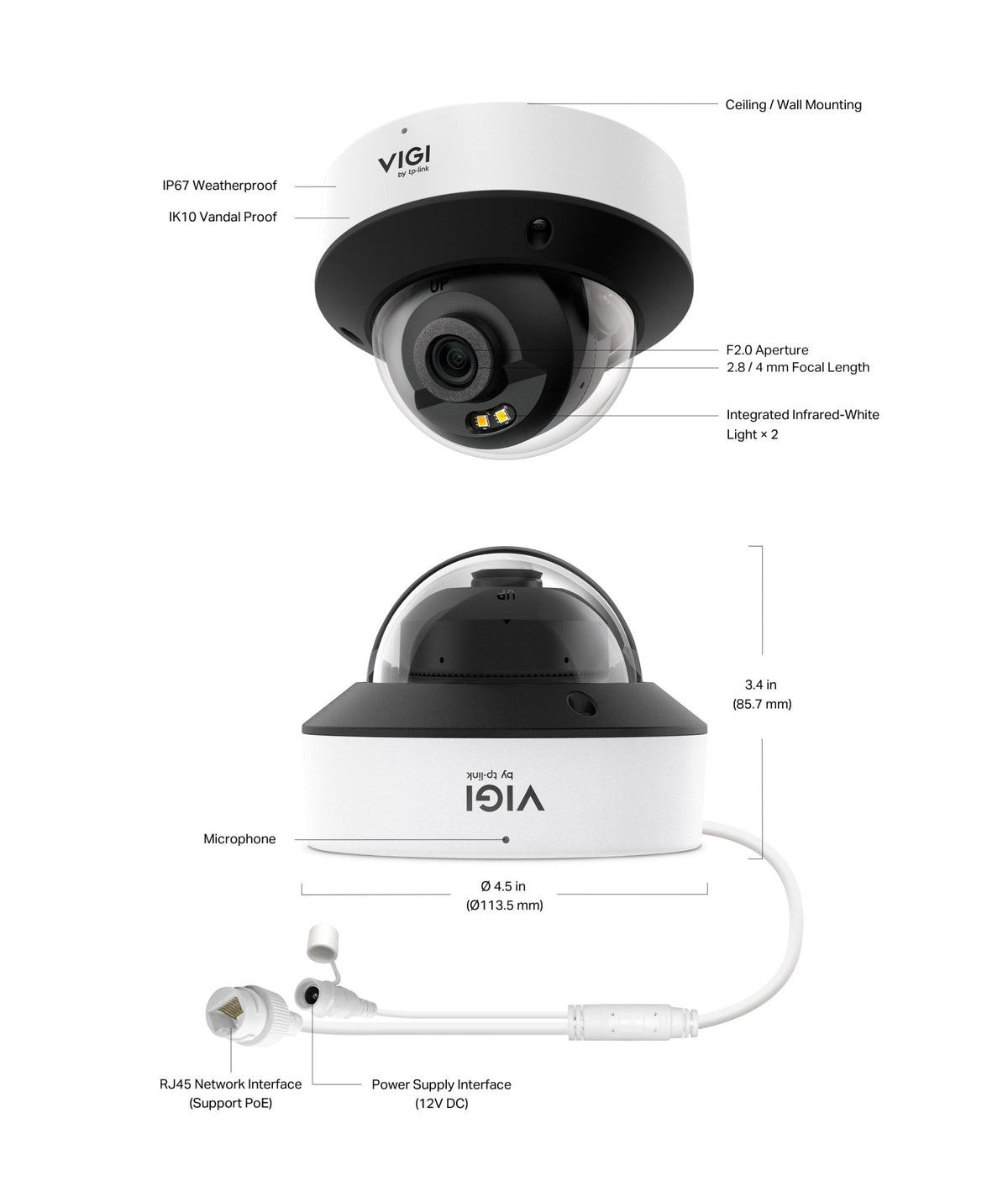

| Dimensions (L x W x H) | Ø113.5 × 85.7 mm (Ø4.5 × 3.4 in) |
| Certifications | CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10 |

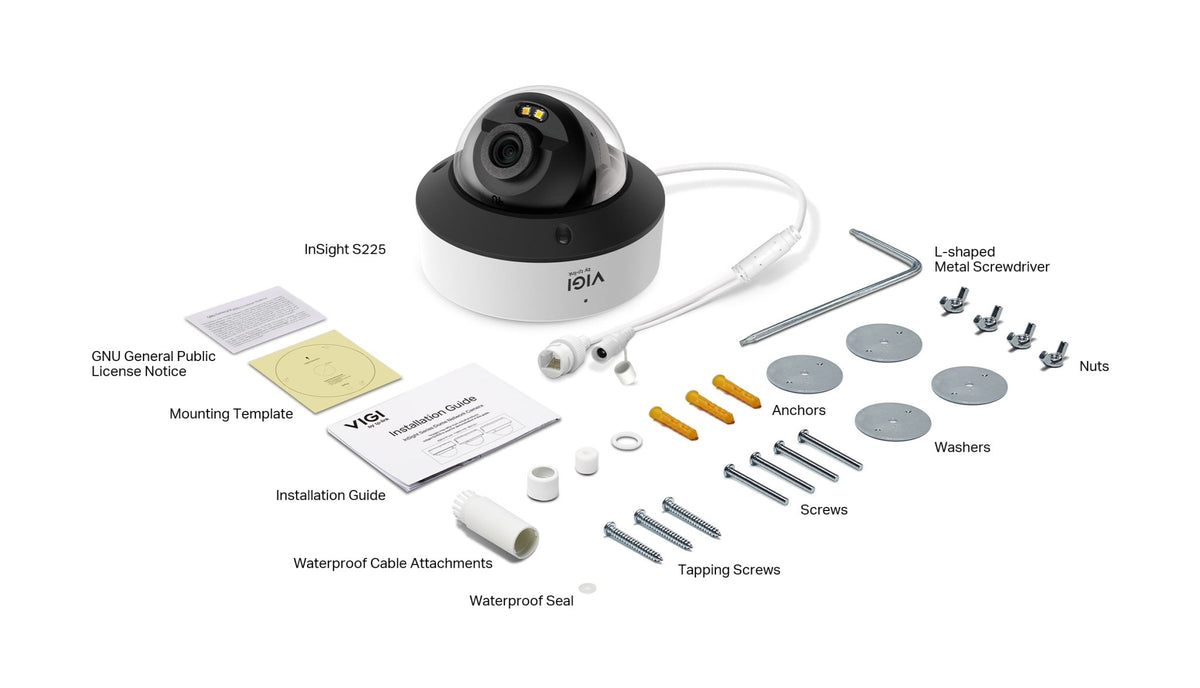

| Package Contents | • VIGI Network Camera • Quick Start Guide • Waterproof Cable Attachments • Mounting Accessories |
