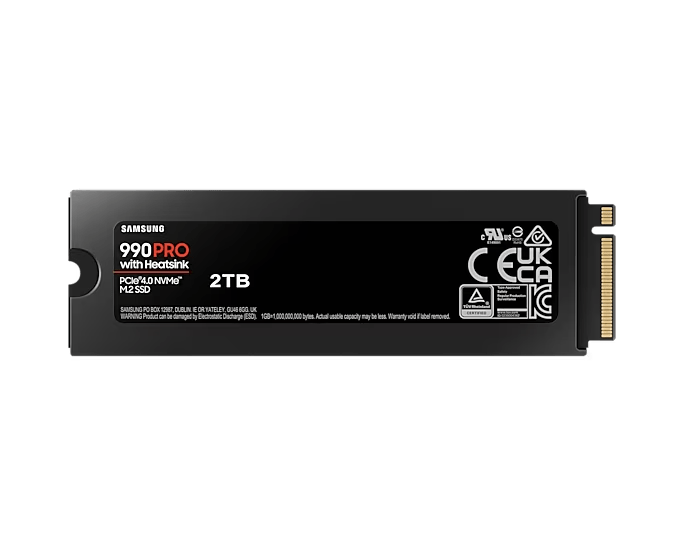

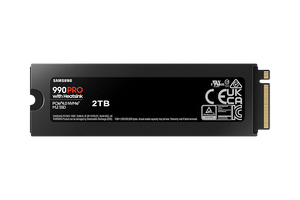

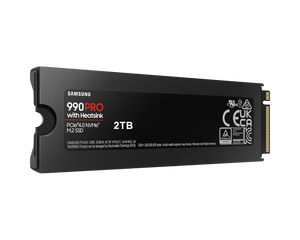

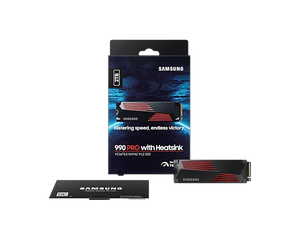

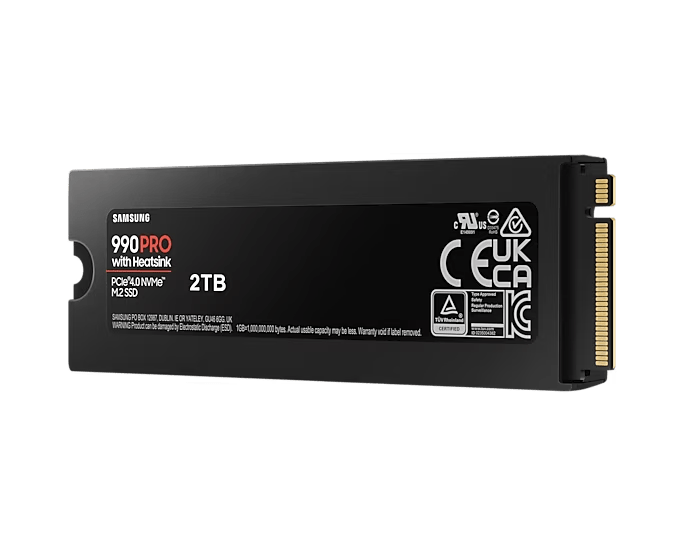

Samsung 990 PRO with Heatsink NVMe M.2 SSD
제품 설명
Fast Internal Storage with Cooling Built In
Samsung 990 PRO with Heatsink combines a PCIe 4.0 NVMe SSD with a factory-fitted cooling assembly for compatible gaming PCs and PlayStation 5. It is designed for fast game access, demanding creative projects and responsive everyday computing, with sequential reads up to 7,450MB/s and writes up to 6,900MB/s. Samsung V-NAND TLC, an in-house controller and dedicated LPDDR4 memory bring the storage components together in an M.2 2280 upgrade. Check the full heatsink dimensions against your system before installation.
Highlights
Performance for Games and Creative Work
- PCIe 4.0 x4 with NVMe 2.0 and backward compatibility with PCIe 3.0.
- Up to 7,450MB/s reads and 6,900MB/s writes under Samsung test conditions.
Integrated Cooling and System Fit
- Factory-installed heatsink dissipates heat during demanding workloads.
- Designed for compatible PCs and PS5; sufficient installation clearance is essential.
Management and Long-Term Use
- Samsung Magician offers supported drive-health and firmware tools.
- Five-year limited warranty or the applicable endurance limit, whichever occurs first.
Key Features
PCIe 4.0 Performance for Demanding Files
Large game installations, high-resolution media and project assets can place substantial demands on storage. The 990 PRO with Heatsink uses PCIe 4.0 x4 bandwidth and NVMe 2.0 to deliver fast access without a separate data cable. A compatible PCIe 3.0 system can also use the drive, with performance limited by the older interface. Real results depend on the host, firmware, workload and configuration, so headline transfer speeds are maximum test results rather than a constant rate.
Responsive Access Beyond Sequential Transfers
Sequential throughput matters for large files, while random access helps when applications work with many smaller pieces of data. The family reaches up to 1.6 million random-read IOPS and 1.55 million random-write IOPS at Samsung's specified high queue depths. Dedicated LPDDR4 cache memory supports the controller, with the amount varying by drive capacity. Intelligent TurboWrite accelerates writes within its supported transfer window; extended writes can behave differently once that window is exceeded.

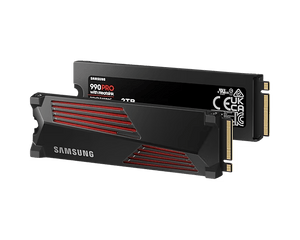

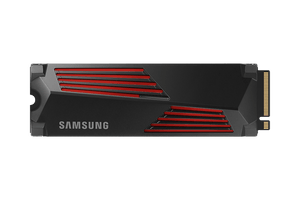

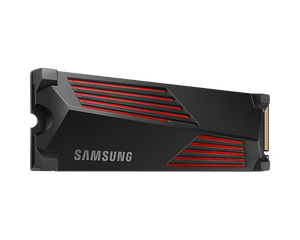

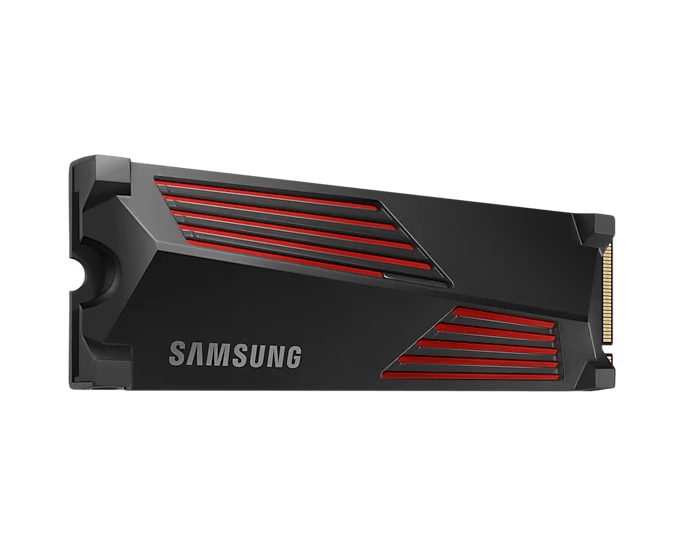

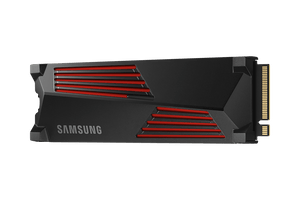

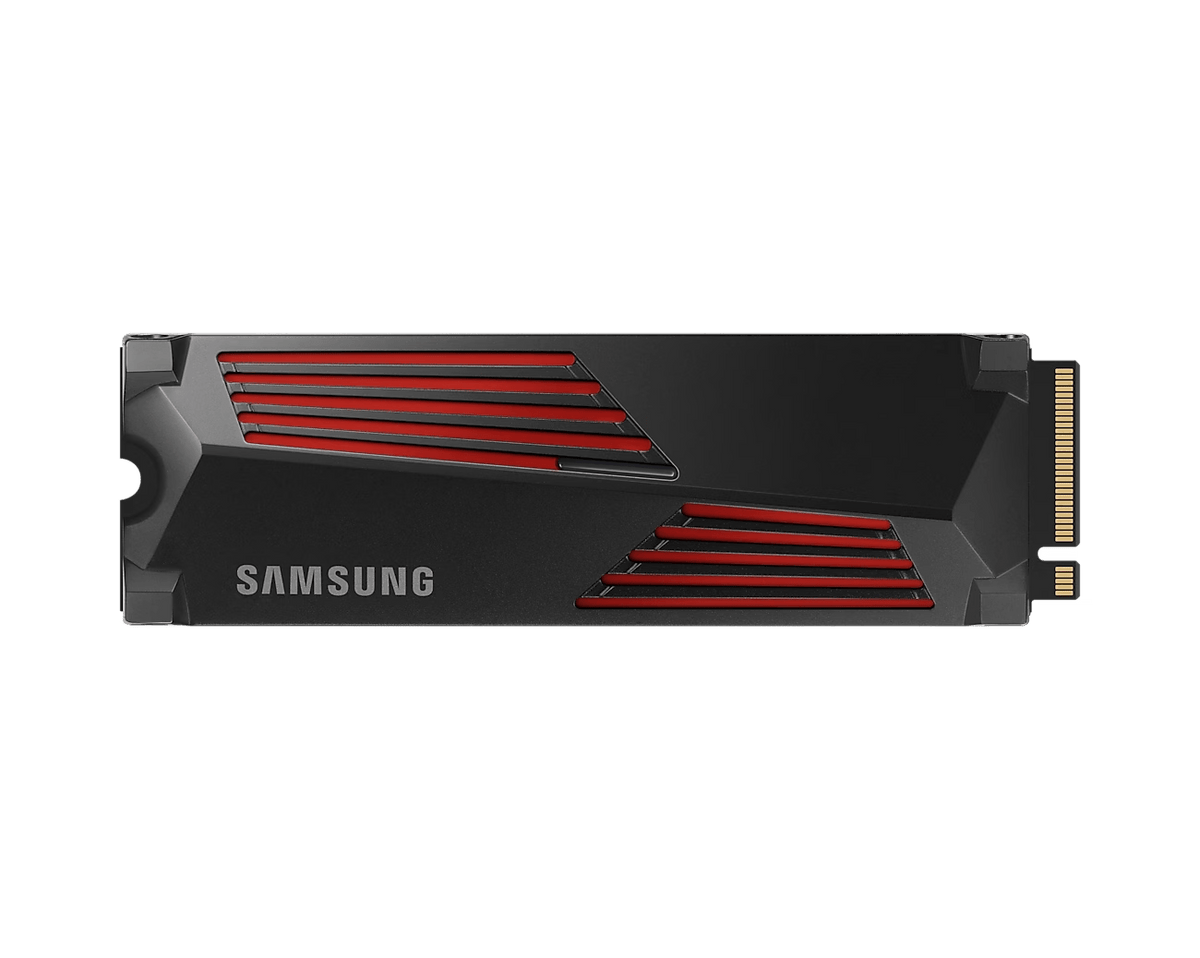

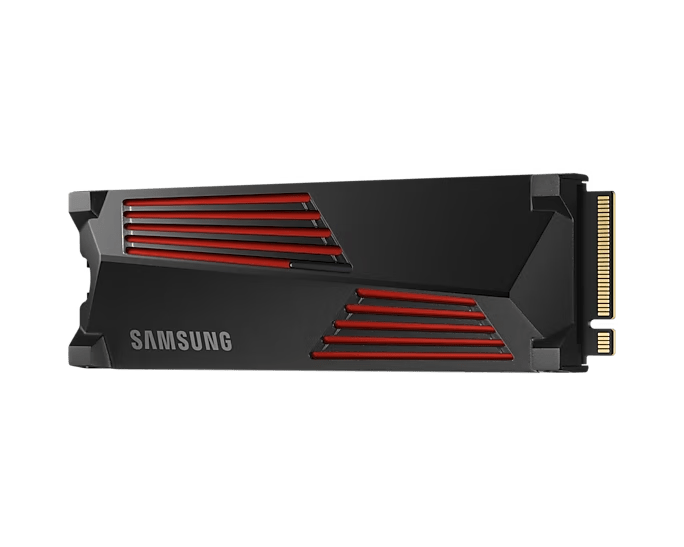

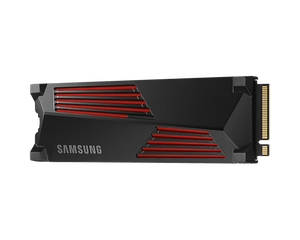

A Factory-Fitted Heatsink for Heat Dissipation
The slim cooling assembly helps carry heat away from the SSD during gaming and other intensive activity. This gives a compatible installation a ready-fitted thermal solution, while suitable system airflow still matters. The heatsink is part of this product and must remain installed. Samsung states that removing it voids the product warranty, so choose a system with sufficient clearance rather than planning to convert this drive into a bare module.
Internal Expansion for Compatible PlayStation 5 Consoles
This drive is intended for PS5 internal M.2 expansion as well as compatible PCs. Unlike USB extended storage, a correctly installed and formatted compatible M.2 SSD can run PS5 games directly. Update the console system software before installation and follow its M.2 installation procedure. Formatting prepares the drive for the console and erases existing data. The integrated heatsink should stay in place; do not add another heatsink over the factory assembly.
Drive Management with Samsung Magician
On a supported computer, Samsung Magician provides tools for checking drive information and health, applying supported firmware updates and managing available features. Functions vary by operating system, drive and connection. PC software features do not automatically become console features. Samsung Magician internal-SSD health checks, firmware updates and data migration require supported Windows; other features vary by OS, connection and product. Back up important files before firmware or storage changes, and use an appropriate supported PC configuration when drive maintenance is required.
Hardware Encryption and Storage Housekeeping
The SSD supports AES 256-bit hardware encryption, TCG Opal 2.0 and IEEE 1667 encrypted-drive capabilities. These require compatible host software and configuration; installing the SSD alone does not establish an encrypted workflow. TRIM with operating-system support, automatic garbage collection and S.M.A.R.T. monitoring provide additional storage-management capabilities. Encryption helps protect appropriately configured data, while a separate backup remains important for recovery from deletion, device failure or loss.
Endurance Matched to the Drive
Samsung specifies endurance in terabytes written, with the applicable limit increasing with capacity. The limited warranty lasts for five years or until that drive's TBW limit is reached, whichever happens first. Its published MTBF is a statistical reliability measure rather than a promise of individual service life. For a smooth upgrade, confirm the M.2 slot, heatsink clearance and installation hardware before opening the system, then follow the computer or console manufacturer's instructions.
Summary
Choose Samsung 990 PRO with Heatsink when you want fast internal NVMe storage with its thermal assembly already fitted. It suits compatible gaming and creative systems that can accommodate the complete module, with useful management tools on supported PCs and the ability to run games from compatible PS5 internal expansion storage. Match the drive to the host, keep the heatsink fitted and maintain a separate backup of important data.
사양
Samsung 990 PRO with Heatsink NVMe M.2 SSD
Samsung 990 PRO with Heatsink is an internal M.2 NVMe SSD for compatible PCs and PlayStation 5. Its factory-fitted heatsink forms part of the installation dimensions and must remain attached. The specifications below combine shared features with qualified family maxima. Performance, cache and endurance depend on capacity and test conditions, while software functions depend on the operating system and connection.
| Specification | Details |
|---|---|
| Drive and Interface | |
| Form factor | Internal M.2 2280 with factory-fitted heatsink |
| Interface | PCIe 4.0 x4; NVMe 2.0; PCIe 3.0 backward compatible |
| Memory and controller | Samsung V-NAND TLC; Samsung in-house controller |
| DRAM cache | Up to 4GB LPDDR4; capacity dependent |
| Dimensions and device weight | Maximum 80.15 × 25 × 8.88mm; up to 28g, excluding packaging |
| Performance | |
| Sequential read / write | Up to 7,450 / 6,900MB/s |
| Random read / write, QD1 | Up to 22,000 / 80,000 IOPS; one thread |
| Random read, QD32 / 16 threads | Up to 1.6M IOPS; capacity dependent |
| Random write, QD32 / 16 threads | Up to 1.55M IOPS |
| Write acceleration | Intelligent TurboWrite; write maxima measured with acceleration active |
| Cooling Power and Environment | |
| Thermal design | Integrated heatsink; suitable system airflow required |
| Supply voltage | 3.3V ±5% |
| Active average power | Up to 6.5W read / 5.7W write; capacity and workload dependent |
| Idle / low-power mode | Up to 55mW with APST / 5.8mW in L1.2 |
| Temperature | Operating 0–70°C via S.M.A.R.T.; non-operating −40–85°C |
| Humidity | 5–95% non-condensing |
| Non-operating shock / vibration | 1,500G, 0.5ms, three axes / 20G, 20–2,000Hz |
| Security and Compatibility | |
| Security | AES 256-bit; TCG Opal 2.0; IEEE 1667; compatible configuration required |
| Storage features | TRIM with OS support; garbage collection; S.M.A.R.T. |
| Host compatibility | Compatible NVMe PCs and PS5; confirm complete heatsink clearance |
| Management software | Samsung Magician; supported Windows required for health checks, firmware updates and data migration |
| PS5 use | Internal M.2 expansion; current console software and console formatting required |
| Reliability Warranty and Package | |
| Endurance | Up to 2,400TBW; capacity dependent |
| MTBF | 1.5 million hours; statistical reliability measure |
| Limited warranty | Five years or applicable TBW limit, whichever comes first |
| Installation condition | Keep factory heatsink fitted; removal voids Samsung warranty |

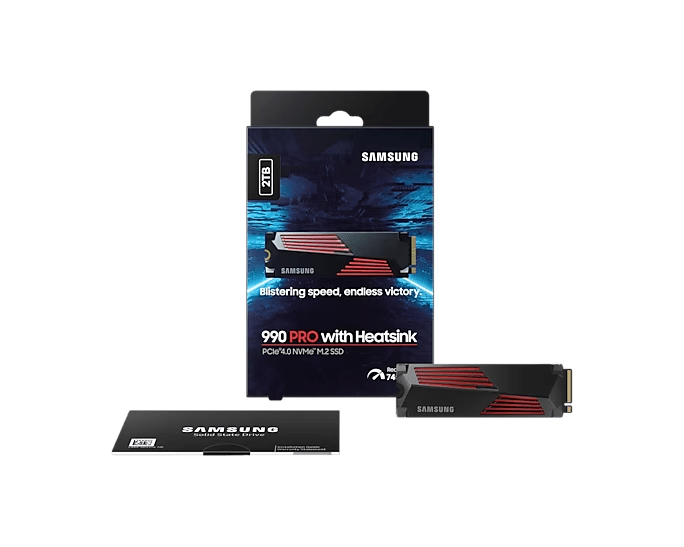

| In the box | SSD with heatsink; warranty statement; installation kit not included |
Performance is up to, measured using IOmeter, and depends on firmware, host and workload. TurboWrite operates within a defined transfer window; sustained writes beyond it can be slower. Capacity uses decimal units, with less space available after formatting and system use. Hardware-encryption features require compatible host configuration.
