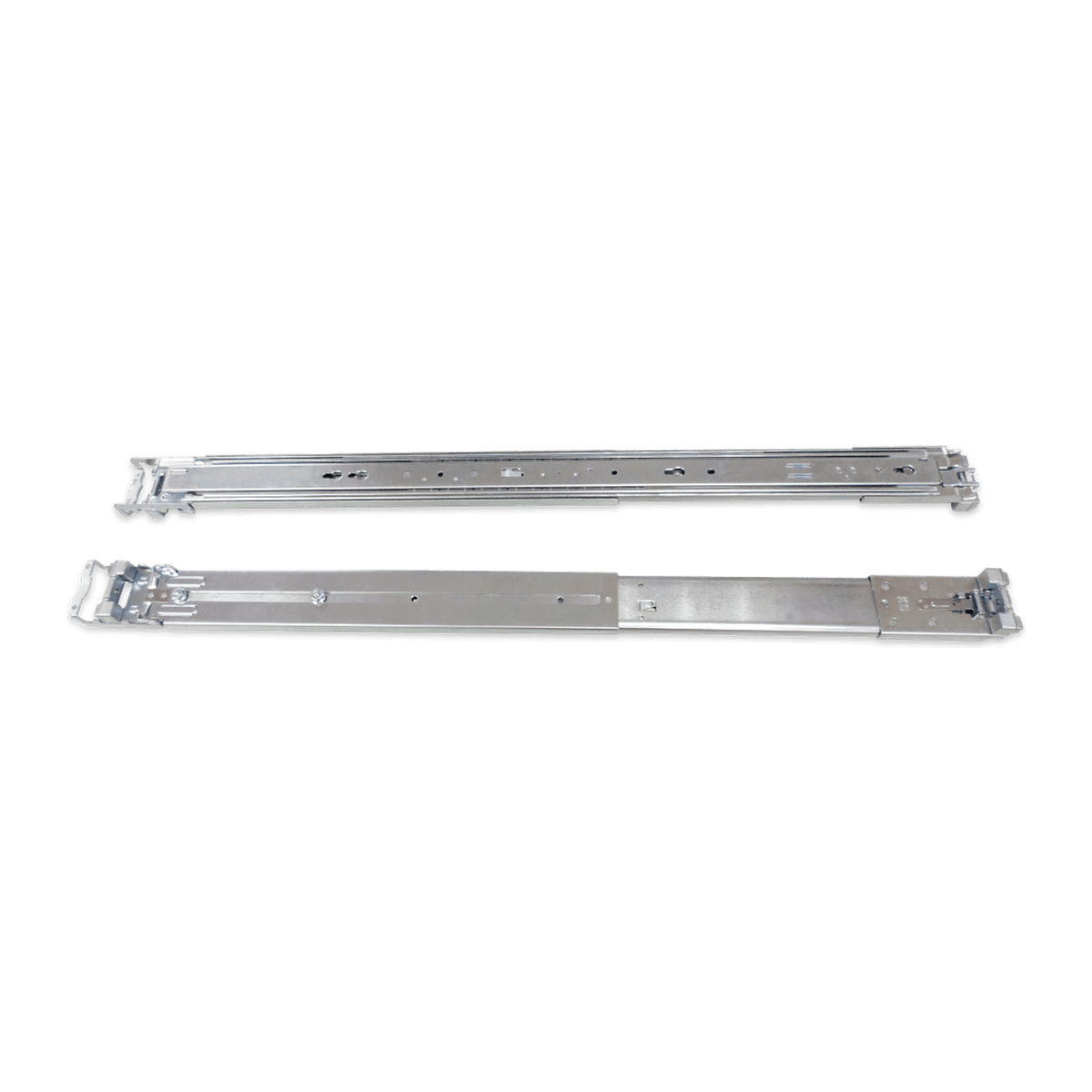

Add-ons (3)
Pickup available at 3005, Ubi Avenue 3, #01-88
일반적으로 2~4일 후 준비 완료

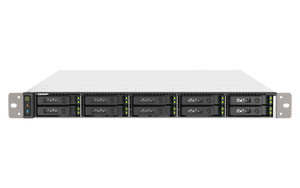

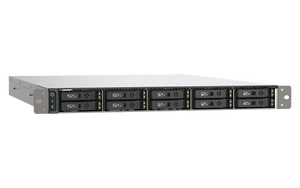

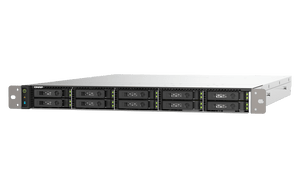

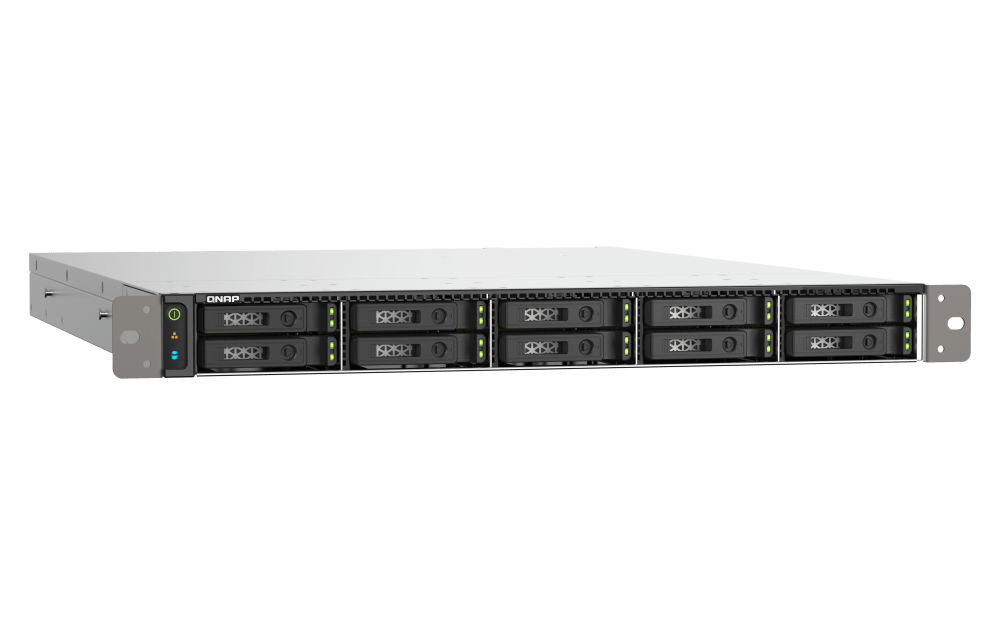

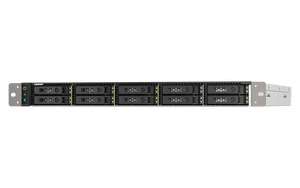

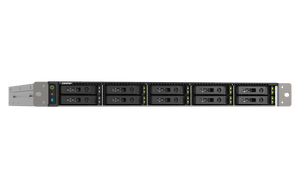

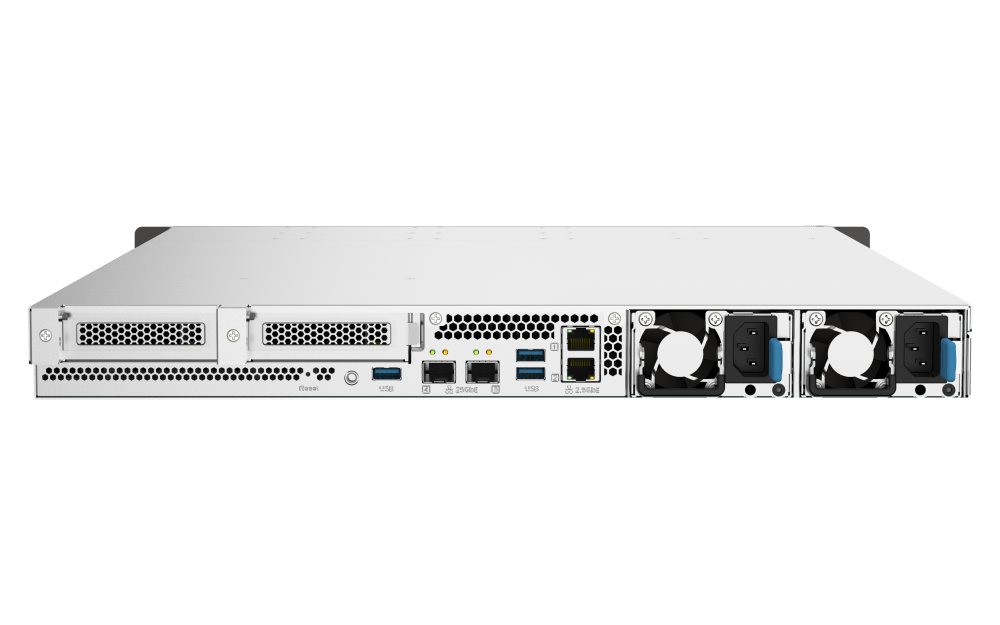

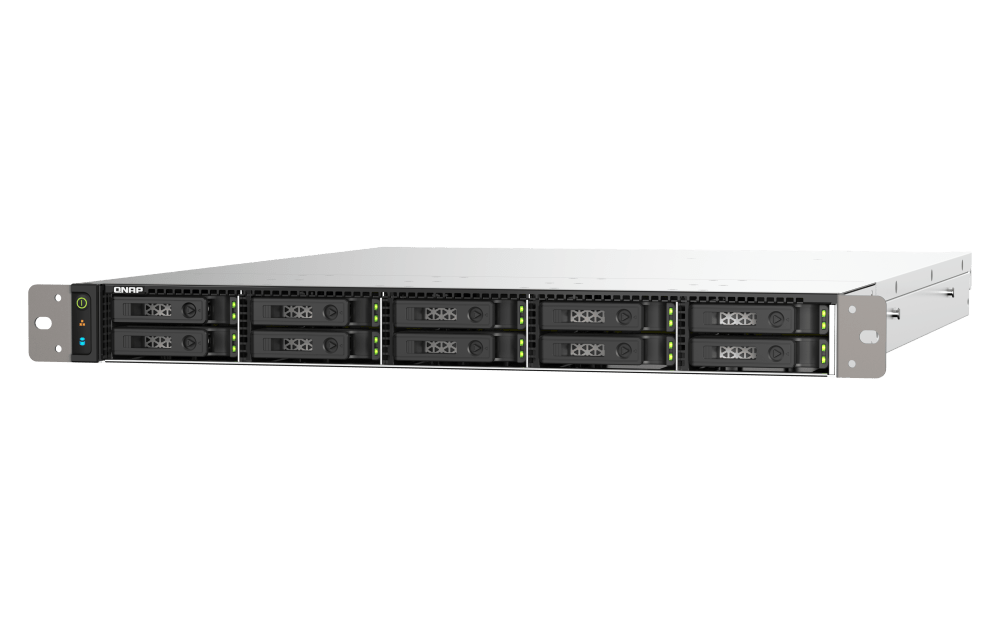

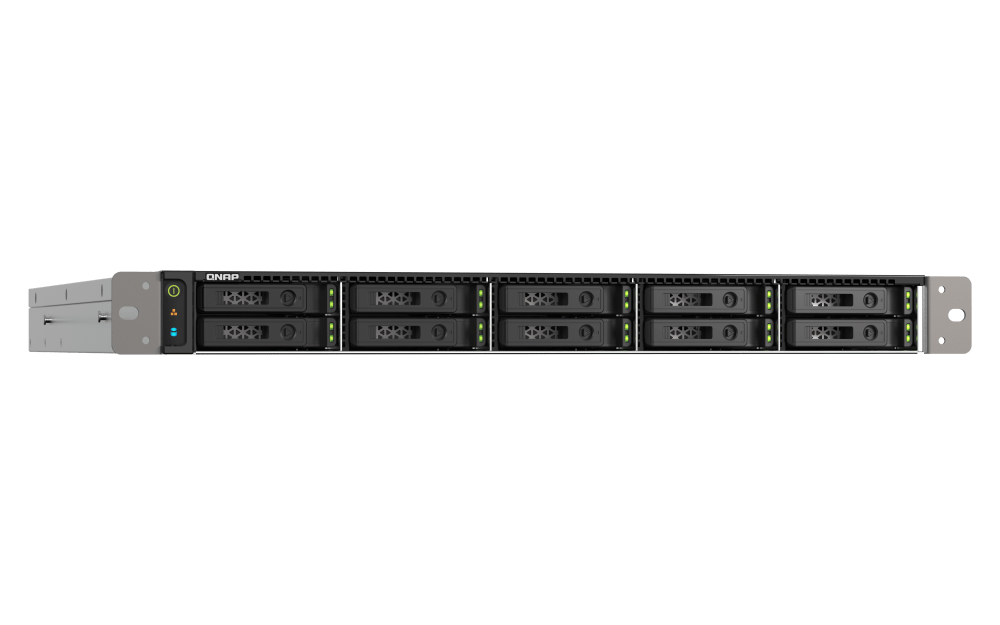

QNAP TS-h1090FU 10-Bay NVMe/SATA All-Flash Rackmount NAS
제품 설명
High-Density U.2 NVMe PCIe Gen 4 All-Flash Storage
Unleashing Extreme Performance for Enterprise Workloads
The TS-h1090FU, a 1U high-density all-flash storage solution, is engineered to deliver exceptional performance and efficiency. Featuring ten U.2 NVMe Gen 4 x4 SSD bays, it's designed for low-latency file servers, virtualized workloads, data centers, and handling 4K/8K streams, making it a perfect fit for Tier 2 storage workloads.
Key Features
High-Density All-Flash Storage
- Offers a compact 58cm depth design, accommodating ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive bays for remarkable random read/write IOPS and ultra-low latency.
Optimized SSD Performance and Lifespan
- Inline data deduplication, compression, Pool Over-provisioning, and TRIM technologies maximize SSD performance and extend lifespan.
Future-Proof 25GbE Connectivity
- Accelerates virtualization, intensive file access, media transfer, and large backup/restoration tasks with advanced connectivity options.
High-Speed PCIe Gen 4 Expansion
- Provides flexibility to install various adapters and cards, enhancing overall application performance.
Virtualization and Cloud Applications
- Ideal for supporting virtualization storage, hosting virtual machines, containerized apps, and hybrid cloud applications.
Scalable Storage Design
- Grows with your business needs, allowing connection to QNAP’s expansion enclosures for increased storage capacity.
Model Variants
- TS-h1090FU-7232P-64G: AMD EPYC™ 7232P/7252 8-core/16-thread processor, 64 GB DDR4 ECC memory.
- TS-h1090FU-7302P-128G: AMD EPYC™ 7302P 16-core/32-thread processor, 128 GB DDR4 ECC memory.
- TS-h1090FU-7302P-256G: AMD EPYC™ 7302P 16-core/32-thread processor, 256 GB DDR4 ECC memory (available upon request).
Performance and Applications
Ideal for IOPS-Demanding Applications
- Excellently suited for server virtualization, VDI, data centers, and 4K/8K media streaming, delivering ultra-low latency and high IOPS performance.
Powerful Computing Capabilities
- Equipped with 2nd Gen AMD EPYC™ 7002 series processors and up to 1 TB DDR4 ECC memory, ensuring reliable multitasking and handling of memory-intensive workloads.
U.2 NVMe PCIe Gen 4 x4 Array
- Supports high-performance U.2 NVMe PCIe SSDs or economical SATA SSDs, tailored for latency-sensitive applications.
Dual 25GbE Connectivity
- Enhances performance for data-intensive tasks, supported by two 25GbE SFP28 SmartNIC ports.
Multiple PCIe Gen 4 Slots
- Offers expansion options for network cards, QM2 cards, and SATA storage expansion cards.
ZFS-Based QuTS Hero Operating System
- Combines the app-based QTS with the 128-bit ZFS file system, offering flexible storage management, data protection, and optimized performance for complex IT environments.
Data Integrity and Reduction Technologies
- Features like self-healing, inline data deduplication, compression, and compaction ensure data integrity and improve storage efficiency.
Comprehensive Backup and Disaster Recovery Solutions
- Supports various apps for NAS remote backup, VM backup, SaaS backup, and cloud backup, along with real-time SnapSync for disaster recovery.
Virtual Machine and Container Hosting
- Facilitates hosting of multiple virtual machines and containers, enhancing management efficiency and reducing hardware costs.
Security and Network Management
- Equipped with comprehensive security features and flexible network management tools to safeguard data and optimize network deployment.
File Storage and Collaboration
- Integrates apps for storing, managing, and sharing files across various platforms, enhancing collaboration and data management.
Flexible Operating System Options
- Supports both QTS and QuTS hero operating systems, providing flexibility based on specific application needs.
Warranty and Support
- Backed by a 5-year warranty, ensuring long-term reliability and support for continuous operations and uninterrupted services.
The TS-h1090FU stands out as a high-performance, scalable, and versatile all-flash storage solution, ideal for businesses seeking to optimize their data management and application performance in demanding enterprise environments.
사양
| Specification | Detail |
|---|---|
| General | |
| CPU (TS-h1090FU-7302P-256G/128G) | AMD EPYC™ 7302P 16-core/32-thread, up to 3.3 GHz |
| CPU (TS-h1090FU-7232P-64G) | AMD EPYC™ 7232P/7252 8-core/16-thread, up to 3.2 GHz |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | AES-NI |
| System Memory | |
| TS-h1090FU-7302P-256G Memory | 256 GB RDIMM DDR4 ECC (8 x 32 GB) |
| TS-h1090FU-7302P-128G Memory | 128 GB RDIMM DDR4 ECC (8 x 16 GB) |
| TS-h1090FU-7232P-64G Memory | 64 GB RDIMM DDR4 ECC (8 x 8 GB) |
| Maximum Memory | 1 TB+ (12 x 128 GB) |
| Memory Slot | 12 x RDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps |
| Drive Compatibility | 2.5-inch U.2 NVMe Gen 4 x4 SSDs, 2.5-inch SATA SSDs |
| Hot-swappable | Yes |

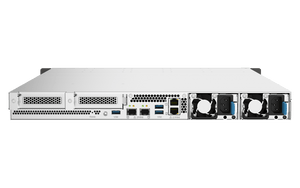

| Networking | |
| 2.5 Gigabit Ethernet Port | 2 (2.5G/1G/100M/10M) |
| 25 Gigabit Ethernet Port | 2 x 25GbE SFP28 SmartNIC port |
| Wake on LAN (WOL) | Yes (Only 2.5GbE port) |
| Jumbo Frame | Yes |
| Expansion and Connectivity | |
| PCIe Slot | 2 (Slot 1: PCIe Gen4 x16, Slot 2: PCIe Gen4 x16) |
| USB 3.2 Gen 1 port | 3 |
| Form Factor | Rackmount |
| Indicators and Buttons | |
| LED Indicators | Disk, Status, LAN, etc. |
| Buttons | Power, Reset |
| Physical Attributes | |
| Dimensions (HxWxD) | 44 × 430 × 582 mm |
| Weight (Net) | 11.6 kg |
| Weight (Gross) | 13.4 kg |
| Environmental | |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power | |
| Power Supply Unit | 550W PSU (x2), AC 100-240 V |
| Power Consumption: Operating Mode, Typical | 157.97 W |
| Fan | 5 x 60mm, 12VDC |
| Standard Warranty | 5 years |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 10,000 |
| Software and Services | |
| Operating System | QTS 5.1.3 |
| Supported Client Operating Systems | Windows, Mac OS, Linux, UNIX |
| Supported Browsers | Safari, Chrome, Edge, Firefox (latest versions) |
| Supported Languages | Multiple including English, Chinese, German, French, Spanish |
| Storage Pool | SED Storage Pool, Maximum Pool size 308 TB, Maximum number of storage pool 128 |
| Volume Type | Thick, Thin, Static, Maximum volume size 250 TB |
| JBOD Expansion | VJBOD / VJBOD Cloud |
| iSCSI Service | Fibre Channel Service, LUN Type Thick, Thin, Maximum LUN size 250 TB |
| Auto Tiering | Requires minimum 2GB memory |
| RAID Type | Various including JBOD, Single, RAID 0, 1, 5, 6, 10, 50, 60 |
| RAID Group | Specific configurations and limitations |
| ... and more | Extensive features for networking, security, storage management, third-party integrations, and user management |
