Insta360 Luna Series Battery Handle
제품 설명
A Compact Base for the Next Part of the Day
Keep a Luna camera ready for another sequence with a small handle that combines additional power, a built-in tripod and a useful mounting point. Insta360 Luna Series Battery Handle fits Luna Ultra and Luna Pro, attaching directly to the camera’s lower USB-C connection. Its compact shape keeps the setup manageable for everyday filming, while a rear USB-C port supports the specified charging and compatible audio arrangements.
Highlights
- Additional battery power for Insta360 Luna Ultra and Luna Pro.
- Built-in tripod for a prepared, stationary camera position.

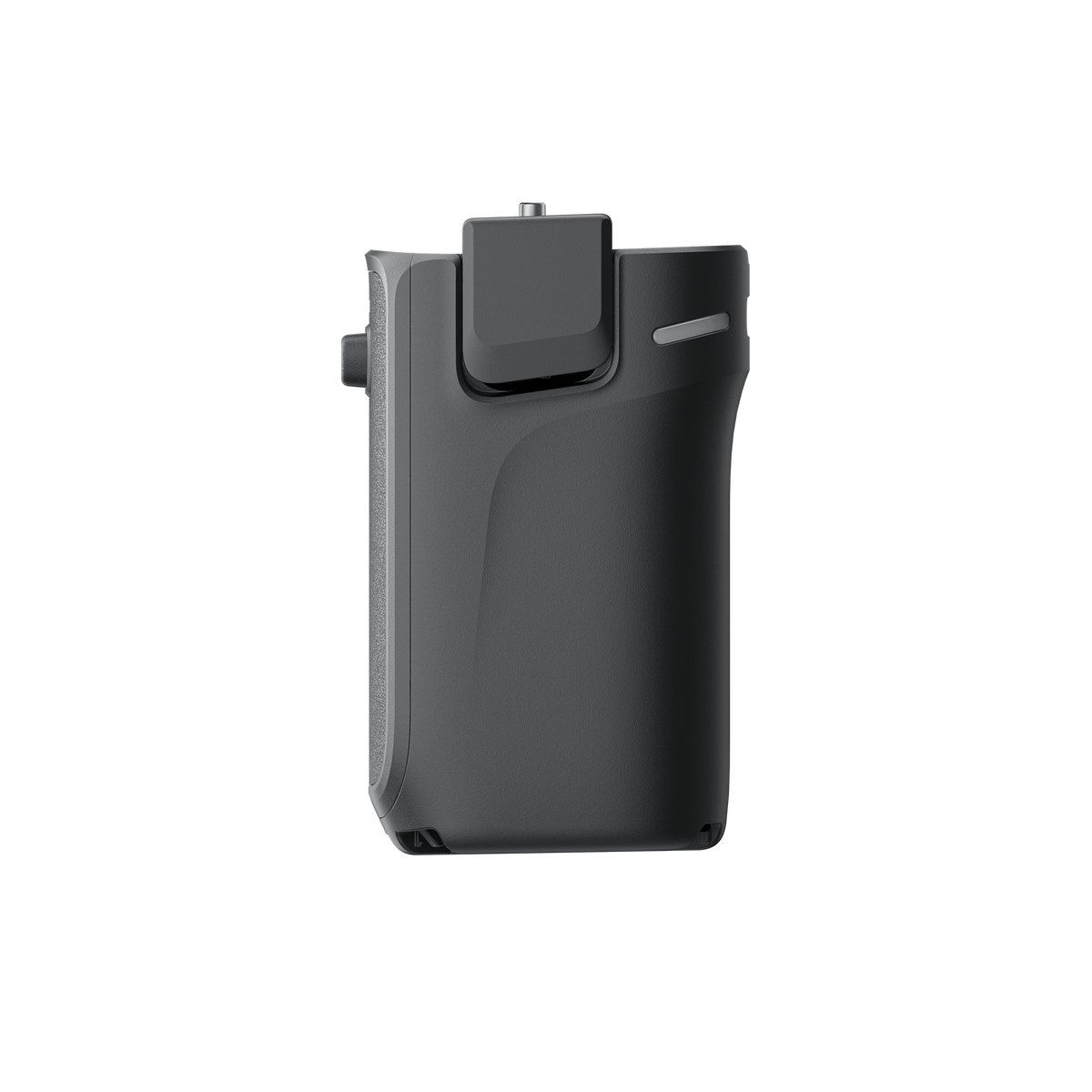

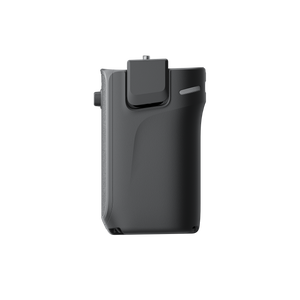

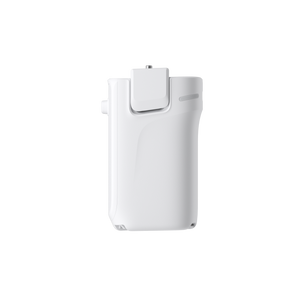

- Direct camera connection secured by clips on both sides.
- Rear USB-C port for specified charging and compatible audio devices.
- Bottom 1/4-inch mounting point for suitable accessories.
Key Features

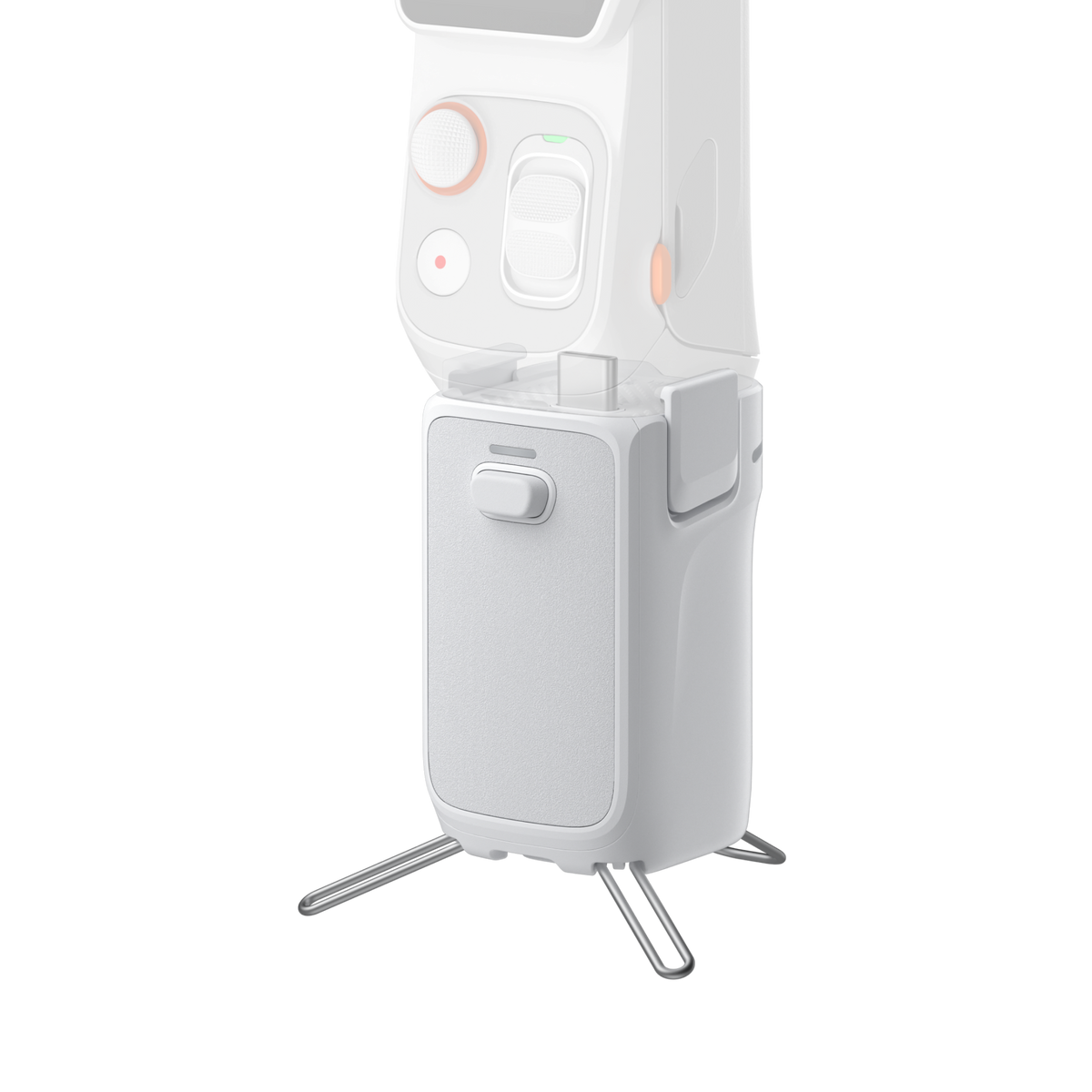

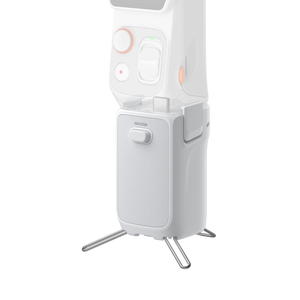

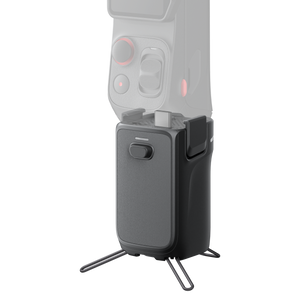

Add Power Without a Long External Lead

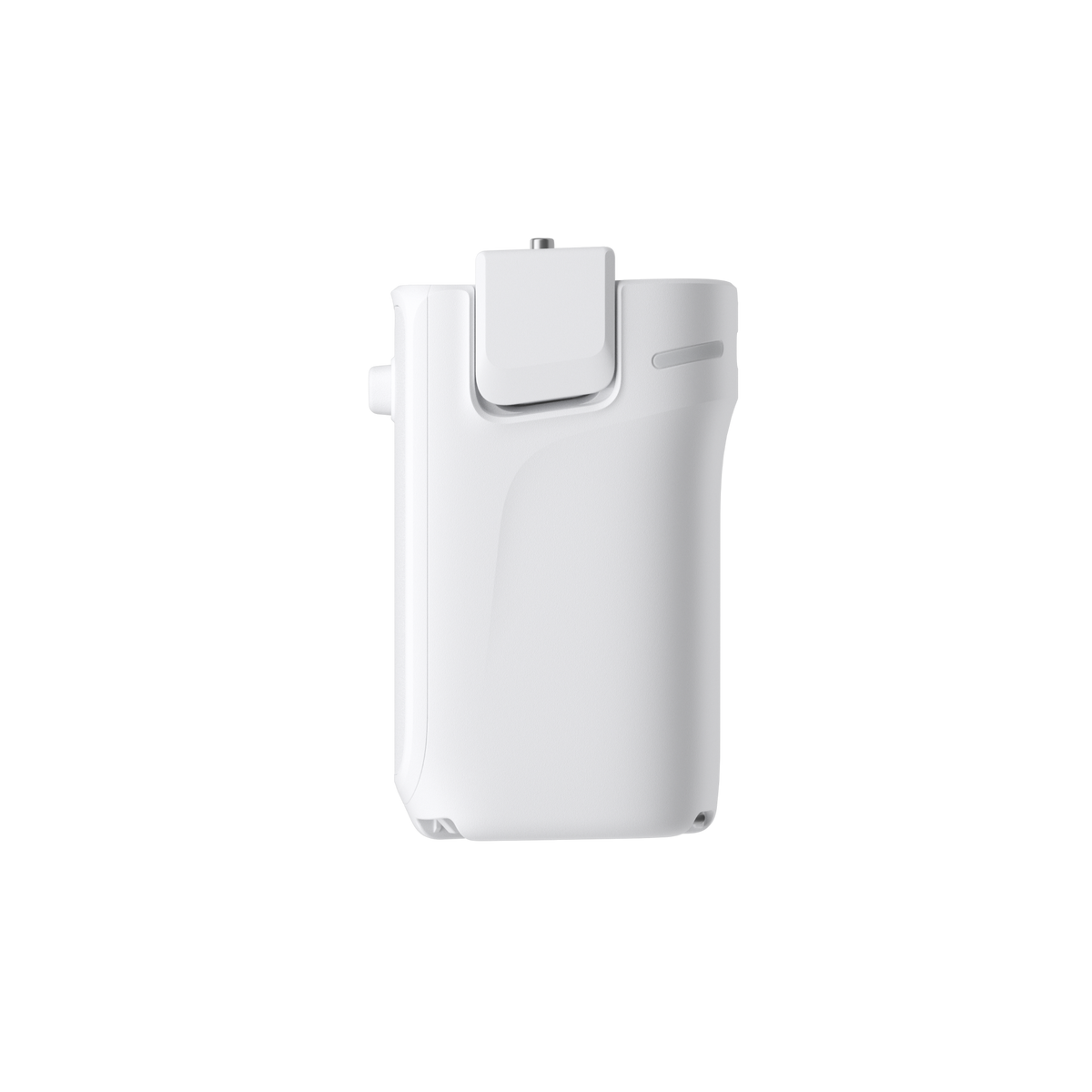

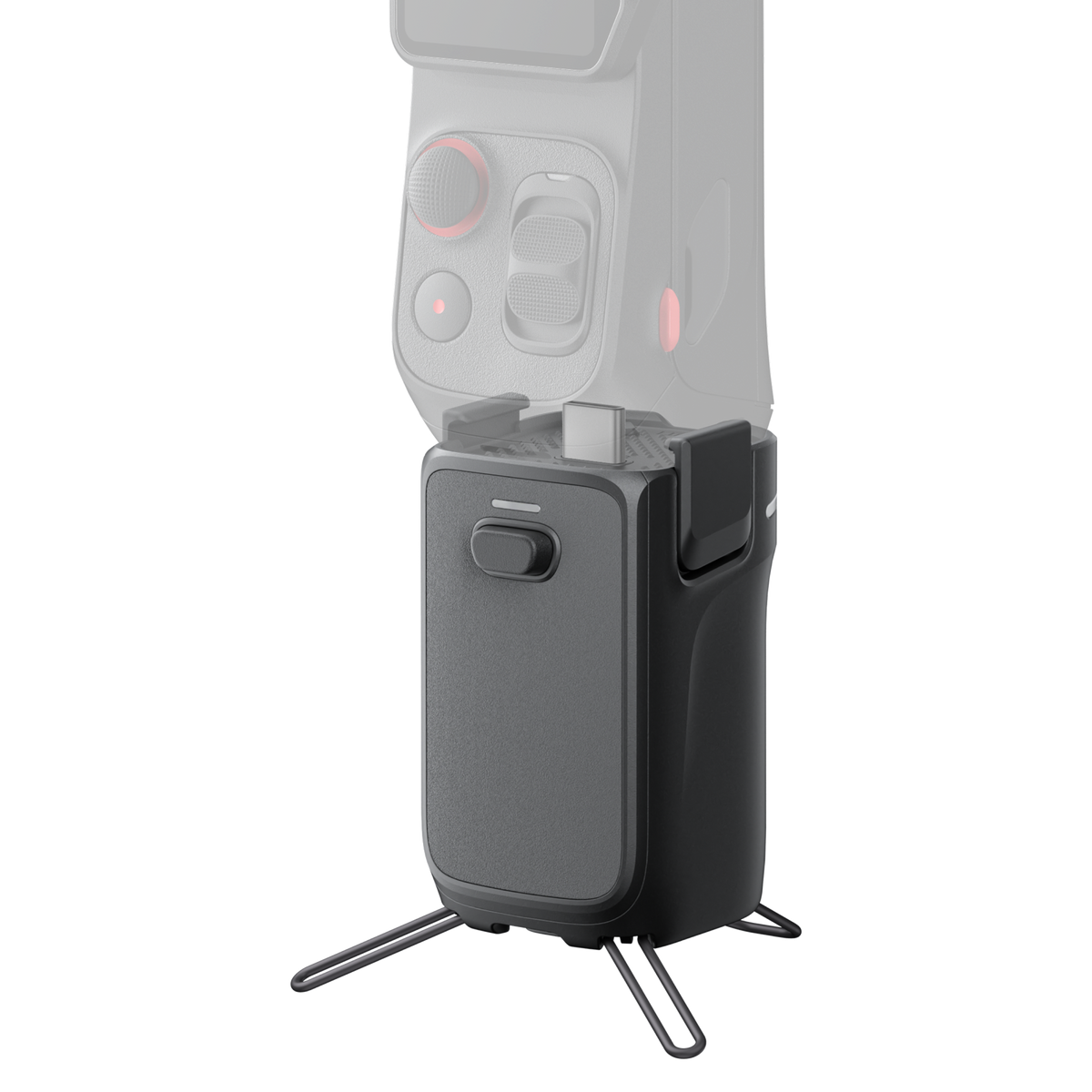

The integrated USB-C plug connects directly to the bottom of a supported Luna camera. Once the handle is fitted and both side clips are locked, it begins charging the camera automatically. Its built-in battery adds useful reserve power, although the manufacturer states that the handle alone cannot fully recharge Luna Ultra. Prepare the camera and handle before a longer recording session rather than assuming a full camera recharge.

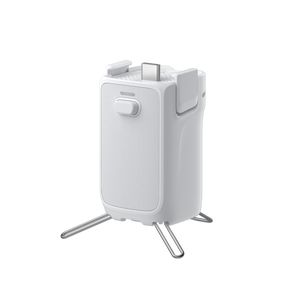

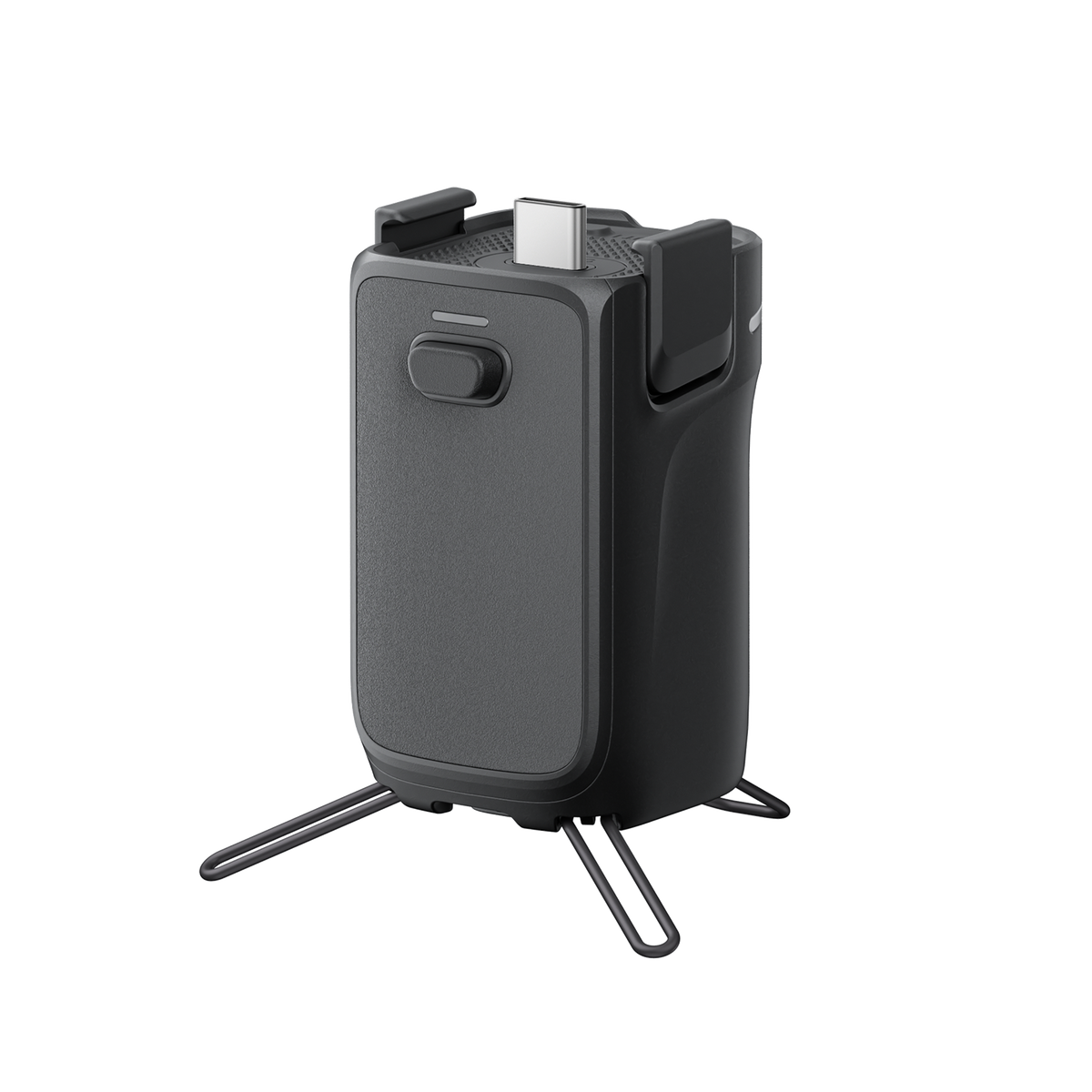

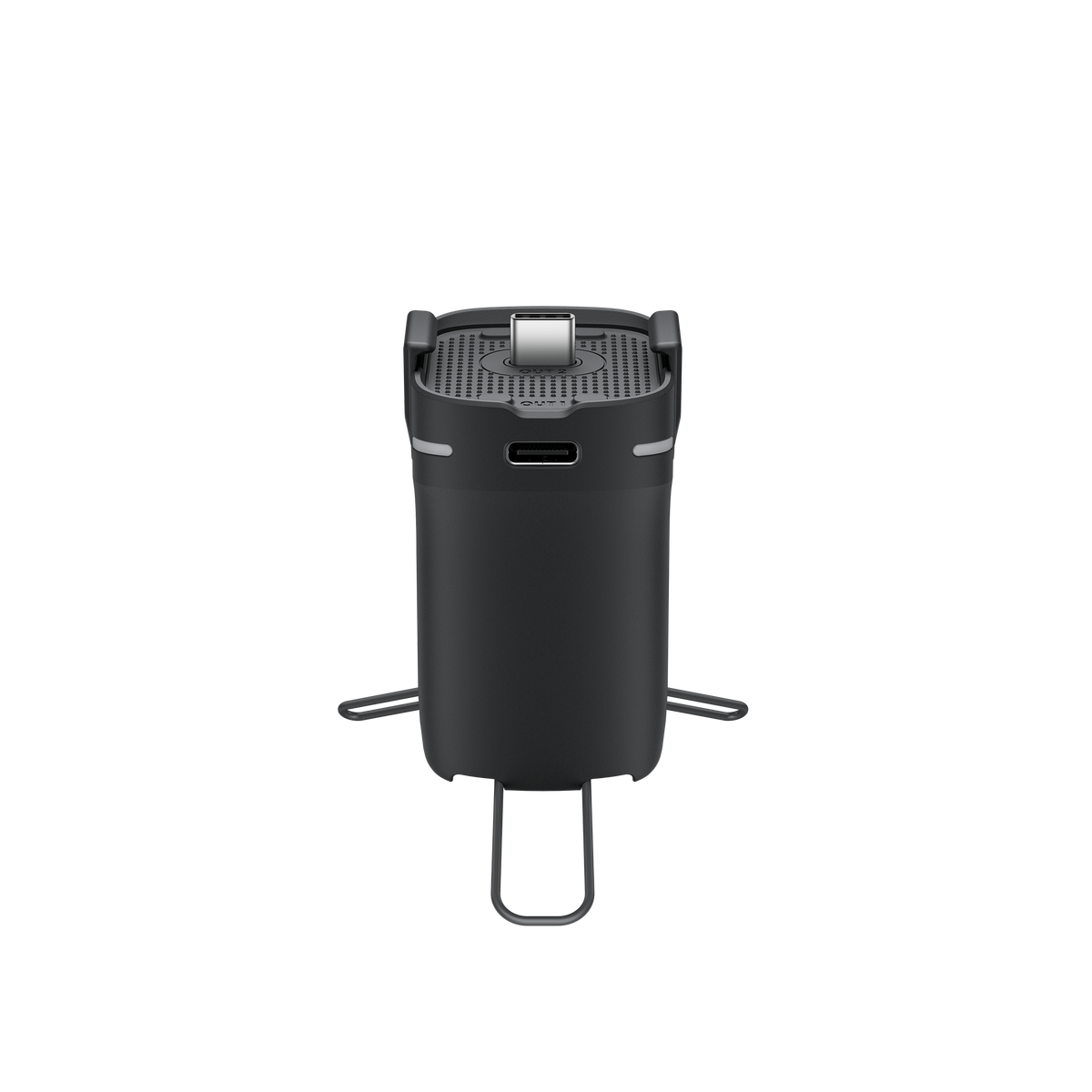

Set Down the Camera with the Built-In Tripod

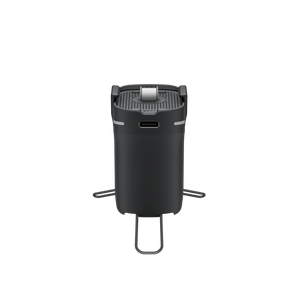

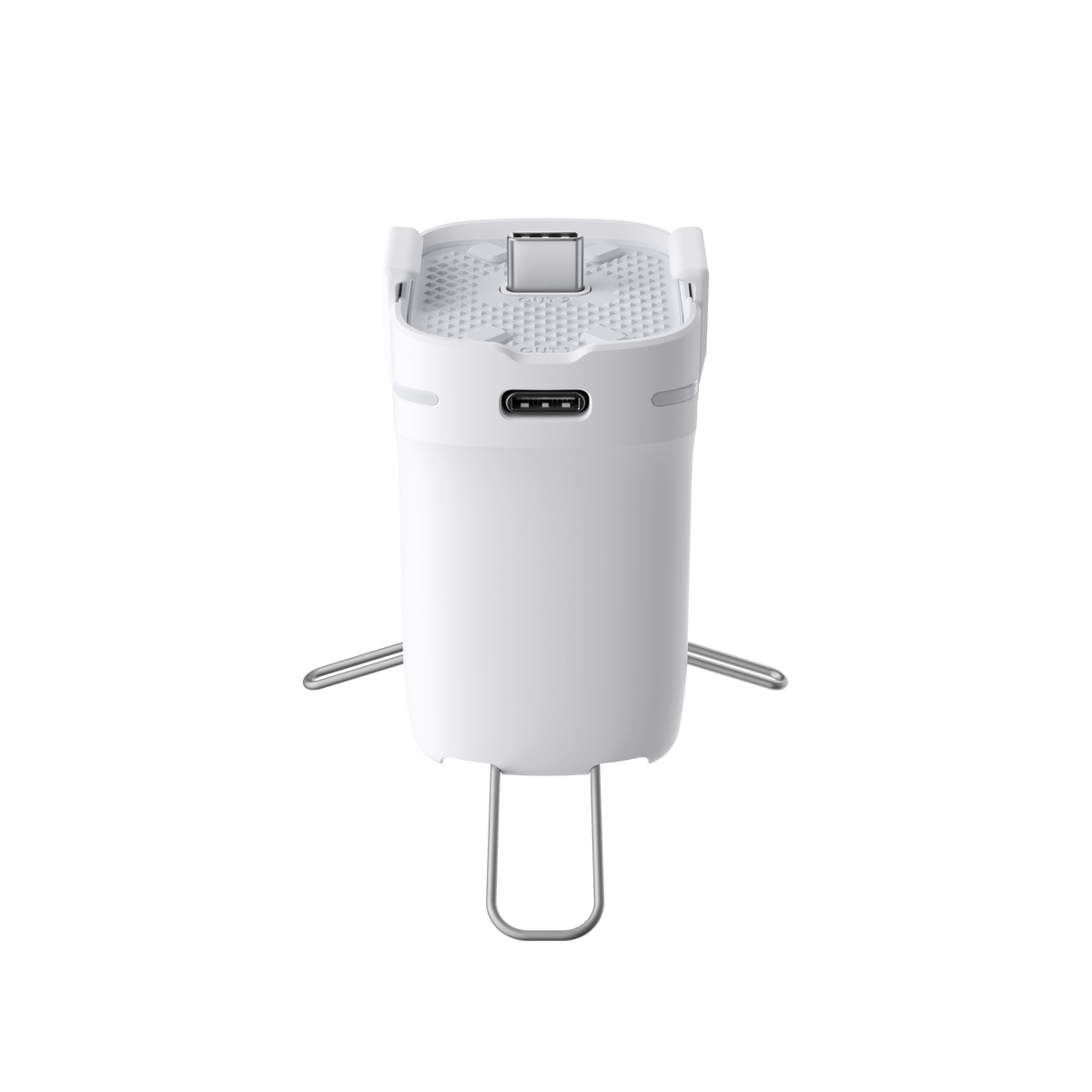

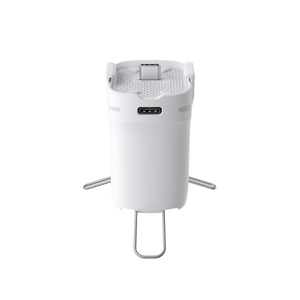

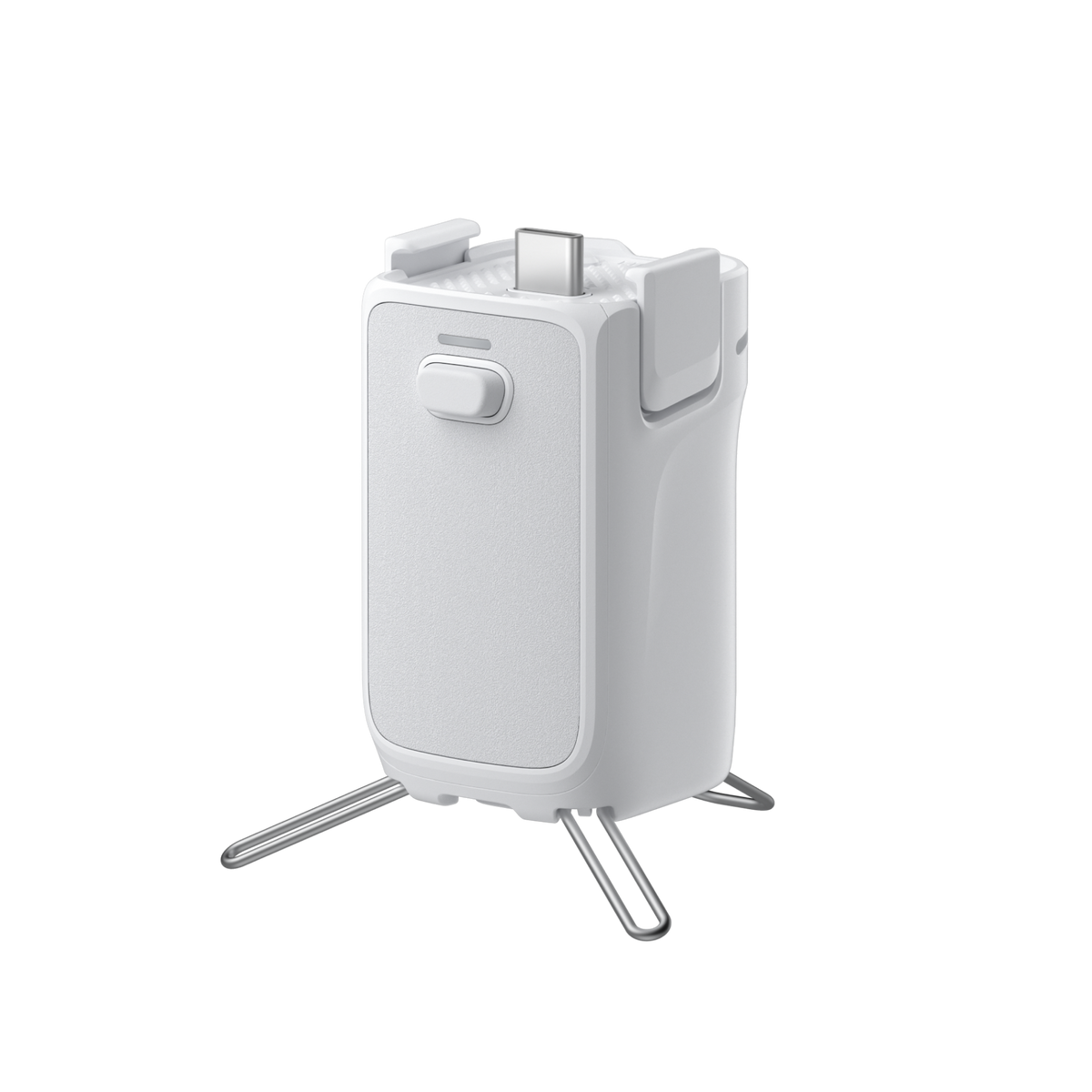

Open the integrated tripod when a stationary view suits the recording. It provides a compact base without a separate small stand in the supplied package. Choose a stable, level surface and check the balance of the complete camera arrangement before stepping away. The handle does not add a tracking motor; camera movement and supported tracking remain functions of the connected Luna camera.

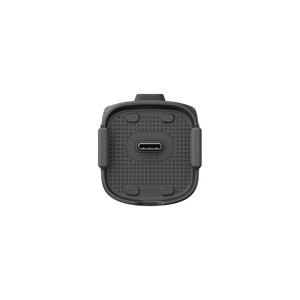

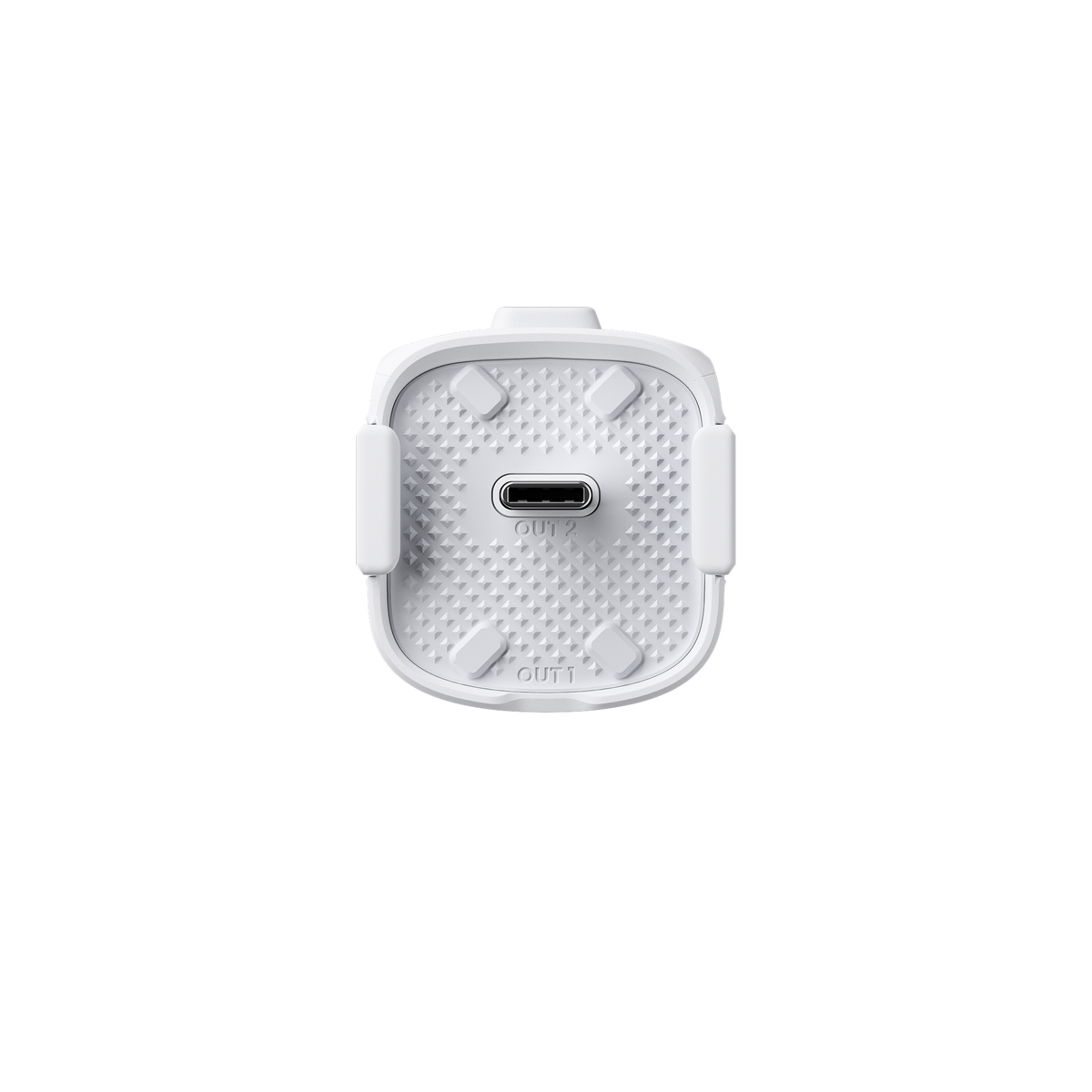

Keep Useful Connections Available

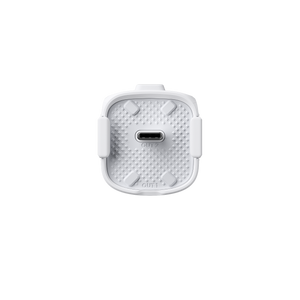

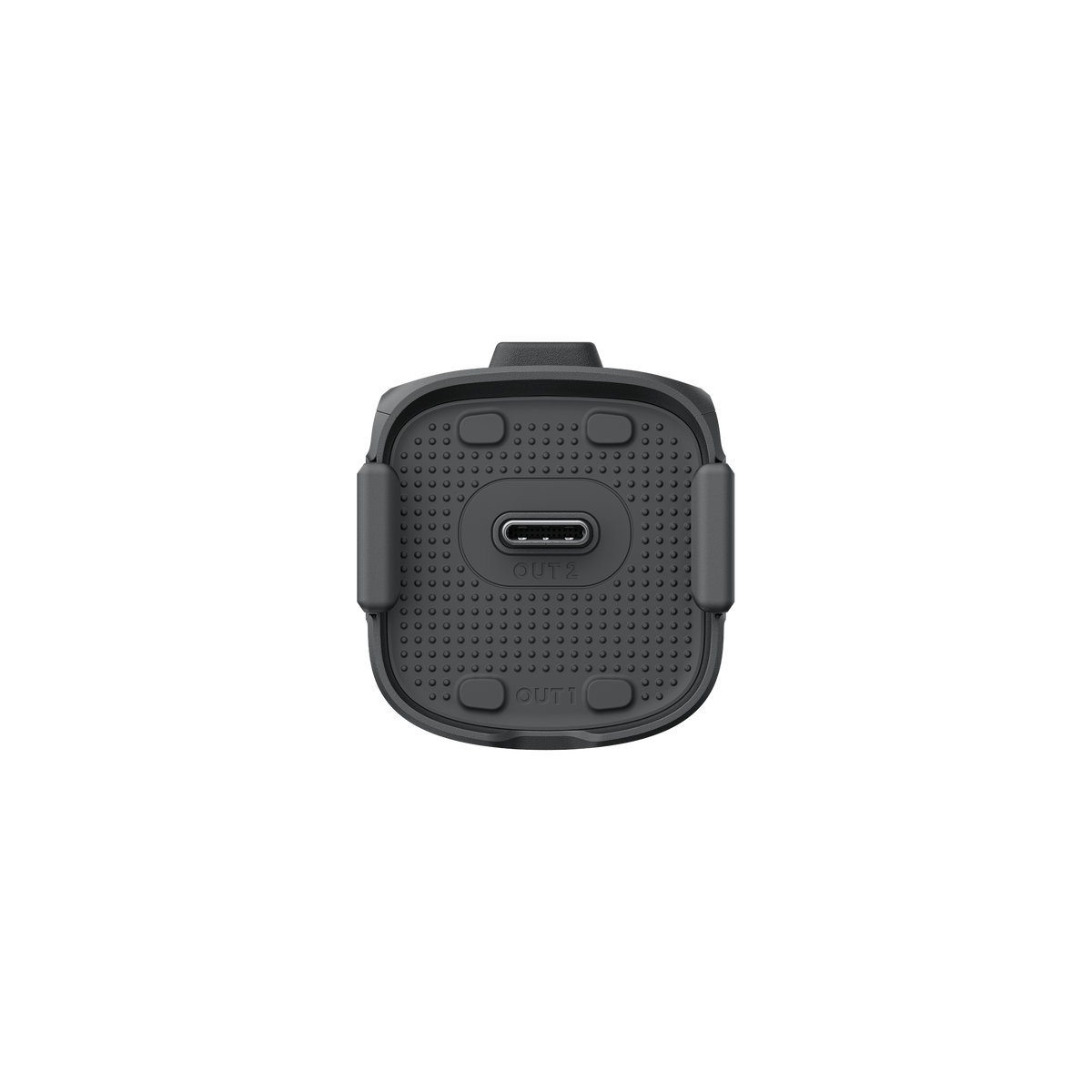

The rear USB-C port can connect compatible external audio equipment, including supported digital headphones, wired microphones and wireless microphone receivers. The same port has a specified power-output mode for a suitable USB-C mobile device. Match the intended device and cable to that function; a shared connector alone does not establish that every audio accessory, data device or charging protocol is supported.
Recharge the Handle Between Sessions
Connect a suitable separate USB-C cable and power adapter to charge the handle on its own. The guide gives an approximate full-charge time of 40 minutes. With the camera attached, external power charges the camera first and then switches to the handle once the camera is full. The published operating and charging temperature limits remain important, and actual charging time depends on the power source and conditions.
Check Status and Keep Firmware Current

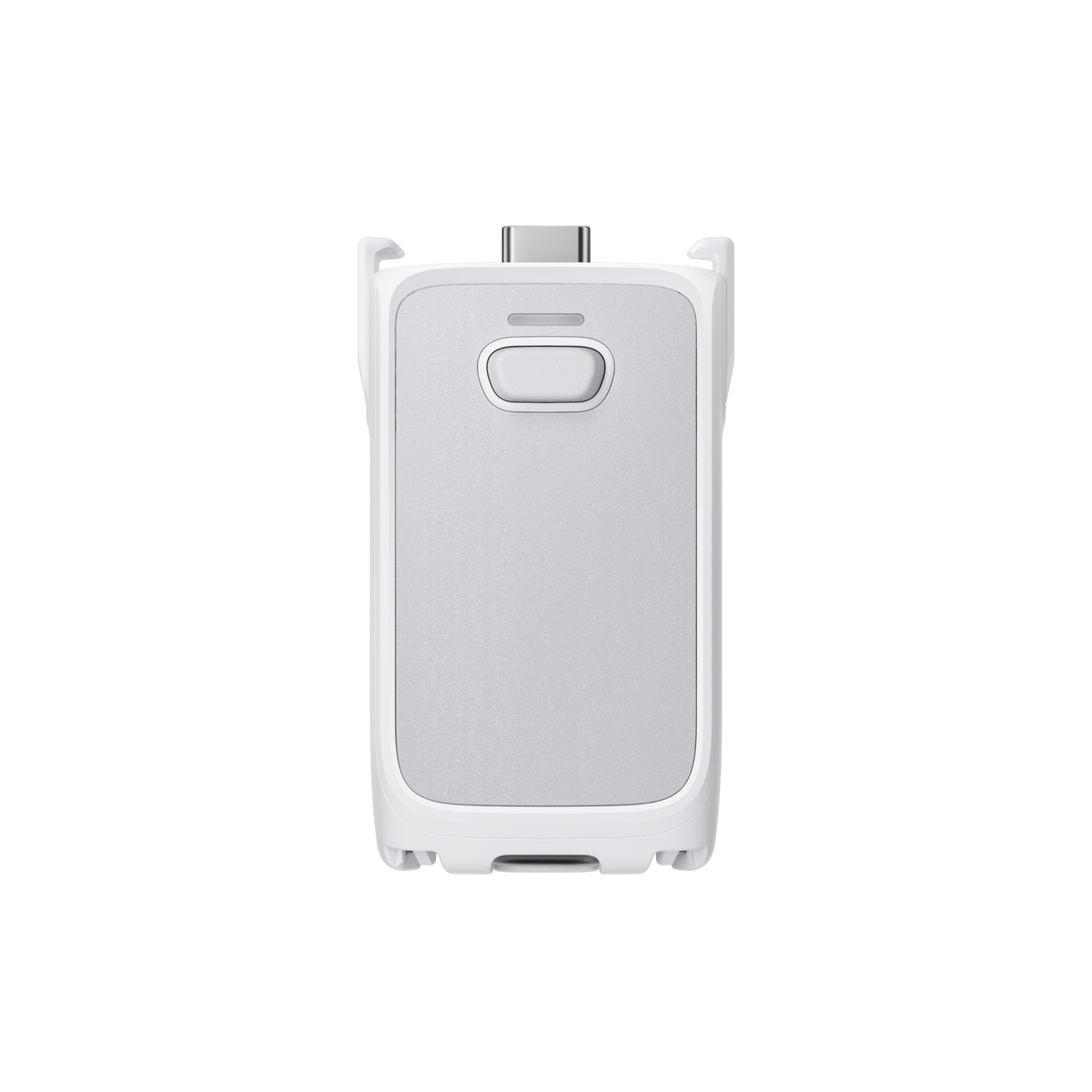

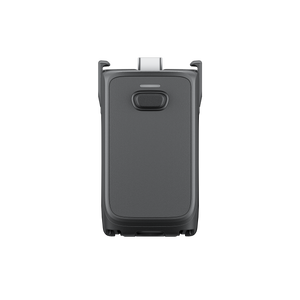

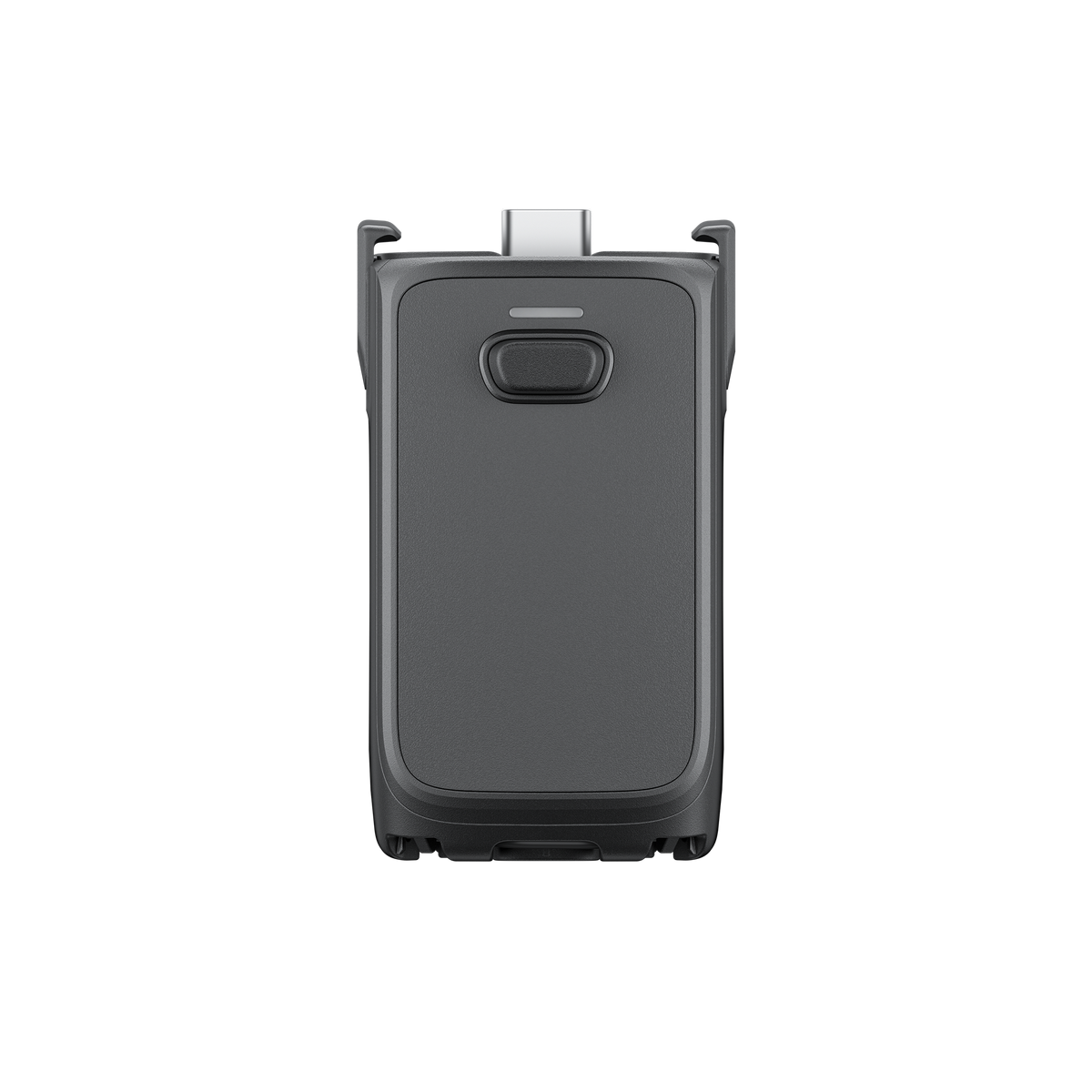

The indicator lights show charging, charge level and update status. After detaching the handle, press its release button once to check the remaining battery level. When an update is available, attaching the handle to a camera that is not recording can start the update automatically. Keep both batteries sufficiently charged and leave the handle attached until the update completes. On-camera charge information depends on firmware support.

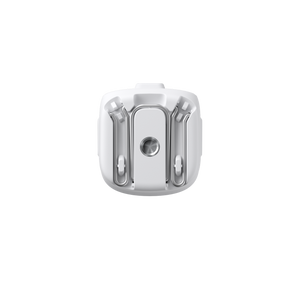

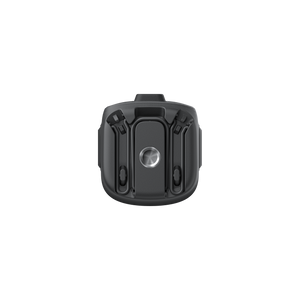

Build the Setup Within Its Intended Limits

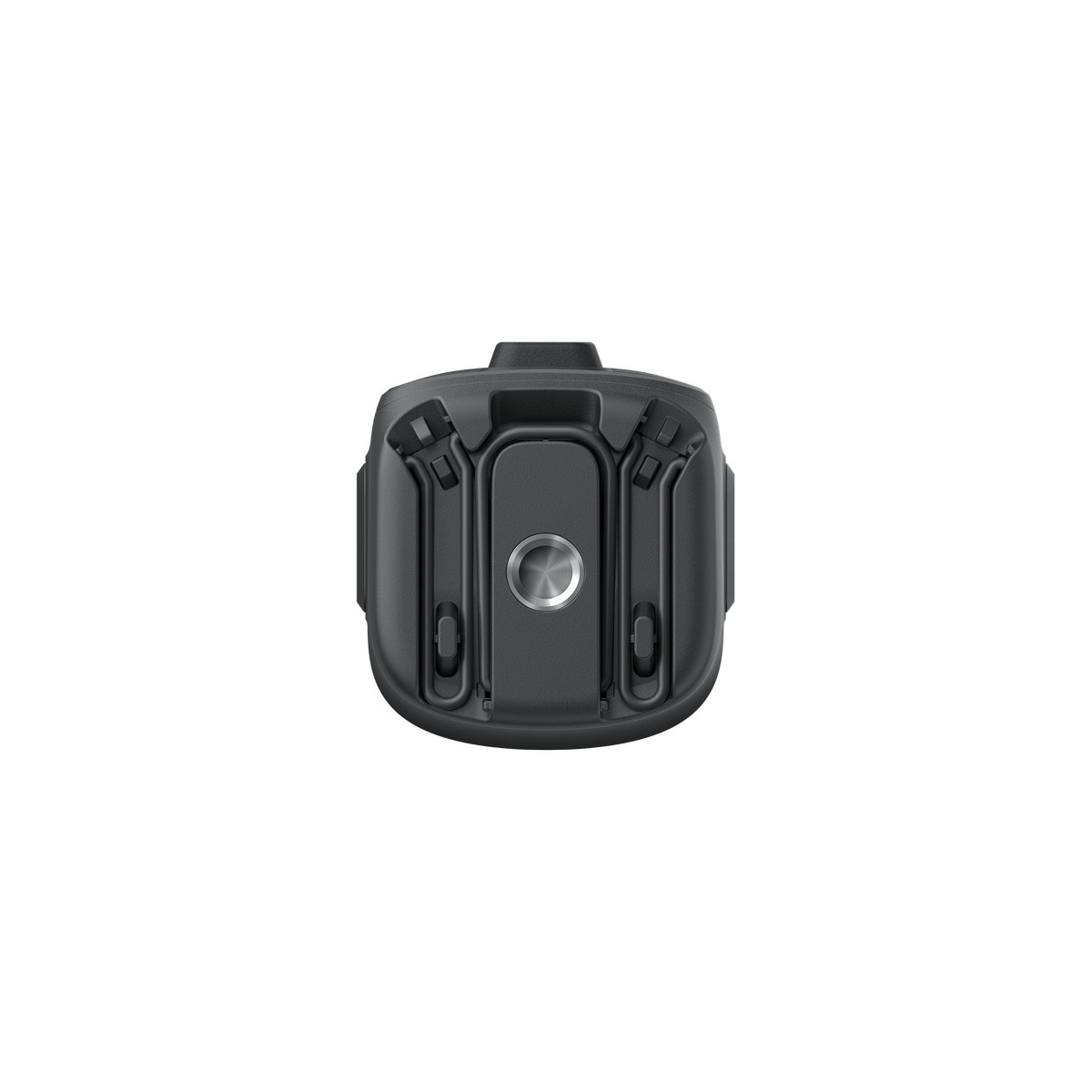

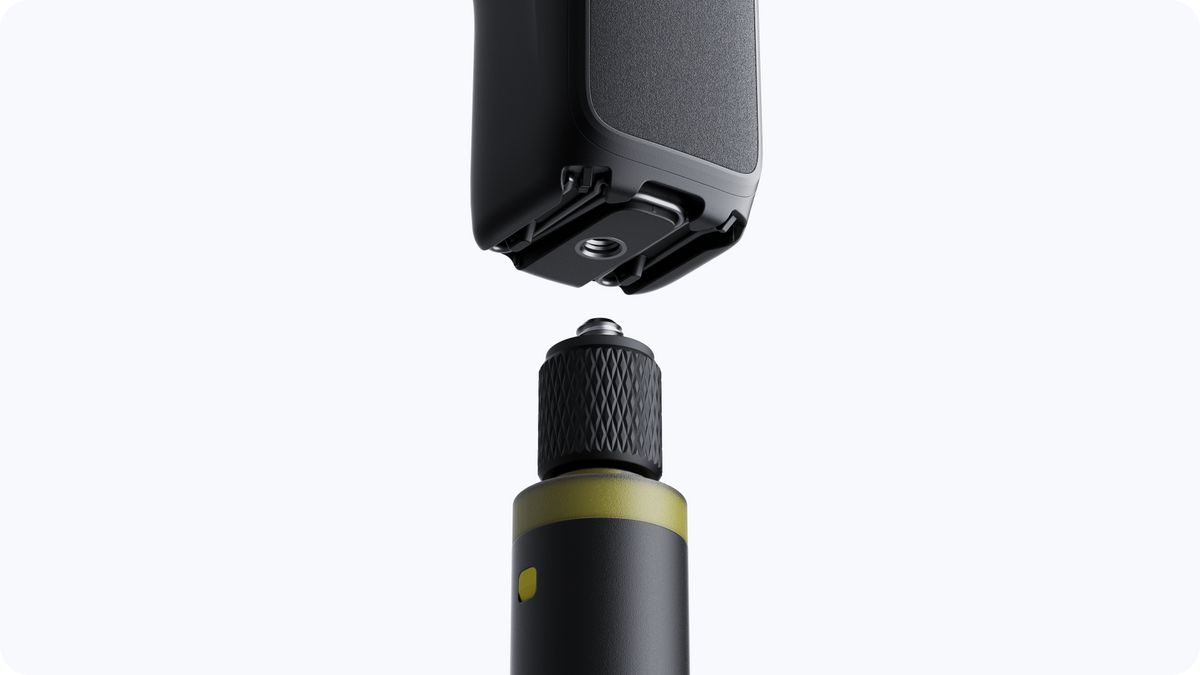

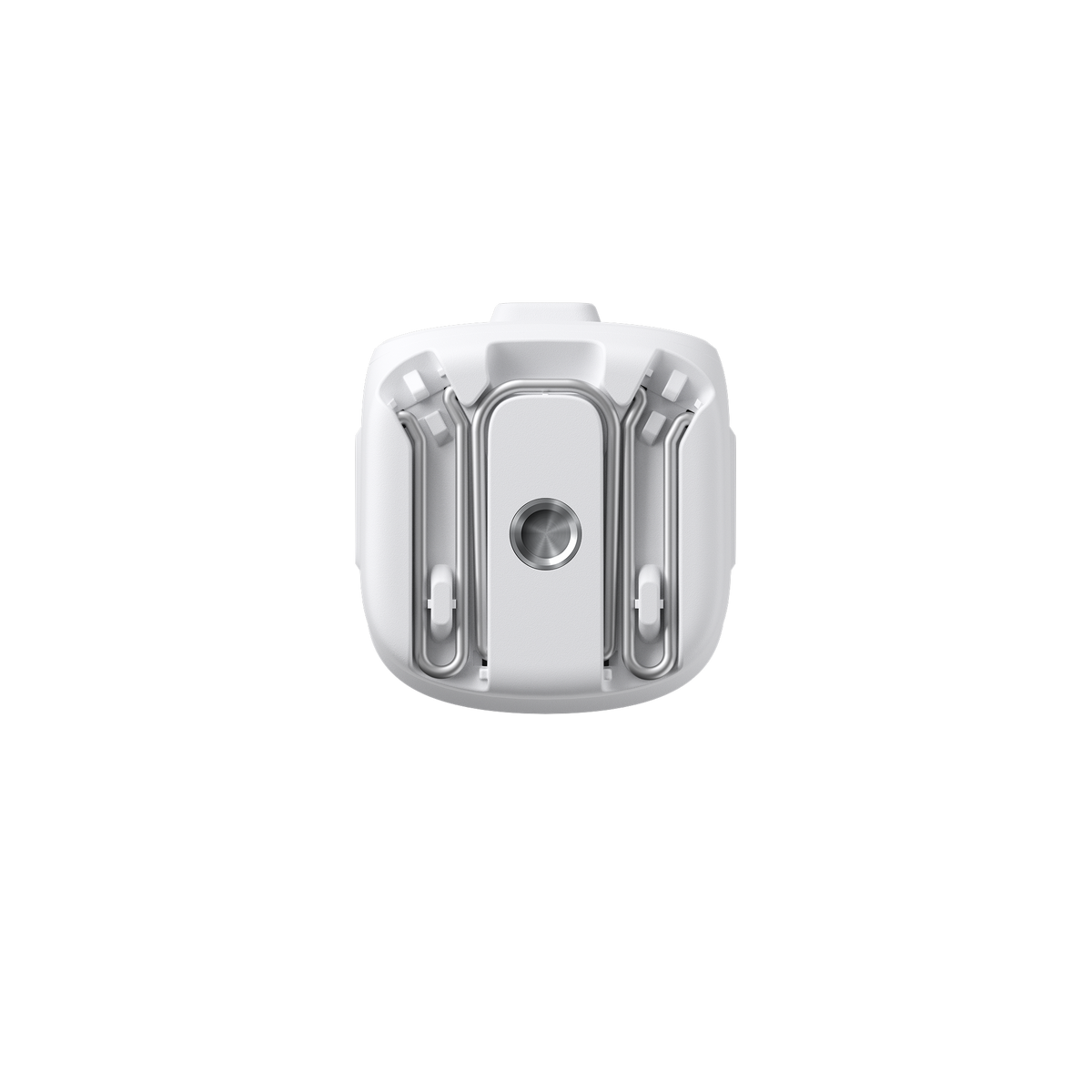

The bottom 1/4-inch mounting point accepts appropriate additional accessories for a considered filming arrangement. Secure the connection and check the complete camera setup before use. The manufacturer excludes intense activities such as motorcycle riding, cycling and skiing for this handle. Use the release button to detach it rather than pulling against the locked clips.
Summary
Insta360 Luna Series Battery Handle brings additional power, a small tripod and practical connections into one compact Luna accessory. Fit both retaining clips, choose the intended charging or audio arrangement and prepare the batteries before recording. Its value is a more organised everyday setup, with clear limits for charging, firmware and supported use.
Frequently Asked Questions
Which Cameras Does the Battery Handle Fit?
The current manufacturer offer and accessory table support Insta360 Luna Ultra and Luna Pro. The package contains one Battery Handle. The camera, charging cable, mains adapter and any other accessories are separate.
Can It Fully Recharge a Luna Ultra on Its Own?
No. The manufacturer states that the handle’s own battery cannot fully recharge Luna Ultra. It adds reserve power rather than guaranteeing a complete camera charge. Its rear USB-C output can also provide a top-up to a compatible mobile device, subject to the device’s battery requirements.
How Do I Charge the Camera and Handle Together?
Attach the handle securely to the camera, then connect a suitable power adapter and USB-C cable to the handle’s rear port. The camera charges first. Once it is fully charged, charging switches to the handle. Charging the handle alone takes approximately 40 minutes under the manufacturer’s stated setup; actual conditions affect the result.
Can I Use the Rear USB-C Port for Audio?
The guide supports compatible external audio equipment such as digital headphones, wired microphones and wireless microphone receivers. Device and cable compatibility still need to be checked. Do not assume the port supports every USB-C accessory or an unlisted data-transfer function.
Can I Use It for Cycling or Motorcycle Filming?
The manufacturer says not to use this handle during intense activities such as motorcycle riding, cycling or skiing. For stationary filming, use a stable surface and check the camera balance. Keep the handle attached during firmware updates and use the release button before removing it.
사양
Insta360 Luna Series Battery Handle
Insta360 Luna Series Battery Handle combines a rechargeable power source with a compact camera grip and built-in tripod. Its direct camera connection and rear USB-C port have different specified roles, so the output figures should not be treated as a universal fast-charging claim. The measurements below describe the handle, without a camera. Use a supported Luna model, lock both clips and observe the temperature and activity limits. The included item is the handle; charging equipment and camera accessories are separate.
| Specification | Details |
|---|---|
| Camera Fit and Mounting | |
| Supported Cameras | Insta360 Luna Ultra and Luna Pro |
| Camera Connection | Integrated USB-C plug with retaining clips on both sides |
| Stationary Support | Built-in folding tripod |
| Accessory Mount | Bottom 1/4-inch mounting point |
| Rear USB-C Audio | Compatible digital headphones, wired microphones and wireless microphone receivers |
| Battery and Power | |
| Battery Type | Lithium-ion |

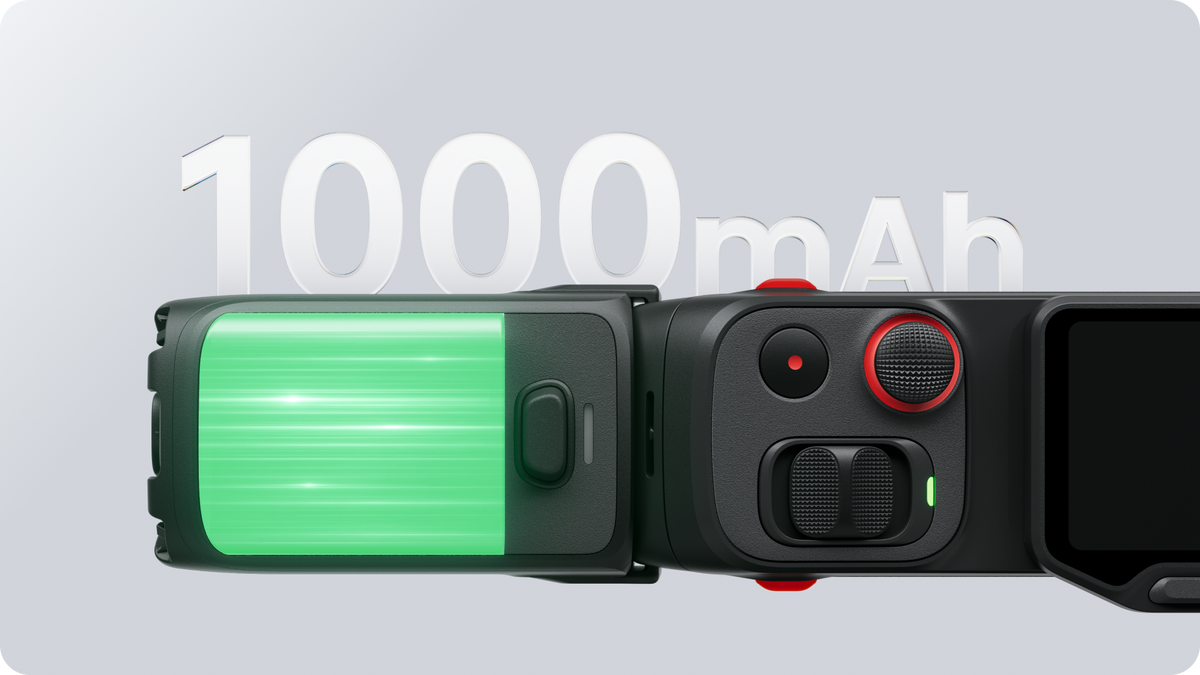

| Rated Capacity and Energy | 1000 mAh / 7.82 Wh |
| Input Profiles | 5 V / 3.6 A; 9 V / 2 A; 12 V / 1.5 A; 12 V / 3 A |
| Rear Port Output OUT1 | 5 V / 1.5 A |
| Camera Plug Output OUT2 | 6.8–9 V / 2 A maximum; 12 V / 3 A |
| Charging Order with Camera Attached | Camera first; handle after the camera is fully charged |
| Published Handle Charge Time | Approximately 40 minutes; suitable separate cable and power adapter required |
| Luna Ultra Recharge Limit | Handle alone cannot fully recharge the camera |
| Status and Operating Conditions | |
| Indication | Charge level, charging/full and firmware-update status lights |
| Charge-Level Check | After detaching, press the release button once to check the indicator lights |
| Firmware Updates | Can update through the attached, non-recording camera; do not detach until complete |
| Update Conditions | Keep camera and handle above 20% charge and avoid overheating |
| Operating Temperature | −10 °C to 45 °C |
| Charging Temperature | 5 °C to 45 °C |
| Activity Limits | Not for intense motorcycle riding, cycling or skiing |
| Physical Details and Package | |
| Dimensions | Approximately 34.6 × 37.6 × 59.6 mm |
| Weight | Approximately 63.7 g |
| Materials | Metal, plastic and silicone |
| Included | 1 Battery Handle |
| Supplied Separately | Camera, USB-C cable, mains power adapter and additional accessories |
| Warranty | 1 year |
