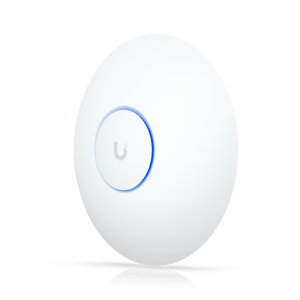

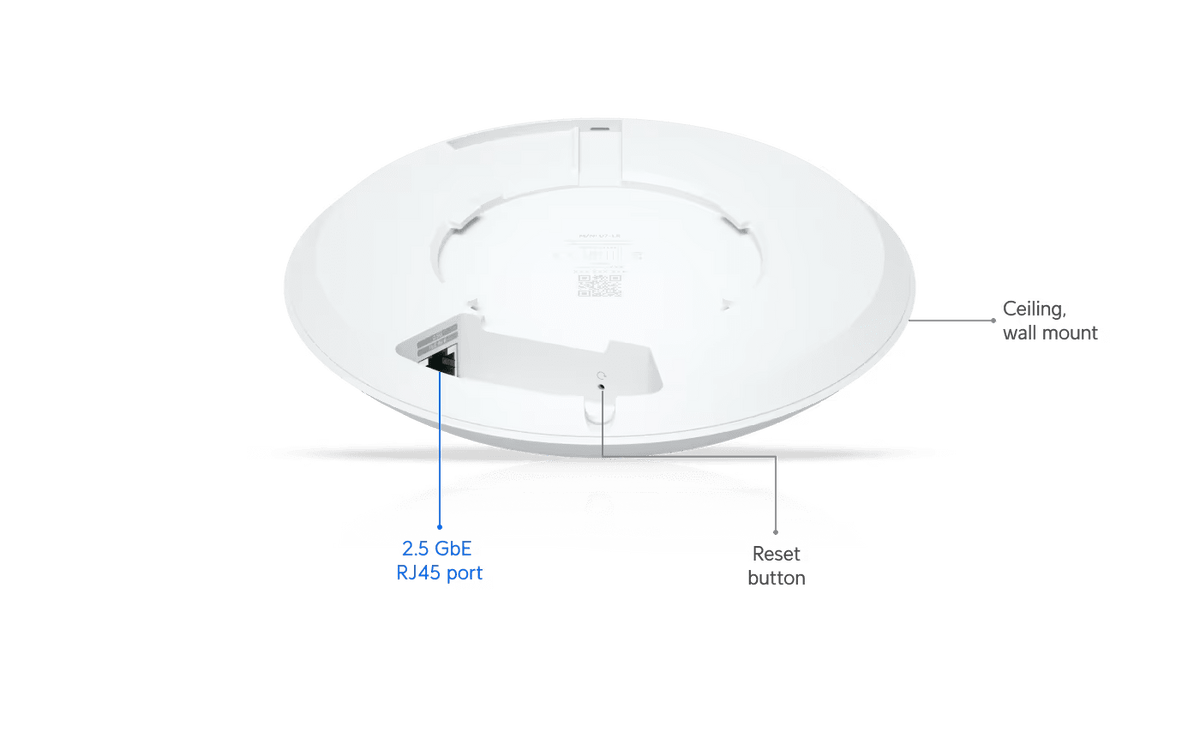

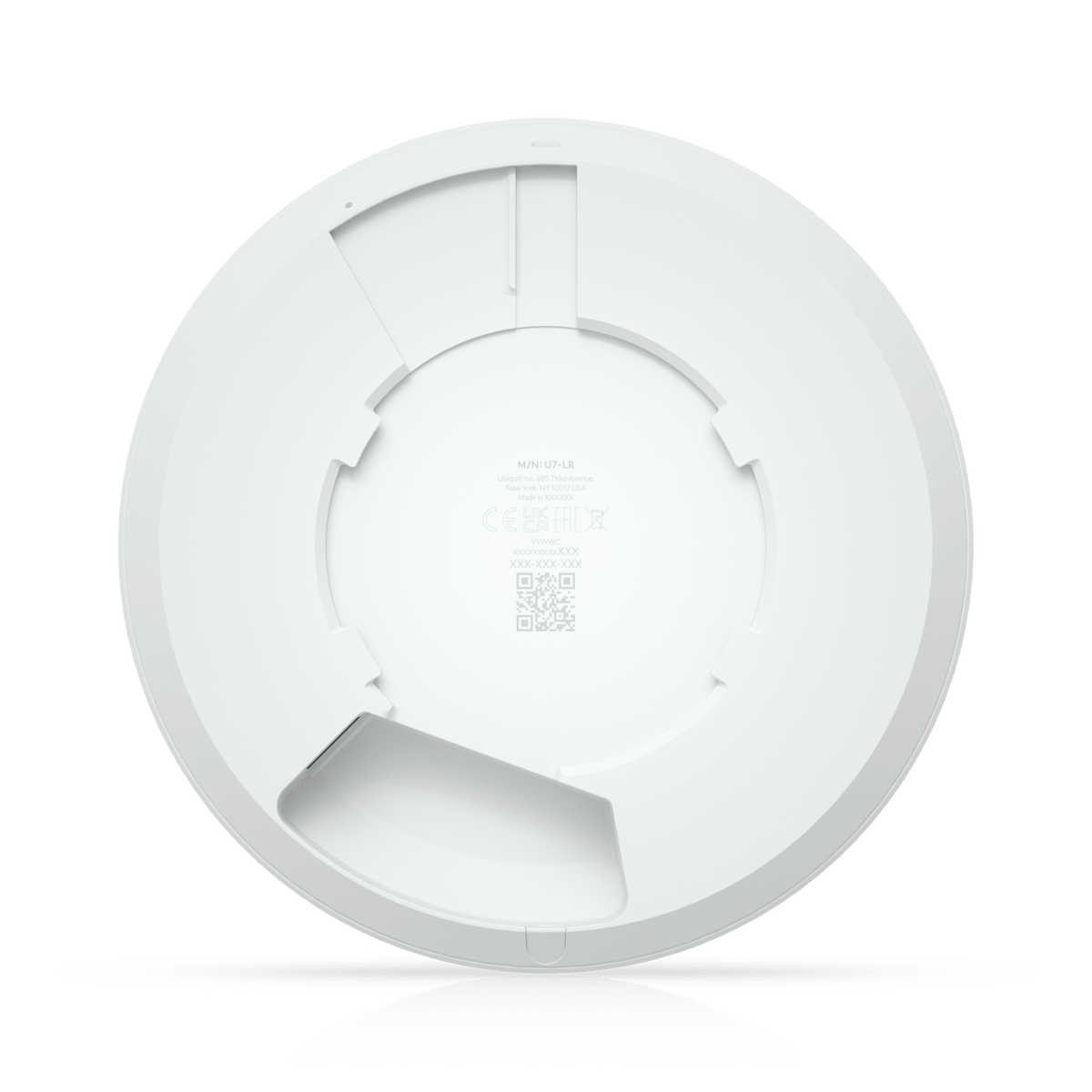

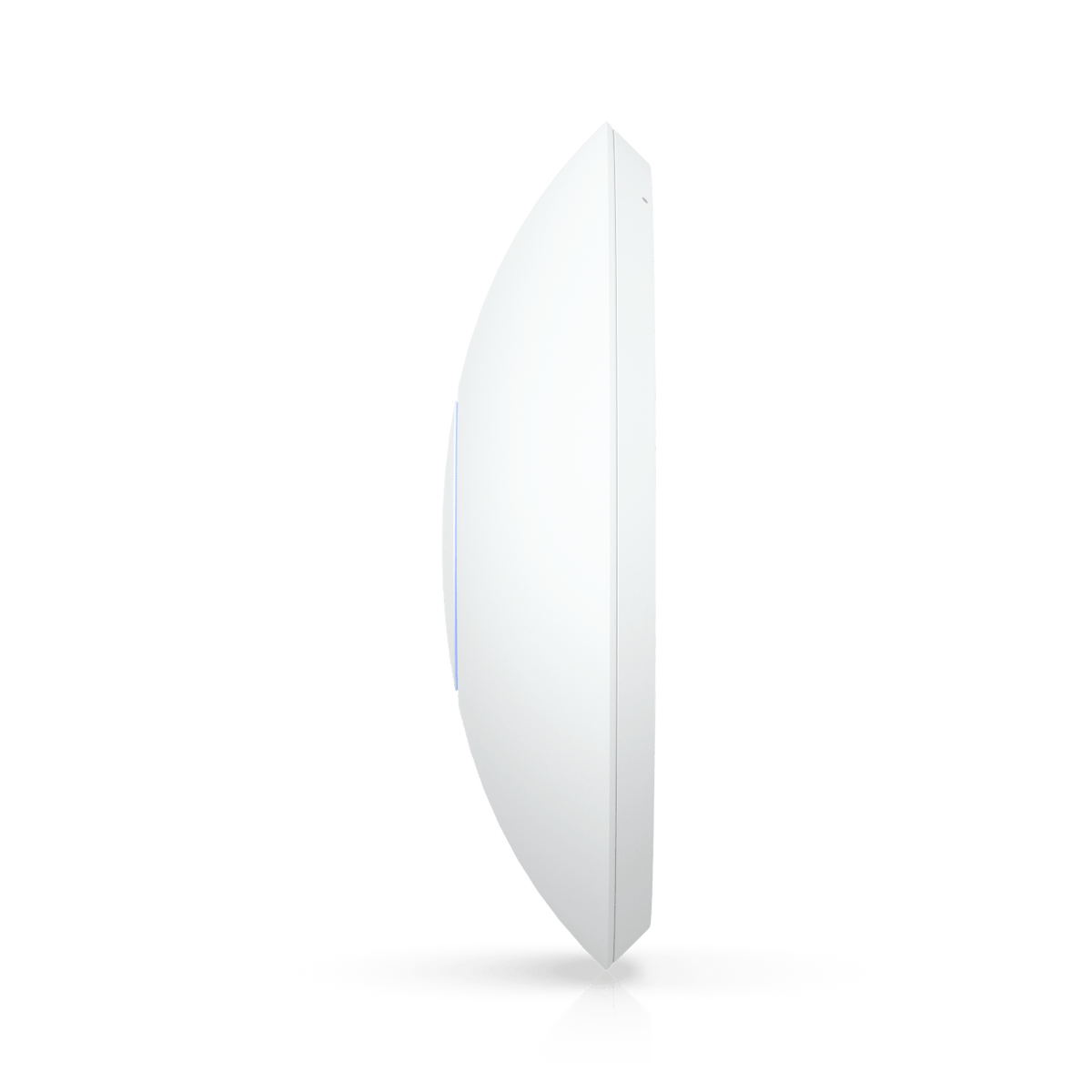

Ubiquiti U7-LR BE5000 U7 Long-Range 2.5GbE Access Point
商品説明
Next-Level WiFi 7 for Extended Coverage and High Capacity
Unlock powerful, seamless wireless connectivity for busy offices, campuses, and retail environments—WiFi 7 speed, long-range coverage, and robust security in one compact AP.
Highlights
-
WiFi 7 with 5 spatial streams for ultra-fast performance
-
Covers up to 160 ㎡ (1,750 ft²) and supports 300+ clients
-
2.5 GbE uplink for high-speed backhaul
-
Advanced MU-MIMO, wireless meshing, and band steering
-

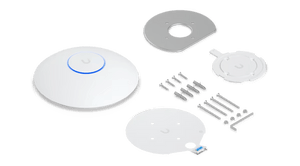

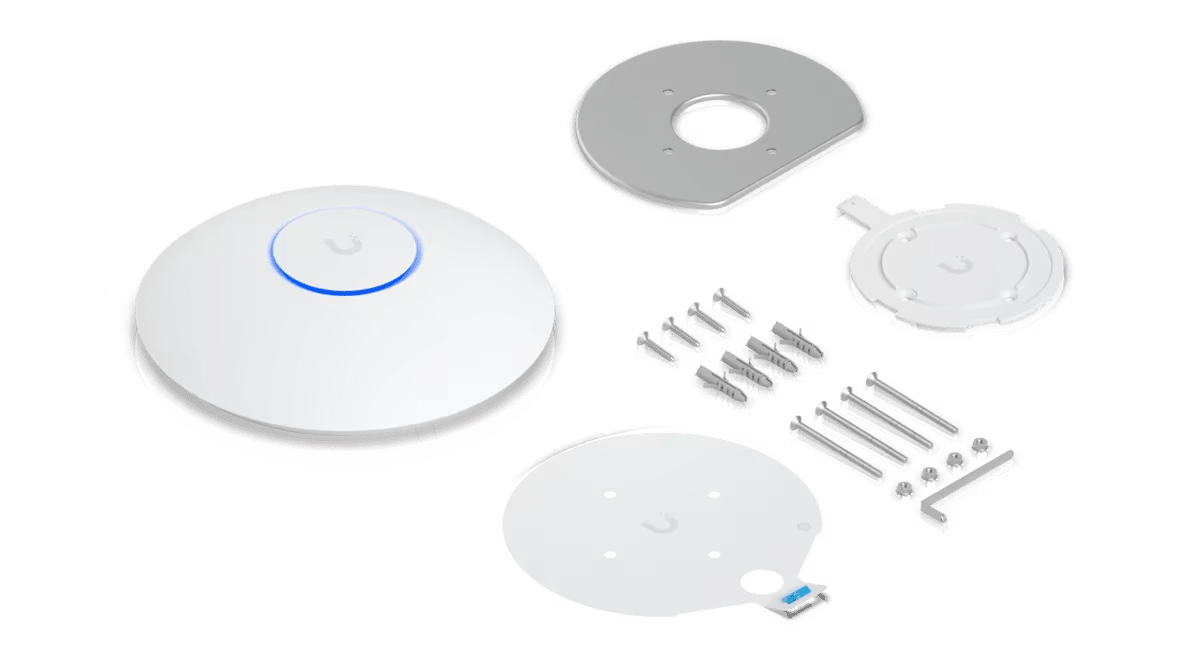

Flexible ceiling or wall mount, with plastic plate included
-
Polycarbonate and aluminum enclosure for durability
-
NDAA compliant and certified for business deployment
Key Features
Performance & Radio
-
WiFi Standard: WiFi 7 (802.11be), backwards compatible with WiFi 6/5/4
-
Spatial Streams: 5
-
Max Data Rate: 4.3 Gbps on 5 GHz, 688 Mbps on 2.4 GHz
-
5 GHz: 3x3 DL/UL MU-MIMO, 6 dBi antenna gain, 27 dBm max TX power
-
2.4 GHz: 2x2 DL/UL MU-MIMO, 4 dBi antenna gain, 26 dBm max TX power
-
Supported Data Rates: Up to 4.3 Gbps (MCS0-MCS13, EHT 160 MHz)
-
Channel Bandwidths: HT/VHT/HE/EHT 20/40/80/160 MHz
Coverage & Capacity
-
Coverage Area: Up to 160 ㎡ (1,750 ft²)
-
Max Client Count: 300+ concurrent devices
Networking & Power
-
Uplink: 1× 2.5 GbE RJ45 port
-
Power: PoE (42.5–57V DC), max 14W consumption
-
PoE Adapter: Not included
Management & Features
-
Wireless Meshing, Band Steering, 802.11v/r/k for seamless roaming
-
Passpoint (Hotspot 2.0), captive portal with custom branding
-
Voucher, payment, and password authentication
-
RADIUS over TLS, dynamic VLAN assignment
-
WiFi speed limiting, schedules, guest and client isolation
-
Private Pre-Shared Key (PPSK) support
Build & Environment
-

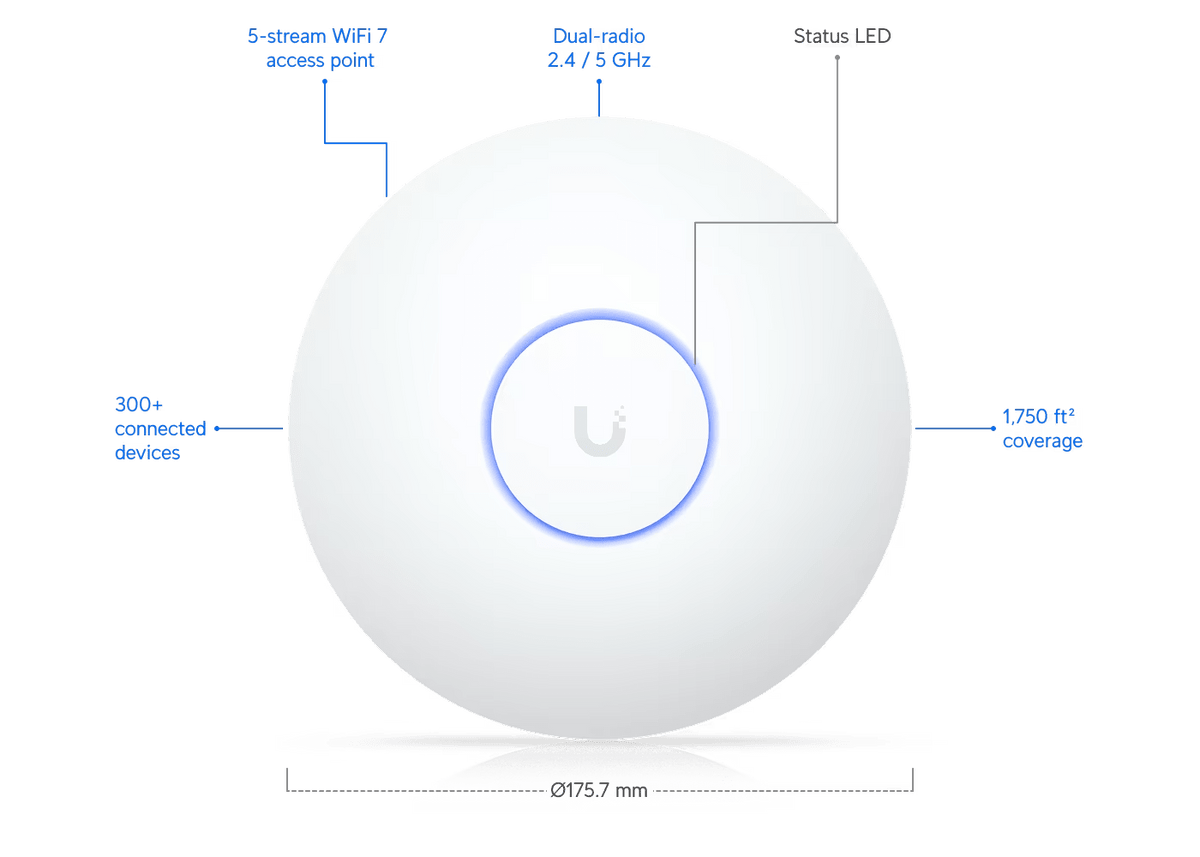

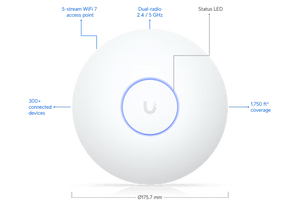

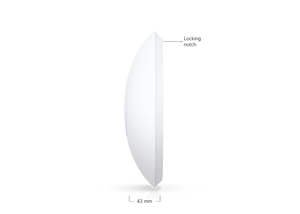

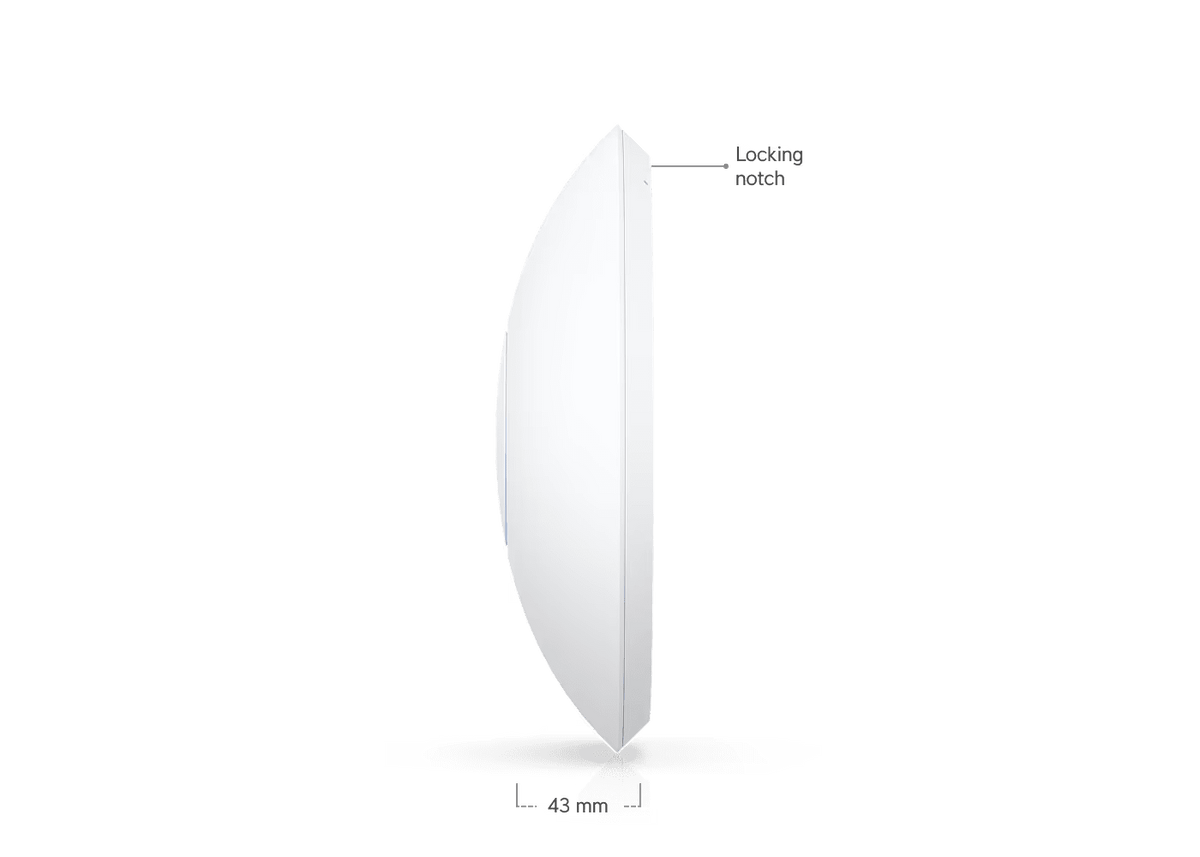

Dimensions: Ø175.7 × 43 mm (Ø6.9 × 1.7 in)
-
Weight: 448 g (15.8 oz)
-
Enclosure: Polycarbonate, aluminum alloy
-
Mount: Polycarbonate, galvanized steel (SGCC)
-
LEDs: System status (white/blue)
-
Operating Temp: –30 to 50 °C (–22 to 122 °F)
-
Humidity: 5% to 95% non-condensing
-
NDAA compliant
-
Certifications: CE, FCC, IC
Summary
The Ubiquiti U7-LR BE5000 delivers WiFi 7 speeds, enterprise-grade coverage, and future-ready security for growing networks. Engineered for high density, reliable mesh expansion, and advanced access controls, this ceiling-mount AP is the smart choice for business and public venues demanding seamless, long-range wireless.
仕様
Ubiquiti U7-LR BE5000 U7 Long-Range 2.5GbE Access Point
The Ubiquiti U7-LR BE5000 is a compact, ceiling-mount WiFi 7 access point featuring 5 spatial streams, extended coverage, and robust multi-user capabilities for demanding wireless environments. Ideal for offices, campuses, and hospitality.
Specifications
| Specification | Details |
|---|---|
| Dimensions | Ø175.7 × 43 mm Ø6.9 × 1.7 in |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 5 |
| Coverage Area | 160 m² 1,750 ft² |
| Max. Client Count | 300+ |
| Uplink | 2.5 GbE |
| Mounting | • Ceiling • Wall Plastic Mounting Plate included |
| Power Method | PoE |
| MIMO | • 5 GHz: 3 x 3 (DL/UL MU-MIMO) • 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) |
| Max. Data Rate | • 5 GHz: 4.3 Gbps (BW160) • 2.4 GHz: 688 Mbps (BW40) |
| Antenna Gain | • 5 GHz: 6 dBi • 2.4 GHz: 4 dBi |
| Max. TX Power | • 5 GHz: 27 dBm • 2.4 GHz: 26 dBm |
| Supported Data Rates | • 802.11be (WiFi 7): 7.3 Mbps – 4.3 Gbps • 802.11ax (WiFi 6): 7.3 Mbps – 3.6 Gbps • 802.11ac (WiFi 5): 6.5 Mbps – 2.6 Gbps • 802.11n: 6.5 Mbps – 450 Mbps |
| Wireless Features | • Wireless Meshing • Band Steering • 802.11v BSS Transition Management • 802.11r Fast Roaming • 802.11k Radio Resource Management (RRM) • Advanced Radio Management |
| Captive Portal & Authentication | • Passpoint (Hotspot 2.0) • Captive Hotspot Portal • Custom Branding Landing Page • Voucher Authentication • Payment-Based Authentication • External Portal Server Support • Password Authentication • Guest Network Isolation • Private Pre-Shared Key (PPSK) • WiFi Speed Limiting • Client Device Isolation • WiFi Schedules • RADIUS over TLS (RadSec) • Dynamic RADIUS-assigned VLAN |
| Max. Power Consumption | 14 W |
| Supported Voltage Range | 42.5 – 57 V DC |
| Networking Interface | 1 × 2.5 GbE RJ45 port |
| Weight | 448 g 15.8 oz |
| Management | Ethernet |
| Enclosure Material | • Polycarbonate • Aluminum alloy |
| Mount Material | • Polycarbonate • Galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | • HT 20/40 MHz • VHT 20/40/80/160 MHz • HE 20/40/80/160 MHz • EHT 20/40/80/160 MHz |
| NDAA Compliant | ✓ |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50°C -22 to 122°F |
| Ambient Operating Humidity | 5% to 95% noncondensing |
