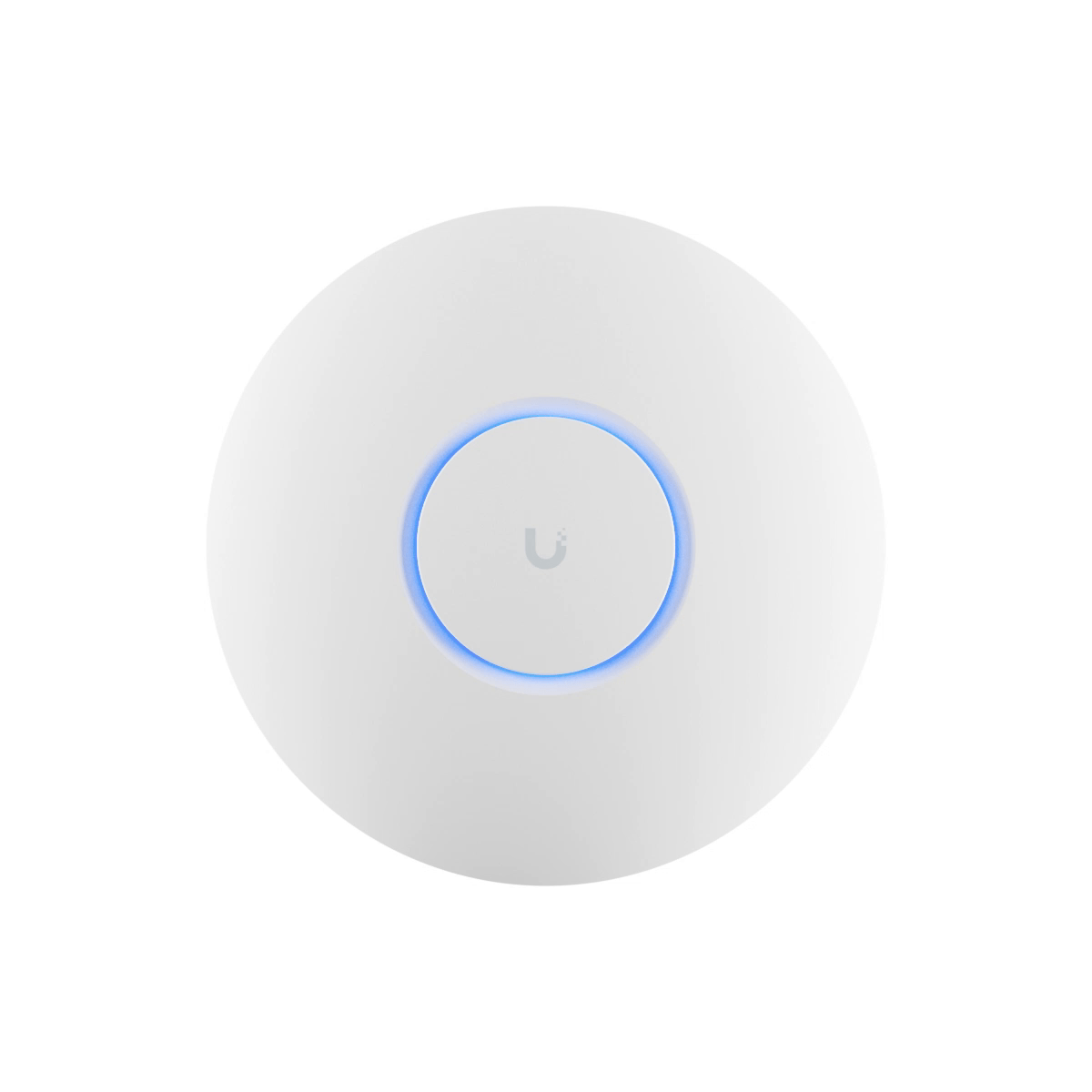

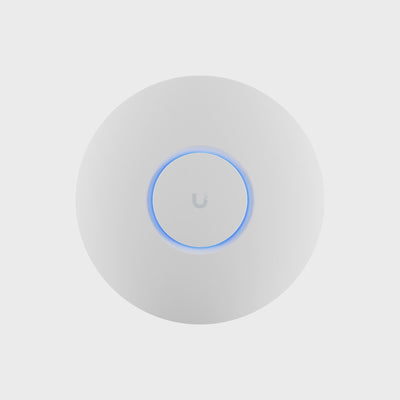

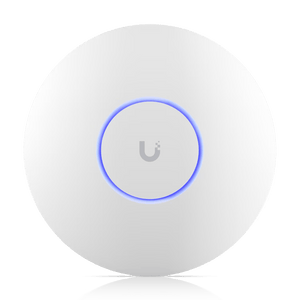

Ubiquiti U6+ AX3000 Access Point
商品説明
Next-Level Performance and Scalability for SMBs
Overview
The Ubiquiti U6+ is an advanced, compact access point tailored to deliver superior wireless performance for small to medium-sized businesses. It features dual-band WiFi6 support, expansive coverage, and the capability to support 300+ connected devices simultaneously, all powered via PoE (Power over Ethernet).
Key Features
Expansive Coverage
With 140 m² (1,500 ft²) of coverage, the U6+ ensures that your wireless network has minimal dead spots, providing a stable connection throughout your office or business space.
Robust Connectivity
Designed to handle high-density environments, the U6+ can support more than 300 concurrent clients without sacrificing speed or performance.
Advanced WiFi 6 (2x2 MIMO)
The U6+ features WiFi 6 with 2x2 MIMO on both 2.4 GHz and 5 GHz bands, providing significant improvements in speed, efficiency, and energy usage over previous WiFi standards.
Power Over Ethernet
The U6+ draws its power from a PoE source, eliminating the need for additional power adapters and reducing cable clutter.
Technical Specifications
Mechanical
- Dimensions: Ø160 x 33 mm (Ø6.3 x 1.3")
- Weight: Without mount: 338 g; With mount: 413 g

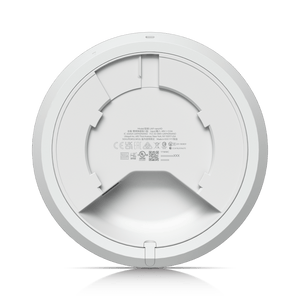

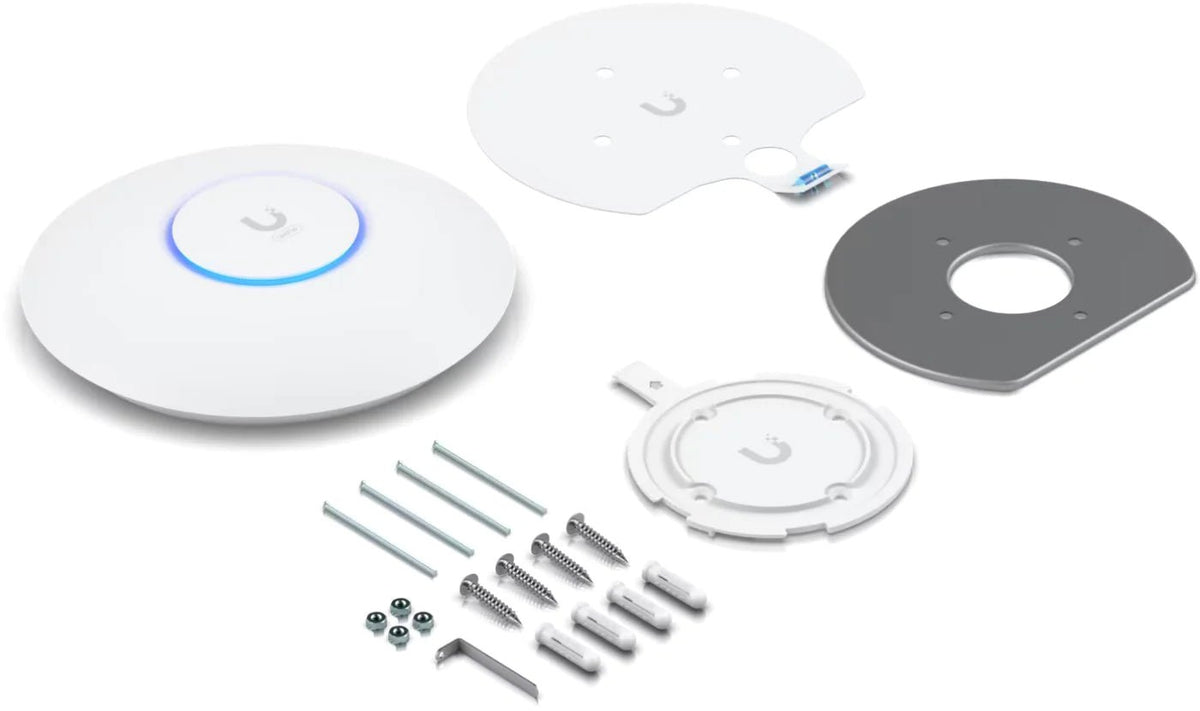

- Materials: Polycarbonate enclosure, ABS and SGCC steel mount
Hardware
- Networking Interface: (1) GbE RJ45 port
- Power Method: PoE
- Max. Power Consumption: 9W
- Max. TX Power: 23 dBm (both 2.4 GHz and 5 GHz)
- MIMO: 2x2 (both 2.4 GHz and 5 GHz)
- Throughput Rate: 573.5 Mbps (2.4 GHz); 2402 Mbps (5 GHz)
- Antenna Gain: 3dBi (2.4 GHz); 5.4 dBi (5 GHz)
- Operating Conditions: -30 to 60°C; 5 to 95% non-condensing humidity
Software
- WiFi Standards: 802.11a/b/g; WiFi 4/WiFi 5/WiFi 6
- Wireless Security: WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3)
- VLAN: 802.1Q
- Advanced QoS: Per-user rate limiting
- Guest Traffic Isolation: Supported
- Zero-wait DFS: Supported (upcoming firmware)
Conclusion
The Ubiquiti U6+ Access Point offers an ideal combination of speed, scalability, and robustness, making it a top choice for small and medium-sized businesses looking to upgrade their wireless infrastructure. With its advanced features and straightforward setup, the U6+ is a worthy investment for any business that demands reliable, high-speed internet access.
仕様
| Mechanical | |
|---|---|
| Dimensions | Ø160 x 33 mm (Ø6.3 x 1.3") |
| Weight | Without mount: 338 g (0.75 lb) |
| With mount: 413 g (0.91 lb) | |
| Enclosure materials | Polycarbonate, aluminum |
| Mount materials | ABS, SGCC steel |
| Hardware | |
| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE |
| Supported voltage range | 44–57V DC |
| Max. power consumption | 9W |
| Max. TX power 2.4 GHz | 23 dBm |
| Max. TX power 5 GHz | 23 dBm |
| MIMO 2.4 GHz | 2 x 2 |
| MIMO 5 GHz | 2 x 2 |
| Throughput rate 2.4 GHz | 573.5 Mbps |
| Throughput rate 5 GHz | 2402 Mbps |
| Antenna gain 2.4 GHz | 3dBi |
| Antenna gain 5 GHz | 5.4 dBi |
| Operating Conditions & Interface | |
| Operating temperature | -30 to 60° C (-22 to 140° F) |
| Operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
| WiFi standards | 802.11a/b/g, WiFi 4/WiFi 5/WiFi 6 |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) |
| BSSID | 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Zero-wait DFS | Yes* (*Supported with upcoming firmware versions) |
| Concurrent clients | 300+ |
| Management application | UniFi Network: Version 7.3.76 and later |
