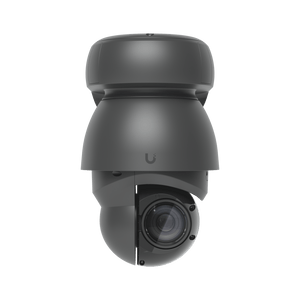

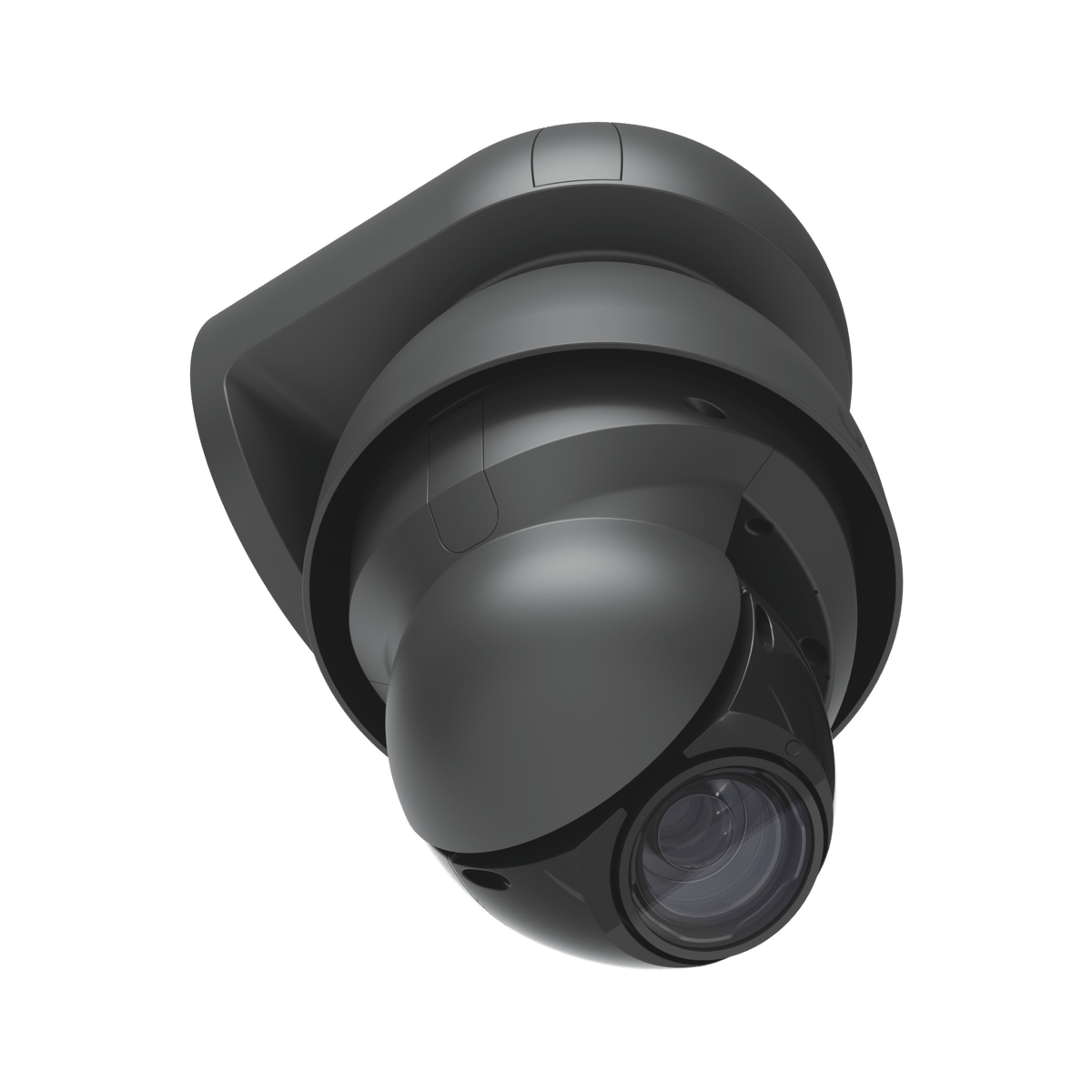

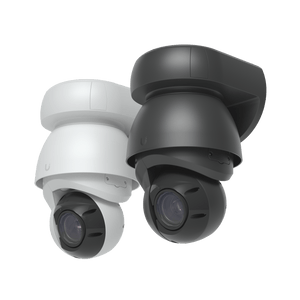

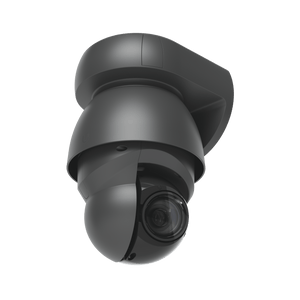

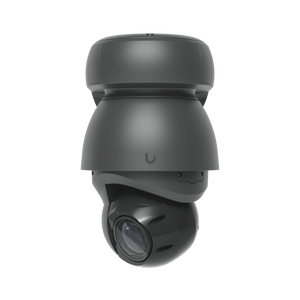

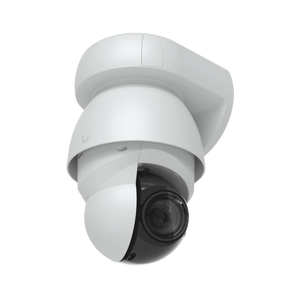

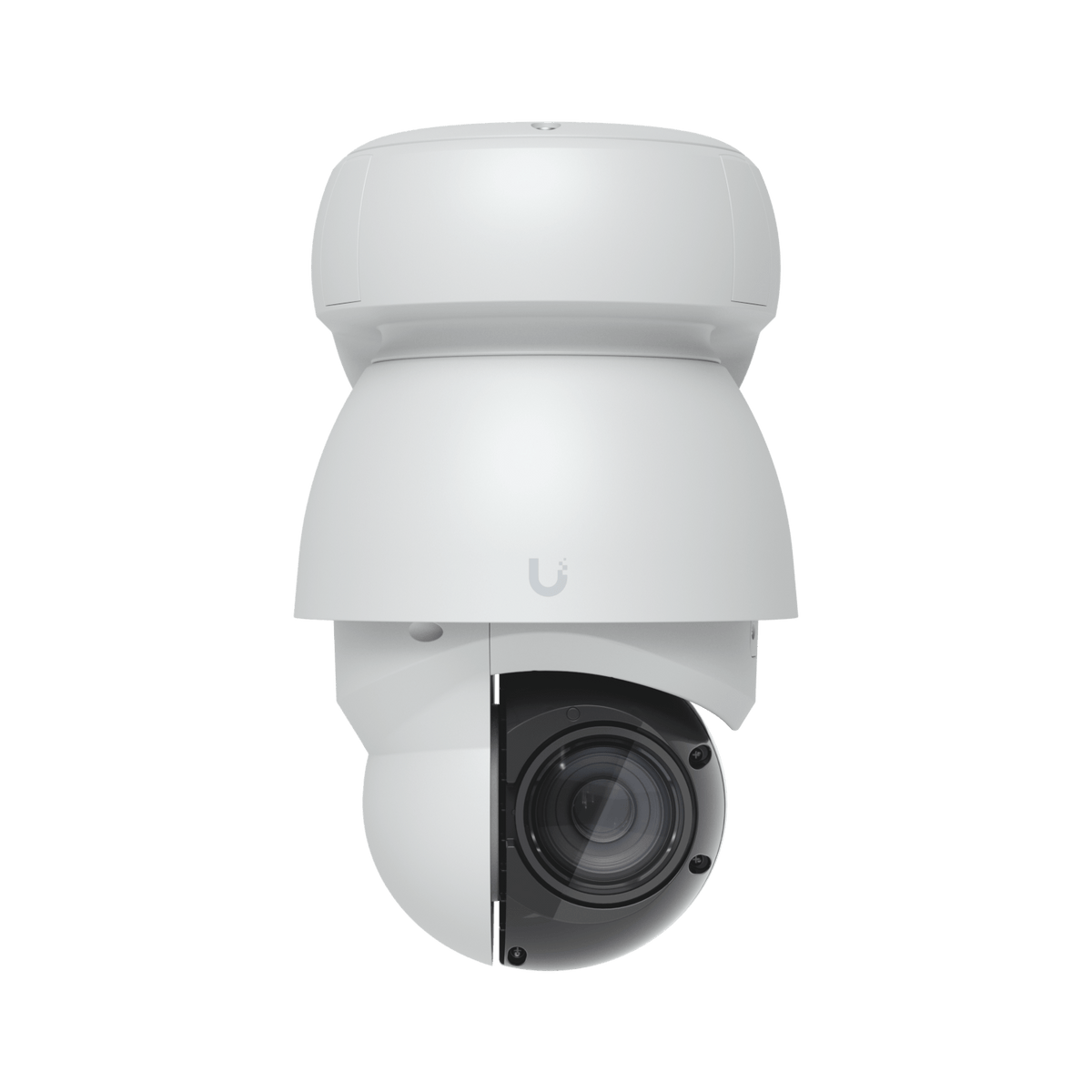

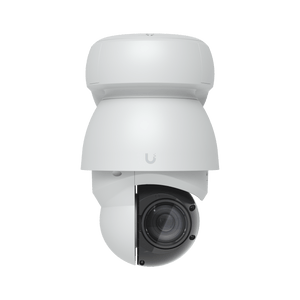

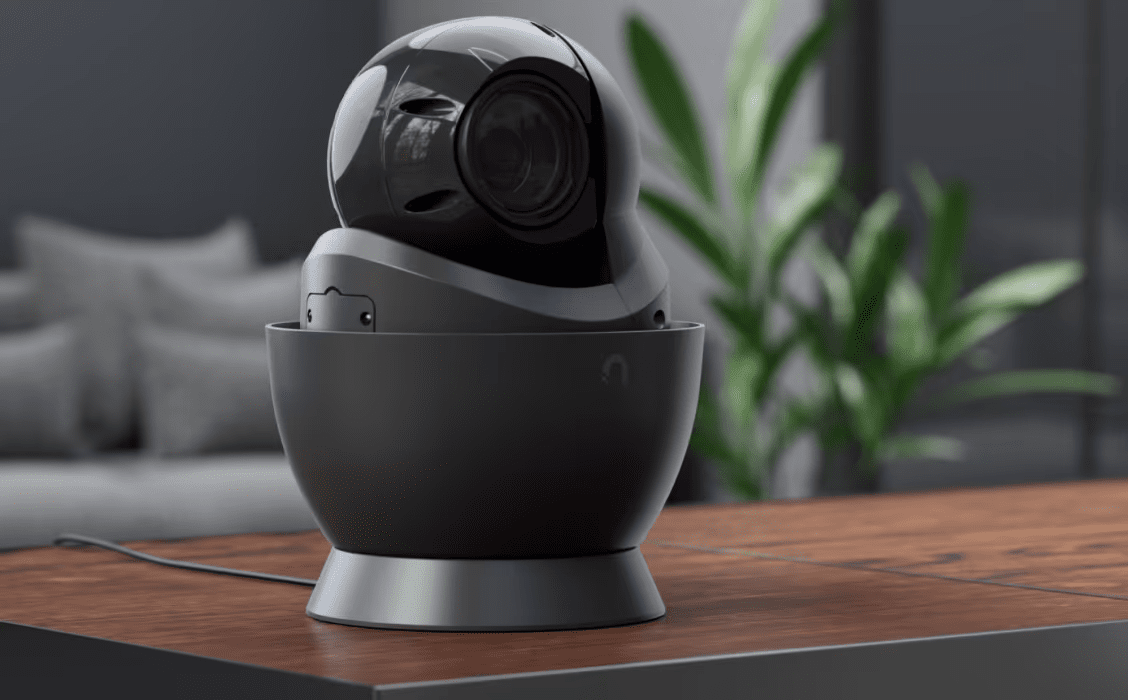

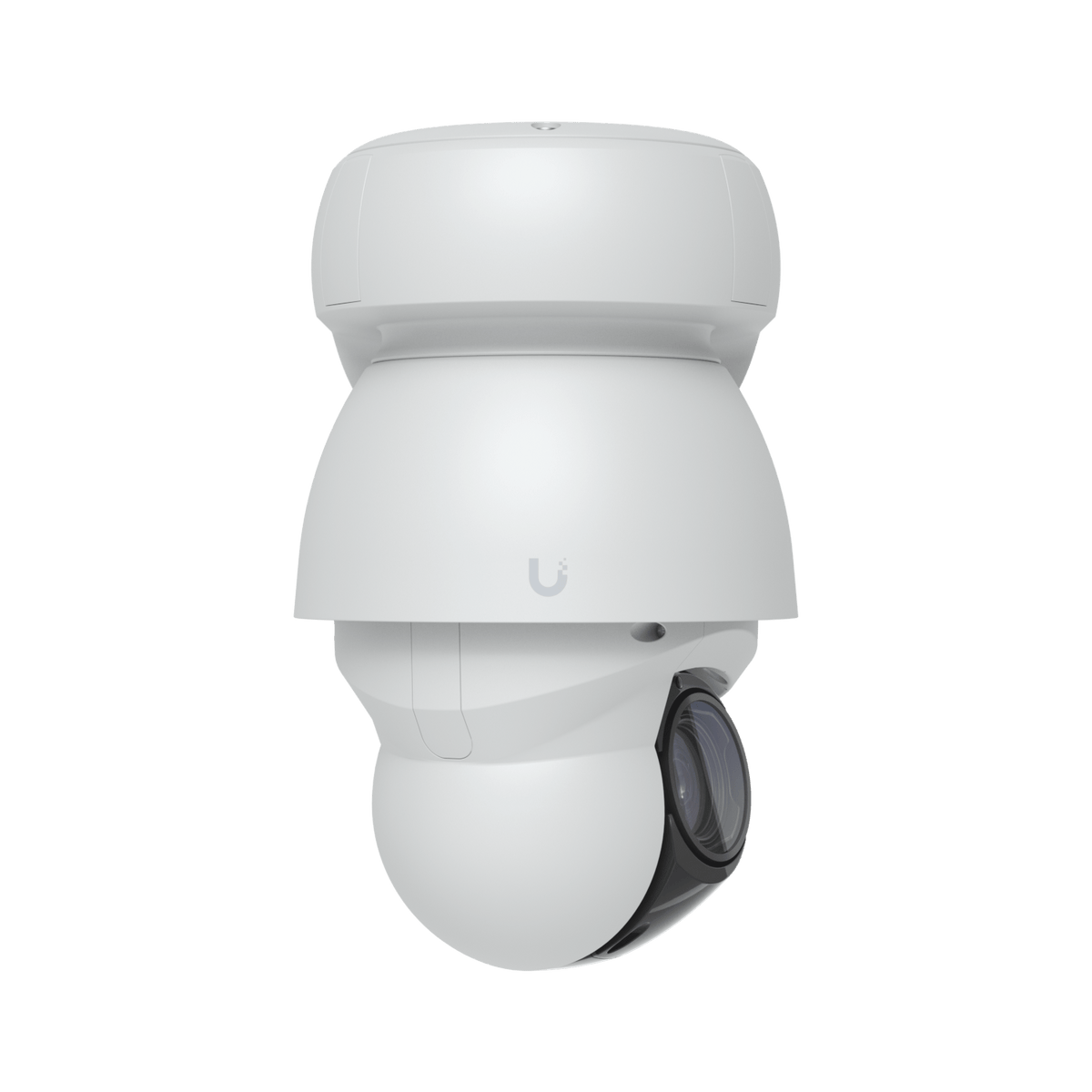

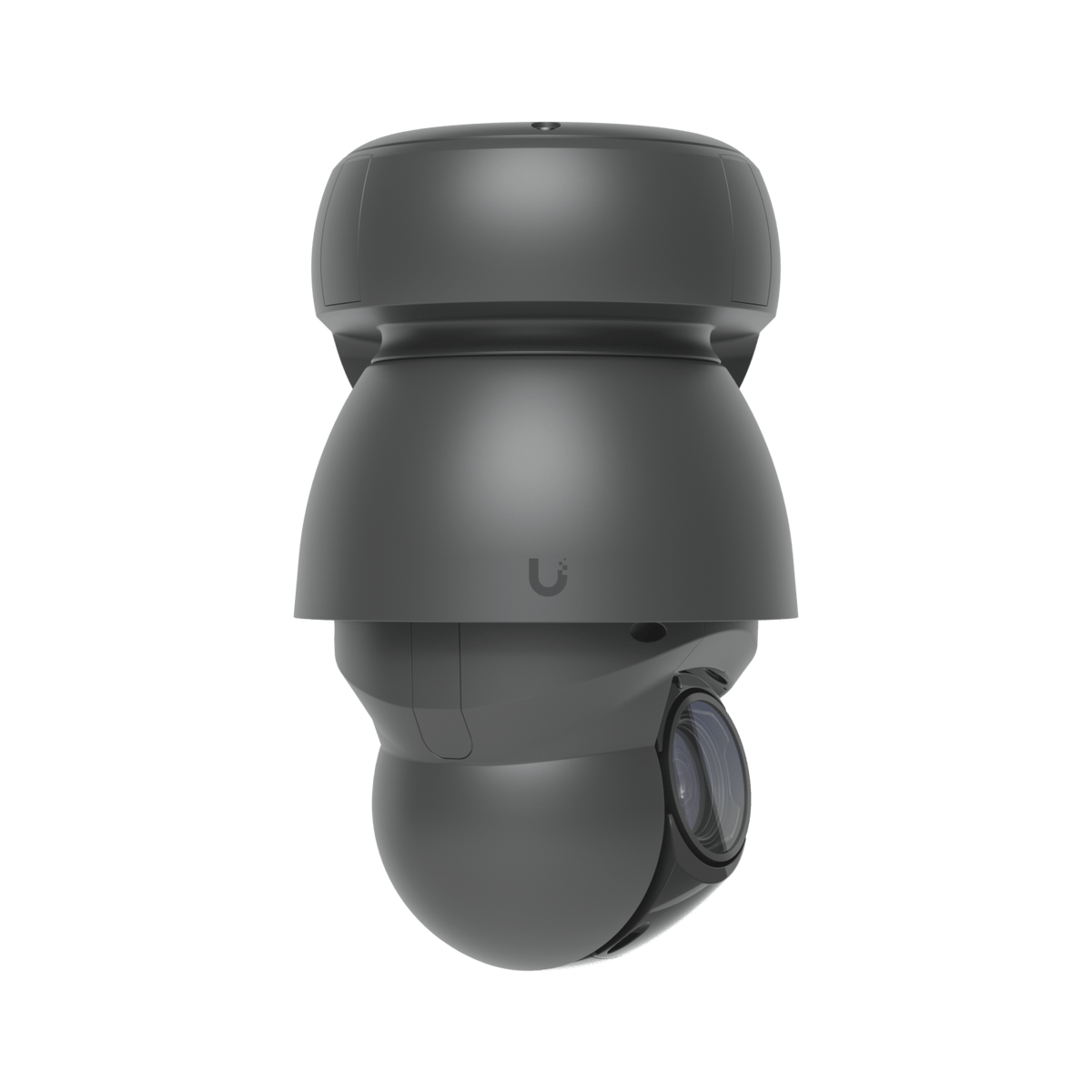

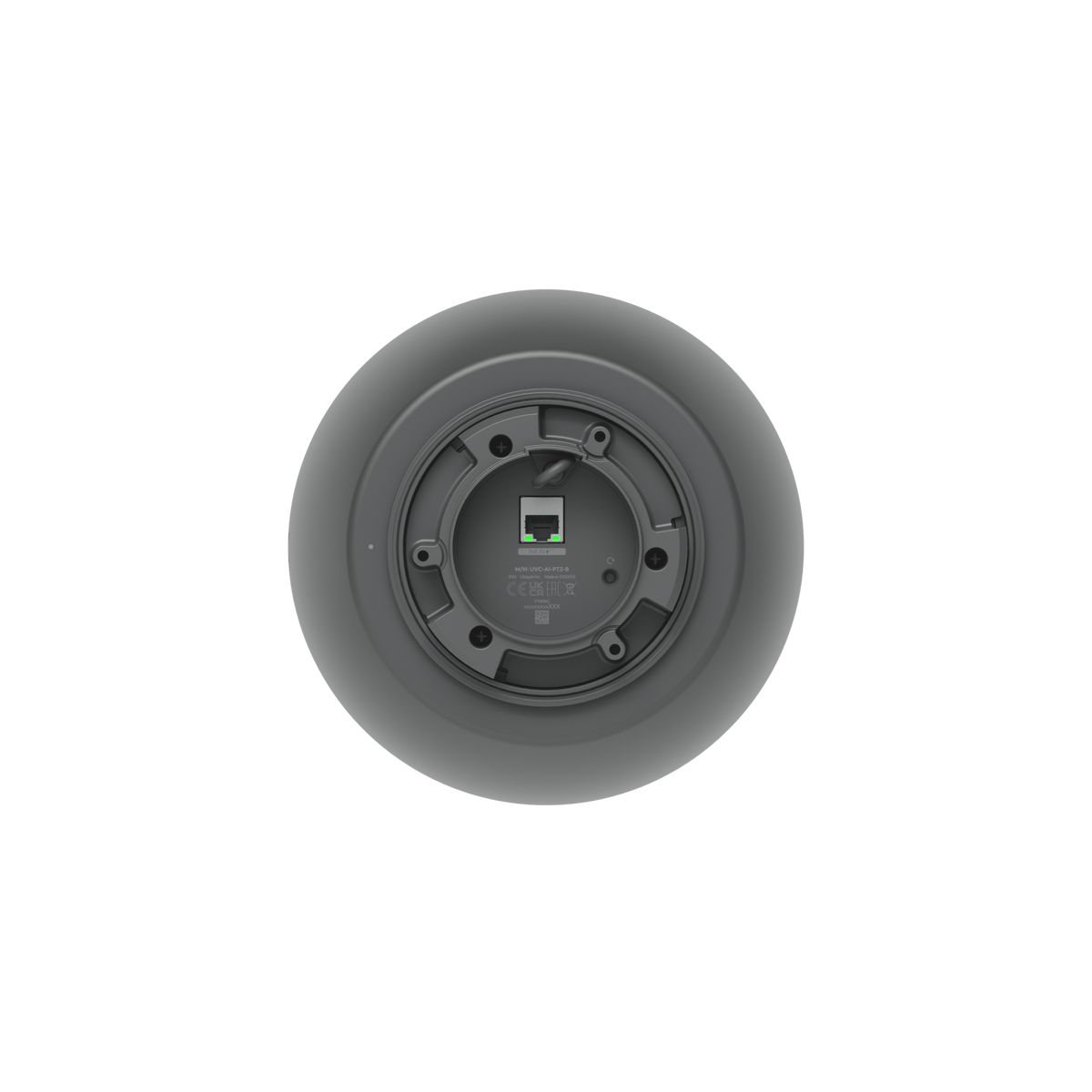

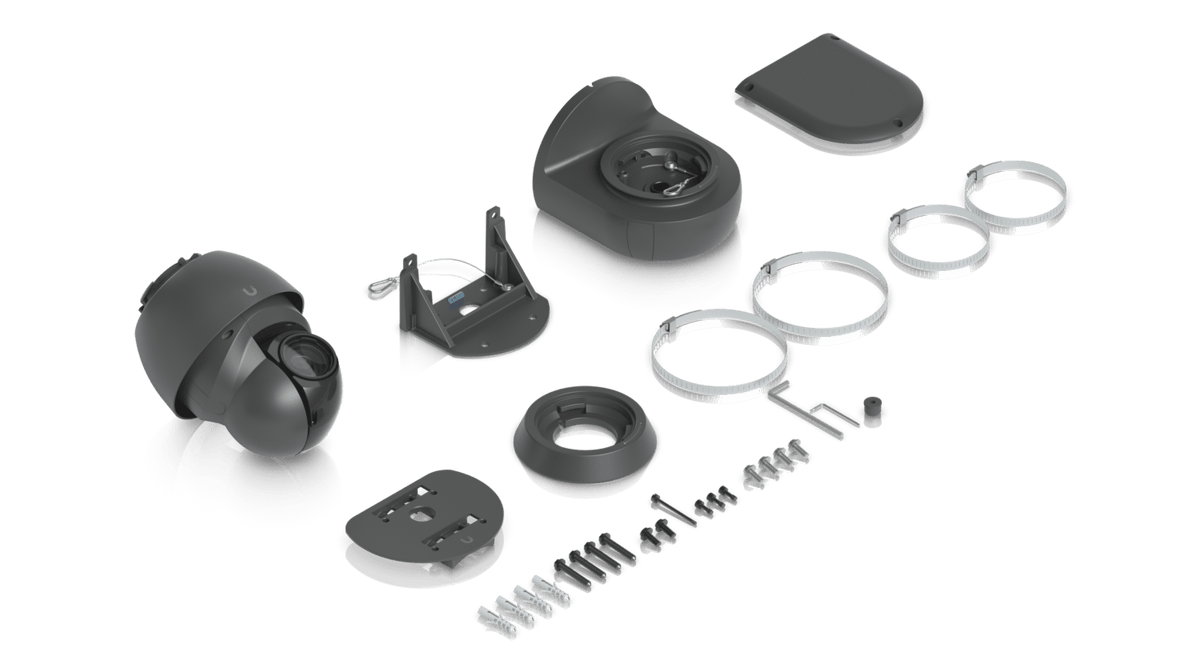

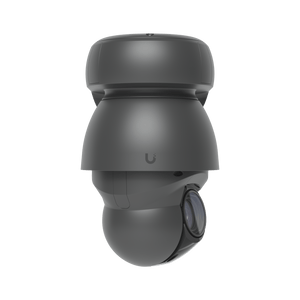

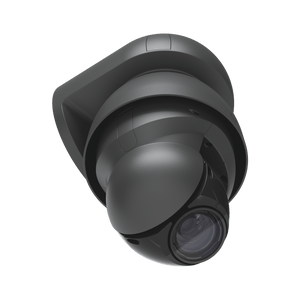

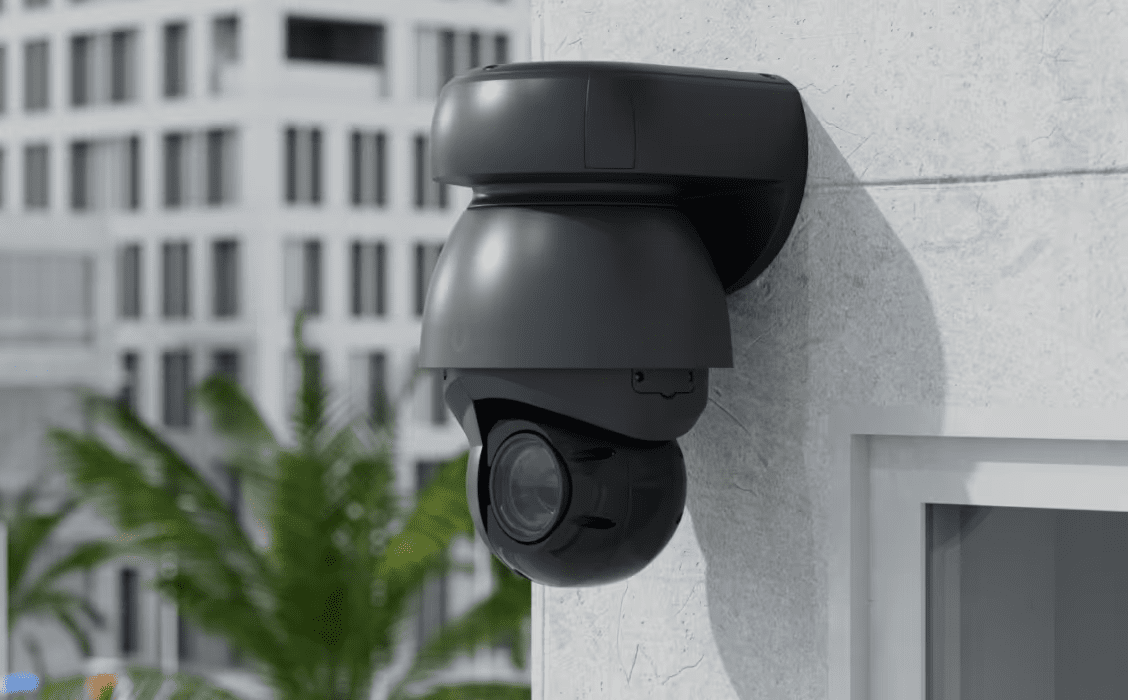

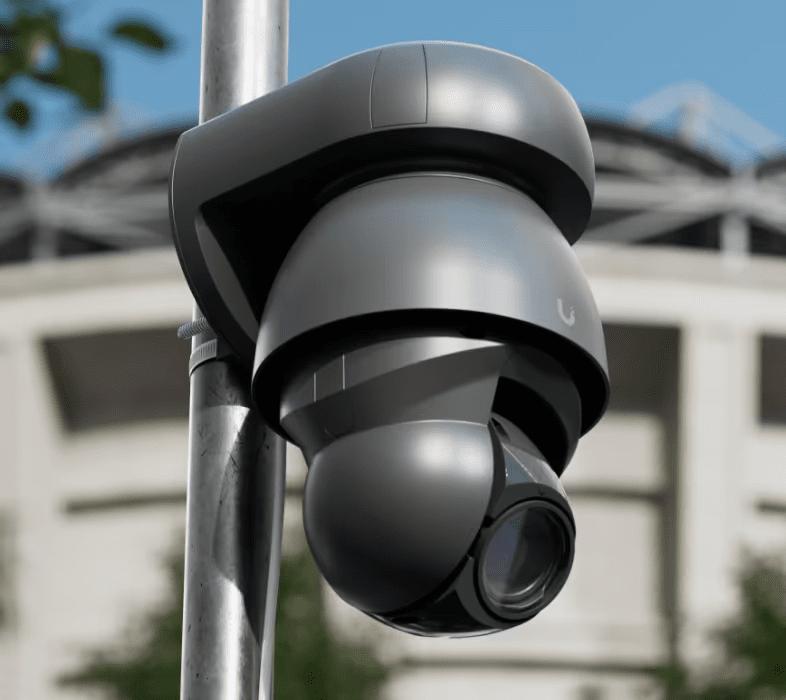

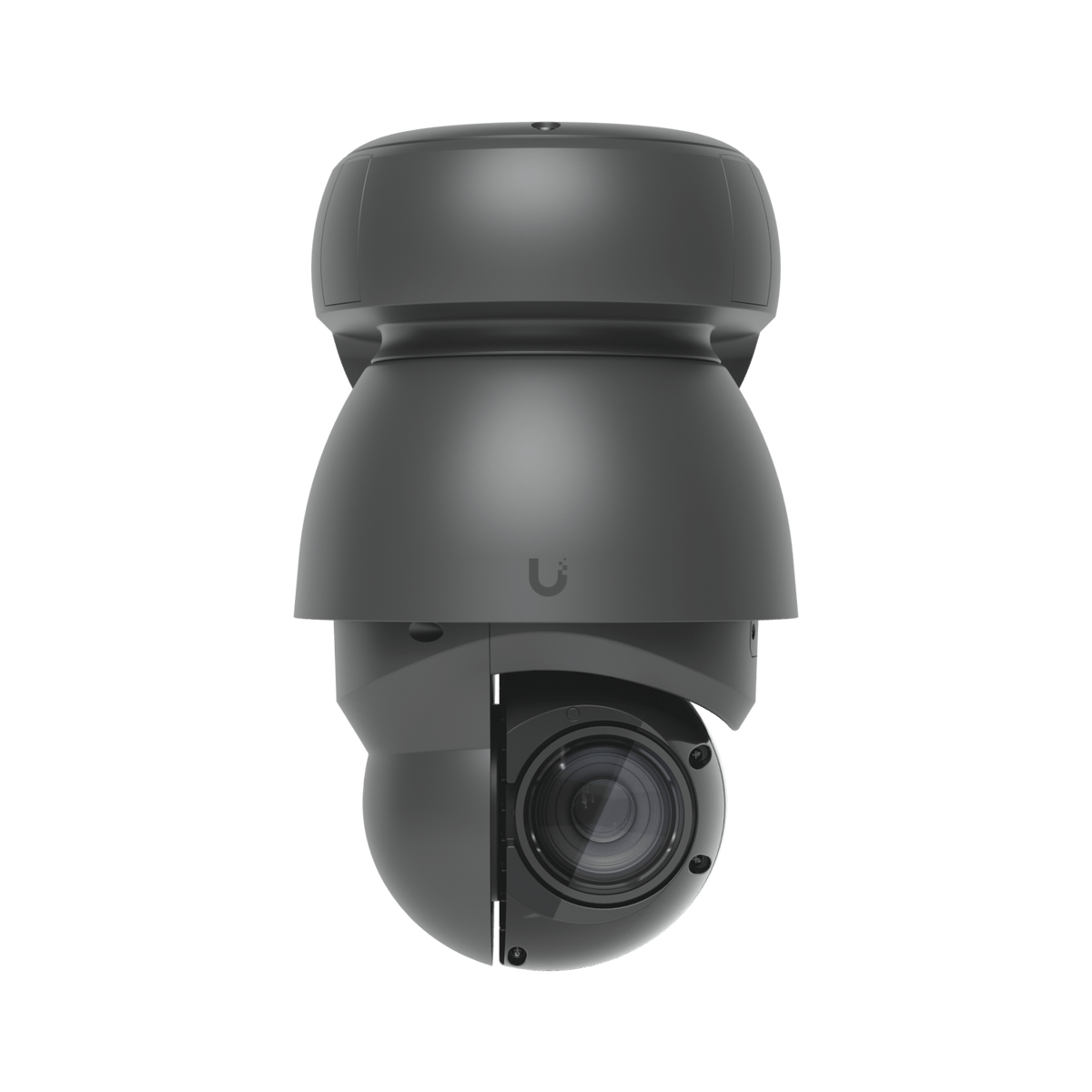

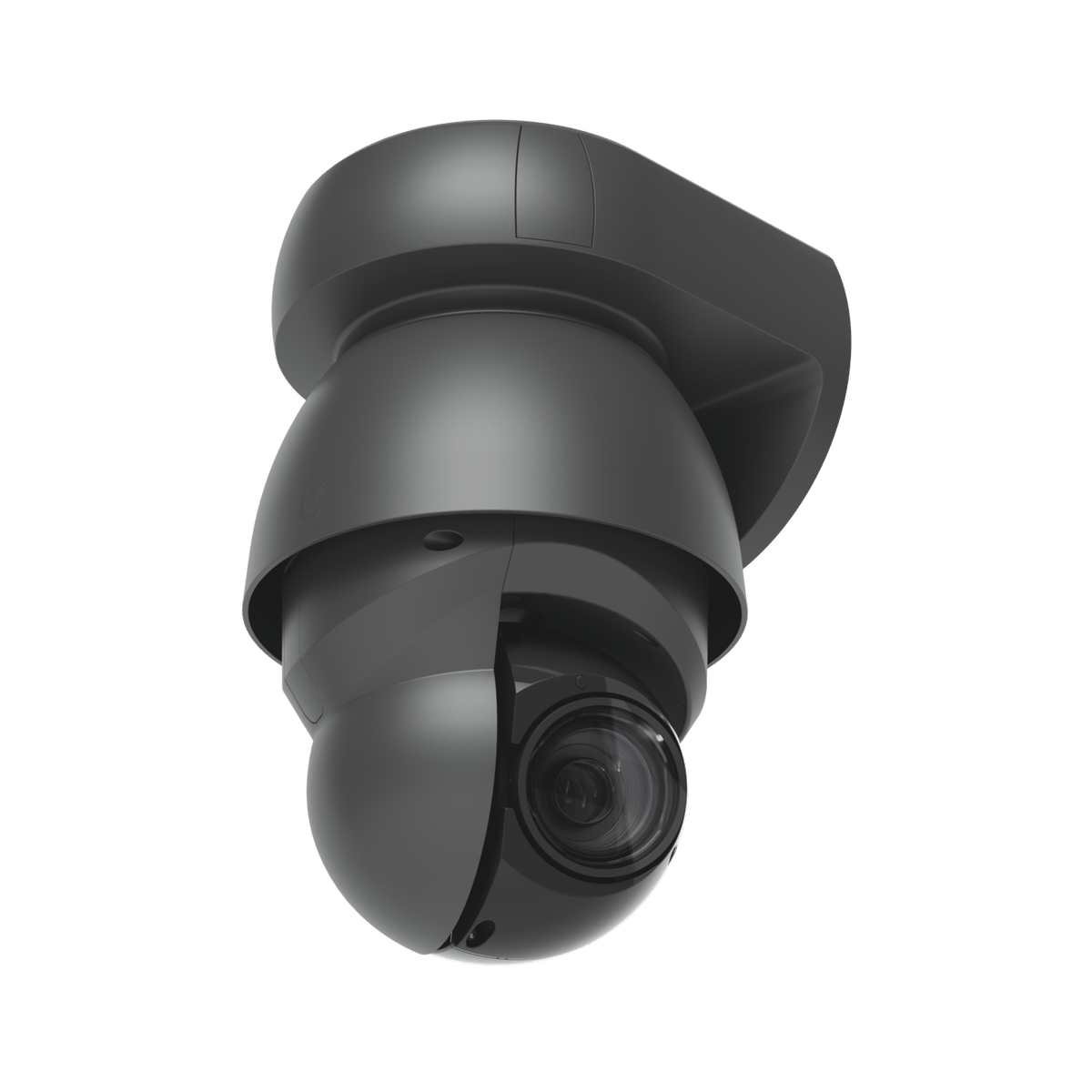

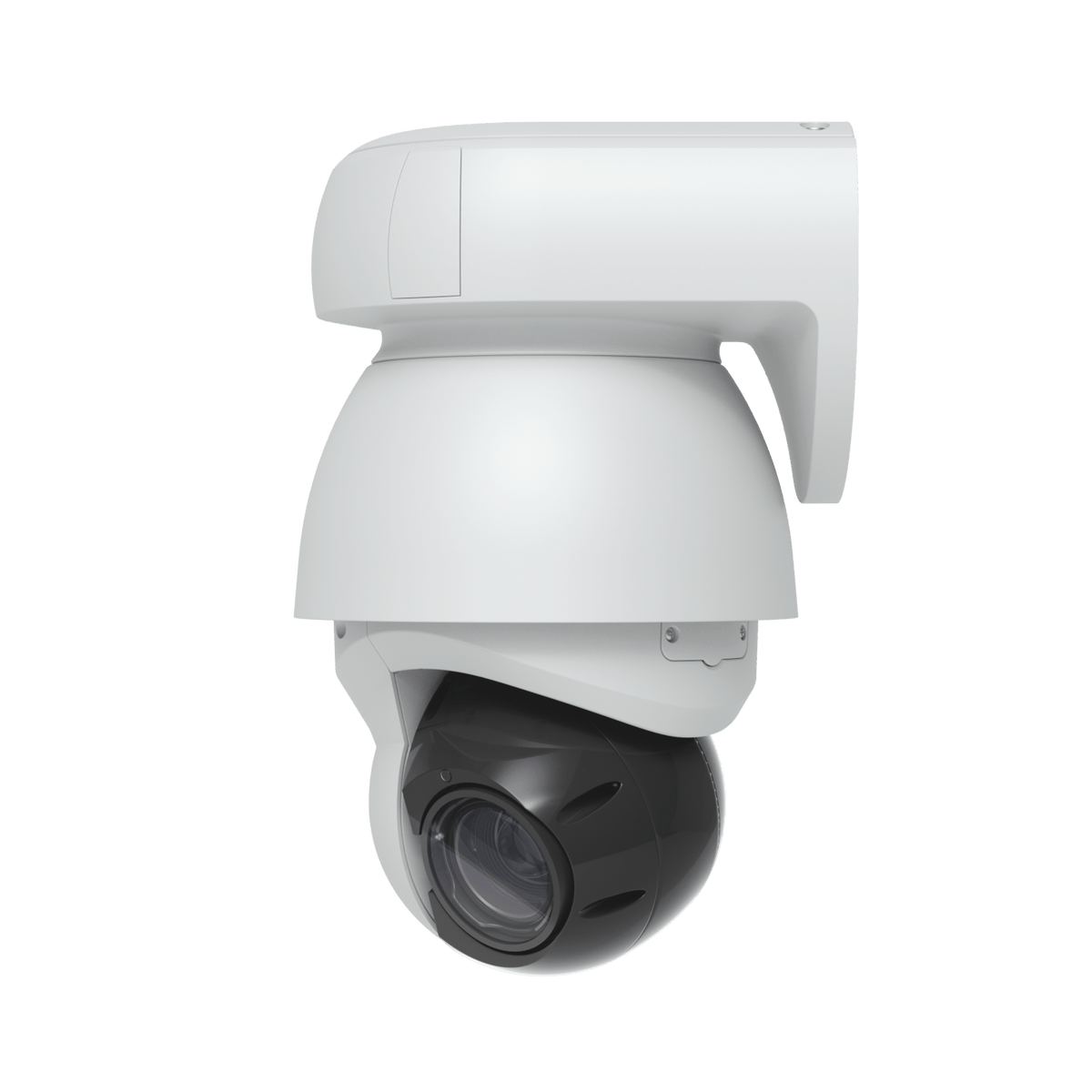

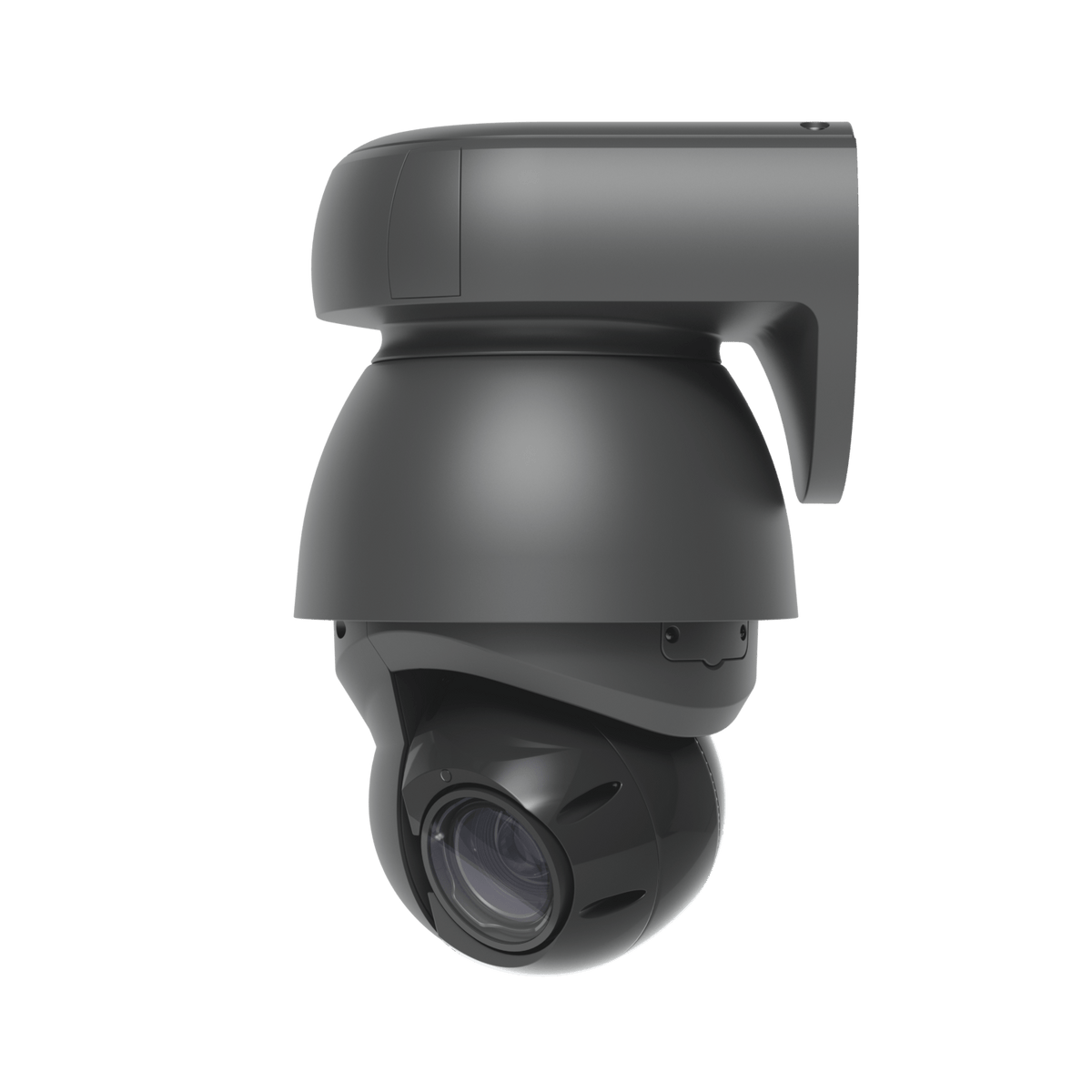

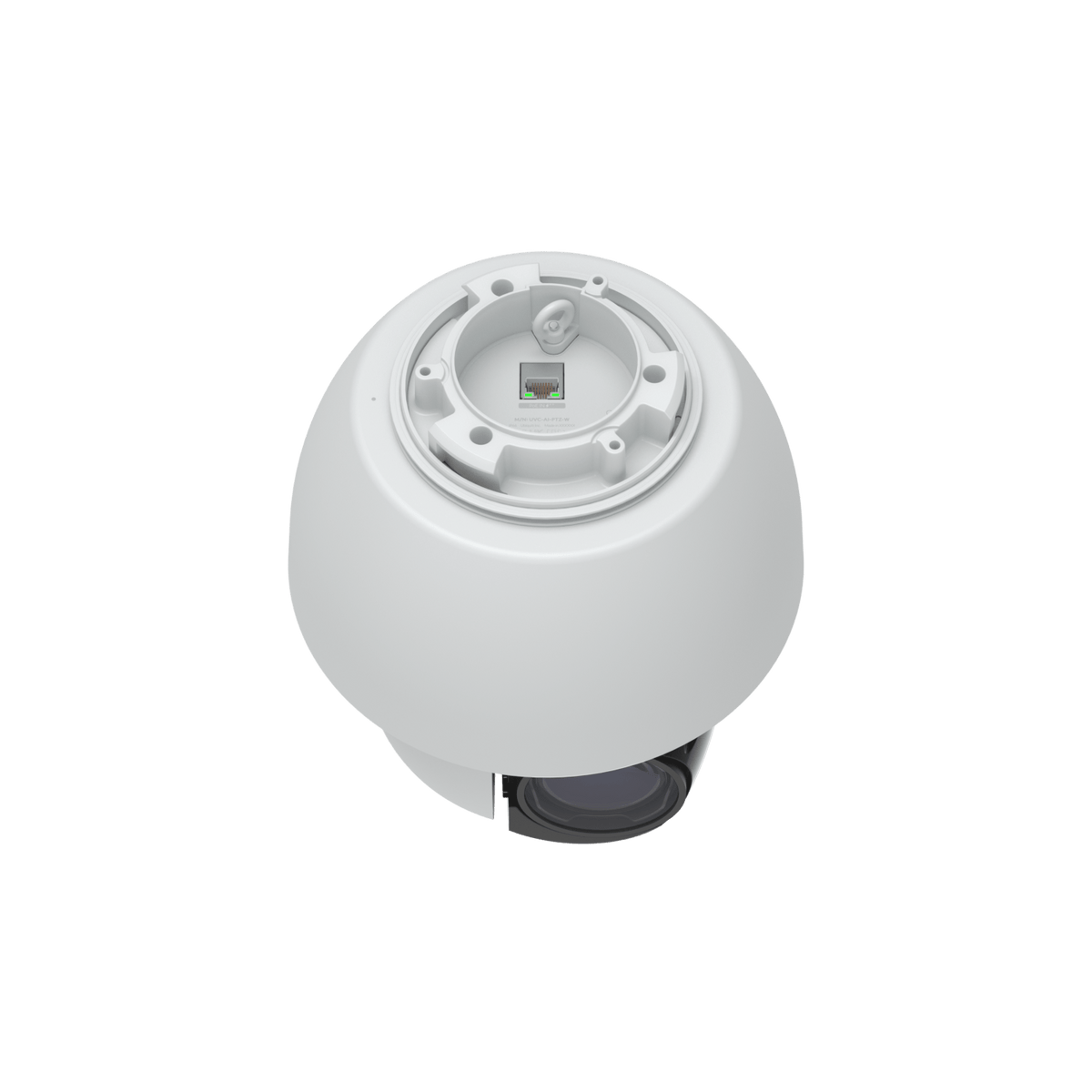

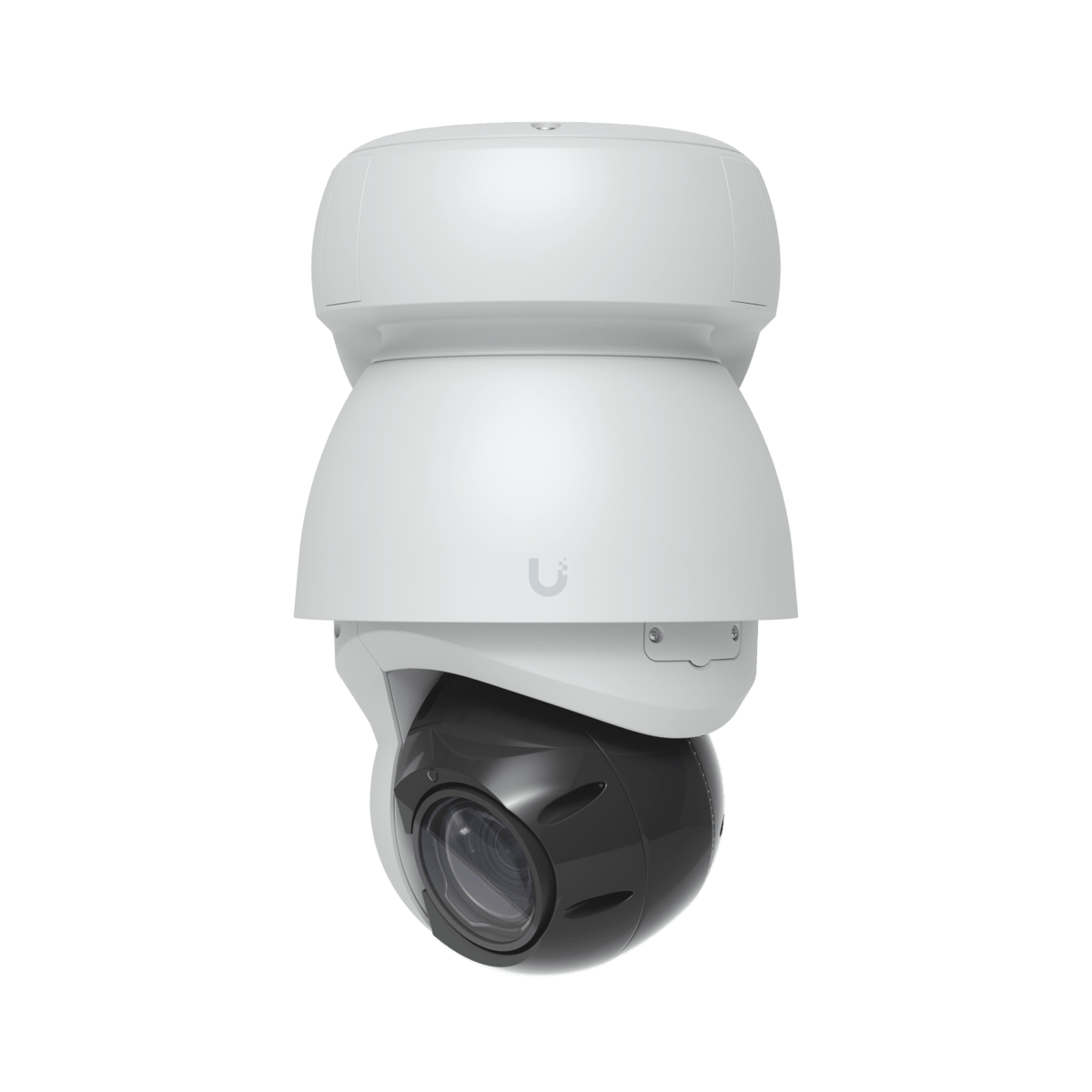

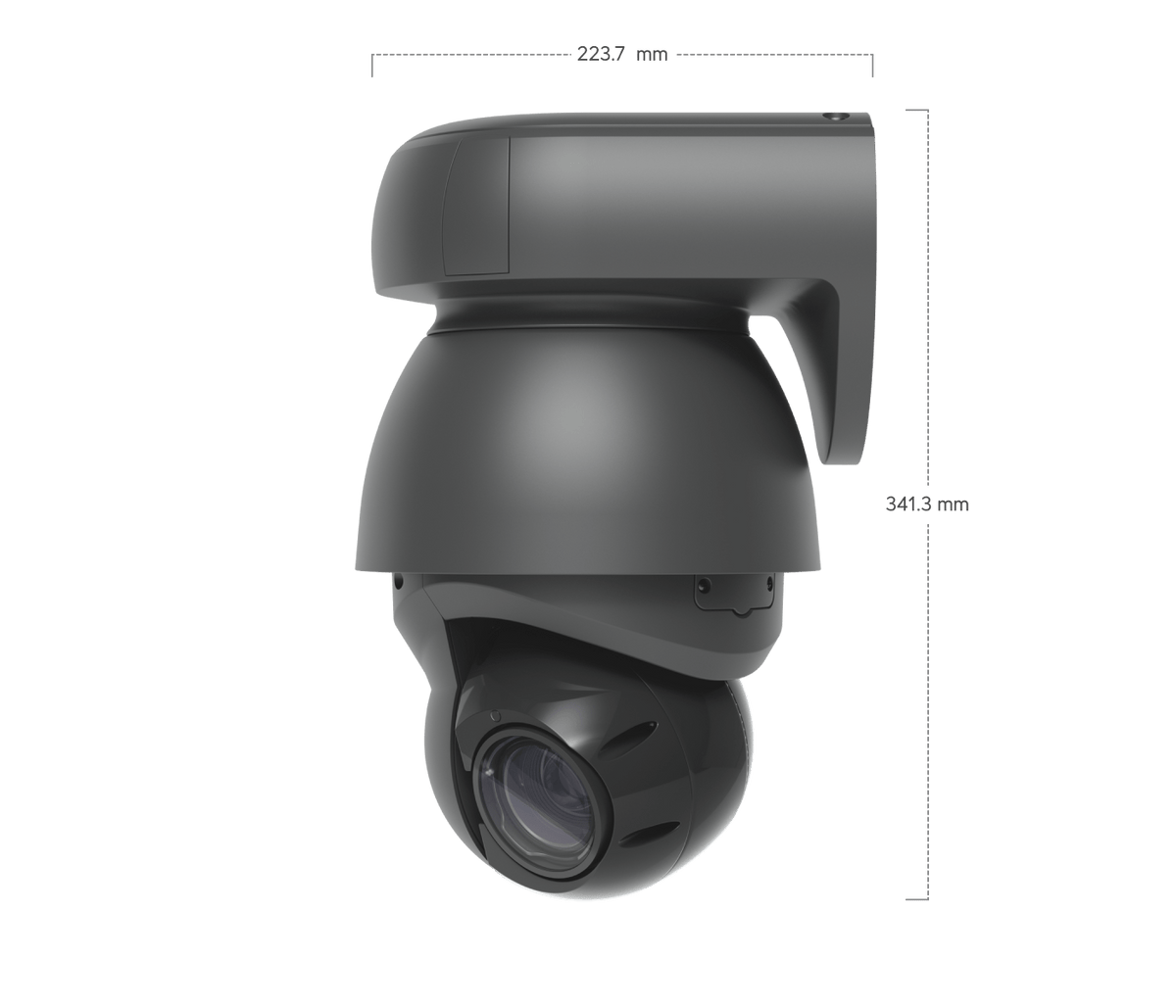

Ubiquiti UVC-AI-PTZ 22x Zoom AI 8MP 4K Industrial PTZ IP Camera

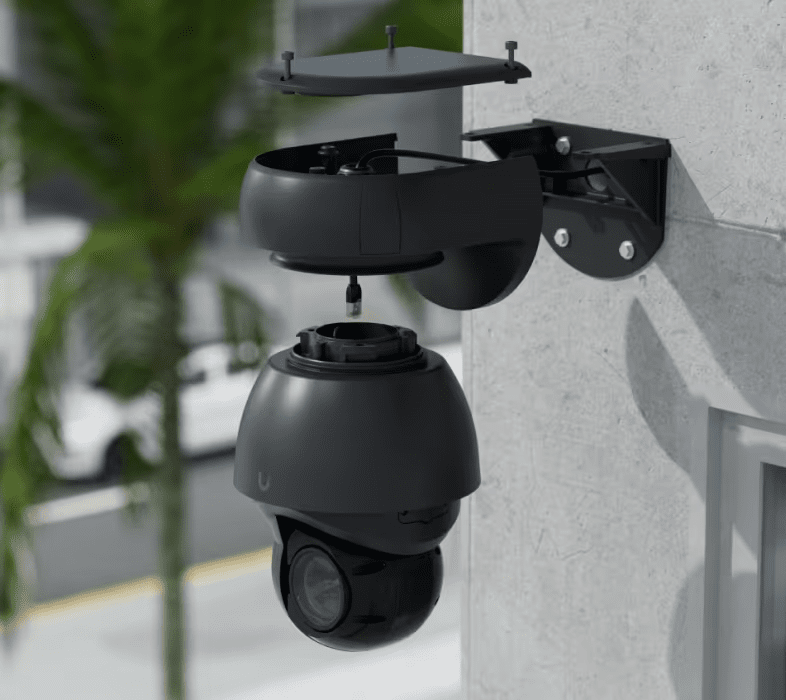

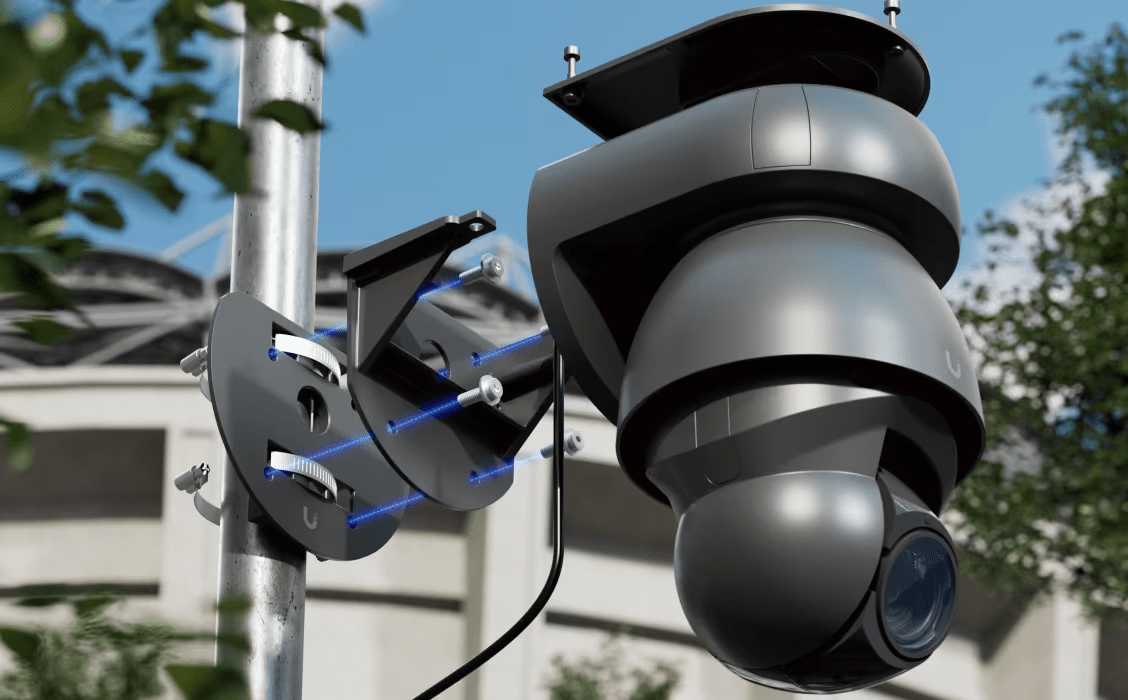

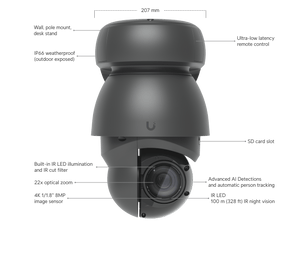

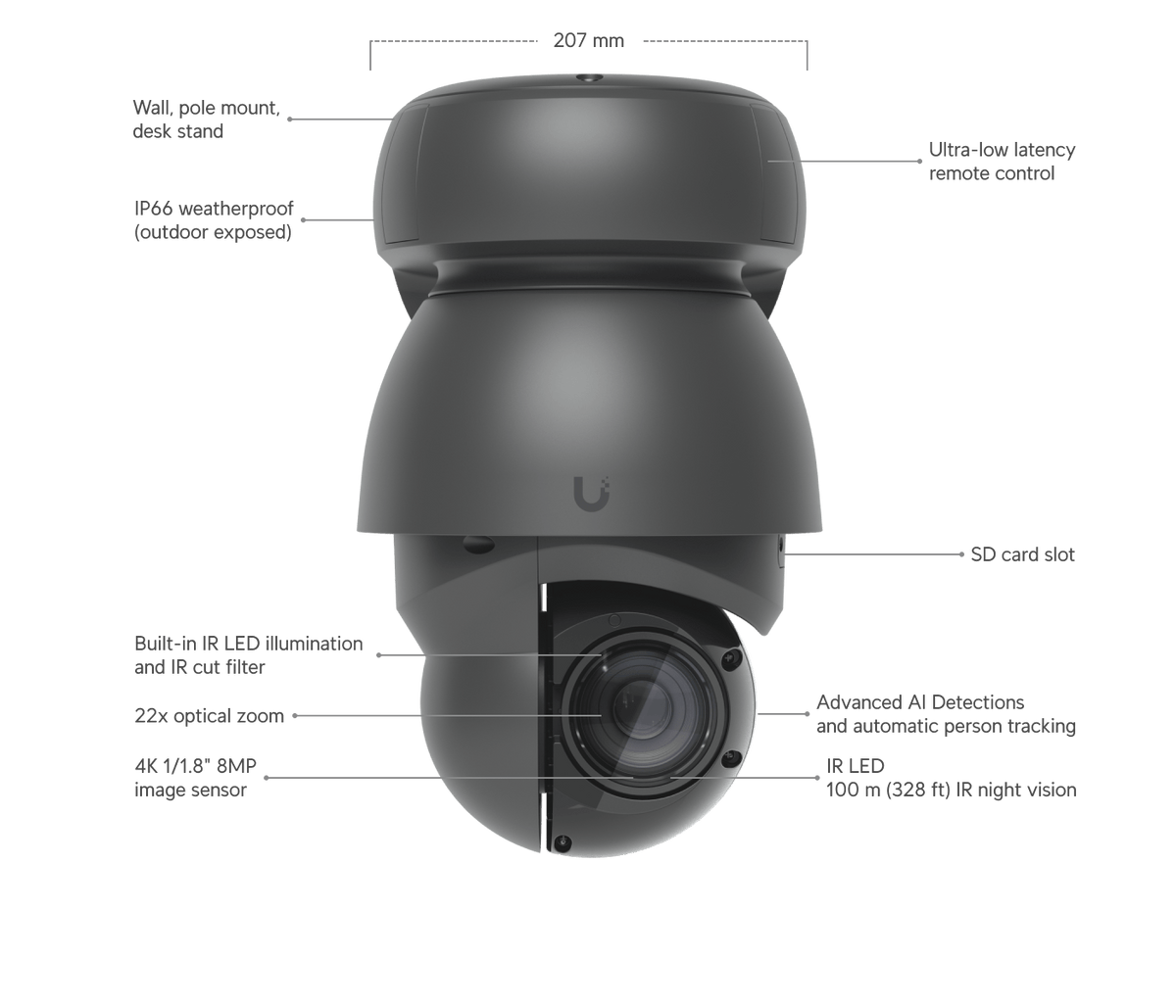

Rugged 4K PTZ Surveillance for Industrial Perimeters Designed to perform in the harshest conditions, the AI PTZ Industrial camera offers 22x optical zoom, AI-powered analytics, and extreme weather resistance — built to secure high-risk outdoor environments. Highlights Industrial-grade 4K PTZ IP camera with 8MP resolution 22x optical zoom for ultra-detailed long-distance surveillance Adaptive IR night vision with 100 m (328 ft) range AI features include face detection, license plate recognition, and object classification Durable IP66-rated enclosure for all-weather deployment Key Features Imaging & AI Analytics Resolution: 8MP 3840 x 2160 (16:9) Sensor: 1/1.8" 8MP image sensor Zoom: 22x optical zoom lens Night Vision: IR LEDs with IR cut filter, 100 m range Smart Detection: People, vehicles, animals, face and plate recognition AI Engine: Quad-core Arm® Cortex®-A53 with edge AI processing Pan-Tilt-Zoom Control Pan Range: 360° endless rotation Tilt Range: 120° vertical movement Field of View: Horizontal 3° to 64°, Vertical 2° to 37° Video Features Frame Rate: Up to 30 FPS Image Settings: Color, brightness, contrast, exposure, 2DNR, 3DNR, text overlay Build & Installation Dimensions: 207 x 223.7 x 341.3 mm (8.2 x 8.8 x 13.4 inches) Weight: Camera – 3.8 kg (8.4 lb), Wall Mount – 3 kg (6.6 lb), Pole Mount – 320 g (11.3 oz), Desk Stand – 150 g (5.3 oz) Materials: Aluminum alloy and polycarbonate enclosure Mounting Options: Wall, pole, and table mount (all included) Weatherproofing: IP66 rating Connectivity & Power Networking: 1 x GbE RJ45 port Power: PoE++ with max consumption of 51W Voltage Input: 42.5–57V DC Expansion: MicroSD card slot for local storage Reset: 1 x factory-reset button System Integration Application: Fully integrated with UniFi Protect (web, iOS™, Android™) AI PTZ Camera Comparison Table Model AI PTZ Precision UVC-AI-PTZ-Precision AI PTZ Industrial UVC-AI-PTZ G6 PTZ UVC-G6-PTZ G5 PTZ UVC-G5-PTZ Dimensions (Without mount) Ø241 x 349 mm (9.5 x 13.7") 207 x 223.7 x 341.3 mm (8.2 x 8.8 x 13.4") Ø107.2 x 104.5 x 203.2 mm (Ø4.2 x 4.1 x 8") Ø90 x 152.5 mm (3.5 x 6") Dimensions (With mount) 372 x 241 x 299 mm (14.7 x 9.5 x 11.8") — Ø107.2 x 111 x 230.2 mm (Ø4.2 x 4.8 x 9.1") 90 x 94 x 179.5 mm (3.5 x 3.7 x 7") IR Night Vision 100 m (328 ft) 100 m (328 ft) 30 m (98 ft) 20 m (65 ft) Zoom Mode 31x Optical 22x Optical 10x Hybrid 2x Optical Face Recognition ✓ ✓ ✓ — License Plate Recognition ✓ ✓ ✓ — Field of View H: 2.1 to 61.7°, V: 1.2 to 35.8° H: 3 to 64°, V: 2 to 37° Wide: H: 109.9°, V: 56.7°, D: 134.1° Tele: H: 26.6°, V: 15.1°, D: 30.4° Wide: H: 99.7°, V: 51.9°, D: 121° Tele: H: 45.5°, V: 25.4°, D: 52.4° Pan-Tilt Range Pan: 360° (Endless), Tilt: 120° Pan: 360° (Endless), Tilt: 120° Pan: 350°, Tilt: 100° Pan: 350°, Tilt: 100° Audio — — Two-way audio Microphone Weatherproofing IP66 IP66 IP66 IP66 Tamper Resistance — — IK04 IK04 Networking Interface GbE RJ45 port GbE RJ45 port 10/100 MbE RJ45 port 10/100 MbE RJ45 port Sensor 1/1.8" 8MP 1/1.8" 8MP 1/1.8" 8MP 5MP 1/2.7" CMOS Lens 31x optical zoom lens 22x optical zoom lens Wide: F 4.46 mm; f/1.65 Tele: F 16.3 mm; f/2.4 F 3.42–6.85 mm; f/1.85–f/2.4 Night Mode Built-in IR LED + IR cut filter Built-in IR LED + IR cut filter Built-in IR LED + IR cut filter Built-in IR + white LED + IR cut filter Power Method PoE++ PoE++ PoE+ PoE+ Processor Quad-core Arm® Cortex®-A53 based chip Quad-core Arm® Cortex®-A53 based chip Quad-core Arm® Cortex®-A53 based chip — Expansion Slot MicroSD card MicroSD card MicroSD card — Summary The Ubiquiti UVC-AI-PTZ Industrial camera is purpose-built for large outdoor facilities that demand intelligent monitoring and rock-solid reliability. With 22x optical zoom, AI-powered detection, and a tough IP66 enclosure, it delivers enterprise-grade clarity, reach, and automation — no matter the conditions. 続きを読む
