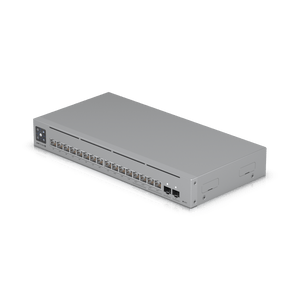

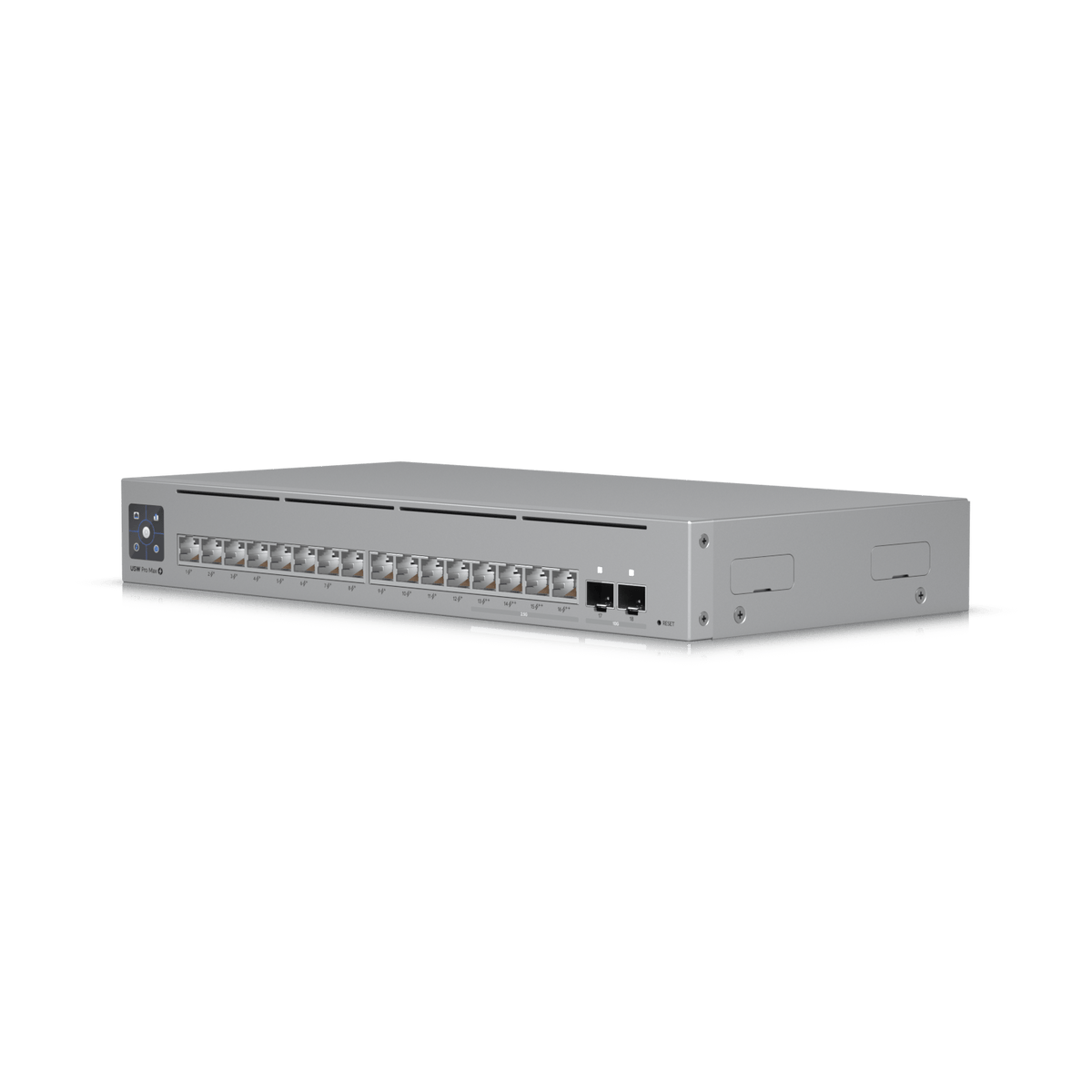

Ubiquiti USW-Pro-Max-16-PoE Pro Max 16 PoE 16-Port POE++ Layer 3 Etherlighting Switch
商品説明
Enterprise-Grade Layer 3 with Etherlighting™ and PoE++
A high-performance 16‑port switch featuring 2.5 GbE PoE++, Etherlighting™ for visual port management, and flexible desktop, wall, or rack install options.
Highlights
-
16 ports with PoE++ (4× 2.5 GbE, 12× 1 GbE), plus 2× 10 GbE SFP+
-
Total PoE budget: 180 W, up to 60 W per PoE++ port
-
Layer 3 features: DHCP (server/relay), static routing, inter‑VLAN
-

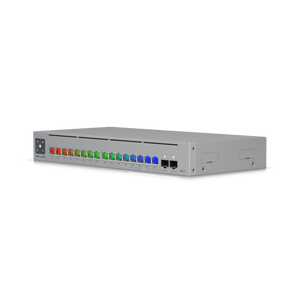

Etherlighting™ port LEDs, silent fanless design, touchscreen LCM
Key Features
Ports & Power
-
4× 2.5 GbE RJ45 PoE++ ports (60 W max each)
-
12× 1 GbE RJ45 PoE+ ports (30 W max each)
-
2× 10 GbE SFP+ uplink ports
-
Total PoE budget: 180 W
Performance & Switching
-
Switching capacity: 84 Gbps, throughput: 42 Gbps
-
Forwarding rate: 62 Mpps
-
Supports up to 1,000 VLANs, 16,000 MAC addresses, 512 IPv4 routes
-
Packet buffer: 1.5 MB
Layer 2 & Layer 3 Support
-
DHCP server, DHCP relay, static routing, inter‑VLAN routing
-
LACP, STP/RSTP, IGMP snooping, jumbo frames, 802.1X, ACLs, mirror
-
Storm control, flow control, loop protection, broadcast rate limiting
Design & Management
-
Dimensions: 325.1 × 160 × 43.7 mm (12.8 × 6.3 × 1.7 in)
-
Weight: 2.1 kg (4.6 lb)
-
Enclosure: SGCC steel; silent fanless cooling
-
1.3″ touchscreen display; Etherlighting LEDs on ports
-
Mounting: desktop, wall or 1U rack (with accessory)
Power & Environmental
-
External 210 W AC/DC adapter, 54 V DC input
-
Power consumption: 30 W (no PoE load); PoE up to 210 W total
-
Operating temperature: –5 °C to 40 °C (23 °F to 104 °F)
-
Humidity: 10–90% non‑condensing
Compliance & Software
-
Certifications: CE, FCC, IC, NDAA
-
Requires UniFi Network v8.1.127+, managed via web, app or controller
-
Etherlighting™ visual port feedback requires UniFi Etherlighting patch cables
Summary
The USW‑Pro‑Max‑16‑PoE is a top-tier Layer 3 switch delivering blazing performance, generous PoE++ power, and intuitive port management via Etherlighting™. Its silent, fanless design and multiple mounting options suit any enterprise environment including offices, labs, and AV installations. Integrated Layer 3 routing and touchscreen control make it a powerful, flexible core switch for modern networks.
仕様
Ubiquiti USW-Pro-Max-16-PoE Pro Max 16 PoE 16-Port POE++ Layer 3 Etherlighting Switch
The Ubiquiti Pro Max 16 PoE delivers advanced Layer 3 switching, Etherlighting, and high-power PoE++ across a versatile range of enterprise network deployments. Engineered for scalability and performance in rack, desktop, or wall installations.
Specifications
| Specification | Details |
|---|---|
| Overview | |
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7 in) |

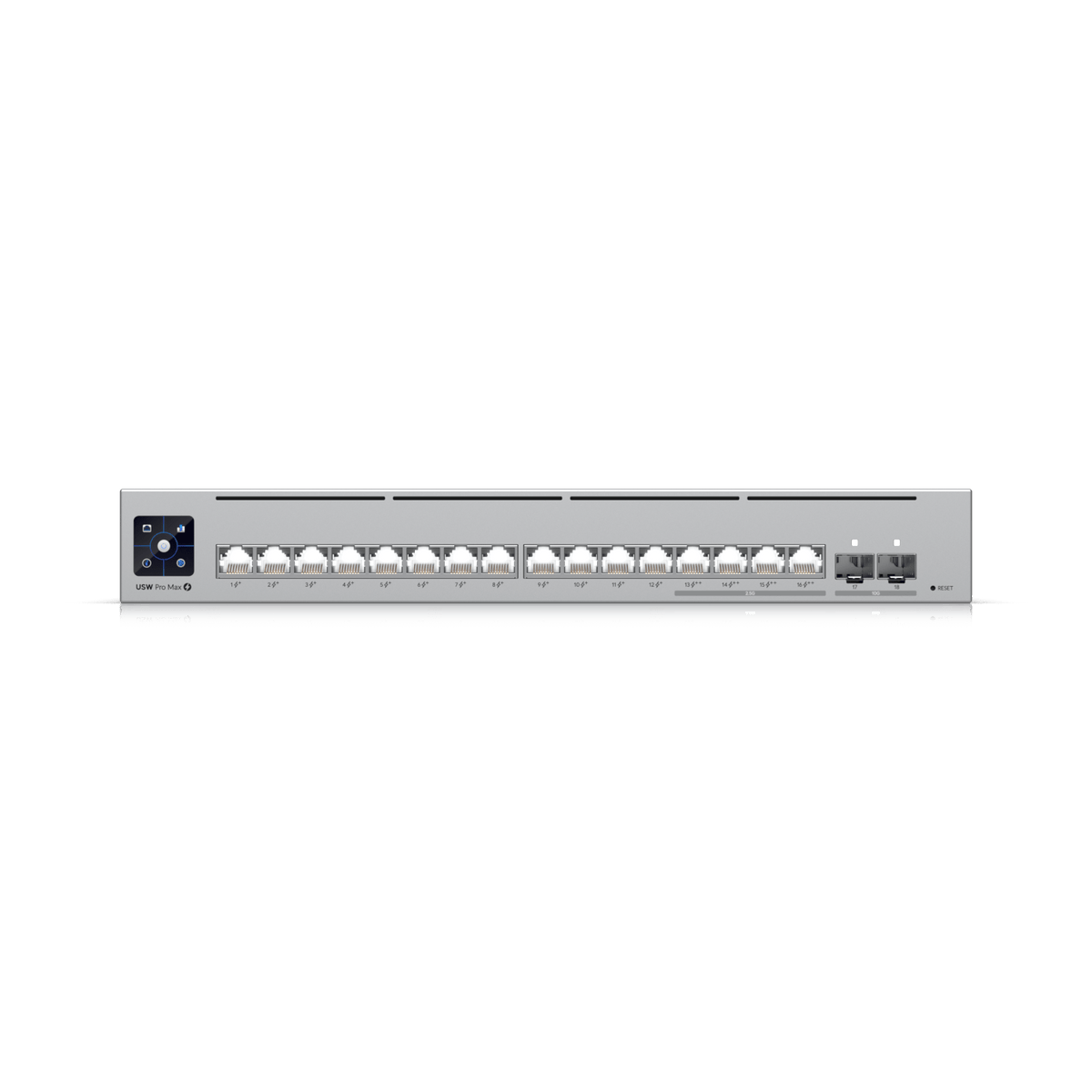

| Port Layout | • 1 GbE RJ45: 12 ports (All PoE+) (1G/100M/10M) • 2.5 GbE RJ45: 4 ports (All PoE++) (2.5G/1G/100M/10M) • 10G SFP+: 2 ports |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 180 W |
| Layer 3 | Yes |
| Form Factor | • Rack mount (1U) • Desktop • Wall |
| Etherlighting | Yes |
| Performance | |
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| L3 Table Size | |
| ARP Entries | 6,000 |
| IPv4 Routes | 512 |
| Packet Buffer Size | 1.5 MB |
| Access Lists | • IPv4: 128 • MAC: 128 |
| Layer 3 Features | • DHCP Server (Local Networks) • DHCP Relay • Inter-VLAN Routing (Local Networks) • Static Routing (Local Networks) |
| Layer 2 Features | • LACP Port Aggregation • STP & RSTP • QoS (DSCP) • Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) • Advanced IGMP Configuration (Querier, Fast Leave, Router Port) • IGMP Snooping • 802.1X Control • MAC-Based ACLs & Device Isolation • DHCP Snooping & Guarding • Egress Rate Limit • Flow Control • Storm Control • Multicast & Broadcast Rate Limiting • MAC Address Blocking • IP-Based ACLs & Network Isolation • MAC-Based Port Restriction • Port Isolation • Port Mirroring • Jumbo Frames • LLDP-MED • Voice VLAN • Loop Protection |
| Hardware | |
| PoE Ports | • PoE+: 12 • PoE++: 4 |
| Max. PoE Wattage per Port | • PoE: 15.4 W • PoE+: 32 W • PoE++: 64 W |
| Max. Power Consumption | • 25 W (Excluding PoE Output) • 210 W (Including PoE Output) |
| Power Method | AC Adapter |
| Power Input Method | AC input |
| Power Supply | AC/DC, external, 210 W |
| Supported Voltage Range | 50 to 54 V DC |
| Management | Ethernet, AR |
| Heat Dissipation | 102.36 BTU/hr (Excluding PoE Output) |
| Weight | 2.1 kg (4.6 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400 to 1200 mm (15.7 to 47.2 in) |
| LCM Display | 1.3 in touchscreen |
| Ambient Operating Temperature | -5 to 40°C (23 to 104°F) |
| Ambient Operating Humidity | 10% to 90% noncondensing |
| Etherlighting | • Ethernet: Yes • SFP+: Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel |
