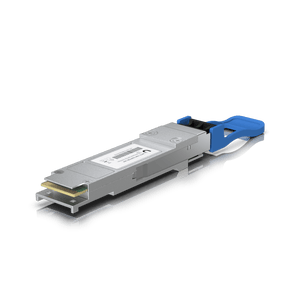

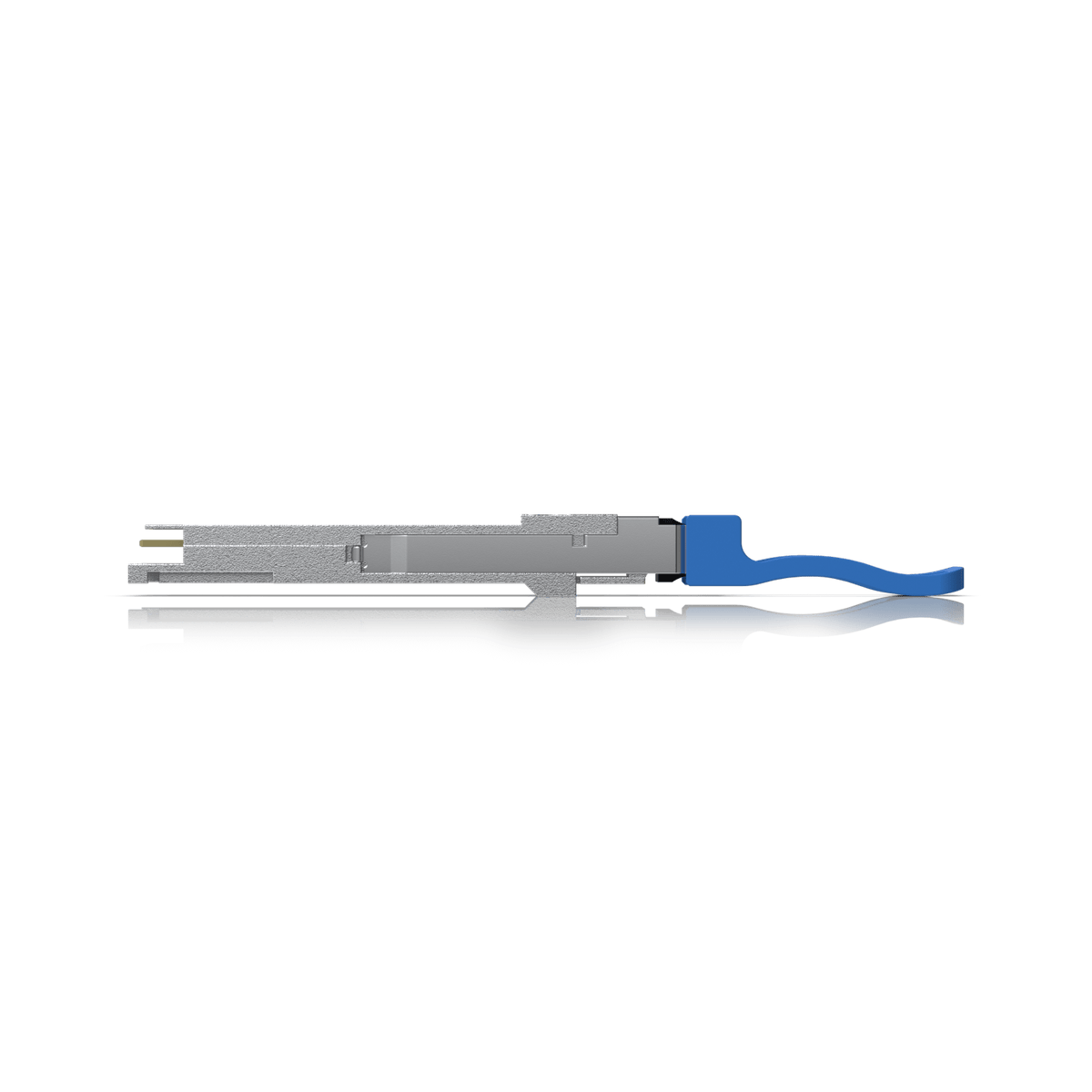

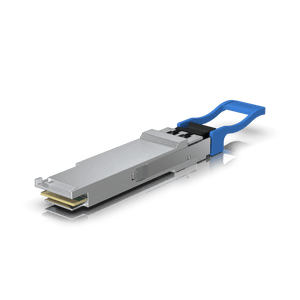

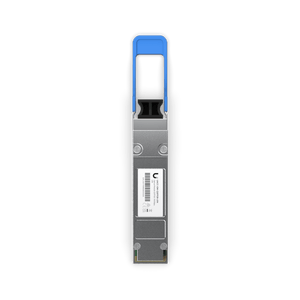

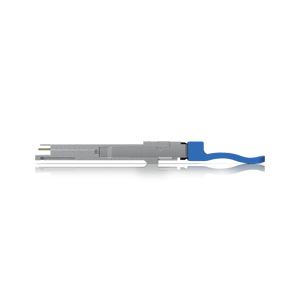

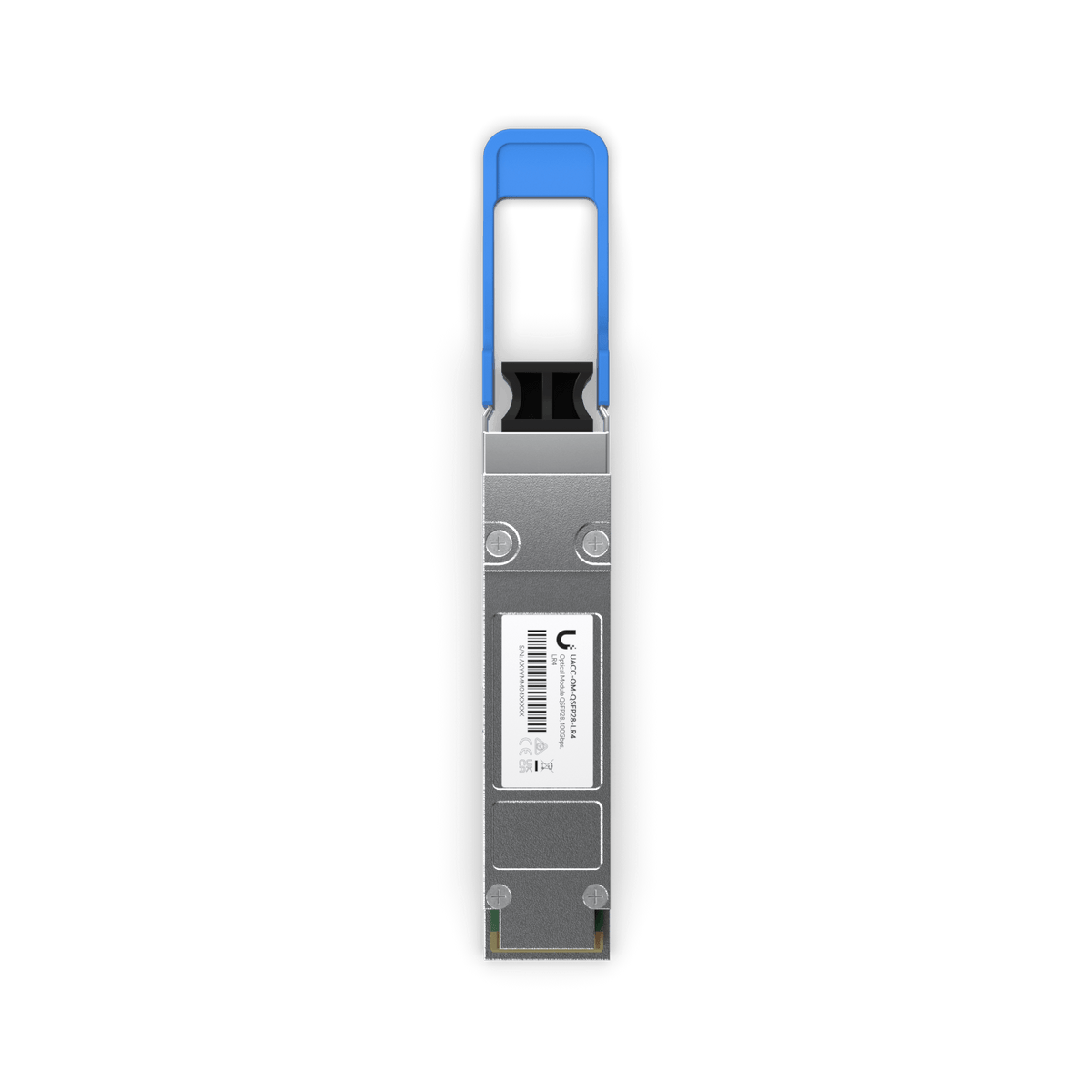

Ubiquiti UACC-OM-QSFP28-LR4 100G LR4 Single-Mode Optical Module 10KM QSFP28 Transceiver

Ubiquiti UACC-OM-QSFP28-LR4 100G LR4 Single-Mode QSFP28 Transceiver – 10KM The Ubiquiti UACC-OM-QSFP28-LR4 is a high-performance 100G LR4 QSFP28 transceiver designed for long-distance, high-capacity single-mode fiber links up to 10 km. Featuring a duplex LC UPC connector and operating across four wavelengths, it enables seamless 100 Gbps connectivity for enterprise core networks, data centers, and high-speed backbone infrastructure. Highlights Supports 100 Gbps data rate with QSFP28 form factor Duplex LC UPC connector for high-speed fiber connections Single-mode fiber supported up to 10 km Compatible with QSFP28 and QSFP+ interfaces NDAA compliant for secure network deployments Key Features Optical Specifications TX Wavelengths: 1295 nm, 1300 nm, 1304 nm, 1309 nm RX Wavelengths: 1295 nm, 1300 nm, 1304 nm, 1309 nm Connector Type: Duplex LC UPC Supported Media: Single-mode fiber (SMF) Hardware Specifications Form Factor: QSFP28 Max Data Rate: 100 Gbps Max Cable Distance: 10 km Power Consumption: Max 4W Operating Temperature: 0 to 70°C (32 to 158°F) Compliance: NDAA Compliant Application Scenarios Enterprise network core uplinks Campus fiber backbone connections Long-range data center interconnects High-capacity ISP backhaul and aggregation Summary The Ubiquiti UACC-OM-QSFP28-LR4 provides reliable and ultra-fast 100G single-mode fiber connectivity with a 10 km range. Its QSFP28 interface, four-lambda wavelength design, and low power draw make it an ideal solution for high-performance networking environments demanding scalable bandwidth and long-distance transmission. 続きを読む
