Ubiquiti UDR-5G-Max Dream Router 5G Max (15W) with BE10700 WiFi 7
商品説明
All-in-One 5G Performance and WiFi 7 for the Ultimate UniFi Experience
Unlock next-generation connectivity with the Ubiquiti UDR-5G-Max Dream Router 5G Max, a fully integrated UniFi Cloud Gateway engineered for high-performance networking, advanced security, seamless 5G failover, and tri-band WiFi 7. Purpose-built for remote offices, flexible deployments, and premium home setups, it delivers carrier-agnostic 5G, multi-WAN routing, PoE support, and full UniFi OS application hosting—all in one compact desktop device.
Highlights
-
5G Max Connectivity: Achieve up to 3.4 Gbps downlink via Sub-6 5G.
-
Tri-Band WiFi 7: Ultra-high throughput up to 5.7 Gbps on 6 GHz.
-
10G SFP+ & 2.5 GbE WAN: Multiple high-speed WAN options for flexible routing.
-
Integrated UniFi OS: Run Network, Protect, Access, Talk, and Connect from a single device.
-
Local NVR Storage: Includes 64 GB microSD and supports storage expansion.
-
Dual SIM (nano-SIM + eSIM): Fully unlocked hardware for any carrier.
-
Built-In Gateway + Switch + Controller: A complete network stack in one device.
-
PoE Output: 15.4W PoE for powering UniFi devices.
Key Features
Next-Generation 5G and WAN Flexibility
-
Fully Unlocked 5G Hardware: Supports nano-SIM and eSIM for fast carrier switching.
-
Massive Band Support: Compatible with virtually all global Sub-6 service providers.
-
High-Speed 5G/4G/3G:
-
5G NSA: 3.4 Gbps DL, 560 Mbps UL
-
5G SA: 1.8 Gbps DL, 650 Mbps UL
-
LTE: 1.6 Gbps DL, 210 Mbps UL
-
-
Multi-WAN Capability:
-
(1) 10G SFP+
-
(1) 2.5 GbE RJ45
-
Additional failover via UniFi LTE Backup
-
-
Load Balancing & SD-WAN: License-free SD-WAN with multi-site VPN support.
WiFi 7 Tri-Band Throughput
-
6 GHz: 5.7 Gbps
-
5 GHz: 4.3 Gbps
-
2.4 GHz: 688 Mbps
-
2x2 MU-MIMO Across All Bands: Optimized for dense smart homes and offices.
-
Advanced Security: Supports WPA3, PPSK, and enterprise authentication.
-
Coverage: Up to 160 m² (1,750 ft²).
Complete UniFi OS Integration
-
Unified Platform Support: Run Network, Protect, Access, Talk, and Connect natively.
-
Device Management: Supports 30+ UniFi devices.
-
Camera Support:
-
Up to 5 HD
-
Up to 2 2K
-
Up to 1 4K
-
-
Touchscreen Control: 4.7" LCM for real-time insights and quick actions.
-
Powerful IDS/IPS: Up to 2.3 Gbps intrusion detection and prevention.
Intelligent Security & VPN
-
Layer 7 Firewalls: App-aware filtering, DPI, domain control, and region blocking.
-
Full VPN Suite: WireGuard, OpenVPN, IPsec, L2TP, Teleport, and Site Magic.
-
Advanced Content Filtering: With 20,000+ CyberSecure IPS/IDS signatures.
Hardware & Power
-
Quad-Core ARM Cortex-A53 1.5 GHz with 3 GB RAM for smooth UniFi OS operations.
-
Compact Desktop Form Factor: Stylish and practical for modern environments.
-
PoE Output: 15.4W to power UniFi APs or cameras.
-
Low Power Draw: 34.5W max (excluding PoE).
Summary / Conclusion
The Ubiquiti UDR-5G-Max Dream Router 5G Max is the ultimate all-in-one UniFi gateway for high-performance networking on the go or at the edge. With lightning-fast 5G, WiFi 7, multi-WAN options, comprehensive UniFi OS app support, and powerful security features, it enables enterprise-grade connectivity in a compact desktop footprint. Perfect for remote offices, small businesses, and advanced smart homes.
仕様
Ubiquiti UDR-5G-Max Dream Router 5G Max
Desktop cloud gateway with full-performance 5G up to 3.4 Gbps, WiFi 7, 10G SFP+, 2.5 GbE switching, PoE output, and integrated UniFi OS for an all-in-one deployment experience.
Product Specifications
| Specification | Details |
|---|---|
| Description | Desktop cloud gateway with 5G, WiFi 7, 10G SFP+, 4× 2.5GbE switch and UniFi OS |
| Dimensions | 110 × 110 × 250 mm (4.3 × 4.3 × 9.8 in) |
| UniFi Applications | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 30+ |
| Managed Cameras | 5 HD • 2 2K • 1 4K |
| Simultaneous Users | 300+ |
| Coverage Area | 160 m² (1,750 ft²) |

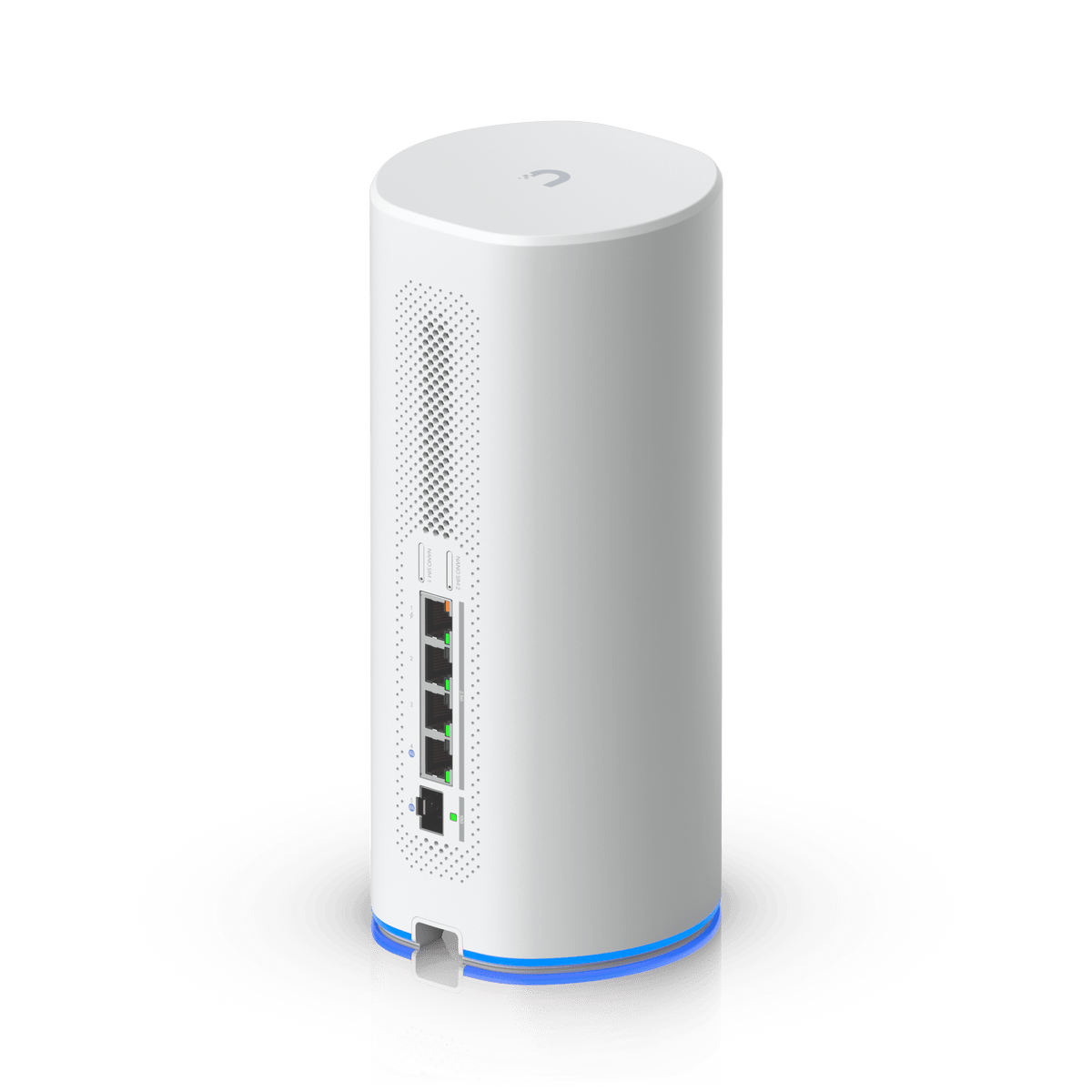

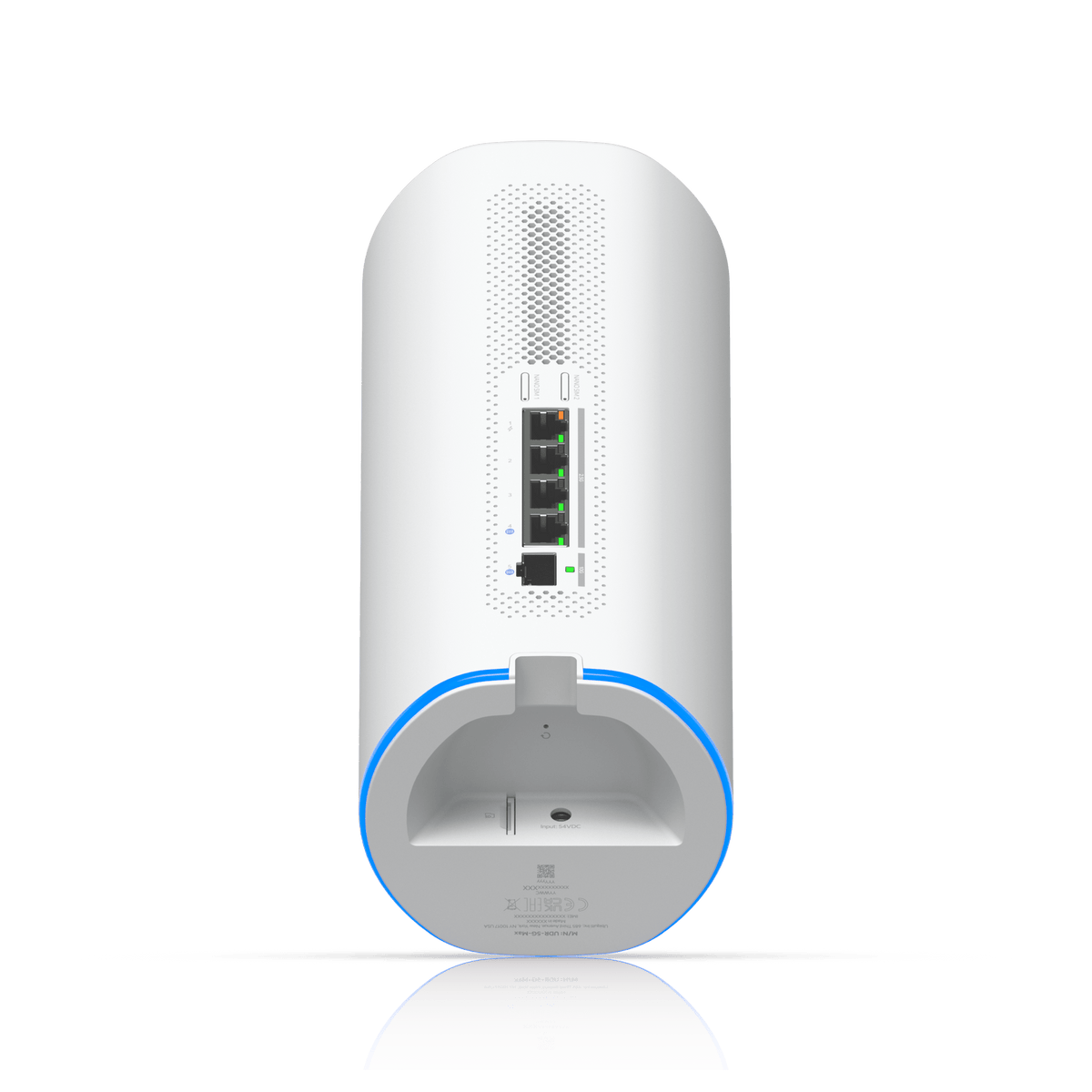

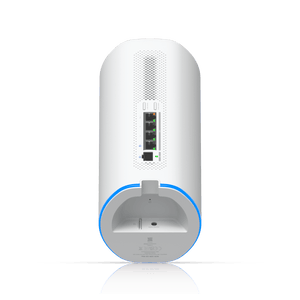

| WAN Ports | (1) 10G SFP+ • (1) 2.5GbE RJ45 |
| LAN Ports | (4) 2.5GbE RJ45 (1 PoE, 15.4W) |
| IDS/IPS Throughput | 2.3 Gbps |
| Form Factor | Desktop |
| Security Features | Stateful firewall, L7 firewall, DPI, ad blocking, IPS/IDS, content filtering |
| VPN & SD-WAN | SD-WAN, Site Magic, WireGuard, IPsec, OpenVPN, Teleport, L2TP |
| VPN Throughput | Site Magic: 20 • WireGuard: 8 • OpenVPN: 8 |
| Networking | Multi-WAN load balancing, OSPF, QoS, mDNS, Advanced NAT, RADIUS, LTE failover support |
| MAC Table Size | 2,000 |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7) |
| WiFi Throughput | 6 GHz: 5.7 Gbps • 5 GHz: 4.3 Gbps • 2.4 GHz: 688 Mbps |
| WiFi MIMO | 2x2 MU-MIMO (all bands) |
| Antenna Gain | 6 GHz: 8dBi • 5 GHz: 5dBi • 2.4 GHz: 4dBi |
| Max TX Power | 6 GHz: 22 dBm • 5 GHz: 26 dBm • 2.4 GHz: 23 dBm |
| Wireless Security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) |
| Max BSSIDs | 4 per radio |
| Supported Rates | WiFi 7/6E/6/5/4/3 legacy rates |
| 5G NR Bands | n1, n2, n3, n5, n7, n8, n12, n13, n14, n18, n20, n25, n26, n28, n29, n30, n38, n40, n41, n48, n66, n70, n71, n75, n76, n77, n78, n79 |
| 5G TX Power | HPUE Class 2: 26 dBm |
| 4G LTE Bands | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B18, B19, B20, B21, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B46, B48, B66, B71 |
| 4G TX Power | 25 dBm |
| 3G UMTS Bands | B1, B2, B4, B5, B8, B19 |
| Peak Speed (5G NSA) | DL 3.4 Gbps • UL 560 Mbps |
| Peak Speed (5G SA) | DL 1.8 Gbps • UL 650 Mbps |
| Peak Speed (LTE) | DL 1.6 Gbps • UL 210 Mbps |
| Cellular Antenna Gain | 617–960 MHz: 3dBi • 1710–2700 MHz: 7dBi • 3300–5000 MHz: 8dBi • 5150–5925 MHz: 8dBi |
| SIM Slots | (1) Nano SIM • (1) Nano SIM or eSIM |

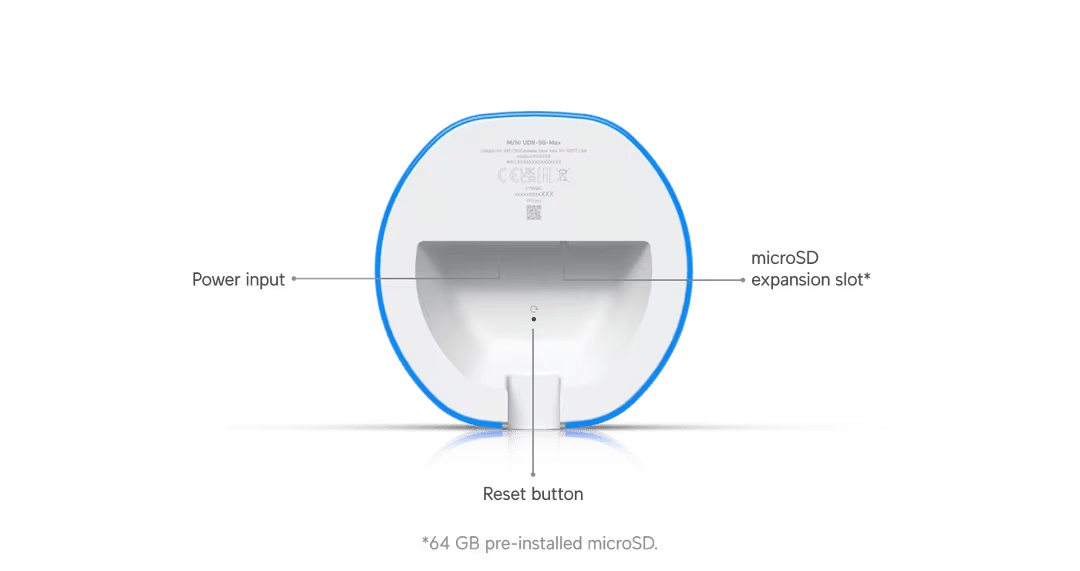

| NVR Storage | Pre-installed 64GB microSD |
| Storage Expansion | microSD slot |
| PoE Budget | 15.4W |
| Supported Voltage (PoE) | 44–57V |
| Max Power Consumption | 34.5W (excluding PoE output) |
| Power Method | 54V DC jack (1.1A) |

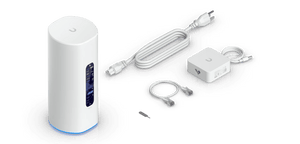

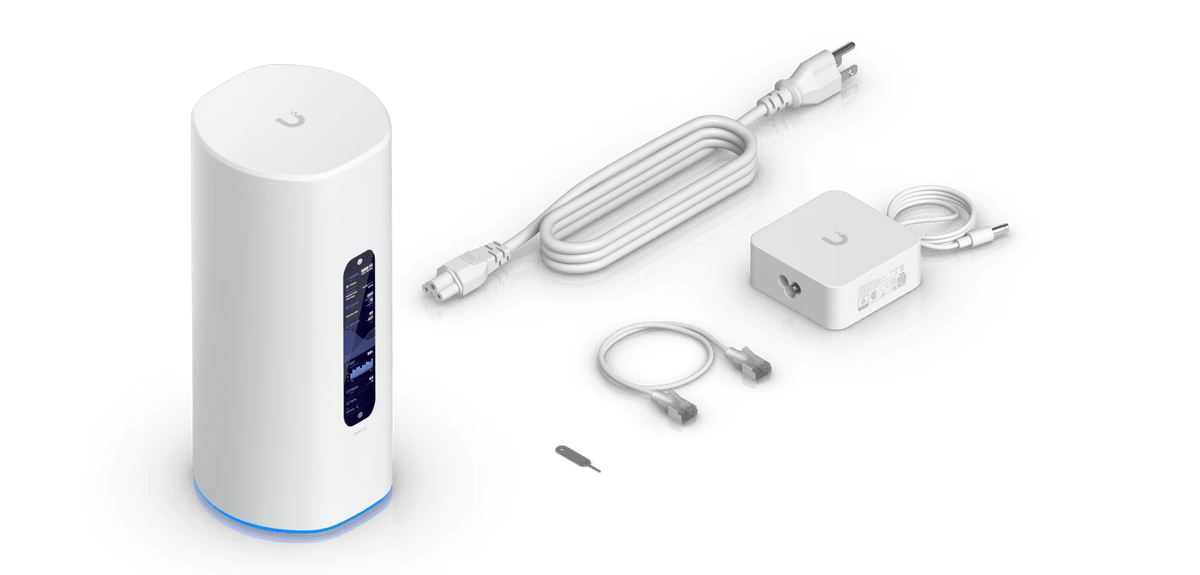

| Power Supply | 54V DC/1.1A adapter (included) |
| Processor | Quad-core ARM Cortex-A53 at 1.5 GHz |
| Memory | 3 GB |
| Weight | 1.4 kg (3.1 lb) |
| Enclosure Material | Polycarbonate |

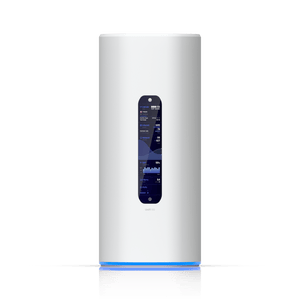

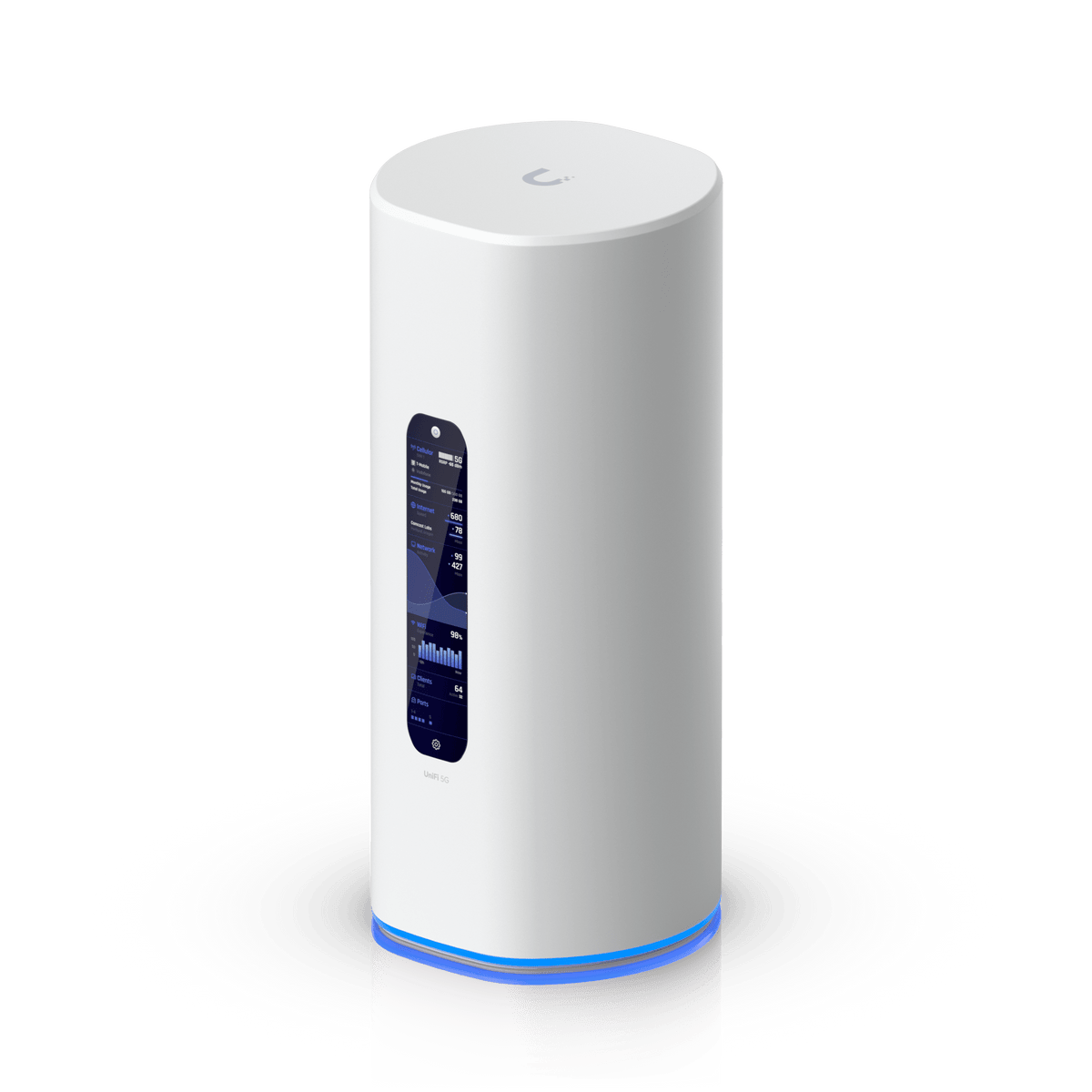

| Display | 4.7" touchscreen |
| Management | Ethernet, Bluetooth |
| LEDs | Ethernet, SFP+, System |
| Button | Factory reset |
| ESD/EMP Protection | Air ±8kV, Contact ±4kV |
| Operating Temperature | 0 to 40° C (32 to 104° F) |
| Operating Humidity | 5 to 95 percent noncondensing |
| NDAA Compliant | Yes |
