TP-Link ER706WP-4G Omada 4G+ Dual Nano Sim AX3000 4-Port POE+ Gigabit VPN Gateway Router
商品説明
All-in-One 4G+ WiFi 6 Gateway. Business Continuity, Anywhere.
The ER706WP-4G combines 4G+ Cat6 LTE, WiFi 6 AX3000, four PoE+ gigabit ports, and advanced VPN security — all cloud-managed with Omada SDN. Empower your business, branch, or remote site with always-online connectivity, easy deployment, and robust cloud control.
Highlights
-
Dual Nano SIM slots with 4G+ Cat6 speeds up to 300 Mbps
-
AX3000 dual-band WiFi 6: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
-
Five gigabit Ethernet ports, four with PoE+ (802.3af/at, 45W total)
-
Five high-gain detachable antennas for strong Wi-Fi coverage
-
Dual SIM auto failover for business continuity
-
Supports up to 5 VPN protocols: IPSec, SSL, WireGuard, OpenVPN, PPTP, L2TP
-
Centralized Omada Cloud or app management for multiple sites
-
Supports Omada Mesh and load balancing
-
Robust security, VLAN, and QoS support
-
Fanless metal chassis for silent operation
Key Features
High-Speed 4G+ and WiFi 6
-
4G+ Cat6: Download up to 300 Mbps, dual Nano SIM auto-failover
-
WiFi 6 AX3000: 2402 Mbps (5 GHz), 574 Mbps (2.4 GHz), HE160, OFDMA, 1024-QAM
-
Antennas: Five high-gain detachable antennas for strong, stable wireless
Business-Class Wired and PoE+
-
5× Gigabit Ethernet: Four PoE+ ports (total 45W) for APs, cameras, thin clients
-
Full gigabit performance for high-speed LAN and uplink
Robust Security & VPN
-
VPN Support: IPSec, SSL, WireGuard, OpenVPN, PPTP, L2TP, GRE
-
VPN Management: Up to 10 PPTP/L2TP, up to 5 OpenVPN servers
-
Advanced firewall, VLAN, and QoS
Cloud & Centralized Management
-
Omada Cloud SDN: Free Essentials cloud or scalable Standard cloud
-
App/Web Control: Easy setup, monitoring, and multi-site management
-
Zero-touch provisioning for fast deployment
-
Omada Mesh: Seamless mesh expansion with supported EAPs
Flexible Deployment & Reliability
-
Dual SIM: Automatic failover keeps you always connected
-
PoE+ Power: Run APs and IP cameras directly from the gateway
-
Fanless, durable metal casing for quiet and long-term use
Summary
The TP-Link ER706WP-4G is the ultimate 4G+ business gateway, blending LTE speed, WiFi 6, robust PoE+, VPN security, and true cloud control into a single, flexible solution. Ensure connectivity and uptime for branches, SMEs, and remote operations with plug-and-play deployment and advanced Omada SDN management.
仕様
TP-Link ER706WP-4G Omada 4G+ Dual Nano Sim AX3000 4-Port POE+ Gigabit VPN Gateway Router
Future-proof 4G+ gateway with full Omada integration — the ER706WP-4G combines blazing AX3000 Wi-Fi, dual Nano SIM 4G+ connectivity, advanced VPN, and PoE+ switching for flexible enterprise deployments. Engineered for reliability, security, and high-performance networking.
Specifications
| Specification | Details |
|---|---|
| 4G Features | |
| Network Type | • 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz) • 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz) • 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8 (2100/1800/850/900 MHz) |
| Carrier Aggregation | Multiple combinations supported (see official datasheet for full list) |
| SIM Type | 2 × Nano SIM (4G+ Cat6) |
| Frequency | • Downlink: 300 Mbps • Uplink: 50 Mbps |
| Security | |
| DPI | Application control via DPI, updated app library |
| IDS/IPS | Signature-based IPS/IDS threat detection |
| Access Control | Source/Destination IP-based |
| Filtering | • Web Group Filtering • URL Filtering • Web Security |
| ARP Inspection | • GARP Packets • ARP Scanning • IP-MAC Binding |
| Attack Defense | • TCP/UDP/ICMP Flood Defense • Block TCP Scan • Block Ping from WAN |
| Hardware | |

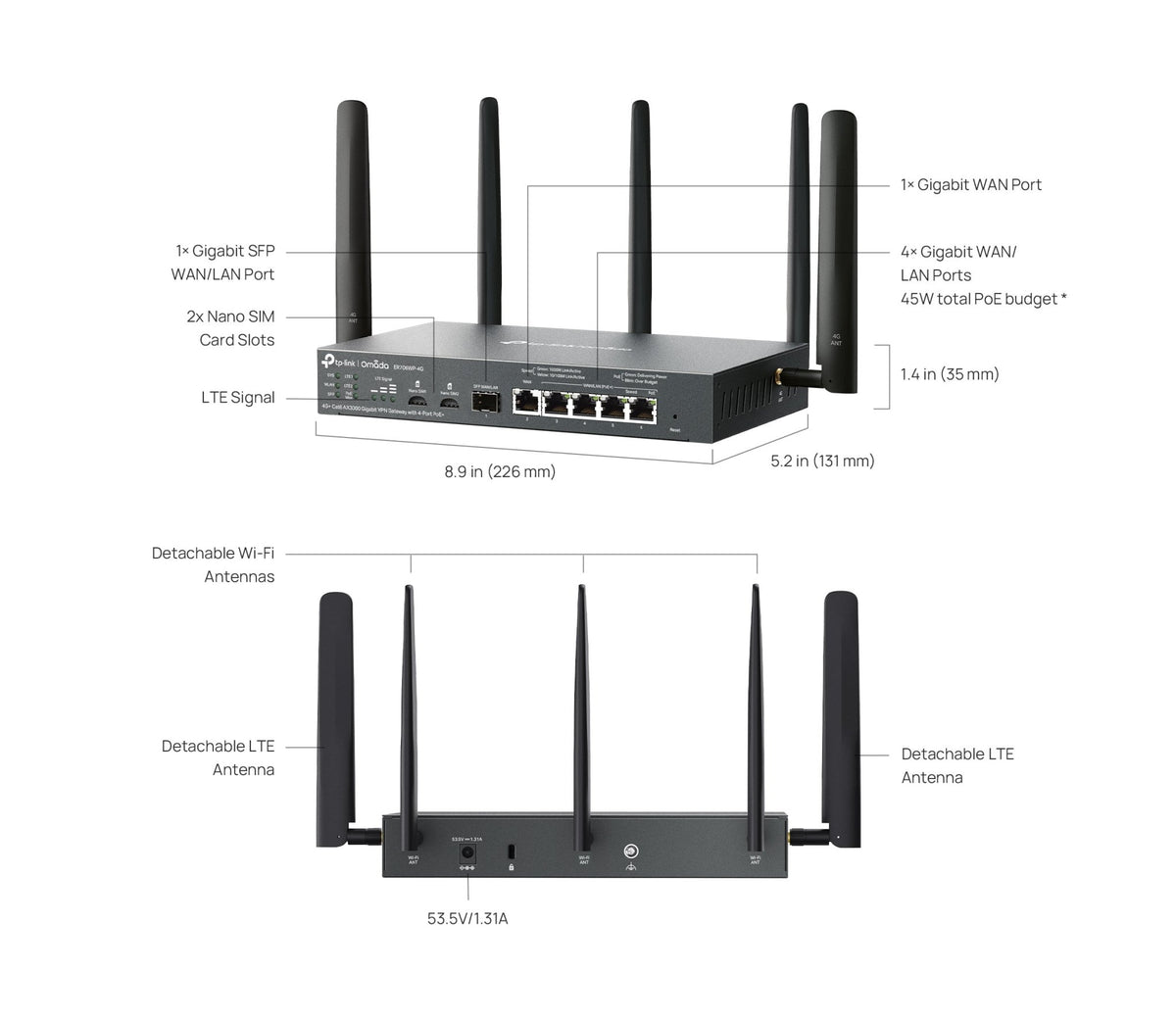

| Interface | • 1 × Gigabit SFP WAN/LAN • 1 × Gigabit WAN • 4 × Gigabit LAN/WAN Ports |
| Network Media | • 10BASE-T: Cat 3/4/5 (Max 100m) • 100BASE-TX: Cat 5/5e (Max 100m) • 1000BASE-T: Cat 5/5e/6 (Max 100m) |
| Button | Reset |
| Power Supply | 4 Ports PoE+ Output, 45W PoE Budget |
| Wi-Fi Frequency & Rate | • 2.4 GHz: 574 Mbps • 5 GHz: 2402 Mbps (HE160) |
| Flash / DRAM | 256 MB NAND / 512 MB DDR4 |
| LEDs | SYS, WLAN, SFP, LTE1, LTE2, PoE Max, LTE Signal, WAN, WAN/LAN |
| Dimensions (W × D × H) | 226 × 131 × 35 mm (8.9 × 5.2 × 1.4 in) |
| Antenna | • Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable • LTE: Two 4.0dBi omnidirectional detachable |

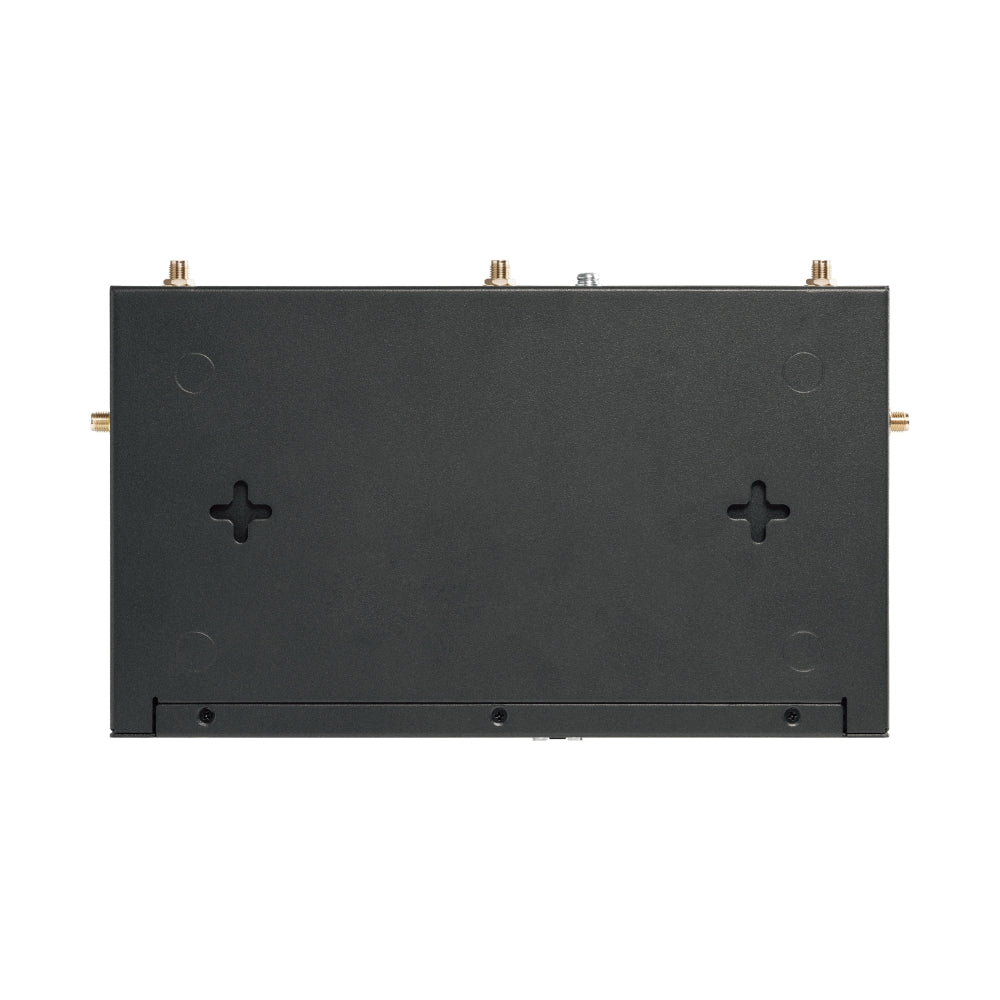

| Mounting | Desktop, Wall-Mount, Rackmount |
| Max Power Consumption | • 64.9W (with PoE Max) • 19.8W (without PoE) |
| Performance | |
| IPS Throughput | • TCP: 229 Mbps • UDP: 188 Mbps |
| DPI Throughput | • TCP: 933 Mbps • UDP: 927 Mbps |
| GRE | • Unencrypted: 545.3 Mbps • Encrypted: 282.6 Mbps |
| WireGuard VPN | 387.7 Mbps |
| Concurrent Sessions | 150,000 |
| New Sessions/Second | 5,100 |
| NAT | Up to 949.2 Mbps (varies by protocol) |
| IPsec VPN Throughput | • ESP-SHA1-AES256: 652.2 Mbps • ESP-SHA256-AES256: 654.4 Mbps • ESP-SHA384-AES256: 646.5 Mbps • ESP-SHA512-AES256: 670.5 Mbps |
| OpenVPN | 115.5 Mbps |
| L2TP/PPTP VPN | Up to 990 Mbps unencrypted |
| SSL VPN Throughput | 122.5 Mbps |
| 66 Byte / 1518 Byte Packet Rate | 1,453,489 pps / 81,274 pps |
| Wireless Features | |
| Advanced Features | • Seamless Roaming • Mesh (with supported EAP) • OFDMA, Beamforming, MU-MIMO • Rate Limit (SSID/Client), Airtime Fairness • WPA/WPA2/WPA3 Personal & Enterprise • 16 SSIDs total (8 per radio) • Guest Network |
| Basic Functions | |
| WAN Connection Types | Static IP, Dynamic IP, PPPoE, PPTP, L2TP |
| MAC Clone | Supported |
| DHCP | • DHCP Server • DHCPv6 PD Server • Options Customization • Address Reservation • Multi-IP/Net DHCP |
| SMS | Send/Receive |
| IPv6 | Static IP, SLAAC, DHCPv6, PPPoE, 6to4 Tunnel, PassThrough, Non-Address Mode |
| VLAN | 802.1Q VLAN |
| IPTV | IGMP v2/v3 Proxy, Custom, Bridge Mode |
| Advanced Features | |
| Access Control | IP/Port/Protocol/Domain Name Filtering |
| Advanced Routing | Static, Policy, RIP, OSPF |
| Bandwidth Control | IP-Based |
| Load Balance | Intelligent, Application Optimized Routing, Link Backup, Online Detection |
| NAT | One-to-One, Multi-Net, Virtual Server, Port Triggering, NAT-DMZ, ALG, UPnP |
| Session Limit | IP-Based |
| VPN | |
| GRE | Standalone mode only |
| SSL VPN | 50 Tunnels |
| IPsec VPN | 100 Tunnels, full protocol and encryption support |
| PPTP VPN | 50 Tunnels, Server/Client mode |
| L2TP VPN | 50 Tunnels, Server/Client mode |
| OpenVPN | 55 Tunnels, Server/Client mode |
| WireGuard VPN | 20 Tunnels |
| Authentication | |
| Web Authentication | No Auth, Simple Password, Hotspot, Radius, LDAP, External Portal |
| Management Features | |
| Omada App | Yes |
| Centralized Management | Omada Cloud-Based, Hardware, Software Controller |
| Cloud Access | Yes |
| Service | Dynamic DNS (Dyndns, No-IP, etc.) |
| Maintenance | • Web UI, Remote Management • SNMP v1/v2c/v3 • Syslog, CLI (Standalone) • Diagnostics, NTP, Port Mirroring |
| Zero-Touch Provisioning | Yes (with Omada Cloud-Based Controller) |
| Management | • Device Discovery • Network Monitoring • Event Warnings • Unified Config • Reboot Schedule • Captive Portal |
| Others | |
| Certification | CE, FCC, RoHS |

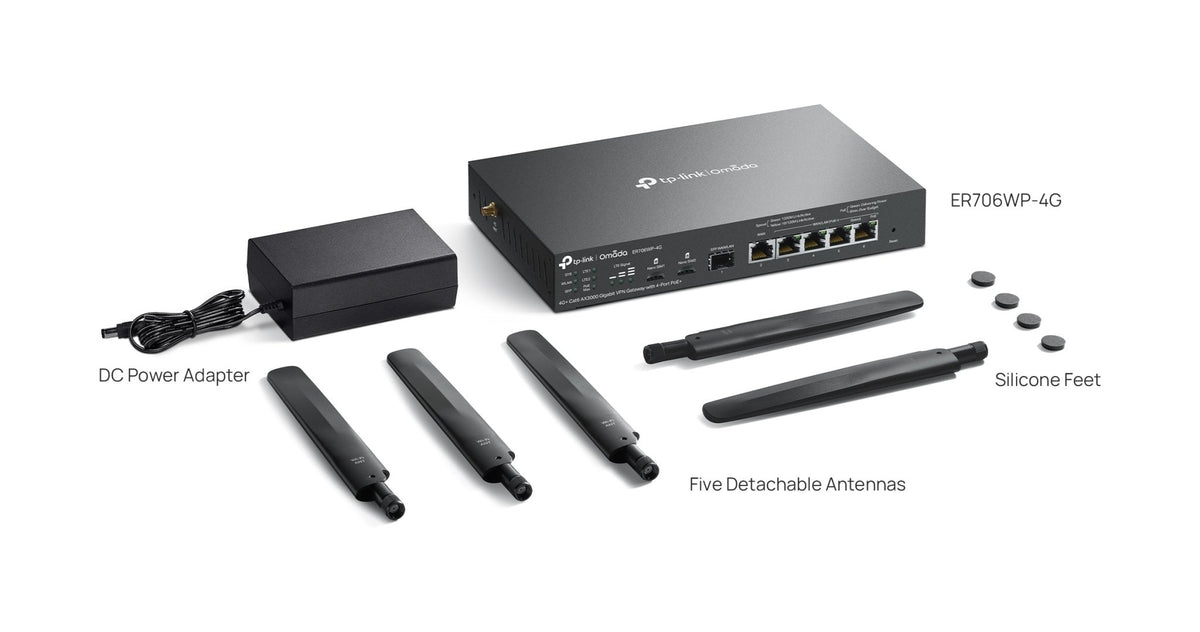

| Package Contents | • ER706WP-4G • Power Adapter • Quick Installation Guide |
| System Requirements | Windows 98SE to 11, Mac OS, NetWare, UNIX, Linux |
| Environment | • Operating: 0°C to 40°C (32°F to 104°F) • Storage: -40°C to 70°C (-40°F to 158°F) • Humidity: 10%–90% (operating), 5%–90% (storage) |
