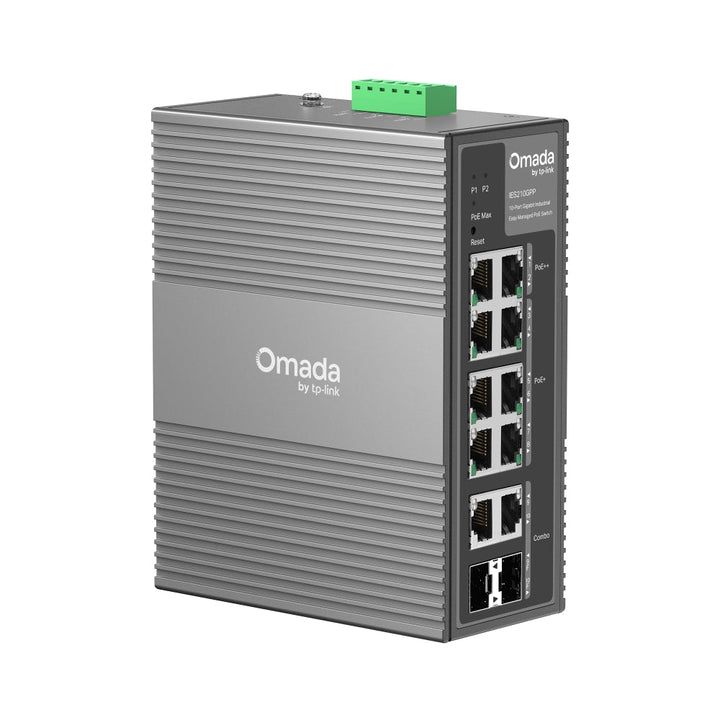

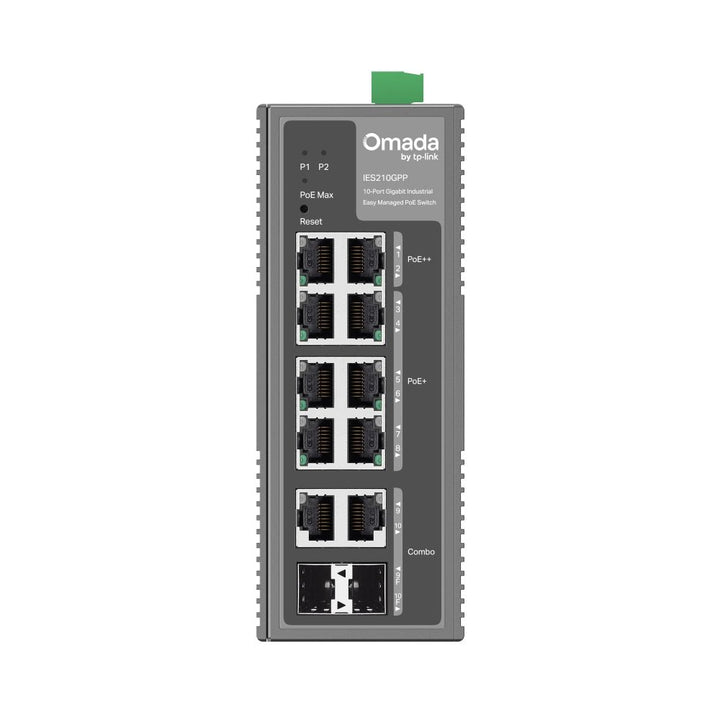

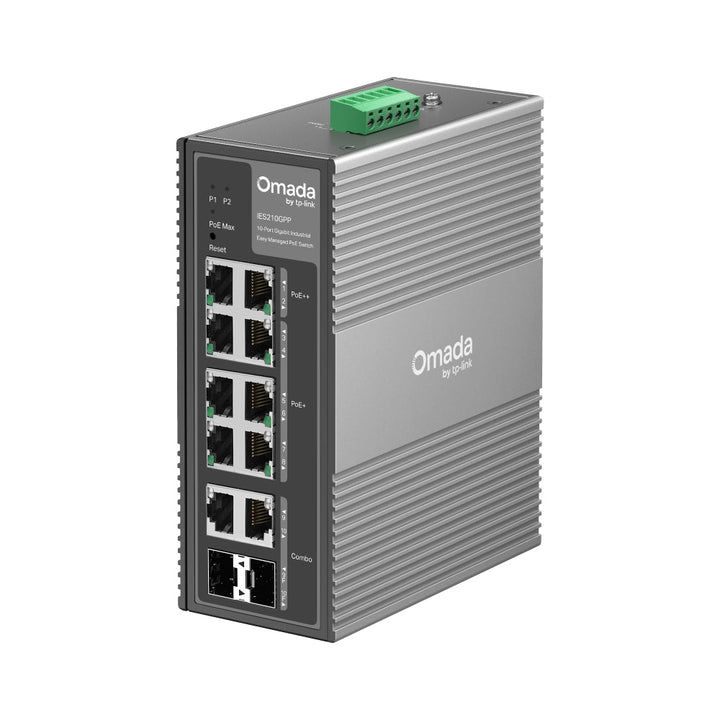

TP-Link IES210GPP Omada 10-Port Gigabit Industrial Easy Managed 250m Long Range POE Switch with PoE++
Industrial-Grade PoE++ Switch for Harsh Environments The TP-Link IES210GPP is a 10-port Gigabit industrial PoE switch designed for demanding environments, offering advanced networking features and...
Industrial-Grade PoE++ Switch for Harsh Environments
The TP-Link IES210GPP is a 10-port Gigabit industrial PoE switch designed for demanding environments, offering advanced networking features and reliable PoE++ power delivery. With robust protection, centralized management, and versatile deployment options, the IES210GPP is the ideal choice for long-range PoE installations and CCTV networking.
Highlights
-
8 x Gigabit RJ45 Ports (2 x PoE++, 6 x PoE+)
-
2 x Gigabit Combo RJ45/SFP Slots
-
240W PoE Budget with up to 60W for Each PoE++ Port
-
Operating Temperature Range: -40°C to 75°C
-
6kV Lightning Protection for Enhanced Durability
-
1+1 Redundant Power Input (12~57VDC) for Reliability
-
IP40 Aluminum Casing with DIN-Rail and Wall-Mount Design
-
Supports VLAN, QoS, STP/RSTP, and 250m Long-Range PoE
-
Centralized Cloud Management via Omada App or Web
Key Features
Superior PoE++ Power and Versatility
-
240W total PoE budget with up to 60W per PoE++ port
-
Supports IEEE 802.3af/at/bt standards for compatibility with various devices
-
8 x Gigabit RJ45 ports (2 x PoE++, 6 x PoE+) for high-power devices
-
2 x Combo RJ45/SFP slots for flexible uplink connections
Industrial-Grade Design for Harsh Environments
-
Durable IP40-rated aluminum casing ensures rugged protection
-
Operating temperature range of -40°C to 75°C for extreme conditions
-
6kV lightning protection guards against electrical surges
Reliable Power Redundancy
-
Dual power input ports with wide 12~57V DC voltage range
-
1+1 redundant power input ensures continuous operation in case of power failure
-
Real-time fault alarm alerts for proactive maintenance
Enhanced Network Stability and Security
-
Supports VLAN, QoS, and STP/RSTP for optimized traffic management
-
250m long-range PoE support for extended connectivity
-
Robust networking features for stable and efficient CCTV setups
Simplified Management with Omada Cloud
-
Centralized cloud management via Omada Controller or Omada App
-
Zero-touch provisioning available through Omada Cloud-Based Controller
-
Comprehensive monitoring and management from a single interface
Summary
The TP-Link IES210GPP is a robust industrial-grade switch offering PoE++ power delivery, advanced networking features, and centralized management through the Omada Cloud platform. Its durable IP40 aluminum casing, wide operating temperature range, and reliable power redundancy make it the ideal choice for harsh environments requiring long-range PoE and high-performance networking.
TP-Link IES210GPP Specifications
| Specification | Details |
|---|---|
| Model | IES210GPP |
| Interface | • 2 × 10/100/1000 Mbps PoE++ RJ45 Ports • 6 × 10/100/1000 Mbps PoE+ RJ45 Ports • 2 × Gigabit SFP/RJ45 Combo Slots • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |

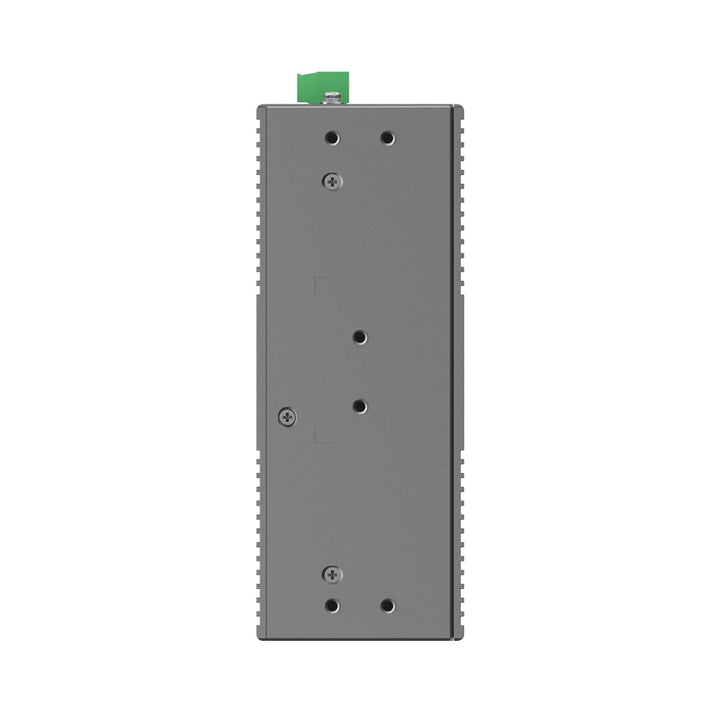

| Installation | • DIN-rail mounting • Wall mounting |
| Physical Security Lock | Supported |

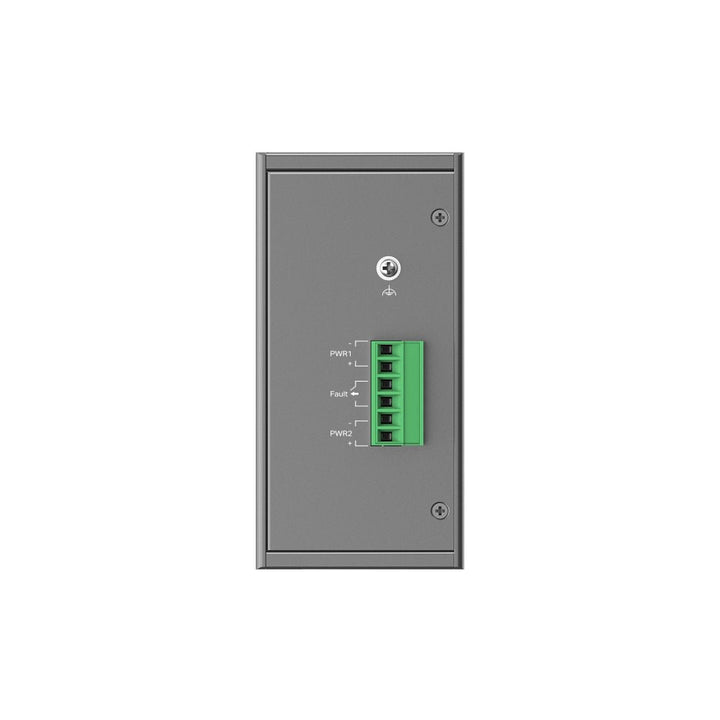

| Power Supply | 12-57V, 1+1 Redundant DC Power Input |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports: 2 Ports, up to 60W per port • PoE+ Ports: 6 Ports, up to 30W per port |
| PoE Budget | • 60W (Input: 12V / 7.2A - 21V / 3.7A) • 120W (Input: 21V / 6.7A - 46V / 3.1A) • 240W (Input: 46V / 5.7A - 57V / 4.4A) |
| Dimensions (W x D x H) | 6.1 x 4.7 x 2.4 in (155 x 120 x 60 mm) |
| Surge Protection | • ±6 kV for Ethernet ports • ±4 kV for DC power input ports |
| Switching Capacity | 20 Gbps |
| Packet Forwarding Rate | 14.88 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Transmission Method | Store-and-Forward |
| Quality of Service (QoS) | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode: WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control (Port-Based Rate Limit) • Storm Control (Multiple Control Modes: kbps/pps, Broadcast/Multicast/Unknown-Unicast Control) |
| L2 Features | • Link Aggregation: Static Link Aggregation, Up to 4 groups with up to 6 ports per group • Loopback Detection • Flow Control: 802.3x Flow Control • Mirroring: Port Mirroring, One-to-One, Many-to-One, Ingress/Egress/Both • Port Statistics: Port Mirror Status, Traffic Statistics • 802.1ab LLDP • Spanning Tree: STP (802.1d), RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping (v1/v2/v3) • Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN (Max 32 VLAN Groups, 4K VID) |
| Management Features | • Omada App (Requires Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller) • Centralized Management (Omada Cloud-Based Controller, Hardware Controller, Software Controller) • Zero-Touch Provisioning (Omada Cloud-Based Controller required) • Web-based GUI, DHCP Client, Cable Diagnostics, Digital Diagnostic Monitoring (DDM), Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Unified Configuration |
| Cloud Access | Yes (Requires Omada Controller) |
| Certification | FCC, CE, RoHS |

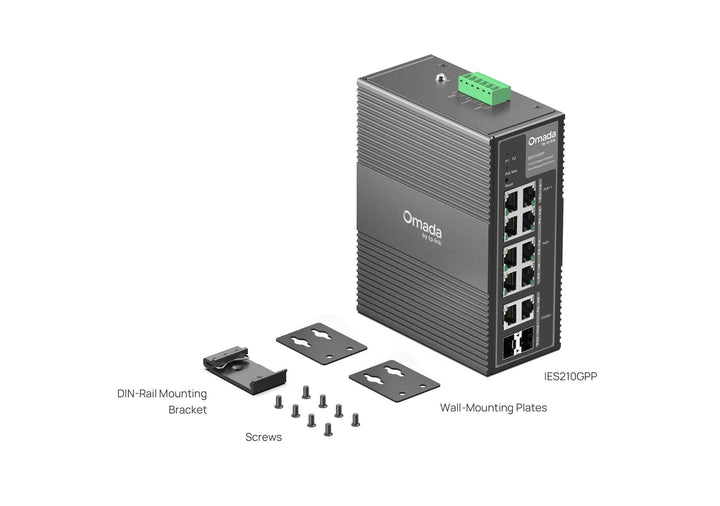

| Package Content | • IES210GPP • DIN-Rail Mounting Bracket • Wall-Mounting Plates • Installation Guide |
| Environment | • Operating Temperature: -40°C to 75°C (-40°F to 167°F) • Storage Temperature: -40°C to 85°C (-40°F to 185°F) • Operating Humidity: 5% to 95% non-condensing • Storage Humidity: 5% to 95% non-condensing |
