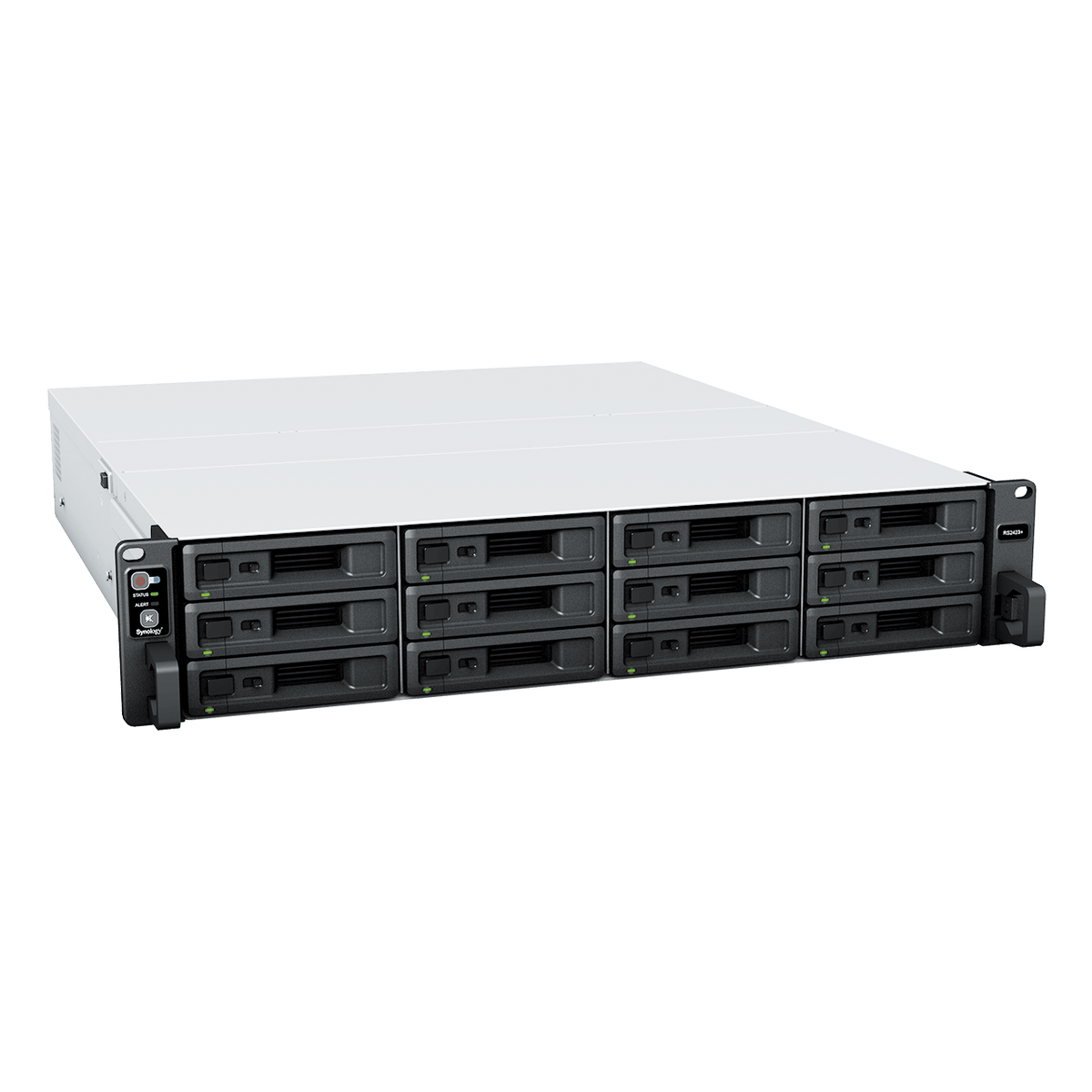

Synology RS2423+ RS2423RP+II 12-Bay 10GbE Rackmount NAS
제품 설명
12-bay rack storage for business files and backups
The Synology RS2423+ and RS2423RP+II are 2U rackmount NAS models with built-in 10GbE and 8GB ECC memory. Choose RS2423+ for a single power supply or RS2423RP+II for redundant hot-swappable power supplies.
Highlights
- 12 SATA drive bays with drives sold separately.
- One 10GbE port and two Gigabit Ethernet ports.
- 8GB installed memory with expansion up to 32GB.
- Expand to 24 bays with one RX1223RP unit sold separately.
Key Features
Which power option should I choose?
The Single Power Supply option is RS2423+. The Redundant Power Supply option is the current RS2423RP+II revision with 550W power supplies. Redundant power helps maintain service if one supply fails.
Storage and backup
Use DSM for shared files, backups and snapshots. RAID choice and drive capacity determine usable storage. SSD cache and faster network connections require compatible optional hardware.
What else do I need?
Drives and the RKS-02 rail kit are sold separately. Memory, network cards and SSD adapters must match the selected NAS. NVMe cache requires a compatible adapter card. EW202 can extend the eligible three-year hardware warranty to five years when purchased and registered under the plan terms.
Summary
Select the power option for your installation and add compatible drives, rails and any required upgrades.
사양
Synology RS2423+ RS2423RP+II 12-Bay 10GbE Rackmount NAS
Both models share the core storage platform. Power supplies and chassis depth differ.
| Specification | Details |
|---|---|

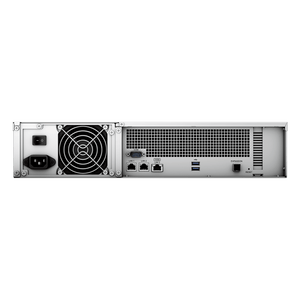

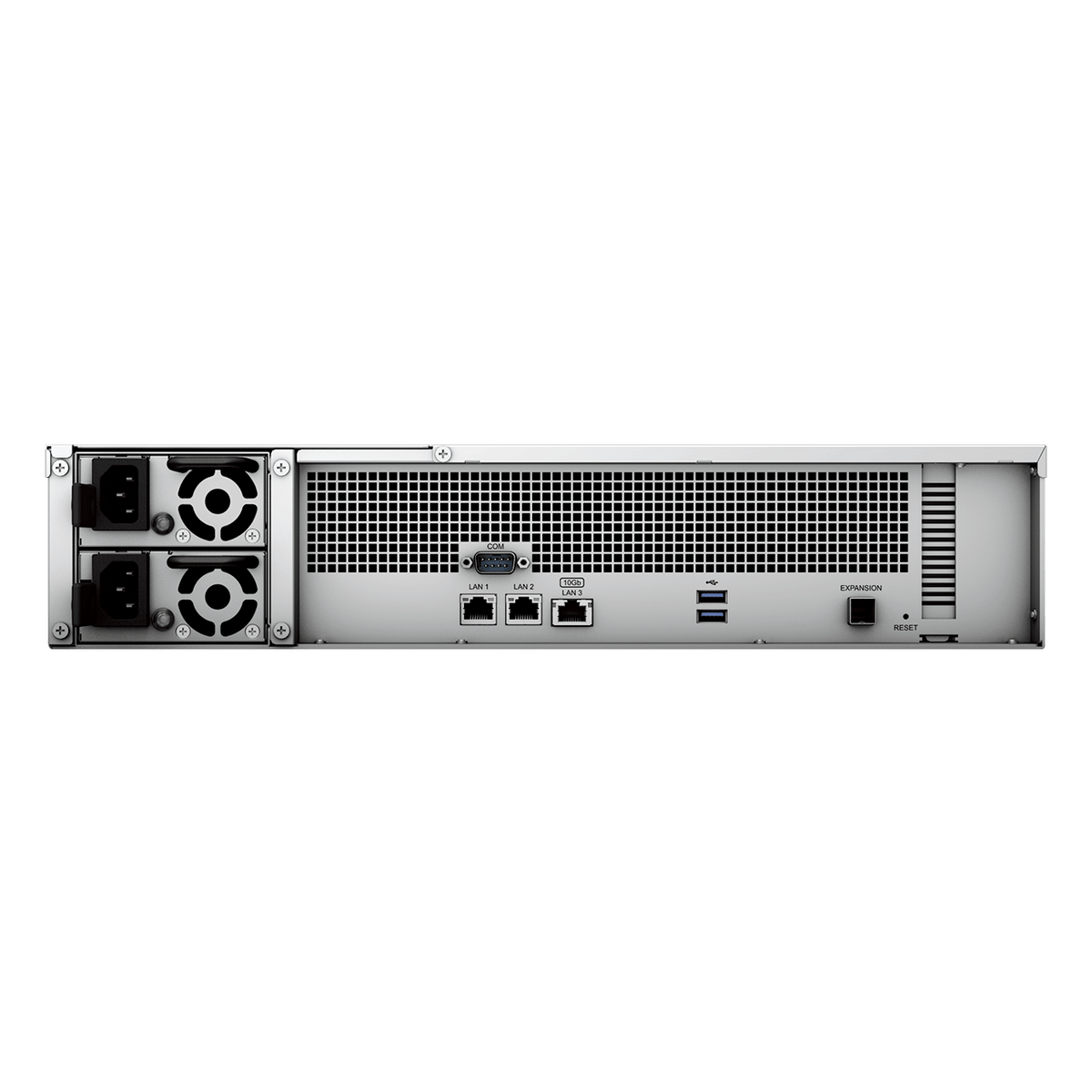

| Models | RS2423+: single PSU. RS2423RP+II: redundant hot-swappable PSUs. |
| CPU | AMD Ryzen V1780B. 4 cores at 3.35GHz base and 3.6GHz turbo. |
| Installed memory | 8GB DDR4 ECC UDIMM. Two slots. Maximum 32GB using 2 × 16GB matched supported modules. |

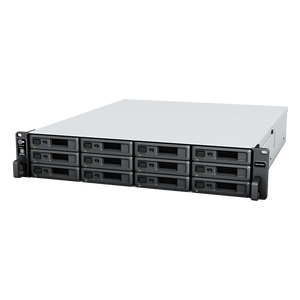

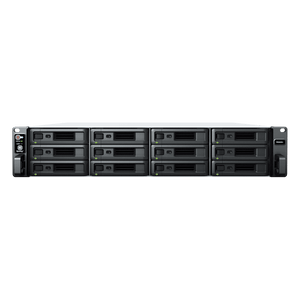

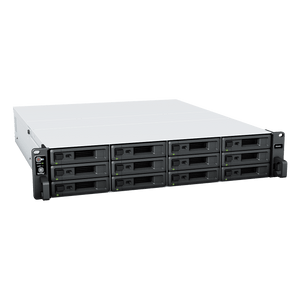

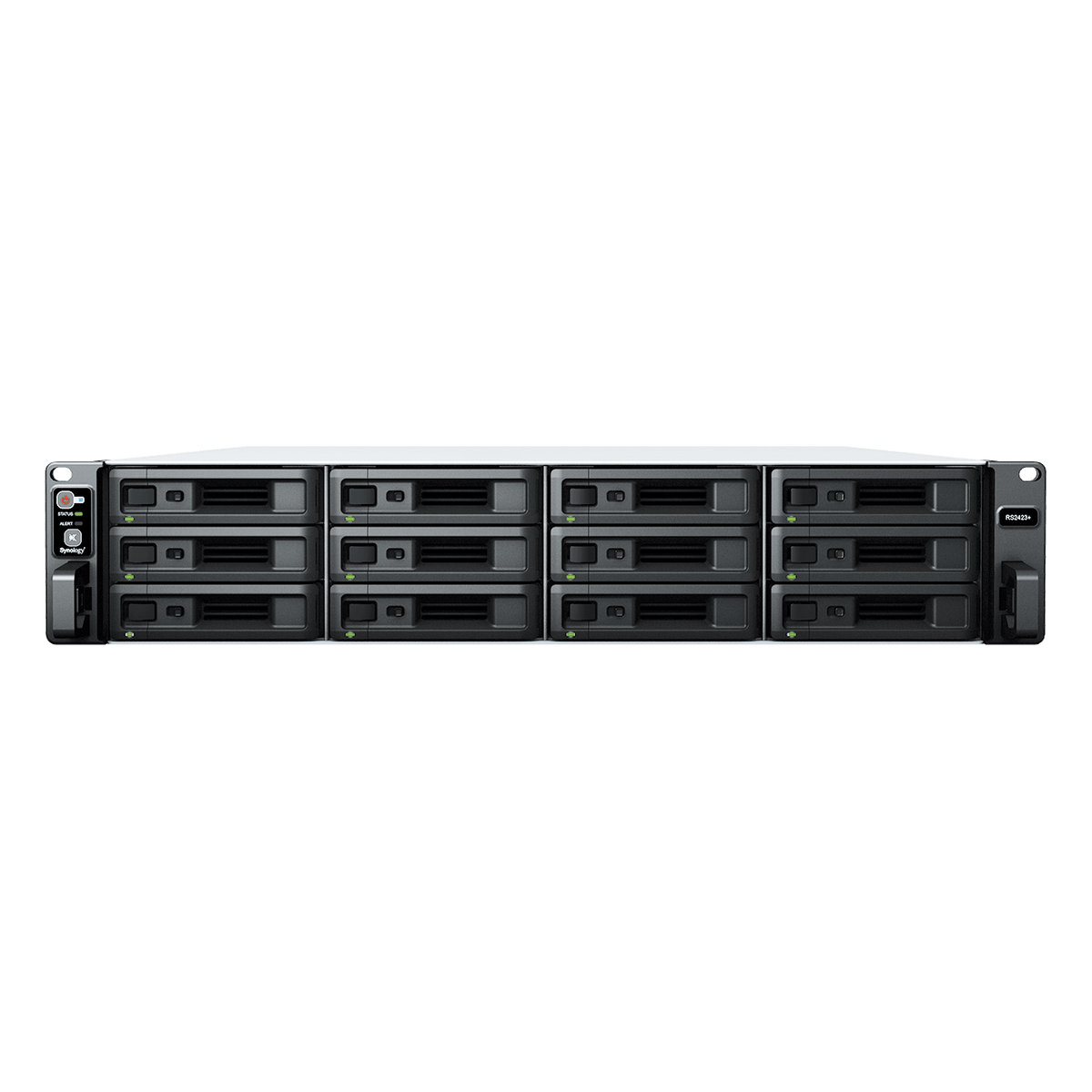

| Storage | 12 hot-swappable bays for compatible 3.5-inch SATA HDDs or 2.5-inch SATA SSDs. Drives sold separately. |
| Expansion | Up to 24 bays with one RX1223RP expansion unit sold separately. |

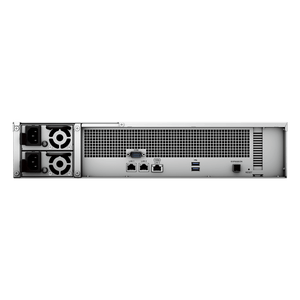

| Network | 1 × 10GbE RJ45 and 2 × 1GbE RJ45. |
| Ports and PCIe | 2 × USB 3.2 Gen 1. One expansion port. One PCIe Gen3 x8 slot with x4 link. |
| Rack and dimensions | 2U. RS2423+: 88mm × 482mm × 552mm. RS2423RP+II: 88mm × 482mm × 578mm. |
| Net weight | RS2423+: 11.5kg. RS2423RP+II: 11.9kg. |
| Power supply rating | RS2423+: 500W. RS2423RP+II: 550W redundant power supplies. Rating is not normal power consumption. |
| Rail kit | RKS-02 for a compatible four-post 19-inch rack. Sold separately. |
| Warranty | 3-year hardware warranty. Eligible EW202 plan adds two years when purchased and registered under its terms. |
