Ubiquiti UVC-G6-Mini-Dome 4K Indoor PoE AI Camera
제품 설명
Detailed indoor coverage in a discreet dome
The Ubiquiti G6 Mini Dome brings 4K video, built-in AI detections and two-way audio to indoor areas where a compact camera is easier to accommodate. Its wide fixed view suits reception areas, retail floors, corridors and shared workspaces. A single Ethernet connection supplies power and video to a UniFi Protect installation, while the low-profile dome helps keep the camera unobtrusive.
Highlights
Clear 4K imaging
- 8MP video at up to 30 frames per second.
- 1/1.8-inch sensor with HDR image adjustment.
- Wide 109.9° horizontal field of view.
Useful detection and communication
- People, vehicle and animal detections.
- Built-in face and licence plate recognition.
- Two-way audio for listening and speaking through Protect.
Compact installation

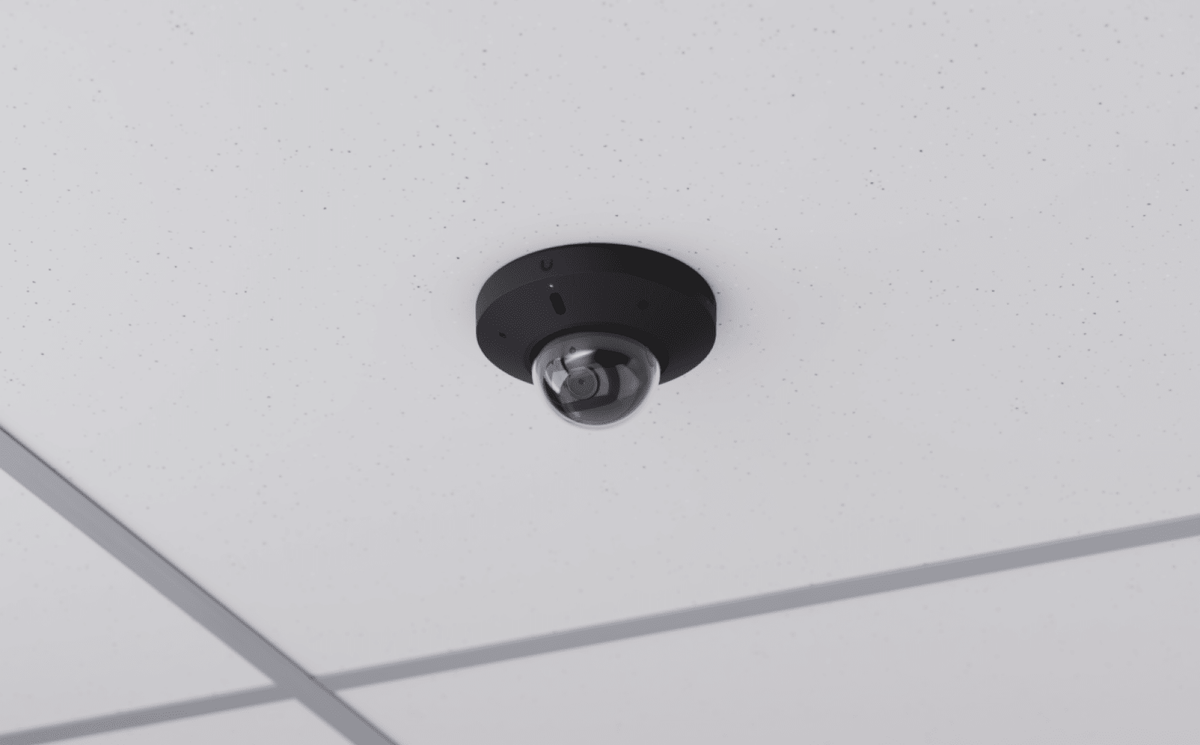

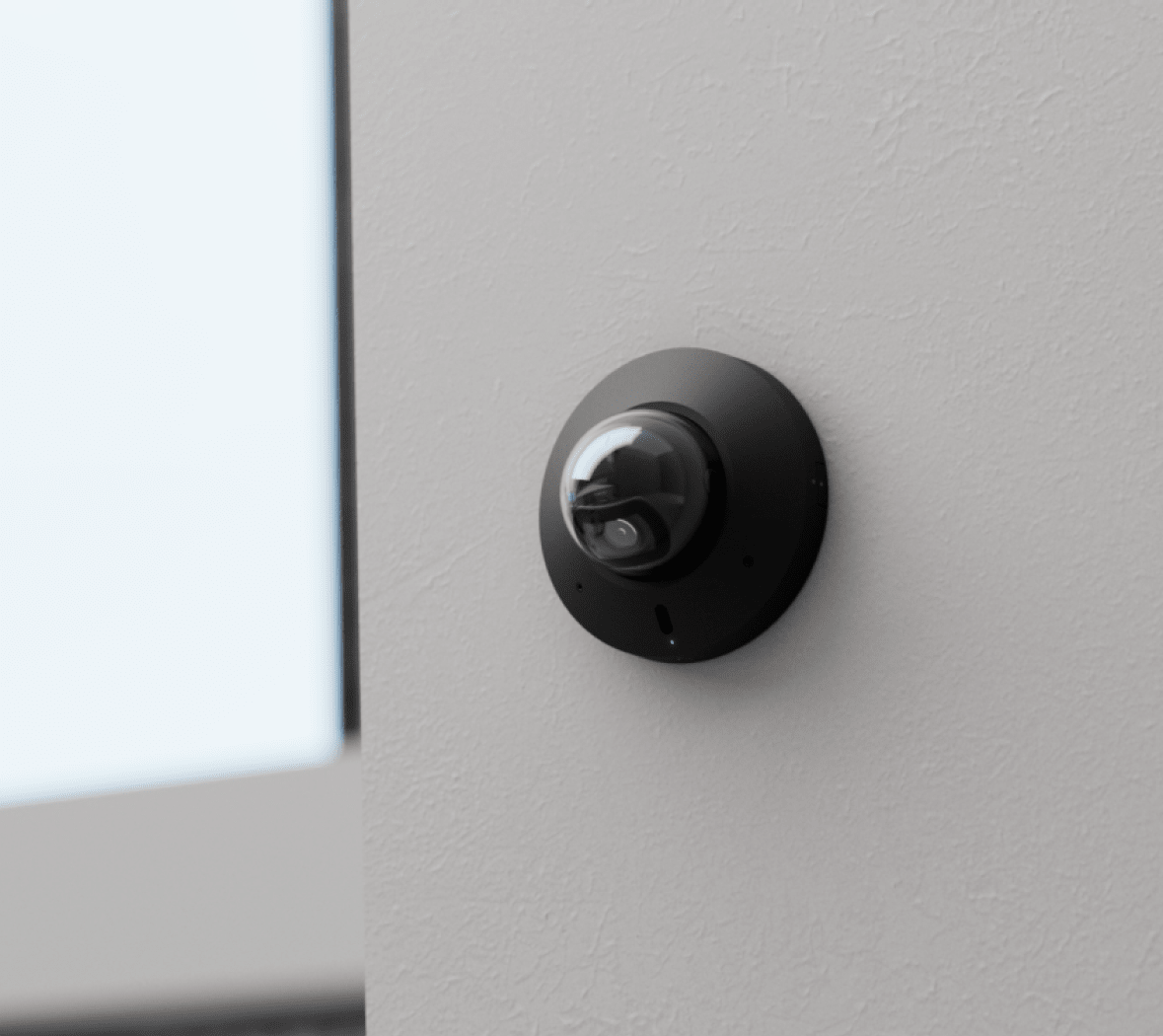

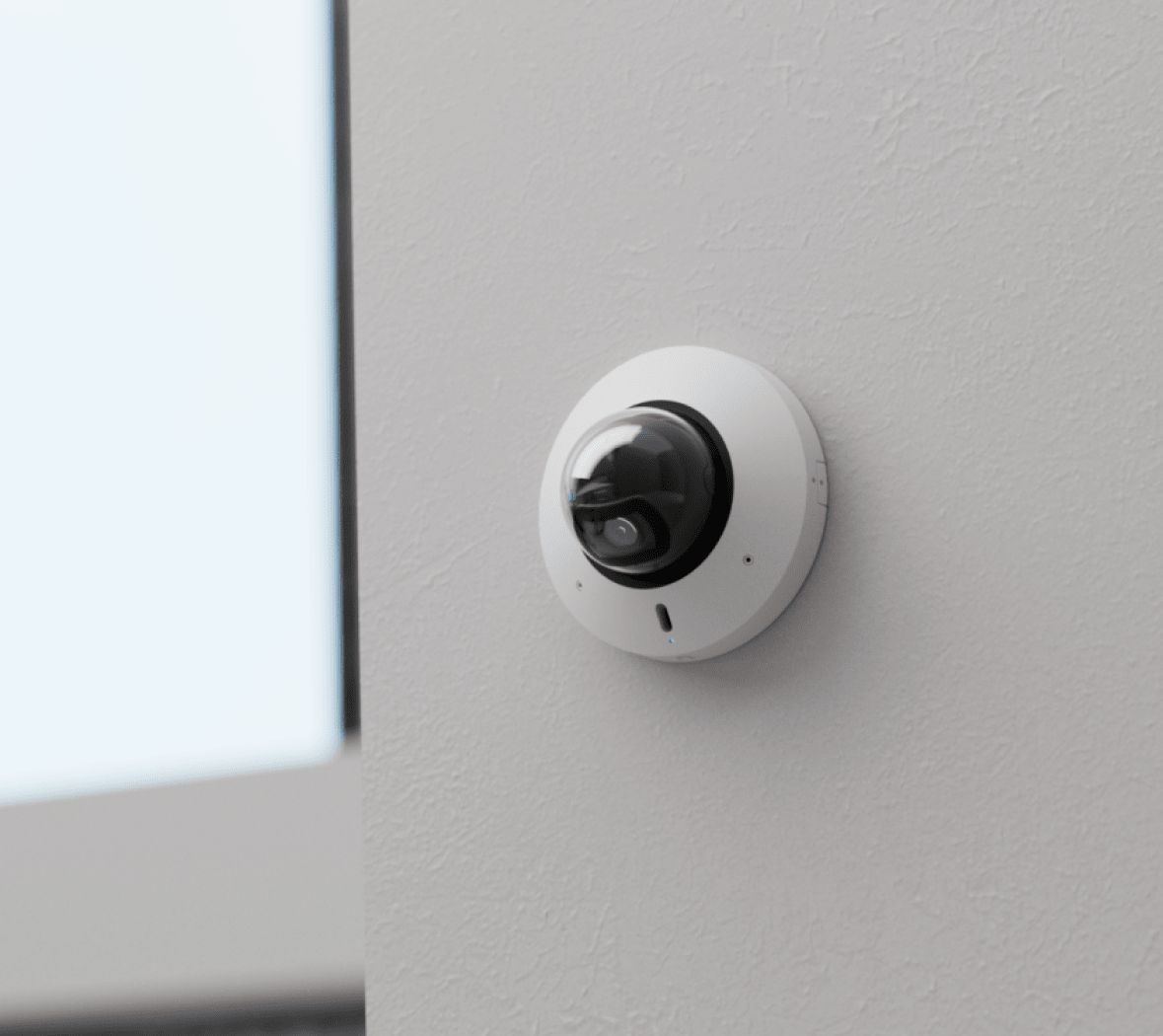

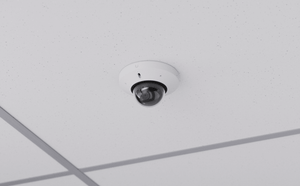

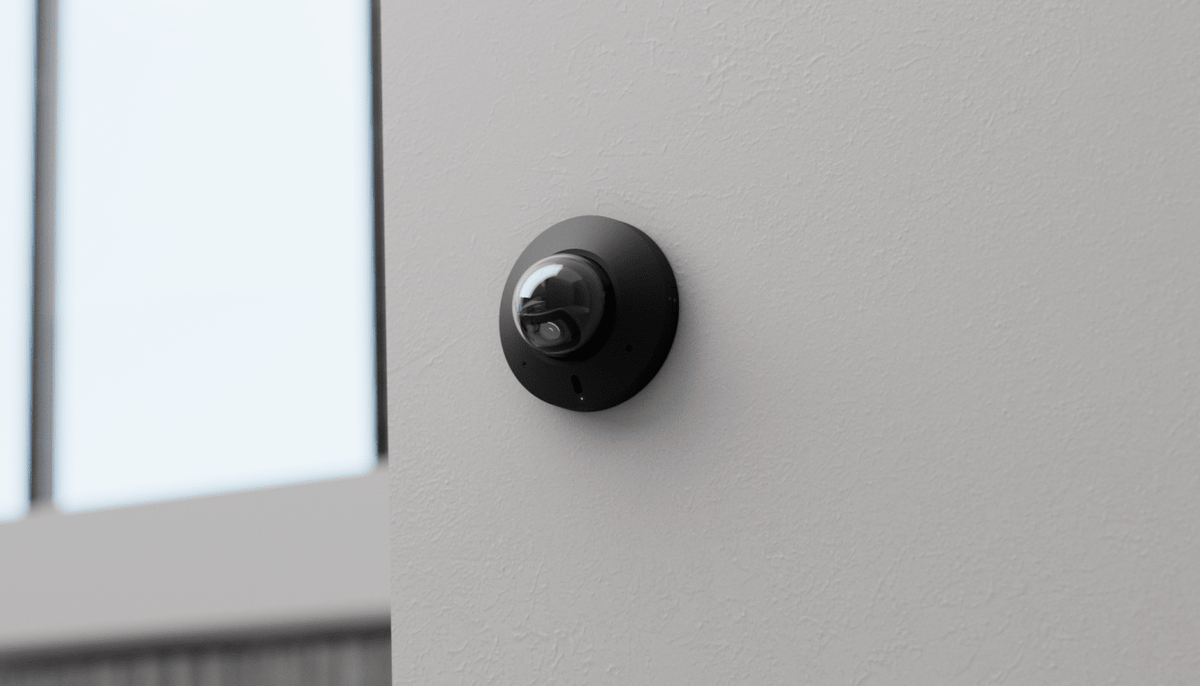

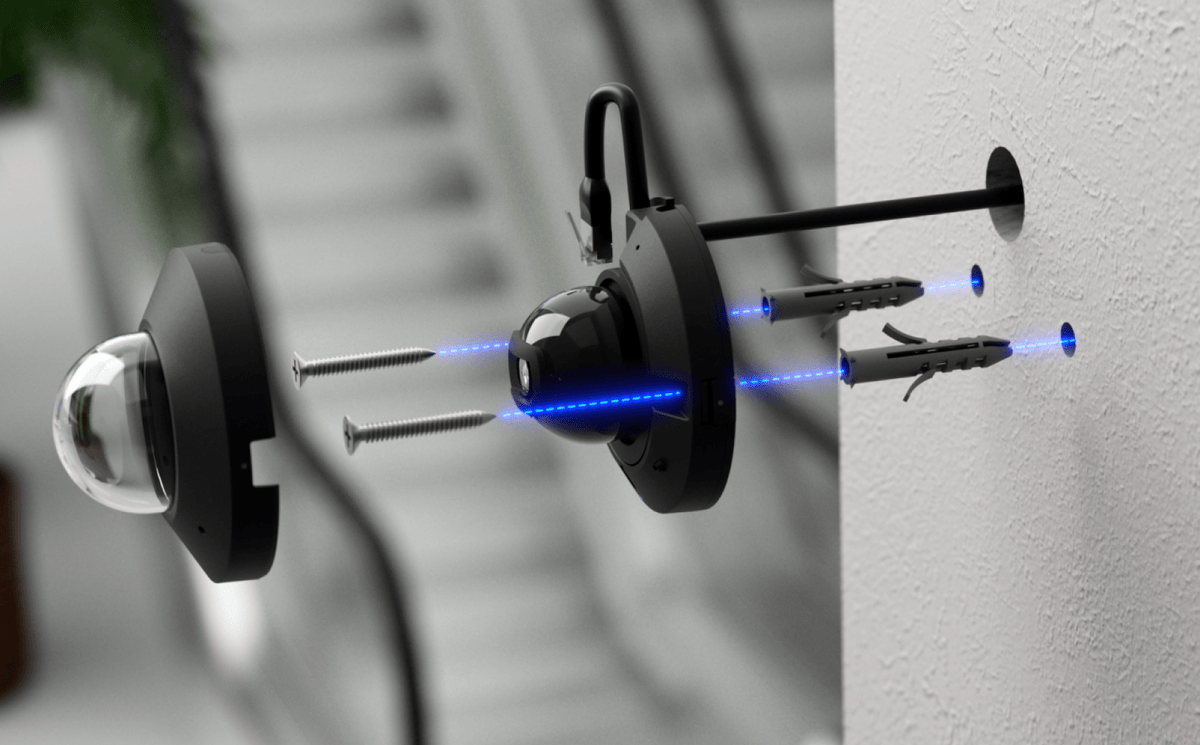

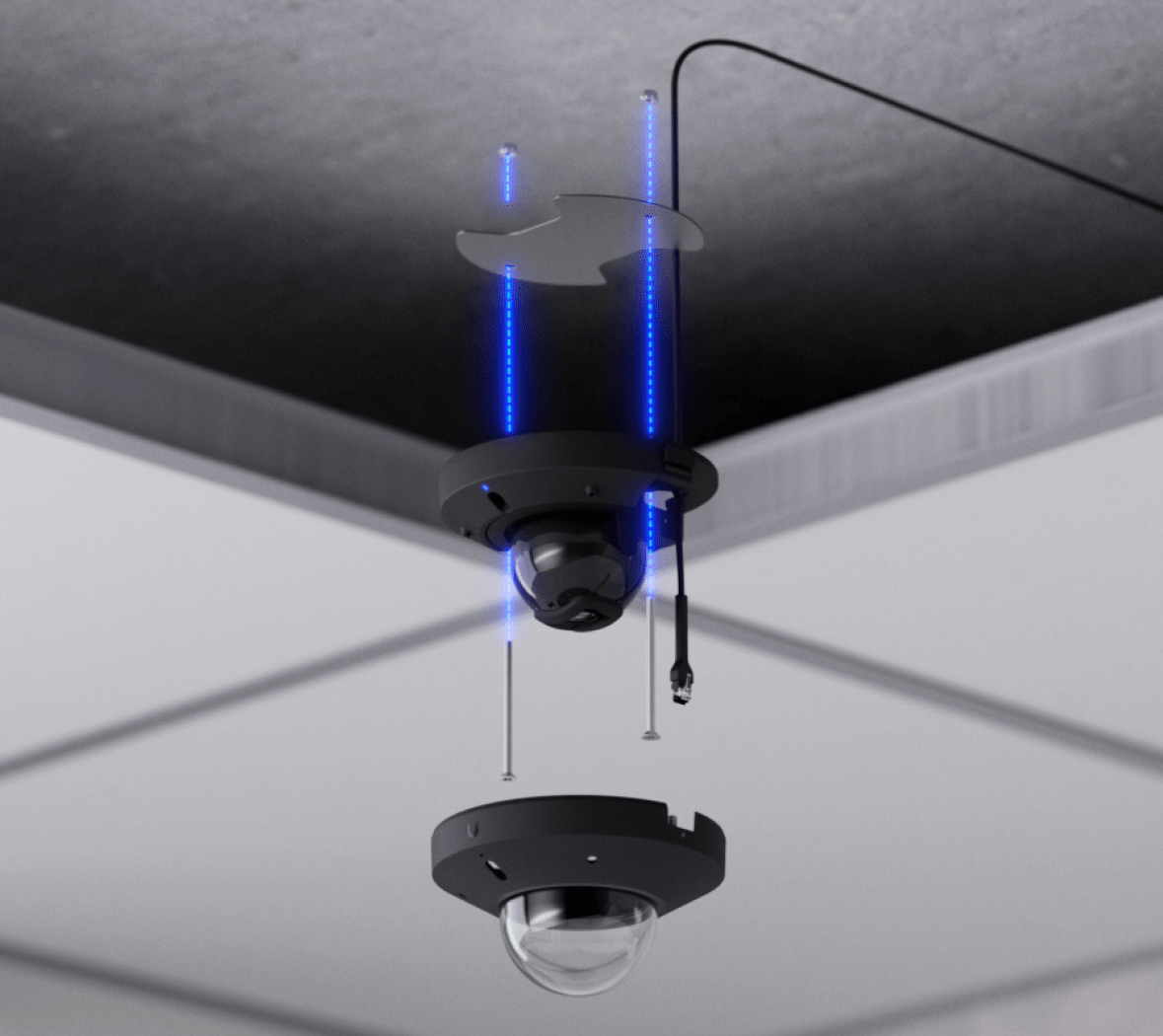

- Ceiling and wall mounting supported with the standard included mounts.

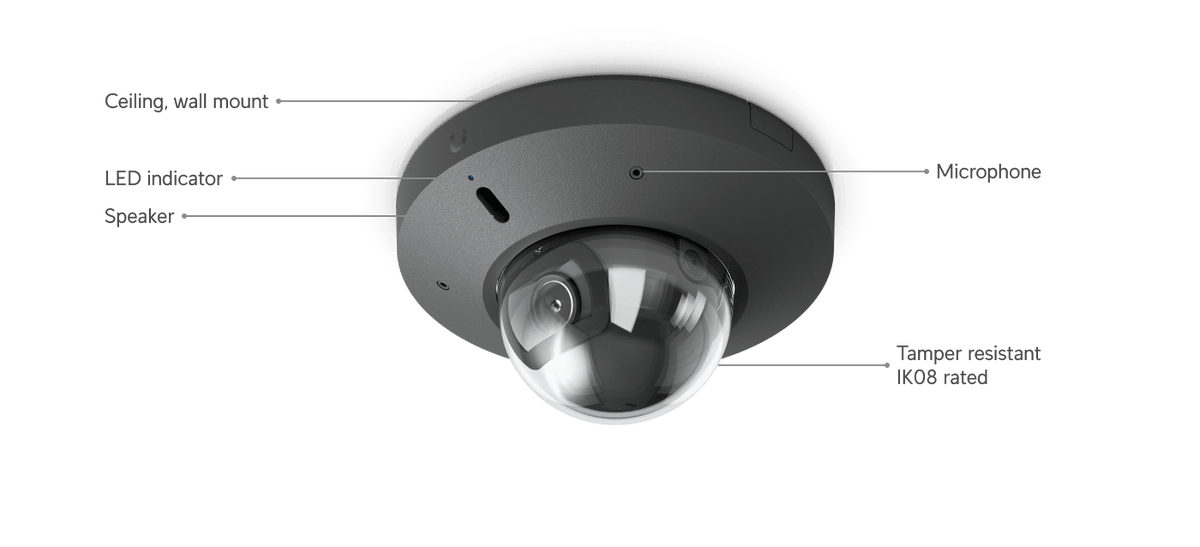

- IK08 impact resistance and black or white finishes.
- PoE power with a maximum consumption of 9W.
Key Features
Wide coverage without a bulky housing

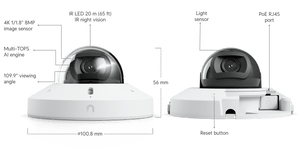

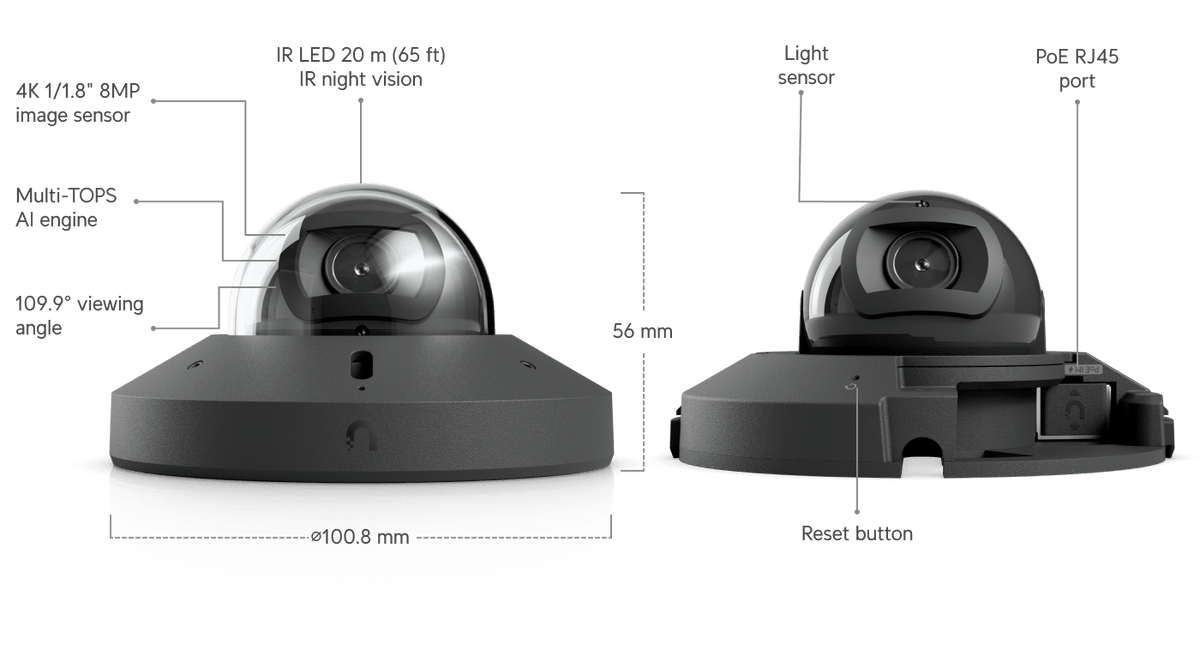

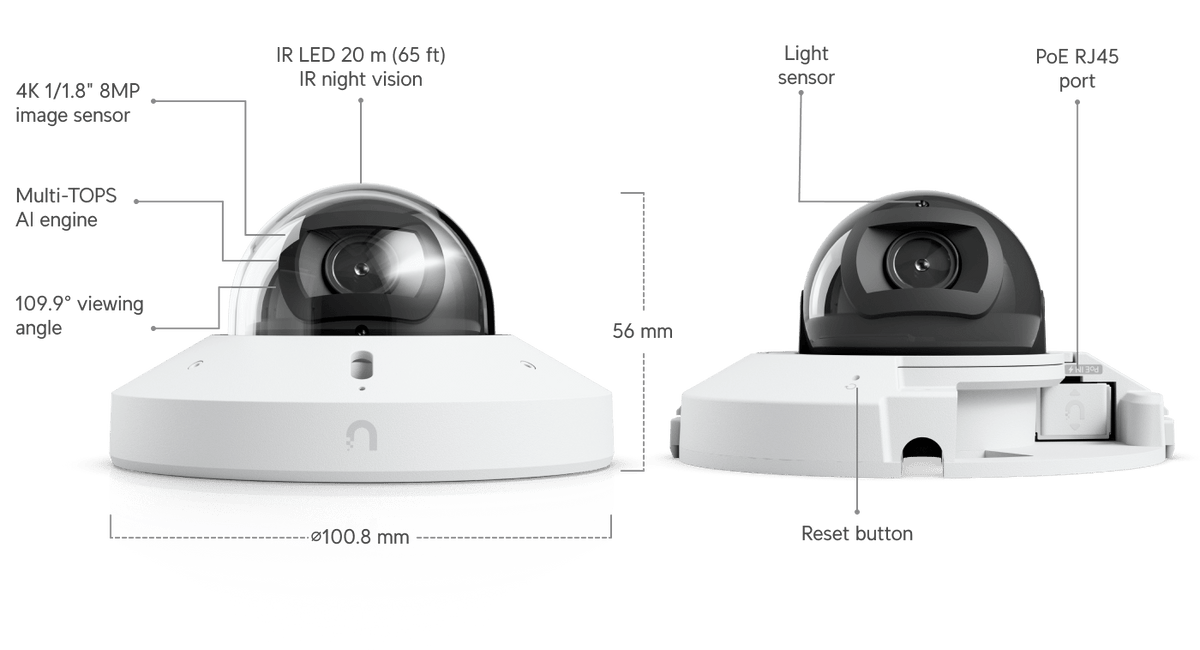

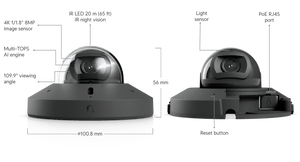

The fixed focal-length lens captures a broad scene from one position. This makes the camera useful for observing movement through a lobby or along an open retail aisle without a motorised zoom mechanism. Its 100.8 mm diameter and 56 mm height suit installations where a larger dome would be visually intrusive.
4K detail and controlled exposure
The 8MP sensor records at 3840 × 2160 and up to 30fps. HDR, exposure and white-balance settings let the installer tune a scene with bright entrances or uneven lighting. Image clarity still depends on placement and lighting, so position the camera to capture useful face detail rather than relying on resolution alone.
AI events that help locate relevant footage
The camera supports people, vehicle and animal detections alongside face and licence plate recognition. These detections help focus incident review within Protect on relevant activity. The viewing angle, distance and subject size matter, particularly when a plate or face is the intended evidence.
Communication and monitoring after dark
Two-way audio allows an operator to hear and speak through the camera in Protect. Built-in IR illumination provides night viewing out to 20M under suitable conditions, with an IR cut filter supporting day and night operation. Use the camera in indoor locations; no outdoor weatherproof rating is specified for this model.

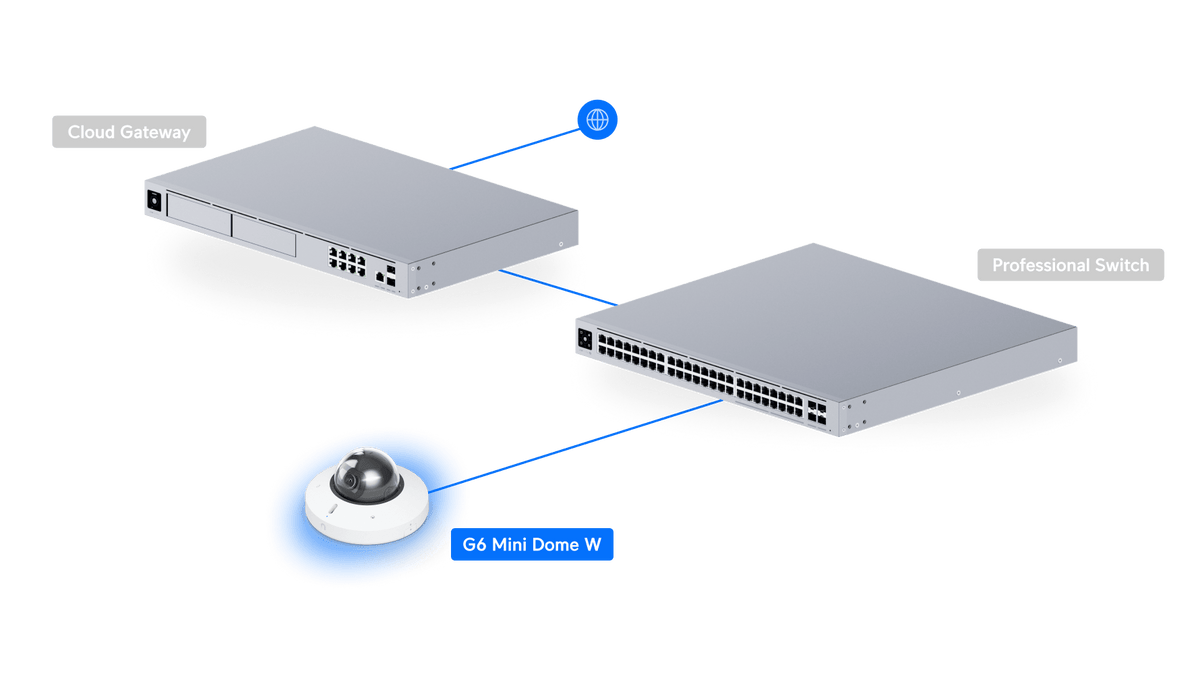

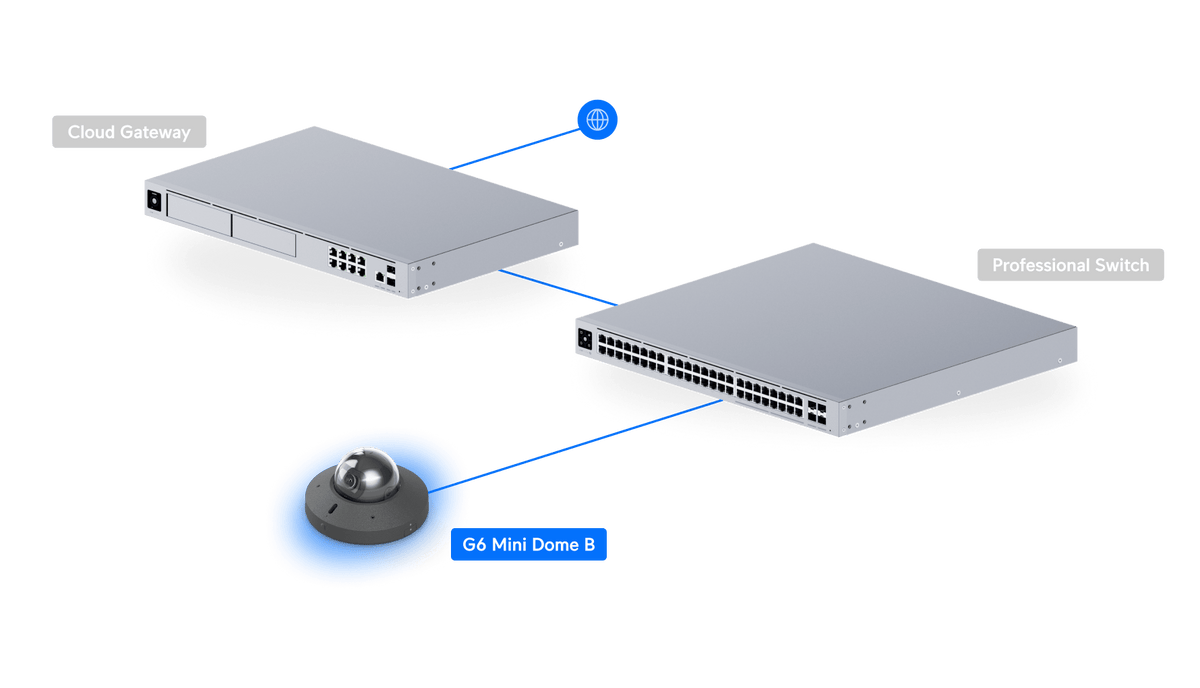

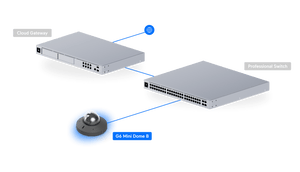

Plan the complete Protect installation

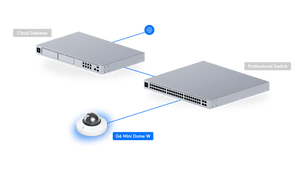

Use a PoE switch or suitable injector and a compatible UniFi Protect console with recording storage. These system components and Ethernet cabling are separate purchases. The RJ45 connection runs at 10/100 Mbps, and the cable passage accepts a maximum diameter of 6.5 mm.

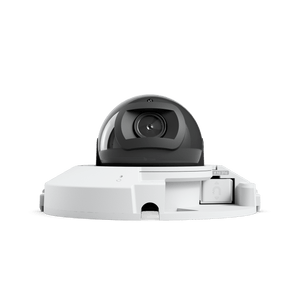

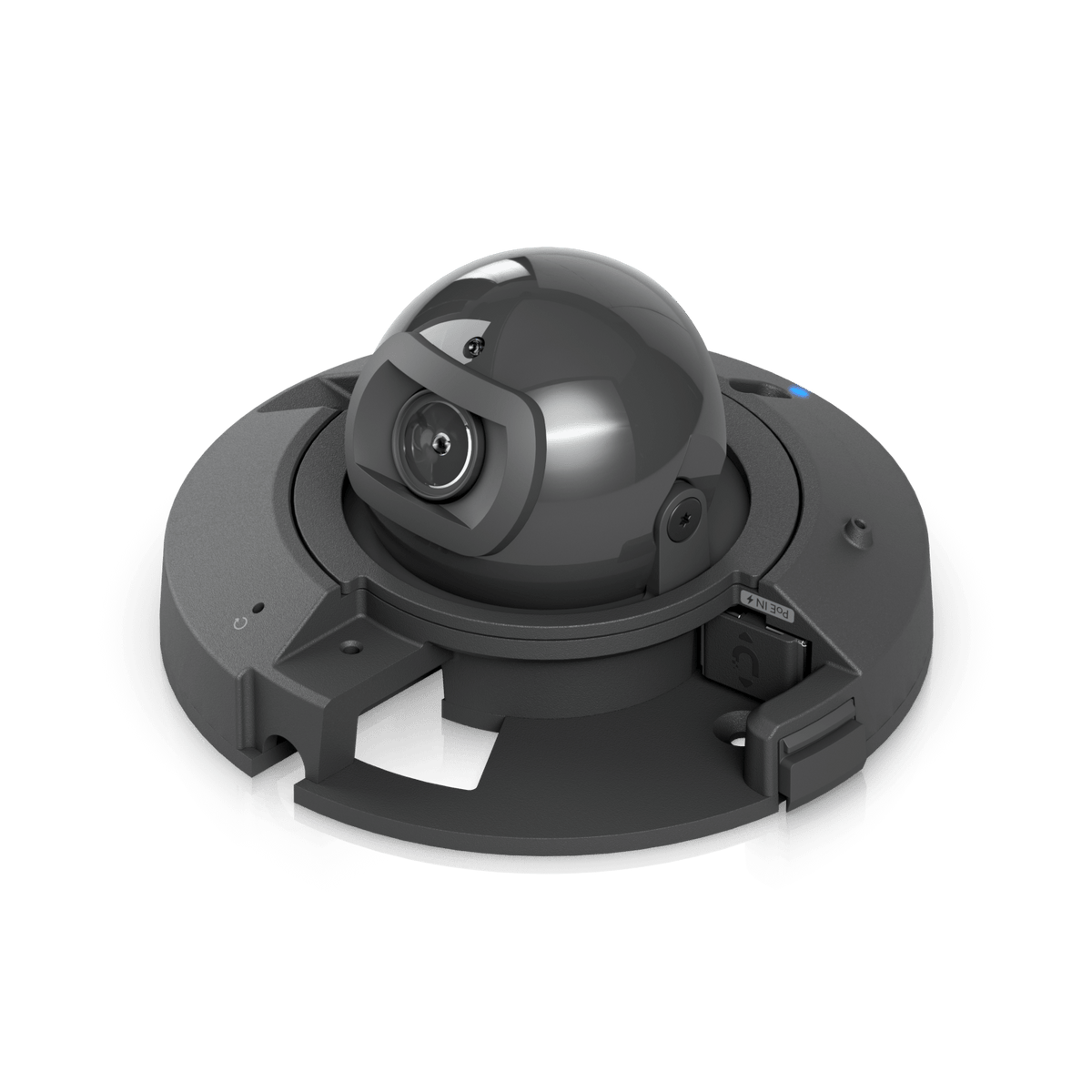

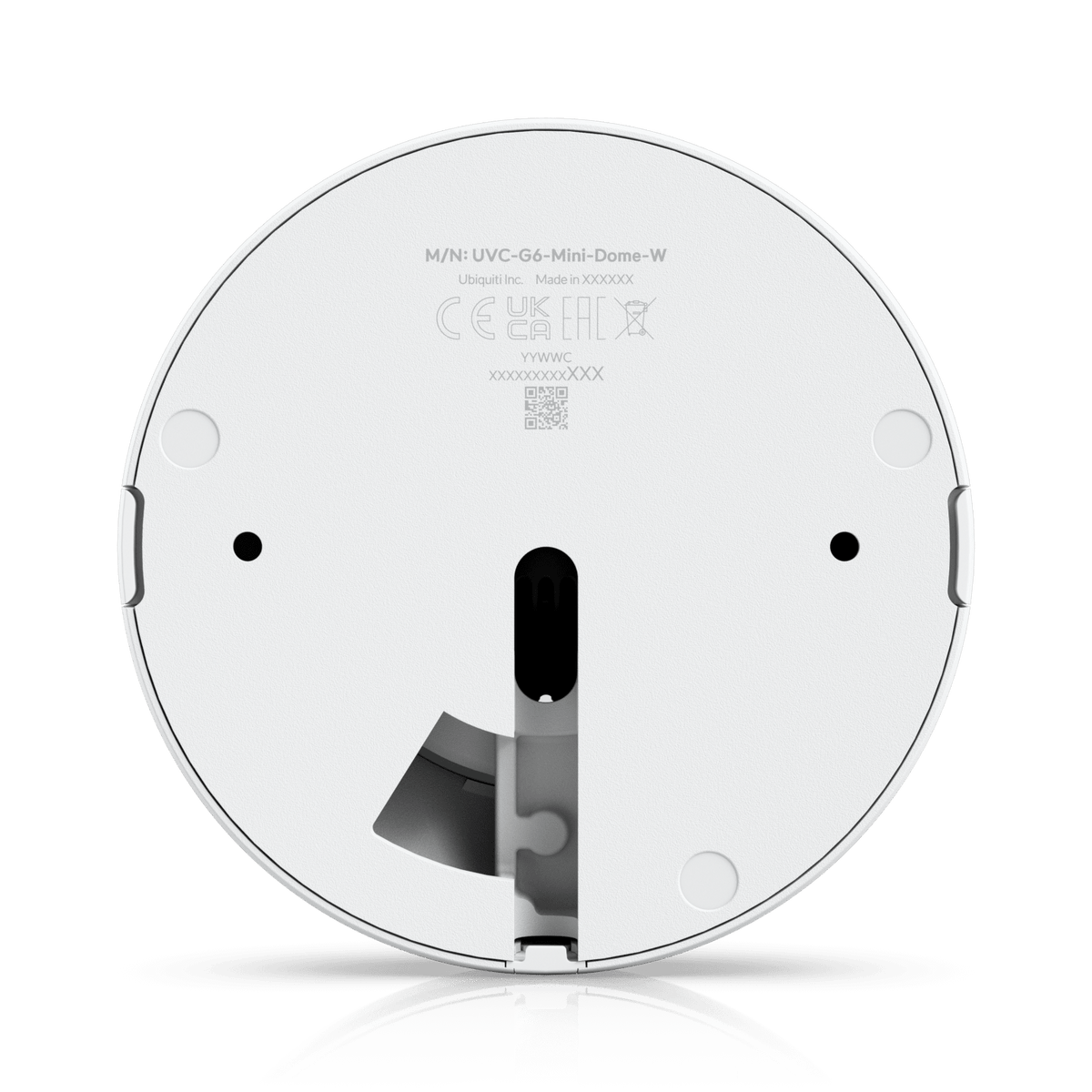

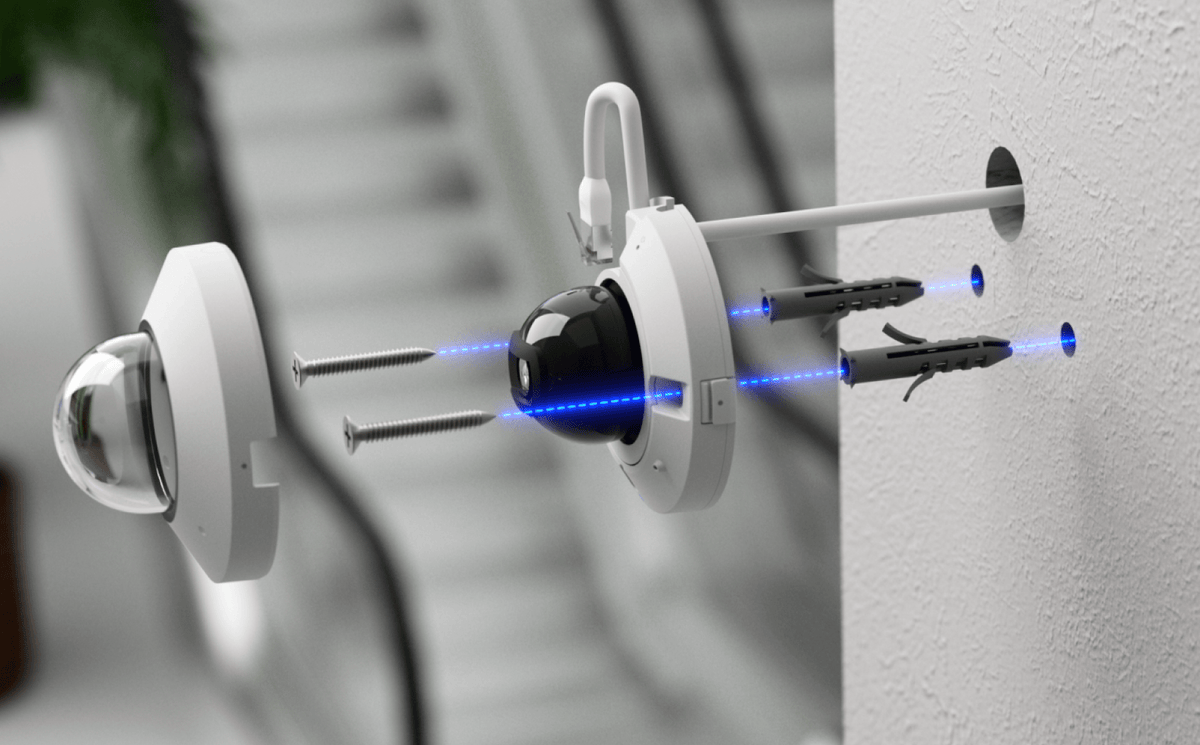

Choose the mount for the actual surface

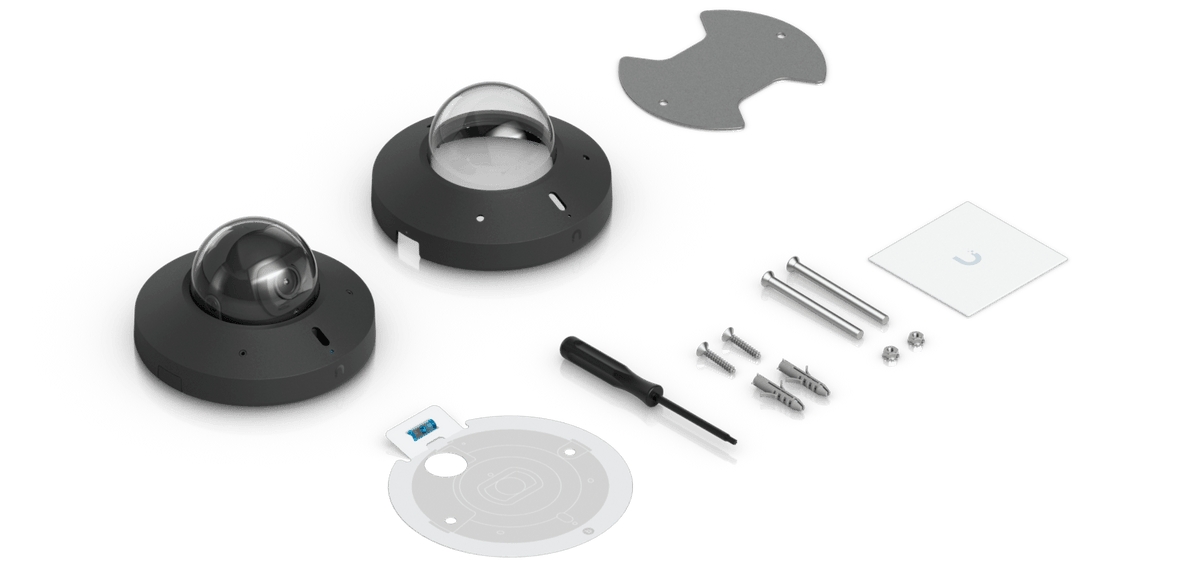

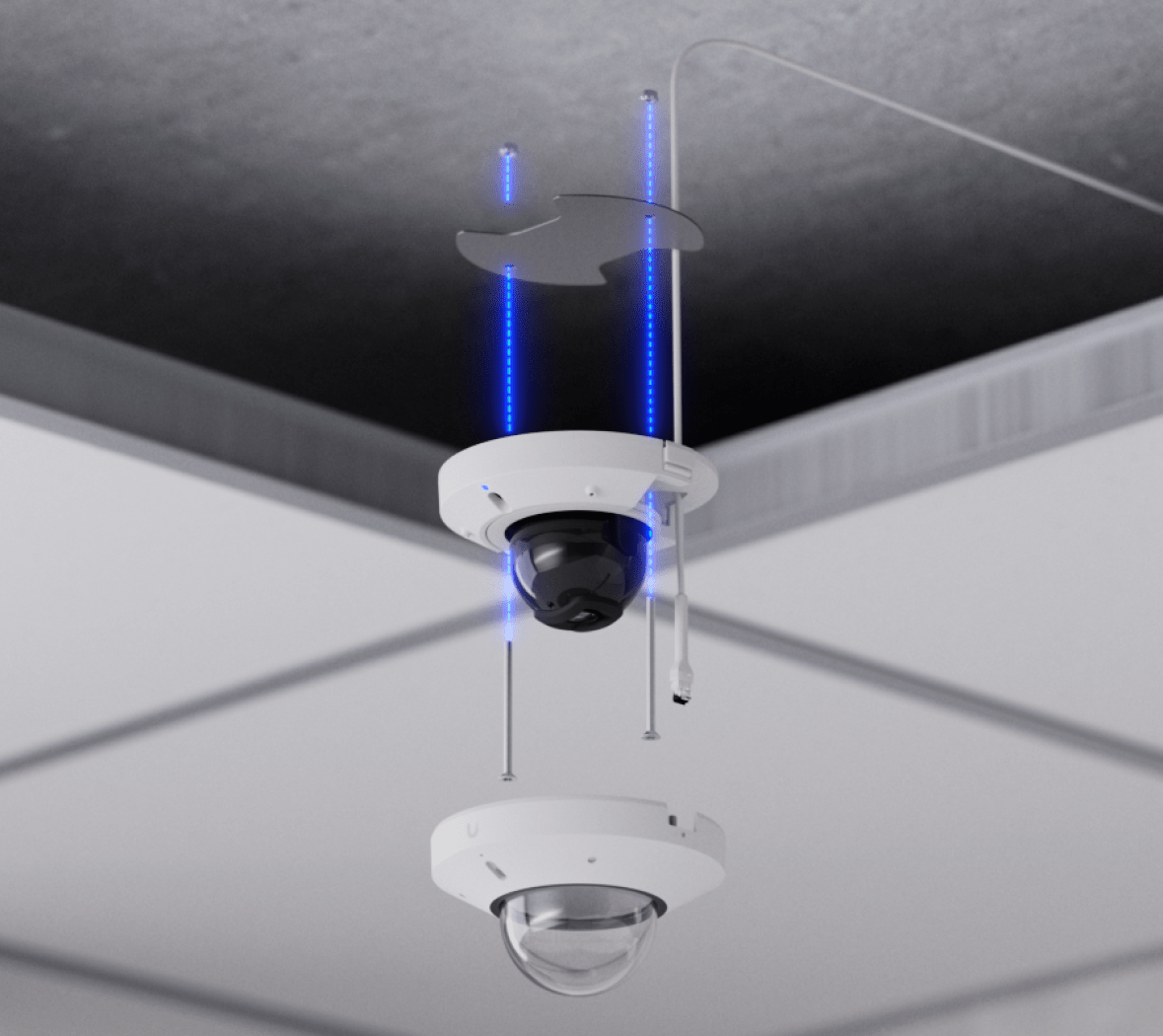

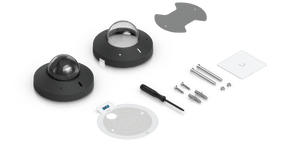

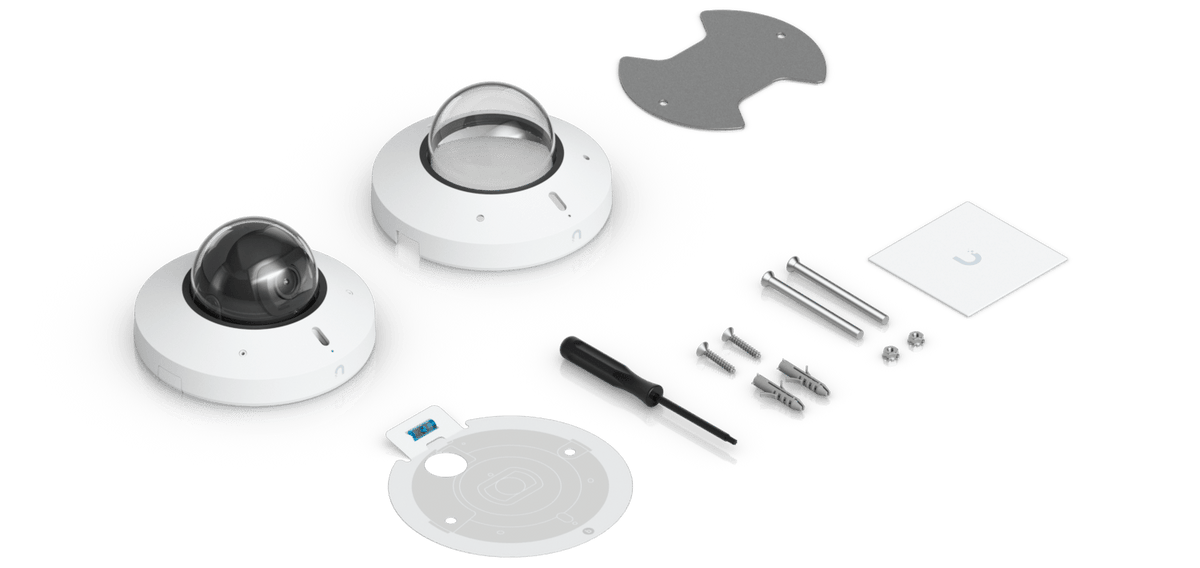

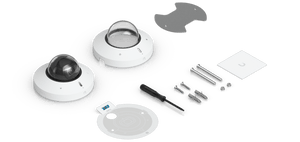

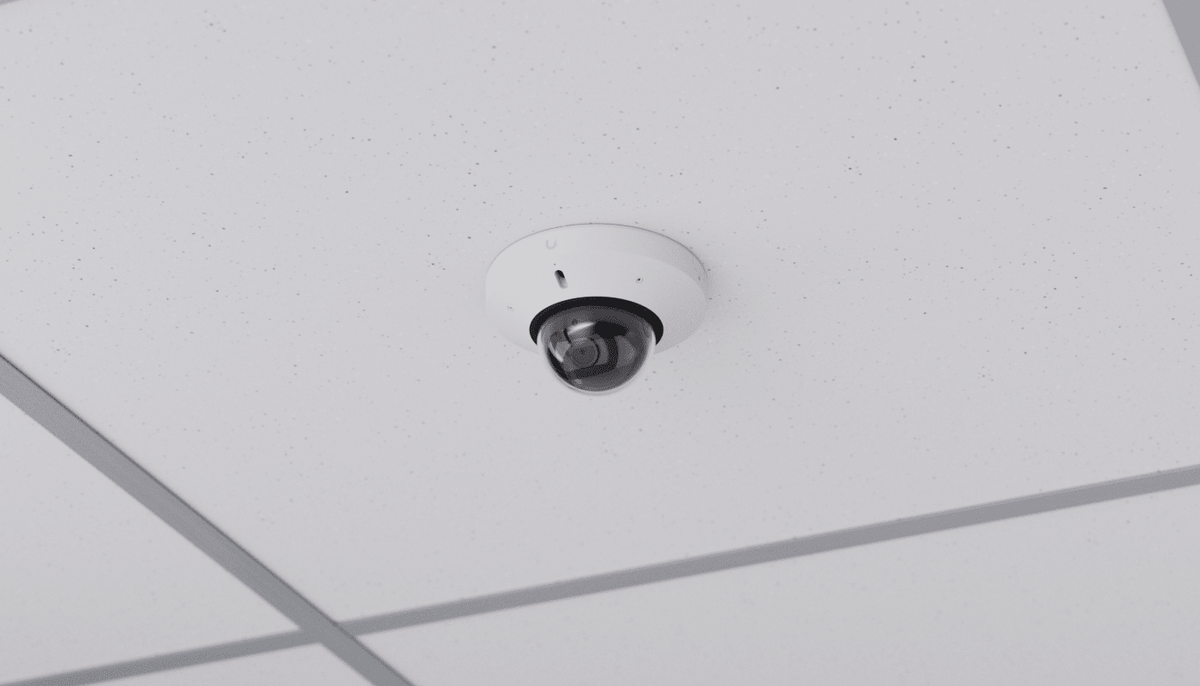

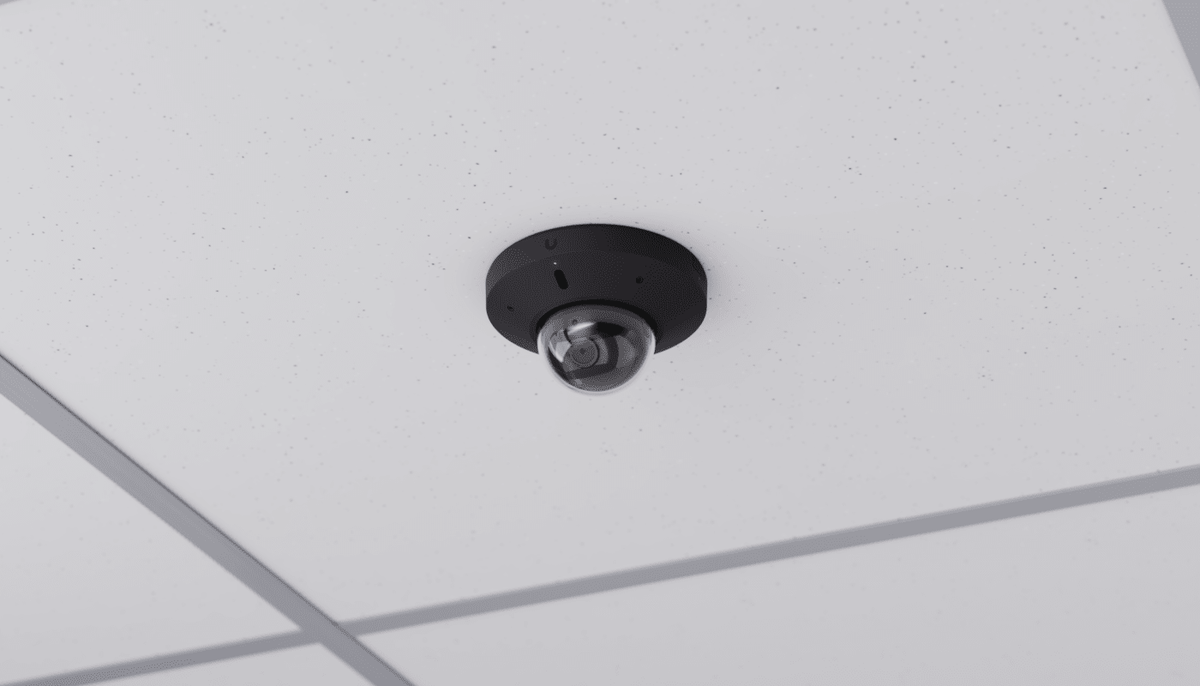

The camera includes standard ceiling and wall mounting. Optional arm, dual-camera, gang-box plate and compatible junction-box accessories are useful where cabling or the mounting surface needs a different arrangement. Choose the matching accessory for the G6 Mini Dome rather than assuming every G6 dome mount fits.
Summary
The G6 Mini Dome suits indoor sites that need detailed video, intelligent event review and two-way communication in a small enclosure. Select the finish and compatible mounting arrangement, then allow for PoE power and the Protect recording system to complete the installation.
사양
Ubiquiti UVC-G6-Mini-Dome 4K Indoor PoE AI Camera
The G6 Mini Dome is a compact indoor camera for UniFi Protect deployments that need 4K detail, built-in recognition and two-way audio. Its wide fixed view, integrated infrared illumination and PoE connection suit discreet monitoring in shared commercial spaces. Standard wall and ceiling mounting is included, with specialised mounting accessories available separately. Provide a compatible Protect console, recording storage and PoE power when planning the installation.
| Specification | Details |
|---|---|
| Imaging and Optics | |
| Video resolution | 8MP 3840 × 2160 pixels; 16:9 |
| Maximum frame rate | 30fps |
| Image sensor | 1/1.8-inch 8MP |
| Lens | Fixed focal length |
| Field of view | Horizontal 109.9°; vertical 56.7°; diagonal 134.1° |
| Night vision | Built-in IR LED illumination and IR cut filter; up to 20M |
| Image settings | Colour, brightness, sharpness, contrast, white balance, exposure control, 2D noise reduction, 3D noise reduction, motion-based noise reduction, privacy masking and text overlay; HDR |
| Detection and Audio | |
| Smart detections | People, vehicles and animals |
| Face recognition | Supported |
| Licence plate recognition | Supported |
| Audio | Two-way audio |
| Networking and Power | |
| Networking interface | One 10/100 Mbps RJ45 Ethernet port |
| Power method | PoE |
| Maximum power consumption | 9W |
| Supported input voltage | 37–57 V DC |
| Maximum Ethernet cable diameter | 6.5 mm |
| Physical Specifications | |
| Dimensions | Ø100.8 × 56 mm |
| Weight | 254 g; manufacturer-listed device weight |
| Enclosure material | Aluminium alloy and polycarbonate |
| Processor | Quad-core Arm Cortex-A53 based chip |
| Control | Factory-reset button |

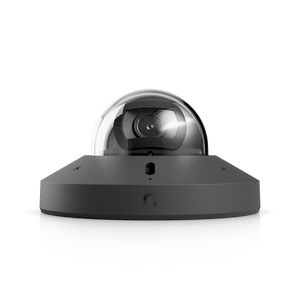

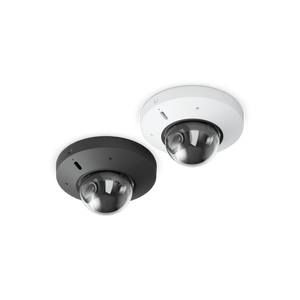

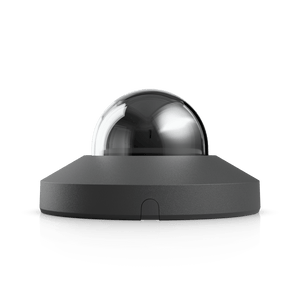

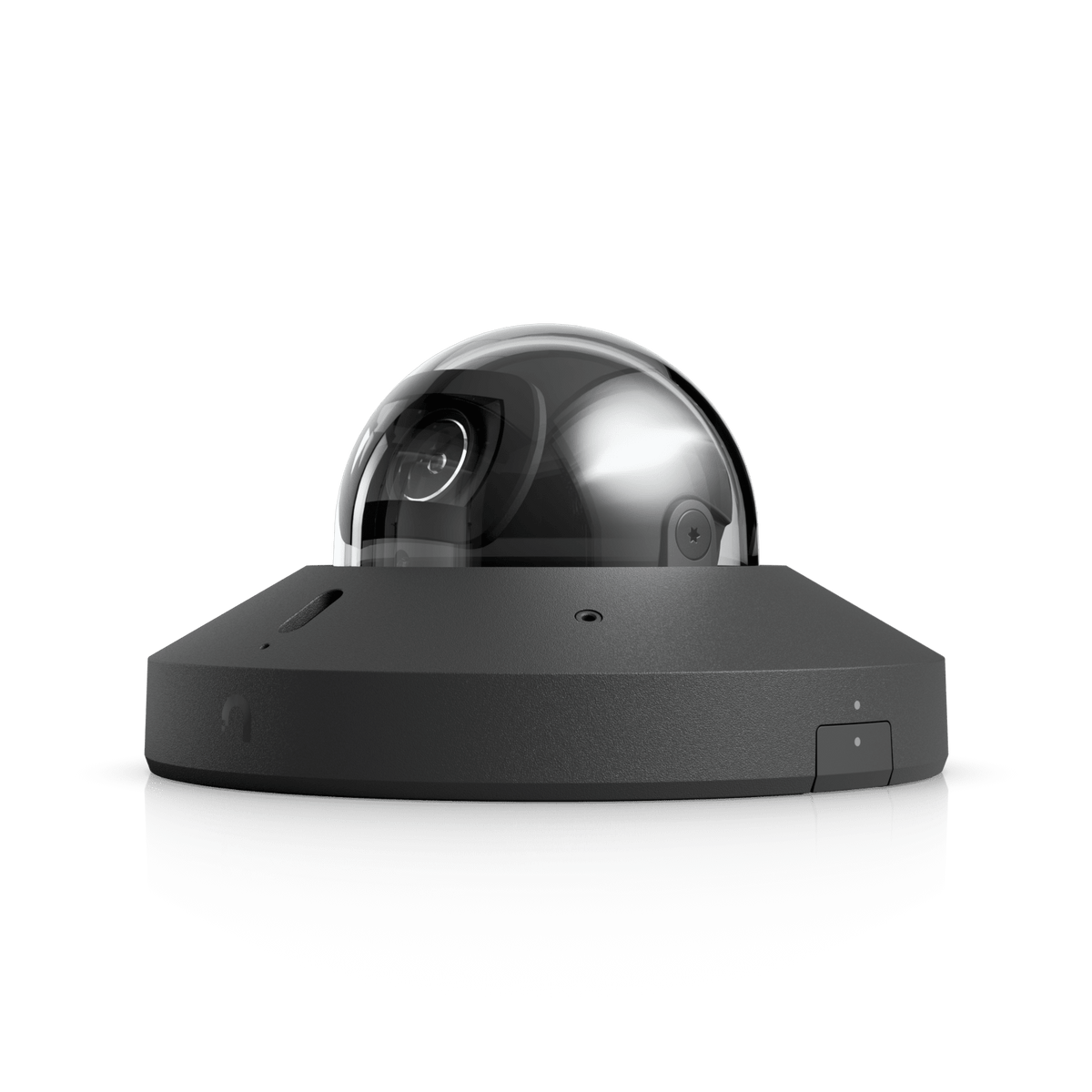

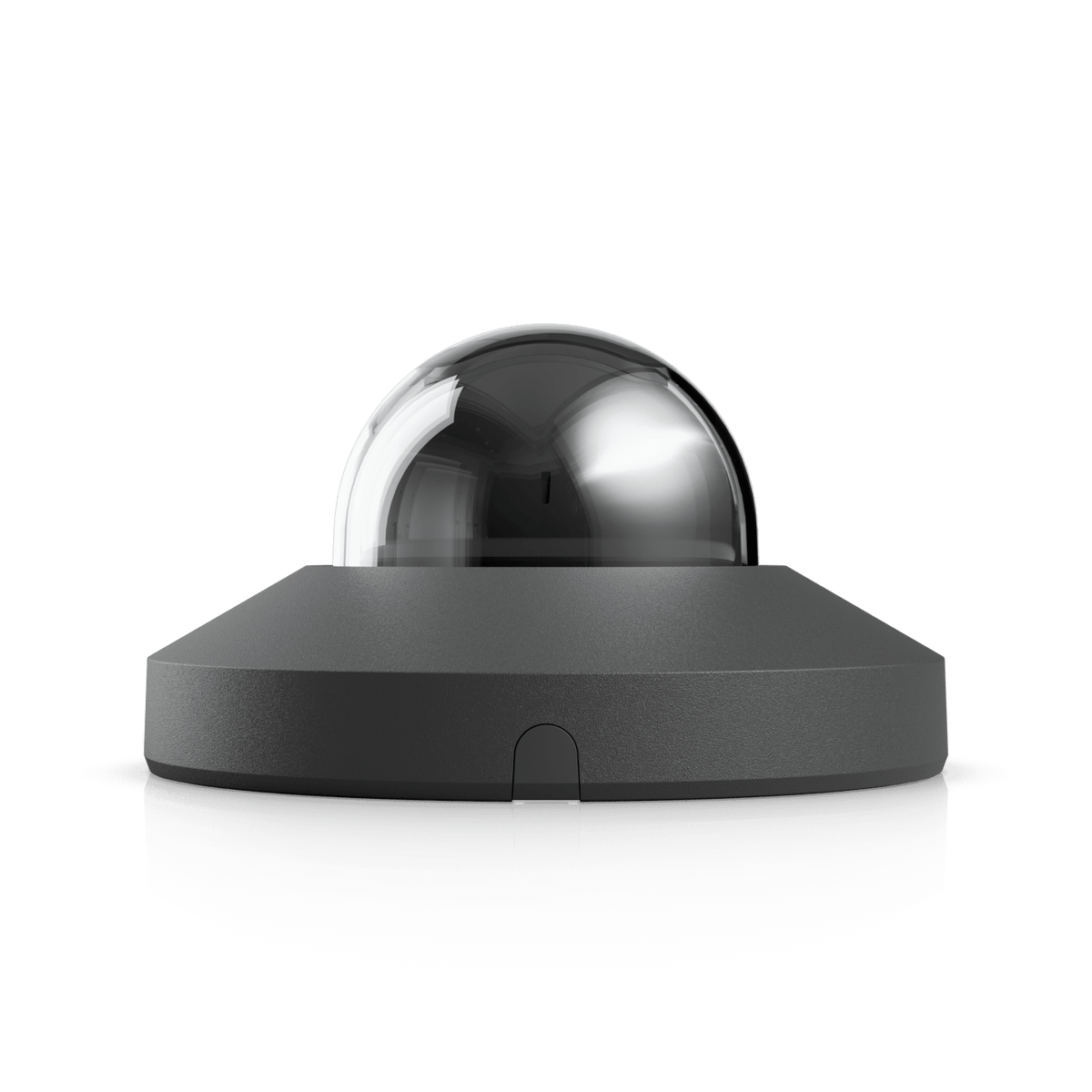

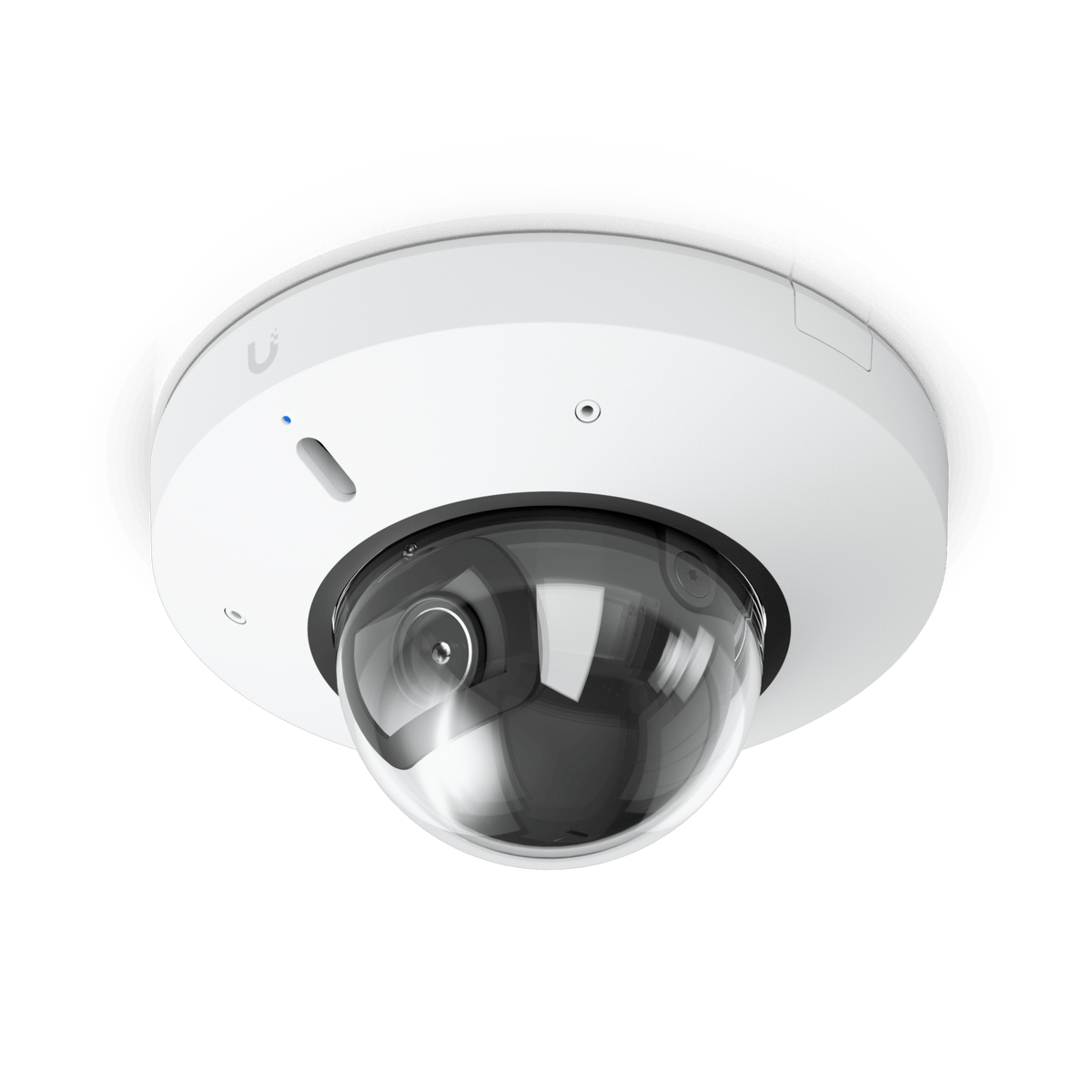

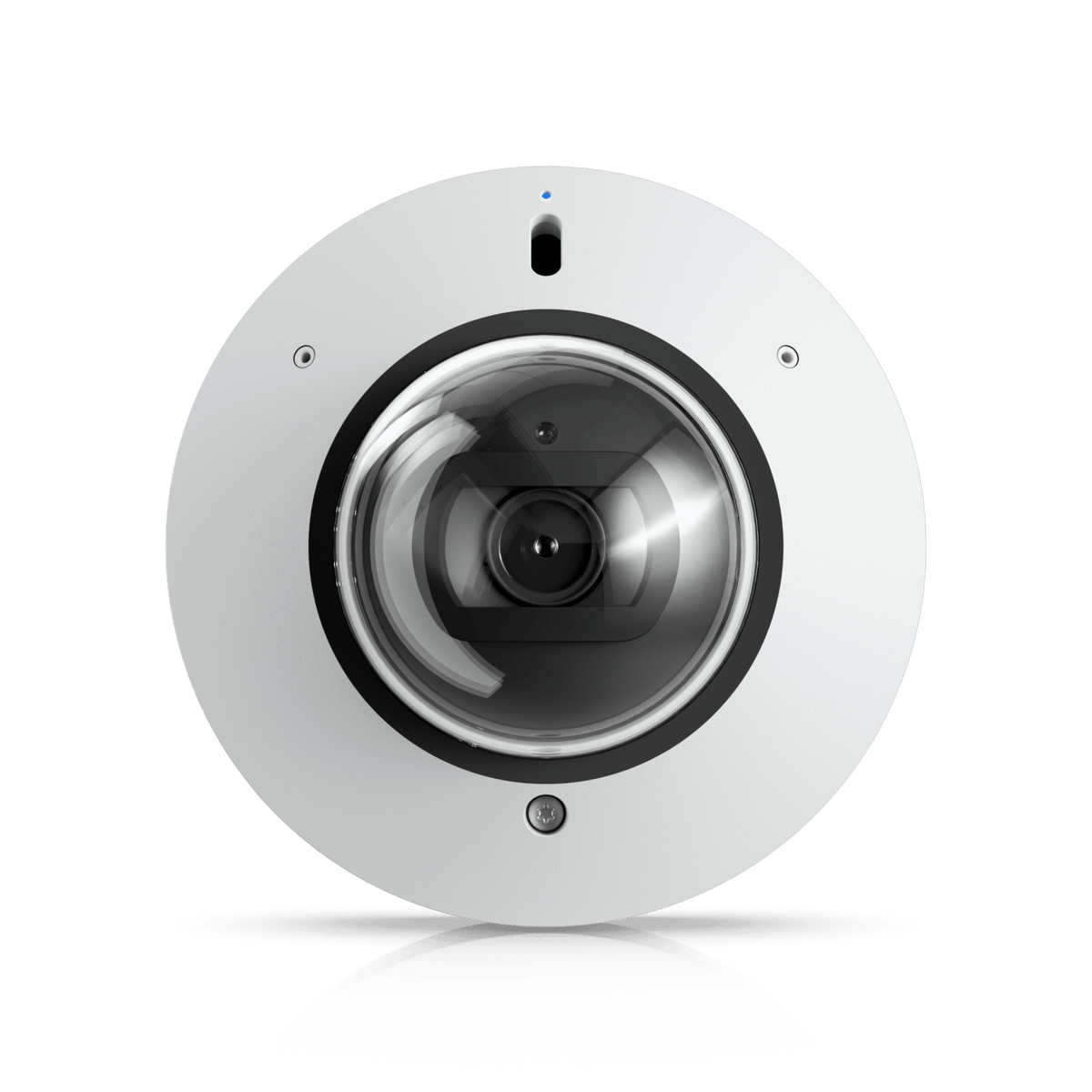

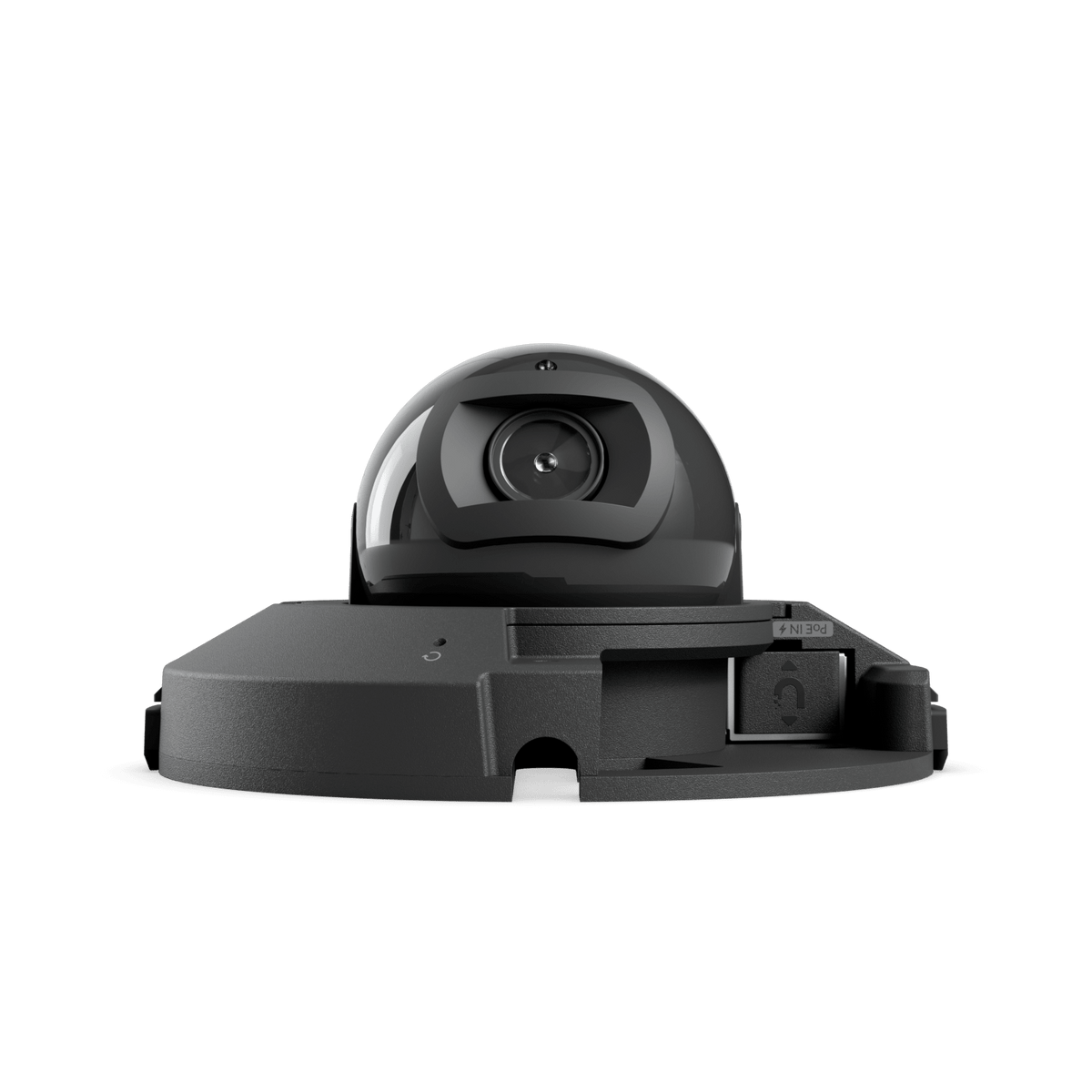

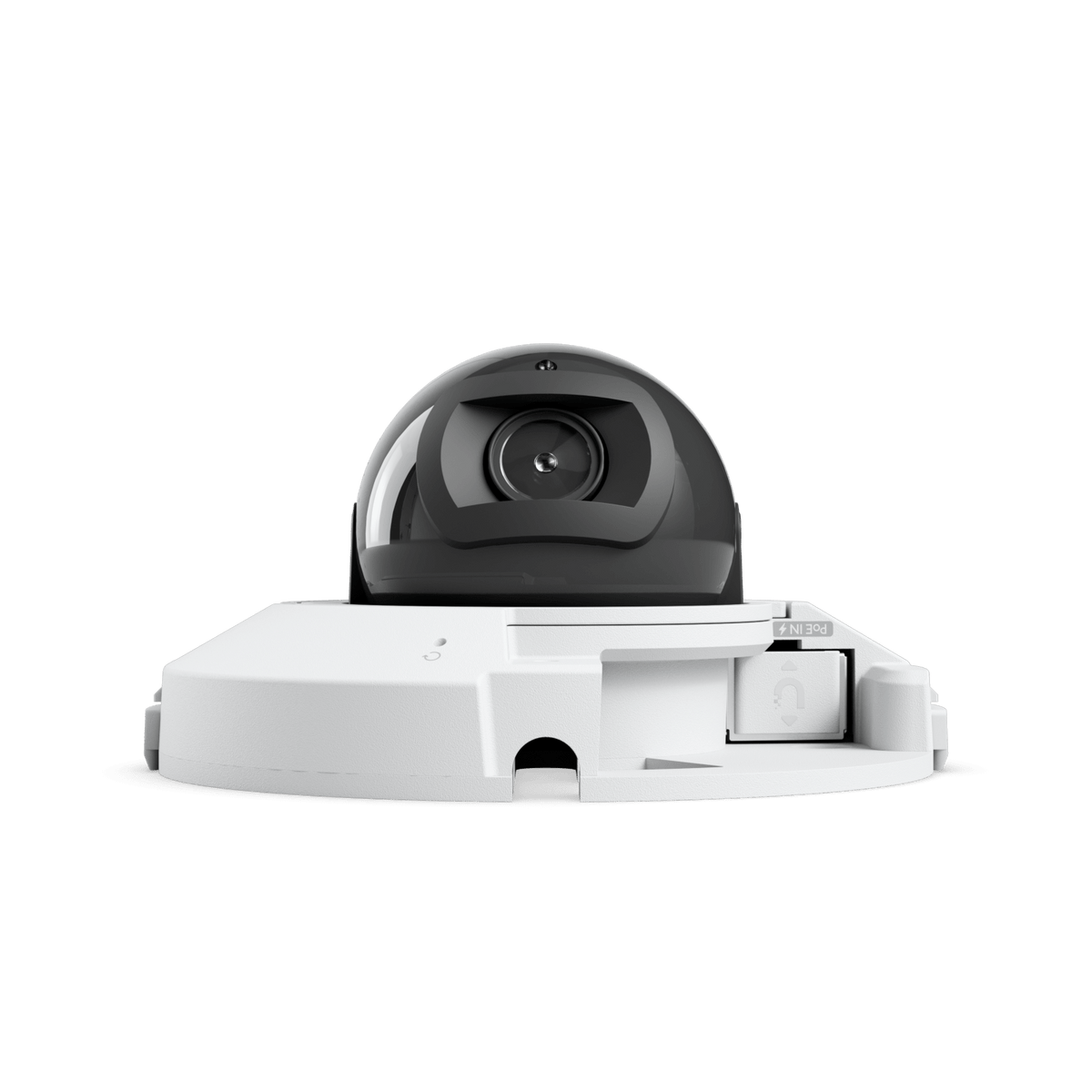

| Finish | Black or white |
| Impact resistance | IK08 |
| Installation and Operating Conditions | |
| Included standard mounting | Ceiling and wall mounting |
| Optional mounting | Compatible gang-box plate, camera arm, dual mount and junction box; sold separately |
| Application | UniFi Protect |
| Recording requirements | Compatible Protect console and recording storage; separate purchases |
| Power and cabling requirements | PoE switch or injector and suitable Ethernet cabling; separate purchases |
| Deployment environment | Indoor monitoring |
| Operating temperature | −20 to 40°C |
| Operating humidity | 0–90% non-condensing |
| NDAA compliance | Manufacturer lists NDAA compliant |
| Certifications | CE, FCC and IC |
