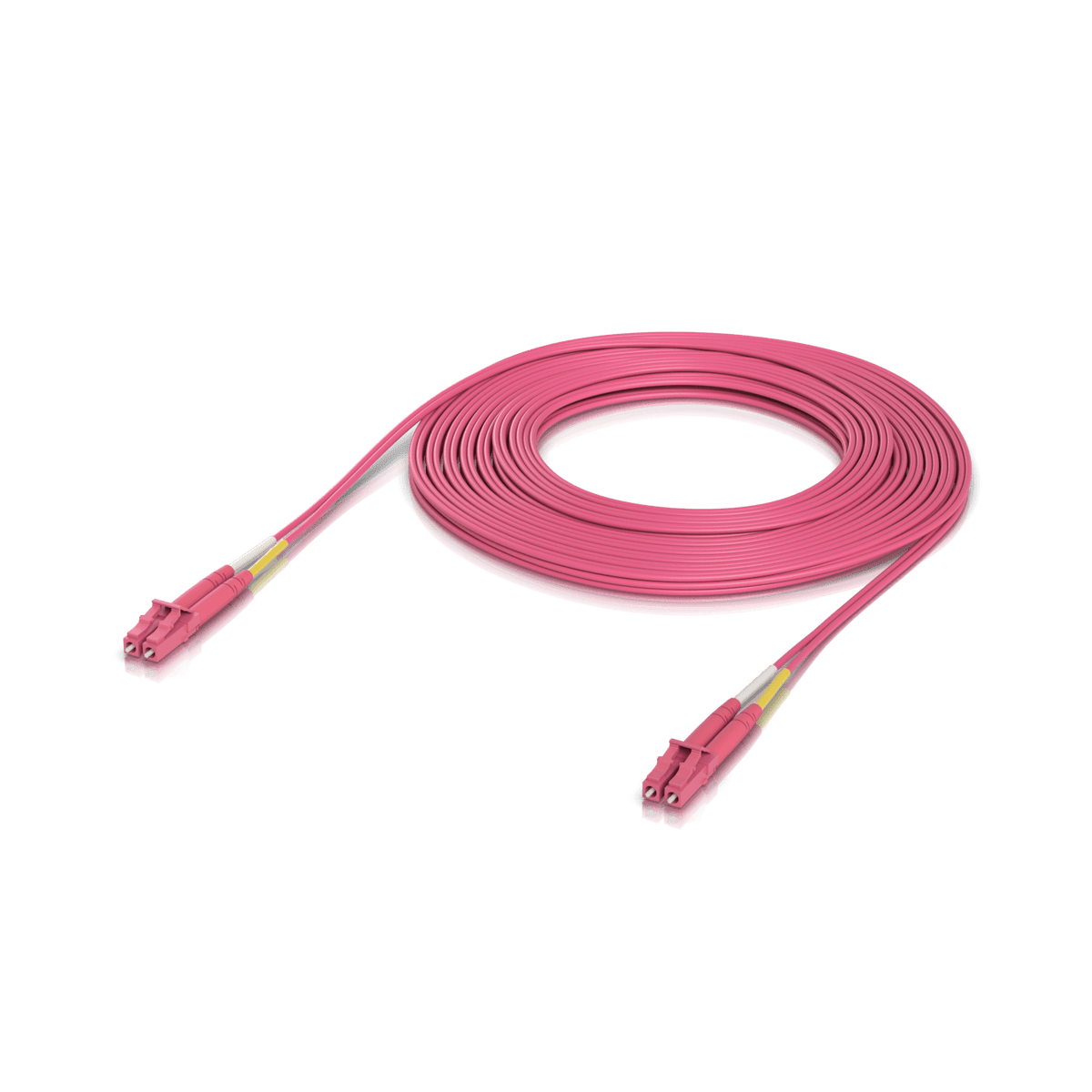

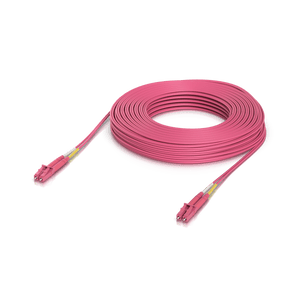

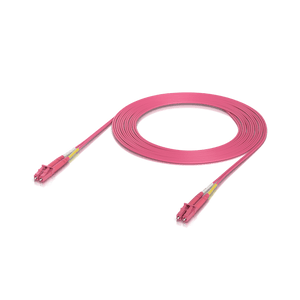

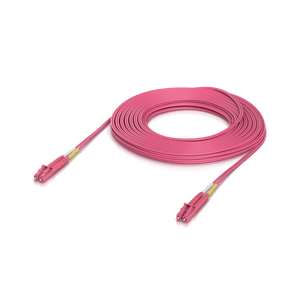

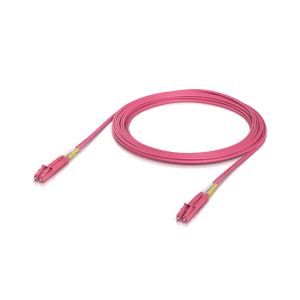

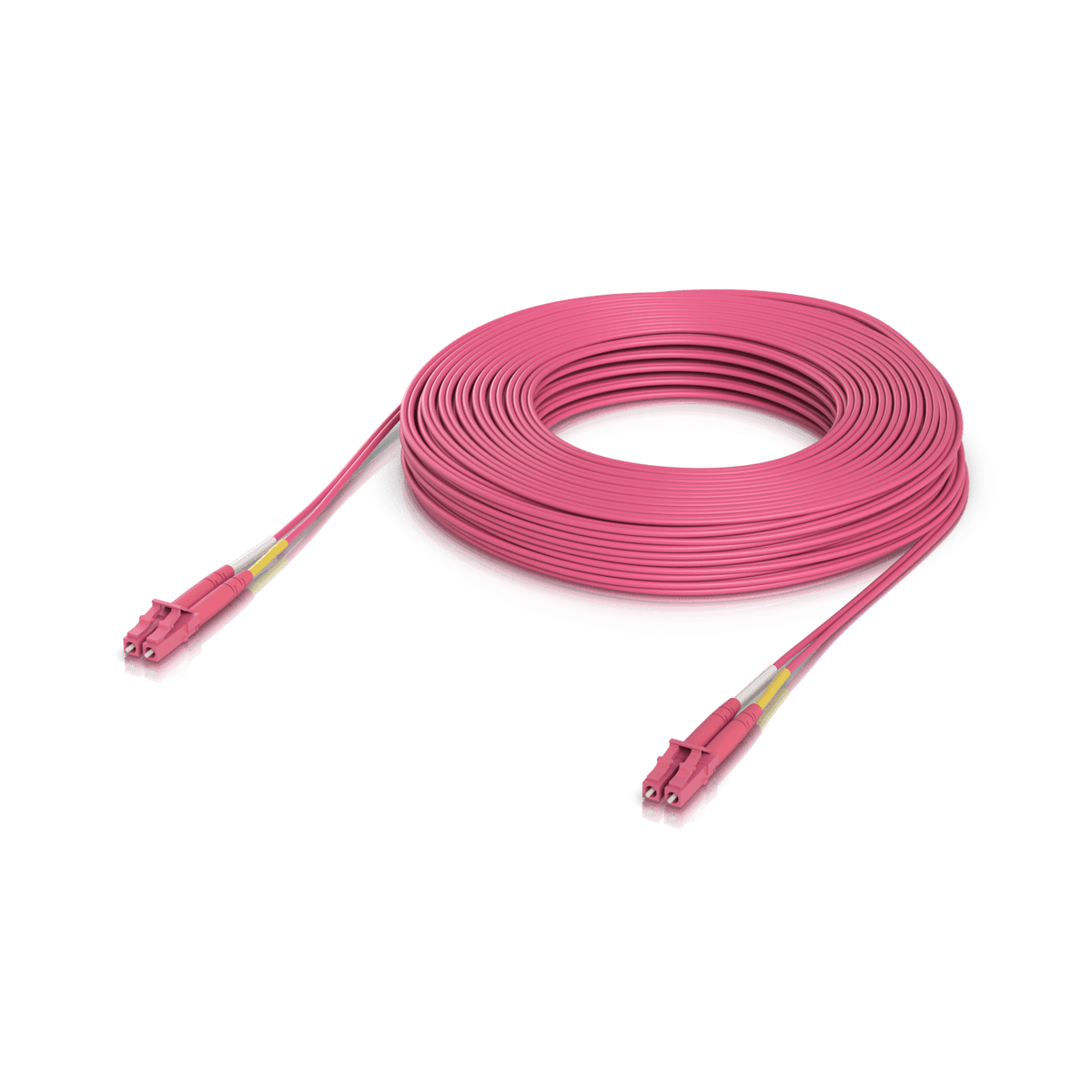

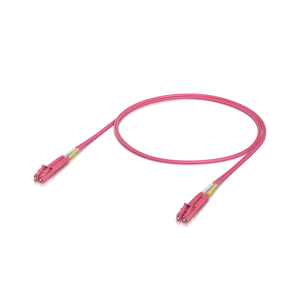

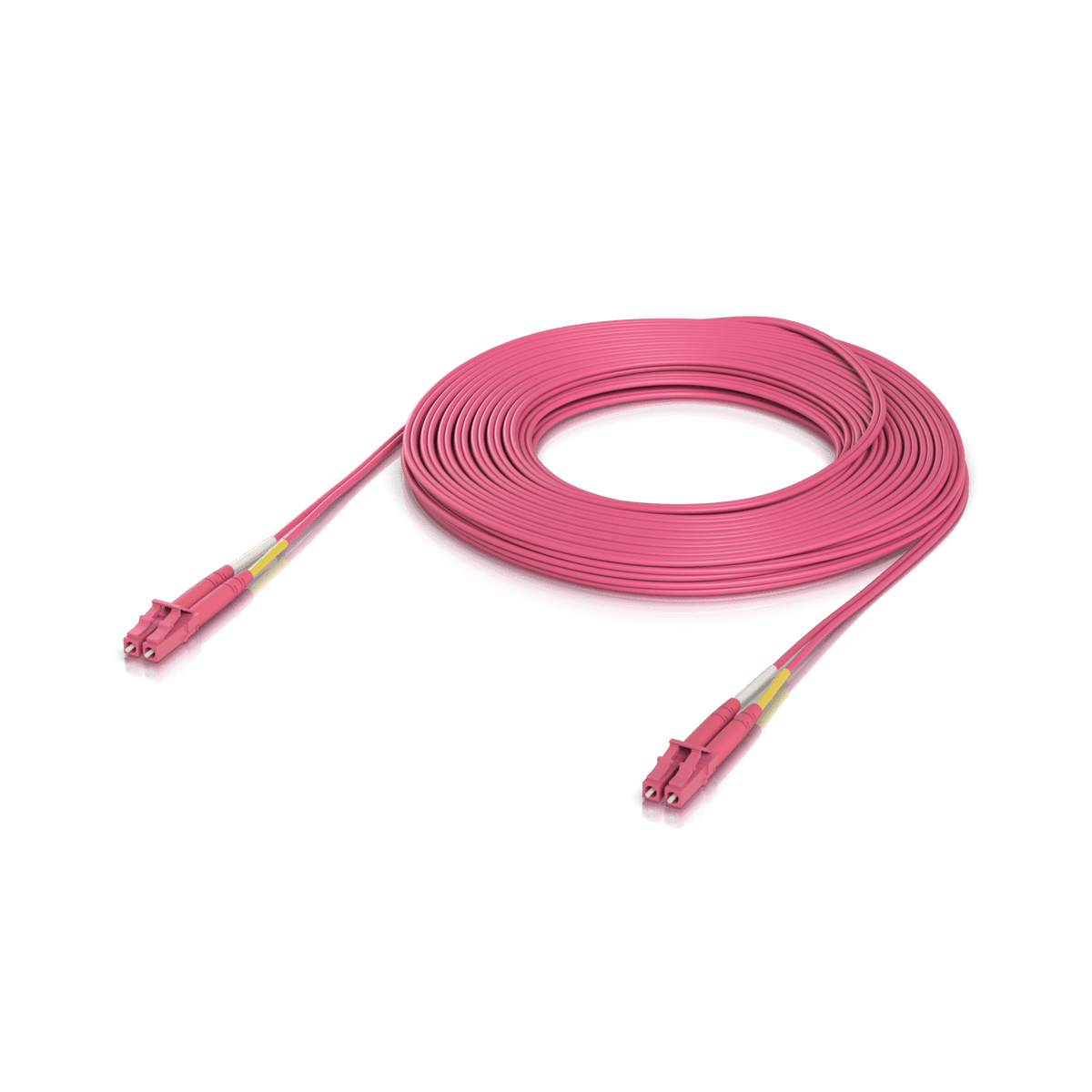

Ubiquiti UACC-OFC-M2-LULU OM4 Duplex LC UPC Fiber Patch Cable
High-Performance Fiber Connectivity with OM4 Precision The Ubiquiti UACC-OFC-M2-LULU is a premium indoor OM4 multi-mode fiber patch cable designed for ultra-fast and reliable data transmission. With duplex LC UPC connectors, low-loss performance, and a durable LSZH jacket, it ensures efficient fiber connectivity for enterprise, data center, and high-performance networking environments. Highlights OM4 Multi-Mode Fiber for high-speed, long-distance data transmission Duplex LC UPC Connectors for reliable low-loss connections Wide Length Options: Available from 0.5 m to 30 m (1.6 ft to 98.4 ft) Durable LSZH Jacket for safety and flame resistance Low Insertion Loss ≤ 0.3 dB with high repeatability and durability Wide Operating Temperature: -40°C to 75°C for robust performance Specifications Specification Details Available Lengths 0.5, 1, 3, 5, 10, 15, 30 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) Type LC-LC Connector Fiber Type Duplex OM4 Multi-Mode Cable Jacket Material Low Smoke Zero Halogen (LSZH) Jacket Outer Diameter 2.0 mm Jacket Color Rose Polish UPC to UPC Wavelength 850 nm, 1300 nm Insertion Loss ≤ 0.3 dB Return Loss ≥ 35 dB Repeatability ≤ 0.1 dB Durability ≤ 0.2 dB (1,000 times mating) Pack Options Single Unit, 50-Pack (0.5/1/3 m) Operating Temperature -40 to 75 °C (-40 to 167 °F) Summary / Conclusion The Ubiquiti UACC-OFC-M2-LULU OM4 Duplex LC UPC Fiber Patch Cable is engineered for high-bandwidth applications, providing reliable fiber connectivity with low-loss performance. Available in multiple lengths and built with durable LSZH materials, it is the ideal solution for enterprise, data center, and professional networking deployments.
Pickup available at 3005, Ubi Avenue 3, #01-88
일반적으로 2~4일 후 준비 완료

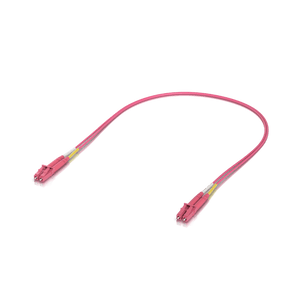

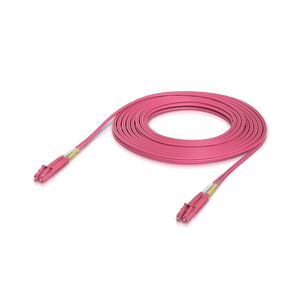

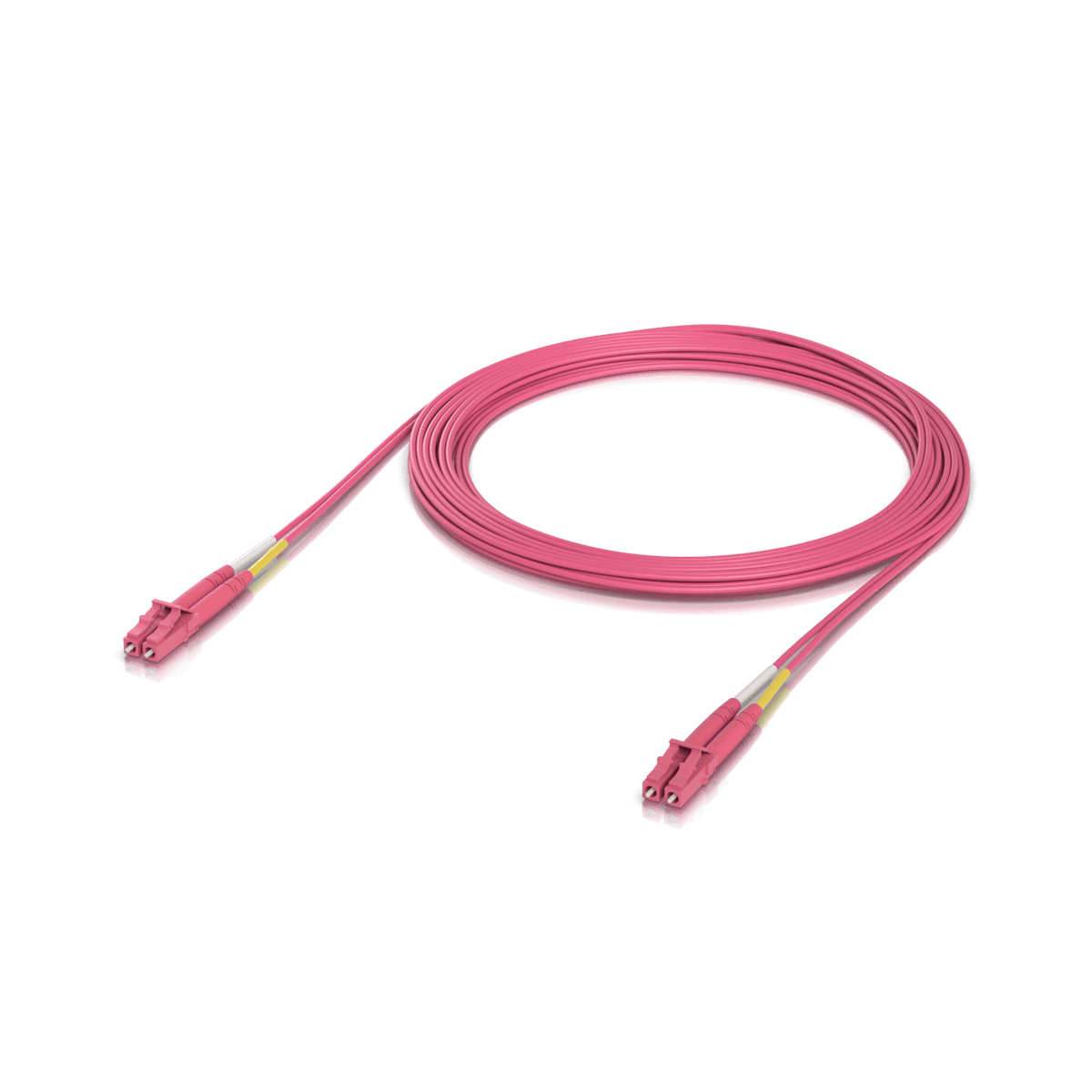

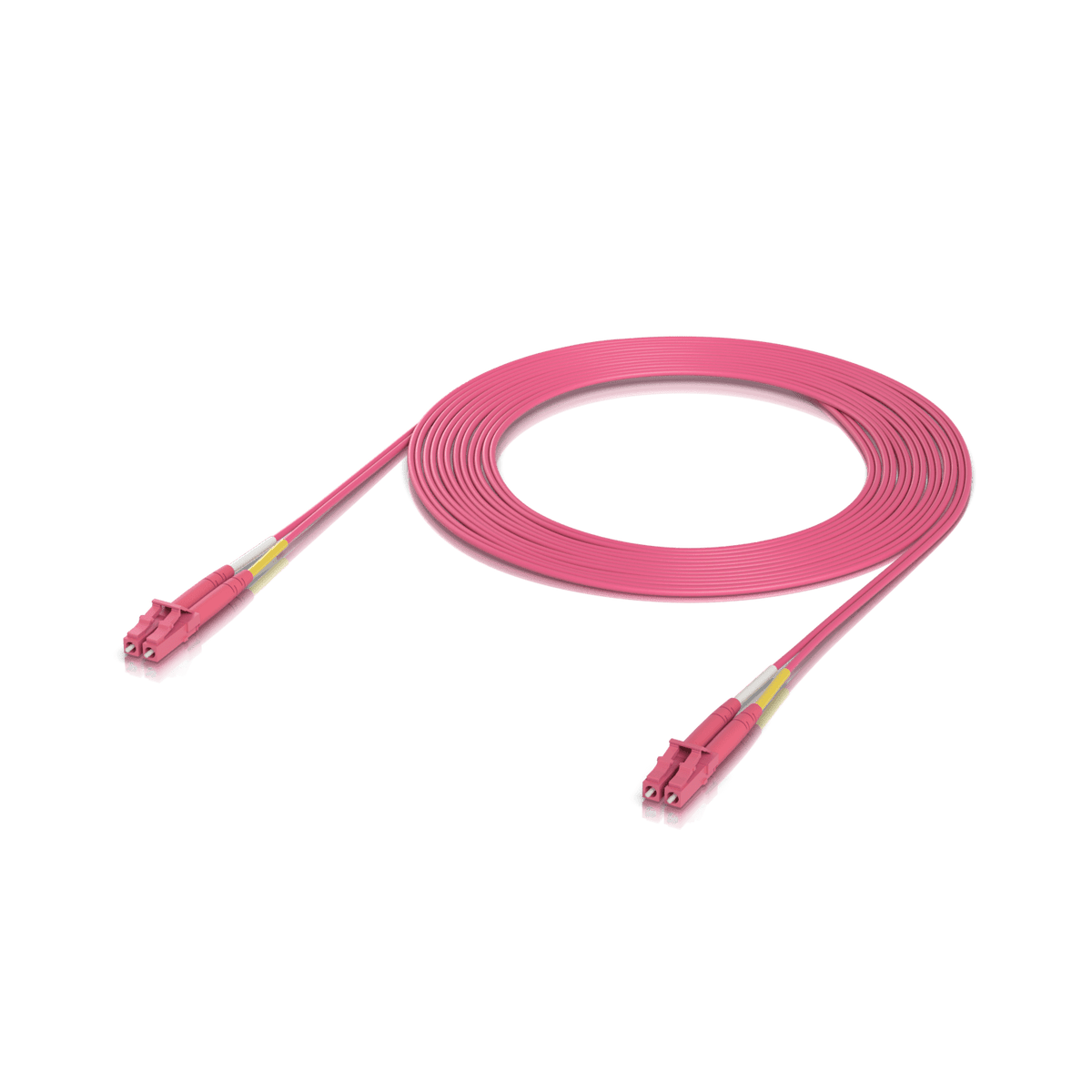

Ubiquiti UACC-OFC-M2-LULU OM4 Duplex LC UPC Fiber Patch Cable
제품 설명
High-Performance Fiber Connectivity with OM4 Precision
The Ubiquiti UACC-OFC-M2-LULU is a premium indoor OM4 multi-mode fiber patch cable designed for ultra-fast and reliable data transmission. With duplex LC UPC connectors, low-loss performance, and a durable LSZH jacket, it ensures efficient fiber connectivity for enterprise, data center, and high-performance networking environments.
Highlights
-
OM4 Multi-Mode Fiber for high-speed, long-distance data transmission
-
Duplex LC UPC Connectors for reliable low-loss connections
-
Wide Length Options: Available from 0.5 m to 30 m (1.6 ft to 98.4 ft)
-
Durable LSZH Jacket for safety and flame resistance
-
Low Insertion Loss ≤ 0.3 dB with high repeatability and durability
-
Wide Operating Temperature: -40°C to 75°C for robust performance
Specifications
| Specification | Details |
|---|---|
| Available Lengths | 0.5, 1, 3, 5, 10, 15, 30 m (1.6, 3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) |
| Type | LC-LC Connector |
| Fiber Type | Duplex OM4 Multi-Mode |
| Cable Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Outer Diameter | 2.0 mm |
| Jacket Color | Rose |
| Polish | UPC to UPC |
| Wavelength | 850 nm, 1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Pack Options | Single Unit, 50-Pack (0.5/1/3 m) |
| Operating Temperature | -40 to 75 °C (-40 to 167 °F) |
Summary / Conclusion
The Ubiquiti UACC-OFC-M2-LULU OM4 Duplex LC UPC Fiber Patch Cable is engineered for high-bandwidth applications, providing reliable fiber connectivity with low-loss performance. Available in multiple lengths and built with durable LSZH materials, it is the ideal solution for enterprise, data center, and professional networking deployments.
사양
Ubiquiti UACC-OFC-M2-LULU OM4 Duplex LC UPC Fiber Patch Cable
The Ubiquiti UACC-OFC-M2-LULU is a high-performance OM4 multi-mode fiber patch cable featuring duplex LC UPC connectors. Designed with low-smoke zero halogen (LSZH) materials, it provides reliable, low-loss connectivity for enterprise and data center environments.
Product Specifications
| Specification | Details |
|---|---|
| Available Lengths | 1 m, 3 m, 5 m, 10 m, 15 m, 30 m (3.3, 9.8, 16.4, 32.8, 49.2, 98.4 ft) |
| Connector Type | LC-LC |
| Fiber Type | Duplex, OM4 |
| Jacket Material | Low Smoke Zero Halogen (LSZH) |
| Jacket Outer Diameter | 2.0 mm |
| Jacket Color | Rose |
| Polish | UPC to UPC |
| Wavelength | 850 / 1300 nm |
| Insertion Loss | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Pack Options | • Single Unit • 50-Pack (0.5 m, 1 m, 3 m) |
| Ambient Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
