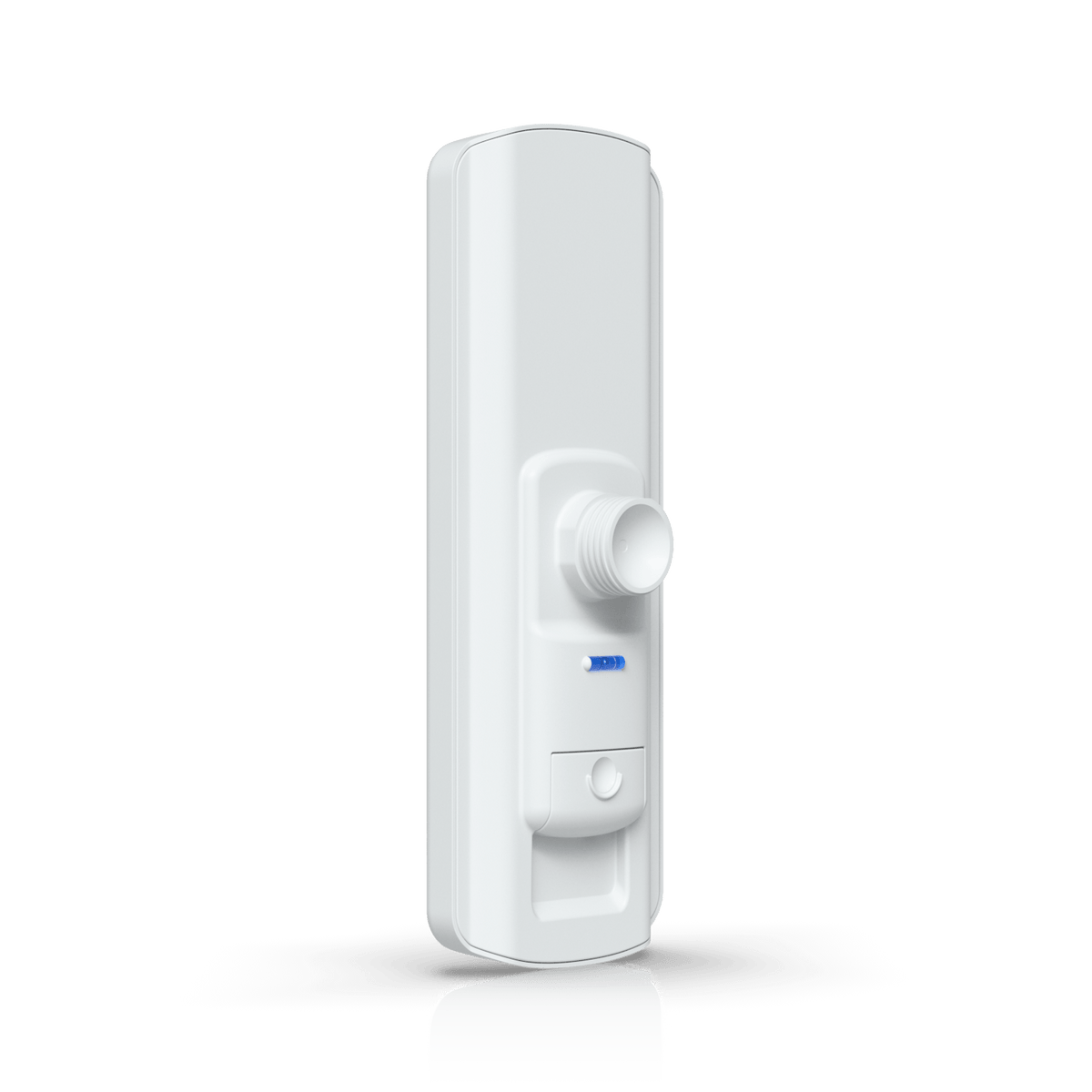

Ubiquiti UDB-Pro-Sector 5KM Device Bridge Pro Sector PTMP Access Point
제품 설명
Long-Range PTMP Connectivity for Outdoor Deployments
The Ubiquiti UDB-Pro-Sector is a powerful 5 GHz point-to-multipoint (PTMP) access point built to wirelessly connect over 50 Device Bridge Pro clients across distances exceeding 5 km (3.1 mi). With a robust IPX6-rated enclosure, integrated directional antenna, and support for WiFi 5 (802.11ac), this solution is purpose-built for large-scale outdoor wireless networks in rural broadband, campus, and industrial environments.
Highlights
-

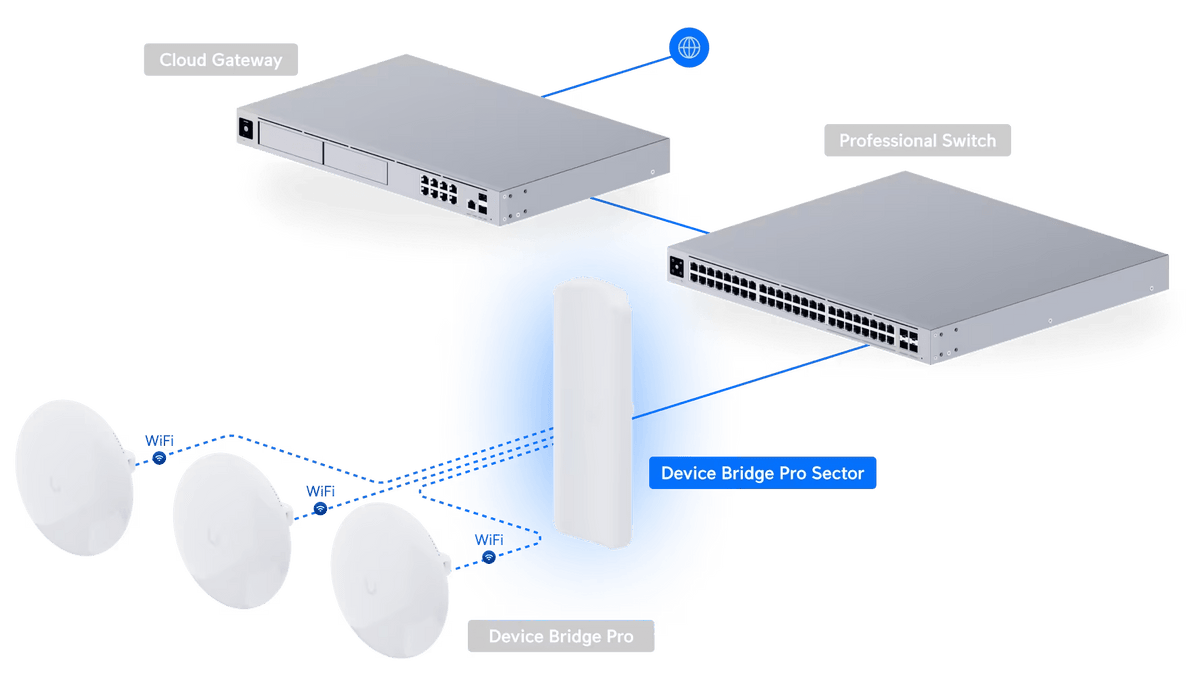

Point-to-Multipoint Access Point: Supports 50+ Device Bridge Pro clients
-
5 km+ Coverage Range: Long-range connectivity for distributed deployments
-
Built-in Directional Antenna: 17 dBi gain for precise beam coverage
-
WiFi 5 with 2x2 MIMO: Max throughput up to 400 Mbps
-
Weatherproof IPX6 Design: Built for extreme outdoor conditions
-
PoE Powered: Simple installation with one-cable deployment
Key Features
Reliable Long-Distance Wireless
-
PTMP Performance: Supports 2x2 MIMO on 5 GHz for efficient communication with multiple clients
-
Max Data Rate: Up to 400 Mbps with 40 MHz channel bandwidth
-
Antenna Gain: 17 dBi for focused, long-distance transmission
-
Max TX Power: 25 dBm for strong, stable links in open areas
Built for Harsh Environments
-
Weatherproofing: IPX6-rated enclosure resists water ingress
-
Operating Temp: From -40 to 60°C (-40 to 140°F)
-
Wind Loading: 128.2N at 200 km/h for structural resilience
-

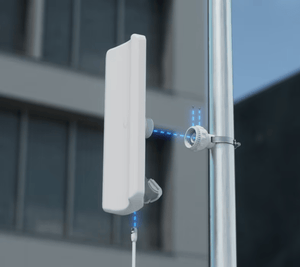

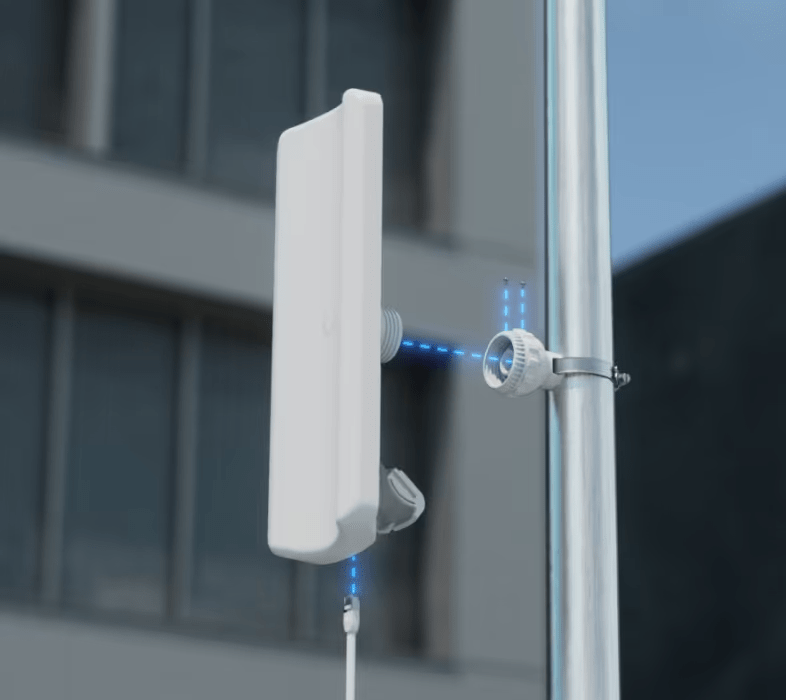

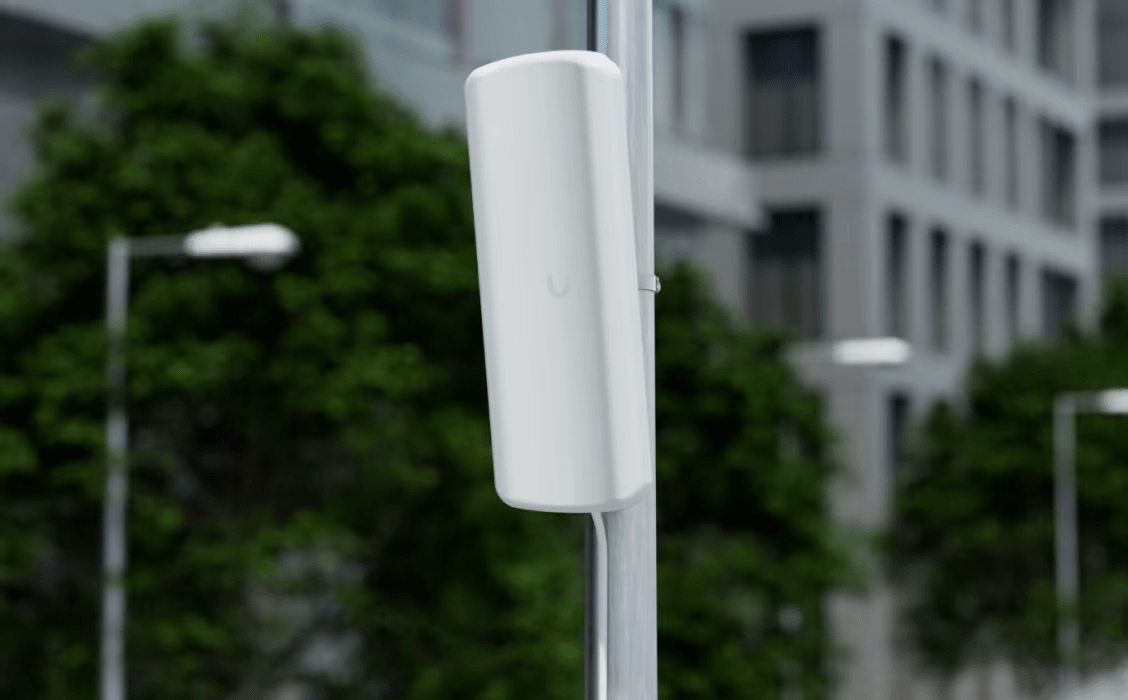

Pole Mounting: Compatible with pole diameters from 24–60 mm
Simplified Installation and Management
-
Power Over Ethernet (PoE): Supports passive PoE with 42.5–57V DC input
-
Internal Antennas: No need for external add-ons
-
Management Options: Configure via Ethernet or WiFi
-
Reset Button & LED Indicators: Easy troubleshooting with visual diagnostics
Summary
The Ubiquiti UDB-Pro-Sector is an essential component of scalable outdoor wireless infrastructures. With robust weatherproofing, built-in high-gain antennas, and the ability to connect over 50 clients at distances over 5 km, it's the go-to choice for broadband providers, surveillance networks, and any outdoor deployment demanding wide coverage and strong wireless performance. Its compact form, PoE support, and efficient management tools ensure rapid, reliable installation with low overhead.
사양
Ubiquiti UDB-Pro-Sector 5KM Device Bridge Pro Sector PTMP Access Point
| Specification | Details |
|---|---|
| Dimensions | 360.9 x 129.6 x 71.4 mm (14.2 x 5.1 x 2.8 in) |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 5 km (3.1 mi) |
| Mounting Locations | Pole |
| Weatherproofing | IPX6 |
| Power Method | PoE |
| MIMO | 5 GHz, 2 x 2 |
| Max. Data Rate (5 GHz) | 400 Mbps (BW40) |
| Antenna Gain (5 GHz) | 17 dBi |
| Max. TX Power (5 GHz) | 25 dBm |
| Max. Conducted TX Power | 25 dBm (combined) |
| Supported Data Rates (802.11a) | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Supported Data Rates (802.11n) | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Supported Data Rates (802.11ac) | 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40) |
| Wireless Security | WPA2 AES (Always On) |
| Max. Power Consumption | 6W |
| Supported Voltage Range | 42.5–57V DC |

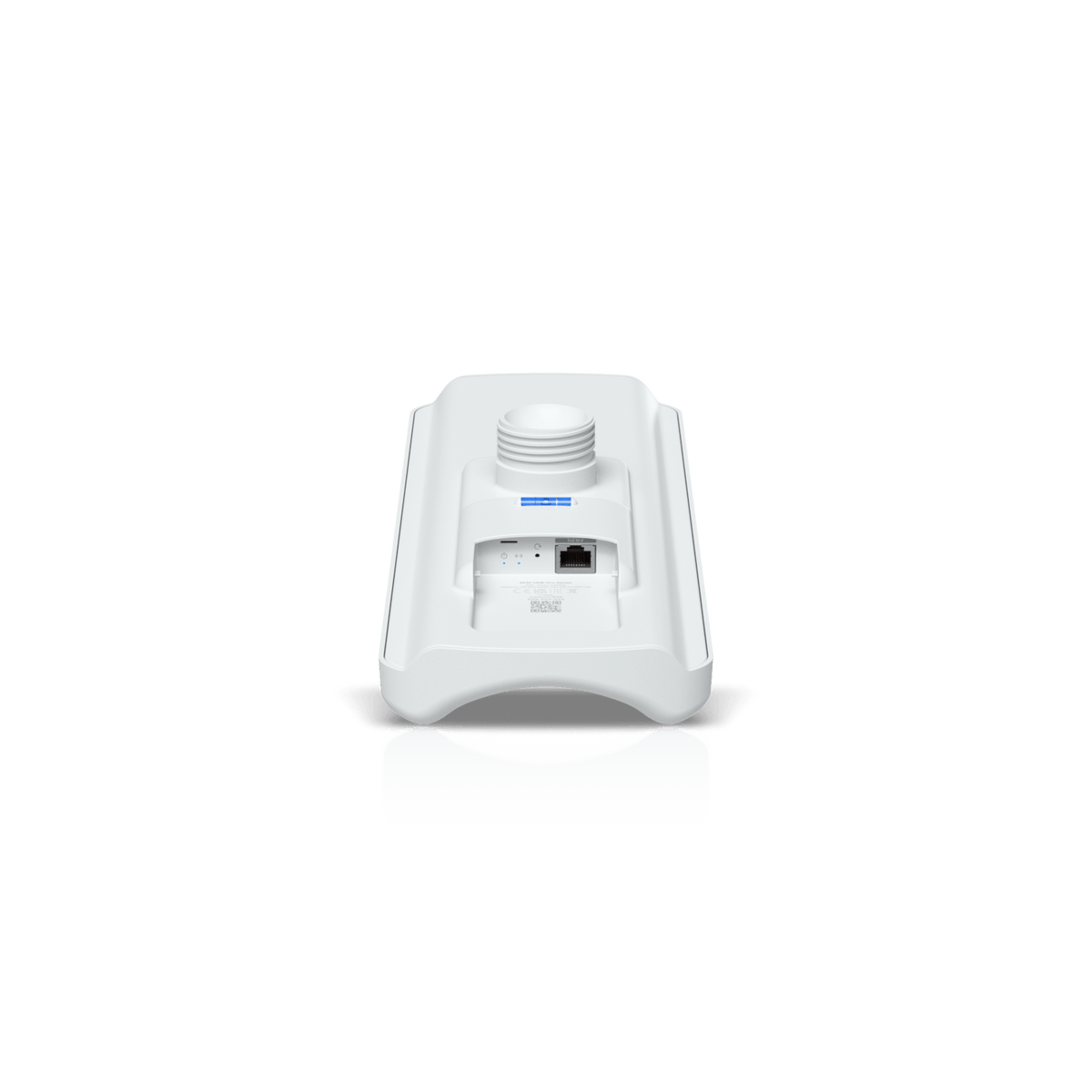

| Networking Interface | 1 x GbE RJ45 port |
| Antennas | Internal |
| Management | Ethernet, WiFi |
| Wind Loading | 128.2N at 200 km/h |
| Weight (Device Only) | 782 g (1.7 lb) |
| Weight (With Mount) | 835 g (1.8 lb) |

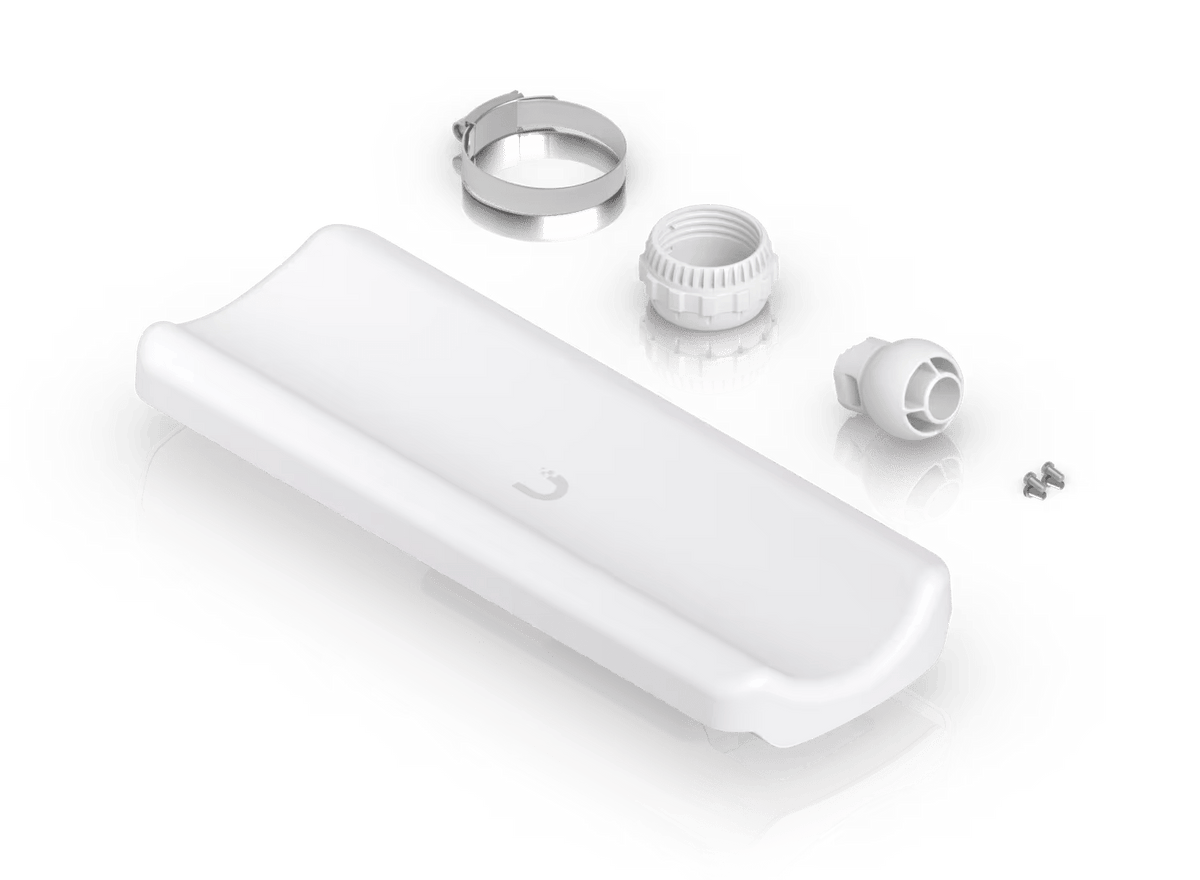

| Mount Material | UV-stabilized polycarbonate, stainless steel |
| Enclosure Material | UV-stabilized polycarbonate |
| Pole Mount Diameter | 24–60 mm (0.9–2.4 in) |
| Button | Factory-reset |
| LEDs | System: Power, Ethernet |
| Channel Bandwidth | 20/40 MHz |
| Certifications | CE, FCC, IC |
| Operating Frequency (US/CA) | • U-NII-1: 5150–5250 MHz • U-NII-2A: 5250–5350 MHz • U-NII-2C: 5470–5725 MHz • U-NII-3: 5725–5850 MHz |
| Operating Frequency (Worldwide) | 5150–5875 MHz |
| Ambient Operating Temperature | -40 to 60°C (-40 to 140°F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
