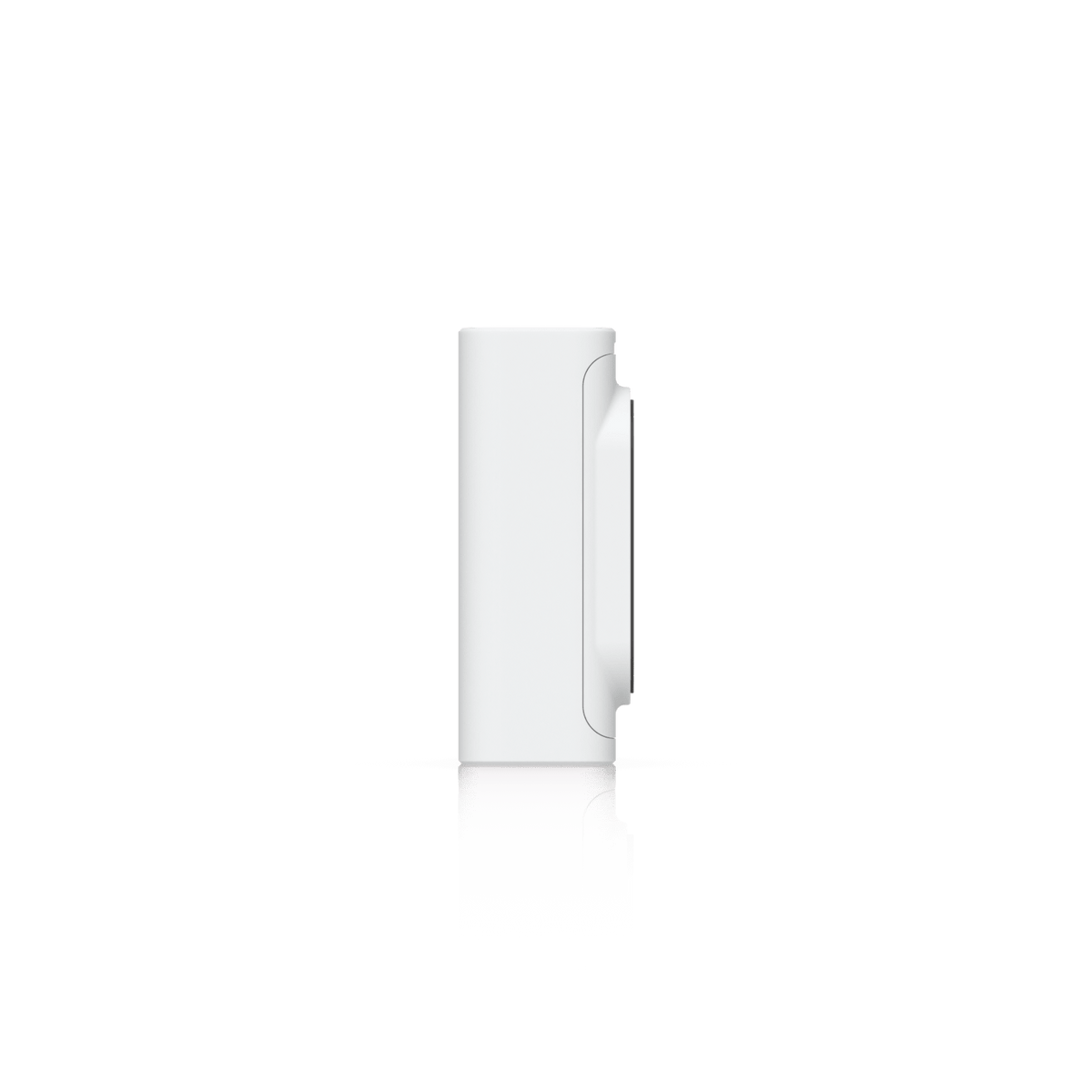

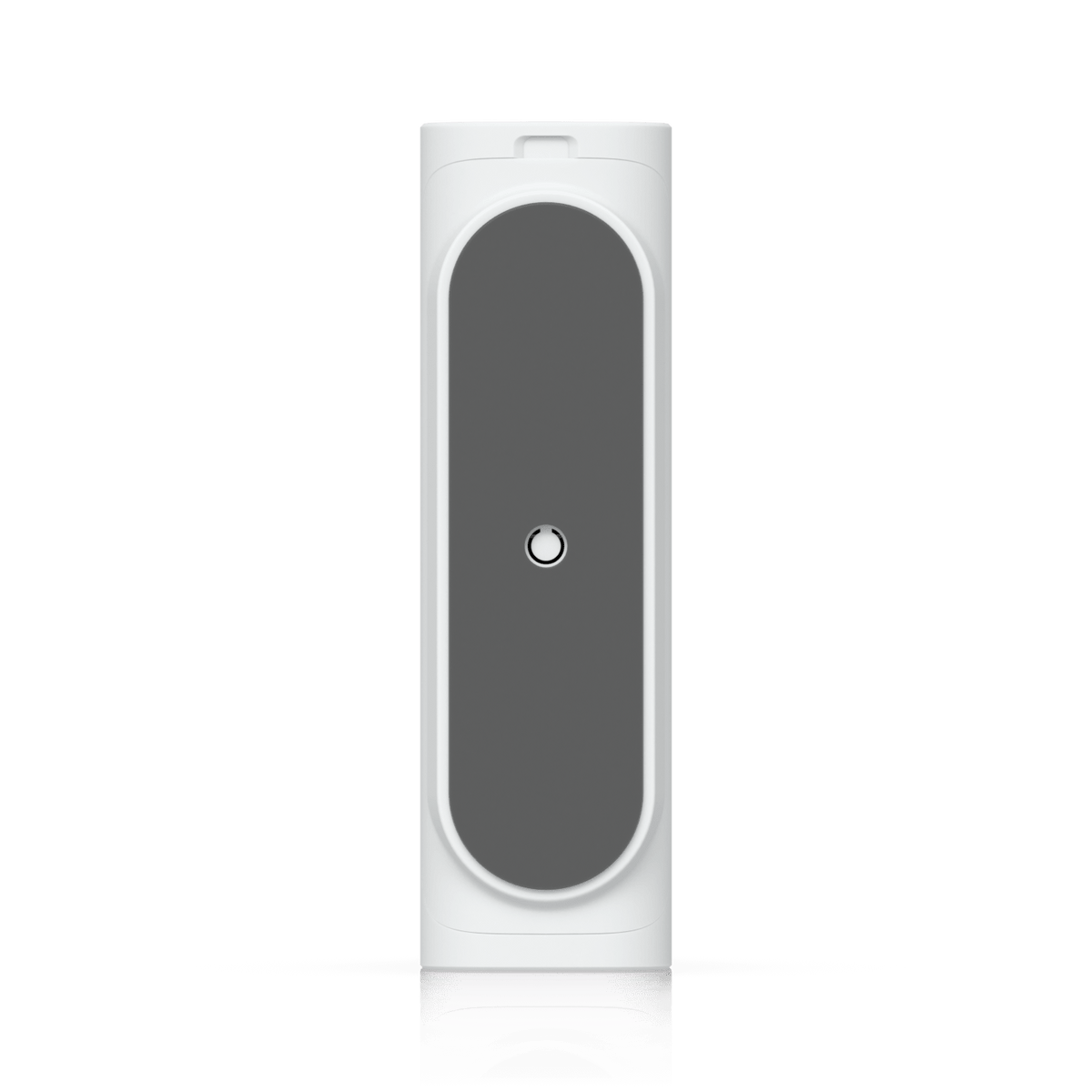

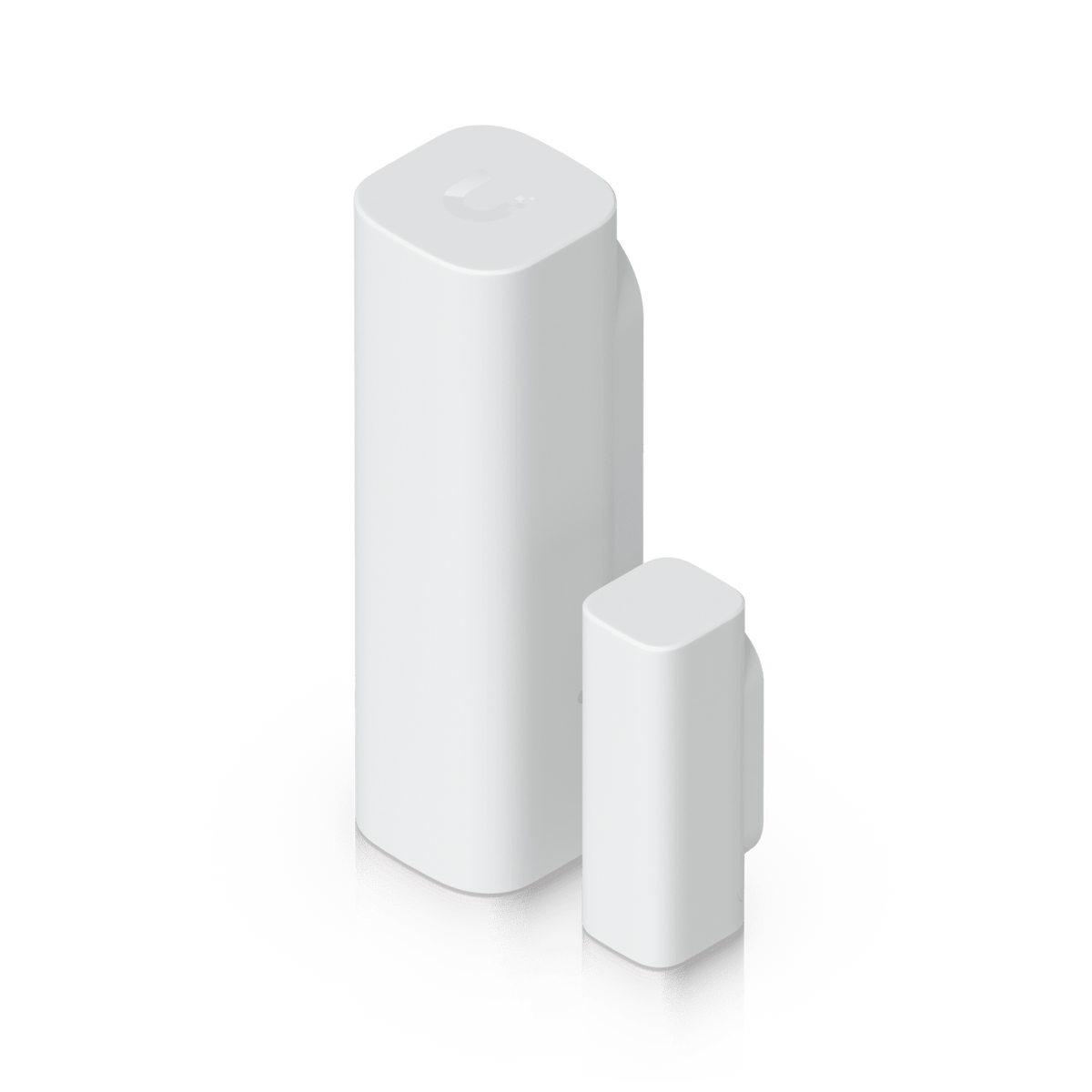

Ubiquiti USL-Entry SuperLink Entry Sensor for Door and Window
Long-Range Door and Window Monitoring for Distributed Security Designed for perimeter protection and access monitoring, this battery-powered SuperLink contact sensor detects door and window state changes with extended wireless coverage and seamless UniFi Protect integration. Highlights Reliable Entry Detection • Integrated reed switch for door and window open close detection • Tamper switch for unauthorized removal alerts • Designed for perimeter and access point monitoring Extended SuperLink Coverage • Proprietary SuperLink connectivity • Up to 2 km line-of-sight wireless range • Optimized for low-power long-distance communication Ultra-Low Power Operation • Powered by CR123A lithium battery • Up to 6 years battery life • Maximum power consumption 27.7 mW Key Features Ubiquiti SuperLink Door Window Sensor • Managed via UniFi Protect application suite • NDAA compliant for regulated environments • Designed for scalable campus and facility deployments Long-Range Wireless Performance • Operating frequencies US 915.6 to 927.6 MHz EU 865.1 to 869.5 MHz • Antenna gain 0 dBi • Maximum transmit power 14 dBm • Maximum range up to 2 km line-of-sight Compact and Flexible Installation • Device dimensions 75.5 × 23.5 × 22.5 mm • Magnet dimensions 39 × 15.1 × 12.9 mm • Adhesive and screw mounting options • Suitable for doors, windows, cabinets, and restricted access panels Hardware and Environmental Specifications • Supported voltage 3V • Device weight 41 g, magnet weight 22 g • Polycarbonate enclosure and mount • Operating temperature 0 °C to 40 °C • Operating humidity 10 to 90 percent noncondensing Summary / Conclusion This SuperLink door and window sensor provides reliable long-range entry detection with minimal power consumption and extended battery life. With up to 2 km wireless coverage and UniFi Protect integration, it enables scalable intrusion monitoring across offices, retail spaces, campuses, and distributed industrial environments.
Pickup available at 3005, Ubi Avenue 3, #01-88
Usually ready in 2-4 Business Day (Excluding Public Holiday)
Ubiquiti USL-Entry SuperLink Entry Sensor for Door and Window
Umorder ng maraming opsyon
Itakda ang dami para sa bawat opsyon. Awtomatikong maa-update ang iyong cart.
Variant
Dami
Presyo
Variant total
Variants
Total items
Total items
Product subtotal
Paglalarawan
Long-Range Door and Window Monitoring for Distributed Security
Designed for perimeter protection and access monitoring, this battery-powered SuperLink contact sensor detects door and window state changes with extended wireless coverage and seamless UniFi Protect integration.
Highlights
Reliable Entry Detection
• Integrated reed switch for door and window open close detection
• Tamper switch for unauthorized removal alerts
• Designed for perimeter and access point monitoring
Extended SuperLink Coverage
• Proprietary SuperLink connectivity
• Up to 2 km line-of-sight wireless range
• Optimized for low-power long-distance communication
Ultra-Low Power Operation

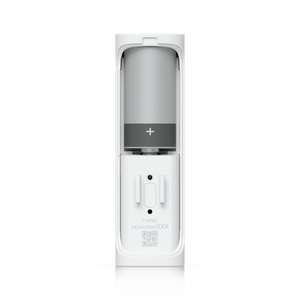

• Powered by CR123A lithium battery
• Up to 6 years battery life
• Maximum power consumption 27.7 mW
Key Features
Ubiquiti SuperLink Door Window Sensor
• Managed via UniFi Protect application suite
• NDAA compliant for regulated environments
• Designed for scalable campus and facility deployments
Long-Range Wireless Performance
• Operating frequencies
US 915.6 to 927.6 MHz
EU 865.1 to 869.5 MHz
• Antenna gain 0 dBi
• Maximum transmit power 14 dBm
• Maximum range up to 2 km line-of-sight
Compact and Flexible Installation

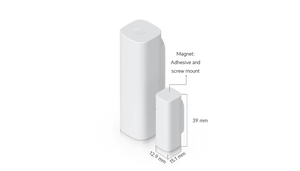

• Device dimensions 75.5 × 23.5 × 22.5 mm

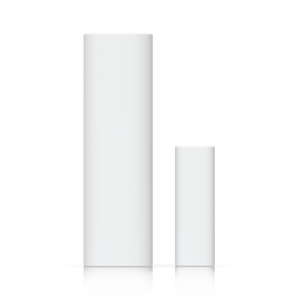

• Magnet dimensions 39 × 15.1 × 12.9 mm

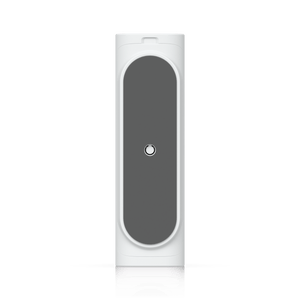

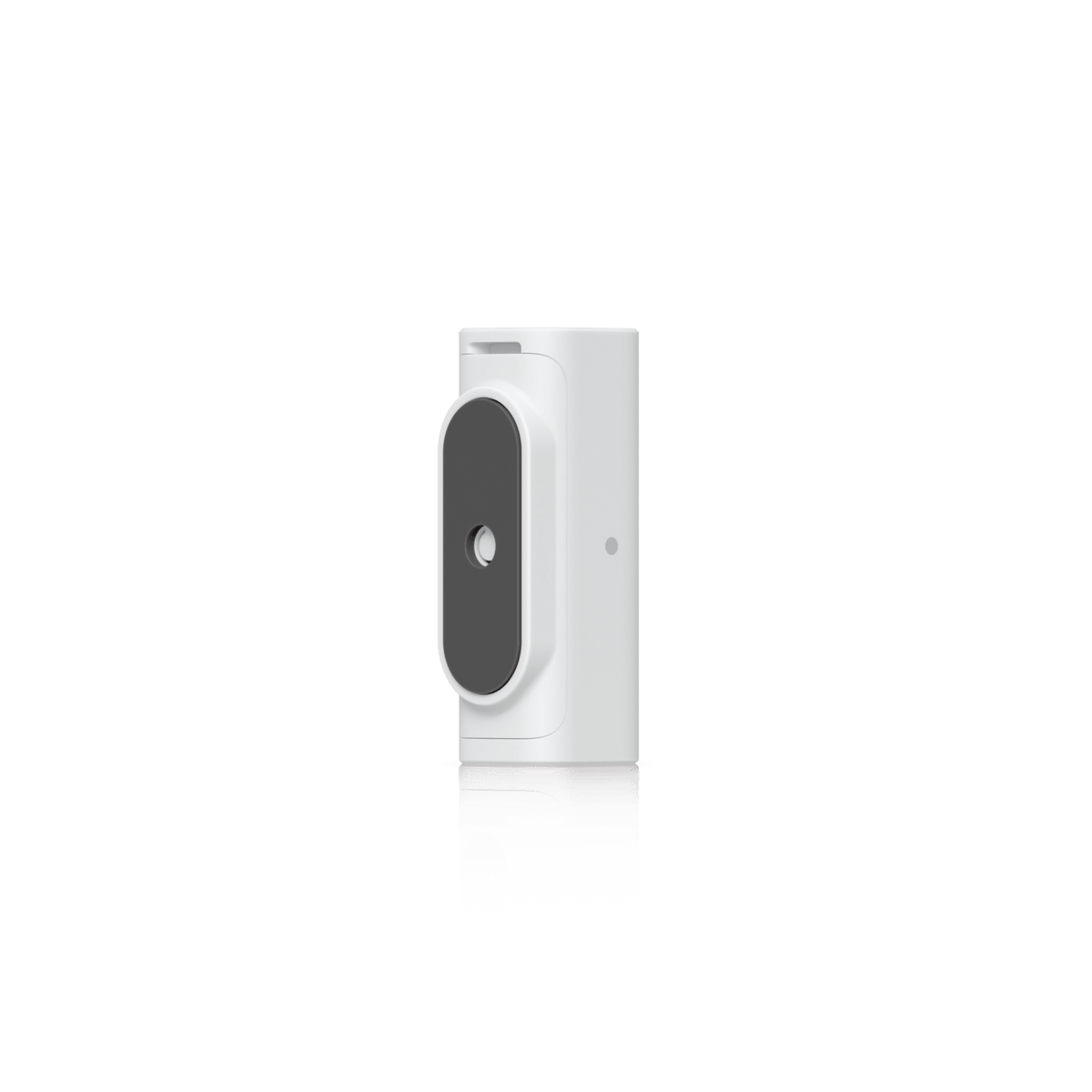

• Adhesive and screw mounting options

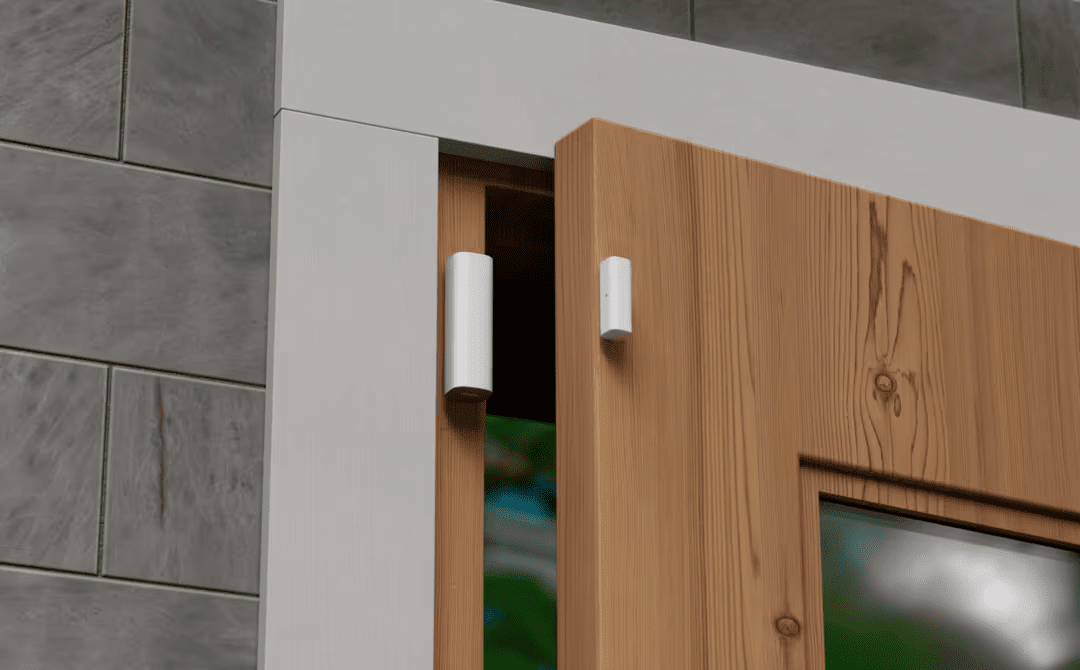

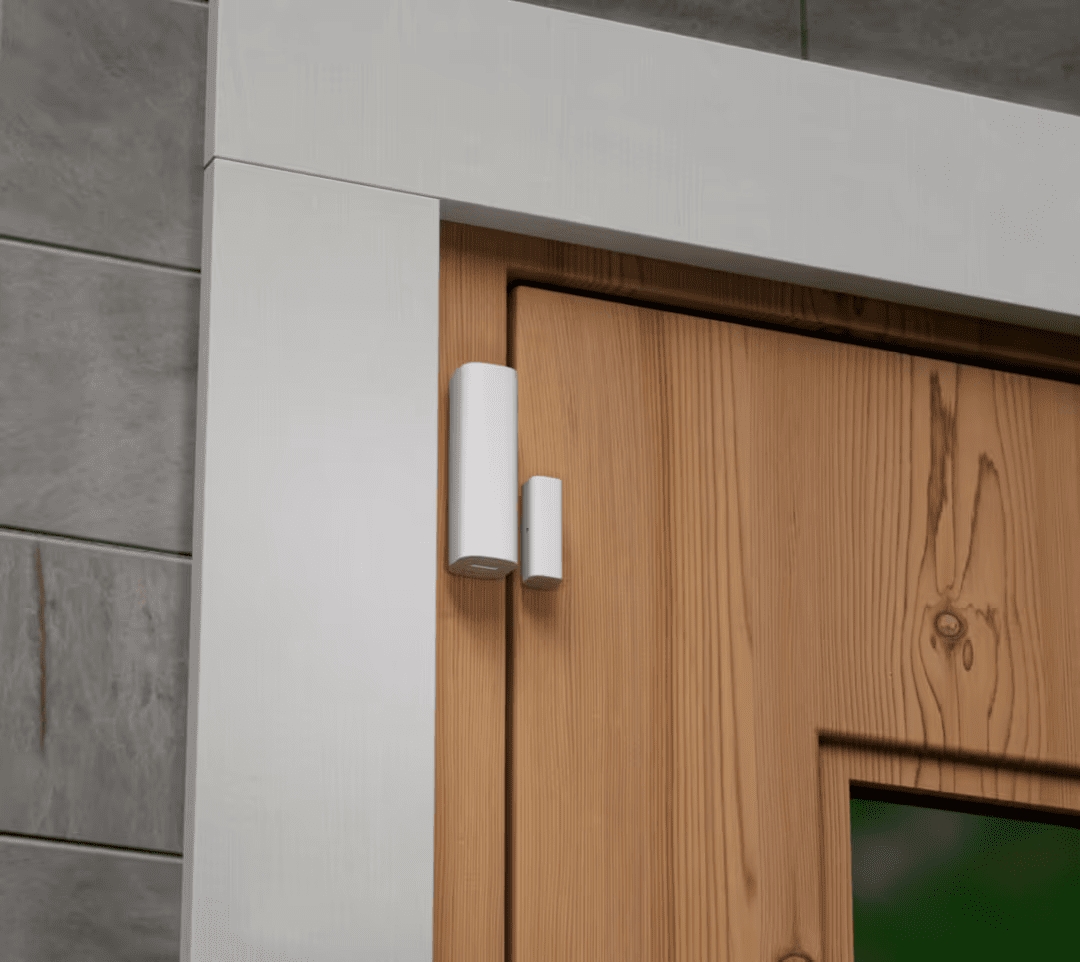

• Suitable for doors, windows, cabinets, and restricted access panels
Hardware and Environmental Specifications
• Supported voltage 3V
• Device weight 41 g, magnet weight 22 g
• Polycarbonate enclosure and mount
• Operating temperature 0 °C to 40 °C
• Operating humidity 10 to 90 percent noncondensing
Summary / Conclusion
This SuperLink door and window sensor provides reliable long-range entry detection with minimal power consumption and extended battery life. With up to 2 km wireless coverage and UniFi Protect integration, it enables scalable intrusion monitoring across offices, retail spaces, campuses, and distributed industrial environments.
Mga detalye

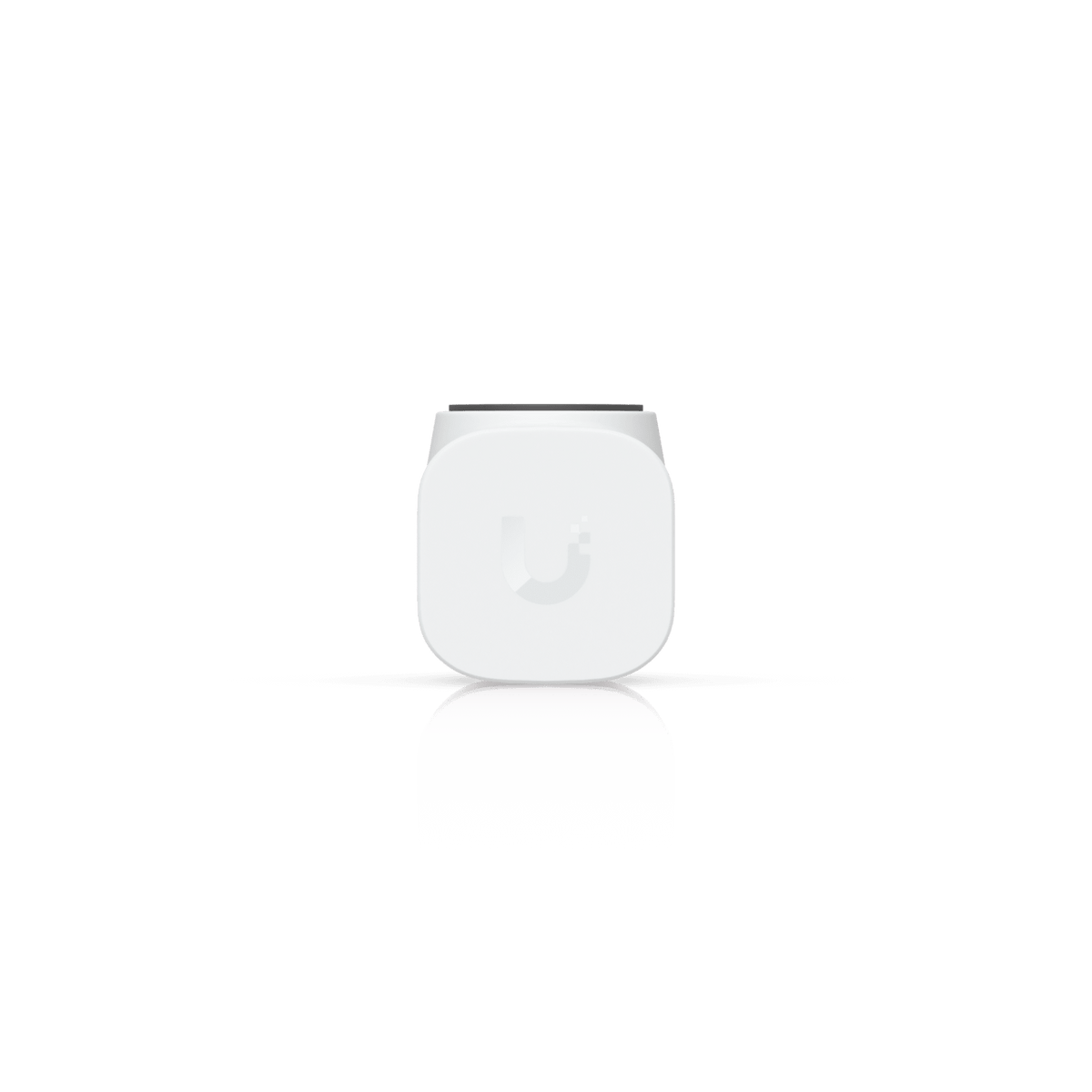

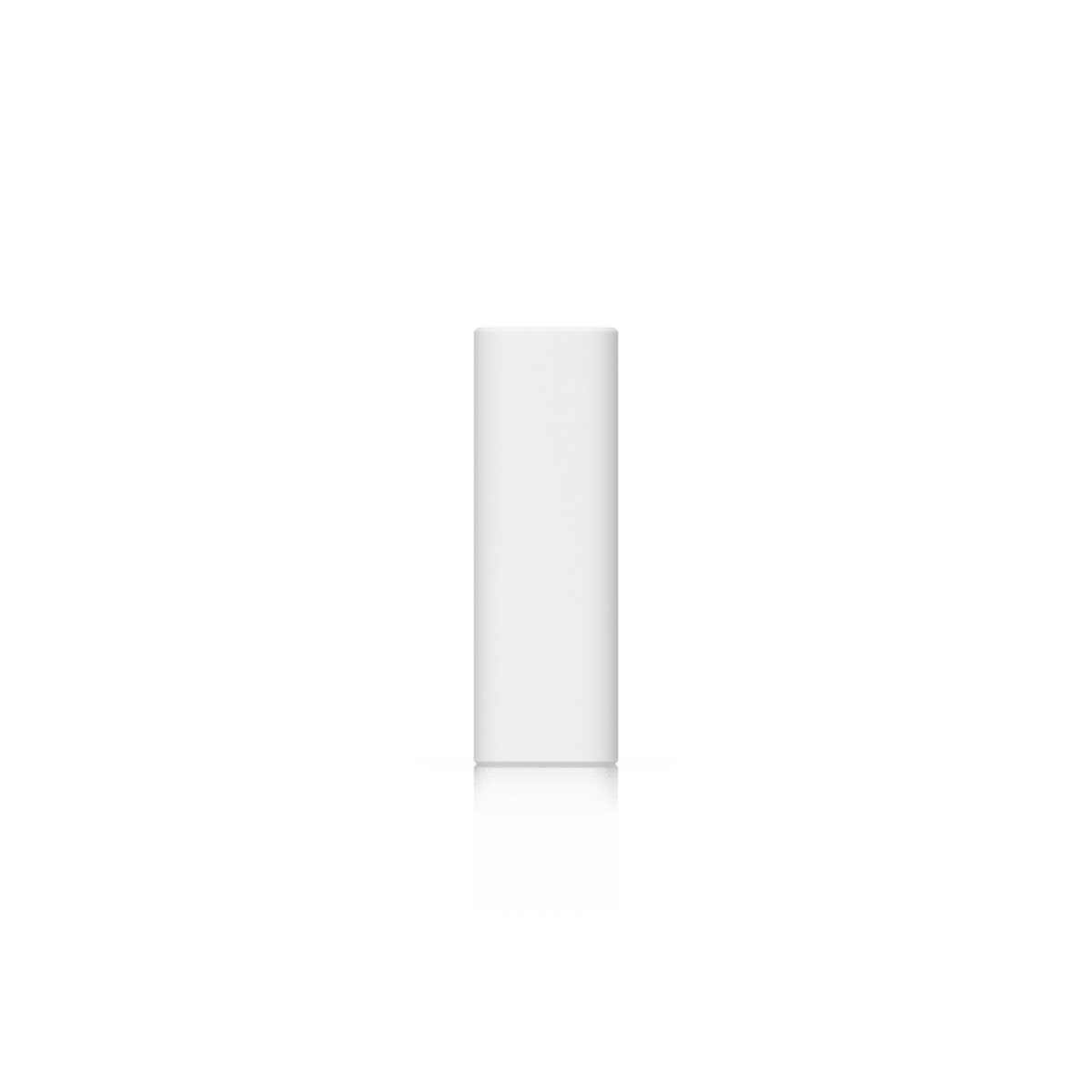

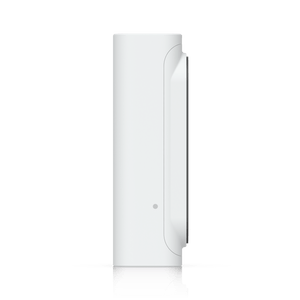

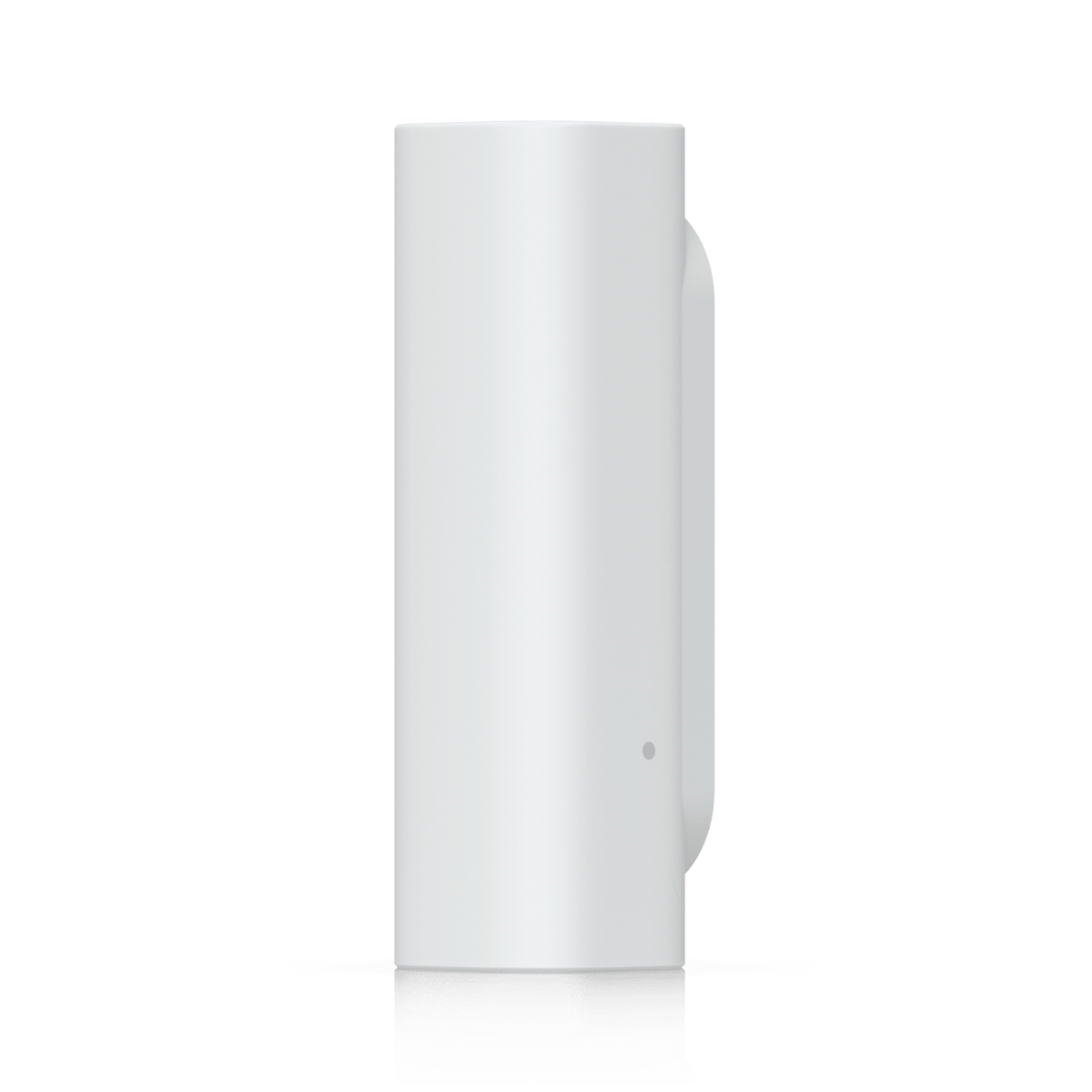

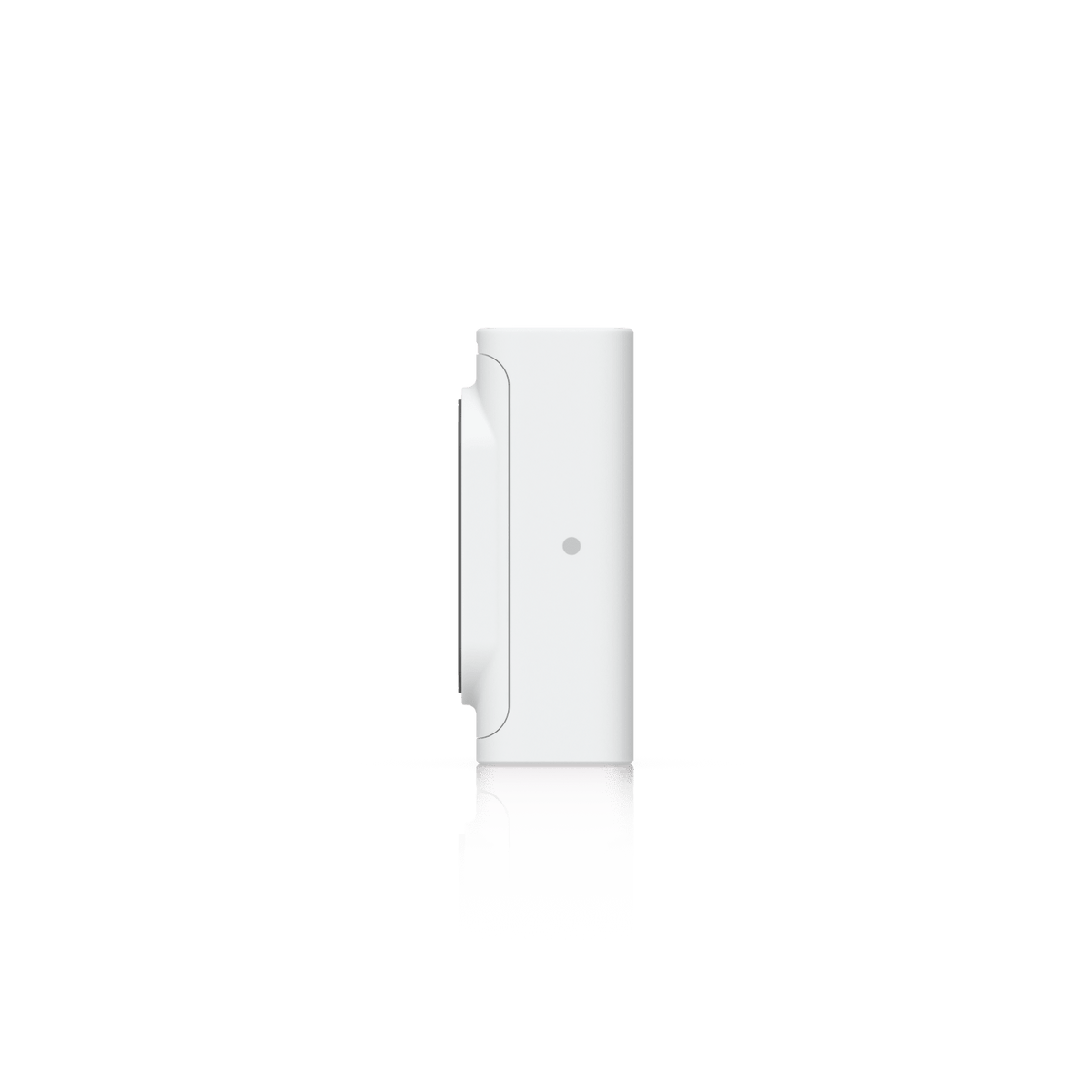

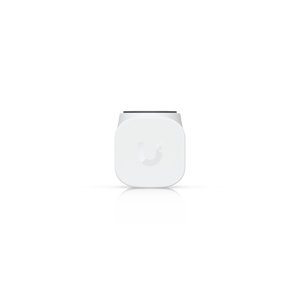

Ubiquiti USL-Entry SuperLink Entry Sensor for Door and Window
The Ubiquiti USL-Entry is a SuperLink door and window sensor designed for UniFi Protect security deployments. It provides reliable open and close status monitoring with up to 6 years of battery life and long range wireless connectivity for enterprise and industrial environments.
Product Specifications
| Specification | Details |
|---|---|
| Overview | |
| Product Type | SuperLink door and window entry sensor |
| UniFi Application Suite | Protect |
| Connectivity | Proprietary SuperLink |
| Max Range | Up to 2 km line of sight, 1.2 mi |
| NDAA Compliant | Yes |
| Sensor Features | |
| Reed Switch | Yes |
| Wireless | |
| Operating Frequency | US 915.6 to 927.6 MHz, EU 865.1 to 869.5 MHz |
| Antenna Gain | 0 dBi |
| Max TX Power | 14 dBm |
| Power | |

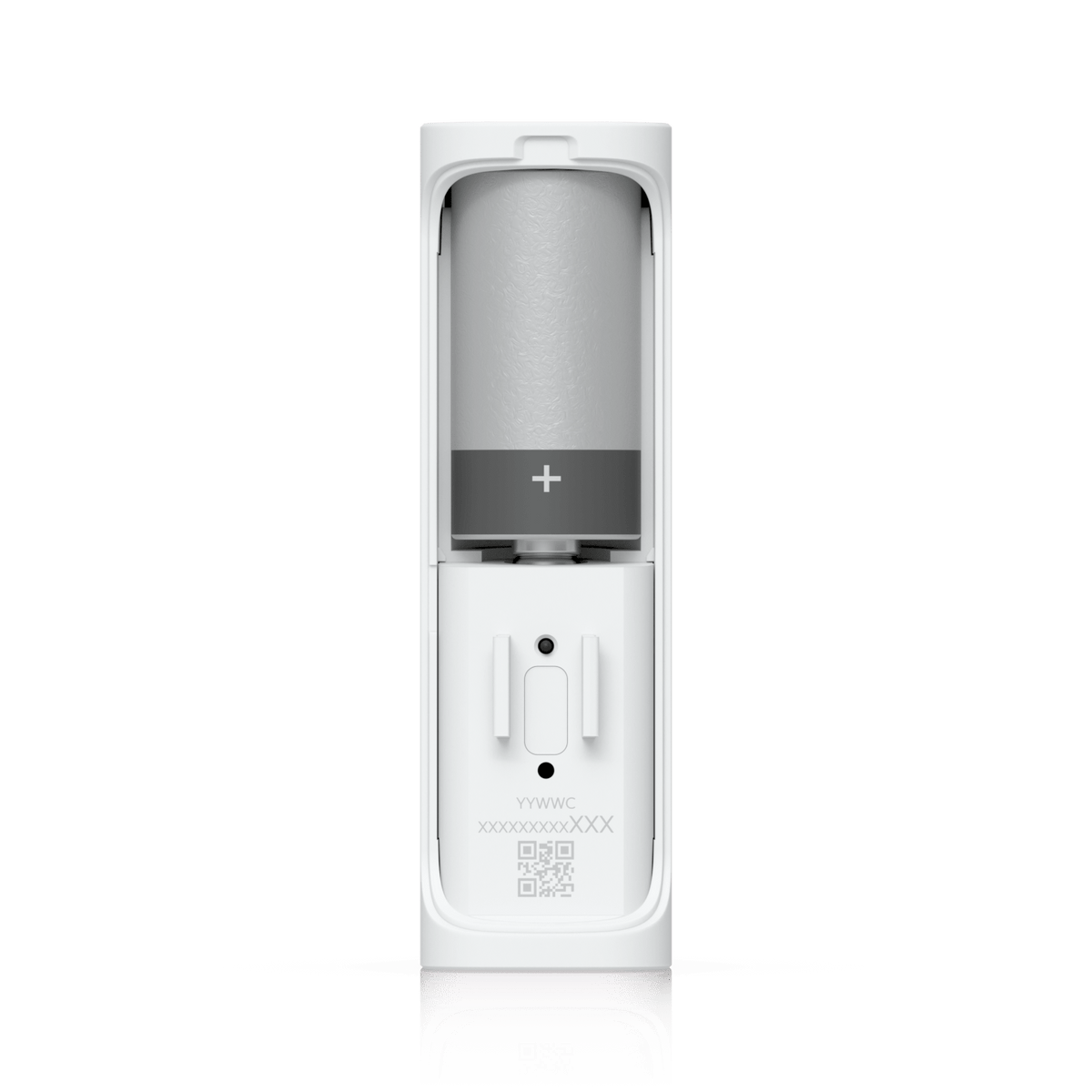

| Power Method | Lithium battery CR123A |
| Supported Voltage | 3V |
| Max Power Consumption | 27.7 mW |
| Battery Life | Up to 6 years |
| Hardware | |

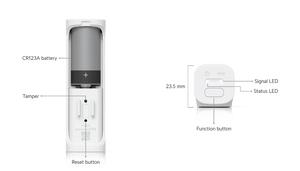

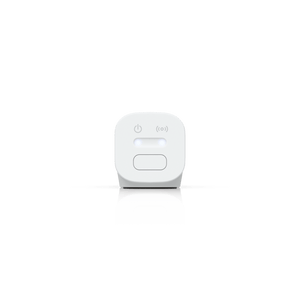

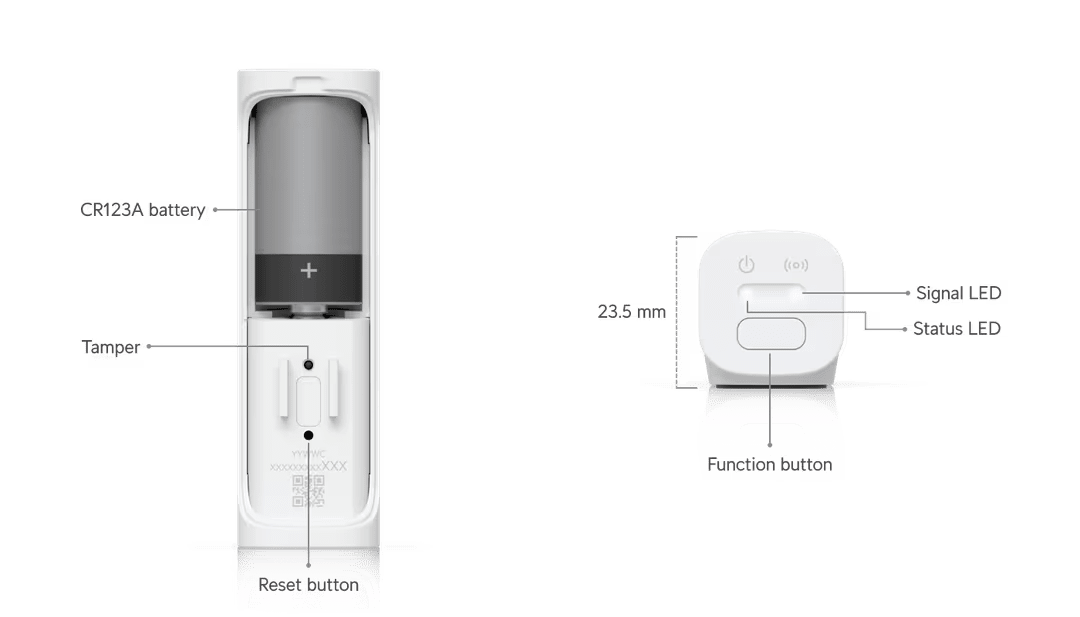

| Buttons | Factory reset, function button, tamper switch |

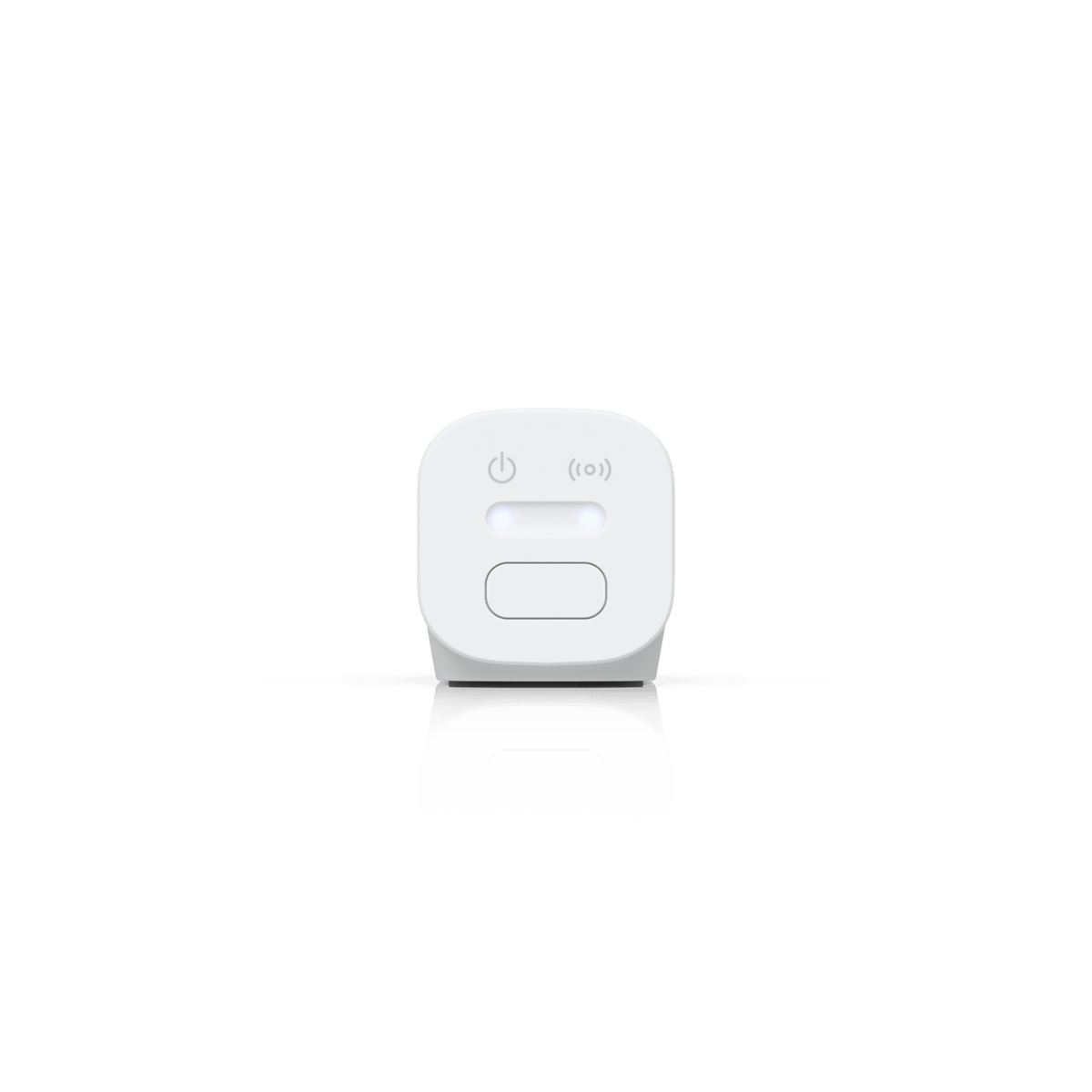

| LEDs | Status R B W, Signal B R |
| Enclosure Material | Polycarbonate |
| Mount Material | Polycarbonate |
| Physical | |
| Dimensions Device | 75.5 x 23.5 x 22.5 mm, 3 x 0.93 x 0.89 in |
| Dimensions Magnet | 39 x 15.1 x 12.9 mm, 1.5 x 0.6 x 0.5 in |
| Weight Device | 41 g, 1.4 oz |
| Weight Magnet | 22 g, 0.8 oz |
| Mounting | Adhesive, screw mount |
| Environmental | |
| Operating Temperature | 0°C to 40°C, 32°F to 104°F |
| Operating Humidity | 10 to 90% noncondensing |
| Certifications | |
| Certifications | FCC, IC, CE |
