Outdoor Ethernet Protection for High-Speed Network Links
Designed to protect outdoor Ethernet devices from ESD and surge events, this passive accessory helps improve deployment reliability for high-speed PoE networks. The Ubiquiti ETH-SP-G2 UACC-ETH-SP-Pro Ethernet Surge Protector provides surge-protected RJ45 connectivity with weatherproof housing options for 2.5 GbE and 10 GbE network environments.
Highlights
Protection for Outdoor Ethernet Devices
• Helps protect outdoor Ethernet devices from ESD and surge events
• Designed for high-speed outdoor network deployments
• Supports PoE passthrough for compatible installations
Passive RJ45 Surge Protection

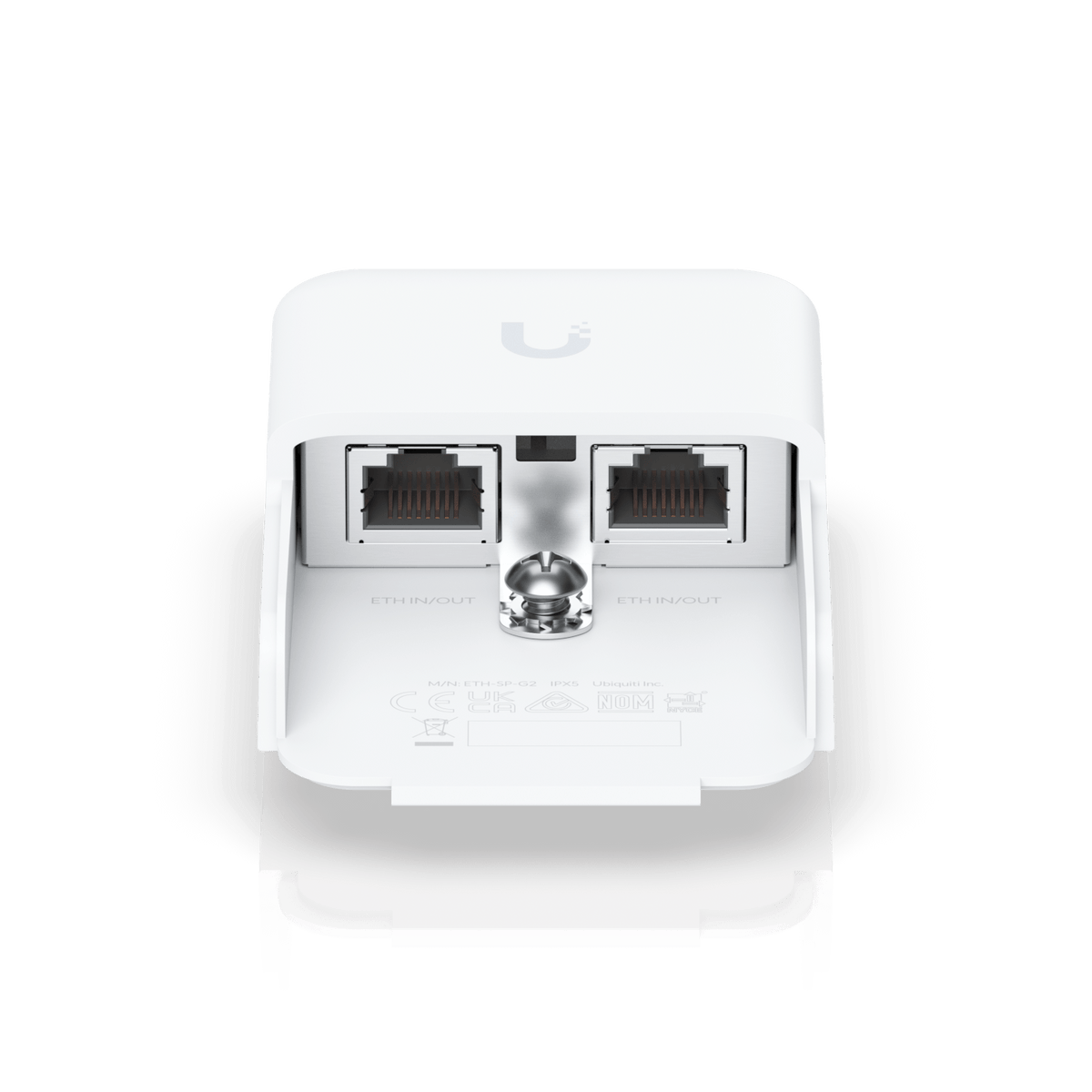

• Includes two passive, surge-protected RJ45 female connections
• Simple inline installation between outdoor Ethernet devices and network equipment
• Quick and easy installation for outdoor cabling protection
High-Speed Network Compatibility
• ETH-SP-G2 supports data line protection up to 2.5 Gbps
• UACC-ETH-SP-Pro supports data line protection up to 10 Gbps
• Suitable for outdoor PoE links requiring higher network throughput
Weatherproof and Durable Design
• IPX5 weatherproofing for outdoor placement
• Polycarbonate enclosure for lightweight durability
• ETSI300-019-1.4 shock and vibration certification
Key Features
Ubiquiti ETH-SP-G2 UACC-ETH-SP-Pro Ethernet Surge Protector
• Passive Ethernet surge protection accessory for outdoor high-speed networks
• Designed with two RJ45 female connectors
• Supports PoE passthrough
• Provides ESD or ESD/EMP protection depending on model
• Built for quick deployment in outdoor Ethernet installations
Model Comparison
| Feature | ETH-SP-G2 | UACC-ETH-SP-Pro |
|---|---|---|
| Data Line Protection | Up to 2.5 Gbps | Up to 10 Gbps |
| Discharge Current | 10 kA+ | 20 kA |
| Networking Interface | 2 x RJ45 female connectors | 2 x RJ45 female connectors |
| Weatherproofing | IPX5 | IPX5 |
| PoE Support | Yes | Yes |
| Weight | 80 g | 95 g |
| Dimensions | 91 x 61 x 32.5 mm | 91 x 61 x 32.5 mm |
Surge and ESD Protection
• DC spark-over voltage: 90 V at 100 V/s
• ETH-SP-G2 maximum impulse spark-over voltage: 700 V at 1 kV/µs
• UACC-ETH-SP-Pro maximum impulse spark-over voltage: 600 V at 1 kV/µs
• Absorbs transient current with response to surge voltage from 100 V/s to 1 kV/µs
Installation and Deployment Value
• Designed for outdoor Ethernet device protection
• Passive inline design simplifies deployment
• Supports PoE network links without requiring an active powered device
• Helps protect outdoor network cabling paths in professional installations
Operating Environment
• Operating temperature: -30 to 65°C
• Operating humidity: 10 to 90 percent non-condensing
• Enclosure material: polycarbonate
• Weatherproofing: IPX5
• Shock and vibration certification: ETSI300-019-1.4 standard
Summary / Conclusion
The Ubiquiti ETH-SP-G2 UACC-ETH-SP-Pro Ethernet Surge Protector range provides practical outdoor Ethernet protection for PoE network deployments. With passive surge-protected RJ45 connections, IPX5 weatherproofing, PoE support, and data line protection options up to 2.5 GbE or 10 GbE, it helps improve reliability for outdoor high-speed network links.
Mga detalye
Ubiquiti ETH-SP-G2 and UACC-ETH-SP-Pro Ethernet Surge Protectors
The Ubiquiti ETH-SP-G2 and UACC-ETH-SP-Pro are outdoor Ethernet surge protectors designed to protect network devices against ESD and surge events. Both models provide passive surge-protected RJ45 connections, PoE support, and weather-resistant housings for outdoor high-speed network deployments.
Product Specifications
| Specification | ETH-SP-G2 | UACC-ETH-SP-Pro |
|---|---|---|
| Overview | ||
| Product Type | Ethernet surge protector | Ethernet surge protector |
| Brand | Ubiquiti | Ubiquiti |
| Use Case | ESD protection for outdoor high-speed networks | ESD protection for outdoor high-speed networks |
| Key Protection Level | Protects outdoor Ethernet devices | Protects outdoor Ethernet devices with up to 20 kA discharge current |
| Mechanical | ||
| Dimensions | 91 × 61 × 32.5 mm (3.6 × 2.4 × 1.3 in) | 91 × 61 × 32.5 mm (3.6 × 2.4 × 1.3 in) |
| Weight | 80 g (2.8 oz) | 95 g (3.35 oz) |
| Enclosure Material | Polycarbonate | Polycarbonate |
| Weatherproofing | IPX5 | IPX5 |
| Hardware | ||
| Networking Interface | 2 × RJ45 female connectors | 2 × RJ45 female connectors |
| RJ45 Connections | Passive, surge-protected | Passive, surge-protected |
| Data Line Protection | Up to 2.5 Gbps | Up to 10 Gbps |
| PoE Support | Yes | Yes |
| DC Spark-Over Voltage | 90V at 100V/s | 90V at 100V/s |
| Max. Impulse Spark-Over Voltage | 700V at 1 kV/µs | 600V at 1 kV/µs |
| Discharge Current | 10 kA+ | 20 kA |
| Insulation | Max. resistance: 1 G ohm at 50V | Max. resistance: 1 G ohm at 50V |
| Max. Capacitance | 1.0 pF at 1 MHz | 1.0 pF at 1 MHz |
| Surge Protection | Absorbing transient current with response to surge voltage from 100V/s to 1 kV/µs | Difference and common mode |
| ESD Protection | Absorbing transient current with response to surge voltage from 100V/s to 1 kV/µs | ESD/EMP protection absorbing transient current with response to surge voltage from 100V/s to 1 kV/µs |
| Environmental | ||
| Operating Temperature | -30°C to 65°C (-22°F to 149°F) | -30°C to 65°C (-22°F to 149°F) |
| Operating Humidity | 10% to 90% non-condensing | 10% to 90% non-condensing |
| Certifications | ||
| Shock and Vibration Certification | ETSI300-019-1.4 Standard | ETSI300-019-1.4 Standard |
