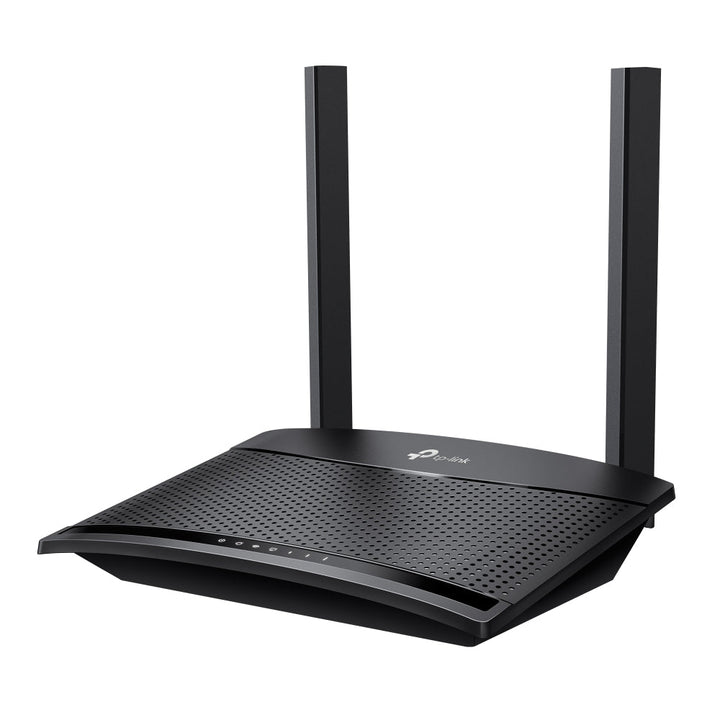

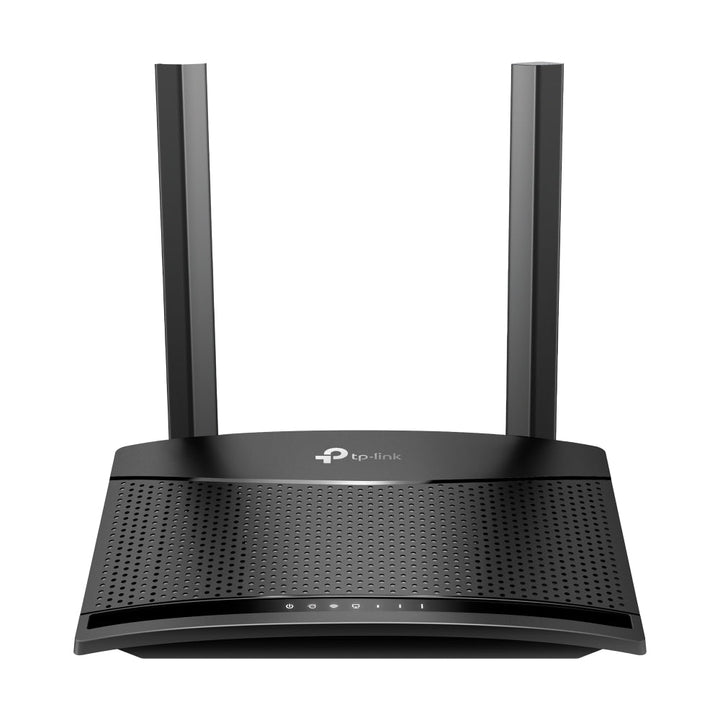

TP-Link TL-MR101 4G LTE 300Mbps WiFi Router
Plug & Play 4G Wi-Fi. Fast, Reliable, Everywhere. Enjoy stable 4G LTE internet instantly with the TL-MR101 — no configuration, no fuss. Simply insert a...
Plug & Play 4G Wi-Fi. Fast, Reliable, Everywhere.
Enjoy stable 4G LTE internet instantly with the TL-MR101 — no configuration, no fuss. Simply insert a SIM card for fast Wi-Fi in your home, office, remote site, or temporary shop. Designed for maximum compatibility, robust security, and true wireless flexibility.
Highlights
-
Supports 4G LTE download speeds up to 150 Mbps
-
300 Mbps Wireless N speed on 2.4 GHz
-
Plug and play — no setup required, just insert a SIM card
-
Connect up to 32 devices simultaneously
-
Dual LAN/WAN ports for wired access and WAN backup
-
Simple network management via TP-Link Tether app
-
Compatible with most global SIM cards (FDD-LTE and TDD-LTE)
-
Parental controls and guest Wi-Fi for safety and flexibility
-
Field-tested dual LTE antennas for wide, stable coverage
Key Features
4G LTE Connectivity
-

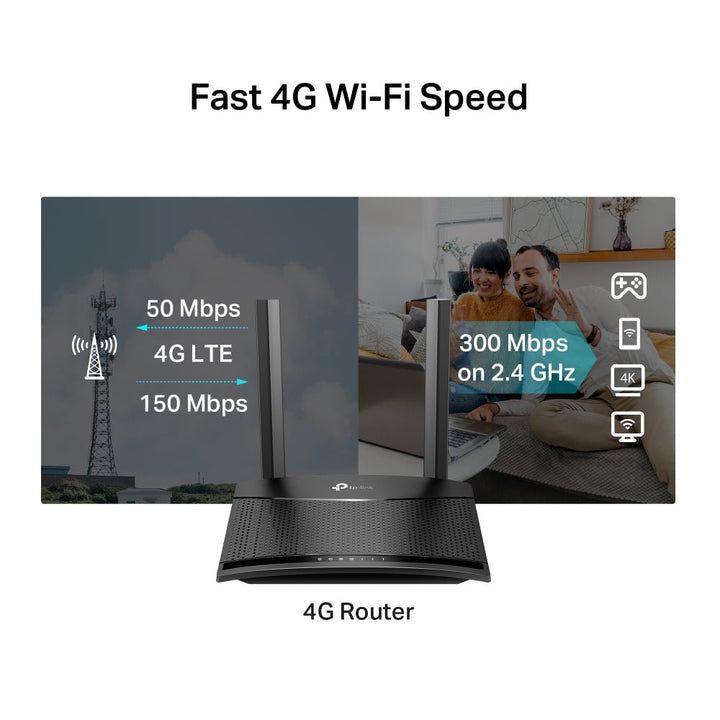

Download Speed: Up to 150 Mbps on 4G LTE
-
Upload Speed: Up to 50 Mbps
-
SIM Slot: Micro SIM, supports worldwide carriers
-
Compatible Standards: FDD-LTE and TDD-LTE
Wi-Fi & Network Performance
-
Wireless Standard: 802.11n (Wireless N)
-
Wi-Fi Speed: 300 Mbps at 2.4 GHz
-
Device Limit: Up to 32 simultaneous users
-
Wired Ports: 2 LAN/WAN (10/100 Mbps auto-sensing)
Deployment Flexibility
-
Applications: Home, remote sites, conference rooms, villas, temporary stores
-
Plug and Play: No technician needed, setup in seconds
Advanced Management
-
Parental Controls: Block sites, schedule internet time, monitor activity
-
Guest Network: Secure, separate Wi-Fi for visitors
-
App Support: TP-Link Tether for mobile setup and control
Hardware & Reliability
-
Antennas: Dual external LTE antennas for stable signal
-
Power: Standard DC adapter
-
Design: Compact, lightweight, modern aesthetic
Summary
The TP-Link TL-MR101 is the ultimate 4G LTE router for fast, easy, and secure wireless wherever you need it. Connect up to 32 devices, enjoy true plug-and-play freedom, and manage your network from anywhere. Perfect for homes, remote offices, pop-ups, or travel, it’s Wi-Fi without boundaries.
TP-Link TL-MR101 4G LTE Router Plug-and-Play 300Mbps WiFi
Reliable plug-and-play 4G connectivity with easy setup — the TP-Link TL-MR101 delivers stable 300Mbps WiFi, detachable external antennas, and wide LTE band support for homes, SOHO, and small business environments.
Specifications
Specification | Details |
---|---|
Hardware Features | |

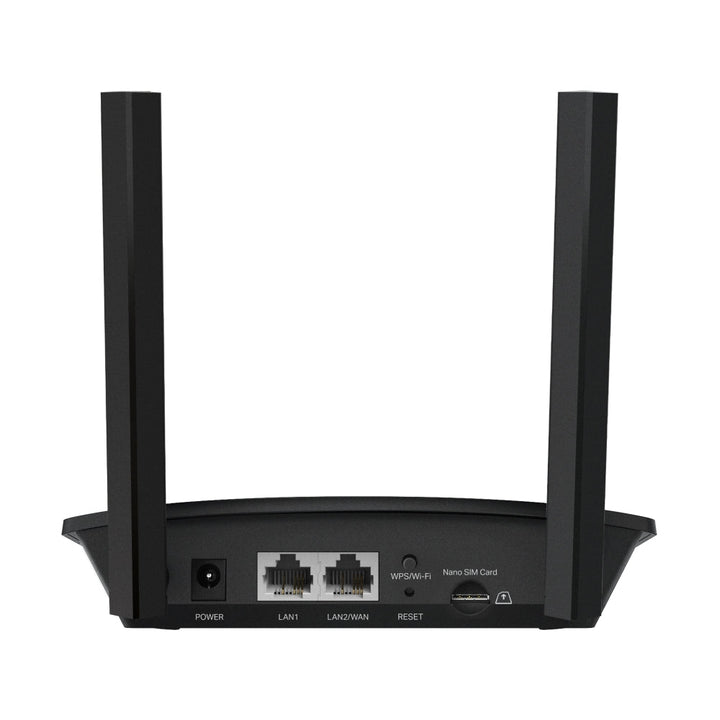

Interface | • 1 × 10/100Mbps LAN Port • 1 × 10/100Mbps LAN/WAN Port • 1 × Nano SIM Card Slot • 2 × External SMA-F Antenna Interface |
Button | • WPS/WiFi • Reset Button |
External Power Supply (EU) | 9V/0.85A |
Dimensions (W × D × H) | 154 × 114 × 36 mm (6.06 × 4.49 × 1.42 in) |
Antenna | 2 Detachable External 4G LTE Antennas |
Wireless Features | |
Wireless Standards | IEEE 802.11b/g/n |
Frequency | 2.4 GHz |
Signal Rate | 300 Mbps |
Reception Sensitivity | • 11g 54M: -74 dBm • 11n HT20: -71 dBm • 11n HT40: -68 dBm |
Wireless Functions | • Enable/Disable Wireless Radio • Wireless Schedule • WMM • Wireless Statistics |
WAN Failover | Yes |
Wireless Security | • 64/128-bit WEP • WPA/WPA2 • WPA-PSK/WPA2-PSK Encryptions |
Transmission Power | < 20 dBm (2.4 GHz) |
Network Type | • 4G: FDD-LTE: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/750 MHz) • TDD-LTE: B38/B40/B41 (2600/2300/2500 MHz) • 3G: HSPA/UMTS: B1/B5/B8 (2100/850/900 MHz) |
Software Features | |
Security | • IPv4 SPI Firewall • IP and MAC Address Binding |
Operating Modes | • 3G/4G Router • Wireless Router |
WAN Type | • Dynamic IP • Static IP • PPPoE • PPTP (Dual Access) • L2TP (Dual Access) |
Management Features | • Local Management • Remote Management |
DHCP | • Server • DHCP Client List • Address Reservation |
Port Forwarding | • ALG • Virtual Server • Port Triggering • UPnP • DMZ |
Dynamic DNS | DynDns, NO-IP |
Protocols | IPv4, IPv6 |
Guest Network | 2.4 GHz Guest Network |
Administration | • Upgrade Firmware • Factory Default • System Log • Diagnostic Tools |
Others | |
Certification | CE, RoHS |
Package Content | • 300 Mbps Wireless N 4G LTE TL-MR100 • 1.5m Power Adapter • RJ45 Ethernet Cable • Quick Installation Guide |
Requirements | • Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10 • MAC OS • NetWare • UNIX or Linux • Java-enabled browser: Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 • Nano SIM Card |
Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
