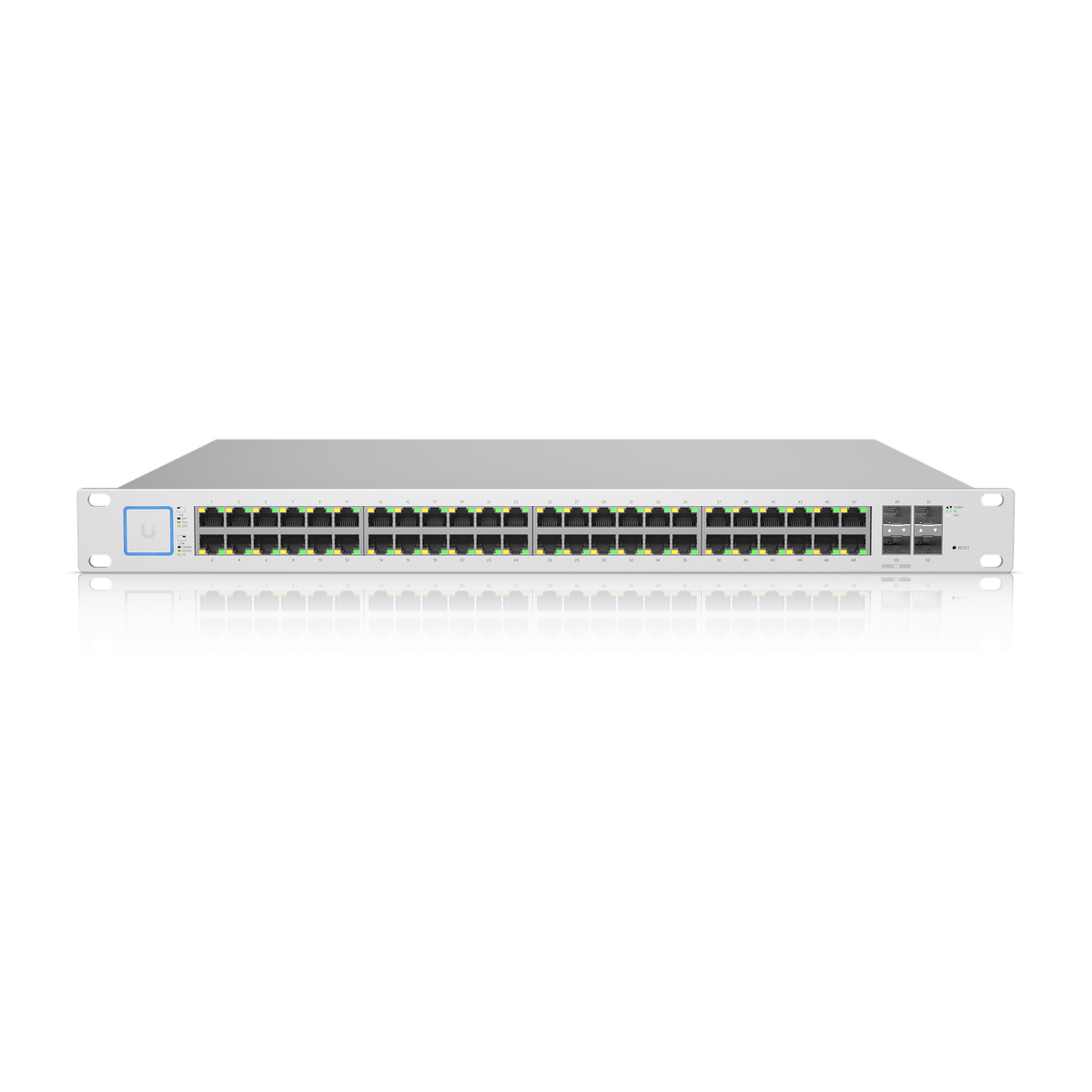

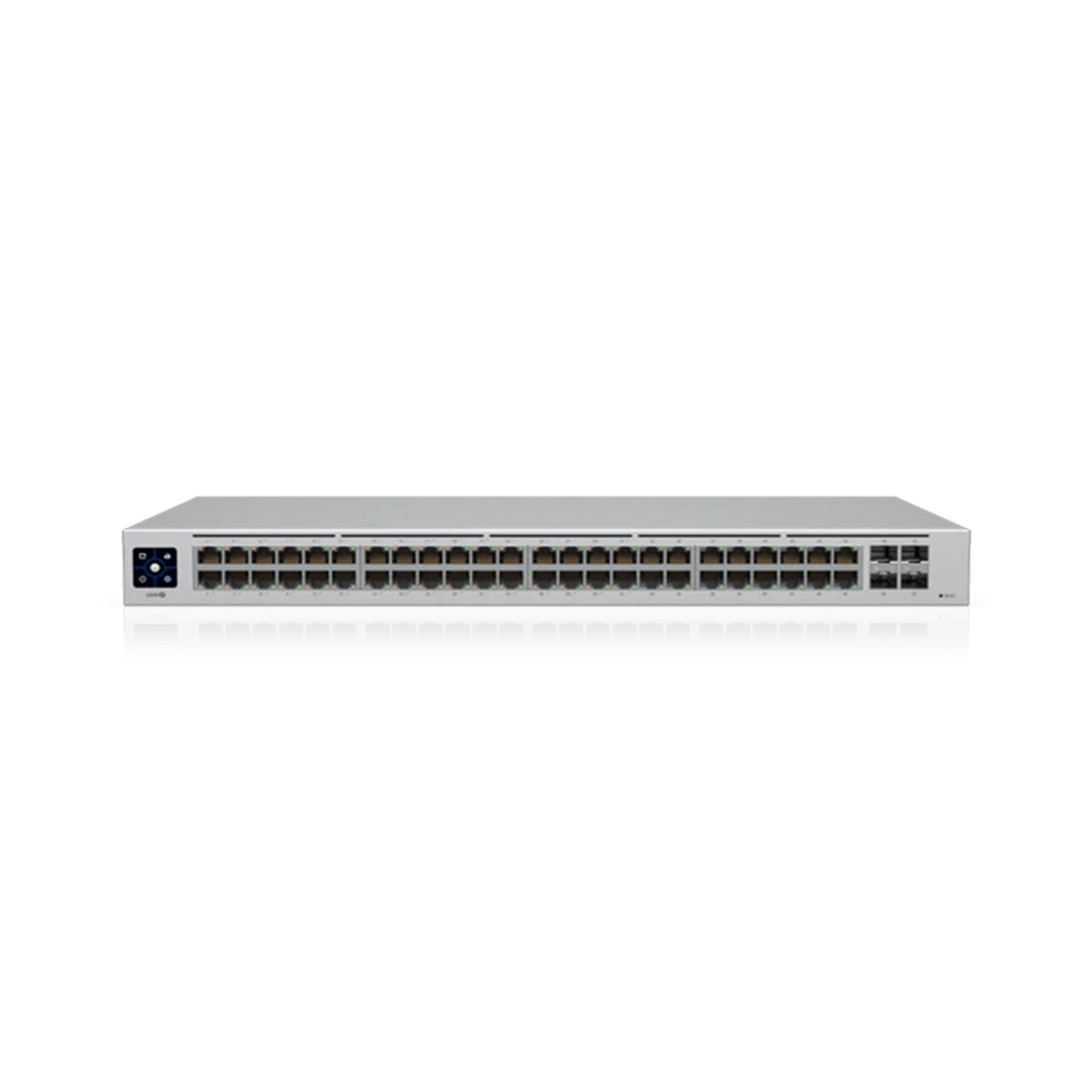

Ubiquiti UniFi US-48-500W 48-Port PoE Switch with 500W Power
Paglalarawan
High-Performance Network Expansion
Advanced Managed PoE+ Gigabit Switch for Growing Networks
The Ubiquiti UniFi US-48-500W is a fully managed, PoE+ Gigabit switch that is part of the UniFi line of products. It is designed to deliver robust performance and intelligent switching, making it an ideal solution for expanding and enhancing network infrastructures.
Key Features
High-Density Gigabit Ports
- Equipped with (48) Gigabit RJ45 ports, providing extensive connectivity for a wide range of devices.
Enhanced Uplink Capabilities
- Includes (2) SFP+ ports and (2) SFP ports, offering uplink speeds of up to 1 Gbps and 10 Gbps, respectively, for high-capacity connections.
Efficient Switching Performance
- Offers non-blocking throughput of 70 Gbps and a switching capacity of 140 Gbps, ensuring smooth traffic handling without packet loss.
PoE+ Flexibility
- Features auto-sensing IEEE 802.3af/at PoE Gigabit Ethernet ports, along with configurable 24V passive PoE, simplifying infrastructure and power management.
Advanced Fiber Connectivity
- Provides fiber connectivity options for network expansion, allowing for long-distance uplinks or connection to high-performance storage servers.
Intelligent Management
- Can be managed using the UniFi Controller software, enabling easy configuration and monitoring of network devices.
High Forwarding Rate
- Achieves a forwarding rate of 104.16 Mpps, ensuring efficient data processing across the network.
Substantial Power Provision
- Maximum power consumption of 500W, supporting PoE+ IEEE 802.3at/af devices with sufficient power allocation.
Summary
The Ubiquiti UniFi US-48-500W Managed PoE+ Gigabit Switch with SFP is a powerful and versatile solution for expanding network infrastructures. Its combination of high-density Gigabit ports, advanced uplink capabilities, and efficient switching performance makes it suitable for a variety of applications, from small businesses to large enterprises. Whether it's for deploying high-capacity uplinks, powering PoE devices, or managing network traffic, the US-48-500W is well-equipped to handle the demands of modern, growing networks.
Mga detalye
| Specification | Detail |
|---|---|
| General | |
| Model | US-48-500W |
| Dimensions | 485 x 43.7 x 374.6 mm (19.09 x 1.72 x 14.75") |
| Weight | 6.1 kg (13.5 lb) |
| Networking Interfaces | |
| Ethernet Ports | (48) 10/100/1000 Mbps RJ45 |
| SFP+ Ports | (2) 1/10 Gbps |
| SFP Ports | (2) 1 Gbps |
| Management Interface | |
| Types | (1) RJ45 Serial Port Out-of-Band, Ethernet In-Band |
| Performance | |
| Total Non-Blocking Throughput | 70 Gbps |
| Switching Capacity | 140 Gbps |
| Forwarding Rate | 104.16 Mpps |
| MAC Address Table | 16384 |
| Maximum Aggregations | 6 |
| Monitoring Sessions | 1 |
| Maximum VLANs | 255 |
| Power | |
| Power Method | 100-240VAC/50-60 Hz, Universal Input |
| Power Supply | AC/DC, Internal, 500W DC |
| Max. Power Consumption | 500W (Including PoE Output), 64W (Excluding PoE Output) |
| LEDs Per Port | |
| RJ45 Data Ports | PoE, Speed/Link/Activity |
| SFP Data Ports | Speed/Link/Activity |
| Sound Level* | |
| Fan Level 0 | 10.7 dBr |
| Fan Level 1 | 16.2 dBr |
| Fan Level 2 | 19.3 dBr |
| Fan Level 3 | 23.6 dBr |
| ESD/EMP Protection | |
| Levels | Air: ± 24 kV, Contact: ± 24 kV |
| Environmental | |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE+ Per Port | |
| PoE Interfaces | PoE+ IEEE 802.3af/at, 24VDC Passive PoE |
| Max. PoE+ Wattage per Port by PSE | 34.2W |
| Voltage Range 802.3at Mode | 50–57V |
| Max. Passive PoE Wattage per Port | 17W |
| 24V Passive PoE Voltage Range | 20-27V |
