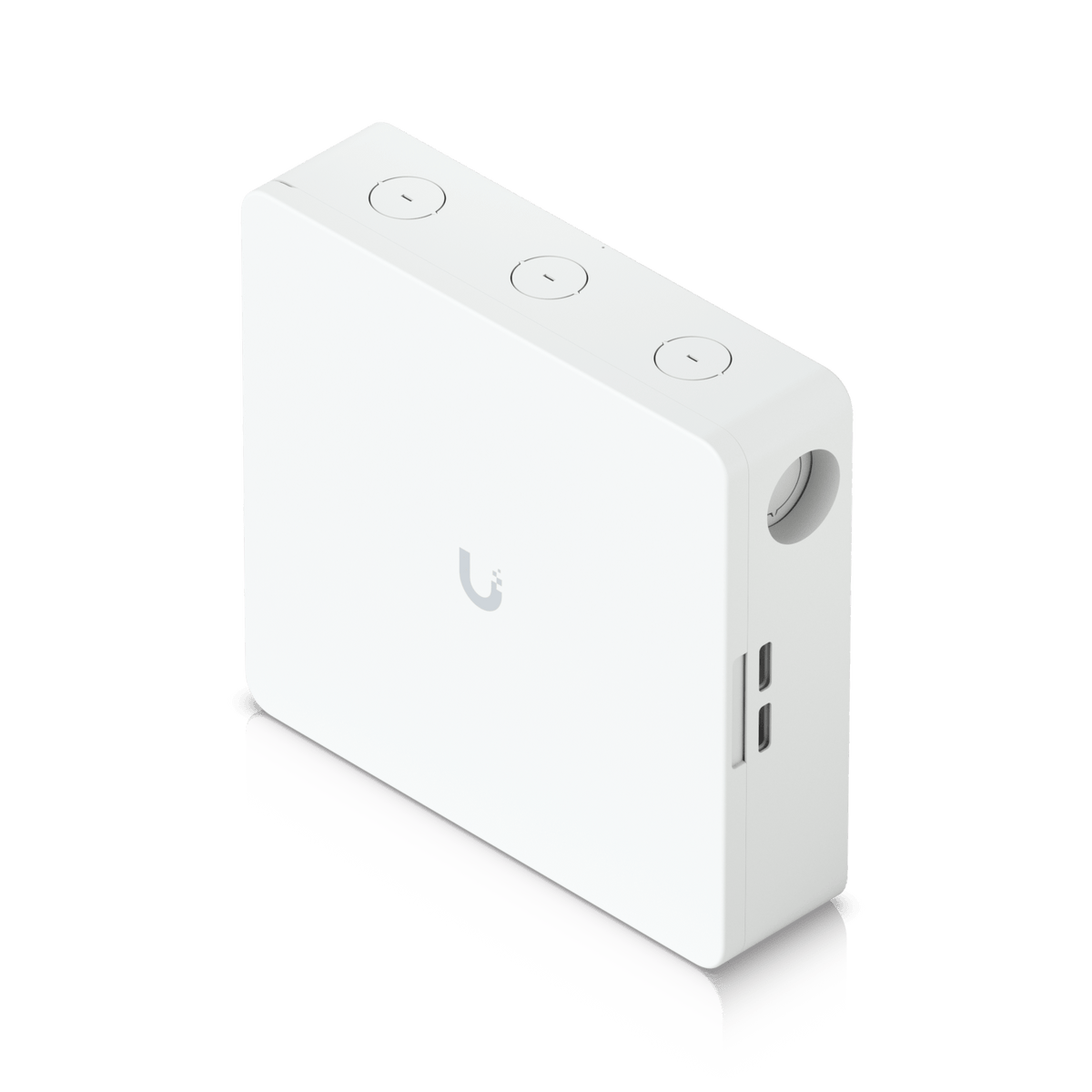

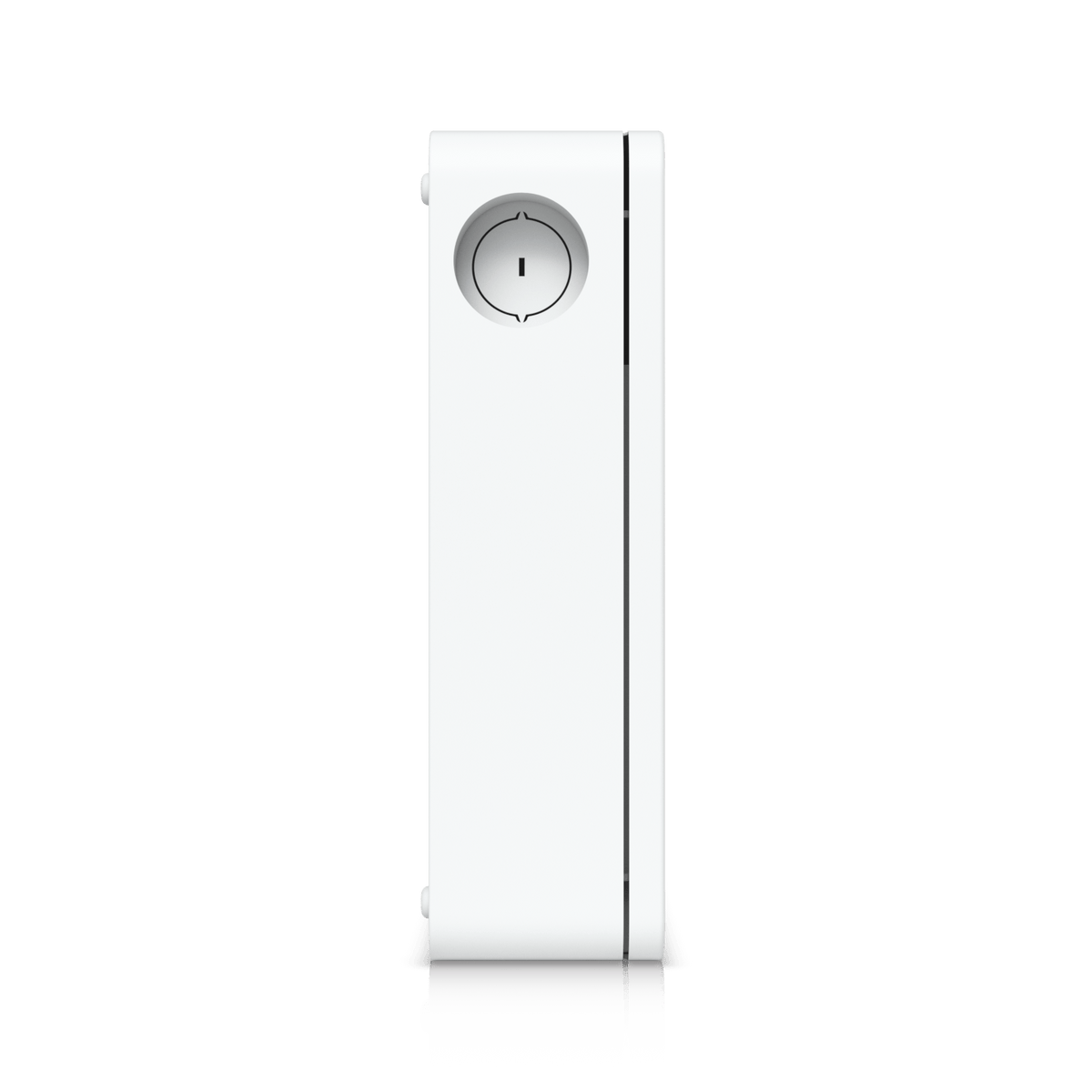

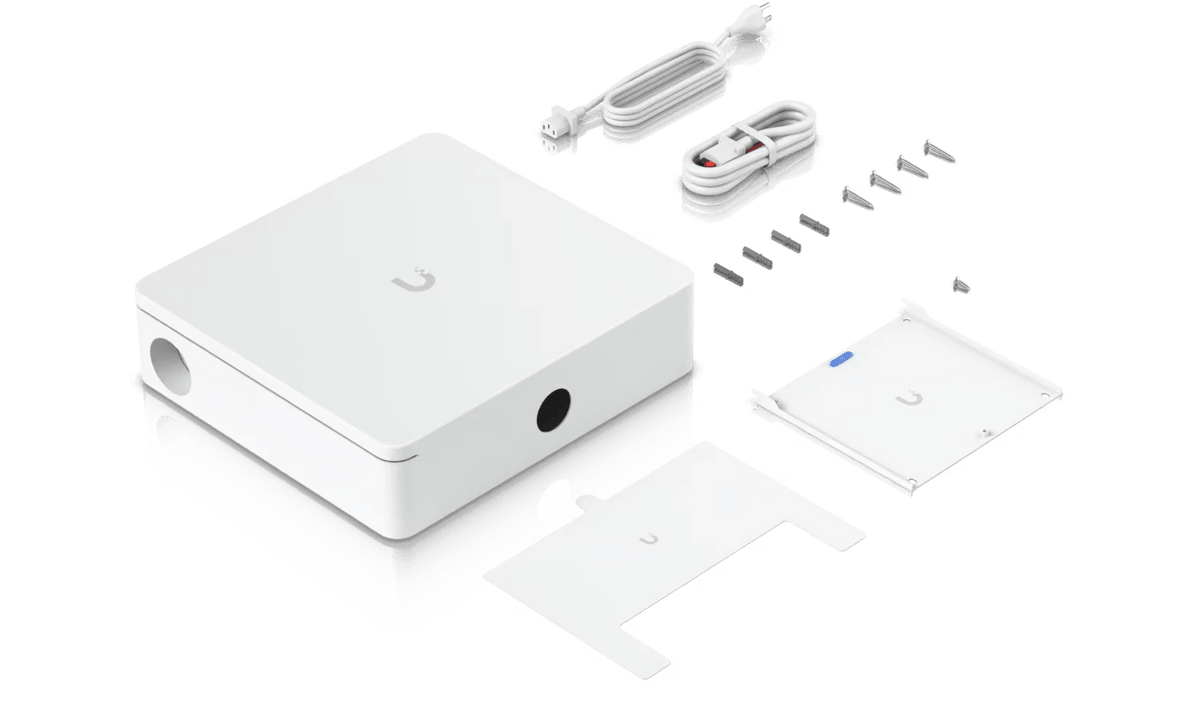

Ubiquiti EAH-8 Enterprise Access Hub
Paglalarawan
Secure, Scalable Door Access Control for Enterprises

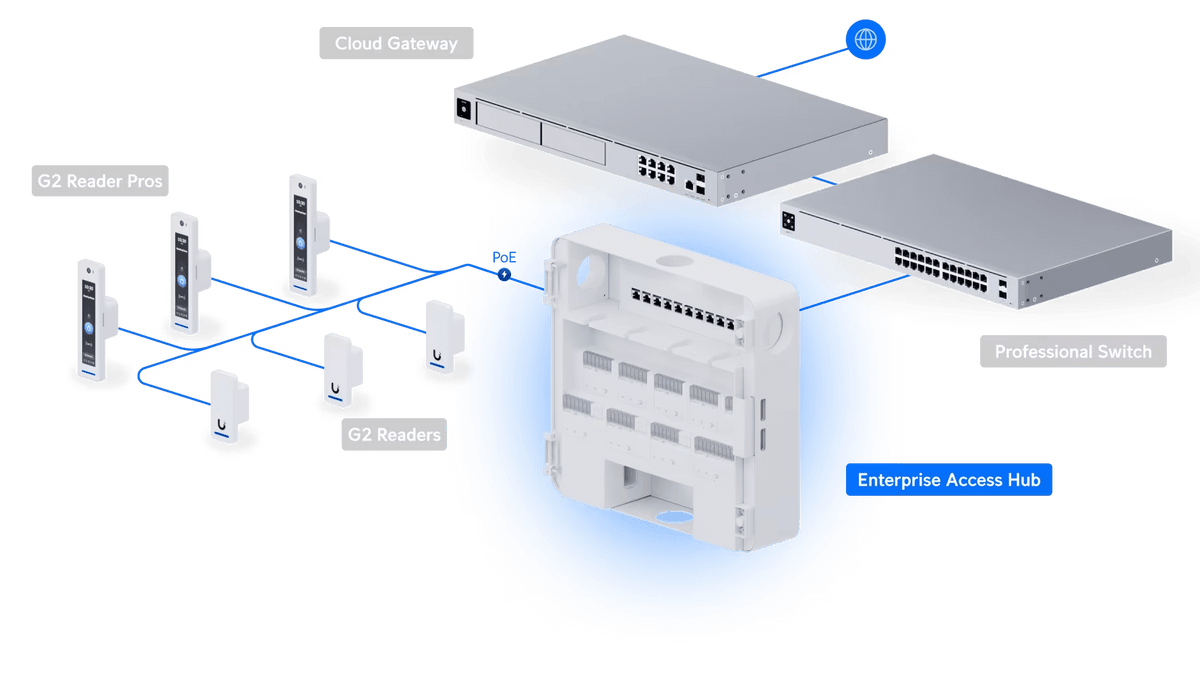

The Ubiquiti EAH-8 Enterprise Access Hub delivers enterprise-grade access control for up to eight doors with comprehensive input/output control, PoE capabilities, and emergency support. Built for indoor environments, the EAH-8 integrates with the UniFi Access ecosystem to offer flexible access point management, real-time event tracking, and battery backup support for fail-safe operation during power interruptions. Ideal for enterprise facilities, schools, and corporate campuses, it ensures secure, centralized access management at scale.
Highlights
- Supports up to 8 doors with entry and exit controls
- 8 PoE ports for streamlined power and data delivery
- 240W max power consumption, with 60W total PoE budget
- Battery backup support (32–48V DC) ensures uninterrupted access control
- Multiple dry and powered output relays for locks, chimes, sirens, and more
- UL 294 Level I compliance for endurance, standby power, and line security
- SGCC steel housing with a polycarbonate cover for long-lasting protection
Key Features
Centralized Door Access Control
- Supports 8 doors with:
- (8) request-to-exit inputs
- (8) door position sensors
- (1) emergency input
- (8) lock terminals (12V or dry contact)
- (4) AUX terminals for custom alerts or door-related peripherals
Intelligent Power Management
- Universal AC input (100–240V, Max. 4.4A)
- 32–48V DC battery input for backup power
- Internal AC/DC power supply with 240W max consumption
- 60W total PoE output via 8× PoE ports, up to 15.4W per port
Networking & Integration
- (10) Gigabit Ethernet ports for seamless integration into UniFi networks
- Minimum Cat 5e cabling required for PoE delivery
- Rugged wall-mounted design built for indoor use
- SGCC steel enclosure and mount materials for added durability
Lock Compatibility & Cable Guidelines
- Optimized for UA electric/magnetic locks
- Recommended cable lengths by AWG and lock model ensure reliable operation
- Max lock output: 12V DC, 1A
- Supports dry or powered relay output based on lock requirements
Compliance & Certifications
- Complies with UL 294 Level I for:
- Destructive attack
- Line security
- Endurance
- Standby power
- Designed for Class 2 and 3 circuit standards per NFPA 70 Article 725.121
- Note: IEEE 802.3 PoE compliance not verified under UL 294 testing
Summary
The Ubiquiti EAH-8 Enterprise Access Hub is a powerful, centralized access control system for up to eight doors, offering full relay control, PoE power delivery, and emergency input support. With dry and powered outputs, robust construction, and fail-safe battery backup, it meets the access control demands of large-scale enterprise installations with ease and reliability.
Mga detalye
Ubiquiti EAH-8 Enterprise Access Hub
| Specification | Details |
|---|---|
| Overview | 8-door enterprise-grade access controller with PoE ports, dry/powered relays, and centralized access management. Designed for indoor wall-mount installations. |

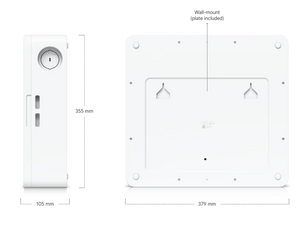

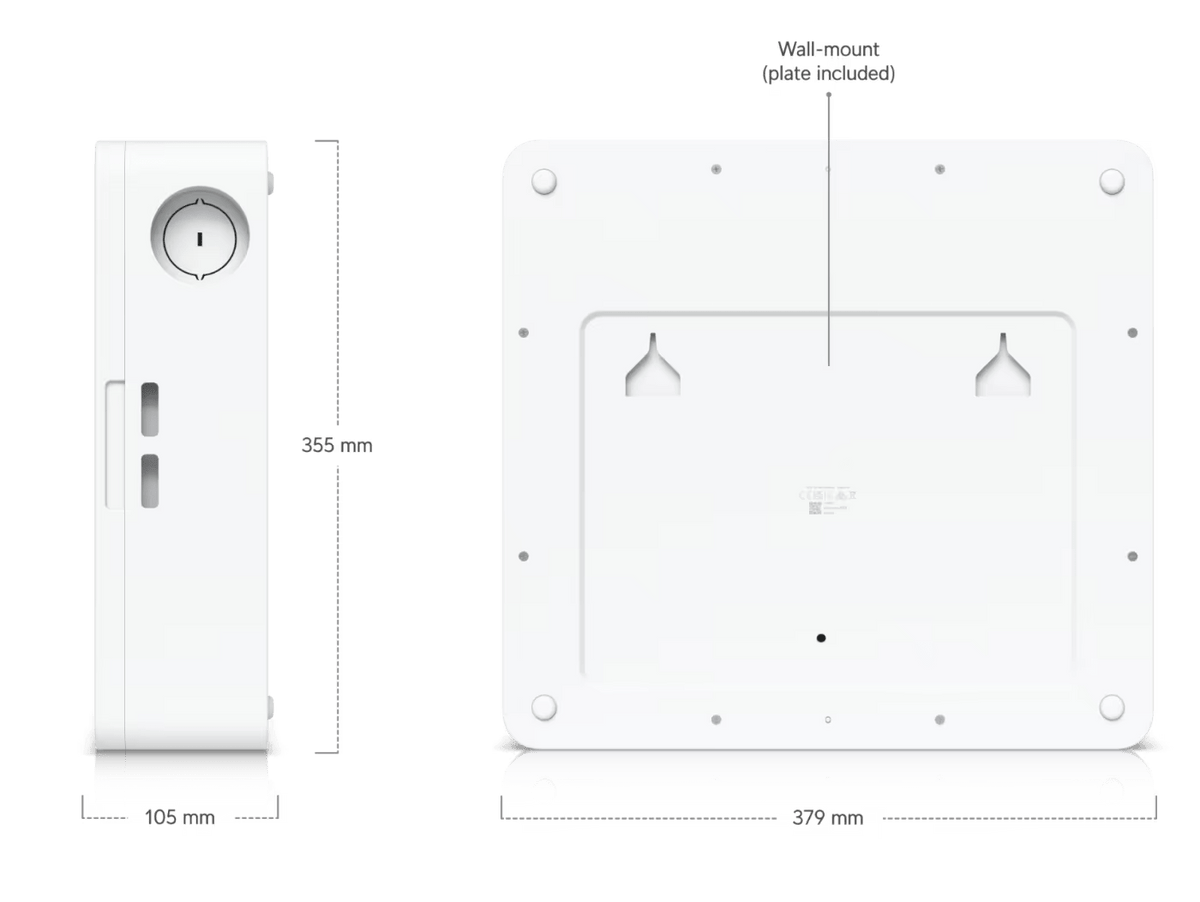

| Dimensions | 379 × 355 × 105 mm (15 × 14 × 4.1") |
| Supported Doors | 8 |
| Power Method | Universal AC: 100–240V AC, Max. 4.4A, 50/60 Hz DC: 32–48V Lead Acid Battery, Max. 7.5A @ 32V |
| Weight | Device: 9.1 kg (20 lb) Mount: 624 g (1.4 lb) |
| Enclosure Material | SGCC steel with polycarbonate cover |
| Mount Material | SGCC steel |

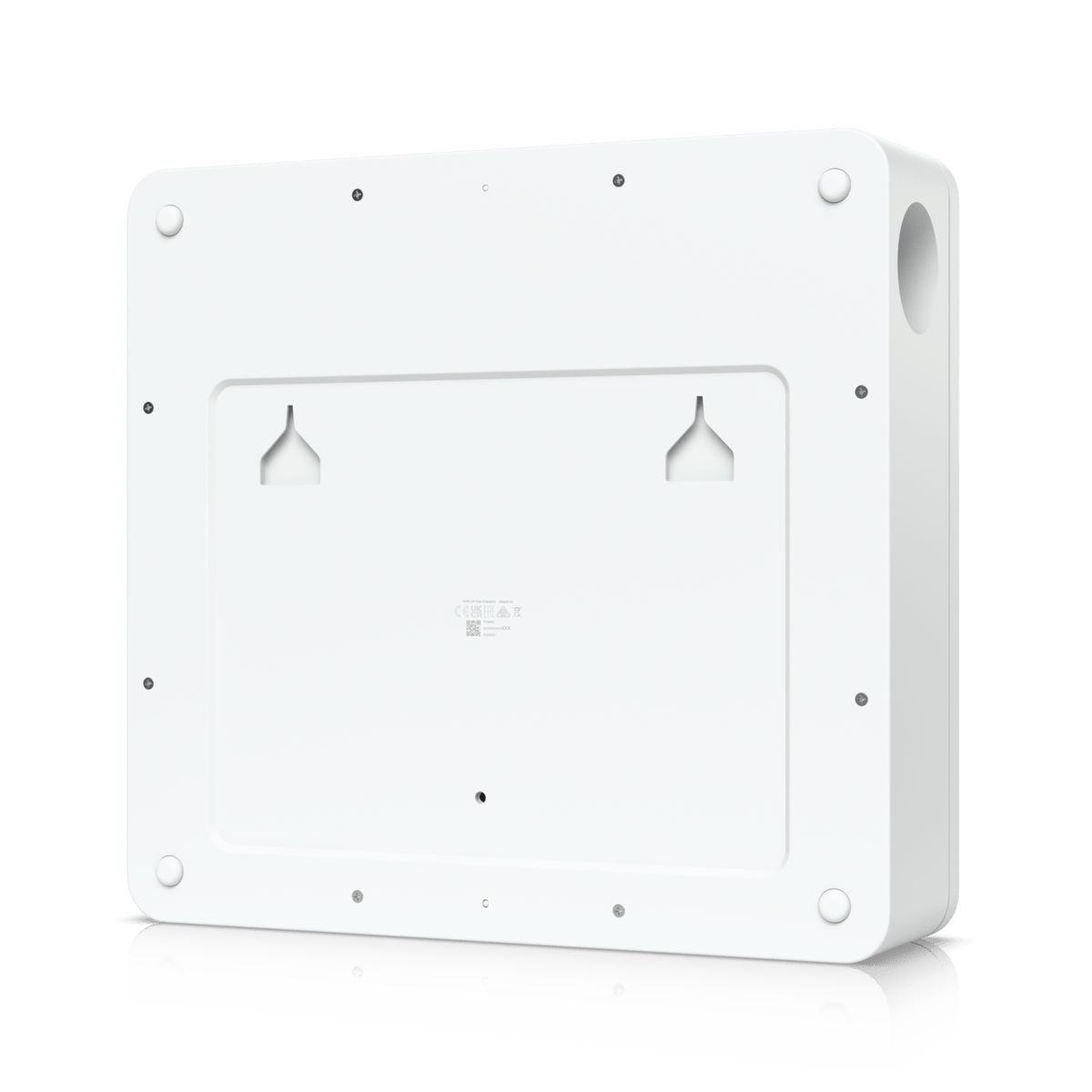

| Mounting | Wall |
| Use Case | Indoor only |
| Ambient Operating Temperature | 0 to 40°C (32 to 104°F) |
| Ambient Operating Humidity | 5 to 95% RH noncondensing |
| Networking Interface | (10) 10/100/1000 Base-T |
| PoE Ports | (8) PoE |
| Total Available PoE | 60W |
| PoE per Port | Max. 15.4W |
| Power Supply | Internal AC/DC |
| Max. Power Consumption | 240W |
| Digital Inputs | (8) Door exit request, (8) Door position, (1) Emergency |
| Dry Output Relays | (8) Lock terminals (12V or Dry), (4) AUX for Chime/Siren/Door opener |
| Powered Output Relay | Lock: 12V DC, 1A / Dry AUX: Dry only |
| LEDs | White/Blue status indicator |
| Buttons | (1) Factory-reset |
| Recommended Max. Cable Lengths | |
| UA-Lock-Electric (400mA) | 24 AWG: 25m, 22 AWG: 42m, 20 AWG: 66m, 18 AWG: 100m |
| UA-Lock-Magnetic-540kg (500mA) | 24 AWG: 20m, 22 AWG: 32m, 20 AWG: 51m, 18 AWG: 80m |
| UA-Lock-Magnetic-270kg (800mA) | 24 AWG: 12m, 22 AWG: 20m, 20 AWG: 30m, 18 AWG: 46m |
| Other Locks (1A) | 24 AWG: 9m, 22 AWG: 15m, 20 AWG: 24m, 18 AWG: 36m |
| PoE Cabling Requirements | Minimum Cat 5e, Patch Cord ≥ 26 AWG, Riser ≥ 24 AWG |
| UL 294 Compliance | Destructive Attack: Level I Line Security: Level I Endurance: Level I Standby Power: Level I |
| UL 294 Statement | Not verified for IEEE 802.3 compliance under UL 294; complies with NEC Article 725.121 |
| CAN/ULC-60839-11-1 Grade | Grade I |
| Certifications | CE, FCC, IC, UL 294, CAN/ULC-60839-11-1 |
| Software | Managed via UniFi Access |
| Document Info | Document No.: EAH-8, Ver 01 |
