Advanced 16-Port Surveillance NVR PoE Switch
Ideal for Intelligent IP Surveillance and Remote Backup

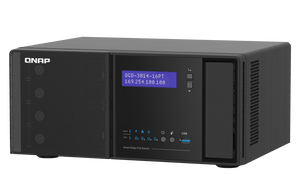

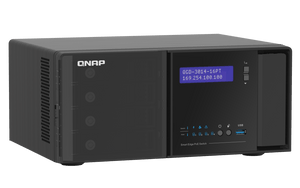

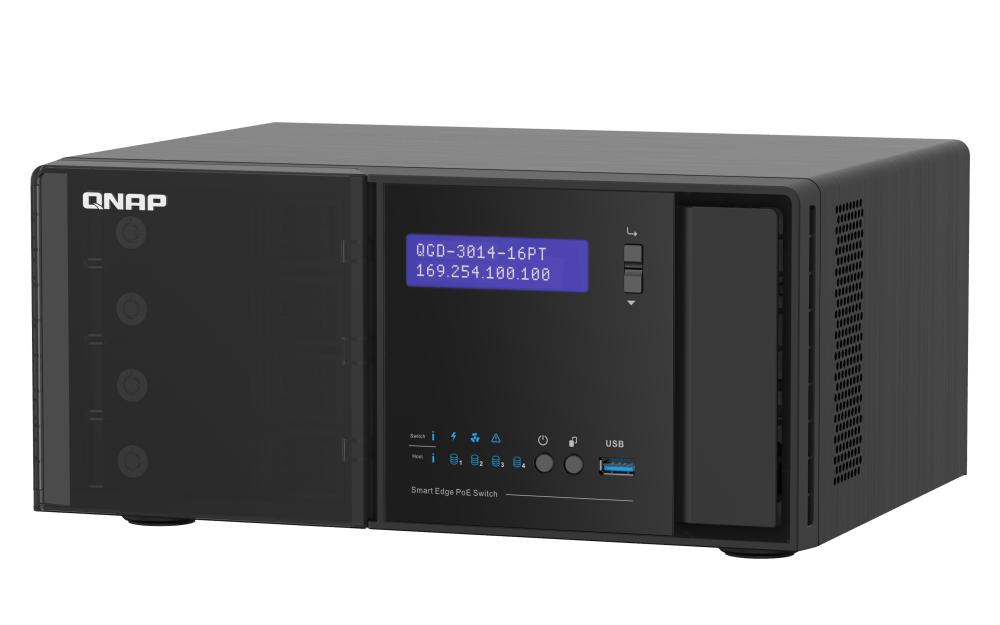

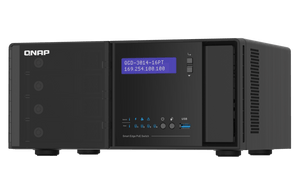

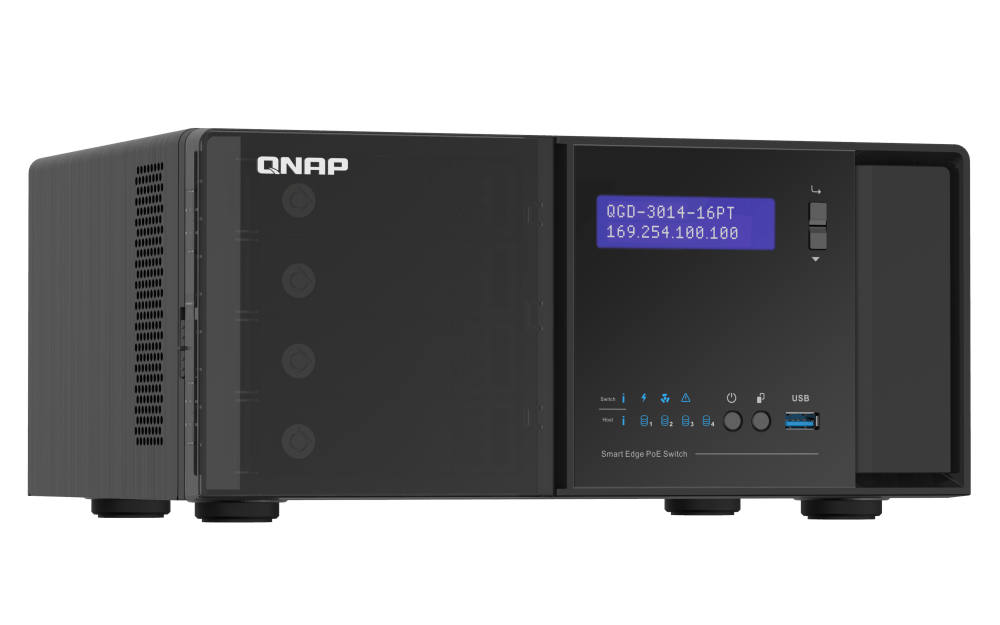

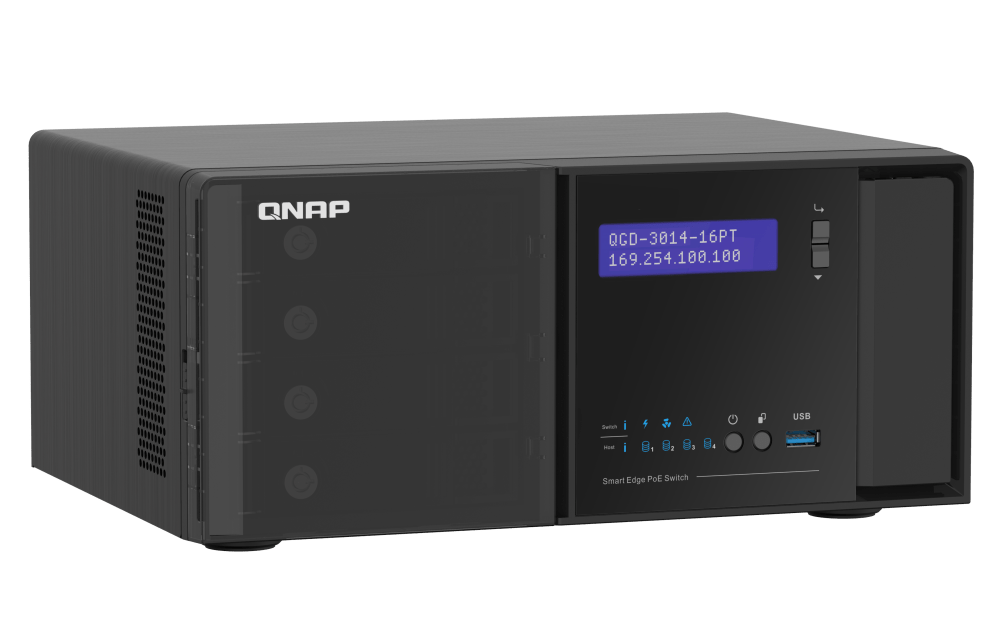

The QNAP QGD-3014-16PT is a Desktop Guardian PoE managed switch designed to streamline surveillance and backup solutions. It's equipped with powerful hardware and comprehensive software capabilities, making it perfect for intelligent surveillance infrastructure.
Key Features
- PoE+ Standard Compliance: Adheres to IEEE 802.3at PoE+ standards, providing sixteen 30-watt Gigabit PoE ports with a total power budget of 140 watts.
- Layer 2 Network Management: Offers extensive Layer 2 management features for efficient control of network bandwidth and security.
- SATA Drive Bays: Comes with four drive bays for SATA SSDs or HDDs.
- 4K HDMI™ Output: Supports real-time transcoding and 4K 60Hz surveillance video playback via HDMI™ 2.0 output.
- Data Backup & Recovery: Facilitates local, remote, and cloud backup solutions, enhancing disaster recovery strategies.
- Mesh VPN Support: Hosts various applications through containerized and virtual machines, including QuWAN SD-WAN, virtual routers, and firewalls.
Surveillance and Backup Integration
- Complete Surveillance Deployment: Integrates QVR Pro for camera management, QUSBCam2 for USB camera support, and a robust storage backup system.
- Efficient Network and Storage: Utilizes two 2.5GbE host management ports for virtual networking and large storage space for surveillance footage backup.
- Central Management: Offers centralized control over video capture, playback, and processing through QVR Pro Client and QVR Center.
Design and Output
- Modern, Quiet Design: Features a contemporary design with a quiet cooling system, fitting well in retail spaces and showrooms.
- 4K 60Hz HDMI™ Output: Direct playback of live feeds in 4K resolution, suitable for smart retail surveillance environments.
PoE Management for High-Power Devices
- High-Power Device Support: Supplies power to high-powered devices like 4K PTZ cameras and IP phones.
- Intelligent PoE Management: Includes functions like scheduling, power supply prioritization, and enabling/disabling power supply.
QVR Pro for Surveillance System Management
- QVR Pro Integration: Allows for dedicated, scalable storage space for surveillance data and supports a wide range of ONVIF® IP cameras.
- Remote Backup Capabilities: HBS 3 facilitates remote backup, transferring data between QGD-3014-16PT units, QNAP NAS, remote servers, or cloud storage.
Multi-Site VPN with SD-WAN
- SD-WAN Solution: Utilizes QuWAN for encrypted VPN networking across multiple sites, optimizing network service and supporting cloud-centric management.
First PoE Switch Series with VM Support
- VM and Cloud Applications: Supports virtual machines, containers, and various cloud applications for networking and storage solutions.
- Dual-Processor Structure: Enables independent operation of networking management (QSS) and QTS, ensuring uninterrupted operation during reboots.
Layer 2 Management with QuNetSwitch
- Comprehensive Control: Provides Layer 2 management, including VLAN, LACP, LLDP, and security features for efficient network management.
- User-Friendly Interface: Offers an intuitive web interface for easy deployment and management of IT infrastructure.
Summary
The QNAP QGD-3014-16PT is a versatile and powerful PoE switch, ideal for businesses seeking an integrated solution for surveillance, storage, network security, and WAN management. Its robust hardware, combined with advanced virtualization and networking features, make it a top choice for creating a smart and efficient surveillance infrastructure.
Mga detalye
| Specification Category | Details |
|---|---|
| Management Type | Web Managed |

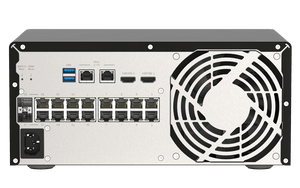

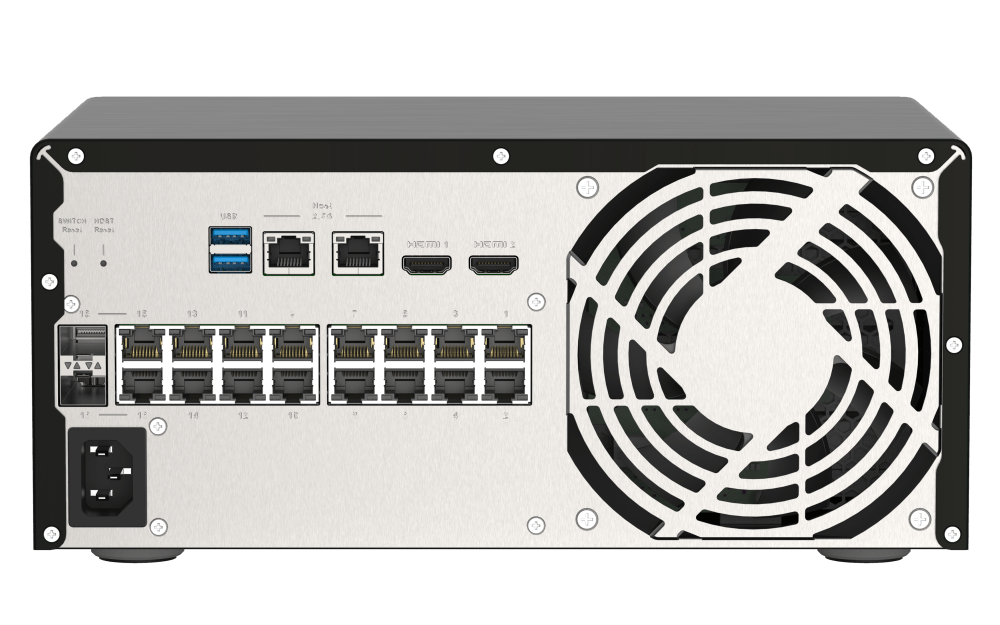

| Number of Ports | 16 |
| 1GbE (RJ45) | 14 |
| 1GbE SFP/RJ45 Combo Ports | 2 |
| Total PoE Ports | 16 |
| PoE PSE (802.3af, 15.4W) | Ports 1-16 |
| PoE+ PSE (802.3at, 30W) | Ports 1-16 |
| PoE++ PSE (802.3bt, 90W) | Ports 1-4 |
| PoE Power Output | Ports 1-4 (Max 90W), Ports 5-16 (Max 30W) |
| Total PoE Power Budget | 140W |
| USB 3.2 Gen 1 port | 3 |
| Management Port | 2 x 2.5GbE |
| HDMI™ Output | 2 |
| Power Supply Description | Internal Power Supply Unit |
| Max. Power Consumption | 250W |
| Input Power Type | AC |
| Input Voltage Range | 100-240VAC, 50/60Hz |
| MAC Address Table | 8K |
| Total Non-Blocking Throughput | 16Gbps |
| Switching Capacity | 32Gbps |
| Management Interface | Web |
| Fan | System: 12 x 12 cm (12V DC) |
| Supported Standards | IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af/at |
| Form Factor | Desktop |
| LED Indicators | Per Port: Link/Activity/Speed/PoE; System: Warning/PoE/Fan |
| Dimensions (HxWxD) | 130 × 295 × 224.8 mm |
| Weight (Net) | 4.08 kg |
| Weight (Gross) | 5.34 kg |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 5% to 95% non-condensing |
| Certifications | CE, FCC, VCCI, BSMI |
| Electromagnetic Compliance | CLASS A |
| Jumbo Frames | Yes |
| QTS Built-in | Yes |
| CPU | Intel Celeron ® J4125 quad-core 2.0 GHz processor (burst up to 2.7 GHz) |
| CPU Architecture | 64-bit x86 |
| Internal Network Bandwidth | 2 x 1GbE |
| Graphics Processors | Intel® HD Graphics 600 |
| Encryption Engine | AES-NI |
| System Memory | 8 GB (2 x 4 GB) |
| Maximum Memory | 8 GB |
| Memory Slot | 2 x SODIMM DDR4 |
| Flash Memory | 4GB (Dual boot OS protection) |
| Drive Bays | 4 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 2.5-inch SSDs and HDDs; 3.5-inch SSDs and HDDs |
| Hot-swappable | Yes |
| M.2 SSD Slots | 2 (M.2 SATA 2280) |
| SSD Cache Acceleration Support | Yes |
| File System: Internal Hard Drive | EXT4 |
| File System: External Hard Drive | EXT3, EXT4, NTFS, FAT32, HFS+, exFAT (optional license) |
| Warranty | 2 Years |
