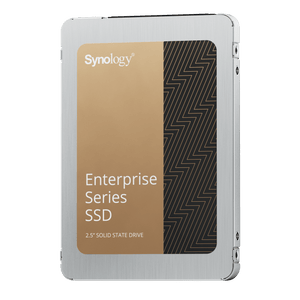

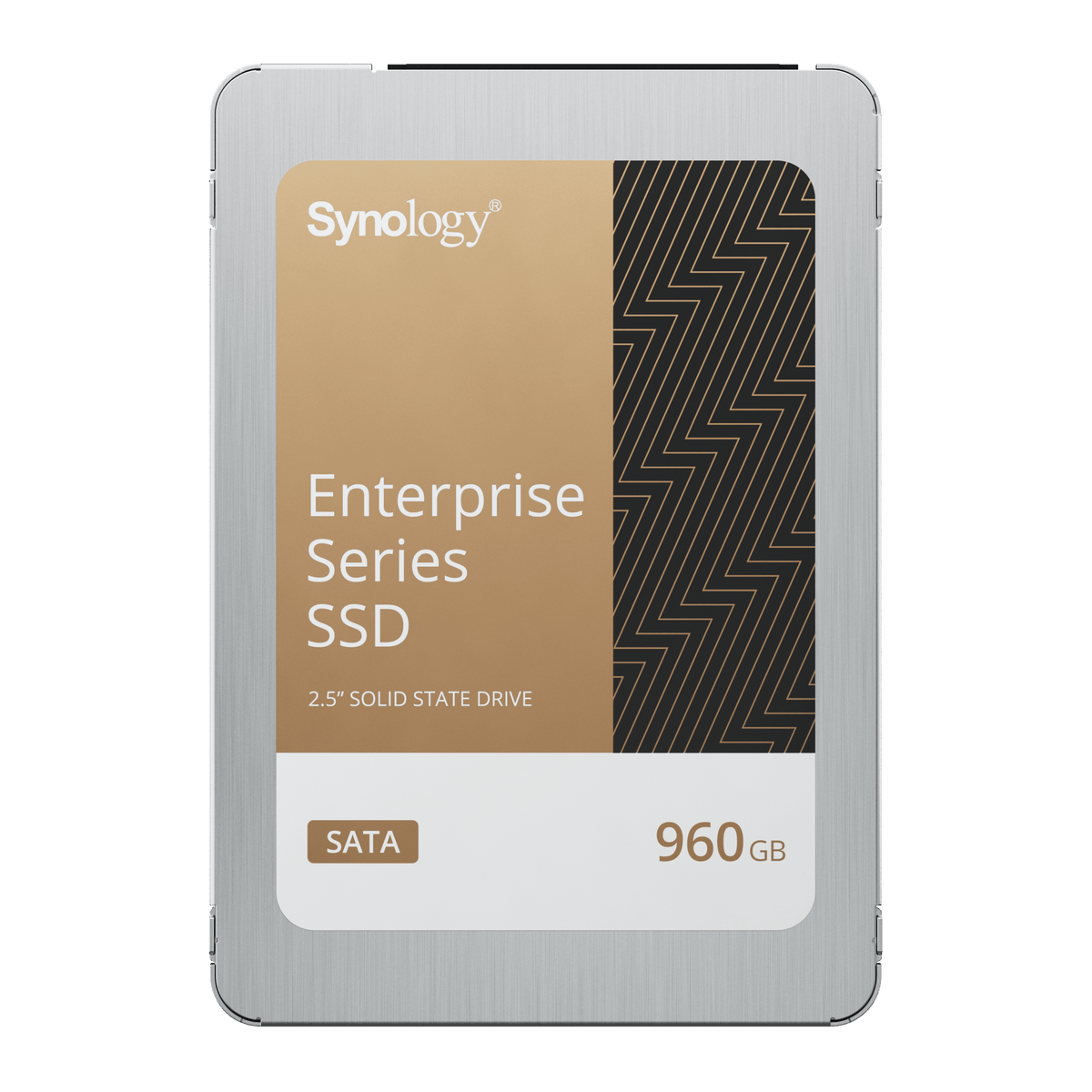

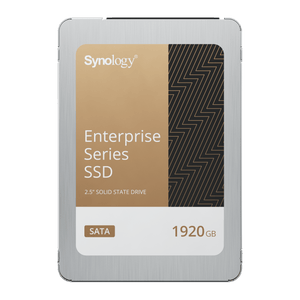

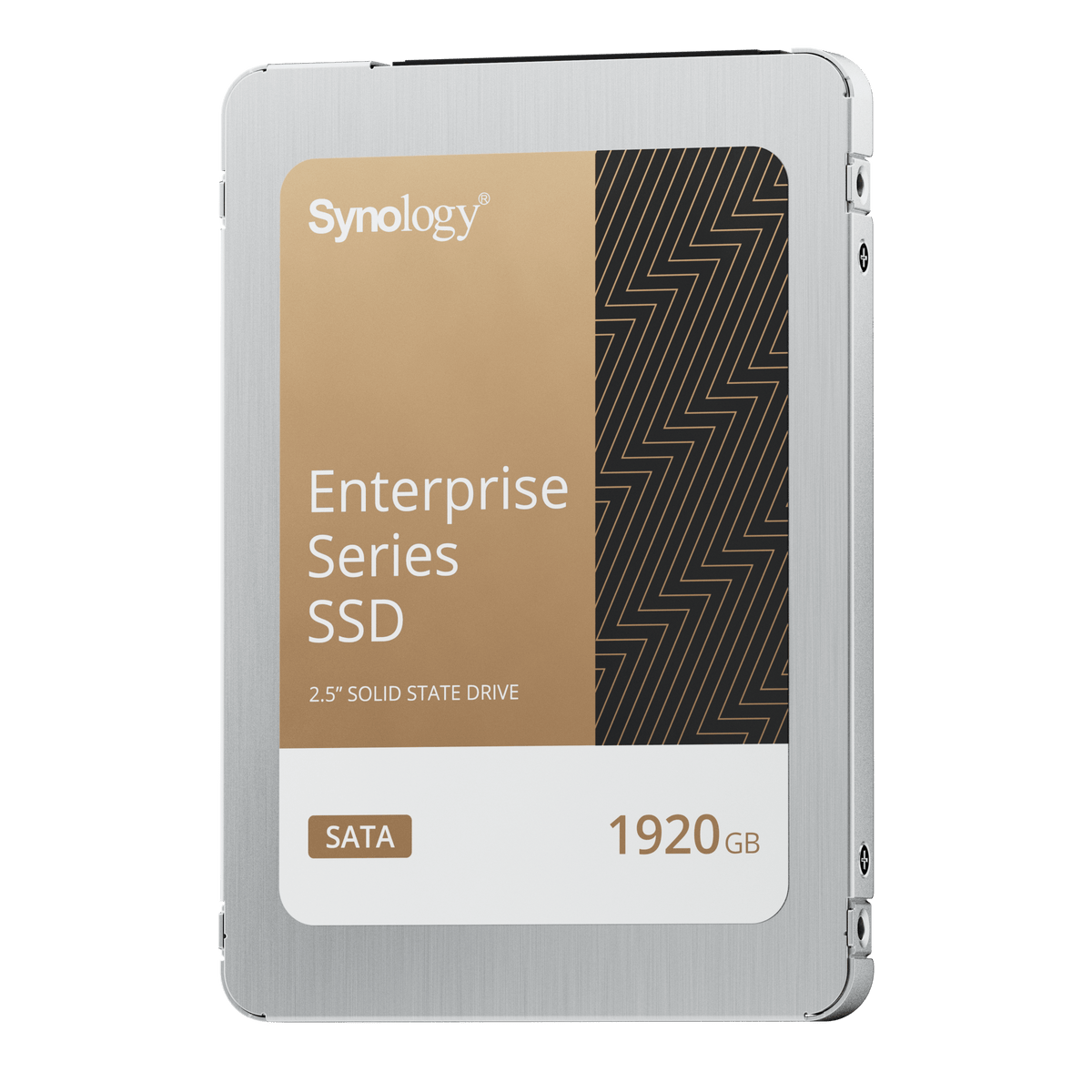

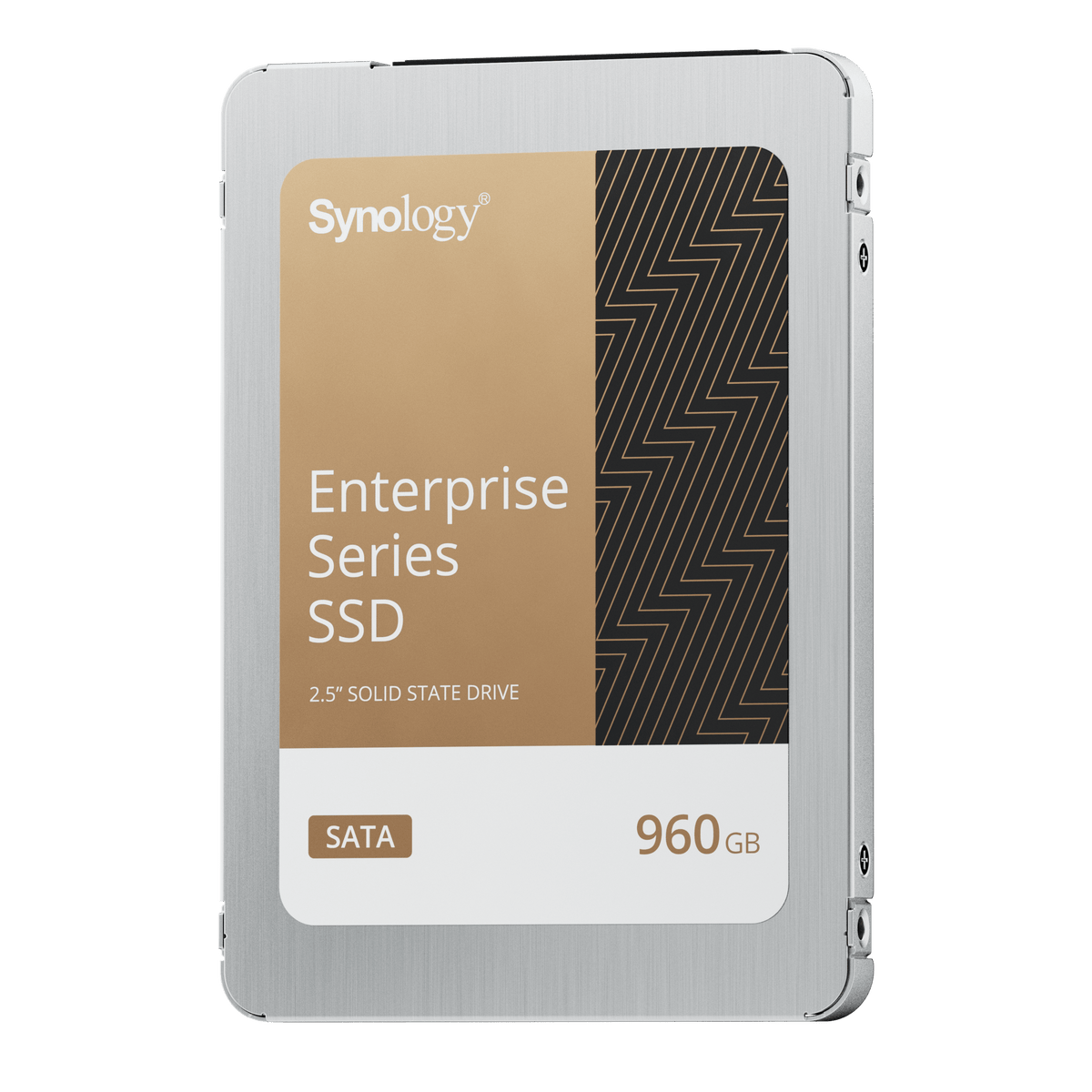

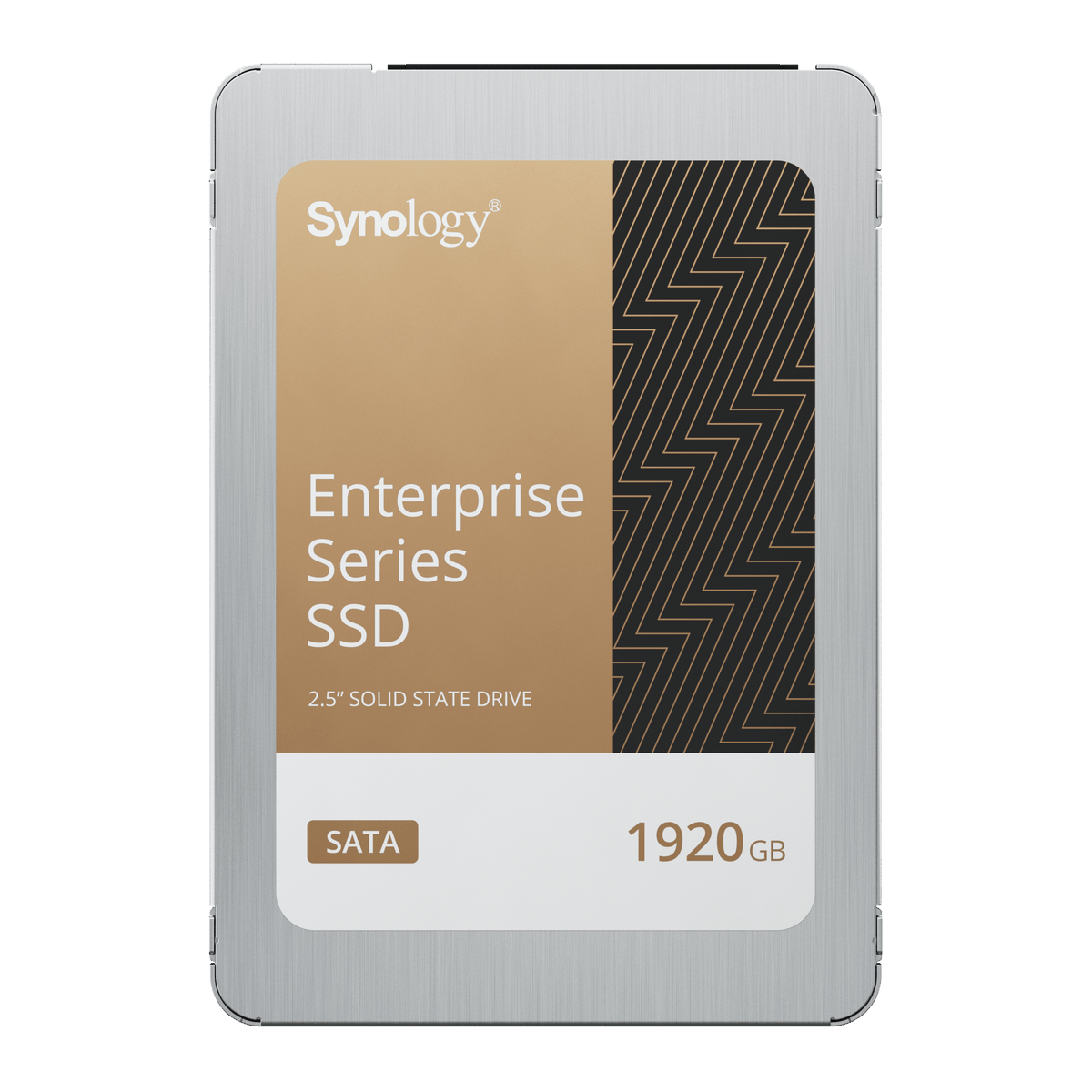

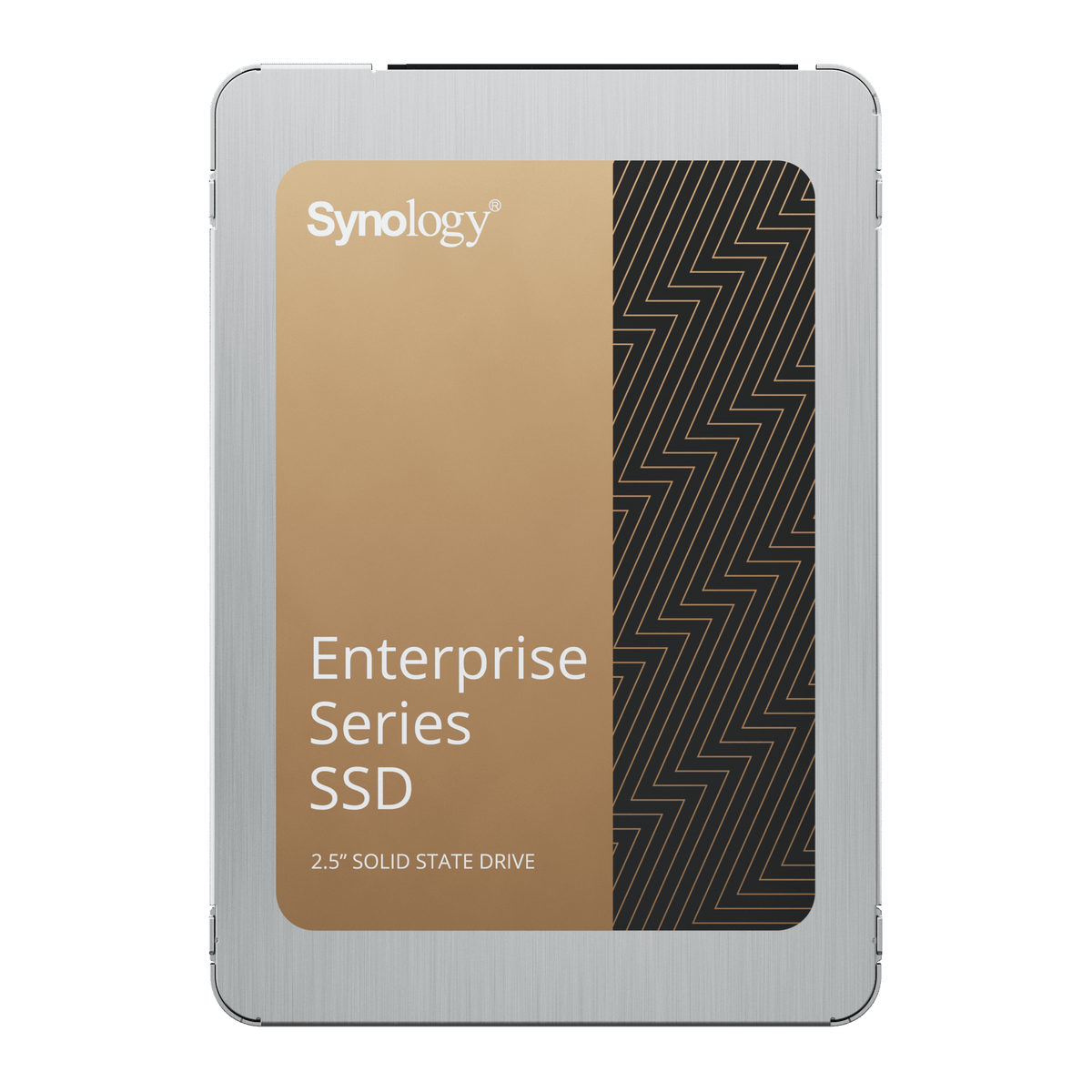

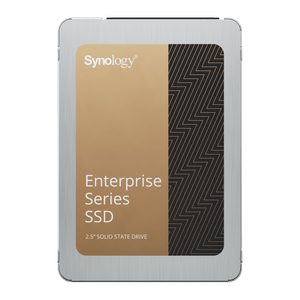

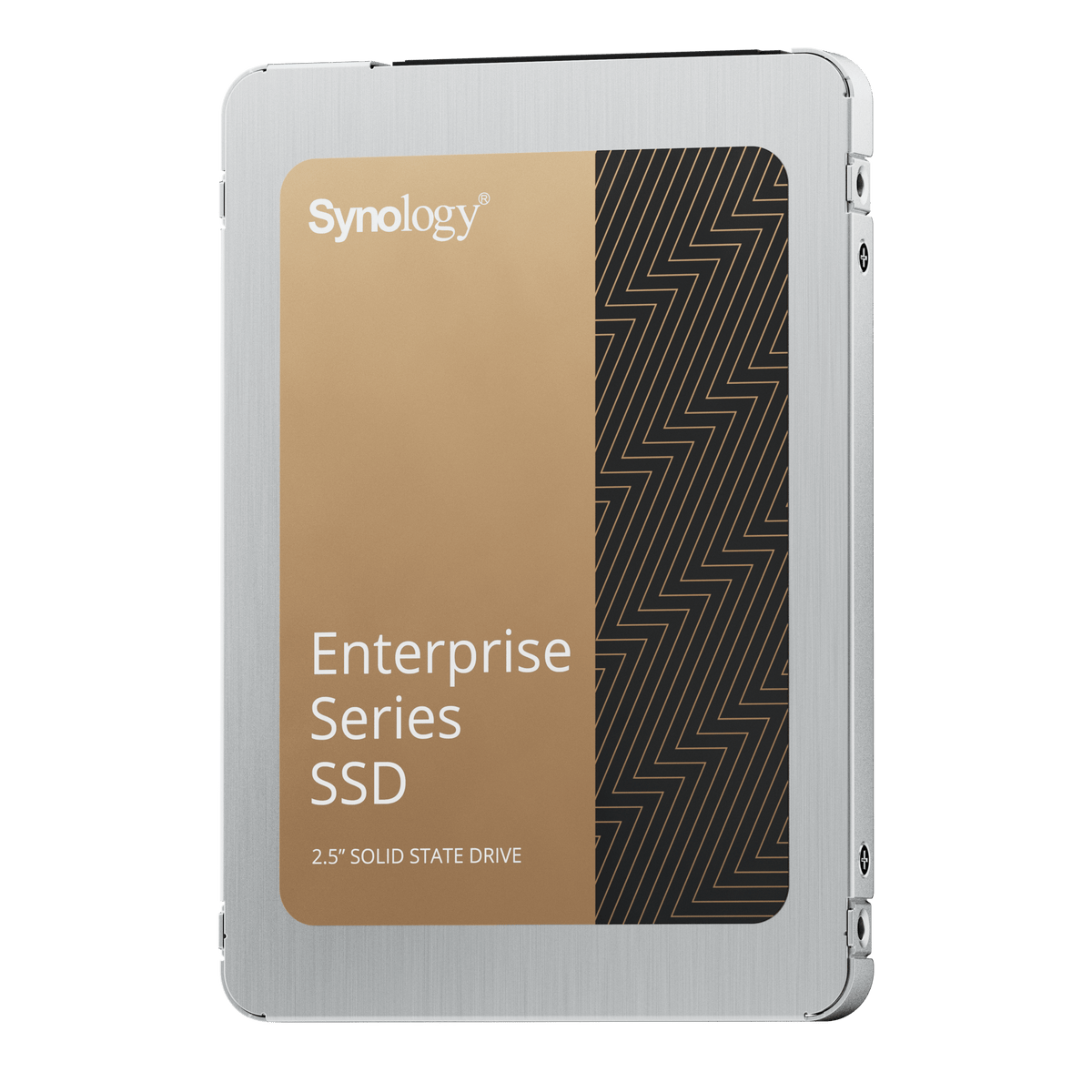

Enterprise SATA flash for demanding NAS workloads
Synology SAT5221 Enterprise Series SSDs provide sustained performance for compatible NAS storage. Choose 480GB, 960GB, 1.92TB or 3.84TB, with a 2.5-inch SATA design, power loss protection and integrated drive management.
Highlights
SAT5221 capacities
- 480GB / 960GB / 1.92TB / 3.84TB
- 2.5-inch 7mm form factor
- SATA 6Gb/s interface
Sustained performance
- Up to 500MB/s sequential read and write
- Up to 90,000 random read IOPS
- Up to 30,000 random write IOPS
Enterprise protection
- Power loss protection
- Drive health and supported firmware management
- 5-year limited warranty or endurance limit, whichever comes first
Key Features
Consistent storage performance
SAT5221 is rated for steady-state performance in sustained workloads. Actual NAS performance depends on the host, RAID configuration and application.
Protection during power interruption
Integrated power loss protection helps preserve data in transit during a power interruption. Use appropriate backups and a UPS as part of the complete storage design.
Endurance suited to your workload
Endurance exceeds 900TBW for 480GB, 1,700TBW for 960GB, 3,500TBW for 1.92TB and 7,000TBW for 3.84TB. Choose capacity and endurance according to the expected write workload.
Compatible systems
All four SAT5221 capacities are supported in DS1825+, RS1226+ and RS1226RP+. Contact ACE to confirm other NAS or expansion configurations. The separately listed 7TB option is a different generation; confirm its exact model and specifications with ACE before ordering.
Summary
Choose SAT5221 for enterprise SATA flash storage with sustained performance and power loss protection. Match the drive capacity and endurance to your compatible Synology deployment.
Mga detalye
Synology Enterprise Series 2.5 Inch SATA SSD
The specifications below describe the current SAT5221 models from 480GB to 3.84TB. These drives share a 2.5-inch 7mm SATA design with power loss protection and steady-state performance ratings. Endurance and power use vary by capacity. This grouped listing also retains a separate legacy 7TB selection, whose exact model and compatibility should be confirmed before ordering. Do not apply the SAT5221 performance figures to that different generation.
| Specification | Details |
|---|---|
| SAT5221 design | |
| Capacities | 480GB / 960GB / 1.92TB / 3.84TB |
| Form factor | 2.5-inch 7mm |
| Interface | SATA 6Gb/s |

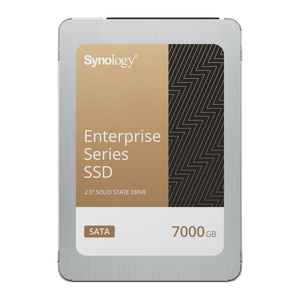

| Legacy 7TB selection | Different generation; confirm exact model and host compatibility |
| SAT5221 sustained performance | |
| Sequential read / write | Up to 500MB/s / 500MB/s |
| Random read / write | Up to 90,000 / 30,000 IOPS |
| Test conditions | Sequential: 128KB QD32; random: 4KB QD32; manufacturer steady-state tests |
| Endurance | 480GB: >900TBW; 960GB: >1,700TBW; 1.92TB: >3,500TBW; 3.84TB: >7,000TBW |
| Power loss protection | Supported |
| Environment and support | |
| Operating temperature | 0°C to 70°C |
| Storage temperature | -40°C to 85°C |
| Verified SAT5221 NAS examples | DS1825+ / RS1226+ / RS1226RP+ for the four SAT5221 capacities above |
| Warranty | 5-year limited warranty or endurance limit, whichever comes first |
